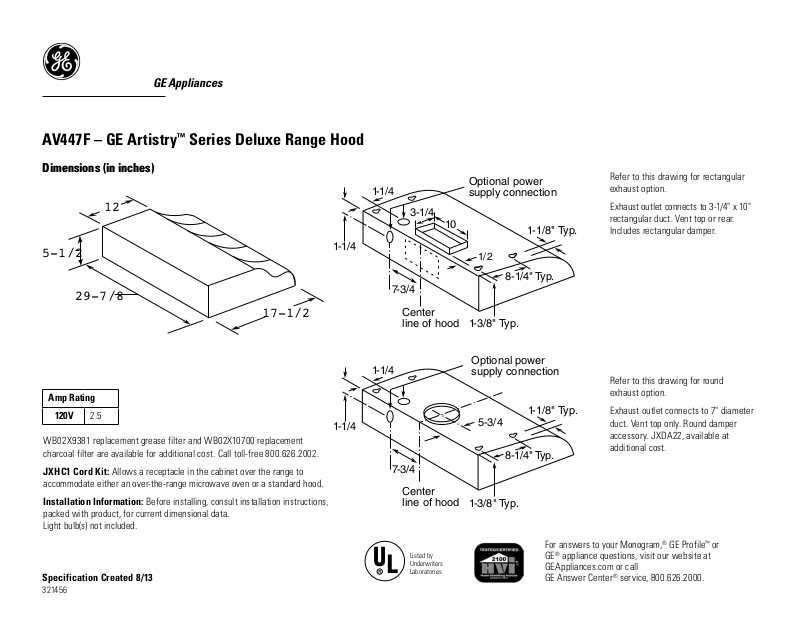

GE AV447FWS, AV447FBS Specification Sheet
AV447F – GE Artistry™ Series Deluxe Range Hood
Model JV347
5-3/4
Center
line of hood
1-1/4
1-1/4
Optional power
supply connection
1-1/8" Typ.
7-3/4
1-3/8" Typ.
8-1/4" Typ.
1-3/8" Typ.
5-1/2
29-7/8
17-1/2
12
Dimensions (in inches)
Dimensions (in inches)
Amp Rating
120V 2.5
WB02X9381 replacement grease filter and WB02X10700 replacement
charcoal filter are available for additional cost. Call toll-free 800.626.2002.
JXHC1 Cord Kit: Allows a receptacle in the cabinet over the range to
accommodate either an over-the-range microwave oven or a standard hood.
Installation Information: Before installing, consult installation instructions,
packed with product, for current dimensional data.
Light bulb(s) not included.
Specification Created 8/13
32145 6
GE Appliances
1-1/4
1-1/4
1-1/4
1-1/4
3-1/4
7-3/4
Center
line of hood
7-3/4
Center
line of hood
Listed by
Underwriters
Laboratories
10
Optional power
supply connection
1/2
8-1/4" Typ.
1-3/8" Typ.
Optional power
supply connection
5-3/4
8-1/4" Typ.
Refer to this drawing for rectangular
exhaust option.
Exhaust outlet connects to 3-1/4" x 10"
rectangular duct. Vent top or rear.
1-1/8" Typ.
1-1/8" Typ.
Includes rectangular damper.
Refer to this drawing for round
exhaust option.
Exhaust outlet connects to 7" diameter
duct. Vent top only. Round damper
accessory. JXDA22, available at
additional cost.
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center® service, 800.626.2000.
GE Appliances
GE Appliances
AV447F – GE Artistry™ Series Deluxe Range Hood
Features and Benefits
• Convertible venting – Hood configuration can be changed to fit the needs of various
installation requirements.
• Vertical and rear exhaust – Provides the option of connecting duct work to either the rear or
the top of the hood.
• Variable three-speed fan control - Powerful variable speed exhaust system that effectively
pulls smoke and vapors out of the kitchen.
• Cooktop light – Provides light to illuminate cooking surface below hood.
• 200-CFM blower - Helps effectively remove smoke, grease, odors and moisture.
• Model AV447FWS – White on white
• Model AV447FBS – Black on black
Specification Created 8/13
32145 6
