Page 1
GE
Measurement & Control Flow
AT600
User’s Manual
910-312 Rev. A
December 2014
Page 2
Page 3
AT600
Panametrics Ultrasonic Flowmeter for Liquids
User’s Manual
910-312 Rev. A
December 2014
www.ge-mcs.com
©2014 General Electric Company. All rights reserved.
Technical content subject to change without notice.
Page 4
[no content intended for this page]
ii
Page 5
Contents
Chapter 1. Introduction
1.1 Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
1.2 Theory of Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
1.2.1 Transit-Time Flow Measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Chapter 2. Installation
2.1 Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
2.2 Unpacking the AT600 system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

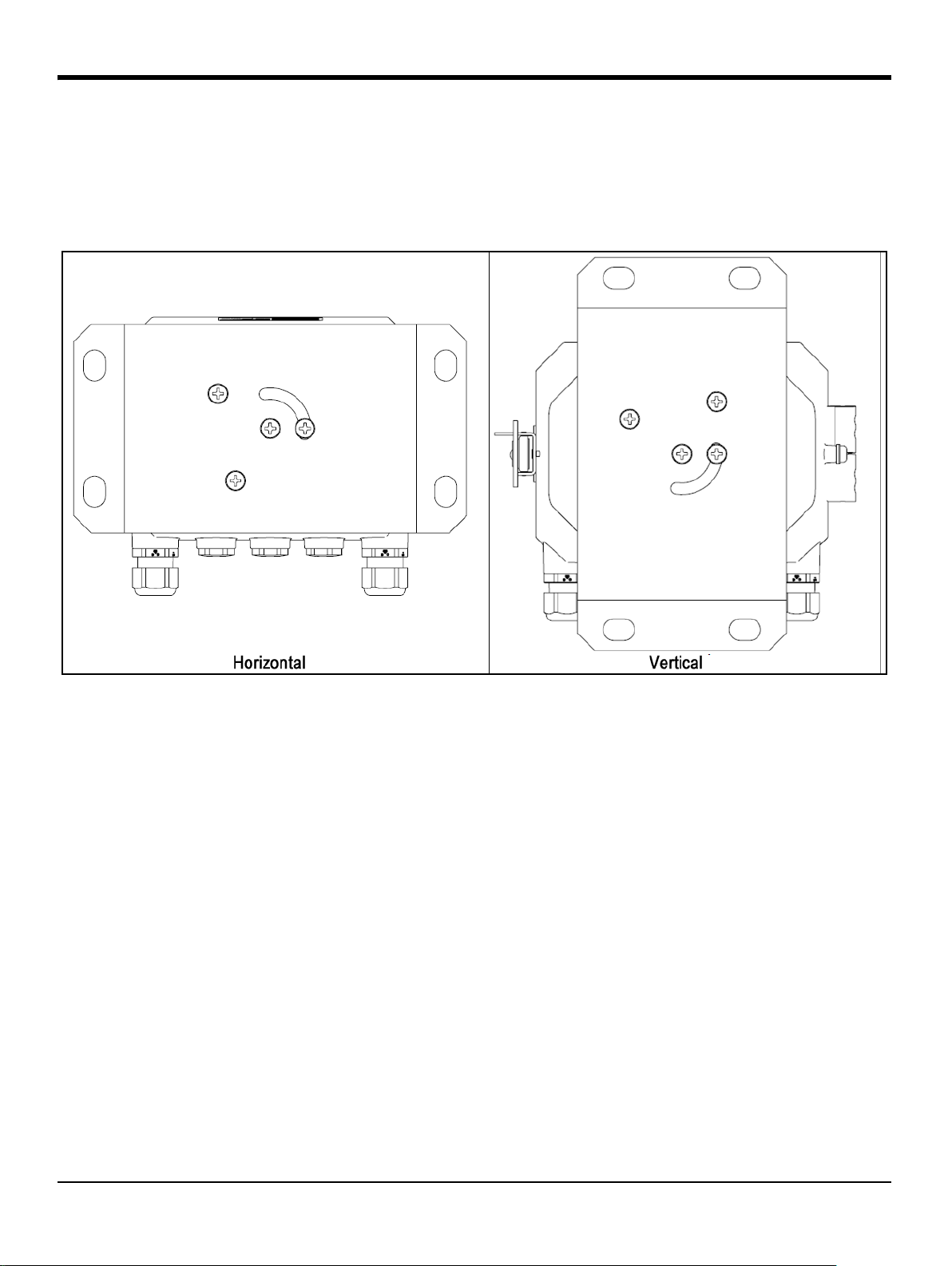

2.3 Installing the Electronics Enclosure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

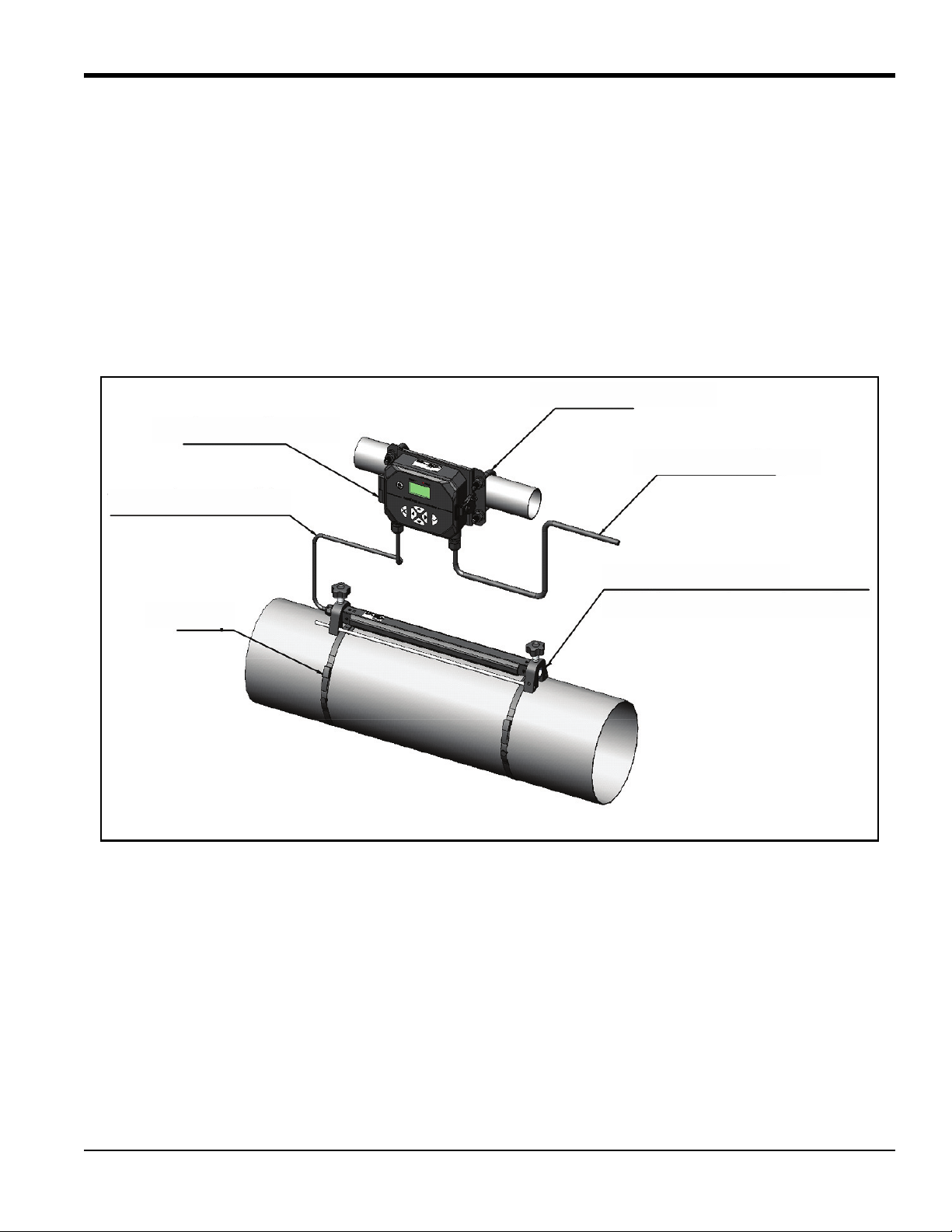

2.4 Installing the Clamp-on Fixture And Transducer System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

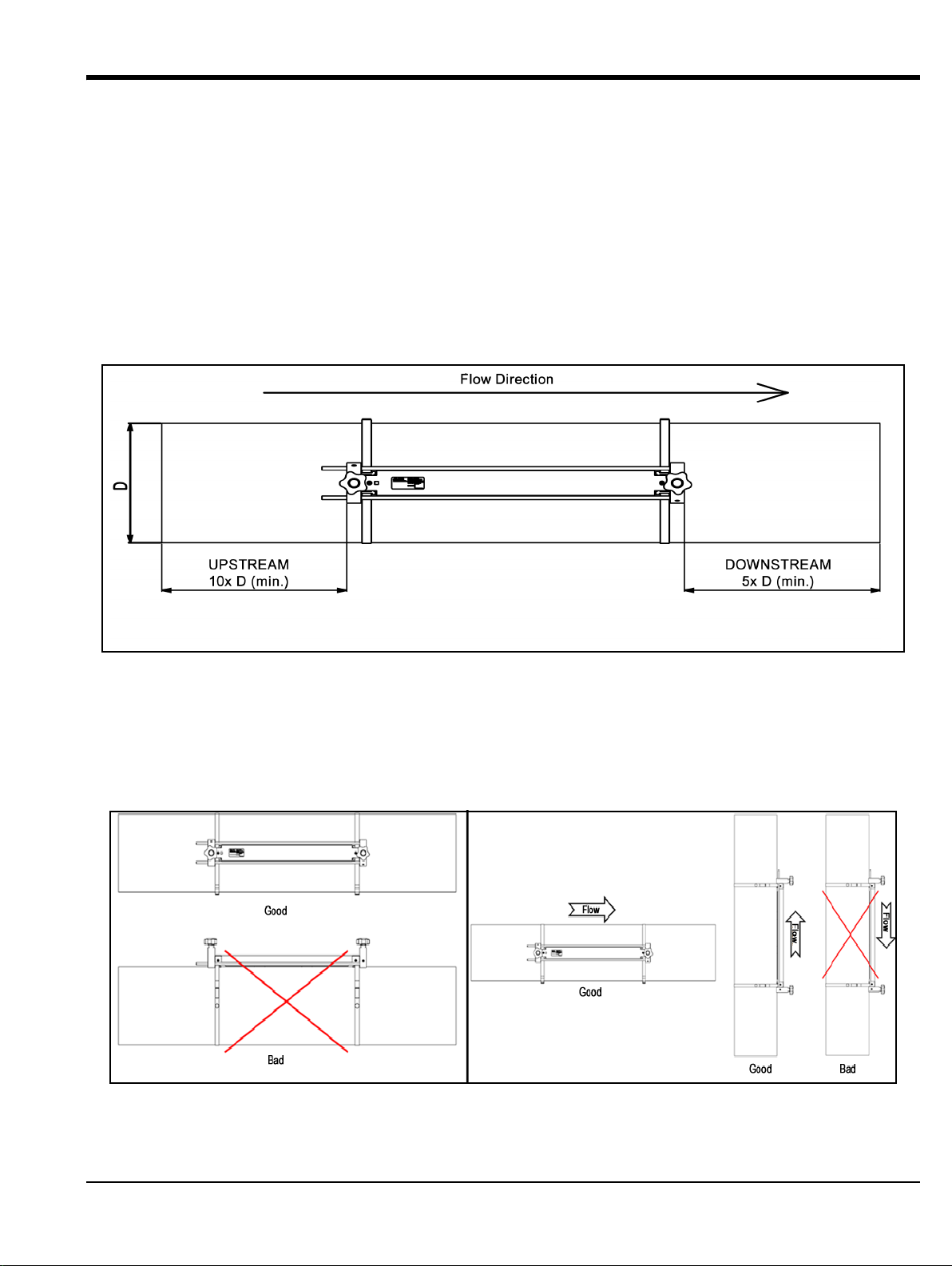

2.4.1 Clamp-on Fixture and Transducer Location. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
2.4.2 Mounting Clamp-on Fixture Onto Pipe (AT6 Transducers) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

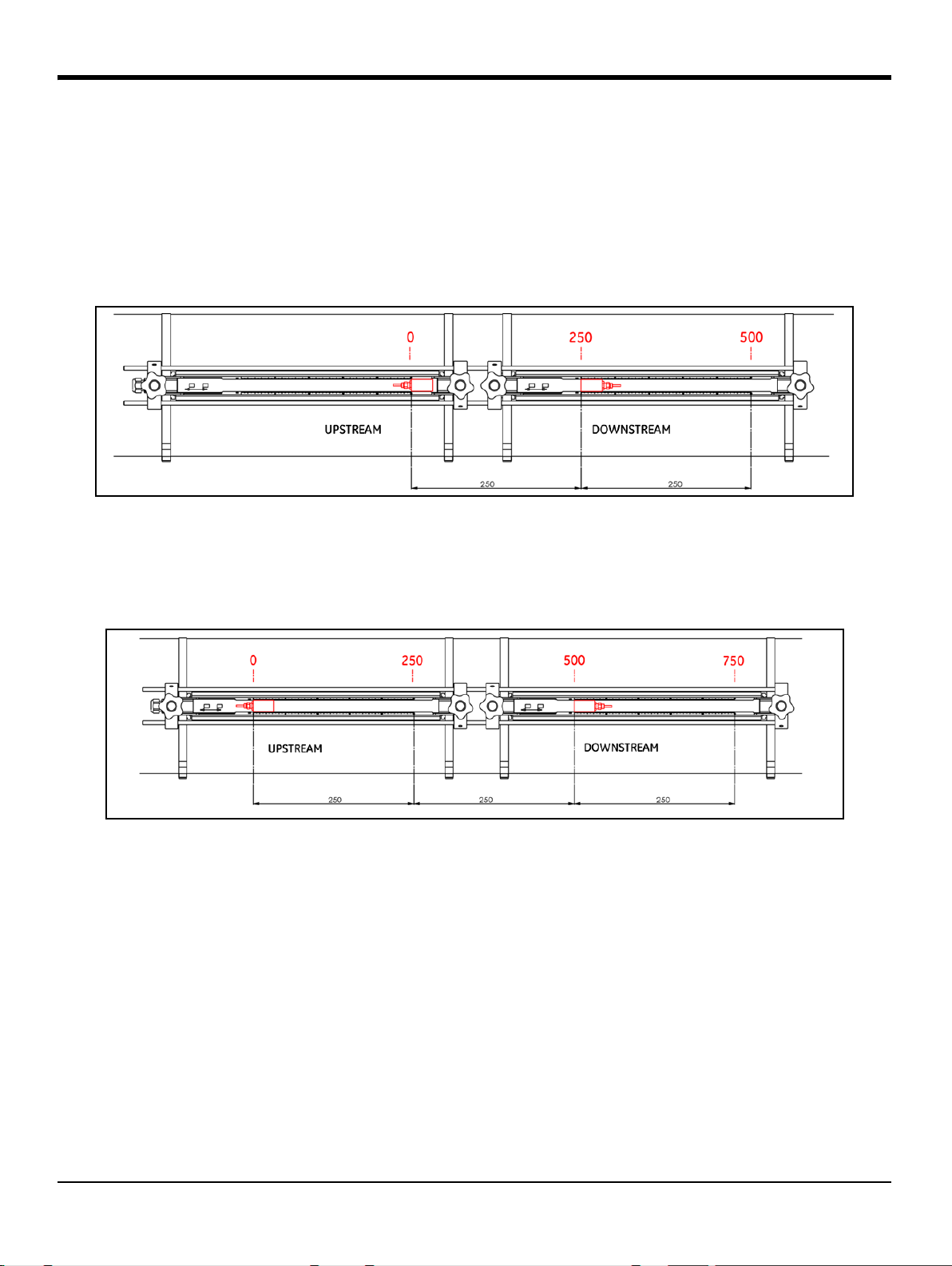

2.4.2a Dual Traverse Installation at Transducer Spacing Range 0 to 250mm . . . . . . . . . . . . . . . . . . . . . . . . .8
2.4.2b Dual Traverse Installation at Transducer Spacing Range 250 to 750mm . . . . . . . . . . . . . . . . . . . . . .10
2.4.2c Single Traverse Installation at Transducer Spacing Range 0 to 250mm . . . . . . . . . . . . . . . . . . . . . . .13
2.4.2d Single Traverse Installation at Transducer Spacing Range 250 to 750mm . . . . . . . . . . . . . . . . . . . .14
2.5 Installing C-RS Fixture and Transducer System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
2.5.1 Installation Guide for C-RS transducer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

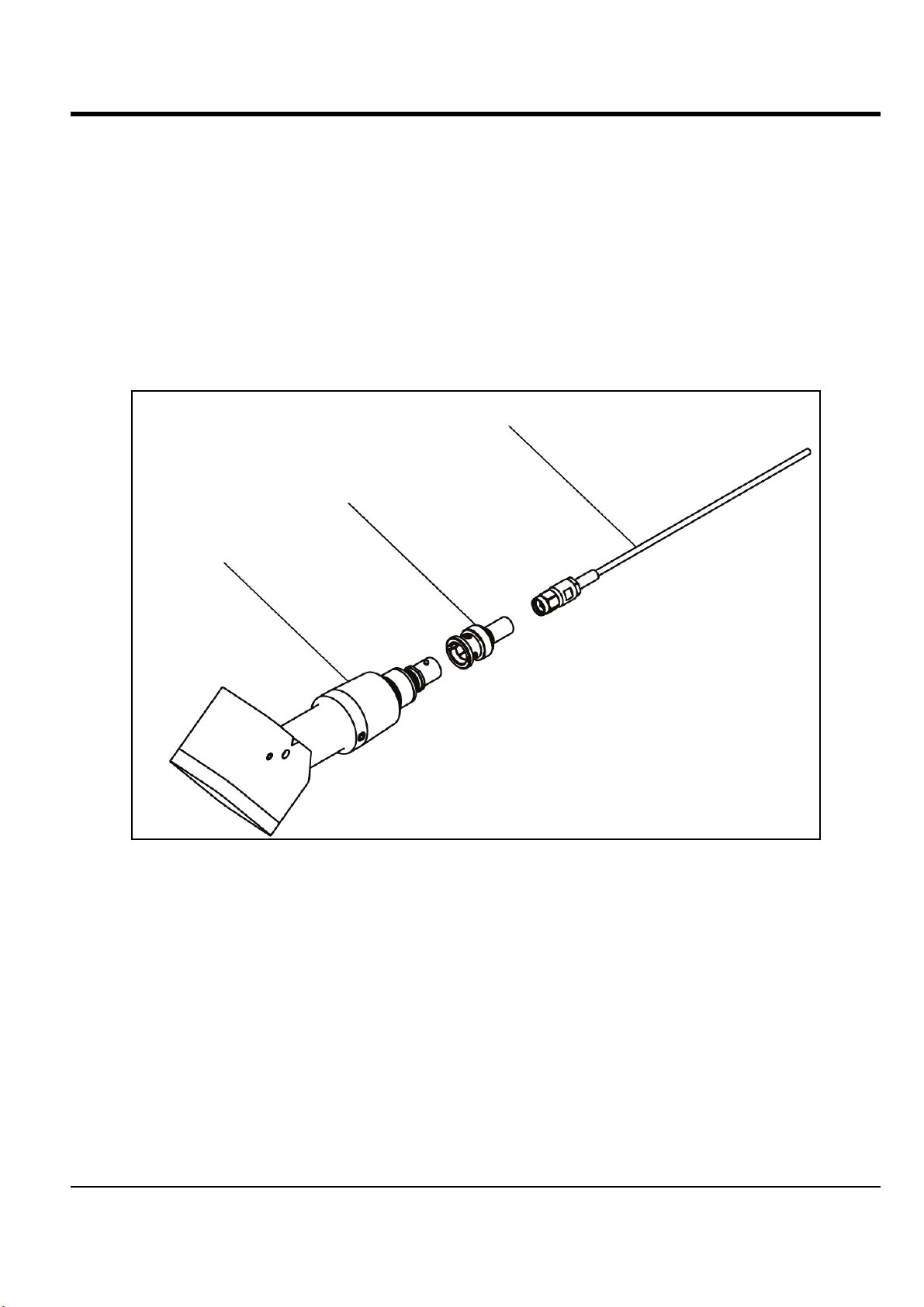

2.5.2 Install Cable Adaptor for C-RS transducer and AT6 cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

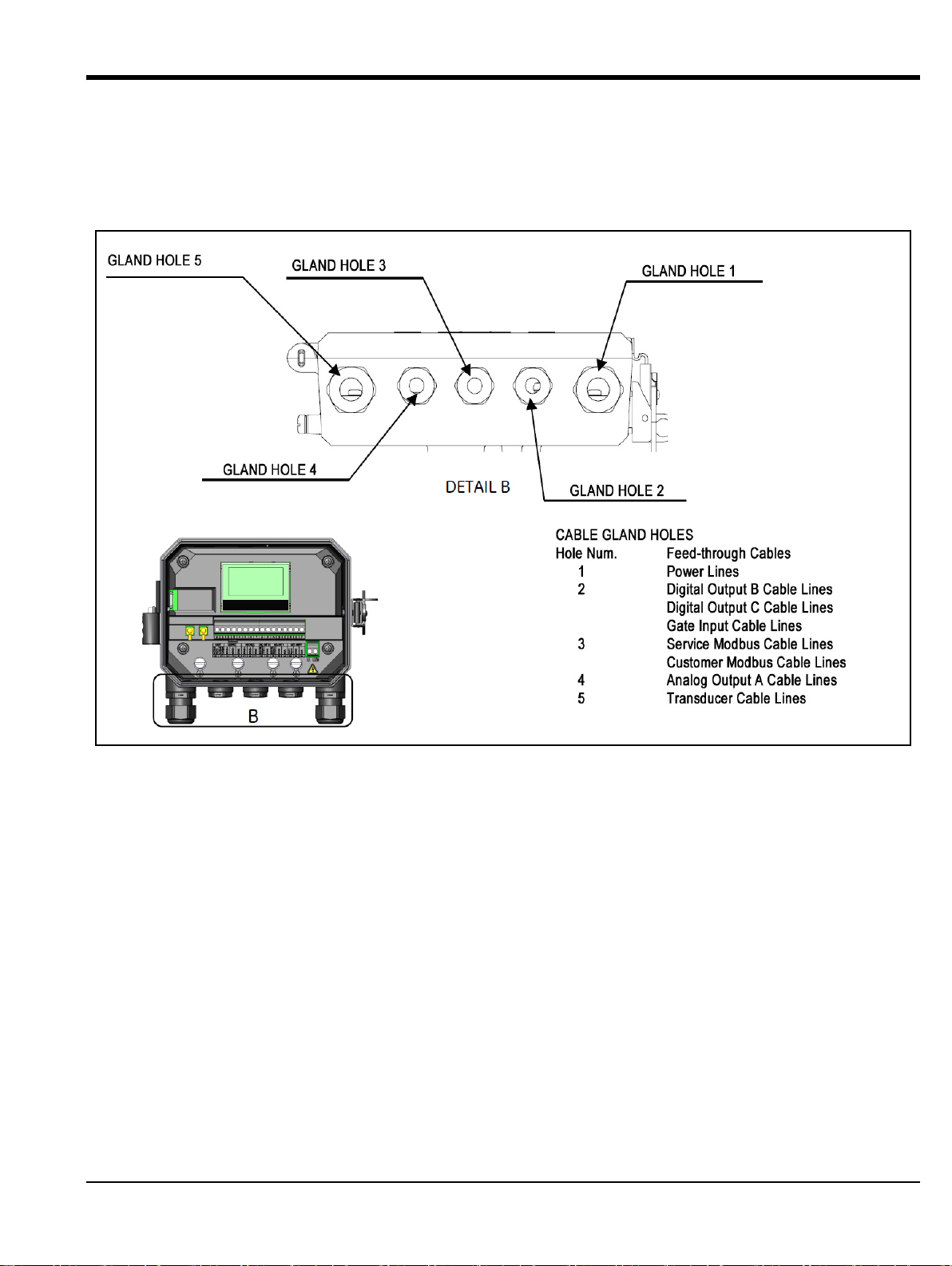

2.6 Making Electrical Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
2.6.1 Wiring the Line Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

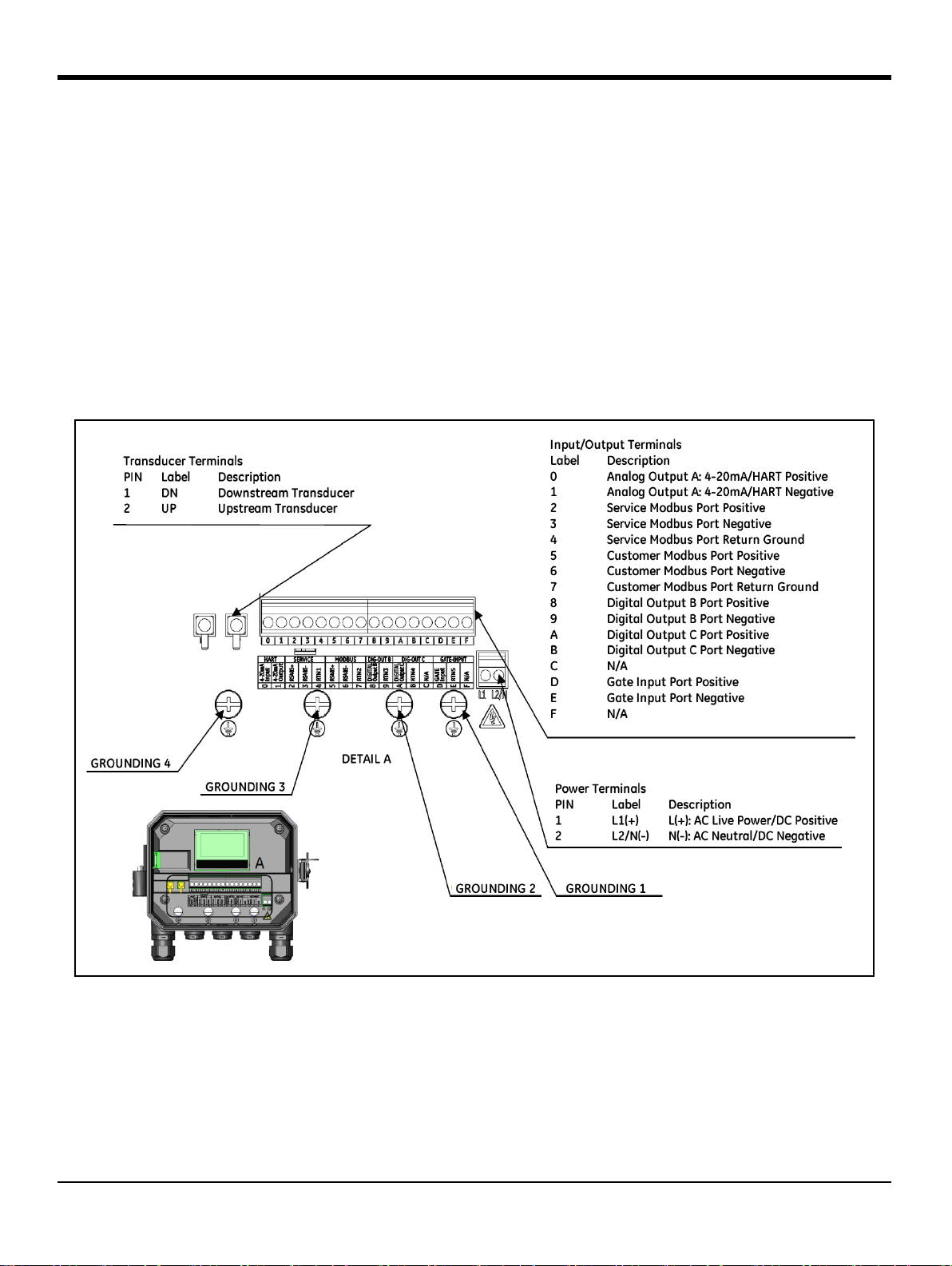

2.6.2 Wiring the Transducers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
2.6.3 Wiring System Ground. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
2.6.4 Wiring Analog Output/HART Communication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
2.6.5 Wiring Modbus Communication. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

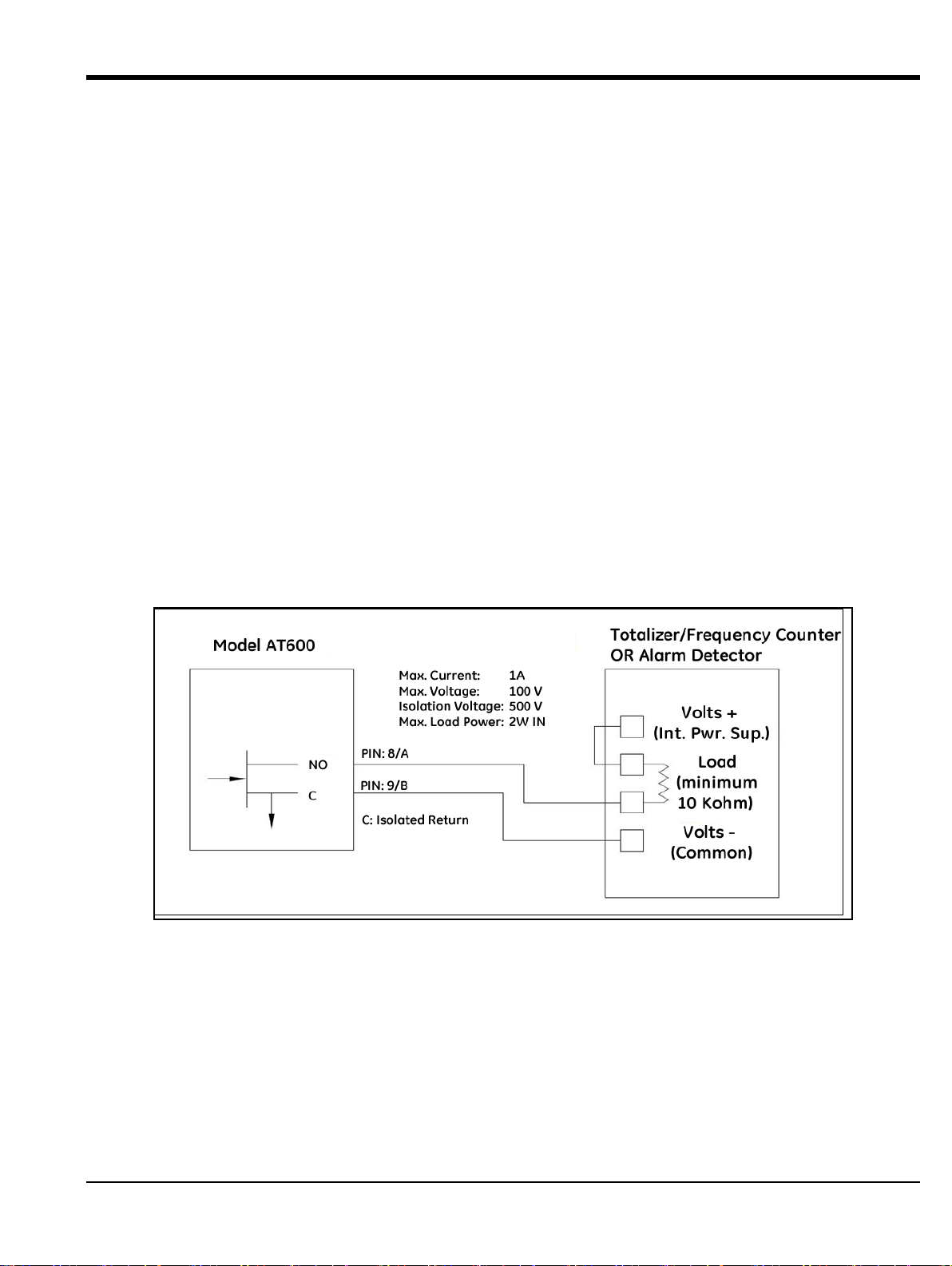

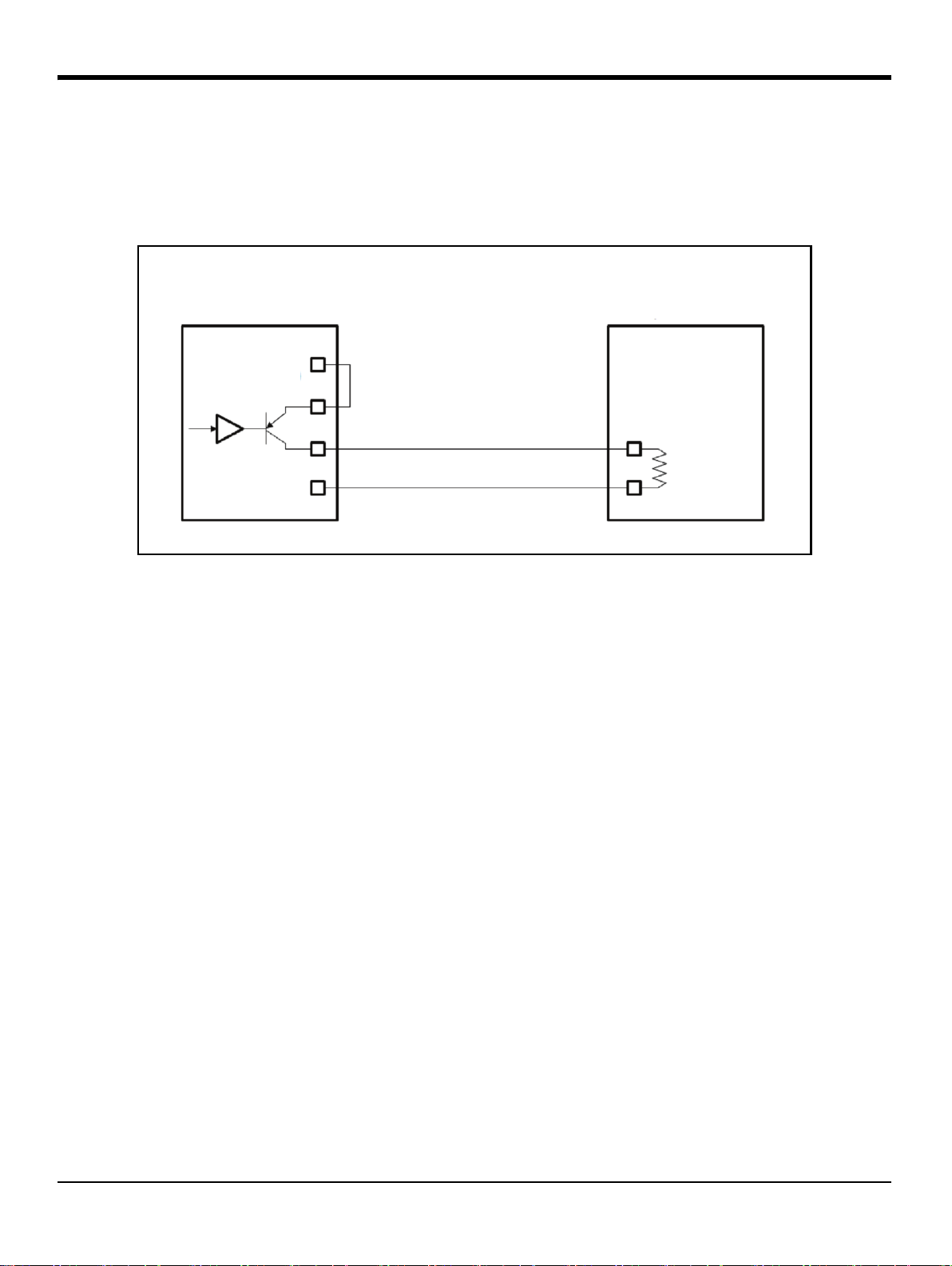

2.6.6 Wiring Frequency/Totalizer/Alarm Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
2.6.7 Wiring Gate Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
AT600 User’s Manual iii
Page 6
Contents
Chapter 3. Initial Setup and Programming
3.1 Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

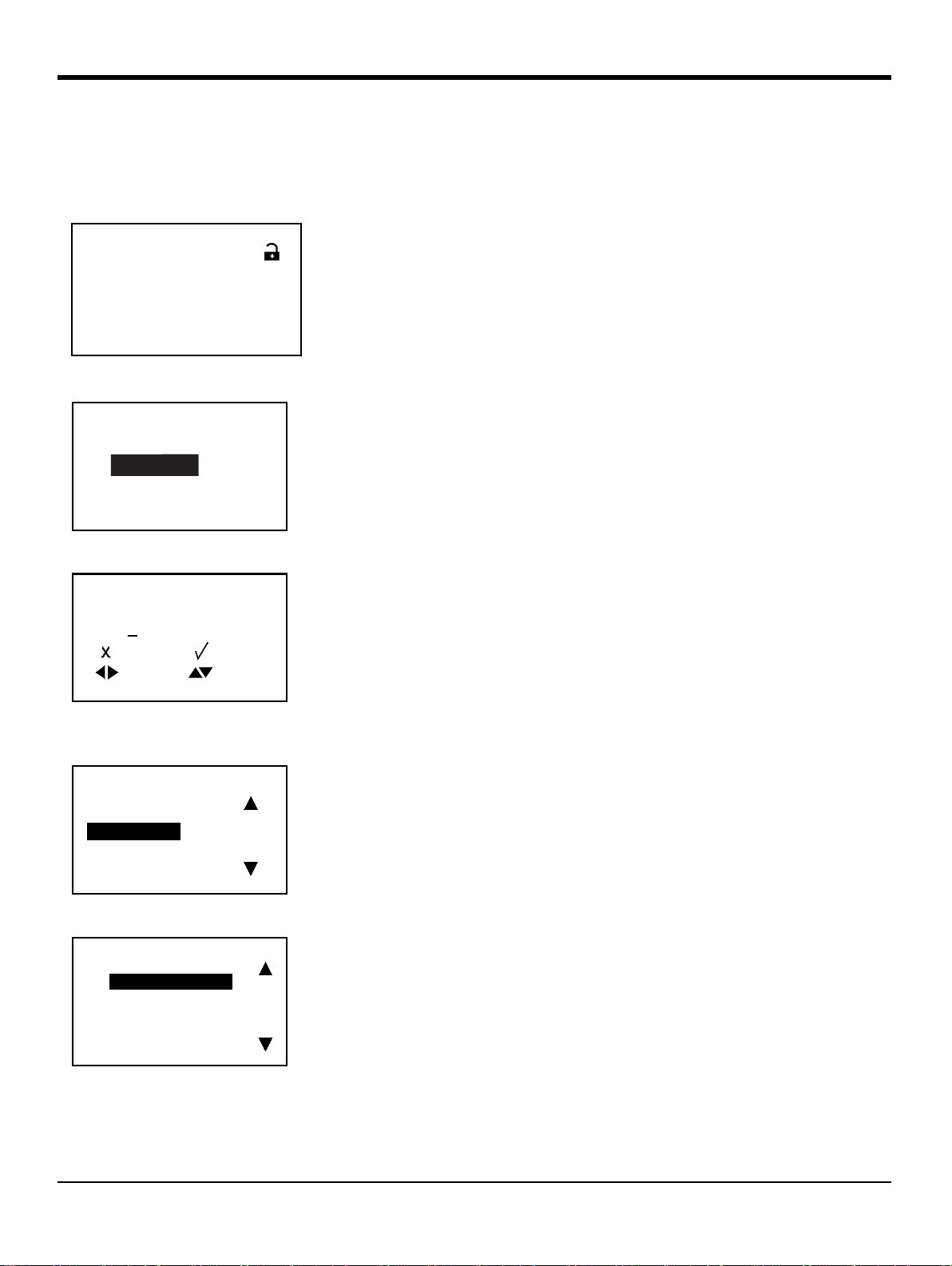

3.2 AT600 Keypad Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
3.3 Display Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
3.3.1 Changing Value for One or Two-Variable Screens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
3.3.2 Changing Measurement Type for One- or Two-Variable Screens. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
3.3.3 Changing the Measurement Type or Value for Totalizer Screens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
3.3.4 Starting or Stopping Totalizer Measurement. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
3.3.5 Resetting the Totalizer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
3.4 Entering the Main Menu (Lock Button) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
3.4.1 Display Format. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
3.4.2 Keypad Lockout. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
3.4.3 Language. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
3.4.4 Program/Program Review . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
3.4.5 Program Review . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
3.4.6 Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
3.5 User Preferences . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
3.5.1 Setting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
3.5.2 Units Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
3.5.3 Density . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
3.5.4 Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
3.5.5 Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
3.5.5a Backlight. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
3.5.5b Timeout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
3.6 Inputs/Outputs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
3.6.1 Programming the Analog Output Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
3.6.1a Setting Analog Measurements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
3.6.1b Setting Base Value and Full Value . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
3.6.1c Calibrate the Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
3.6.1d Setting Error Handling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
3.6.2 Programming the Digital Output Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43
3.6.2a Disable the Digital Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
3.6.2b Setting the Pulse Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
3.6.2c Setting the Frequency . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
3.6.2d Setting the Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49
3.6.3 Programming Modbus/Service Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52
3.6.4 Programming Digital Communications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52
3.6.4a MODBUS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
3.6.4b HART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54
3.7 Sensor Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56
3.7.1 Programming the Meter Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57
iv AT600 User’s Manual
Page 7
Contents
3.7.1a Setting Zero Cutoff. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57
3.7.2 Programming the Pipe. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58
3.7.2a Setting Pipe OD/ID/Wall Thickness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58
3.7.2b Setting Pipe Material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59
3.7.2c Setting the Lining . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60
3.7.3 Programming the Transducer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62
3.7.3a Setting the Standard Transducer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62
3.7.3b Setting a Special Transducer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65
3.7.4 Programming the Traverses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68
3.7.5 Programming the Fluid Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69
3.7.6 Programming the Fluid Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70
3.7.7 Programming the Transducer Spacing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71
Chapter 4. Error Codes and Troubleshooting
4.1 Error Display in the User Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73
4.1.1 Error Header . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73
4.1.2 Flow Error String . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73
4.1.2a E1: Low Signal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73
4.1.2b E2: Sound Speed Error . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73
4.1.2c E3: Velocity Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73
4.1.2d E4: Signal Quality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74
4.1.2e E5: Amplitude Error . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74
4.1.2f E6: Cycle Skip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74
4.2 Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74
4.2.1 Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74
4.2.2 Flowcell Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75
4.2.2a Fluid Problems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75
4.2.2b Pipe Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .76
4.2.3 Transducer Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .76
Chapter 5. Communication
5.1 MODBUS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77
5.1.1 Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77
5.1.2 MODBUS Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77
5.2 HART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .86
5.2.1 Device Identification. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .86
5.2.2 Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .86
5.2.2a Universal Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .86
5.2.2b Common Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .87
AT600 User’s Manual v
Page 8
Contents
5.2.2c Device Specific Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
5.1 Additional Device Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
5.2 Device Variables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
5.3 HART Engineering Units. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
Appendix A. Specifications
A.1 Operation and Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
A.1.1 Fluid Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
A.1.2 Flow Measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
A.1.2a Meter Sizes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
A.1.2b Accuracy. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
A.1.2c Calibration Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
A.1.2d Repeatability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
A.1.2e Range (Bidirectional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
A.1.2f Rangeability (Overall) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
A.2 Meter Body/Transducer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
A.2.1 Meter Body Material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
A.2.2 AT6 Transducer System and Material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
A.2.3 C-RS Transducer System and Material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
A.2.4 Meter Temperature Ranges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
A.2.5 AT6 Transducer Temperature Ranges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
A.2.6 C-RS Transducer Temperature Ranges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
A.2.7 Humidity Range. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
A.2.8 Altitude Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
A.2.9 CAT Transducer Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
A.2.10 Wiring Cable Specifications and Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
A.2.11 Cable Fixing Requirement and Gland Torque . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
A.3 Electronics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156
A.3.1 Enclosures. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156
A.3.2 Weatherproof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156
A.3.3 Electronics Classifications (Pending) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156
A.3.4 Display Languages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156
A.3.5 Keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156
A.3.6 Inputs/Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156
Appendix B. Data Records
B.1 Service Record . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157
B.1.1 Data Entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157
B.2 Initial Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
B.3 Diagnostic Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160
Appendix C. Menu Maps
vi AT600 User’s Manual
Page 9
Preface
Information Paragraphs
Note: These paragraphs provide information that provides a deeper understanding of the situation, but is not
essential to the proper completion of the instructions.
IMPORTANT: These paragraphs provide information that emphasizes instructions that are essential to proper setup of
the equipment. Failure to follow these instructions carefully may cause unreliable performance.
CAUTION! This symbol indicates a risk of potential minor personal injury and/or severe damage to
the equipment, unless these instructions are followed carefully.
WARNING! This symbol indicates a risk of potential serious personal injury, unless these
instructions are followed carefully.
Safety Issues
WARNING! It is the responsibility of the user to make sure all local, county, state and national
codes, regulations, rules and laws related to safety and safe operating conditions are met for each
installation. The safety of any system incorporating the equipment is the responsibility of the
assembler of the system.
Auxiliary Equipment
Local Safety Standards
The user must make sure that he operates all auxiliary equipment in accordance with local codes, standards,
regulations, or laws applicable to safety.
Working Area
WARNING! Auxiliary equipment may have both manual and automatic modes of operation. As
equipment can move suddenly and without warning, do not enter the work cell of this equipment
during automatic operation, and do not enter the work envelope of this equipment during manual
operation. If you do, serious injury can result.
WARNING! Make sure that power to the auxiliary equipment is turned OFF and locked out before
you perform maintenance procedures on the equipment .
WARNING! It is the responsibility of the user to make sure the PWR, Hart, Modbus and I/O cable
can meet the cable specification, which is described in Appendix A.
AT600 User’s Manual vii
Page 10
Preface
Paragraphes d’informations
Remarque:Ces paragraphes fournissent des informations à même de faciliter la compréhension de la situation, mais
n'est pas indispensable à la bonne utilisation des instructions.
IMPORTANT: Ces paragraphes fournissent des informations qui mettent l'accent sur les instructions qui sont
essentielles à une configuration correcte de l'équipement. Le non-respect de ces instructions peut
entraîner une dégradation des performances.
ATTENTION! Ce symbole indique un risque potentiel mineur de blessure aux personnes et / ou de
sérieux dommages à l'équipement, à moins que ces instructions soient rigoureusement
suivies.
ATTENTION! Ce symbole indique un risque potentiel grave de blessures aux personnes, à moins que
ces instructions sont soient rigoureusement.
Questions de sécurité
ATTENTION! Il est de la responsabilité de l'utilisateur de s'assurer que tous les règlements, codes et
lois locaux, nationaux et européens relatifs à la sécurité et aux conditions d'exploitation
en toute sécurité soient respectés pour chaque installation. La sécurité de tout système
intégrant l'équipement est de la responsabilité de celui qui l’assemble.
ATTENTION! Il est de la responsabilité de l'utilisateur de s'assurer que les c?bles d’alimentation,
Hart, Modbus et Entrées/Sorties répondent à la spécification décrite à l'annexe A.
Matériel auxiliaire
Standards de sécurité locaux
L'utilisateur doit s'assurer que les équipements auxiliaires utilisés sont en tout point conforme aux codes, standards et
réglementations relatifs à la sécurité.
Zone de travail
ATTENTION! Les équipements auxiliaires peuvent avoir à la fois des modes de fonctionnement
manuel et automatique. Comme l'équipement peut bouger brusquement et sans signe
préalable, ne pas entrer dans la zone de travail de ce dernier pendant le
fonctionnement automatique, et ne pas s’en approcher de trop près pendant le
fonctionnement manuel. Si vous le faites, cela peut entraîner de graves blessures.
ATTENTION! Assurez-vous que l'alimentation de l'équipement auxiliaire est éteinte et verrouillée
avant d'effectuer toute opération de maintenance ou d’entretien de l'équipement.
viii AT600 User’s Manual
Page 11
Preface
Qualification of Personnel
Make sure that all personnel have manufacturer-approved training applicable to the auxiliary equipment.
Personal Safety Equipment
Make sure that operators and maintenance personnel have all safety equipment applicable to the auxiliary equipment.
Examples include safety glasses, protective headgear, safety shoes, etc.
Unauthorized Operation
Make sure that unauthorized personnel cannot gain access to the operation of the equipment.
Environmental Compliance
Waste Electrical and Electronic Equipment (WEEE) Directive
GE Measurement & Control is an active participant in Europe’s Waste Electrical and Electronic Equipment (WEEE)
take-back initiative, directive 2002/96/EC.
The equipment that you bought has required the extraction and use of natural resources for its production. It may
contain hazardous substances that could impact health and the environment.
In order to avoid the dissemination of those substances in our environment and to diminish the pressure on the natural
resources, we encourage you to use the appropriate take-back systems. Those systems will reuse or recycle most of the
materials of your end life equipment in a sound way.
The crossed-out wheeled bin symbol invites you to use those systems.
If you need more information on the collection, reuse and recycling systems, please contact your local or regional
waste administration.
Visit http://www.ge-mcs.com/en/about-us/environmental-health-and-safety/1741-weee-req.html
take-back instructions and more information about this initiative.
for
AT600 User’s Manual ix
Page 12
Preface
x AT600 User’s Manual
Page 13
Chapter 1. Introduction
Transducer Cable
Electronic
U-Bolt
Power Cable
With Transducer Installed
Fixture
Strap
Chapter 1. Introduction
1.1 Overview
Thank you for purchasing the AT600 ultrasonic flow meter. AT600 is a clamp-on ultrasonic flow meter for
measurement of liquid phase products. It is designed for the industrial market, including water, wastewater, steel,
campus energy and other markets. AT600 utilizes a new electronics platform and industrial design to make it extremely
simple to install and use in the field.
The AT600 consists of the new AT600 electronics, metal enclosure and field proven AT transducers system, including
the clamp-on fixture.
AT600 User’s Manual 1
Figure 1: AT600 System (Pipe Mounting)
Page 14
Chapter 1. Introduction
1.2 Theory of Operation
1.2.1 Transit-Time Flow Measurement
In this method, two transducers serve as both ultrasonic signal generators and receivers. They are in acoustic
communication with each other; that is, the second transducer can receive ultrasonic signals transmitted by the first
transducer and vice versa.
In operation, each transducer functions as a transmitter, generating a certain number of acoustic pulses, and then as a
receiver for an identical number of pulses. The time interval between transmission and reception of the ultrasonic
signals is measured in both directions. When the liquid in the pipe is not flowing, the transit-time downstream equals
the transit-time upstream. When the liquid is flowing, the transit-time downstream is less than the transit-time
upstream.
The difference between the downstream and upstream transit times is proportional to the velocity of the flowing liquid
and its sign indicates the direction of flow.

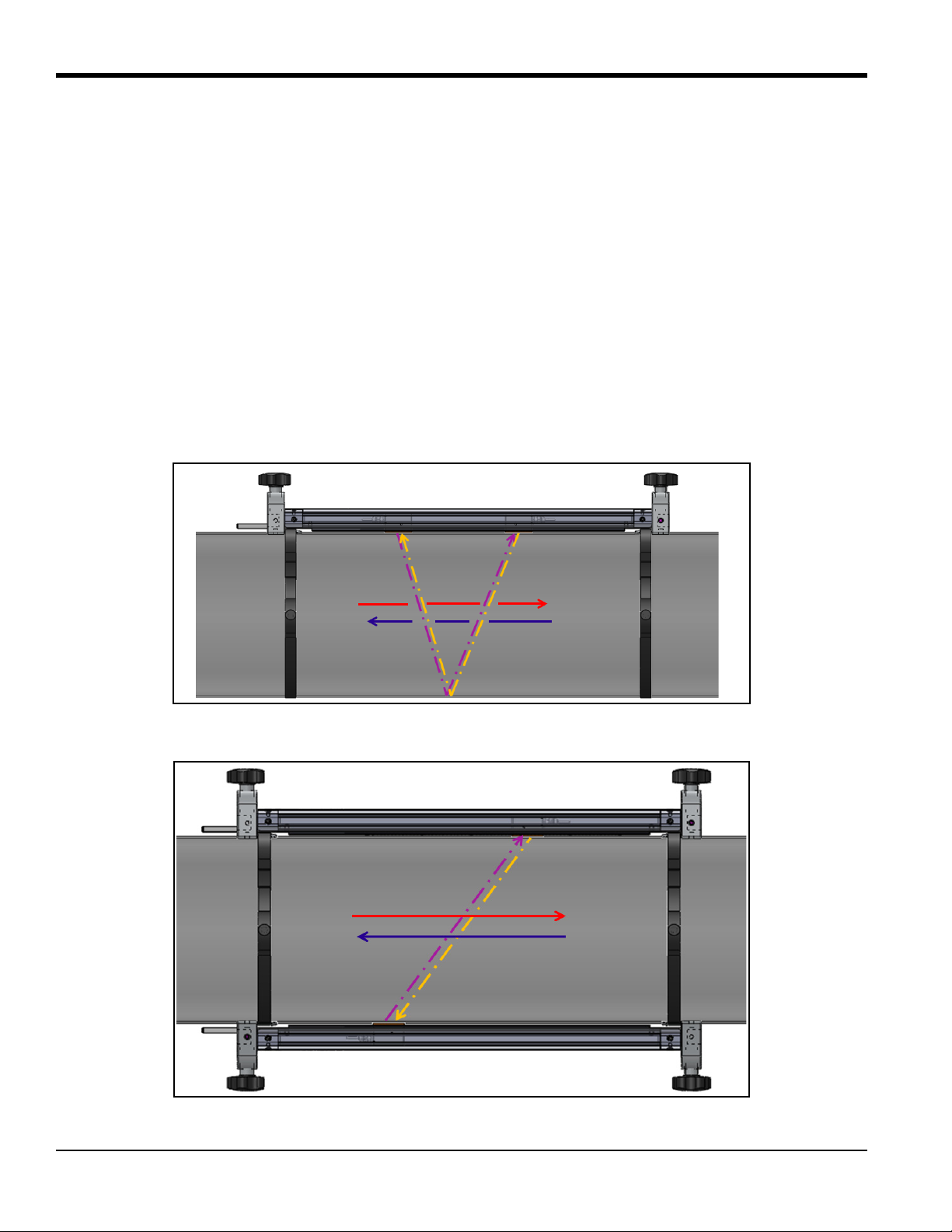

Figure 2: Flow and Transducer Paths (Dual Traverse)
Figure 3: Flow and Transducer Paths (Single Traverse)
2 AT600 User’s Manual
Page 15
Chapter 2. Installation
Chapter 2. Installation
2.1 Introduction
To ensure safe and reliable operation of the AT600, the system must be installed in accordance with the established
guidelines. Those guidelines, explained in detail in this chapter, include the following topics:
• Unpacking the AT600 system
• Installing the electronics enclosure
• Installing the clamp-on fixture and transducer system
• Wiring the electronics enclosure
WARNING! The AT 600 flow transmitter can measure the flow rate of many fluids, some of which
are potentially hazardous. The importance of proper safety practices cannot be overemphasized.
Be sure to follow all applicable local safety codes and regulations for installing electrical equipment
and working with hazardous fluids or flow conditions. Consult company safety personnel or local
safety authorities to verify the safety of any procedure or practice.
ATTENTION EUROPEAN CUSTOMERS! To meet CE Mark and UL Mark requirements, all cables must
be installed as described in Appendix C, CE Mark Compliance.
AT600 User’s Manual 3
Page 16
Chapter 2. Installation
2.2 Unpacking the AT600 system
Before removing the AT600 system from the crate, please inspect the flow meter. Each instrument manufactured by GE
Measurement & Control is warranted to be free from defects in material and workmanship. Before discarding any of
the packing materials, account for all components and documentation listed on the packing slip. The discarding of an
important item along with the packing materials is all too common. If anything is missing or damaged, contact GE
Customer Care immediately for assistance.
Please note that your AT600 system may come in different configurations based on your selection, so the packing list
could be a little different. Below is the typical packing list:
10. One AT600 electronics
20. Two clamp-on fixtures
30. Two transducers (installed in one of the two clamp-on fixtures)
40. One transducer cable (installed on fixture with transducers)
50. Four clamping fixture mounting straps
60. Two "U" bolts for pipe mounting of AT600
70. One USB flash drive with manual and calibration sheet
80. One inner hexagon spanner
90. Three M16 Gland (installed on AT600)
100.Two pieces of Solid Couplant
110 .Quick installation guide
120. Calibration Sheet
130.Cabling tools
Figure 4: Standard Packing List
4 AT600 User’s Manual
Page 17
Chapter 2. Installation
M16 GLAND x3
M20 GLAND x2
Wall Mount
Weight is about 1.5 kg for the whole
meter assembly.
Pipe Mount
2.3 Installing the Electronics Enclosure
The AT600 electronics is housed in a powder-coated, aluminum, NEMA type 4X/IP67 enclosure suitable for indoor or
outdoor use, See Figure 5 below for the mounting dimensions and weight of the AT600 electronics.
Figure 5: AT600 Electronics Mounting
AT600 User’s Manual 5
Page 18
Chapter 2. Installation
2.3 Installing the Electronics Enclosure (cont.)
The installation base of AT600 electronics can also be rotated by 90 degrees to keep a horizontal view of the user
interface in a horizontal or vertical mounting condition. See Figure 6 below for AT600 mounting of the installation
base.
Figure 6: AT600 Mounting of Installation Base
6 AT600 User’s Manual
Page 19
Chapter 2. Installation
2.4 Installing the Clamp-on Fixture And Transducer System
2.4.1 Clamp-on Fixture and Transducer Location
For a given fluid and pipe, the accuracy of AT600 depends on the location and alignment of the transducers. In addition
to accessibility, when planning for transducer location, adhere to the following guidelines:
• Locate the clamp-on fixture and transducer system so that there are at least 10 pipe diameters of straight,
undisturbed flow upstream and 5 pipe diameters of straight, undisturbed flow downstream from the measurement
point. Undisturbed flow means avoiding sources of turbulence in the fluid such as valves, flanges, expansions, and
elbows; avoiding swirl; and avoiding cavitation.
Figure 7: AT600 Transducer Location
• Locate the transducers on a common axial plane along the pipe. Locate the transducers on the side of the pipe,
rather than the top or bottom, since the top of the pipe tends to accumulate gas and the bottom tends to accumulate
sediment. Either condition will cause increased attenuation of the ultrasonic signal. There is no similar restriction
with vertical pipes as long as the flow of fluids is upward to prevent free falling of the fluid of a less than full pipe.
Figure 8: Good and Bad Transducer Location
AT600 User’s Manual 7
Page 20
Chapter 2. Installation
2.4.2 Mounting Clamp-on Fixture Onto Pipe (AT6 Transducers)
The AT600 transducer system contains one clamp-on fixture, two transducers embedded inside the fixture and one
transducer cable. The transducer cable is already connected with the transducers and assembled with the fixture before
shipment as a default setup for easy customer installation.
The AT600 clamp-on fixture and transducer system can support pipe size ranges from 2 inch to 24 inch.The customer
can choose either dual traverse installation or single traverse installation for transducer mounting on the pipe.
As the maximum measurement range of one clamp-on fixture is 250mm, there are different kinds of installation
configurations based on the transducer spacing range and dual or single installation method. See Table 1 below for
rough estimates.
Table 1: Estimates for Pipe Configurations
Spacing Traverse Fixture Typical Pipe Sizes
0-250 4 1 2” to 4”
0-250 2 1 4” to 10”
0-250 1 2 10” to 20”
250-750 2 2 10” to 30”
250-750 1 2 20” to 30”
Please see section 3.7 (Sensor Setup) for determining transducer spacing. A two traverse installation is recommended
for most applications.
2.4.2a Dual Traverse Installation at Transducer Spacing Range 0 to 250mm
When the transducer spacing range is from 0 to 250mm, only one clamp-on fixture is needed for dual traverse
installation. See Figure 11 below for the dual traverse installation guide at transducer spacing range 0 to 250mm.
1. Install AT600 clamping fixture with transducers onto the pipe using the two mounting straps.
a. Choose location with enough straight run; refer to Figure 7 on page 7.

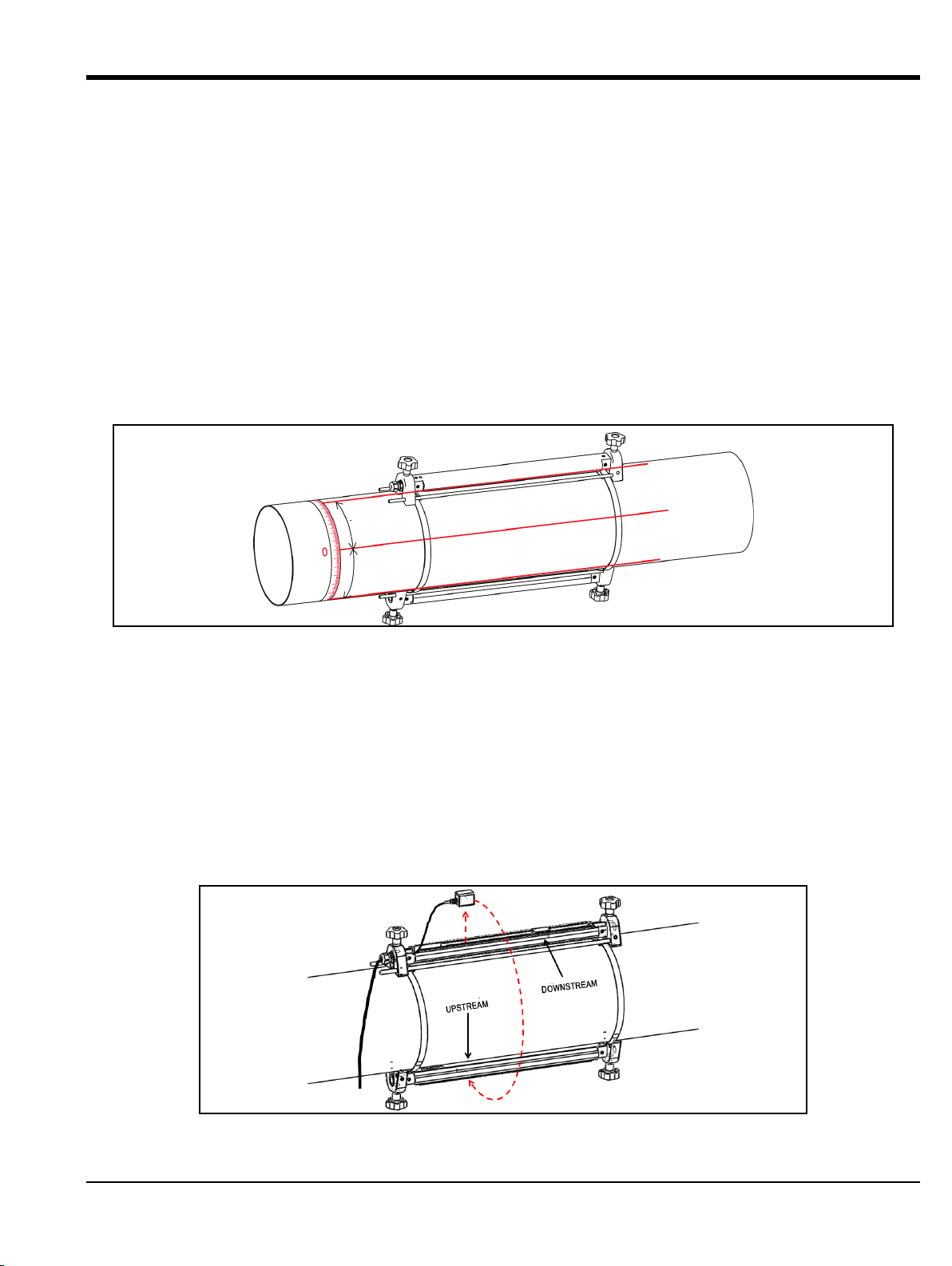

b. Install two straps onto the pipe with about 30 cm/1 ft apart.
Figure 9: Strap Installation
8 AT600 User’s Manual
Page 21
Chapter 2. Installation
Hand Wheel
Transducer
2.4.2a Dual Traverse Installation at Transducer Spacing Range 0 to 250mm (cont.)

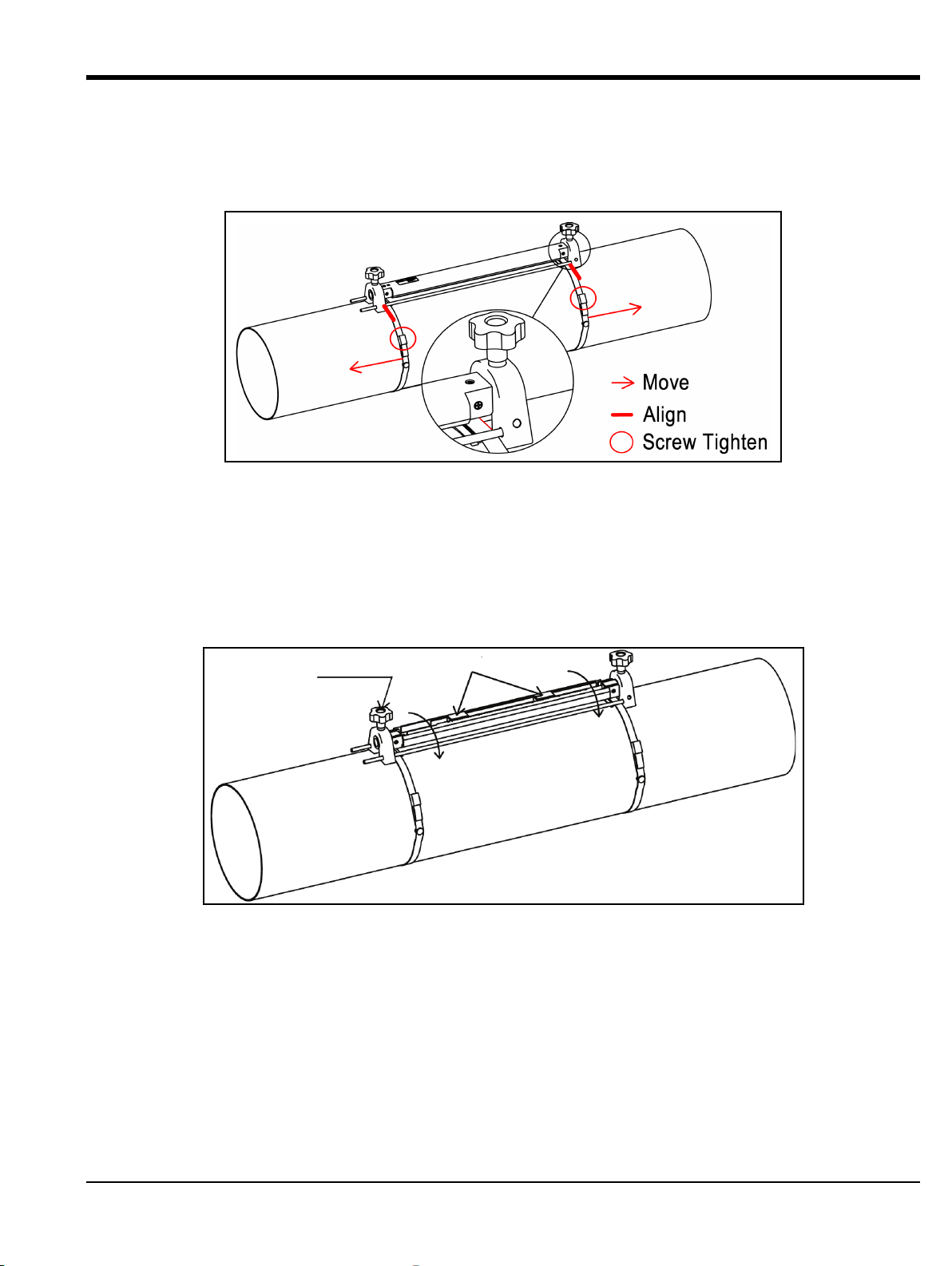

c. Put clamp-on fixture on pipe and move straps onto sides of fixture, then tighten screw on straps and validate
strapping stays within sides of fixture.
Figure 10: Clamp-on Fixture Installation
2. Wire power and transducer cables to the AT600; refer to Figure 22 on page 16.
3. Power meter and program flow meter to determine transducer spacing.(See AT600 Programming in Chapter 3.)
4. Set spacing between the two transducers and tighten back onto the pipe.
a. Loosen hand rails and rotate fixture so the transducers are in view.
Figure 11: Transducer View
b. Set spacing between transducers, remove laminar piece on couplant, apply couplant to transducer and rotate
back onto rail.
AT600 User’s Manual 9
Page 22
Chapter 2. Installation
2.4.2a Dual Traverse Installation at Transducer Spacing Range 0 to 250mm (cont.)

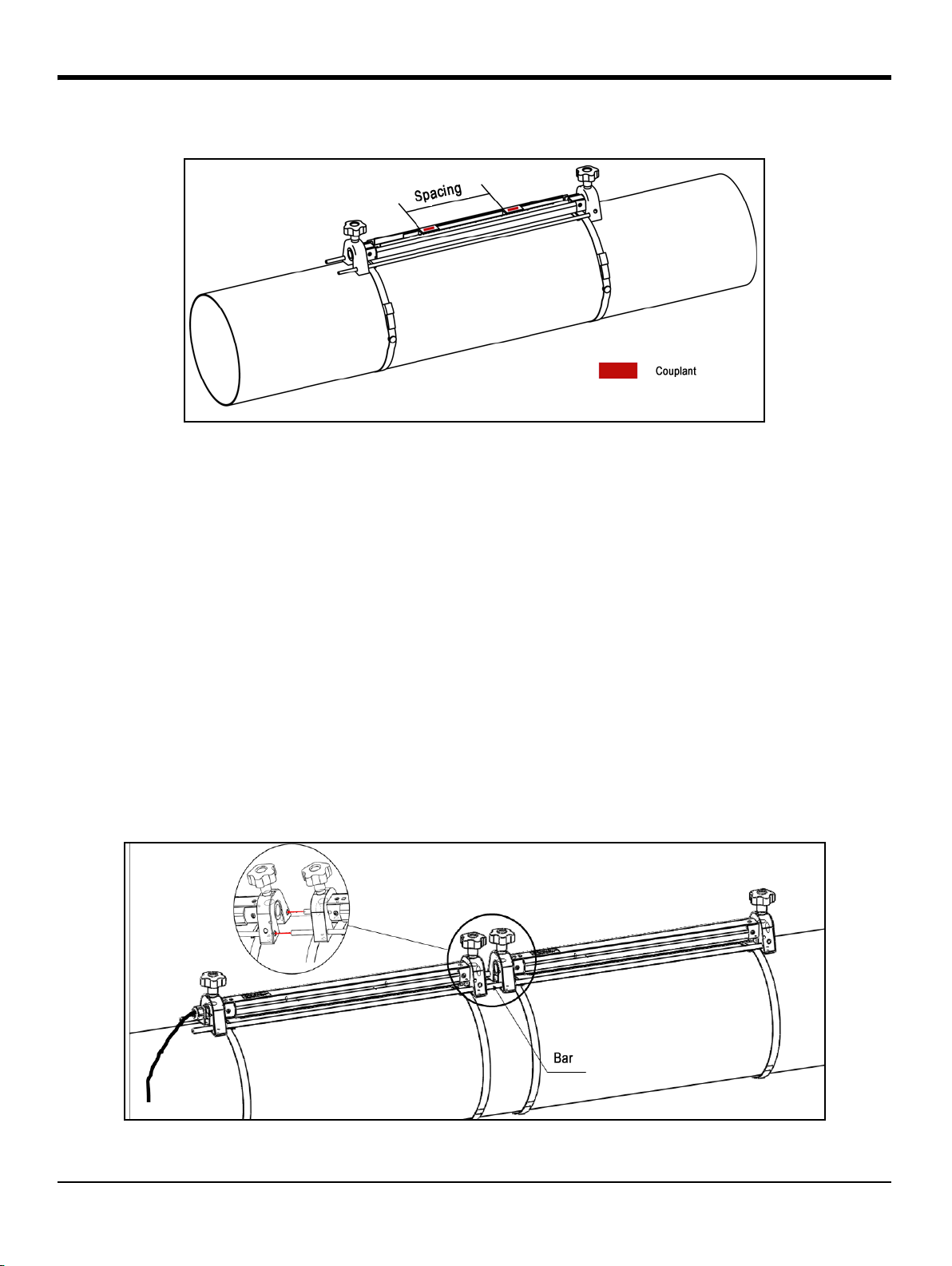

Figure 12: Transducer Spacing Adjustment
Note: Two traverse (or two transducers in the same fixture) is the standard configuration. See the other configuration
method below for fixture assembly procedure.
Note: If there is a coating or protection layer on the pipe, remove the coating layer on the pipe at first by rasping to
expose the pipe material, where it is in contact with the transducer and couplant.

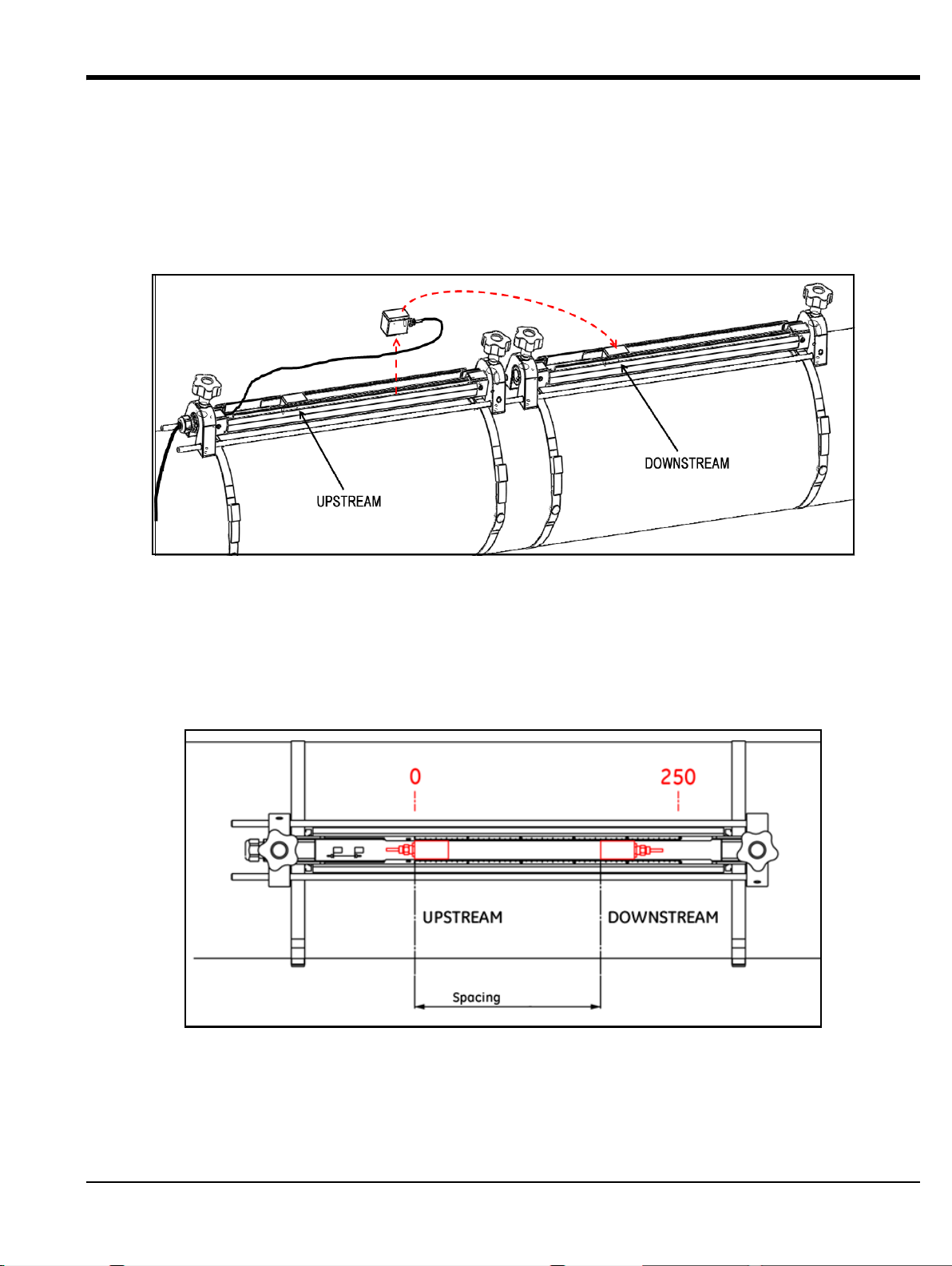

2.4.2b Dual Traverse Installation at Transducer Spacing Range 250 to 750mm
When transducer spacing range is from 250 to 750mm, another fixture is needed for larger transducer spacing; see
Figure 13 below for dual traverse installation guidance at transducer spacing range 250 to 750mm.
1. Install four straps onto the pipe with about 30 cm/1 ft apart from each other.
2. Put one clamp-on fixture with two transducers and one cable onto pipe and move straps onto sides of fixture,
then tighten screw on straps and validate strapping stays within sides of fixture.
3. Put the second blank clamp-on fixture onto the pipe and connect the two fixtures through the bar on left side of
the second fixture, then repeat step 2 to move the straps and tighten the second fixture.
Note: Be sure the bar on the left side of the second fixture is in close contact with the bar on the first fixture.
Figure 13: Dual Traverse Installation at Transducer Spacing Range 250 to 750mm
10 AT600 User’s Manual
Page 23
Chapter 2. Installation
2.4.2b Dual Traverse Installation at Transducer Spacing Range 250 to 750mm (cont.)
4. Set spacing between the two transducers and tighten back onto the pipe.
a. Loosen hand rails and rotate fixture so transducers are in view.
b. Take out the downstream transducer from the first fixture, disassemble the transducer connection and route the
cable into the second fixture and connect and locate the downstream transducer into the second fixture.
Figure 14: Dual Traverse Installation at Transducer Spacing Range 250 to 750mm
Note: See detailed spacing set below for dual traverse installation:
1. Spacing range from 0 to 250mm; only one fixture is needed.
Put the upstream transducer at "zero" position, and then put the downstream transducer at the required position
on the same fixture.
Figure 15: Transducer Spacing between the Two Fixtures
AT600 User’s Manual 11
Page 24
Chapter 2. Installation
2.4.2b Dual Traverse Installation at Transducer Spacing Range 250 to 750mm (cont.)
2. Spacing range from 250 to 750mm; two fixtures are needed, to be pushed:
a. Spacing from 250 to 500mm
Put the upstream transducer at "250mm" position of the first fixture, and then put the downstream transducer at
the required position on the second fixture, as shown below.
Note: A tight contact should be made between two fixtures through the two bars to make an accurate spacing.
Figure 16: Spacing Range from 250 to 500mm
b. Spacing from 500 to 750mm
Put the upstream transducer at "zero" position of the first fixture, and then put the downstream transducer at the
required position on the second fixture, as shown below.
Figure 17: Spacing Range from 500 to 750mm
12 AT600 User’s Manual
Page 25
Chapter 2. Installation
+1/4
circumference
-1/4
circumference
2.4.2c Single Traverse Installation at Transducer Spacing Range 0 to 250mm
When the transducer spacing range is from 0 to 250mm in a single traverse installation, two clamp-on fixtures are
needed for this installation. See the steps below for the single traverse installation guide.
1. Mark one straight line parallel with the pipe direction on the pipe surface, use a band tape to measure the
circumference of the pipe, and mark another two lines on position of +1/4 and -1/4 of circumference. This
creates two lines for two fixture alignment;
2. Install two straps onto the pipe with about 30 cm/1 ft apart from each other.
3. Put one clamp-on fixture embedded with two transducers and one cable onto the pipe and move the two straps
on two sides of the clamp-on fixture to catch the holder on the fixture, then put another blank fixture onto the
opposite side of the first fixture and hold it by the two straps,. Align the middle of the two fixtures with the red
straight line marked on the pipe surface in step 1.
Figure 18: Fixture Installation of Single Traverse at Transducer Spacing Range 0 to 250mm
4. Set spacing between the two transducers and tighten back onto the pipe.
a. Loosen hand rails and rotate fixture so transducers are in view.
b. Take out the upstream transducer from the first fixture, disassemble the transducer connection and route the
cable into the second fixture, and connect and re-locate the upstream transducer into the second fixture.
Note: Put upstream transducer at "zero" position of the second fixture, and then move the downstream transducer at
the required position of the first fixture. The separate cable of the upstream transducer needs to be pulled out
from one side of rail on first fixture and put into the side of the rail on second fixture; refer to the cabling on the
fixture done by the plant.
Figure 19: Single Traverse Installation at Transducer Spacing Range 0 to 250mm
AT600 User’s Manual 13
Page 26
Chapter 2. Installation
+1/4
circumference
-1/4
circumference
UPSTREAM
DOWNSTREAM

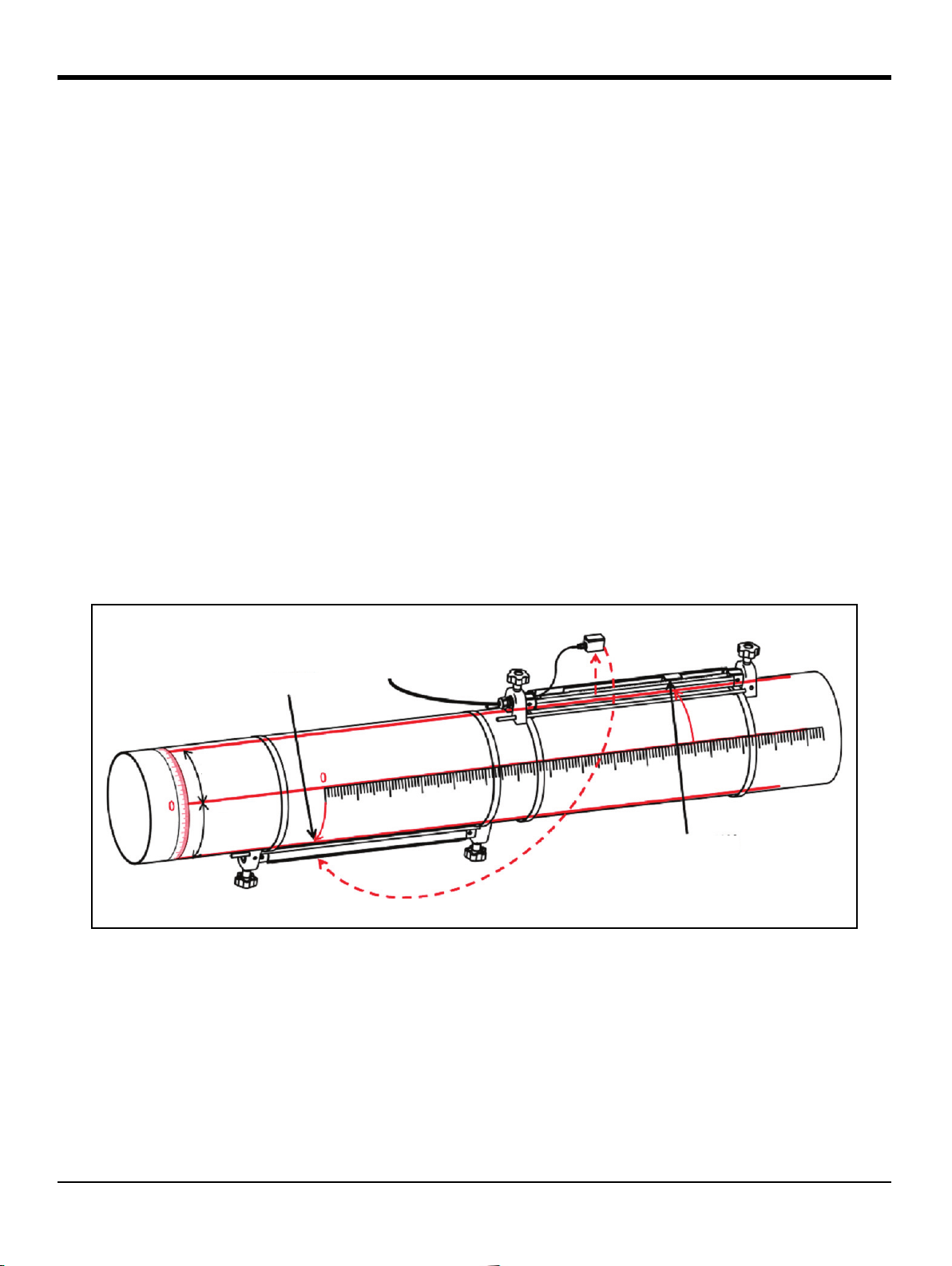

2.4.2d Single Traverse Installation at Transducer Spacing Range 250 to 750mm
When transducer spacing range is from 250 to 750mm in a single traverse installation, two clamp-on fixtures arange
250 to 750mm.
1. Mark one straight line parallel with the pipe direction on pipe surface, use a band tape to measure the
circumference of the pipe, and mark another two lines on position of +1/4 and -1/4 of circumference; these two
lines are made for two fixture alignment. Then mark two transducer positions on the two straight lines
separately using the band tape. Refer to Figure 20 for the line marking method.
2. Install four straps onto the pipe with about 30 cm/1 ft apart from each other.
3. Put one clamp-on fixture embedded with two transducers and one cable onto the pipe and move straps onto
sides of fixture, then tighten screw on straps and validate the strapping stays within sides of fixture.
4. Put the second blank clamp-on fixture onto the pipe on another side, then repeat step 3 to move the straps and
tighten the second fixture. Refer to Figure 20 for the fixture position.
5. Set spacing between the two transducers and tighten back onto the pipe.
a. Loosen hand rails and rotate fixture so transducers are in view.
b. Take out the upstream transducer from the first fixture, disassemble the transducer connection and route the
cable into the second fixture and connect and re-locate the upstream transducer into the second fixture.
c. Align the transducer side with the two marks done on step 1 in the first and second fixture.
Figure 20: Single Traverse Installation at Transducer Spacing Range 250 to 750mm
14 AT600 User’s Manual
Page 27
Chapter 2. Installation
AT6 Cable with SMA Plug
BNC to SMA Adaptor
C-RS Transducer
2.5 Installing C-RS Fixture and Transducer System
2.5.1 Installation Guide for C-RS transducer
Refer to GE document 916-077, the C-RS Installation Guide, for C-RS transducer installation onto the pipe (Section 6,
Installing General Clamping Fixture).
2.5.2 Install Cable Adaptor for C-RS transducer and AT6 cable
To match the BNC type connector on the C-RS transducer with the SMA type connector on the AT6 cable, one BNC to
SMA adaptor is needed for C-RS transducer cabling. See Figure 21 below for adaptor installation.
AT600 User’s Manual 15
Figure 21: Install Cable Adaptor for C-RS Transducer
Page 28
Chapter 2. Installation
2.6 Making Electrical Connections
ATTENTION EUROPEAN CUSTOMERS!! To meet CE Mark requirements, all cables must be installed as
described in Appendix D, CE Mark Compliance.
This section contains instruction for making all the necessary electrical connections to the AT600 flowmeter. Refer to
Figure 22 below for the complete wiring diagram of the unit.
IMPORTANT: Except for the transducer connector, all electrical connectors are stored in their terminal blocks during
shipment and may be removed from the enclosure for more convenient wiring. Feed the cables through
the cable gland holes on the bottom of the enclosure, attach the wires to the appropriate connectors and
plug the connectors back into their terminal blocks.
Once the AT600 is completely wired, proceed to Chapter 3, Initial Setup, to configure the unit for operation.
Figure 22: Wiring Diagram
Note: HART or MODBUS communication are optional selections for the AT600 electronics and must be chosen at
the time of ordering.
To lead the wiring cables into the enclosure, power lines, transducer line and I/O lines are distributed to different gland
holes. Refer to Appendix A, section A.2 for cable criteria. Be sure to select the cable to connect the meter only to the
specified cables.
16 AT600 User’s Manual
Page 29
Chapter 2. Installation
2.6 Making Electrical Connections (cont.)
Refer to Figure 23 below for cable gland usage definition. If no cables feed through the cable clamp holes, it must be
blocked with the gland-insert provided together with meter.
Figure 23: Gland Usage Definition
2.6.1 Wiring the Line Power
ATTENTION EUROPEAN CUSTOMERS! To meet CE Mark requirements, all cables must be installed as described
in Appendix D, CE Mark Compliance
The AT600 may be ordered from operation with power inputs of 85-264 VAC, or 12-28 VDC. The label on the shroud
inside the electronics enclosure, lists the required line voltage. Be sure to connect the meter only to the specified line
voltage.
Refer to Figure 24 on the next page for power inputs of the meter.
Note: For compliance with the European Union's Low Voltage Directive (LV Directive 2006/95/EC), this unit
requires and external power disconnect device such as a switch or circuit breaker. The disconnect device must
be marked as such, clearly visible, directly accessible, and located within 1.8 m (6 ft) of the AT600.
Refer to Figure 22 on page 16 to locate the terminal block and connect the line power as follows:
AT600 User’s Manual 17
Page 30
Chapter 2. Installation
2.6.1 Wiring the Line Power (cont.)
WARNING! Improper connection of the line power leads or connecting the meter to the incorrect
line voltage will damage the unit. It will also result in hazardous voltages at the flowcell and
associated piping and within the electronics console.

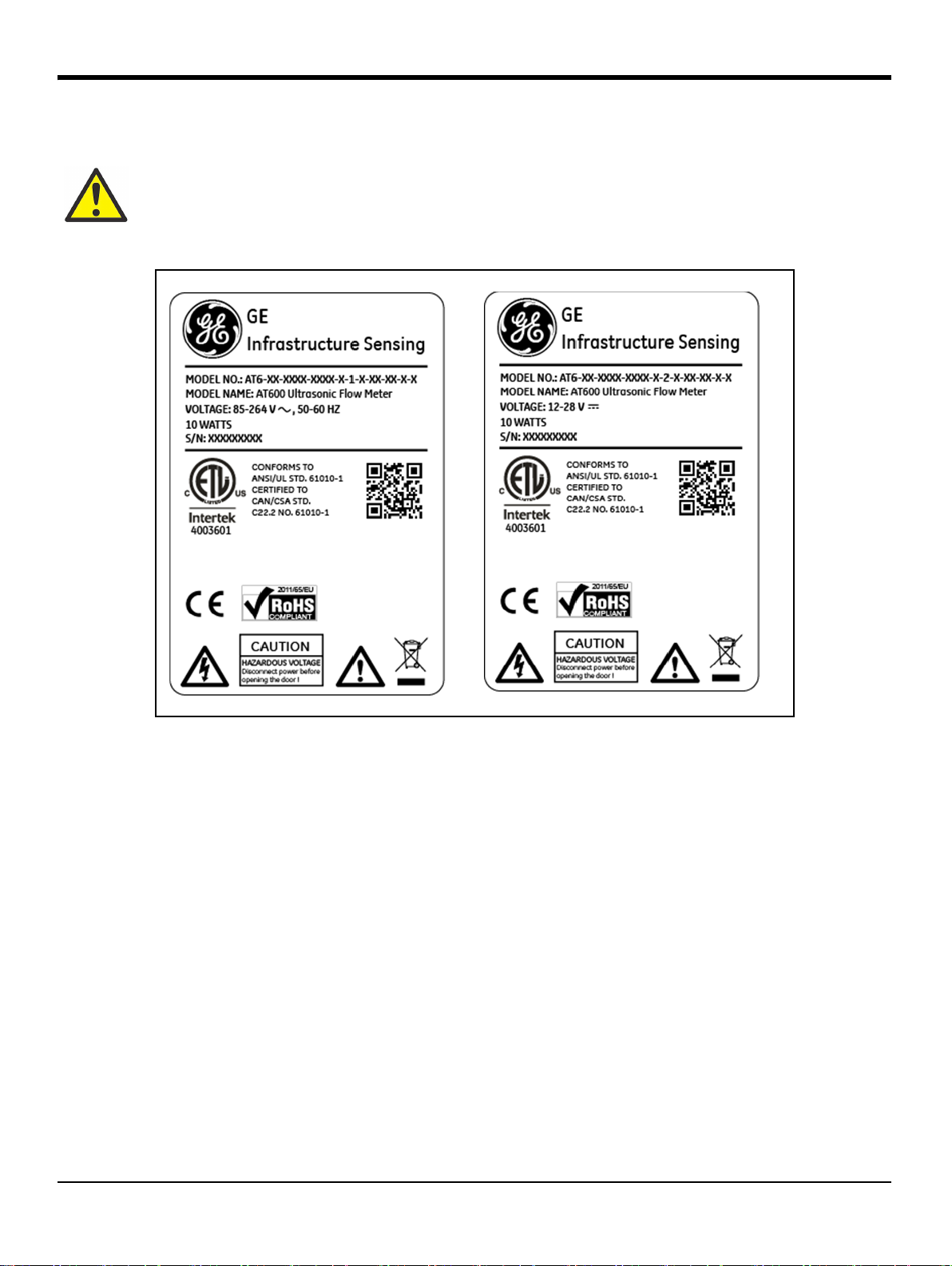

Figure 24: Meter SN Label Example (AC and DC Version):
1. Strip 1/4" of insulation from the end of the power and neutral or line leads (or the positive and negative DC
power leads), and 1/2" from the end of the ground lead.
2. Connect the ground lead to the internal ground connection (GROUNDING 1) located on the bottom panel of
the enclosure (See Figure 22).
IMPORTANT: The incoming ground lead must be connected to the internal ground connection.
3. Connect the neutral or line lead (or the negative - DC power lead) to L2/N(-) and the line power lead (or the
positive +DC power lead) to L1(+) as shown in Figure 22 on page 16.
IMPORTANT: Do not remove the existing PC board ground wire or the cover ground wire.
18 AT600 User’s Manual
Page 31
Chapter 2. Installation
2.6.2 Wiring the Transducers
ATTENTION EUROPEAN CUSTOMERS! To meet CE Mark requirements, all cables must be installed as described
in Appendix C, CE Mark Compliance.
Wiring a typical AT600 ultrasonic liquid flow meter system requires interconnection of the following components:
• A pair of transducers installed inside the fixture;
• The electronics console
To wire the transducers, complete the following steps:
WARNING! Before connecting the transducers, take them to a safe area and discharge any static
build-up by shorting the center conductor of the transducer cables to the metal shield on the cable
connector.
1. Locate the transducer cables and connect them to the two transducers.
2. Connect the cable connector with yellow "DN" jacket on the cable to DN and connect cable connector with
white "UP" jacket on the cable to UP as shown in Figure 22 on page 16. Then, secure the cable gland.
3. Make vertical insertion when the cable connector is plugged into the receptacle to avoid destroying the
connector.

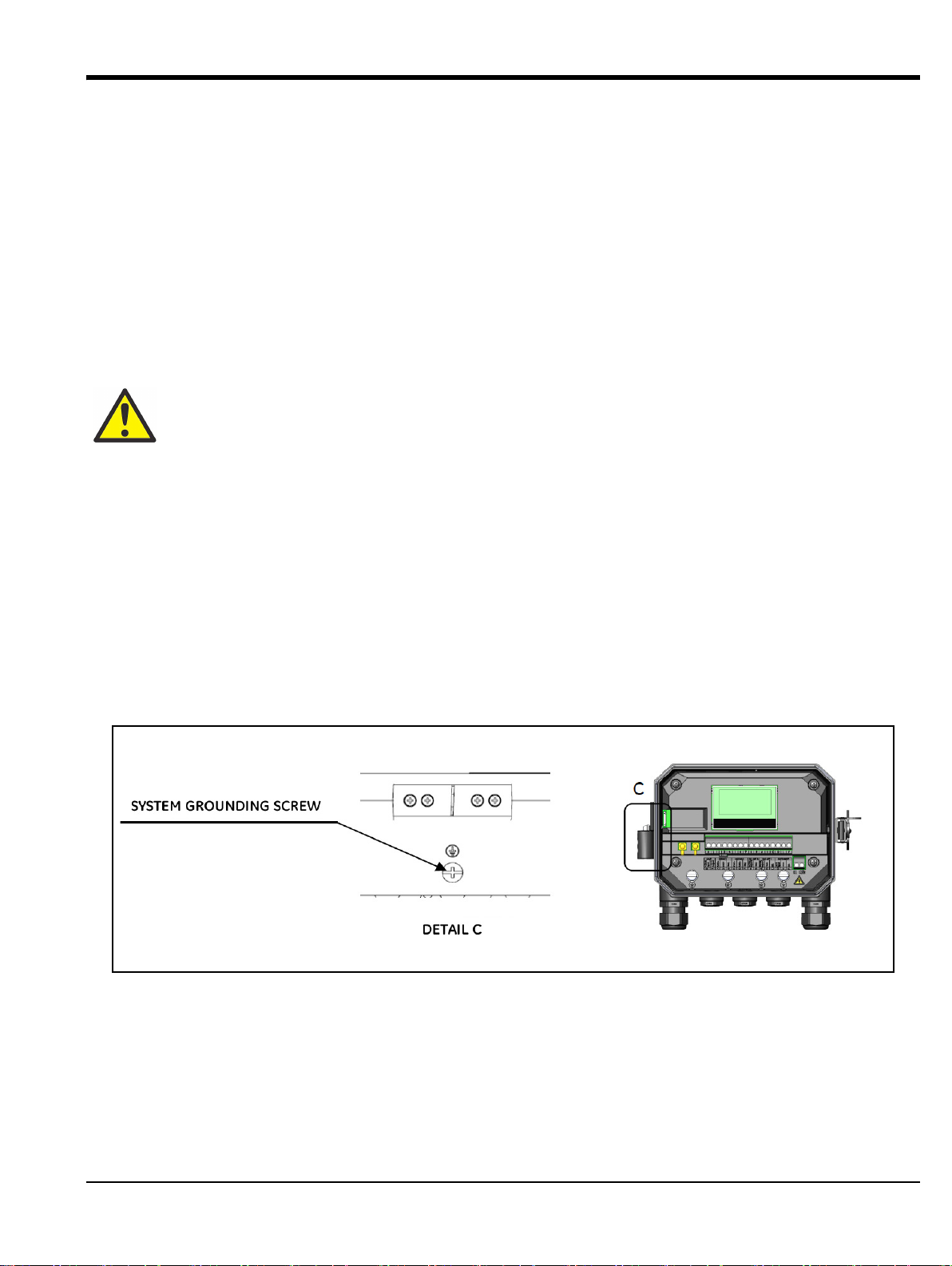

2.6.3 Wiring System Ground
Proper system ground must be connected to an AT600 Meter. Refer to Figure 25 to locate the system ground screw.
This ground screw must be connected to a safe ground in the field.
Figure 25: System Grounding Screw
AT600 User’s Manual 19
Page 32
Chapter 2. Installation
Model AT600
HART Master/
Ampere Meter
Load
(Maximum
600 ohms)
Volts +
(Int. Pwr. Sup.)
Volts -
(Common)
PIN : 0
PIN : 1
2.6.4 Wiring Analog Output/HART Communication
The standard configuration of the Model AT600 flow meter includes one isolated 0/4-20mA analog output.
Connections to this output may be made with standard twisted-pair wiring. The current loop impedance for this circuit
must not exceed 600 ohms.
Figure 26: Analog Output/HART Communication
To wire the analog output, complete the following steps:
1. Disconnect the main power to the unit and open the enclosure.
2. Install the required cable gland in the chosen gland hole on the bottom of the enclosure.
3. Refer to Figure 22 on page 16 for the location of terminal block I/O and wire the terminal block as shown.
Secure the cable clamp.
The standard port is only 0/4-20mA analog output, but the HART communication is optional upon request.
Note: Analog Output is active mode. Do not supply a 24V supply to this circuit. The circuit is powered by the flow
meter.
Note: Prior to use, the analog output must be set up and calibrated. Proceed to the next section to continue the initial
wiring of the unit.
Note: When in meter configuration, the analog output will go to 3.6 mA. After exiting from configuration mode, the
meter will leave 3.6 mA.
20 AT600 User’s Manual
Page 33
Chapter 2. Installation
2.6.5 Wiring Modbus Communication
The AT600 is equipped with an optional Modbus communication port. The port is a two-wire, half-duplex RS485
interface. The standard AT600 disables the Modbus communication. Proceed to the appropriate configuration for menu
instructions to activate the Modbus communication.
To wiring Modbus RS485 serial port, refer to Figure 22 on page 16 and complete the following steps:
1. Disconnect the main power to the unit.
2. Install the required cable clamp in the chosen gland hole on the side of the electronics enclosure.
3. Feed one end of the cable through the gland hole, wire it to terminal block and secure the cable gland as shown
in Figure 22 on page 16.
2.6.6 Wiring Frequency/Totalizer/Alarm Output
The AT600 can accommodate up to 2 channels of totalizer/frequency/alarm outputs. Each totalizer/frequency/alarm
can be configured as totalizer, frequency or alarm output by software setting. Refer to 3.6.4 section for the output
setting.
Each totalizer/frequency/alarm output requires two wires. Wire this terminal block in accordance with the pin number
assignments shown in Figure 27 below. Figure 22 shows sample wiring diagrams of totalizer/frequency/alarm output
circuit.
Figure 27: Totalizer/Frequency/Alarm Output Wiring
AT600 User’s Manual 21
Page 34
Chapter 2. Installation
Model AT600 Switch
+5 V
NO
C
PIN: D
PIN: E

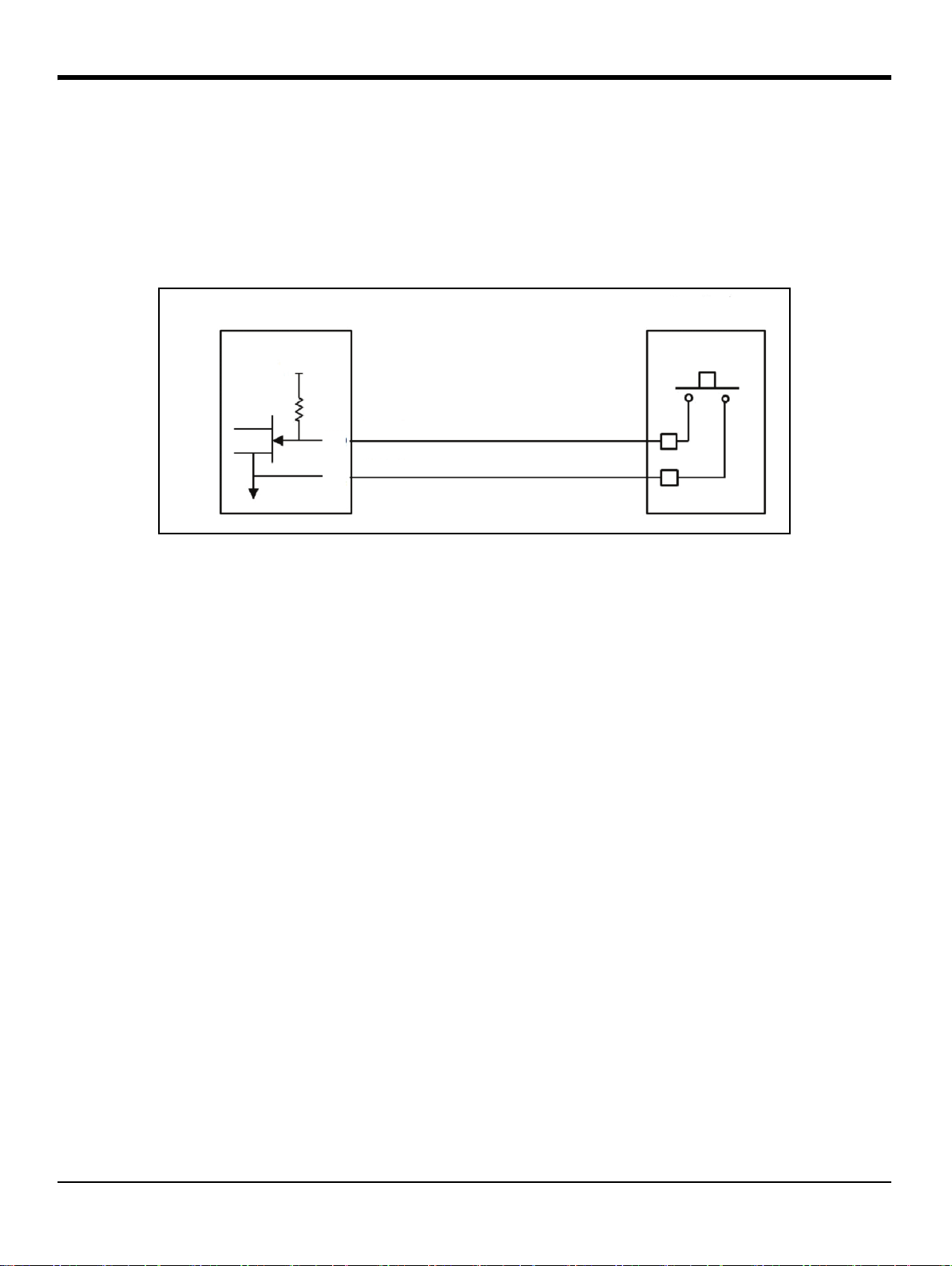

2.6.7 Wiring Gate Input
The AT600 provides a Gate Contact Input port. This port is designed to start/stop the totalizer. During normal
measurement mode, an operator can start the totalizer functionality by clicking the switch. And if the operator wants to
stop the totalizer, another switching ON/OFF action stops the totalizer.
Refer to Figure 28 below for wiring the Gate Input port.
Figure 28: Gate Input Wiring
22 AT600 User’s Manual
Page 35
Chapter 3. Initial Setup and Programming
Display
Main Menu
Format
Program
View
Lockout
Language
Password
User
Input /Output
Sensor Setup
CalibraƟon Advanced
Factory
Save
Changes?
No Yes
Display
Chapter 3. Initial Setup and Programming
3.1 Introduction
This chapter provides instructions for programming the AT600 flowmeter to place it into operation. Before the AT600
can begin taking measurements, the User Preferences, Inputs/Outputs, and Sensor setup must be entered and tested.
Display
Program
Keypad
Preferences
Figure 29: High Level Menu Map
AT600 User’s Manual 23
Page 36
Chapter 3. Initial Setup and Programming
AT600
INITIALIZE . .
0.0
Velocity
m/s
Soundspeed
m/s
0.0

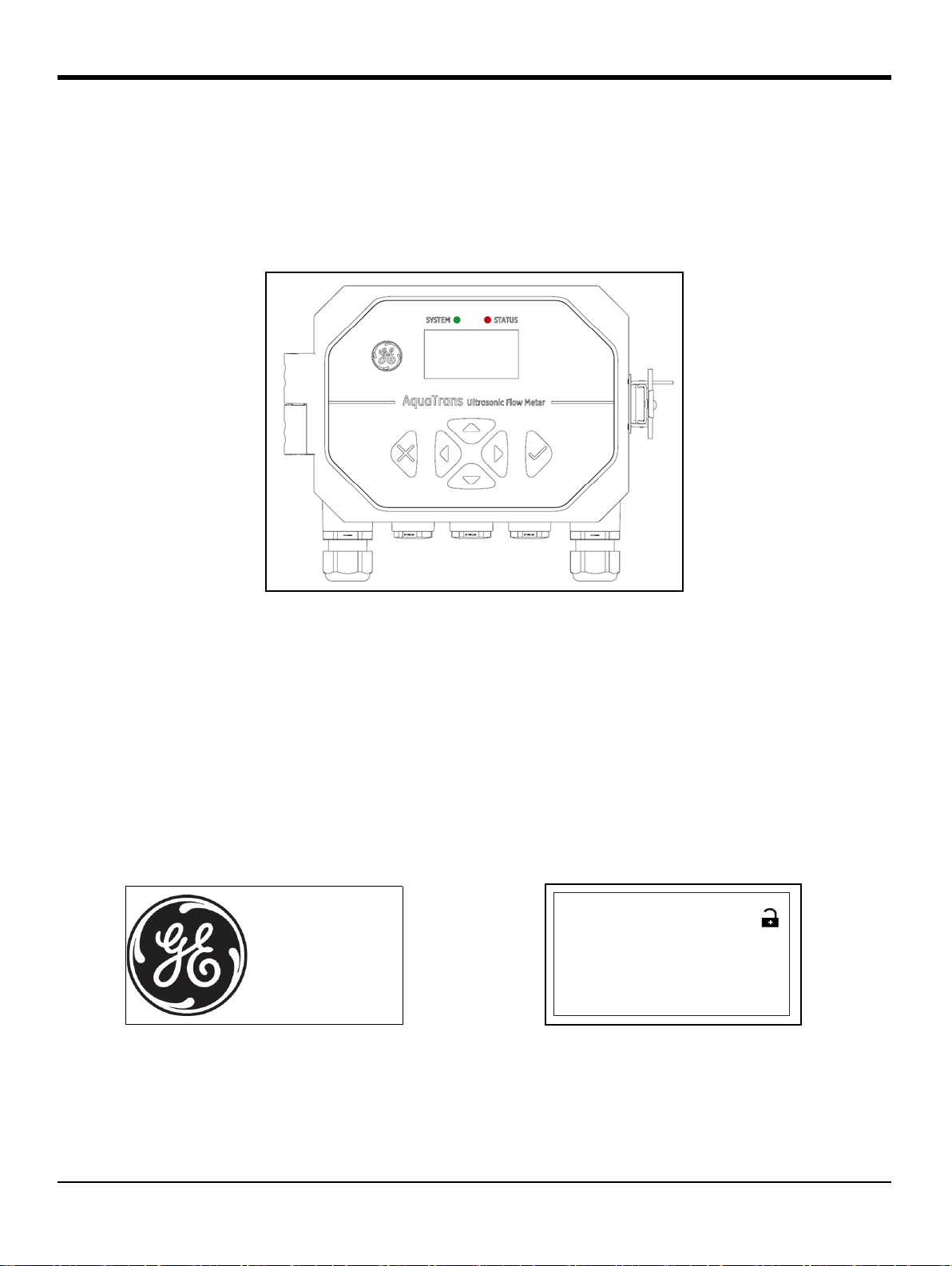

3.2 AT600 Keypad Operation
There are six keys and two LED on the AT600 keypad. The green light is a system health indicator and it is on when
the meter is operational and not in error. The red light is a system status indicator and it is on when the meter is in error.
When both lights are off, the meter indicates the system is in configuration mode or no power has been applied to the
meter.
Figure 30: AT600 Keypad
Six keys on the magnetic keypad enable users to program the AT600:
• [] - confirms the choice of a specific option and data entry within the option
• [] - enables users to exit from a specific option without entering unconfirmed data
• [] and [] - enable users to highlight a specific window in the display option or to scroll through a list of
options (parameters, letters, and numbers, 0-9 as well as the negative sign and decimal point) in a menu
• [] and [] - enable users to scroll to a specific option, among choices in an option, or to a character in a text
entry.
When the AT600 is powered up, the initial screen display appears, followed by a display of measurement parameters.
As a guide in following the programming instructions in this chapter, the relevant portions of the AT600 menu map
have been reproduced on page 98.
IMPORTANT: If the keypad has not been pressed for 5 minutes, the AT600 exits the Keypad Program and returns to
displaying measurements. The meter discards any configuration changes. Changes can only be retained
after the user commits them.
24 AT600 User’s Manual
Page 37
Chapter 3. Initial Setup and Programming
Velocity
m/s
0.0
0.0
Velocity
m/s
Soundspeed
m/s
0.0
Total m^3
Forward 0.0
Reverse 0.0
Velocity
m/s
0.0
Measurement Type
Value
Error Code
Value Units
Velocity
m/s
0.0
m/s
Velocity
0.0
3.3 Display Programming
The AT600 keypad has six keys and two LEDs.
The green light is a system health indicator and it is on when the meter is operational and not in error. The red light is a
system status indicator and it is on when the meter is in error. When both lights are off, the meter indicates the system
is in configuration mode or no power has been applied to the meter.
3.3.1 Changing Value for One or Two-Variable Screens
An outline of a typical one or two-variable screen appears below.
To change the number of decimal places in the displayed value:
From the display screen, press either the [] or [] buttons until the value is
highlighted.
AT600 User’s Manual 25
Once the value is highlighted, press
[] to open the Display/Decimal option.
Page 38
Chapter 3. Initial Setup and Programming
Display/Decimal
2
3
4
Sci
Velocity
m/s
0.0
m/s
Velocity
0.000e+00
Velocity
Measurement Type
Act Volumetric
Std Volumetric
Mass
3.3.1 Changing Value for One or Two-Variable Screens (cont.)
Use the [] and [] buttons to scroll to the appropriate value. (Available
options include 0, 1, 2, 3, 4, and Sci (Scientific Notation). Press [
the value, and then [
selection.
] again to confirm the selection or [] to cancel the
3.3.2 Changing Measurement Type for One- or Two-Variable Screens
To change the measurement type:
From the display screen, press either the [] or [] buttons until the
measurement type is highlighted.
] to select
Once the value is highlighted, press
The screen changes to
to scroll to the desired parameter. Available parameters include: Velocity, Act
Volumetric, Std volumetric, Mass, Batch Totals, Inventory Totals, Soundspeed,
Reynolds, KFactor, and Diagnostics. After you have chosen the measurement
type, press
[
] to cancel the selection.
Note: To select a particular measurement unit, go to "Units Setting" on page 28.
[] to select the value, and then [] again to confirm the selection or
Display/Measurement Type. Press the [] and [] buttons
[] to open the Measurement Type option.
26 AT600 User’s Manual
Page 39
Chapter 3. Initial Setup and Programming
Total m^3
Forward 0.000e+00
Reverse 0.000e+00
Totalizer
Reset Totalizer
Error Code
Values
Measurement Type
Start/Stop Totalizer
Totalizer Units
TOTAL m^3
Forward 0.000e+00
Reverse 0.000e+00
Total m^3
Forward 0.000e+00
Reverse 0.000e+00
Display/Decimal
2
3
4
Sci

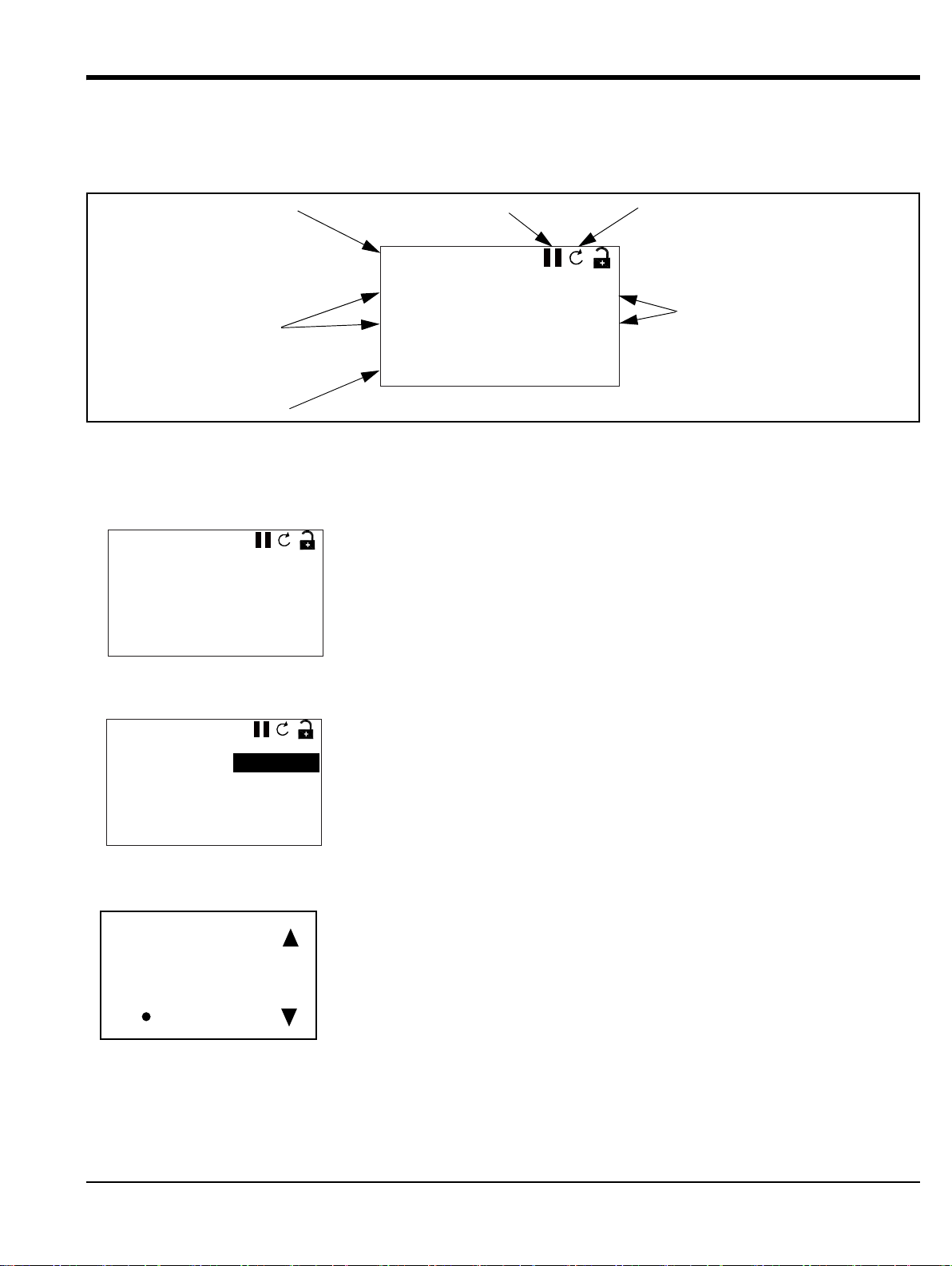

3.3.3 Changing the Measurement Type or Value for Totalizer Screens
The totalizer screen appears similar to Figure 31 below.
Figure 31: The Totalizer Screen
To change the number of decimal places in the value displayed on a totalizer screen, proceed as follows:
From the display screen, press either the [] or [] buttons until the value is
highlighted.
Once the value is highlighted, press
[] to open the Display/Decimal option.
Use the [] and [] buttons to scroll to the appropriate value. (Available
options include 0, 1, 2, 3, 4, and Sci (Scientific Notation). Press [
value, and then [
] again to confirm the selection or [] to cancel the selection.
] to select the
AT600 User’s Manual 27
Page 40
Chapter 3. Initial Setup and Programming
TOTAL m^3
Forward 0.000e+00
Reverse 0.000e+00
Total m^3
Forward 0.000e+00
Reverse 0.000e+00
Forward Totals
Totalizer Type
Reverse Totals
Net Totals
Time
TOTAL Seconds
Time 0.0000
Reverse 0.000e+00
Display/Unit
Seconds
Minutes
Hours
Days
3.3.3 Changing the Measurement Type or Value for Totalizer Screens (cont.)
To change the totalizer measurement type, proceed as follows:
From the display screen, press either the [] or [] buttons until the
measurement type is highlighted.
Once the type is highlighted, press
The screen changes to
Totalizer Type. Press the [] and [] buttons to scroll to
the appropriate parameter. Available parameters include: F
Reverse Totals, Net Totals and Time
select the value, and then [
] again to confirm the selection or [] to cancel the
[] to open the Display/Decimal option.
orward Totals,
. Once you have chosen the type, press [] to
selection.
If the first value is selected to
Reverse Totals, Net Totals
Time, the unit will display the time unit. If the first value is selected to Forward Totals,
, the unit will be the selected unit in the “Units Setting” The available time measurement
units are seconds, minutes, hours or days. To choose the appropriate unit, from the highlighted measurement type, press
the [] or [] buttons until the measurement unit is highlighted.
Once the unit is highlighted, press
[] to open the Display/Unit option.
28 AT600 User’s Manual
Press the [] and [] buttons to scroll to the appropriate unit, and press
select the unit, and then [
] again to confirm the selection or [] to cancel the
[] to
selection.
Note: If you selected “Time”, the available units are seconds, minutes, hours
and days.
Page 41
3.3.4 Starting or Stopping Totalizer Measurement
TOTAL m^3
Forward 0.000e+00
Reverse 0.000e+00
TOTAL m^3
Forward 0.000e+00
Reverse 0.000e+00
TOTAL m^3
Forward 0.000e+00
Reverse 0.000e+00
To start or stop totalizer measurements:
Chapter 3. Initial Setup and Programming
From the display, press either the [] or [] buttons until the
Start/Stop icon
(either an arrow icon for Start or a two-bar icon for Stop) is highlighted.
Once the value is highlighted, press [
] to start or stop totalizing.
The icon then changes to indicate the new status (start or stop).
AT600 User’s Manual 29
Page 42
Chapter 3. Initial Setup and Programming
TOTAL m^3
Forward 0.000e+00
Reverse 0.000e+00
TOTAL m^3
Forward 0.000e+00
Reverse 0.000e+00
3.3.5 Resetting the Totalizer
To reset the totalizer, proceed as follows:
From the display screen, press either the [] or [] buttons until the
(a partial circle with an arrow) is highlighted.
Once the
Reset icon has been highlighted, press [] to reset the totalizer to 0.
Reset icon
30 AT600 User’s Manual
Page 43
3.4 Entering the Main Menu (Lock Button)
Velocity
m/s
0.0
Chapter 3. Initial Setup and Programming

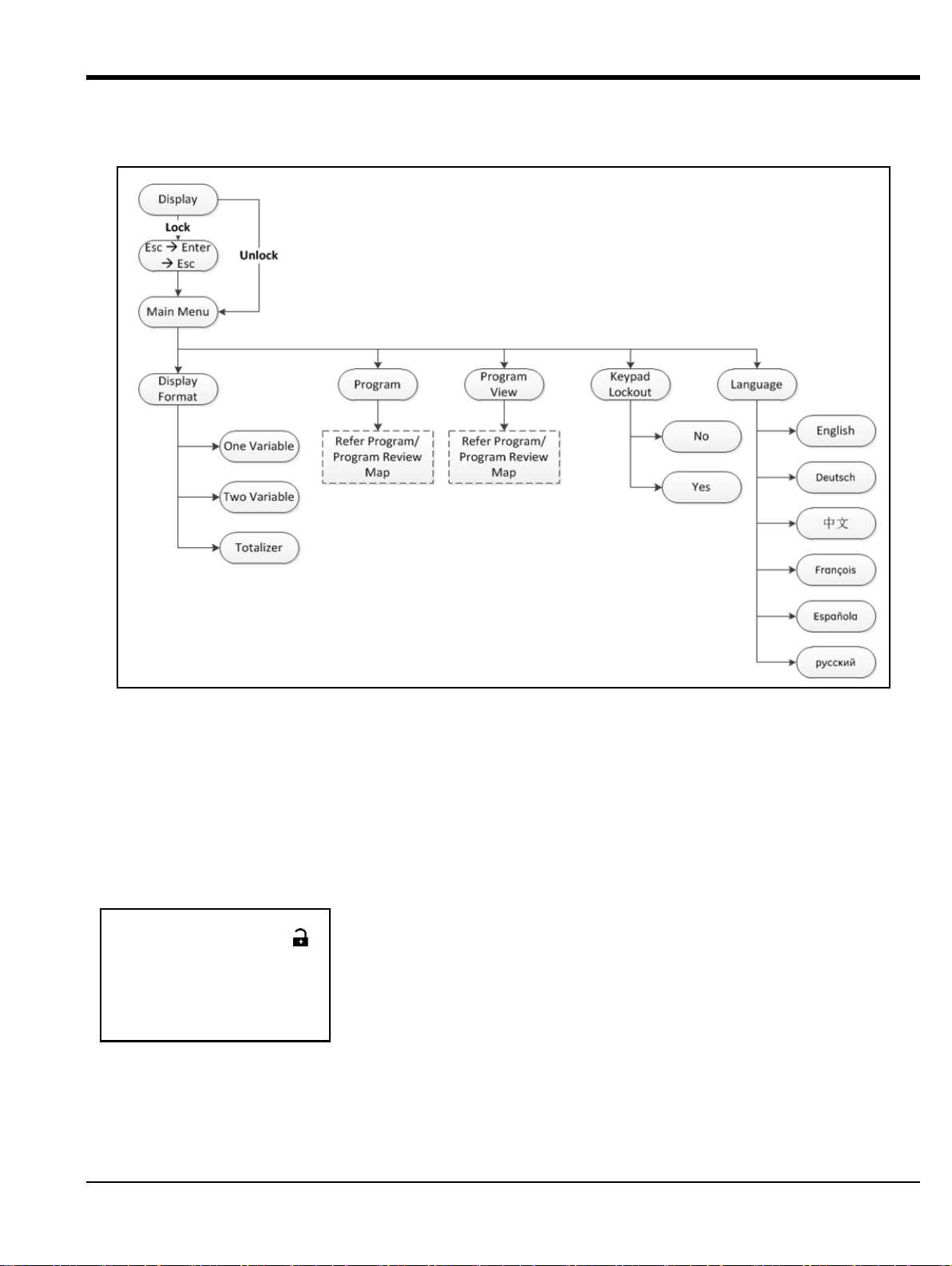

Figure 32: Main Menu Map
3.4.1 Display Format
To begin programming your meter, you must select the system units as discussed below. Remember to record all
programming data in Appendix B, Data Records.
The Display Format submenu is used to set up the type of format to be used in representing information.
On the initial screen, use the arrow keys to highlight the lock symbol and
press [√].
The following screen appears.
AT600 User’s Manual 31
Page 44
Chapter 3. Initial Setup and Programming
Display
Display Format
Program
Program Review
Keypad Lockout
Display/Display Format
Two Variable
Totalizer
One Variable
Display
Display Format
Program
Program Review
Keypad Lockout
Lockout/ Keypad Lockout
Yes
No
3.4.1 Display Format (cont.)
Use the [] or [] buttons to highlight Display Format and press []. The
following screen appears.
Use the [] and [] arrow keys to highlight the desired format setup and press
[]. The window returns to the previous screen.
3.4.2 Keypad Lockout
To lock or unlock the keypad for security, on the Display menu, select Keypad
Lockout and press
To lock the display, press [] and [] to highlight Yes and press
[]. A screen similar to the following appears.
[]. The screen
returns to the previous display.
To unlock the display, press [] and [] to highlight No and press
[]. The
screen returns to the previous display.
Note: When the keypad is locked, press
[], [], [] to unlock the screen.
32 AT600 User’s Manual
Page 45
3.4.3 Language
Display
Language
Program
Program Review
Keypad Lockout
Display/Language
Deutsch
中文
Français
English
Chapter 3. Initial Setup and Programming
To change the display language, on the
Display menu, select Language and press
[√]. A screen similar to the following appears.
Use the [] and [] arrow keys to highlight the desired language and press [√].
The window returns to the previous screen and the displayed language will be
changed online.
3.4.4 Program/Program Review
The Program and Program Review menus enable the setting up or viewing of several categories of information. As
discussed previously, to edit parameters, you will need to input the right password. The next section will explicitly state
which access is required to edit parameters. To view all parameters without editing, select
Program Review.
AT600 User’s Manual 33
Figure 33: Program/Program Review Menu Map
Page 46
Chapter 3. Initial Setup and Programming
Display
Display Format
Program
Program Review
Keypad Lockout
Enter the password
9999
]MOVE
]UNDO [ ]SAVE
]
]
]
]MODF
3.4.5 Program Review
The Program Review menu requires no user password. However, it provides view-only access to the screens. To
change any setting or parameter, you must enter the Program Menu and supply the correct password.
3.4.6 Program
IMPORTANT: The measurement will stop and the output will go to error level when you enter Program (configure)
mode.
To enter the Programming menu, on the
highlight
Program and press [√]. The following screen appears.
Display menu, use the arrow keys to
To enter the password, use the [] or [] arrow key to select each digit to be
changed and the [] or [] arrow keys to change the value of the selected
number. When the password number is correct, press [] and the User
Preference
screen appears. The password is 1111.
34 AT600 User’s Manual
Page 47
3.5 User Preferences
User Preference
Units Setting
Density
Password
Setting
System Date
Setting
Meter Tag
Label
System Date
Setting
Meter Tag
Label
Set System Time
Date: 11 / 12 / 2013
Time: 08 : 09 : 10
]MOVE
]UNDO [ ]SAVE
]
]
]MODF
[
3.5.1 Setting
Chapter 3. Initial Setup and Programming
To check or change the desired settings, under User Preference, select Settings
and press
[]. The following screen appears.
To check the Meter Tag and/or Label, highlight your choice on the Setting
menu and press
[]. Press [] to return to the previous screen.
Note: You can only change the Meter Tag and Label data using Vitality
software.
To check or change the date/time, highlight System Date and press
following screen appears.
Use the [] or [] arrow keys to select the correct time and press
screen returns to the previous display.
[]. The
[]. The
AT600 User’s Manual 35
Page 48

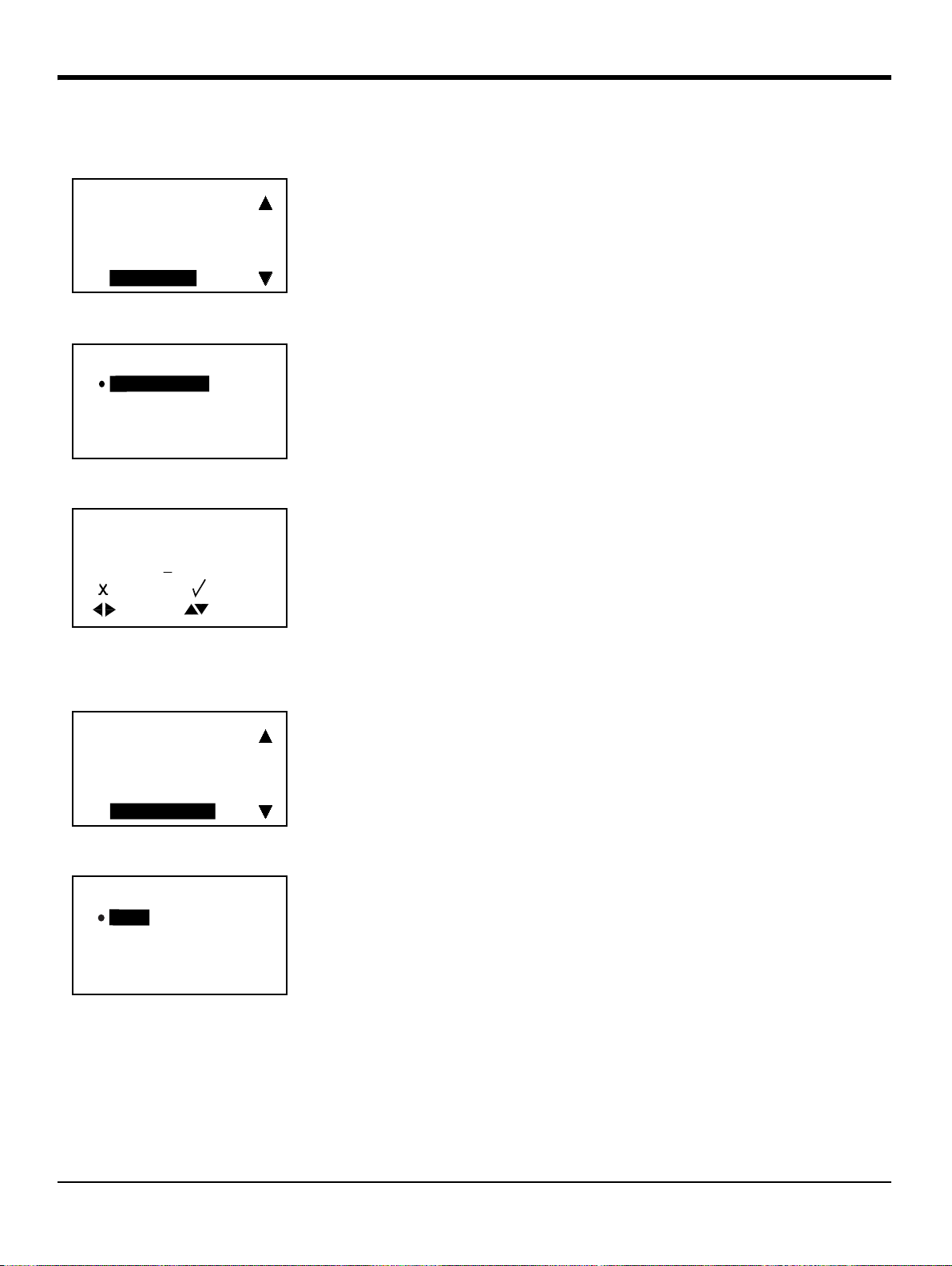

Chapter 3. Initial Setup and Programming
User Preference
Settings
Units Setting
Density
Password
Units Setting
Velocity
Act Volumetric
Std Volumetric
Mass
UnitsSet / Velocity
No
Yes
UnitsSet /Velocity
English
Metric
Vel /
Ft/s
3.5.2 Units Setting
To check or change velocity flow units, under User Preference, use the [] or
[] arrow key to select Units Setting and press
[]. The following screen
appears.
Under Units Setting menu, use the [] or [] arrow key to select the unit that
need to be changed and press [√] to reach the next level screen.
Note: Select “Velocity” as an example.
If you don’t want to change the unit, select No and press
display the unit, select Yes, press
If no change is desired, press
[] twice, and the following screen appears.
[] twice and the screen returns to the Units Setting
[]. If you do want to
menu. To change the measurement type, select the desired option, press []
twice, and a screen similar to the following appears.
Confirm the selected units, press
[] three times and return to the Units Setting
menu.
36 AT600 User’s Manual
Page 49
3.5.3 Density
User preference
Settings
Units Setting
Density
Password
Density
Density (Act)
Density (Std)
Density
Density (Act)
1000.000 Kg/m^3
Density (Act)
UNIT: Kg/m^3
1000.000
]MOVE
]UNDO [ ]SAVE
]
]
]MODF
[
User preference
Units Setting
Density
Password
Setting
Enter the password
9999
]MOVE
]UNDO [ ]SAVE
]
]
]
]MODF
Chapter 3. Initial Setup and Programming
To configure flow density, under User Preference, use the [] or [] arrow
key to select Density and press
[]. The following screen appears.
Use the [] or [] arrow keys to highlight the desired density type and press
[√].
Press [√] again and a screen similar to the following appears.
3.5.4 Password
Use the arrow keys to select the correct density value and press [√]. The screen
returns to the previous display.
To set up a password, under
Password and press [√]. The following screen appears.
select
User Preference, use the [] or [] arrow key to
Use the [] or [] arrow key to change the digit value and press [√]. Press the
] key to return to the Password screen.
[
AT600 User’s Manual 37
Page 50
Chapter 3. Initial Setup and Programming
User preference
Units Setting
Density
Password
Display
Display
Backlight
Timeout
Display/Backlight
OFF
ON
Display
Backlight
Timeout
Timeout
Timeout
19 S
3.5.5 Display
3.5.5a Backlight
To turn the backlight OFF or ON, under User Preference, use the [] or []
arrow key to select
Backlight, press [√], and a screen similar to the following appears.
Select
Display and press [√]. The following screen appears.
3.5.5b Timeout
Select OFF or ON, press [√] twice, and the screen returns to the previous
display.
To provide a timeout, under
Display, select Timeout and press [√]. A screen
similar to the following appears.
Note: The default value for the timeout is 0, so users must set a timeout if they
wish one.
Press [√] again, and a screen similar to the following appears.
38 AT600 User’s Manual
Page 51
3.5.5b Timeout (cont.)
Timeout
UNIT: S
19
]MOVE
]UNDO [ ]SAVE
]
]
]MODF
[
Chapter 3. Initial Setup and Programming
Use the [] or [] arrow key to change the digit value and press [√]. Press []
three times to return to the
User Preference screen.
AT600 User’s Manual 39
Page 52
Chapter 3. Initial Setup and Programming
Velocity
m/s
0.0
Display
Display Format
Program
Program Review
Keypad Lockout
Enter the password
9999
]MOVE
]UNDO [ ]SAVE
]
]
]
]MODF
User Preference
Settings
Units Setting
Density
Password
Input/Output
Analog Output A
Digital Output B
Digital Output C
Modbus/Service Port
3.6 Inputs/Outputs
3.6.1 Programming the Analog Output Menu
To access the Analog Output menu, on the initial screen, highlight the lock
symbol and press [√]. The following screen appears.
Program and press [√]. The following screen appears.
Select
To enter the password, use the [] or [] arrow key to select each digit to be
changed, use the [] or [] arrow keys to change the value of each digit, and
press
[]. The following screen appears.
In the User Preference menu, select Units Setting and press the right arrow key.
A screen similar to the following appears.
Select the desired Output number with the [] or [] arrow keys, and press
[] to enter the relevant configuration menu.
40 AT600 User’s Manual
Page 53
3.6.1a Setting Analog Measurements
Input/Output
Analog Output A
Digital Output B
Digital Output C
Modbus/Service Port
Analog Output A
Measurement
Base Value
Full Value
Calibrate
Measurement
Velocity
Act Volumetric
Std Volumetric
Mass
Analog Output A
Measurement
Base Value
Full Value
Calibrate
Base Value
Base Value
0.0000 m/s
Base Value
UNIT: m/s
0.0000
]MOVE
]UNDO [ ]SAVE
]
]
]MODF
[
Select the desired Output number with the [] or [] arrow keys, and press
[] to enter the relevant configuration menu.
Chapter 3. Initial Setup and Programming
Select Measurement and press
In the Measurement menu, select the type of analog output to be used, and press
[√]. The screen returns to the previous display.
3.6.1b Setting Base Value and Full Value
Base Value is the flow rate represented by 4 mA, and Full Value is the flow rate
represented by 20 mA. In the Analog Output menu, select
Value
and press []. A screen similar to the following appears.
[]. The following screen appears.
Base Value or Full
AT600 User’s Manual 41
Press
[] again and a screen similar to the following appears.
Note: The units that appear will be the units selected in Units Setting on page
28.
Use the [] or [] arrow key to select the digit to be changed, use the [] or
[] arrow keys to change the
Repeat these steps to set the Full Value setting. Press [
Output A
menu.
Base Value or Full Value and press [].
] to return to the Analog
Page 54
Chapter 3. Initial Setup and Programming
Analog Output A
Measurement
Base Value
Full Value
Calibrate
Calibrate
Calibrate 4mA
Calibrate 20mA
Percentage of Scale
Calibrate 4mA
UNIT: mA
4.000
]MOVE
]UNDO [ ]SAVE
]
]
]MODF
[
Analog Output A
Base Value
Full Value
Calibrate
Error Handling
Calibrate
Low
High
Hold
Other
3.6.1c Calibrate the Output
Use the Calibrate menu to trim the analog output to your measurement system.
In the Analog Output menu, select
Calibrate and press []. A screen similar to
the following appears.
4 mA to trim the 4 mA level, 20 mA to trim the 20 mA level, or
Select
Percentage of Scale to test linearity. Select the appropriate option and press [].
A screen similar to the following appears.
Read the analog output by a multimeter or other device. And input the current
value.
Use the [] or [] arrow key to select the digit to be changed, use the [] or
[] arrow keys to change the
Calibrate setting value and press []. Press [] to
return to the previous display.
3.6.1d Setting Error Handling
Repeat these steps until the output value is correct.
To specify the error handling status in the Analog Output A menu, select
Handling
Selecting
force it to 21.6 mA or above. Select the appropriate status and press
and press []. The following screen appears.
Low will force the Analog Output to 3.6 mA or below, while High will
[].
Error
42 AT600 User’s Manual
Page 55
3.6.2 Programming the Digital Output Menu
Velocity
m/s
0.0
Display
Display Format
Program
Program Review
Keypad Lockout
Enter the password
9999
]MOVE
]UNDO [ ]SAVE
]
]
]
]MODF
User Preference
Settings
Units Setting
Density
Password
Input/Output
Analog Output A
Digital Output B
Digital Output C
Modbus/Service Port
Chapter 3. Initial Setup and Programming
To access the
Digital Output menu, on the initial screen, highlight the lock
symbol and press [√]. The following screen appears.
Program and press [√]. The following screen appears.
Select
To enter the password, use the [] or [] arrow key to select each digit to be
changed, use the [] or [] arrow keys to change the value of each digit, and
press
[]. The following screen appears.
Digital outputs can be programmed as Pulse, Frequency or Alarm, or turned off.
AT600 User’s Manual 43
In the User Preference menu, select Units Setting and press the right arrow key.
A screen similar to the following appears.
Select the desired Digital Output number with the [] or [] arrow keys, and
[] to enter the relevant configuration menu.
press
Note: The operation steps for “Digital Output B” and “Digital Output C” are
the same.
Page 56
Chapter 3. Initial Setup and Programming
Digital Output B
Off
Pulse
Frequency
Alarm
Digital Output B
Off
Pulse
Frequency
Alarm
Pulse
Measurement
Pulse Value
Pulse Time
Test Pulse
Measurement
Forward Batch Total
Reverse Batch Total
Net Batch Total
Pulse
Measurement
Pulse Value
Pulse Time
Test Pulse
3.6.2a Disable the Digital Output
3.6.2b Setting the Pulse Output
Setting Measurement Type
To specify the error handling status in the Digital Output B menu, select
press
[] twice.
Off and
The Pulse output will put out a square wave pulse for each unit of flow that
passes through the pipeline. Select

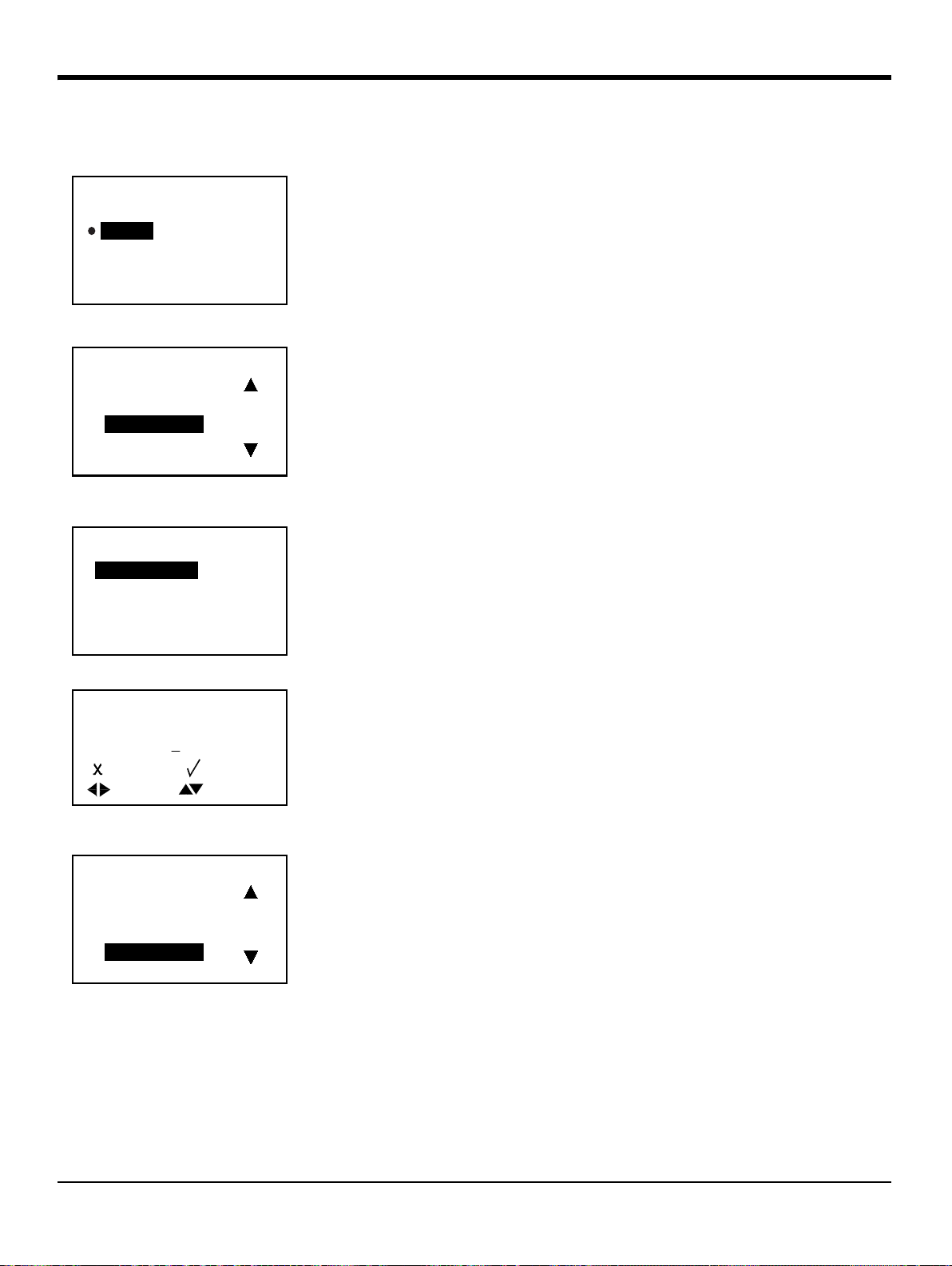

Pulse and press []. The following screen
appears.
Select
Measurement and press []. A screen similar to the following appears.
Setting Pulse Value
44 AT600 User’s Manual
In the
Measurement menu, select the type of analog output to be used, and press
[]. The screen returns to the previous display.
Use the [] or [] arrow keys to select Pulse Value and press []. A screen
similar to the following appears.
Page 57
Setting Pulse Value (cont.)
Pulse Value
Pulse Value
10.0000 m^3
Pulse Value
UNIT: m^3
10.0000
]MOVE
]UNDO [ ]SAVE
]
]
]MODF
[
Pulse
Measurement
Pulse Value
Pulse Time
Test Pulse
Pulse Time
Pulse Time
5 ms
Pulse Time
UNIT: ms
5
]MOVE
]UNDO [ ]SAVE
]
]
]MODF
[
Chapter 3. Initial Setup and Programming
The Pulse Value, the amount of flow represented by one pulse, is displayed. (For
example, 1 pulse = 10 m^3.) To change the existing number, press
[] and a
screen similar to the following appears.
Note: The units that appear will be the units selected in Units setting on page
28.
Setting Pulse Time
To change the
changed, use the [] or [] arrow keys to provide a new number and press
Pulse Value, use the [] or [] arrow key to select the digit to be
[]
to save. Press [] to return to the Pulse menu.
Use the [] or [] arrow keys to select
Pulse Time and press []. A screen
similar to the following appears.
The Pulse Time, pulse width, is displayed. To change the existing number, press
[] and a screen similar to the following appears.
AT600 User’s Manual 45
To change the
Pulse Time, use the [] or [] arrow key to select the digit to be
changed, use the [] or [] arrow keys to provide a new number and press
to save. Press [] to return to the Pulse menu.
[]
Page 58
Chapter 3. Initial Setup and Programming
Pulse
Pulse Value
Pulse Time
Test Pulse
Error Handling
Error Handling
Stop
Hold
Pulse
Pulse Value
Pulse Time
Test Pulse
Error Handling
Test Pulse
Test Pulse
0
Test Pulse
0
]MOVE
]UNDO [ ]SAVE
]
]
]MODF
[
Setting Pulse Error Handling
Test Pulse
To change the
Error Handling status, select it on the screen and press []. The
following screen appears.
Hold or Stop. Hold directs the meter, in case of a flow measurement error,
Select
to keep sending the pulses sent at the last good reading. Stop directs the meter, in
case of measurement error, to stop pulsing.
[], and the screen returns to the previous display. Press [] to return to the
Press
Digital Output menu.
To test the pulse output, select
Test Pulse and press []. The following screen
appears.
46 AT600 User’s Manual
[]. A screen similar to the following appears.
Press
[], and the screen returns to the previous display. Press [] to return to the
Press
Digital Output menu.
Enter a number of pulses and the instrument will send that many out. Note on
your measurement system that the right number of pulses were received.
After testing,
press [] to return to the Digital Output menu.
Page 59
3.6.2c Setting the Frequency
Digital Output B
Off
Pulse
Frequency
Alarm
Frequency
Measurement
Base Value
Full Value
Full Frequency
Measurement
Velocity
Act Volumetric
Std Volumetric
Mass
Frequency
Measurement
Base Value
Full Value
Full Frequency
Base Value
Base Value
0.0000 m/s
Setting Measurement Type
Chapter 3. Initial Setup and Programming
Frequency sends out a continuous square wave, with the frequency proportional
to a measured value. Select
Frequency and press []. The following screen
appears.
Measurement and press []. A screen similar to the following appears.
Select
In the Measurement menu, select the type of analog output to be used, and press
[]. The screen returns to the previous display.
Setting Base Value/Full Value/Frequency
The Base Value is the measurement value represented by 0 Hz. The Full Value is
the measurement value represented by Full Frequency. The Full Frequency is
the maximum Hz, which represents the Full Value of measurement.
Use the [] or [] arrow keys to select the appropriate option and press
screen similar to the following appears.
Note: The operation steps of Base Value, Full Value and Full Frequency are
the same.
To change the existing number, press
appears.
[]. A
[] and a screen similar to the following
AT600 User’s Manual 47
Note: The units that appear will be the units selected in Units Setting on page
28.
Page 60
Chapter 3. Initial Setup and Programming
Base Value
UNIT: m/s
0.000
]MOVE
]UNDO [ ]SAVE
]
]
]MODF
[
Frequency
Full Value
Full Frequency
Test Frequency
Error Handling
Error Handling
Low
High
Hold
Other
Error Handling Value
Value
0 Hz
Test Frequency
UNIT: Hz
0
]MOVE
]UNDO [ ]SAVE
]
]
]MODF
[
Setting Base Value/Full Value/Frequency (cont.)
To change the
changed, use the [] or [] arrow keys to provide a new number and press
to save. Press [] to return to the Frequency menu.
Setting Frequency Error Handling
To change the
following screen appears.
To change the current Error Handling status, select the option desired, and press
[]. The screen returns to the previous display.
You have four options for error handling in case of a measurement error:
Base Value, use the [] or [] arrow key to select the digit to be
[]
Error Handling status, select it on the screen and press []. The
• Hold — hold last good value
• Low — show 0 Hz.
• High —show Full Frequency.
Note: If Other is selected, a screen similar to the following appears:
Enter the Hz value you want to appear for error. (For example, if Full = 1 kHz,
you may want to set Error to 2 kHz.) Press
following appears.
Use the [] or [] arrow key to change the Other value and press
the number. Press [
] to return to the previous screen.
[] again, and a screen similar to the
[] to save
48 AT600 User’s Manual
Page 61
Test Frequency
Frequency
Full Value
Full Frequency
Test Frequency
Error Handling
Test Frequency
Test Frequency
0 Hz
Test Frequency
UNIT: Hz
0
]MOVE
]UNDO [ ]SAVE
]
]
]MODF
[
Digital Output B
Off
Pulse
Frequency
Alarm
Alarm
Measurement
Alarm State
Alarm Type
Alarm Value
Measurement
Velocity
Act Volumetric
Std Volumetric
Mass
Chapter 3. Initial Setup and Programming
3.6.2d Setting the Alarm
To test the Frequency output, select
Test Frequency and press []. The following
screen appears.
[], and a screen similar to the following appears.
Press
To change the current test frequency, press
[]. Set a Hz value. The meter will set
the digital output to this value. Then verify at your measurement system that you
see the frequency you entered. You can repeat this procedure with several
frequencies.
After testing,
press [] to return to the Digital Output menu.
Setting Measurement Type
The alarm can be an open or a short circuit, depending on the error condition. To
check the alarm and/or change its settings, in the
Alarm and press []. The following screen appears.
Measurement and press []. A screen similar to the following appears.
Select
Digital Output menu select
In the Measurement menu, select the type of analog output to be used, and press
[]. The screen returns to the previous display.
AT600 User’s Manual 49
Page 62
Chapter 3. Initial Setup and Programming
Alarm
Measurement
Alarm State
Alarm Type
Alarm Value
Alarm State
Normal
Fail Safe
Alarm
Measurement
Alarm State
Alarm Type
Alarm Value
Alarm Type
Low
High
Fault
Setting Alarm State
Setting Alarm Type
Use the [] or [] arrow keys to select
similar to the following appears.
Two alarm states are available:
Alarm State and press[]. A screen
• Normal — Normally open, close for alarm
• Fail Safe — Close
To change the state of the alarm, select the desired status and press
screen returns to the previous display.
Use the [] or [] arrow keys to select Alarm Type and press []. A screen
similar to the following appears.
[],. The
50 AT600 User’s Manual
You can choose from three alarm types:
• Low — No alarm if measurement is greater than the threshold, alarm if
measurement is less than or equal to the threshold
• High— No alarm if measurement is less than the threshold, alarm if
measurement is greater than or equal to the threshold
• Fault — No alarm if no errors, alarm if errors.
To change the type of alarm, select the appropriate type and press
screen returns to the previous display.
[],. The
Page 63
Setting Alarm Value
Alarm
Alarm State
Alarm Type
Alarm Value
Test Alarms
Alarm Value
Alarm Value
10.000 m/s
Alarm Value
UNIT: m/s
10.000
]MOVE
]UNDO [ ]SAVE
]
]
]MODF
[
Alarm
Alarm State
Alarm Type
Alarm Value
Test Alarms
Error Handling
OFF
ON
]UNDO [ ]SAVE
]
Chapter 3. Initial Setup and Programming
The Alarm Value is the threshold that trips the alarm. (This parameter does not
apply to Fault Alarms.) To check and/or change the alarm value, select
Value
and press []. A screen similar to the following appears.
[] again, and a screen similar to the following appears.
Press
Alarm
Note: The units that appear will be the units selected in Units Setting on page
28.
Test Alarms
To change the
Alarm Value, use the [] or [] arrow key to select the digit to be
changed, use the [] or [] arrow keys to provide a new number and press
to save. Press [] to return to the Alarm menu.
To test the Alarms output, select
Test Alarms and press []. The following screen
appears.
OFF to turn the alarm off, or ON to turn it on. To begin testing, select ON
Select
and press
[]. To stop testing, press [].
[]
AT600 User’s Manual 51
Page 64
Chapter 3. Initial Setup and Programming
Input/Output
Analog Output A
Digital Output B
Digital Output C
Modbus/Service Port
Input/Output
Digital Output B
Digital Output C
Modbus/Service Port
Digital Comm
Digital Comm
MODBUS
MODBUS
Baud Rate
Address
Bits/Parity
Stop Bits
3.6.3 Programming Modbus/Service Port
The configuration of service MODBUS port is fixed. The baud rate is “115200”,
Bits/Parity is “8/None”, Stop Bits is “1”. The address is “1”.
To view the
[]. The following screen appears.
Modbus/Service Port, select it on the Input/Output screen and press
3.6.4 Programming Digital Communications
The AT600 flow meter supports the digital communication types below:
• MODBUS
• HART
They are activated by the Password. Please contact GE for assistance.
3.6.4a MODBUS
To set up the
[]. The following screen appears.
Modbus, select Digital Comm on the Input/Output screen and press
[] again, and a screen similar to the following appears.
Press
Selecting the Baud Rate
To set the baud rate, in the
[]. A screen similar to the following appears.
52 AT600 User’s Manual
Modbus/Service menu, select Baud Rate and press
Page 65
Selecting the Baud Rate (cont.)
Baud Rate
19200
38400
57600
115200
MODBUS
Baud Rate
Address
Bits/Parity
Stop Bits
Address
Address
1
Address
1
]MOVE
]UNDO [ ]SAVE
]
]
]MODF
[
MODBUS
Baud Rate
Address
Bits/Parity
Stop Bits
Chapter 3. Initial Setup and Programming
Selecting the Modbus Address
The default baud rate is 115200. Select the appropriate baud rate and press
The screen returns to the previous display.
[],.
To set the address, in the Modbus menu, select Address and press []. A screen
similar to the following appears.
Press
[] again, and a screen similar to the following appears.
Selecting the Bits/Parity
AT600 User’s Manual 53
Use the [] or [] arrow keys to change the address number (from 1 to 254 —
not 0) and press
To set the
[]. Press [] to return to the previous screen.
Bits/Parity, in the Modbus menu, select it and press []. A screen
similar to the following appears.
Page 66
Chapter 3. Initial Setup and Programming
Bits/Parity
8/None
8/Odd
8/Even
115200
MODBUS
Baud Rate
Address
Bits/Parity
Stop Bits
Stop Bits
1
2
115200
Input/Output
Digital Output B
Digital Output C
Modbus/Service Port
Digital Comm
Digital Comm
HART
Selecting the Bits/Parity (cont.)
Selecting the Stop Bits
Select the appropriate number and press []. The screen returns to the previous
display.
To set the Stop Bits, in the Modbus menu, select it and press []. A screen similar
to the following appears.
3.6.4b HART
Select the appropriate number and press
display.
[]. The screen returns to the previous
To set up the HART, select Digital Comm on the Input/Output screen and press
[]. The following screen appears.
Note: Please ensure the HART function is selected for your unit.
[] again, and a screen similar to the following appears.
Press
54 AT600 User’s Manual
Page 67
Setting the HART Address
HART
Address
Address
0
Address
0
]MOVE
]UNDO [ ]SAVE
]
]
]MODF
[
Chapter 3. Initial Setup and Programming
Address
To set the address, in the
Modbus menu, select Address and press []. A screen
similar to the following appears.
[] again, and a screen similar to the following appears.
Press
Use the [] or [] arrow keys to change the address number (from 0 to 62) and
press
[]. Press [] to return to the previous screen.
AT600 User’s Manual 55
Page 68
Chapter 3. Initial Setup and Programming
Velocity
m/s
0.0
Display
Display Format
Program
Program Review
Keypad Lockout
Enter the password
9999
]MOVE
]UNDO [ ]SAVE
]
]
]
]MODF
User Preference
Settings
Units Setting
Density
Password
Sensor Setup
Meter Setup
Pipe
Transducer
Traverses

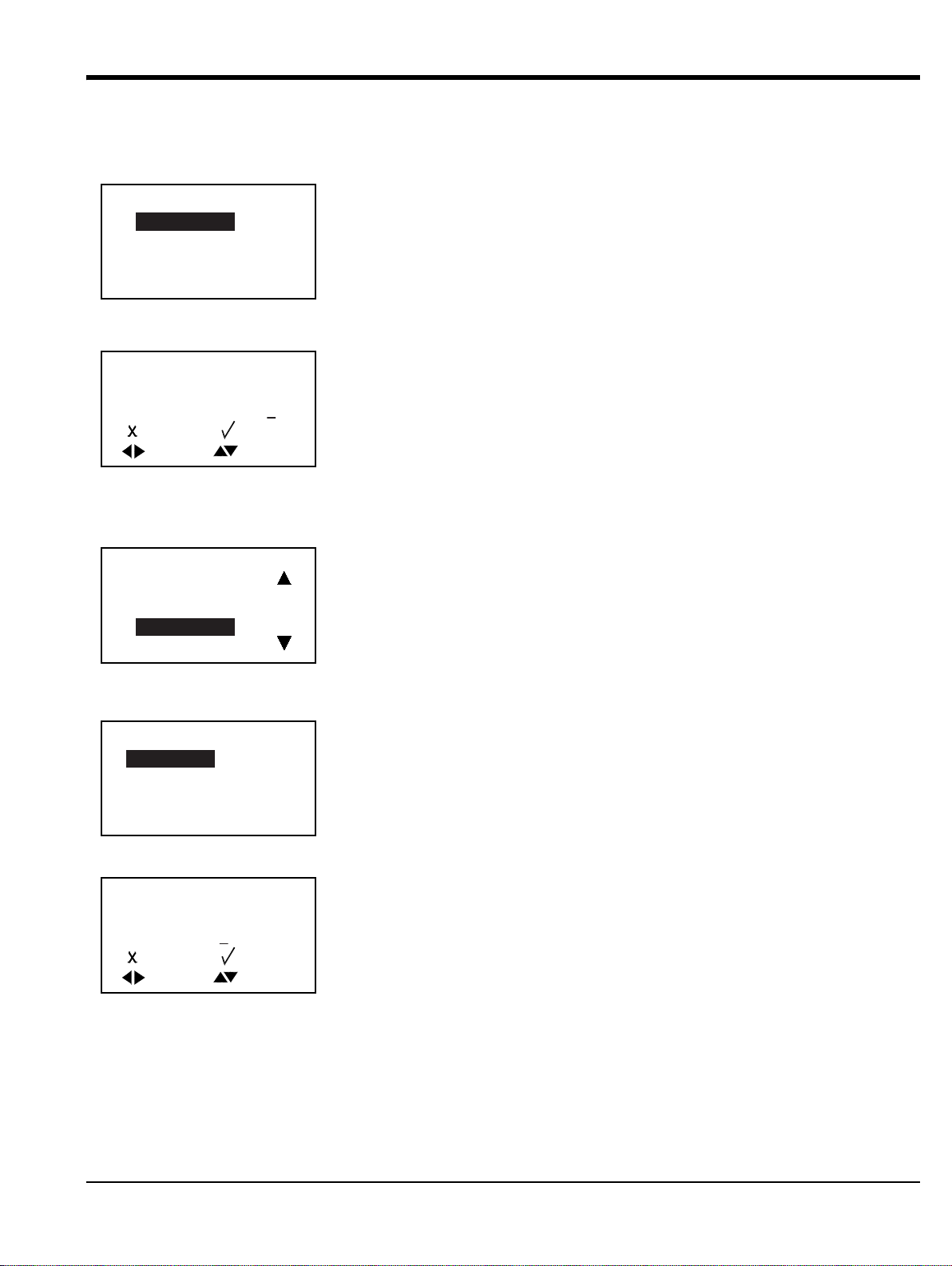

3.7 Sensor Setup
To access the Sensor Setup menu, on the initial screen, highlight the lock
symbol and press [√]. The following screen appears.
Select
Program and press [√]. The following screen appears.
To enter the password, use the [] or [] arrow key to select each digit to be
changed, use the [] or [] arrow keys to change the value of each digit, and
[]. The following screen appears.
press
In the User Preference menu, select Units Setting and press the right arrow key
twice. A screen similar to the following appears.
Select the desired parameter with the [] or [] arrow keys, and press
[] to
enter the relevant configuration menu.
56 AT600 User’s Manual
Page 69
Chapter 3. Initial Setup and Programming
Sensor Setup
Meter Setup
Pipe
Transducer
Traverses
Meter Setup
Zero Cutoff
Meter Setup/Zero Cutoff
Zero Cutoff
0.05 m/s
Zero Cutoff
UNIT: m/s
0.05
]MOVE
]UNDO [ ]SAVE
]
]
]MODF
[
3.7.1 Programming the Meter Setup
3.7.1a Setting Zero Cutoff
Near a zero flow rate, the AT600’s readings may fluctuate due to small offsets caused by thermal drift or similar
factors. To force a Zero display reading, when there is minimal flow, enter a zero cutoff value as described below.
Meter Setup and press [√]. The following screen appears.
Select
Zero Cutoff and press [√]. The following screen appears.
Select
Press
[] again, and a screen similar to the following appears.
Note: The units that appear will be the units selected in Units Setting on page
28.
To change the
changed, use the [] or [] arrow keys to provide a new number and press
Zero Cutoff, use the [] or [] arrow key to select the digit to be
[]
to save. Press [] to return to the previous screen.
AT600 User’s Manual 57
Page 70
Chapter 3. Initial Setup and Programming
Sensor Setup
Meter Setup
Pipe
Transducer
Traverses
Pipe
Pipe OD
Pipe ID
Wall Thickness
Pipe Material
Pipe OD
Pipe OD
89.760 mm
Pipe OD
UNIT: mm
89.76
0
]MOVE
]UNDO [ ]SAVE
]
]
]MODF
[
3.7.2 Programming the Pipe
3.7.2a Setting Pipe OD/ID/Wall Thickness
Pipe and press [√]. The following screen appears.
Select
In the User Preference menu, select Pipe OD, Pipe ID or Wall Thickness and
press [√]. A screen similar to the following appears.
[] again, and a screen similar to the following appears.
Press
Note: The units that appear will be the units selected in Units Setting on page
28.
Use the [] or [] arrow key to select the digit to be changed, use the [] or
[] arrow keys to provide a new number and press
Repeat these steps to set the Pipe ID and Wall Thickness. Press [
[] to save.
] to return to
the Pipe menu.
Note: Changing the Pipe ID (inner diameter) with automatically change the wall thickness. Changing the wall
thickness value will automatically change the Pipe ID.
58 AT600 User’s Manual
Page 71
3.7.2b Setting Pipe Material
Pipe
Pipe OD
Pipe ID
Wall Thickness
Pipe Material
Pipe Material
CuNi
Glass
Plastic
Other
In the Pipe menu, select Pipe Material and press [√]. The following screen
appears.
Table 2 below lists the preprogrammed pipe materials.
Table 2: Preprogrammed Pipe Materials
Name Pipe Material
CARBON STEEL Carbon Steel
SS STEEL Stainless Steel
DUCT IRON Duct Iron
Chapter 3. Initial Setup and Programming
CAST IRON Cast Iron
Cu Cuprum
Al Aluminum
BRASS Brass
30%Ni 30% Nickel Copper Alloy
10%Ni 10% Nickel Copper Alloy
PYREX GLASS Pyrex Glass
FLINT GLASS Flint Glass
CROWN GLASS Crown Glass
NYLON PLSTC Nylon Plastic
POLYE PLSTC Polyethylene
POLYP PLSTC Polypropylene
PVC PLSTC Polyvinyl chloride
ACRYL PLSTC Acrylic Plastics
Select the appropriate option and press [
] to return to the previous screen.
AT600 User’s Manual 59
If the material is not listed, select
the following appears.
Other and press [√] twice. A screen similar to
Page 72
Chapter 3. Initial Setup and Programming
Pipe SOS
Pipe SOS
2400.000 m/s
Pipe SOS
UNIT: m/s
2400.00
0
]MOVE
]UNDO [ ]SAVE
]
]
]MODF
[
Pipe
Pipe ID
Wall Thickness
Pipe Material
Lining
Lining
No
Yes
Lining
Lining Thickness
Lining Material
3.7.2b Setting Pipe Material (cont.)
3.7.2c Setting the Lining
Press [] again, and a screen similar to the following appears.
Note: The units that appear will be the units selected in Units Setting on page
28.
Use the [] or [] arrow key to select the digit to be changed, use the [] or
[] arrow keys to change the Pipe SOS value and press
[]. Press [] to return
to the previous display.
] twice to return to the Pipe menu.
Press [
In the Pipe menu, select Lining and press [√]. The following screen appears.
If there is no lining, select No and press [√] to return to the previous screen.
If there is a lining, select
Yes and press [√] twice. A screen similar to the
following appears.
To set the lining thickness, select it and press
[]. A screen similar to the
following appears.
60 AT600 User’s Manual
Page 73
3.7.2c Setting the Lining (cont.)
Lining Thickness
Lining Thickness
0.000 mm
Lining Thickness
UNIT: mm
0.00
0
]MOVE
]UNDO [ ]SAVE
]
]
]MODF
[
Lining Material
MORTR
RUBBR
REFLN
Other
Lining SOS
Lining SOS
2000.000 m/s
Lining SOS
UNIT: m/s
2000.00
0
]MOVE
]UNDO [ ]SAVE
]
]
]MODF
[
Chapter 3. Initial Setup and Programming
Press [] again, and a screen similar to the following appears.
Note: The units that appear will be the units selected in Units Setting on page
28.
Use the [] or [] arrow key to select the digit to be changed, use the [] or
[] arrow keys to change the Lining Thickness value and press
the previous display. Then press [
] to return to the Lining screen.
[] to return to
Select the appropriate option and press [
If the material is not listed, select
] to return to the previous screen.
Other and press [√] twice. A screen similar to
the following appears.
Table 3: Preprogrammed Lining Materials
Name Lining Material
Tar Epoxy Tar Epoxy
Pyrex Glass Pyrex Glass
Asbestos Cement Asbestos Cement
Mortar Mortar
Rubber Rubber
Teflon Teflon (PFTE)
Press
[] again, and a screen similar to the following appears.
Note: The units that appear will be the units selected in Units Setting on page
28.
AT600 User’s Manual 61
Use the [] or [] arrow key to select the digit to be changed, use the [] or
[] arrow keys to change the Lining SOS value and press
[]. Press [] to
return to the previous display.
Page 74
Chapter 3. Initial Setup and Programming
Sensor Setup
Meter Setup
Pipe
Transducer
Traverses
Transducer
SPEC
STD
SPEC
STD
SPEC
STD
0
STD
0
]MOVE
]UNDO [ ]SAVE
]
]
]MODF
[
3.7.3 Programming the Transducer
3.7.3a Setting the Standard Transducer
Select Transducer and press [√]. The following screen appears.
Select
STD and press [√]. A screen similar to the following appears.
[] again, and a screen similar to the following appears.
Press
Use the [] or [] arrow key to select the digit to be changed, use the [] or
[] arrow keys to change the Transducer setting, and press
previous screen. Then press [
] to return to the Transducer screen.
[] to return to the
Note: Available transducer types for the AT600 are listed in Table 4 below.
62 AT600 User’s Manual
Page 75
3.7.3a Setting the Standard Transducer (cont.)
Table 4: Transducer Types
Transducer Name Transducer Type
10 CPT-0.5CPT-0.5
11 CPT-2.0
12 CPT-0.5-MT C-PB-05-M
13 CPT-1.0-MT C-PB-10-M
14 CPT-2.0-MT C-PB-20-M
15 CPT-0.5-HT
Chapter 3. Initial Setup and Programming
16 CPT-1.0-HT
17 CPT-2.0-HT
18 CPS-0.5
19 CPSM-2.0
20 CTS-1.0
21 CTS-1.0-HT
22 CTS-2.0
23 C-LP-40-HM
24 C-LP-40-NM
25 CPB-0.5-HT
26 CPB-2.0-MT
27 CPB-0.5-MT
28 CPB-2.0
29 CPB-0.5
30 CPS-1.0 CPT-1.0
31 CWL-2
32 CPS-1.0
AT600 User’s Manual 63
Page 76
Chapter 3. Initial Setup and Programming
Table 4: Transducer Types
33 CPW (WT-1P-1.0 on AB82
34 CPW (WT-1P-0.5 on NDT plastic
35 CPW (WT-1P-1.0 on NDT plastic
36 CPB-1.0-HT
37 CPB-2.0-HT
38 CPB-1.0
39 CPB-1.0-MT
301 C-RL-0.5
302 C-RL-1
304 C-RL-0.5
305 C-RL-1
307 C-RL-0.5
308 C-RL-1
310 C-RV-0.5
311 C-RV-1
313 C-RW-0.5
314 C-RW-1
401
402
C-RS-0.5
C-RS-1
1
403 C-RS-2
407 UTXDR-2
408 UTXDR-5
601 CAT-0.5
602 CAT-1
603
CAT-2
1
1
Note: 1. Current support transducer
64 AT600 User’s Manual
Page 77
3.7.3b Setting a Special Transducer
Sensor Setup
Meter Setup
Pipe
Transducer
Traverses
Transducer
SPEC
STD
Special Transducer
Frequency
Wedge Type
Wedge Angle
Wedge SOS
Frequency
0.5 Mhz
1 Mhz
2 Mhz
4 Mhz
Special Transducer
Frequency
Wedge Type
Wedge Angle
Wedge SOS
Select Transducer and press [√]. The following screen appears.
Select
Chapter 3. Initial Setup and Programming
SPEC and press [√]. A screen similar to the following appears.
In the Special Transducer menu, select
Frequency and press [√]. The following
screen appears.
Select the appropriate option and press
Select
Wedge Type and press [√]. The following screen appears.
[] twice to return to the previous screen.
AT600 User’s Manual 65
Page 78
Chapter 3. Initial Setup and Programming
Wedge Type
Wetted
Shear
Special Transducer
Frequency
Wedge Type
Wedge Angle
Wedge SOS
Wedge Angle
Wedge Angle
42
Wedge Angle
4
2
]MOVE
]UNDO [ ]SAVE
]
]
]MODF
[
Special Transducer
Frequency
Wedge Type
Wedge Angle
Wedge SOS
3.7.3b Setting the Special Transducer
Select the appropriate option and press [] twice to return to the previous screen.
Select
Wedge Angle and press [√]. The following screen appears.
[] again, and a screen similar to the following appears.
Press
Use the [] or [] arrow key to select the digit to be changed, use the [] or
[] arrow keys to change the Wedge Angle setting, and press
previous screen. Then press [
Select
Wedge SOS and press [√]. The following screen appears.
] to return to the Transducer screen.
[] to return to the
66 AT600 User’s Manual
Page 79
3.7.3b Setting the Special Transducer (cont.)
Wedge SOS
Wedge SOS
2482 m/s
Wedge SOS
UNIT: m/s
248
2
]MOVE
]UNDO [ ]SAVE
]
]
]MODF
[
Special Transducer
Wedge Type
Wedge Angle
Wedge SOS
Time Wedge
Time Wedge
Time Wedge
7.500 us
Time Wedge
UNIT: us
7.500
]MOVE
]UNDO [ ]SAVE
]
]
]MODF
[
Press [] again, and a screen similar to the following appears.
Use the [] or [] arrow key to select the digit to be changed, use the [] or
[] arrow keys to change the Wedge SOS setting, and press
previous screen. Then press [
Chapter 3. Initial Setup and Programming
[] to return to the
] to return to the Transducer screen.
Select
Time Wedge and press [√]. The following screen appears.
[] again, and a screen similar to the following appears.
Press
Use the [] or [] arrow key to select the digit to be changed, use the [] or
[] arrow keys to change the Time Wedge setting, and press
previous screen. Then press [
] to return to the Transducer screen.
[] to return to the
AT600 User’s Manual 67
Page 80
Chapter 3. Initial Setup and Programming
XDR
XDR
XDR XDR
XDR
XDR
XDR XDR
X
XDR
X
XDR
X
XDR
X
XDR
X
XDR
X
XDR
X
XDR
X
XDR
1 Traverse
2 Traverse
3 Traverse
4 Traverse
Sensor Setup
Meter Setup
Pipe
Transducer
Traverses
Traverses
1
2
3
4
3.7.4 Programming the Traverses

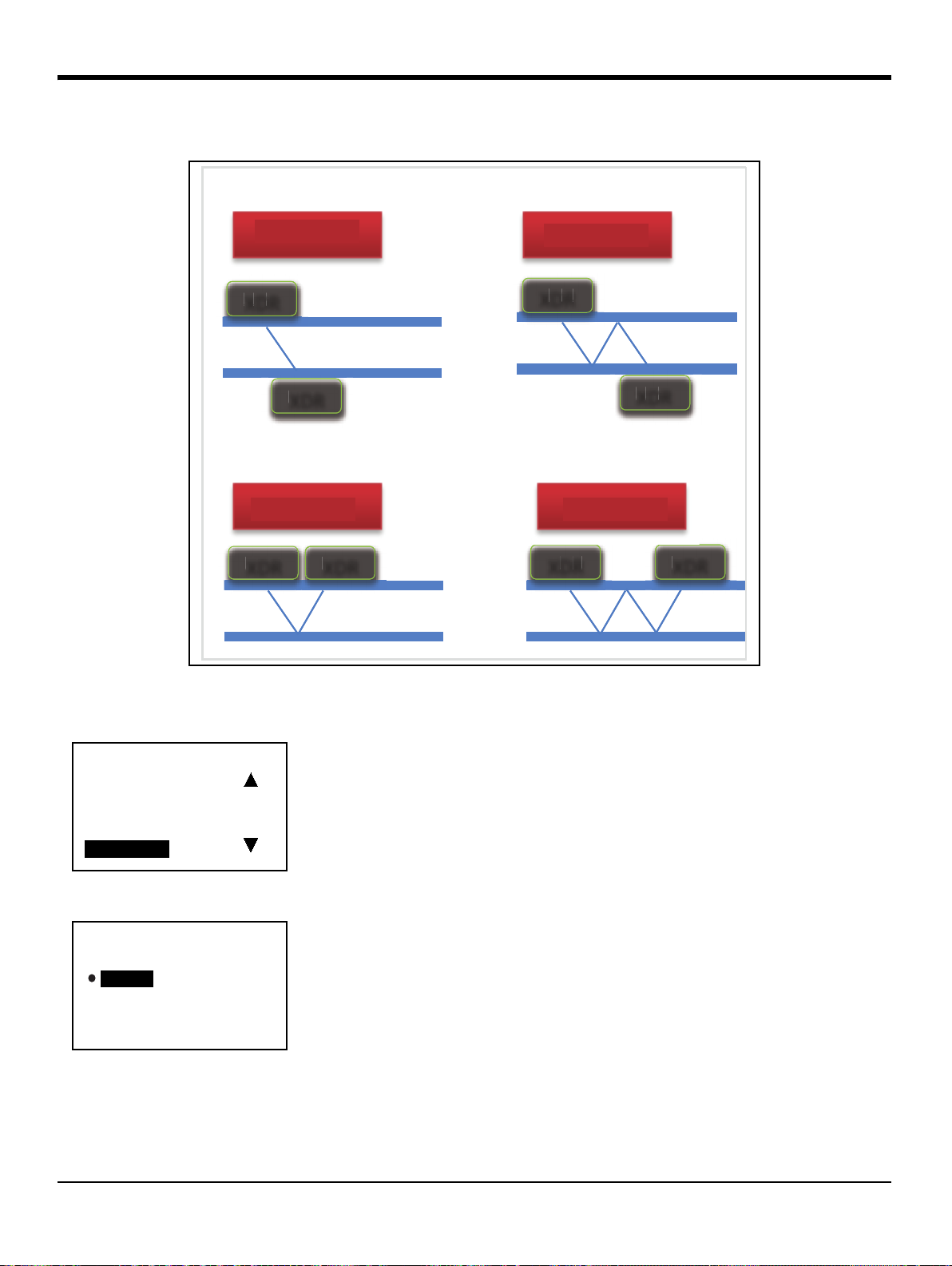

Figure 34: Traverse Examples
Traverses and press [√]. The following screen appears.
Select
Select the appropriate option and press
[] to return to the previous screen.
68 AT600 User’s Manual
Page 81
Chapter 3. Initial Setup and Programming
Sensor Setup
Traverses
Fluid Type
Fluid Temperature
Transducer Spacing
Fluid Type
Water
Other
Tracking Window
No
Yes
Fluid SOS
Fluid SOS
1496.000 m/s
Fluid SOS
UNIT: m/s
1496.000
]MOVE
]UNDO [ ]SAVE
]
]
]MODF
[
3.7.5 Programming the Fluid Type
If customers know the fluid type, the meter will run calculations based on customer input; however, if customers do not
know the fluid type, they should open the Tracking Windows function discussed below. Moving the transducers is not
necessary.
Fluid Type and press [√]. The following screen appears.
Select
If the fluid type is water, select
Water and press [] to return to the previous
screen.
If the fluid is not water, select Other and press
[]. A screen similar to the
following appears.
If the tracking window is not applied, select
the following appears. In it, you enter the
No and press []. A screen similar to
Fluid SOS.
If you don't know the fluid SOS, you can enable the tracking window so that the
meter detect it automatically. If the "tracking window" is applied, select Yes and
press [√]. A screen similar to the following appears. Enter the
Minimum SOS.
and
Maximum SOS
Note: Fluid SOS, Maximum SOS and Minimum SOS all operate in the same
manner.
[] again, and a screen similar to the following appears.
Press
AT600 User’s Manual 69
Use the [] or [] arrow key to select the digit to be changed, use the [] or
[] arrow keys to change the Fluid SOS setting, and press
previous screen. Then press [
] to return to the Sensor Setup screen.
[] to return to the
Page 82
Chapter 3. Initial Setup and Programming
Sensor Setup
Traverses
Fluid Type
Fluid Temperature
Transducer Spacing
Fluid Temperature
Fluid Temperature
25.000 °C
Fluid Temperature
UNIT: °C
25.000
]MOVE
]UNDO [ ]SAVE
]
]
]MODF
[
3.7.6 Programming the Fluid Temperature
Select Fluid Type and press [√]. The following screen appears.
[] again, and a screen similar to the following appears.
Press
Use the [] or [] arrow key to select the digit to be changed, use the [] or
[] arrow keys to change the Fluid Temperature setting, and press
to the previous screen. Then press [
] to return to the Sensor Setup screen.
[] to return
Note: Since meter calculations are based on customer inputs, temperature will
affect the speed of sound during the measurement.
70 AT600 User’s Manual
Page 83
3.7.7 Programming the Transducer Spacing
Sensor Setup
Traverses
Fluid Type
Fluid Temperature
Transducer Spacing
Transducer Spacing
Transducer Spacing
0.000 mm
Transducer Spacing
UNIT: mm
0.000
]MOVE
]UNDO [ ]SAVE
]
]
]MODF
[
Select Transducer Spacing and press [√]. The following screen appears.
[] again. Please note this transducer spacing for setting the transducers
Press
based on sensor setup input (pipe, transducer, fluid, and transducers).
Note: If setting this spacing is not possible, please contact the factory for
further assistance. If instructed by the factory, press [
screen similar to the following appears.
Chapter 3. Initial Setup and Programming
] again, and a
Use the [] or [] arrow key to select the digit to be changed, use the [] or
[] arrow keys to change the setting, and press
screen. Then press [
] to return to the Sensor Setup screen.
[] to return to the previous
Note: Changing the transducer spacing should only be completed with contact
from the factory.
AT600 User’s Manual 71
Page 84
Chapter 3. Initial Setup and Programming
[no content intended for this page]
72 AT600 User’s Manual
Page 85
Chapter 4. Error Codes and Troubleshooting
Chapter 4. Error Codes and Troubleshooting
4.1 Error Display in the User Interface
The bottom line of the LCD displays a single, top priority error message during operation. This line, called the Error
Line, includes two parts: Error header and Error String. The Error header indicates the error pattern and error number,
while the Error string gives a detailed description of the error information.
4.1.1 Error Header
Error Pattern Error Header
Flow Error En (n is error number)
Device Error Dn (n is error number)
Warning Sn (n is error number)
4.1.2 Flow Error String
Flow errors are errors in the course of making a flow measurement. These errors can be caused by disturbances in the
fluid, such as excessive particles in the flow stream or extreme temperature gradients. The errors could also be caused
by an empty pipe or other such issue with the fluid itself. Flow errors are typically not caused by a malfunction of the
flow measurement device, but by an issue with the fluid itself.
4.1.2a E1: Low Signal
Problem: Poor ultrasonic signal strength or the signal exceeds the limit via the Program;
Cause: When SNR is less that the value of “Signal Low Limits” or the signal cannot be found when the flow is
started, the Low Signal error will occur. Poor signal strength may be caused by a defective cable, a flowcell
problem, a defective transducer or a problem in electronic console. A signal that exceeds the programmed
limits is probably caused by the entry of an improper value in the menu Program Advanced Error
Limits
Action: Check the components listed above (Refer to Diagnostics). Also check the inputted value in the menu
Program Advanced Error Limits
Signal Low limits.
Signal Low limits.
4.1.2b E2: Sound Speed Error
Problem: The sound speed exceeds the limits programmed in the menu: Program Advanced Error Limits
SNSD +- limits.
Cause: When the measured sound speed is out of the limit of sound speed, it will cause this error. The error may be
caused by incorrect programming, poor flow conditions and poor transducer orientation;
Action: Correct the programming errors. Refer to Diagnostics, to correct the flowcell and/or transducer problems.
Also check the inputted value in the menu Program Advanced Error Limits
SNSD +- limits.
AT600 User’s Manual 73
Page 86
Chapter 4. Error Codes and Troubleshooting
4.1.2c E3: Velocity Range
Problem: The velocity exceeds the limits programmed in the menu Program Advanced Error Limits Velocity
Low/High;
Cause: When the measured velocity is out of the limit of velocity, it will cause this error. The error may be caused
by improper programming data, poor flow conditions and/or excessive turbulence;
Action: Make sure the actual flow rate is within the programmed limits. Also, check the entered value in the menu
Program Advanced Error Limits
and/or transducer problems.
Velocity Low/High. Refer to Diagnostics, to correct the flowcell
4.1.2d E4: Signal Quality
Problem: The signal quality is outside the limits programmed in the menu Program Advanced Error Limits
Correlation Peak.
Cause: The peak of the upstream or downstream correlation signals has fallen below the correlation peak limit, as
set in the menu Program Advanced Error Limits
flowcell or electrical problem.
Action: Check for sources of electrical interference and verify the integrity of the electronics console by
temporarily substituting a test flowcell that is known to be good. Check the transducers and relocate them,
if necessary. See Diagnostics, for instructions.
Correlation Peak. This may be caused by a
4.1.2e E5: Amplitude Error
Problem: The signal amplitude exceeds the limits programmed in the menu Program Advanced Error
Limits
Cause: Solid or liquid particulates may be present in the flowcell. Poor coupling for the clamp-on transducers.
Action: Refer to Diagnostics, to correct any flowcell problems.
Amp Disc Min/Max;.
4.1.2f E6: Cycle Skip
Problem: The acceleration exceeds the limits programmed in the menu Program Advanced Error
Limits
Cause: This condition is usually caused by poor flow conditions or improper transducer alignment.
Action: Refer to Diagnostics, to correct any flowcell and/or transducer problems.
Acceleration.
74 AT600 User’s Manual
Page 87
Chapter 4. Error Codes and Troubleshooting
4.2 Diagnostics
4.2.1 Introduction
This section explains how to troubleshoot the AT600 if problems arise with the electronics enclosure, the flowcell, or
the transducers. Indications of a possible problem include:
• Display of an error message on the LCD display screen, Vitality PC software, or HART.
• Erratic flow readings
• Readings of doubtful accuracy (i.e., readings that are not consistent with readings from another flow measuring
device connected to the same process).
If any of the above conditions occurs, proceed with the instructions presented in this chapter.
4.2.2 Flowcell Problems
If preliminary troubleshooting with the Error Code indicates a possible flowcell problem, proceed with this section.
Flowcell problems fall into two categories: fluid problems or pipe problems. Read the following sections carefully to
determine if the problem is indeed related to the flowcell. If the instructions in this section fail to resolve the problem,
contact GE for assistance.
4.2.2a Fluid Problems
Most fluid-related problems result from a failure to observe the flowmeter system installation instructions. Refer to
Chapter 2, Installation, to correct any installation problems.
If the physical installation of the system meets the recommended specifications, it is possible that the fluid itself may
be preventing accurate flow rate measurements. The fluid being measured must meet the following requirements:
1. The fluid must be homogeneous, single-phase, relatively clean and flowing steadily.
Although a low level of entrained particles may have little effect on the operation of the AT600, excessive amounts
of solid or gas particles will absorb or disperse the ultrasound signals. This interference with the ultrasound
transmissions through the fluid will cause inaccurate flow rate measurements. In addition, temperature gradients in
the fluid flow may result in erratic or inaccurate flow rate readings.
2. The fluid must not cavitate near the flowcell.
Fluids with a high vapor pressure may cavitate near or in the flowcell. This causes problems resulting from gas
bubbles in the fluid. Cavitation can usually be controlled through proper installation design.
3. The fluid must not excessively attenuate ultrasound signals.
Some fluids, particularly those that are very viscous, readily absorb ultrasound energy. In such a case, an error code
message will appear on the display screen to indicate that the ultrasonic signal strength is insufficient for reliable
measurements.
AT600 User’s Manual 75
Page 88
Chapter 4. Error Codes and Troubleshooting
4.2.2a Fluid Problems (cont)
4. The fluid sound speed must not vary excessively.
The AT600 will tolerate relatively large changes in the fluid sound speed, as may be caused by variations in fluid
composition and/or temperature. However, such changes must occur slowly. Rapid fluctuations in the fluid sound
speed, to a value that is considerably different from that programmed into the AT600, will result in erratic or
inaccurate flow rate readings. Refer to Chapter 3, Initial Setup and Programming, and make sure that the
appropriate sound speed is programmed into the meter.
4.2.2b Pipe Problems
Pipe-related problems may result either from a failure to observe the installation instructions, as described in Chapter 2,
or from improper programming of the meter. By far, the most common pipe problems are the following:
1. The collection of material at the transducer location(s).
Accumulated debris at the transducer location(s) will interfere with transmission of the ultrasound signals. As a
result, accurate flow rate measurements are not possible. Realignment of the flowcell or transducers often cures
such problems, and in some cases, transducers that protrude into the flow stream may be used. Refer to Chapter 2,
Installation, for more details on proper installation practices.
2. Inaccurate pipe measurements.
The accuracy of the flow rate measurements is no better than the accuracy of the programmed pipe dimensions. For
a flowcell supplied by GE, the correct data will be included in the documentation. For other flowcells, measure the
pipe wall thickness and diameter with the same accuracy desired in the flow rate readings. Also, check the pipe for
dents, eccentricity, weld deformity, straightness and other factors that may cause inaccurate readings. Refer to
Chapter 3, Initial Setup, for instructions on programming the pipe data.
In addition to the actual pipe dimensions, the path length (P) and the axial dimension (L), based on the actual
transducer mounting locations, must be accurately programmed into the flowmeter. For a GE Sensing flowcell, this
data will be included with the documentation for the system. If the transducers are mounted onto an existing pipe,
these dimensions must be precisely measured.
3. The inside of the pipe or flowcell must be relatively clean.
Excessive buildup of scale, rust or debris will interfere with flow measurement. Generally, a thin coating or a solid
well-adhered build up on the pipe wall will not cause problems. Loose scale and thick coatings (such as tar or oil)
will interfere with ultrasound transmission and may result in incorrect or unreliable measurements.
4.2.3 Transducer Problems
Ultrasonic transducers are rugged, reliable devices. However, they are subject to physical damage from mishandling
and chemical attack. The following list of potential problems is grouped according to transducer type. Contact GE if
you cannot solve a transducer-related problem.
76 AT600 User’s Manual
Page 89
Chapter 5. Communication
Chapter 5. Communication
5.1 MODBUS
5.1.1 Introduction
In general, the AT600 flowmeter follows the standard MODBUS communications protocol defined by the reference
MODBUS APPLICATION PROTOCOL SPECIFICATION V1.1b. This specification is available at www.modbus.org
on the Internet. With this reference as a guide, an operator could use any MODBUS master to communicate with the
flowmeter.
Listed below are two limits of this implementation:
1. The AT600 supports only four of the standard function codes. These are Read Holding Registers (0x03), Read
Input Registers (0x04), Write Multiple Registers (0x10), and Read File Record (0x14).
2. The flowmeter needs a 15 ms gap between Modbus requests. The prime objective of the flowmeter is to measure
flow and drive the output, so the Modbus server has a low priority.
5.1.2 MODBUS Map
Table 5: MODBUS Map
Register
(in Hex)
100 100 256 User Product Short Tag RW CHAR * 16
108 264 User Product Long Tag RW CHAR * 32
118 280 User Product message (for HART) RW CHAR * 32
128 296 User Product descriptor (for HART) RW CHAR * 16
140 140 320 User
148 328 User Product fixture serial number RW CHAR * 16
150 336 User
158 344 User
300 300 768 RO Main Hardware version RO CHAR * 8
304 772 RO Option Hardware version RO CHAR * 8
308 776 RO Main Software version RO CHAR * 8
500 500 1280 User
502 1282 User Global Unit group 2 for Day RW INT32
Register (in
Decimal) Access Level Description RO/RW Format
Product Electronic serial
number RW CHAR * 16
Product transducer1 serial
number RW CHAR * 16
Product transducer2 serial
number RW CHAR * 16
Global Unit group 1 for
Actual Volumetric RW INT32
504 1284 User Global Unit group 3 for dB RW INT32
Global Unit group 4 for
506 1286 User
AT600 User’s Manual 77
Density RW INT32
Page 90
Chapter 5. Communication
Register
(in Hex)
508 1288 User
50A 1290 User Global Unit group 6 for Hz RW INT32
50C 1292 User
50E 1294 User Global Unit group 8 for mA RW INT32
510 1296 User Global Unit group 9 for Mass RW INT32
512 1298 User
514 1300 User
516 1302 User
518 1304 User
Table 5: MODBUS Map (cont.)
Register (in
Decimal) Access Level Description RO/RW Format
Global Unit group 5 for
Dimension RW INT32
Global Unit group 7 for
Viscosity RW INT32
Global Unit group 10 for Milli
Second RW INT32
Global Unit group 11 for
Nano Second RW INT32
Global Unit group 12 for
Percent RW INT32
Global Unit group 13 for
Second RW INT32
Global Unit group 14 for
51A 1306 User
Standard Volumetric RW INT32
Global Unit group 15 for
51C 1308 User
Thermo RW INT32
Global Unit group 16 for
51E 1310 Viewer
Totalizer time RW INT32
Global Unit group 17 for
520 1312 User
Totalizer RW INT32
Global Unit group 18 for
522 1314 User
Unitless RW INT32
Global Unit group 19 for
524 1316 User
Micro Second RW INT32
Global Unit group 20 for
526 1318 User
Velocity RW INT32
Global Unit group 21 for
528 1320 User
Acceleration RW INT32
540 540 1344 Viewer Batch request command RW INT32
542 1346 User inventory request command RW INT32
544 1348 Viewer system request password RW INT32
546 1350 Viewer system request command RW INT32
700 700 1792 RO System Reported error RO INT32
702 1794 RO System Error Bitmap RO INT32
704 1796 RO System Startup error Bitmap RO INT32
78 AT600 User’s Manual
Page 91
Chapter 5. Communication
Table 5: MODBUS Map (cont.)
Register
(in Hex)
Register (in
Decimal) Access Level Description RO/RW Format
706 1798 RO System Flow error Bitmap RO INT32
708 1800 RO System Device error Bitmap RO INT32
70A 1802 RO System Warning Bitmap RO INT32
740 740 1856 RO System Protocol type RO INT32
900 900 2304 Viewer Display Language RW INT32
902 2306 User Display Backlight Enable RW INT32
904 2308 User Display Timeout RW INT32
906 2310 Viewer Display Type RW INT32
908 2312 Viewer Display Variable1 Type RW INT32
90A 2314 Viewer Display Variable2 Type RW INT32
90C 2316 Viewer Display Totalizer1 Type RW INT32
90E 2318 Viewer Display Totalizer2 Type RW INT32
910 2320 Viewer Display Decimal selection RW INT32
940 940 2368 User select the velocity RW INT32
942 2370 User select the Actual Volumetric RW INT32
select the Standardized
944 2372 User
Volumetric RW INT32
946 2374 User select Mass RW INT32
948 2376 User select Totalizer RW INT32
A00 A00 2560 RO Display Variable1 Value RO (IEEE 32 bit)
A02 2562 RO Display Variable2 Value RO (IEEE 32 bit)
A04 2564 RO Display Totalizer1 Value RO (IEEE 32 bit)
A06 2566 RO Display Totalizer2 Value RO (IEEE 32 bit)
Analog Out Error Handling
C00 C00 3072 User
Value RW (IEEE 32 bit)
Analog Out Test Value
C02 3074 User
(Percent of Span) RW (IEEE 32 bit)
C04 3076 User Analog Out Zero Value RW (IEEE 32 bit)
C06 3078 User Analog Out Span Value RW (IEEE 32 bit)
C08 3080 User Analog Out Base Value RW (IEEE 32 bit)
C0A 3082 User Analog Out Full Value RW (IEEE 32 bit)
C40 C40 3136 User Digital Out 1 Pulse Value RW (IEEE 32 bit)
Digital Out 1 Frequency Base
C42 3138 User
Value RW (IEEE 32 bit)
Digital Out 1 Frequency Full
C44 3140 User
AT600 User’s Manual 79
Value RW (IEEE 32 bit)
Page 92
Chapter 5. Communication
Table 5: MODBUS Map (cont.)
Register
(in Hex)
Register (in
Decimal) Access Level Description RO/RW Format
C46 3142 User Digital Out 1 Alarm Value RW (IEEE 32 bit)
C80 C80 3200 User Digital Out 2 Pulse Value RW (IEEE 32 bit)
Digital Out 2 Frequency Base
C82 3202 User
Value RW (IEEE 32 bit)
Digital Out 2 Frequency Full
C84 3204 User
Value RW (IEEE 32 bit)
C86 3206 User Digital Out 2 Alarm Value RW (IEEE 32 bit)
D00 D00 3328 User Analog Out Mode RW INT32
D02 3330 User Analog Out Type RW INT32
D04 3332 User Digital Out 1 Mode RW INT32
D06 3334 User Digital Out 1 Type RW INT32
D08 3336 User Digital Out 2 Mode RW INT32
D0A 3338 User Digital Out 2 Type RW INT32
Analog Out Measurement
D20 D20 3360 User
Type RW INT32
D22 3362 User Analog Out Error Handling RW INT32
D40 D40 3392 User
D42 3394 User Digital Out 1 Pulse Test Value RW INT32
D44 3396 User
D46 3398 User Digital Out 1 Pulse Time RW INT32
D50 D50 3408 User
D52 3410 User Digital Out 2 Pulse Test Value RW INT32
D54 3412 User
D56 3414 User Digital Out 2 Pulse Time RW INT32
D60 D60 3424 User
D62 3426 User
D64 3428 User
Digital Out 1 Pulse
Measurement Type RW INT32
Digital Out 1 Pulse Error
Handling RW INT32
Digital Out 2 Pulse
Measurement Type RW INT32
Digital Out 2 Pulse Error
Handling RW INT32
Digital Out 1 Frequency
Measurement Type RW INT32
Digital Out 1 Test Frequency
Value RW INT32
Digital Out 1 Frequency Error
Handling RW INT32
Digital Out 1 Frequency Error
D66 3430 User
Handling Value RW INT32
Digital Out 1 Frequency Full
D68 3432 User
80 AT600 User’s Manual
Frequency RW INT32
Page 93
Table 5: MODBUS Map (cont.)
Register
(in Hex)
Register (in
Decimal) Access Level Description RO/RW Format
D70 D70 3440 User
D72 3442 User
D74 3444 User
D76 3446 User
D78 3448 User
D80 D80 3456 User
D82 3458 User
Chapter 5. Communication
Digital Out 2 Frequency
Measurement Type RW INT32
Digital Out 2 Test Frequency
Value RW INT32
Digital Out 2 Frequency Error
Handling RW INT32
Digital Out 2 Frequency Error
Handling Value RW INT32
Digital Out 2 Frequency Full
Frequency RW INT32
Digital Out 1 Alarm
Measurement Type RW INT32
Digital Out 1 Alarm Test
Value RW INT32
D84 3460 User Digital Out 1 Alarm State RW INT32
D86 3462 User Digital Out 1 Alarm Type RW INT32
Digital Out 2 Alarm
D90 D90 3472 User
Measurement Type RW INT32
Digital Out 2 Alarm Test
D92 3474 User
Value RW INT32
D94 3476 User Digital Out 2 Alarm State RW INT32
D96 3478 User Digital Out 2 Alarm Type RW INT32
Analog Out Measurement
E00 E00 3584 RO
Value RO (IEEE 32 bit)
Digital Out 1 Pulse
E02 3586 RO
Measurement Value RO (IEEE 32 bit)
Digital Out 1 Frequency
E04 3588 RO
Measurement Value RO (IEEE 32 bit)
Digital Out 1 Alarm
E06 3590 RO
Measurement Value RO (IEEE 32 bit)
Digital Out 2 Pulse
E08 3592 RO
Measurement Value RO (IEEE 32 bit)
Digital Out 2 Frequency
E0A 3594 RO
Measurement Value RO (IEEE 32 bit)
Digital Out 2 Alarm
E0C 3596 RO
Measurement Value RO (IEEE 32 bit)
1100 1100 4352 Viewer HART meter address RW INT32
1102 4354 Viewer HART preamble length RW INT32
1104 4356 Viewer HART device ID RW INT32
AT600 User’s Manual 81
Page 94
Chapter 5. Communication
Register
(in Hex)
Register (in
Decimal) Access Level Description RO/RW Format
1106 4358 Viewer HART assembly number RW INT32
1140 1140 4416 Viewer
1142 4418 Viewer
1144 4420 Viewer
1146 4422 Viewer
1300 1300 4864 RO
1302 4866 RO HART Device Status RO INT32
1304 4868 RO
1306 4870 RO HART master status RO INT32
Table 5: MODBUS Map (cont.)
HART Dynamic Variable
Index _1 RW INT32
HART Dynamic Variable
Index _2 RW INT32
HART Dynamic Variable
Index _3 RW INT32
HART Dynamic Variable
Index _4 RW INT32
HART Configuration Change
Count RO INT32
HART Device Status
Extended RO INT32
1308 4872 RO HART secondary status RO INT32
130A 4874 RO HART variable status RO INT32
1500 1500 5376 User PC MODBUS baud rate RW INT32
1502 5378 User PC MODBUS parity RW INT32
1504 5380 User PC MODBUS stop bits RW INT32
1506 5382 User PC MODBUS meter address RW INT32
1540 1540 5440 User Log control / status RW INT32
1542 5442 User Log interval RW INT32
1544 5444 User Logging time RW INT32
1546 5446 User Number of variables to log RW INT32
1580 1580 5504 User variable address array RW INT32
15C0 15C0 5568 User Variable unit code array RW INT32
1700 1700 5888 RO PC Service baud rate RO INT32
1702 5890 RO PC Service parity RO INT32
1704 5892 RO PC Service stop bits RO INT32
1706 5894 RO PC Service meter address RO INT32
1740 1740 5952 RO Number of records RO INT32
2000 2000 8192 User Pipe Inner Diameter RW (IEEE 32 bit)
2002 8194 User Pipe Outer Diameter RW (IEEE 32 bit)
2004 8196 User Pipe Wall Thickness RW (IEEE 32 bit)
2006 8198 User Pipe Soundspeed RW (IEEE 32 bit)
2008 8200 User Lining Thickness RW (IEEE 32 bit)
82 AT600 User’s Manual
Page 95
Chapter 5. Communication
Table 5: MODBUS Map (cont.)
Register
(in Hex)
Register (in
Decimal) Access Level Description RO/RW Format
200A 8202 User Lining Soundspeed RW (IEEE 32 bit)
200C 8204 User XDR wedge angle RW (IEEE 32 bit)
200E 8206 User XDR wedge time RW (IEEE 32 bit)
2010 8208 User Wedge Sound speed RW (IEEE 32 bit)
2012 8210 User Fluid Sound speed RW (IEEE 32 bit)
2014 8212 User Fluid Sound speed Min RW (IEEE 32 bit)
2016 8214 User Fluid Sound speed Max RW (IEEE 32 bit)
2018 8216 User Fluid Static Density RW (IEEE 32 bit)
201A 8218 User Fluid Reference Density RW (IEEE 32 bit)
201C 8220 User Fluid Temperature RW (IEEE 32 bit)
201E 8222 User XDR space RW (IEEE 32 bit)
2020 8224 User Calibration Factor RW (IEEE 32 bit)
2022 8226 User Kinematic Viscosity RW (IEEE 32 bit)
2040 2040 8256 User MultiK Velocity 1 RW (IEEE 32 bit)
2042 8258 User MultiK Velocity 2 RW (IEEE 32 bit)
2044 8260 User MultiK Velocity 3 RW (IEEE 32 bit)
2046 8262 User MultiK Velocity 4 RW (IEEE 32 bit)
2048 8264 User MultiK Velocity 5 RW (IEEE 32 bit)
204A 8266 User MultiK Velocity 6 RW (IEEE 32 bit)
2060 2060 8288 User MultiK Velocity KFactor1 RW (IEEE 32 bit)
2062 8290 User MultiK Velocity KFactor2 RW (IEEE 32 bit)
2064 8292 User MultiK Velocity KFactor3 RW (IEEE 32 bit)
2066 8294 User MultiK Velocity KFactor4 RW (IEEE 32 bit)
2068 8296 User MultiK Velocity KFactor5 RW (IEEE 32 bit)
206A 8298 User MultiK Velocity KFactor6 RW (IEEE 32 bit)
2080 2080 8320 User MultiK Reynolds 1 RW (IEEE 32 bit)
2082 8322 User MultiK Reynolds 2 RW (IEEE 32 bit)
2084 8324 User MultiK Reynolds 3 RW (IEEE 32 bit)
2086 8326 User MultiK Reynolds 4 RW (IEEE 32 bit)
2088 8328 User MultiK Reynolds 5 RW (IEEE 32 bit)
208A 8330 User MultiK Reynolds 6 RW (IEEE 32 bit)
20A0 20A0 8352 User MultiK Reynolds KFactor1 RW (IEEE 32 bit)
20A2 8354 User MultiK Reynolds KFactor2 RW (IEEE 32 bit)
20A4 8356 User MultiK Reynolds KFactor3 RW (IEEE 32 bit)
20A6 8358 User MultiK Reynolds KFactor4 RW (IEEE 32 bit)
AT600 User’s Manual 83
Page 96
Chapter 5. Communication
Table 5: MODBUS Map (cont.)
Register
(in Hex)
Register (in
Decimal) Access Level Description RO/RW Format
20A8 8360 User MultiK Reynolds KFactor5 RW (IEEE 32 bit)
20AA 8362 User MultiK Reynolds KFactor6 RW (IEEE 32 bit)
20C0 20C0 8384 User Correlation peak low limit RW (IEEE 32 bit)
20C2 8386 User Acceleration Limit RW (IEEE 32 bit)
Velocity Low limit - Used for
Volumetric low limit
20C4 8388 User
calculation RW (IEEE 32 bit)
Velocity High limit - Used for
Volumetric High limit
20C6 User
calculation RW (IEEE 32 bit)
Amplitude discriminator min
20C8 8392 User
limit RW (IEEE 32 bit)
Amplitude discriminator
20CA 8394 User
max limit RW (IEEE 32 bit)
20CC 8396 User Soundspeed Plus minus limit RW (IEEE 32 bit)
20CE 8398 User signal low limit RW (IEEE 32 bit)
20E0 20E0 8416 User Zero Cutoff RW (IEEE 32 bit)
20E2 8418 User DeltaT Offset RW (IEEE 32 bit)
2100 2100 8448 User Pipe Material RW INT32
2102 8450 User Lining Material RW INT32
2104 8452 User XDR Type RW INT32
2106 8454 User XDR frequency RW INT32
2108 8456 User XDR wedge type RW INT32
210A 8458 User Fluid Type RW INT32
210C 8460 User Lining existence RW INT32
210E 8462 User Traverse number RW INT32
2140 2140 8512 User Enable Reynolds Correction RW INT32
2142 8514 User Enable Active MultiK RW INT32
2144 8516 User MultiK Type RW INT32
2146 8518 User MultiK Pairs RW INT32
2180 2180 8576 User Peak% RW INT32
2182 8578 User Min Peak% RW INT32
2184 8580 User Max Peak% RW INT32
2186 8582 User Errors Allowed RW INT32
21C0 21C0 8640 User Enable Active TW RW INT32
21C2 8642 User Enable Tracking Windows RW INT32
21C4 8644 User Response T ime RW INT32
84 AT600 User’s Manual
Page 97
Chapter 5. Communication
Table 5: MODBUS Map (cont.)
Register
(in Hex)
Register (in
Decimal) Access Level Description RO/RW Format
21C6 8646 User Sample Size RW INT32
2200 2200 8704 RO Velocity RO (IEEE 32 bit)
2202 8706 RO Volumetric RO (IEEE 32 bit)
2204 8708 RO Standard Volumetric RO (IEEE 32 bit)
2206 8710 RO Mass Flow RO (IEEE 32 bit)
2240 2240 8768 RO Batch Fwd totals RO (IEEE 32 bit)
2242 8770 RO Batch rev totals RO (IEEE 32 bit)
2244 8772 RO Batch net totals RO (IEEE 32 bit)
2246 8774 RO Batch totals time RO (IEEE 32 bit)
2248 8776 RO Inventory Fwd totals RO (IEEE 32 bit)
224A 8778 RO inventory rev totals RO (IEEE 32 bit)
224C 8780 RO inventory net totals RO (IEEE 32 bit)
224E 8782 RO inventory totals time RO (IEEE 32 bit)
2280 2280 8832 RO Transit Time Up RO (IEEE 32 bit)
2282 8834 RO Transit Time Dn RO (IEEE 32 bit)
2284 8836 RO DeltaT RO (IEEE 32 bit)
2286 8838 RO Up Signal Quality RO (IEEE 32 bit)
2288 8840 RO Dn Signal Quality RO (IEEE 32 bit)
228A 8842 RO Up Amp Disc RO (IEEE 32 bit)
228C 8844 RO Dn Amp Disc RO (IEEE 32 bit)
228E 8846 RO SNR on UP channel RO (IEEE 32 bit)
2290 8848 RO SNR on DOWN channel RO (IEEE 32 bit)
Time in buffer on Up
2292 8850 RO
channel RO (IEEE 32 bit)
2294 8852 RO Time in buffer on Dn channel RO (IEEE 32 bit)
2296 8854 RO Signal Gain Up RO (IEEE 32 bit)
2298 8856 RO Signal Gain Down RO (IEEE 32 bit)
22C0 22C0 8896 RO Sound Speed RO (IEEE 32 bit)
22C2 8898 RO Current Reynolds Number RO (IEEE 32 bit)
22C4 8900 RO Current Correction Factor RO (IEEE 32 bit)
22C6 8902 RO Path Length P RO (IEEE 32 bit)
22C8 8904 RO Axial Length L RO (IEEE 32 bit)
2300 2300 8960 RO Up +- Peak RO INT32
2302 8962 RO Dn +- Peak RO INT32
AT600 User’s Manual 85
Page 98
Chapter 5. Communication
Table 5: MODBUS Map (cont.)
Register
(in Hex)
2304 8964 RO
2306 8966 RO
Register (in
Decimal) Access Level Description RO/RW Format
dynamic threshold on UP
channel RO INT32
dynamic threshold on
DOWN channel RO INT32
5.2 HART
5.2.1 Device Identification
The AT600 flowmeter supports the HART communication, for which the manufacturer ID is 0x9D (157 Dec) and the
Device type Code is 0x7F (127 Dec).
5.2.2 Commands
5.2.2a Universal Commands
Table 6: Universal Commands for HART
Command Function Description
0 Read Unique Identifier Returns identity information about the meter including: the Device
Type, revision levels, and Device ID.
1 Read Primary Variable Returns the Primary Variable value along with its Unit Code
2 Read Loop Current And
Percent Of Range
3 Read Dynamic Variables
and Loop Current
6 Write Polling Address Writes the polling address and the loop current mode to the field
7 Read Loop Configuration Read polling address and the loop current mode.
8 Read Dynamic Variable
Classification
9 Read Device Variables
with Status
11 Read Unique Identifier
Associated With Tag
Reads the Loop Current and its associated Percent of Range.
Reads the Loop Current and up to four predefined Dynamic Variables.
The Dynamic Variables and associated units are defined via
Commands 51 and 53.
device.
Reads the Classification associated with the Dynamic variable.
Request the value and status of up to eight device Device or Dynamic
Variables.
If the specified tag matches that of the meter, it responds with the
Command 0 response.
12 Read Message Reads the Message contained within the meter.
13 Read Tag, Descriptor, Date Reads the Tag, Descriptor, and Date contained within the meter.
14 Read Primary Variable
Transducer Information
86 AT600 User’s Manual
Reads the Transducer (meter) Serial Number, Limits/Minimum Span
Units Code, Upper Transducer Limit, Lower Transducer Limit, and
Minimum Span for the Primary Variable transducer.
Page 99
Chapter 5. Communication
Table 6: Universal Commands for HART (cont.)
Command Function Description
15 Read Device Information Reads the alarm selection code, transfer function code, range values
units code upper range value, Primary Variable lower range value,
damping value, write protect code, and private label distributor code.
16 Read Final Assembly
Reads the Final Assembly Number associated with the meter.
Number
17 Write Message Write the Message into the meter.
18 Write Tag, Descriptor, Date Write the Tag, Descriptor, and Date Code into the meter.
19 Write Final Assembly
Write the Final Assembly Number into the meter.
Number
20 Read Long Tag Read the 32-byte Long Tag.
21 Read Unique Identifier
Read Unique Identifier Associated with Long Tag
Associated with Long Tag
22 Write Long Tag Write the 32-byte Long Tag
38 Reset Configuration
Resets the configuration changed indicator (Device Status Byte bit 6).
Changed Flag
48 Read Additional Device
Status
Returns meter status information not included in the Response Code
or Device Status Byte.
5.2.2b Common Commands
Table 7: Common Commands
Command Function Description
33 Read Device Variables Allows a Master to request the value of up to four Device Variables.
50 Read Dynamic Variable
Assignments
51 Write Dynamic Variable
Assignments
Reads the Device Variables assigned to the Primary, Secondary,
Tertiary, and Quaternary Variables.
Allows the user to assign Device Variables to the Primary,
Secondary, Tertiary, and Quaternary Variables
54 Read Device Variable
Get device variable information
Information
59 Write Number of Response
Preambles
AT600 User’s Manual 87
Sets the number of asynchronous preamble bytes to be sent by the
meter before the start of a response message.
Page 100
Chapter 5. Communication
5.2.2c Device Specific Commands
The AT600 flow meter supports the following device specific commands. In some commands, the parameter is the
measurement type. Measurement types are shown in Table 8 below.
Table 8: Measurement Type
Index Meaning
1Velocity
2Volumetric
3 Standard Volumetric
4 Mass Flow
5 Batch Fwd. Totalizer
6 Batch Rev. Totalizer
7 Batch Net Totalizer
8Batch Totalizer Time
9 Inventory Fwd. Totalizer
10 Inventory Rev. Totalizer
11 Inventory Net Totalizer
12 Inventory Totalizer Time
13 Sound Speed
14 Reynolds Kfactor
15 MultiK Kfactor
16 Transit Time Up
17 Transit Time Down
18 Deltat
19 Signal Quality Up
20 Signal Quality Down
21 Amp Disc Up
22 Amp Disc Down
23 SNR Up
24 SNR Down
25 ActiveTW Up
26 ActiveTW Down
27 Gain Up
28 Gain Down
29 System Error Bitmap
30 System Report Error Number
31 Peak Up
32 Peak Down
33 Peak Pct . Up
34 Peak Pct . Down
88 AT600 User’s Manual
