GE ASV24DB Specification

GE Appliances

Premium, Deluxe and Value Model

Wall Case Dimensions (in inches)

24-2/5

16-3/4

9-1/4*

23-2/3

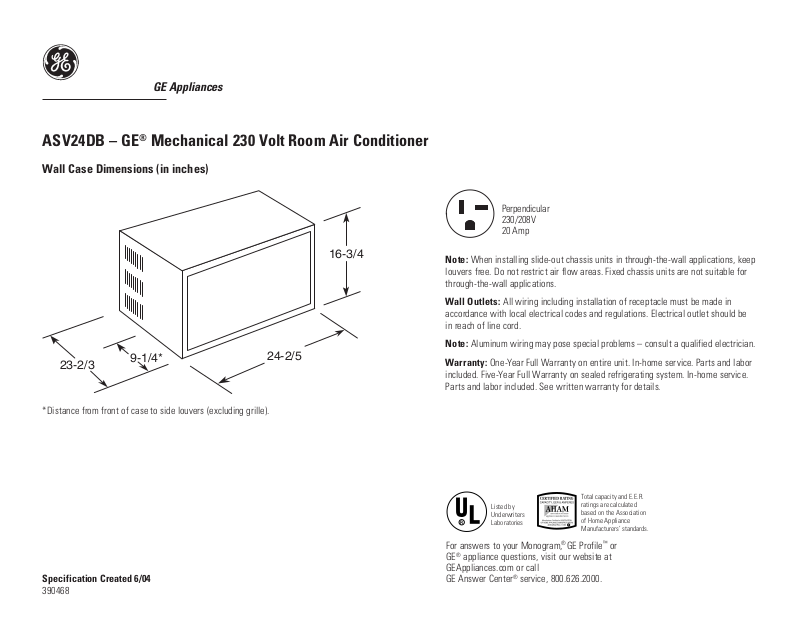

ASV24DB – GE® Mechanical 230 Volt Room Air Conditioner

Wall Case Dimensions (in inches)

Perpendicular 230/208V 20 Amp

Note: When installing slide-out chassis units in through-the-wall applications, keep louvers free. Do not restrict air flow areas. Fixed chassis units are not suitable for through-the-wall applications.

Wall Outlets: All wiring including installation of receptacle must be made in accordance with local electrical codes and regulations. Electrical outlet should be in reach of line cord.

Note: Aluminum wiring may pose special problems – consult a qualified electrician.

Warranty: One-Year Full Warranty on entire unit. In-home service. Parts and labor

included. Five-Year Full Warranty on sealed refrigerating system. In-home service. Parts and labor included. See written warranty for details.

*Distance from front of case to side louvers (excluding grille).

Specification Created 6/04

390468

Total capacity and E.E.R.

Listed by Underwriters Laboratories

ratings are calculated based on the Association of Home Appliance Manufacturers’ standards.

For answers to your Monogram,® GE Profile™ or GE® appliance questions, visit our website at GEAppliances.com or call GE Answer Center

service, 800.626.2000.

GE Appliances

ASV24DB – GE® Mechanical 230 Volt Room Air Conditioner

Features and Benefits

• Circulaire™-Oscillating Louvers for Enhanced Air Circulation

• 7.2 Dehumidification (pints/hr)

• 23,700/23,100 BTUH (Cooling)

• 3 Cooling/3 Fan Only Speeds

• 8-Position Thermostat

• 8.5/8.5 E.E.R.

• 230/208V Model

• Model ASV24DB

Specification Created 6/04

390468
