GE ASV14AB Specification
ASV14AB—GE 115 Volt Window Room Air Conditioner with Mechanical Controls
Specification Created 5/01
GE Appliances

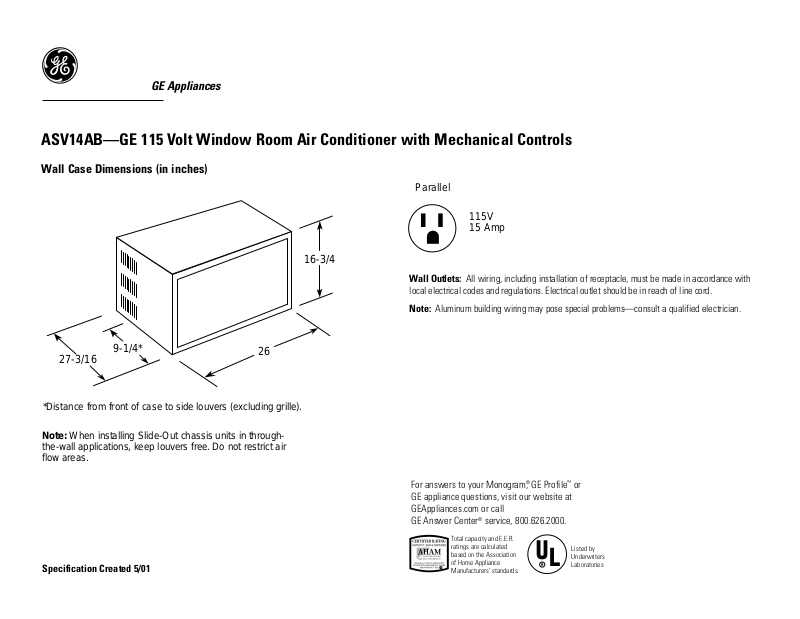

Wall Case Dimensions (in inches)
Wall Outlets: All wiring, including installation of receptacle, must be made in accordance with
local electrical codes and regulations. Electrical outlet should be in reach of line cord.
Note: Aluminum building wiring may pose special problems—consult a qualified electrician.
26
16-3/4
27-3/16
9-1/4*
Parallel
115V
15 Amp
Note: When installing Slide-Out chassis units in throughthe-wall applications, keep louvers free.Do not restrict air
flow areas.
*Distance from front of case to side louvers (excluding grille).
R
Listed by
Underwriters
Laboratories
R
Total capacity and E.E.R.
ratings are calculated
based on the Association
of Home Appliance
Manufacturers’ standards.
For answers to your Monogram,® GE Profile™or
GE appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center®service, 800.626.2000.
Specification Created 5/01
GE Appliances
ASV14AB—GE 115 Volt Window Room Air Conditioner with Mechanical Controls
Features and Benefits
• 14,000 BTUH, 115 Volts
• 10.0 EER
• Mechanical Controls with 8-Position Thermostat
• 3 Cooling / 2 Fan Speeds
• Slide-Out Chassis
• 430 CFM (High)
• 1,400 Watts / 12.0 Amps
• 3.5 Dehumidification (pts / hr)
• EZ Mount Window Installation
• One Touch Lift-Out Filter
• Plug Type–Parallel
• EZ Mount Window Installation
• Model ASV14AB
OFF
MODE
LOW
FAN
LOW
COOL
HI
COOL
HI
FAN
MED COOL
TEMP
1
2
3
4
5
6
7
8
COOLEST
