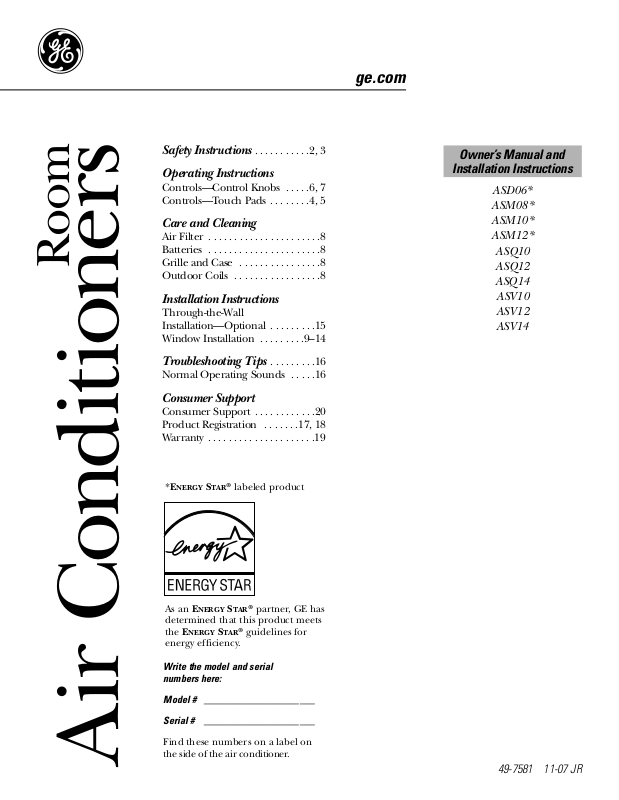

GE ASV10, ASQ12, ASM10, ASQ14, ASM08 User Manual

...

Safety Instructions . . . . . . . . . . .2, 3

Operating Instructions

Controls—Control Knobs . . . . .6, 7

Controls—Touch Pads . . . . . . . .4, 5

Care and Cleaning

Air Filter . . . . . . . . . . . . . . . . . . . . . .8

Batteries . . . . . . . . . . . . . . . . . . . . . .8

Grille and Case . . . . . . . . . . . . . . . .8

Outdoor Coils . . . . . . . . . . . . . . . . .8

Installation Instructions

Through-the-Wall

Installation—Optional . . . . . . . . .15

Window Installation . . . . . . . . .9–14

Troubleshooting Tips . . . . . . . . .16

Normal Operating Sounds . . . . .16

Consumer Support

Consumer Support . . . . . . . . . . . .20

Product Registration . . . . . . .17, 18

Warranty . . . . . . . . . . . . . . . . . . . . .19

49-7581 11-07 JR

ASD06* ASM08* ASM10* ASM12*

ASQ10 ASQ12 ASQ14

ASV10 ASV12 ASV14

Air Conditioners

Owner’s Manual and

Installation Instructions

ge.com

Write the model and serial numbers here:

Model # ______________________

Serial # ______________________

Find these numbers on a label on the side of the air conditioner.

Room

As an ENERGY STAR®partner, GE has determined that this product meets the ENERGY STAR®guidelines for energy efficiency.

*ENERGY STAR®labeled product

Consumer Support Troubleshooting Tips

Operating Instructions Safety InstructionsInstallation Instructions

IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING.

WARNING!

For your safety, the information in this manual must be followed to minimize the risk of fire, electric shock or personal injury.

■ Use this appliance only for its intended

purpose as described in this Owner’s Manual.

■ This air conditioner must be properly

installed in accordance with the Installation Instructions before it is used.

■ Never unplug your air conditioner by pulling

on the power cord. Always grip plug firmly and pull straight out from the receptacle.

■ Replace immediately all electric service

cords that have become frayed or otherwise damaged. A damaged power supply cord must be replaced with a new power supply cord obtained from the manufacturer and not repaired. Do not use a cord that shows cracks or abrasion damage along its length or at either the plug or connector end.

■ If the receptacle does not match the plug,

the receptacle must be changed out by a qualified electrician.

■ Turn the unit

OFF

and unplug your air conditioner before making any repairs or cleaning.

NOTE: We strongly recommend that any servicing be performed by a qualified individual.

■ For your safety…do not store or use

combustible materials, gasoline or other flammable vapors or liquids in the vicinity of this or any other appliance.

■ All air conditioners contain refrigerants,

which under federal law must be removed prior to product disposal. If you are getting rid of an old product with refrigerants, check with the company handling disposal about what to do.

SAFETY PRECAUTIONS

Do not, under any circumstances, cut or remove the third (ground) prong from the power cord. For personal safety, this appliance must be properly grounded.

DO NOT use an adapter plug with this appliance.

The power cord of this appliance is equipped with a 3-prong (grounding) plug which mates with a standard 3-prong (grounding) wall outlet to minimize the possibility of electric shock hazard from this appliance.

Power cord includes a current interrupter device. A test and reset button is provided on the plug case. The device should be tested on a periodic basis by first pressing the

TEST

button

and then the

RESET

button while plugged into

the outlet. If the

TEST

button does not trip

or if the

RESET

button will not stay engaged, discontinue use of the air conditioner and contact a qualified service technician.

Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded.

Where a 2-prong wall outlet is encountered, it is your personal responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet.

The air conditioner should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating plate.

This provides the best performance and also prevents overloading house wiring circuits which could cause a fire hazard from overheated wires.

See the Installation Instructions,

Electrical

Requirements

section for specific electrical

connection requirements.

HOW TO CONNECT ELECTRICITY

Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions Installation Instructions

ge.com

WARNING!

Because of potential safety hazards under certain conditions, we strongly recommend against the use of an extension cord.

However, if you must use an extension cord, it is absolutely necessary that it be a UL-listed, 14 gauge, 3-wire grounding type appliance extension cord having a grounding type plug and outlet and that the electrical rating of the cord be 15 amperes (minimum) and 125 volts.

CAUTION:

DO NOT use an extension cord with any of the 230/208 volt models.

USE OF EXTENSION CORDS—

115-Volt models only

READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.

SAVE THESE INSTRUCTIONS

Consumer Support Troubleshooting Tips

Operating Instructions Safety InstructionsInstallation Instructions

■ To ensure proper operation, aim the

remote control at the signal receiver on the air conditioner.

■ The remote control signal has a range of

up to 21 feet.

■ Make sure nothing is between the air conditioner

and the remote control that could block the signal.

■ Make sure batteries are fresh and installed

correctly—see the

Care and Cleaning

section.

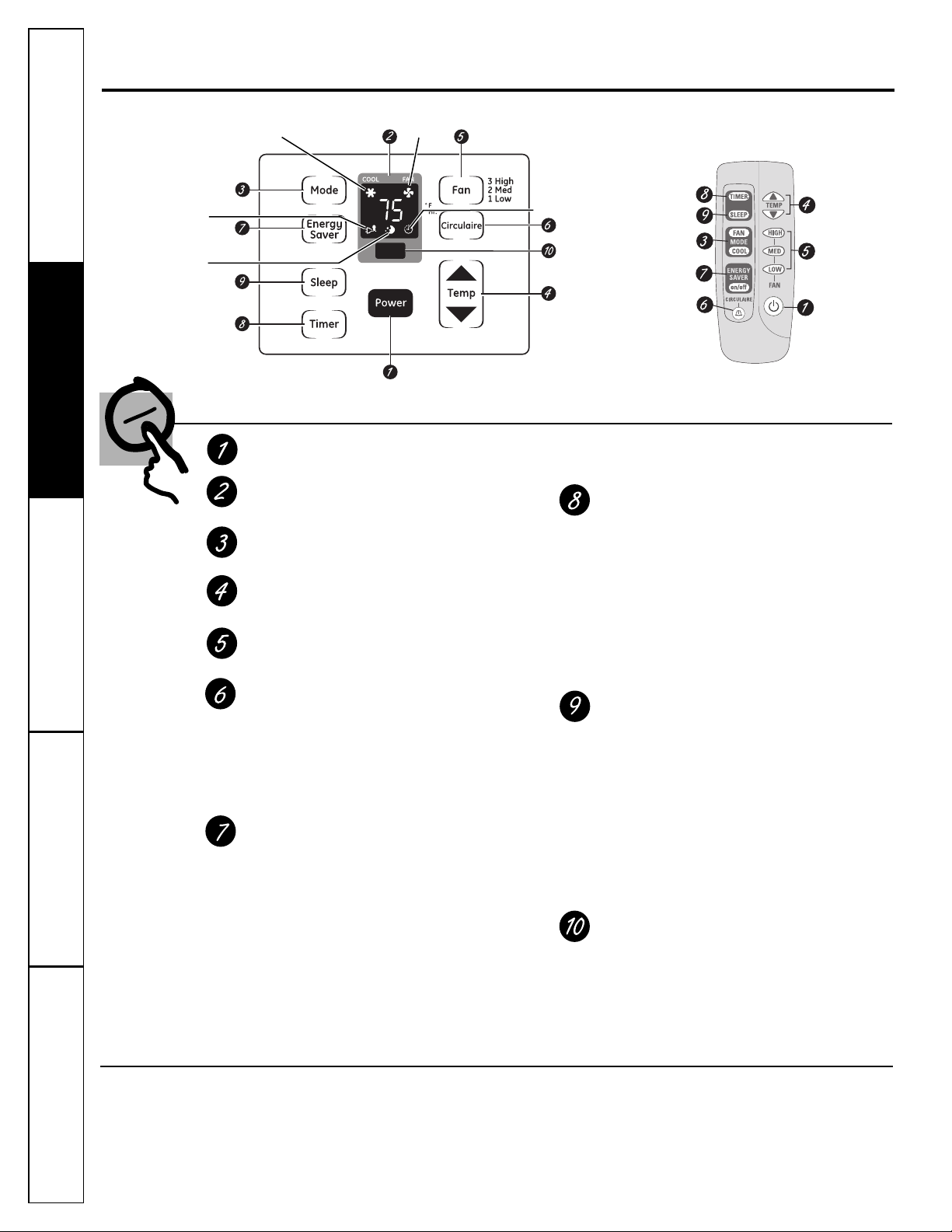

About the controls on the air conditioner—models with touch pads.

Features and appearance will vary.

Air Conditioner Controls

On/Off

Turns air conditioner on and off.

Display

Displays the set temperature or time remaining on timer.

Mode

Use to set the air conditioner to

Cool

Fan

mode.

Increase ▲ /Decrease ▼Pads

Use to set temperature when in

Cool

mode.

Fan

Use to set the fan speed at

Low, Med orHigh

Circulaire

(on some models)

Turn on to provide continuous side-to-side air circulation.

For fixed side-to-side air direction, turn

until the desired air direction is obtained, then turn it

Off

Energy Saver–

Controls the fan.

On—

The fan and compressor cycle on and off. This results in wider variations of room temperature and humidity. Normally used when the room is unoccupied.

Note: The fan

will continue to run for a short time after the compressor cycles off.

Off—

The fan runs all the time, while the compressor cycles on and off.

This switch must be set at

Off

in order to use

the fan settings (on the mode control).

Timer

On—

When the air conditioner is off, it can be set to automatically turn on in 1 to 24 hours at its previous setting. Each touch will set the time in hours.

Off—

When the air conditioner is on, it can be set to automatically turn off in 1 to 24 hours. Each touch will set the time in hours.

To cancel the timer, press the

Timer

pad

until the display time disappears.

Sleep

(on some models)

Press to set the air conditioner to run for 8 hours before it automatically shuts off.

One hour after the sleep timer is set, the set temperature will automatically increase 2°F.

To cancel the sleep mode, press the

Sleep

pad

a second time.

Note: The sleep timer will be cancelled if the Timer,Energy Saver or Mode pad is pressed.

Remote Control Signal Receiver

Remote Control

ENERGY SAVER On

TIMER On

Remote Control

COOL On

FAN On

SLEEP On

Consumer SupportTroubleshooting TipsOperating Instructions

Safety Instructions

Installation Instructions

In the case of a power outage or interruption, the unit will automatically re-start in the settings last used after the power is restored. The

Tim er

and

Sleep

features will reset to the original setting.

You may need to set a new time if desired.

Power Outage Recovery Feature

The vent control is located on the inside of the air louvers in the lower right corner.

When set at

, only the air inside the room

will be circulated and conditioned. When set at

OPEN

, some inside air is exhausted outside.

ge.com

When the air conditioner is turned on, it will automatically start in the setting last used.

Vent Control

(on some models)

To open the vent, push the lever to the right. To close it, push it to the left.

Cool Mode

Use the

Cool

mode with

High (3), Med (2)

Low (1)

fan for cooling. Use the

Increase ▲ /

Decrease

▼ pads to set the desired temperature

between 64°F and 86°F in 1°F increments.

A thermostat is used to maintain the room temperature. The compressor will cycle on and off to keep the room at the set level of comfort. Set the thermostat at a lower number and the indoor air will become cooler. Set the thermostat at a higher number and the indoor air will become warmer.

NOTE: If the air conditioner is off and is then turned on while set to Cool, it will take approximately 3 minutes for the compressor to start and cooling to begin.

Cooling Descriptions For Normal Cooling—

Select the

Cool

mode

and

High (3)

Med (2)

fan with a middle set

temperature.

For Maximum Cooling—

Select the

Cool

mode

and

High (3)

fan with a lower set temperature.

For Quieter & Nighttime Cooling—

Select the

Cool

mode and

Low (1)

fan with a middle set

temperature.

NOTE: If you switch from a Cool setting to Off or to a fan setting, wait at least 3 minutes before switching back to a Cool setting.

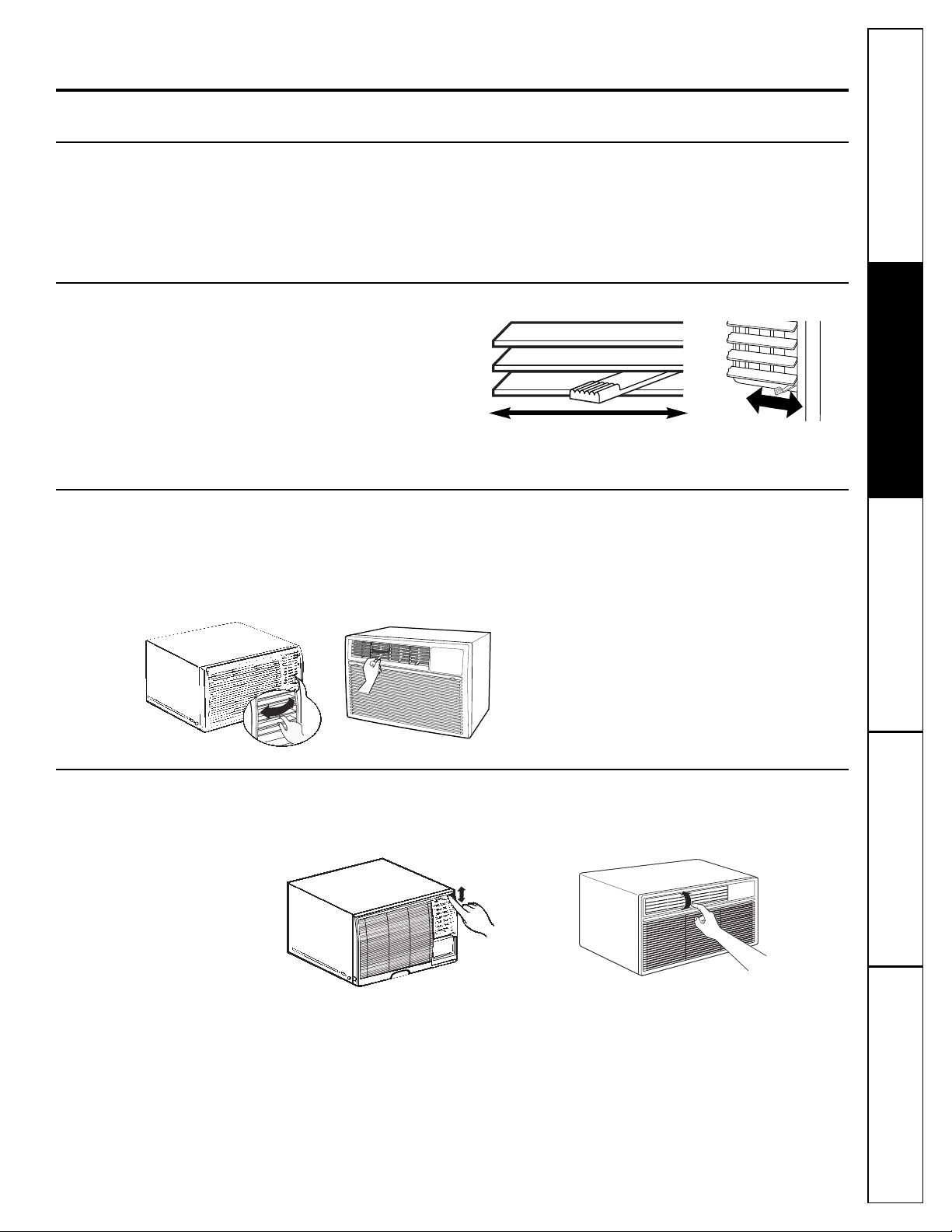

Air Direction—Up and Down

(on some models)

Fingertip pressure on the horizontal louvers adjusts the air direction up or down.

Fan Mode

Use the

Fan

High (3), Med (2) orLow (1)

to provide

air circulation and filtering without cooling.

Since fan only settings do not provide cooling, a temperature setting will not be displayed.

Air Direction—Side-to-Side

(on some models)

On some models, the side-to-side air direction is adjusted by the louver levers or by grasping and moving the inner vertical louvers.

To open the vent, push the lever to the right. To close it, push it to the left.

Additional controls and important information.

Do Not Operate in Freezing Outdoor Conditions

This cool-only air conditioner was not designed for freezing outdoor conditions. It must not be used in freezing outdoor conditions.

Consumer Support Troubleshooting Tips

Operating Instructions Safety InstructionsInstallation Instructions

ON/OFF Switch

Turns air conditioner on and off.

NOTE: If the air conditioner is off and is then turned on while set in a Cool mode, it will take approximately 3 minutes for the compressor to start and cooling to begin.

Fan Switch (on some models)

Use to set the fan speed to LOor HI.

Mode/Temp Control

Use to set the air conditioner to the

Fan Only

or a

Cool

mode.

Fan Only Mode

Use

Fan Only

at HIor

LO Fan

to provide air

circulation and filtering without cooling.

Cool Mode

Use a

Cool

setting with HIor

LO Fan

for cooling. Turn the knob clockwise, toward the larger blue area, for the indoor area to become cooler. Turn the knob counterclockwise, toward the smaller blue

area, for the indoor air to become warmer. The Mode/Temp control is used to maintain the room temperature. When set in a

Cool

mode, the compressor will cycle on and off to keep the room at the same level of comfort.

Cooling Descriptions

For Normal Cooling—

Select a

Cool

mode with the

Mode/Temp knob set at the midpoint.

For Maximum Cooling—

Select a

Cool

mode with the Mode/Temp knob set toward the larger blue area.

For Quieter & Nighttime Cooling—

Select a

Cool

mode with

the Mode/Temp knob set toward the smaller blue area.

NOTE:

If you move the Mode/Temp control knob from a

Cool

setting to the

Fan On

setting, wait at least 3 minutes

before switching back to a

Cool

setting.

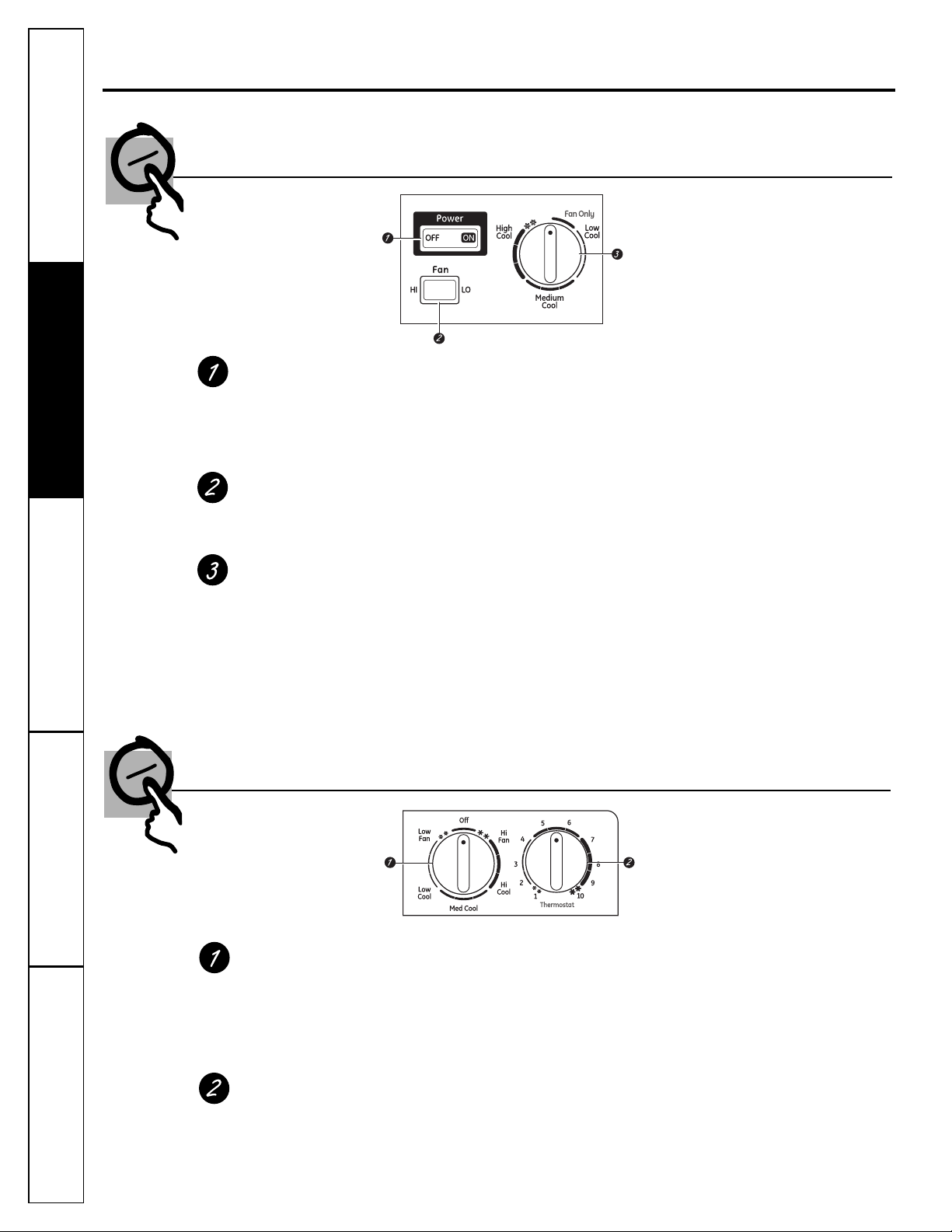

About the controls on the air conditioner—models with control knob(s).

Features and appearance may vary.

Controls

(on models so equipped)

Controls

(on models so equipped)

Mode Control

Hi Cool, Med Cool

and

Low Cool

provide cooling

with different fan speeds.

Low Fan

Hi Fan

provides air circulation and

filtering without cooling.

Thermostat Control

The thermostat control is used to maintain the room temperature. The compressor will cycle on and off to keep the room at the same level of comfort. When you turn the knob to a higher number, the indoor air will become cooler. Turn the knob to a lower number and the indoor air will become warmer.

NOTE: If you move the switch from a cool setting to OFF or to a fan setting, wait at least 3 minutes before switching back to a cool setting.

Cooling Descriptions

For Normal Cooling

–Select

Hi Cool

Med Cool

with the

thermostat control at midpoint.

For Maximum Cooling

–Select

Hi Cool

with the thermostat

control at the highest number available on your knob.

For Quieter & Nighttime Cooling

–Select

Low Cool

with the

thermostat control at midpoint.

Air Direction—Up and Down

(on some models)

Fingertip pressure on the horizontal louvers adjusts the air direction up or down.

Consumer SupportTroubleshooting TipsOperating Instructions

Safety Instructions

Installation Instructions

ge.com

Additional controls and important information.

Vent Control

(on some models)

The vent control is located on the inside of the air louvers in the lower right corner.

When set at

, only the air inside the room

will be circulated and conditioned. When set at

OPEN

, some inside air is exhausted outside.

Air Direction—Side-to-Side

On some models, the side-to-side air direction is adjusted by the louver levers or by grasping and moving the inner vertical louvers.

To open the vent, push the lever to the right. To close it, push it to the left.

Do Not Operate in Freezing Outdoor Conditions

This cool-only air conditioner was not designed for freezing outdoor conditions. It must not be used in freezing outdoor conditions.

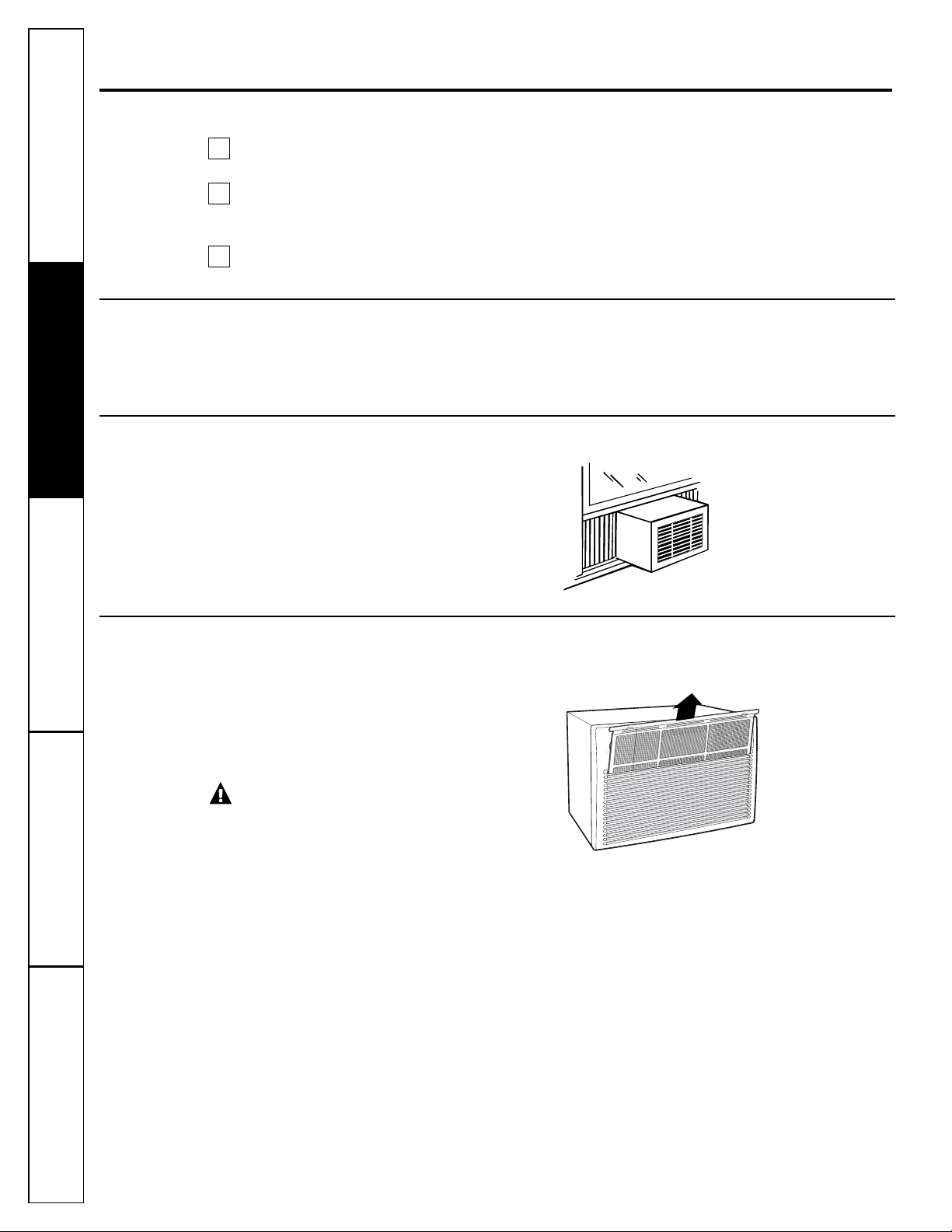

Air Filter

The air filter behind the front grille should be checked and cleaned at least every 30 days or more often if necessary.

Clean the filter with warm, soapy water. Rinse and let the filter dry before replacing it.

CAUTION:

DO NOT operate the air conditioner without a filter because dirt and lint will clog it and reduce performance.

To remove:

Outdoor Coils

The coils on the outdoor side of the air conditioner should be checked regularly. If they are clogged with dirt or soot, they may be professionally cleaned.

Grille and Case

Turn the air conditioner off and remove the plug from the wall outlet before cleaning.

To clean, use water and a mild detergent. Do not use bleach or abrasives.

Care and cleaning of the air conditioner.

Consumer Support Troubleshooting Tips

Operating Instructions Safety InstructionsInstallation Instructions

Grab the tabs on the filter and pull it up and out.

How to Insert the Batteries

Remove the battery cover by sliding it according to the arrow direction.

Insert new batteries, making sure that the (+) and (–) of battery are installed correctly.

Reattach the cover by sliding it back into position.

NOTES:

■ Use 2 “AAA” (1.5 volt) batteries. Do not use

rechargeable batteries.

■ Remove the batteries from the remote control if

the system is not going to be used for a long time.

Questions? Call 800.GE.CARES (800.432.2737) or Visit our Website at: ge.com

Installation

Air Conditioner

Instructions

CAUTION:

Do not, under any circumstances, cut or remove the third (ground) prong from the power cord.

Do not change the plug on the power cord of this air conditioner.

Aluminum house wiring may present special problems—consult a qualified electrician.

If the sill support bolts do not contact the window sill, or if you have a window without a sill, you must order accessory kit RAK87 to properly install this air conditioner. Call 800.626.2002 or visit ge.com.

Power cord includes a current interrupter device. A test and reset button is provided on the plug case. The device should be tested on a periodic basis by first pressing the TEST button and then the RESET button while plugged into the outlet. If the TEST button does not trip or if the RESET button will not stay engaged, discontinue use of the air conditioner and contact a qualified service technician.

BEFORE YOU BEGIN

Read these instructions completely and carefully.

•

IMPORTANT — Save these

instructions for local inspector’s use.

•

IMPORTANT — Observe all

governing codes and ordinances.

• Note to Installer – Be sure to leave these instructions with the Consumer.

• Note to Consumer – Keep these instructions for future reference.

• Skill level – Installation of this appliance requires basic mechanical skills.

• Completion time – Approximately 1 hour

• We recommend that two people install

this product.

• Proper installation is the responsibility of the installer.

• Product failure due to improper installation is not covered under the Warranty.

• You MUST use all supplied parts and use proper installation procedures as described in these instructions, and any separate kit instructions, when installing this air conditioner.

Some models require a 115/120-volt a.c., 60 Hz grounded outlet protected with a 15-amp time delay fuse or circuit breaker.

The 3-prong grounding plug minimizes the possibility of electric shock hazard. If the wall outlet you plan to use is only a 2-prong outlet, it is your responsibility to have it replaced with a properly grounded 3-prong wall outlet.

Some models require 230/208-volt a.c., protected with a time delay fuse or circuit breaker. These models should be installed on their own single branch circuit for best performance and to prevent overloading house or apartment wiring circuits, which could cause a possible fire hazard from overheating wires.

ELECTRICAL REQUIREMENTS

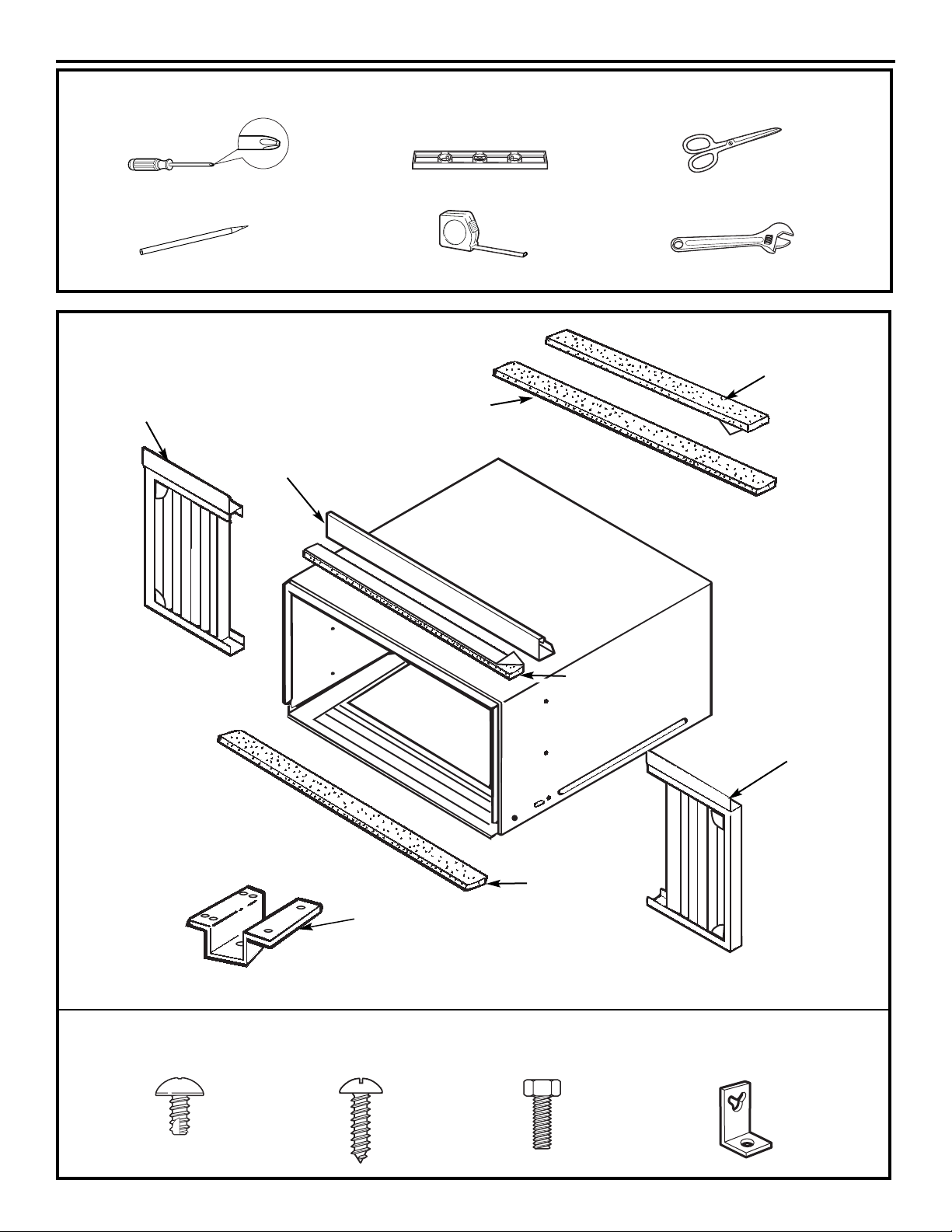

TOOLS YOU WILL NEED

Phillips head screwdriver

Ruler or tape measurePencil

Level

Scissors or knife

Adjustable wrench

PARTS INCLUDED

(appearance may vary)

Window Installation Instructions

Sill support (2)

Top mounting rail

Right

accordion

panel

Foam top

window gasket

Window

sash seal

Left

accordion

panel

Type B (8) 3/4″ screws

Type C bolt (2)

Security bracket (1)

Top mounting rail

seal strip

Bottom inner

case gasket

Type A (18 or 19)

1/2″ screws

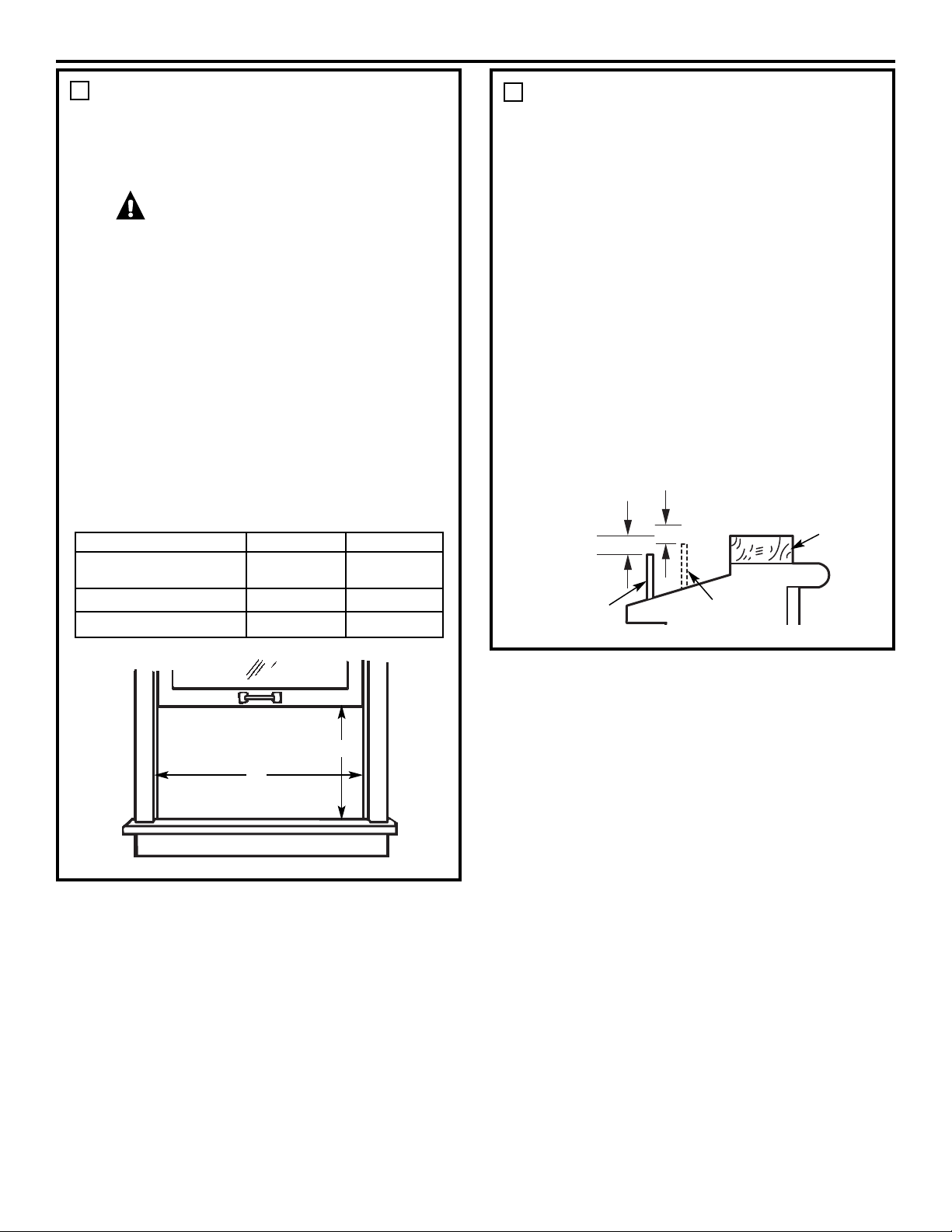

WINDOW REQUIREMENTS

• These instructions are for a standard double-hung window. You will need to modify them for other types of windows.

CAUTION: If the sill support

bolts do not contact the window sill, or if you have a window without a sill, you must order accessory kit RAK87 to properly install this air conditioner. Call

800.626.2002 or visit ge.com.

• All supporting parts must be secured to firm wood, masonry or metal.

• The electrical outlet must be within reach of the power cord.

• Follow the dimensions in the table and illustration for your model.

Models A B

ASD06, ASM08, ASQ10, 14 3/4″ min. 24 3/4″–36″ ASV10

ASM10, ASQ12, ASV12 15 3/8″ min. 26″–39 1/2″ ASM12, ASQ14, ASV14 16 1/4″ min. 26″–39 1/2″

Window Installation Instructions

STORM WINDOW REQUIREMENTS

A storm window frame will not allow the air conditioner to tilt toward the outside, and will keep it from draining properly. To adjust for this, attach a piece of wood to the sill.

WOOD PIECES – WIDTH: 2″ LENGTH: Long enough to fit inside the

window frame. THICKNESS: To determine the thickness,

place a piece of wood on the sill to make it 1/2″ higher than the top of the storm window frame or the vinyl frame.

Attach securely with nails or screws provided by the installer.

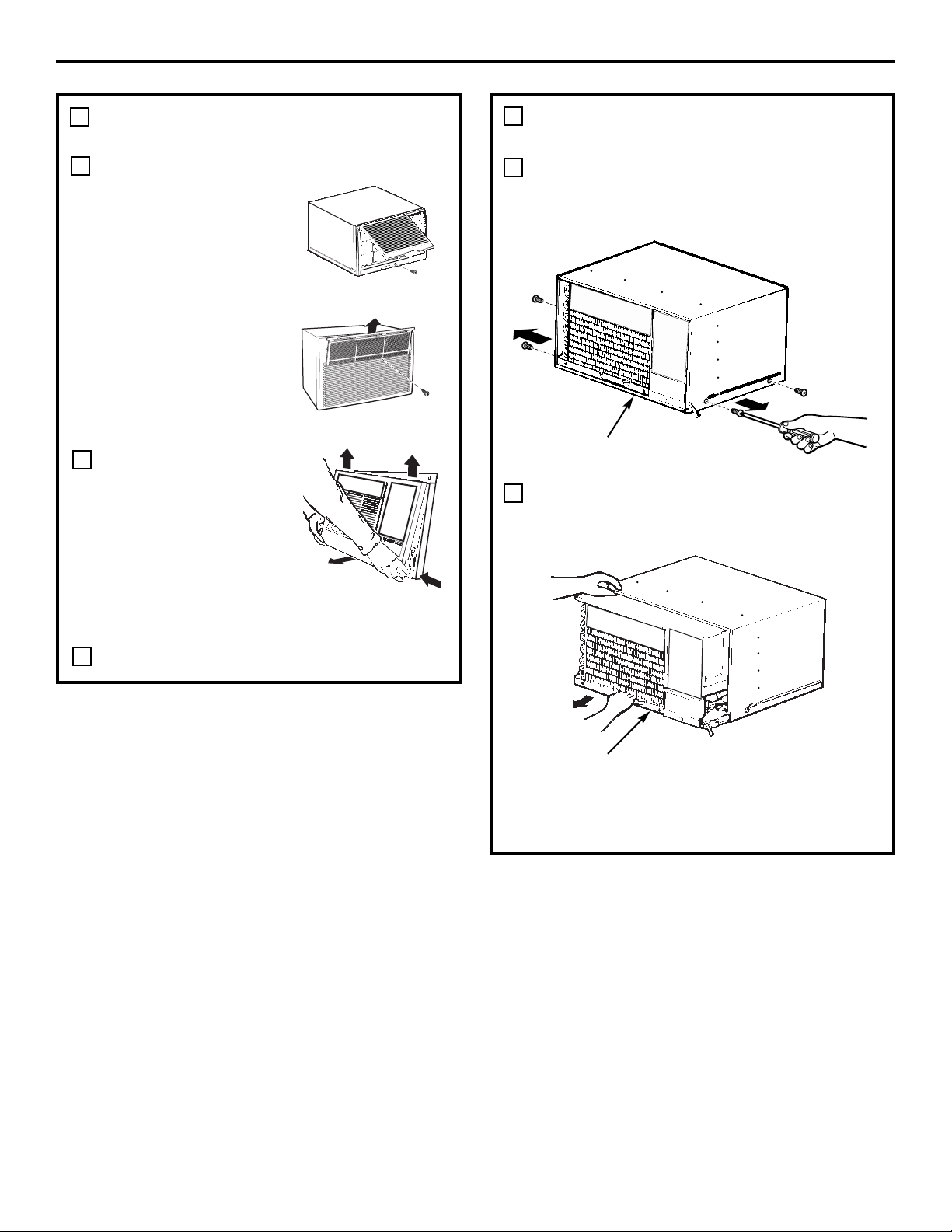

REMOVE THE FRONT GRILLE (IF ATTACHED)

Remove shipping tape, if present. On models with a

raise-up inlet grille, lift it and remove the screw behind it (if present) that holds the grille in place.

On models with a slide-out air filter, remove it and the screw behind it (if present) that holds the grille in place.

Gently but firmly grasp the lower grille corners, press in on the case sides and pull forward to release.

NOTE: Do not pull the bottom edge toward you more than 3″ or you may damage the tabs of the grille.

Lift the grille up and off the top tabs.

1/2″ higher than storm window frame

Storm window frame

Wood

Sill

1/2″ higher than vinyl frame (on some windows)

Vinyl frame

(With accordion panels)

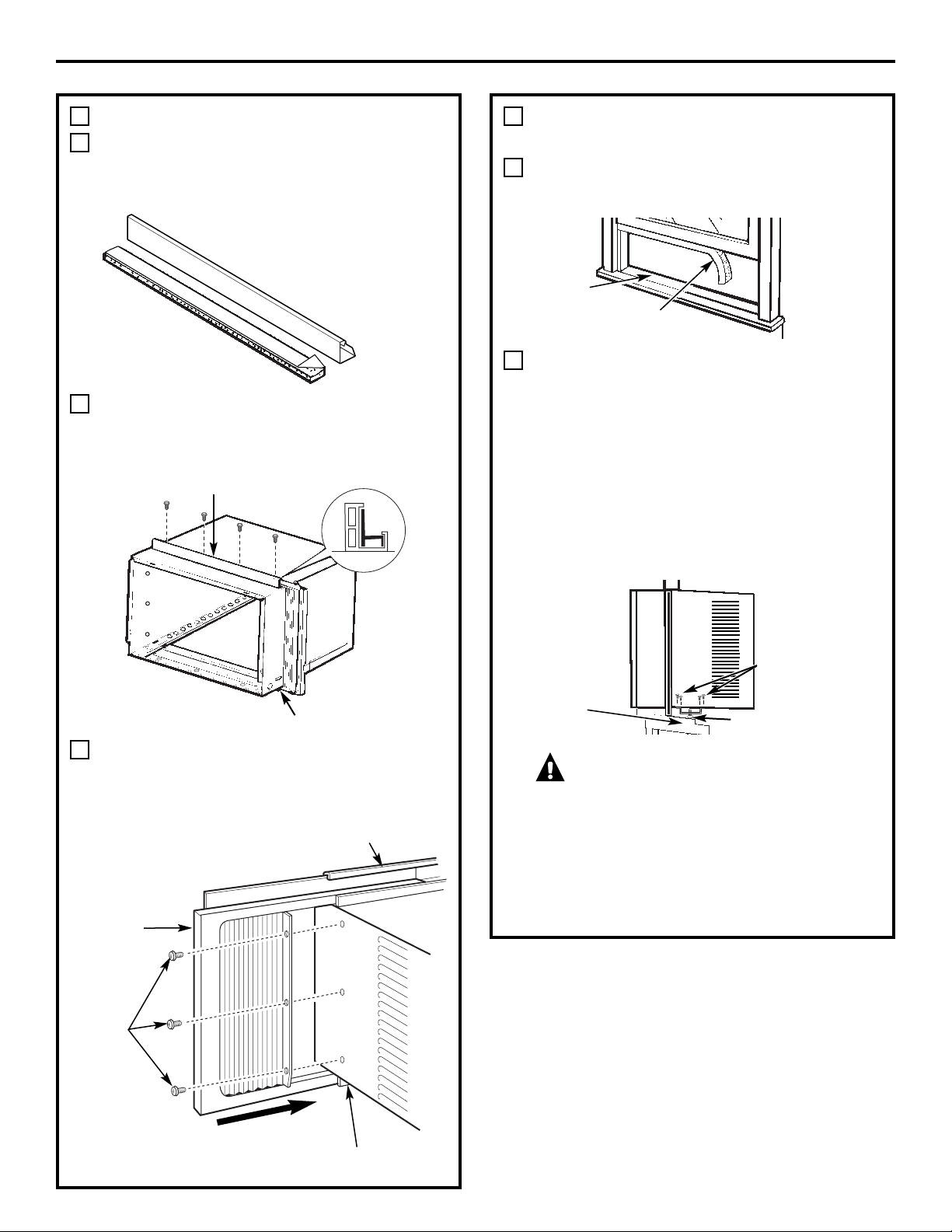

PREPARE THE CASE

Remove the backing from the top mounting rail seal strip and attach it to the bottom of the top mounting rail. Cut to size.

Install the top mounting rail with 4 or 5 type A screws (depending on the number of holes in the top mounting rail) from the outside of the case.

Insert the frames for the accordion panels into the top and bottom mounting rails. Attach the accordion panels to the side of the case using 6 type A screws.

Window Installation Instructions

REMOVE THE AIR CONDITIONER FROM THE CASE

Remove the 2 or 4 screws (depending on model) on each side of the case. Keep the 2 front-side screws for later use.

Slide the air conditioner from the case by gripping the base pan handle and pulling forward while bracing the case.

Remove packing cardboard and tape, if present.

Front of air conditioner

Top mounting rail

Bottom mounting rail

Type A screws

Top mounting rail

Bottom mounting rail

Accordion panel

BACK

+ 28 hidden pages
