ASV06LB—GE 115 Volt Window Room Air Conditioner with Mechanical Controls
Specification Created 5/01
GE Appliances

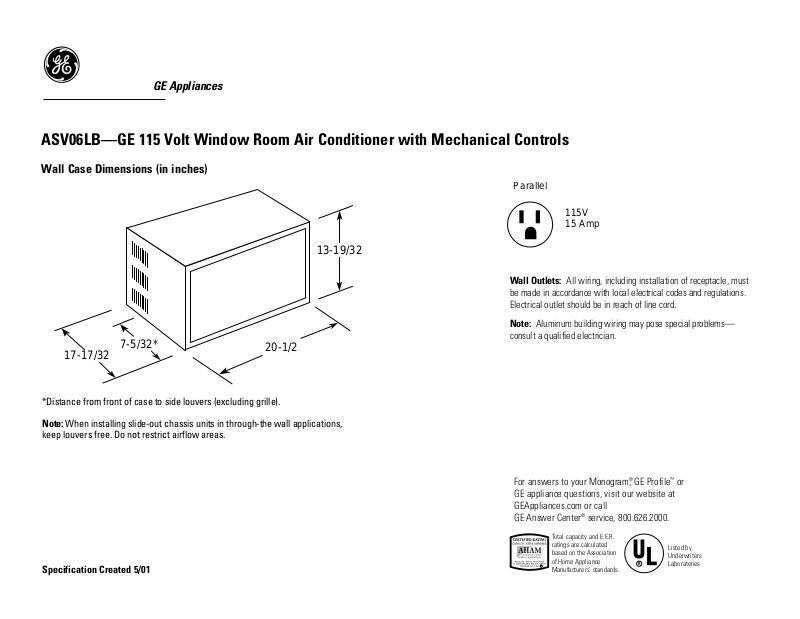

Wall Case Dimensions (in inches)
Wall Outlets: All wiring, including installation of receptacle, must
be made in accordance with local electrical codes and regulations.
Electrical outlet should be in reach of line cord.
Note: Aluminum building wiring may pose special problems—
consult a qualified electrician.
20-1/2
13-19/32
17-17/32
7-5/32*
Parallel
115V
15 Amp
For answers to your Monogram,® GE Profile™or
GE appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center®service, 800.626.2000.
R
Listed by
Underwriters
Laboratories
R
Total capacity and E.E.R.
ratings are calculated
based on the Association
of Home Appliance
Manufacturers’ standards.
*Distance from front of case to side louvers (excluding grille).
Note: When installing slide-out chassis units in through-the wall applications,
keep louvers free. Do not restrict airflow areas.
Page 2
Specification Created 5/01
GE Appliances
ASV06LB—GE 115 Volt Window Room Air Conditioner with Mechanical Controls
Features and Benefits
• 6.000 BTUH, 9.8 E.E.R, 115 Volts
• Mechanical Controls with 8-Position Thermostat
• 3 Cooling / 2 Fan Speeds
• Slide-Out Chassis
• 610 Watts / 5.6 Amps
• 1.6 Dehumidification (pts / hr)
• 210 CFM (High)
• EZ Mount Window Installation
• Lift-Out Filter for Easy Cleaning
• Plug Type–Parallel
1
2
3
5
6
7
8
COOLEST
4
OFF
MODE
LOW
FAN
LOW
COOL
HI
COOL
HI
FAN
MED COOL
TEMP
