GE ASV05LB Specification

ASV05LB—GE 115 Volt Window Room Air Conditioner with Mechanical Controls

Specification Created 5/01

GE Appliances

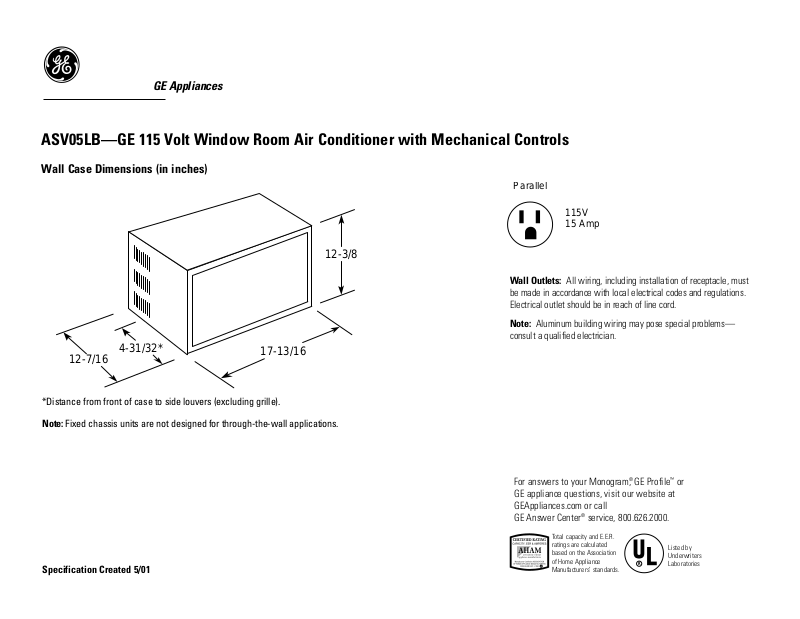

Wall Case Dimensions (in inches)

Wall Outlets: All wiring, including installation of receptacle, must

be made in accordance with local electrical codes and regulations. Electrical outlet should be in reach of line cord.

Note: Aluminum building wiring may pose special problems— consult a qualified electrician.

17-13/16

12-3/8

12-7/16

4-31/32*

Parallel

115V 15 Amp

For answers to your Monogram,® GE Profile™or GE appliance questions, visit our website at GEAppliances.com or call GE Answer Center®service, 800.626.2000.

Listed by Underwriters Laboratories

Total capacity and E.E.R. ratings are calculated based on the Association of Home Appliance Manufacturers’ standards.

*Distance from front of case to side louvers (excluding grille).

Note: Fixed chassis units are not designed for through-the-wall applications.

Specification Created 5/01

GE Appliances

ASV05LB—GE 115 Volt Window Room Air Conditioner with Mechanical Controls

Features and Benefits

• 5,200 BTUH, 115 Volts

• 9.7 E.E.R

• Mechanical Controls with 8-Position Thermostat

• 3 Cooling / 2 Fan Speeds

• 140 CFM (High)

• 535 Watts / 4.8 Amps

• 1.5 Dehumidification (pts / hr)

• Fixed Chassis

• Rigid Frame Slide-Out Filter

• Plug Type–Parallel

• EZ Mount Window Installation

• Model ASV05LB

COOLEST

OFF

MODE

LOW FAN

LOW

COOL

HI FAN

MED COOL

TEMP
