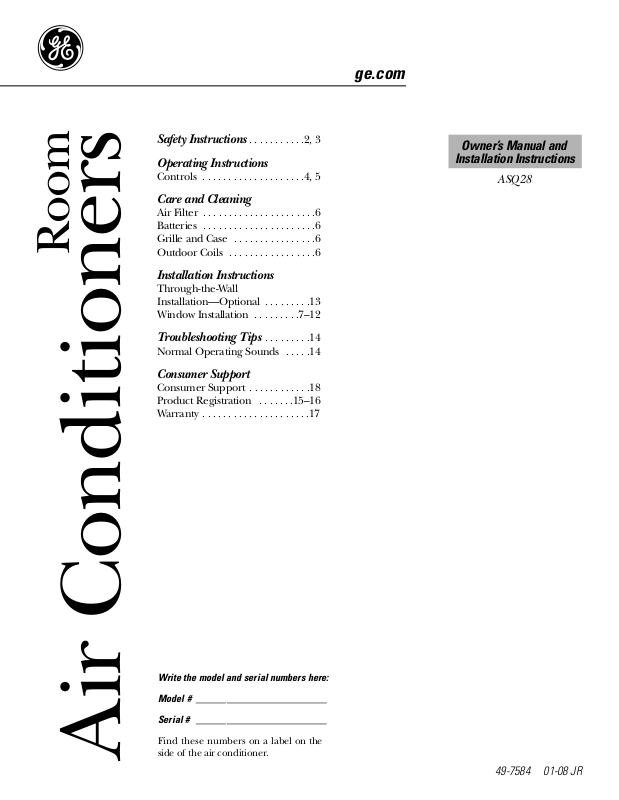

GE ASQ28 User Manual

Page 1
Safety Instructions . . . . . . . . . . .2, 3

Operating Instructions

Controls . . . . . . . . . . . . . . . . . . . .4, 5

Care and Cleaning

Air Filter . . . . . . . . . . . . . . . . . . . . . .6
Batteries . . . . . . . . . . . . . . . . . . . . . .6
Grille and Case . . . . . . . . . . . . . . . .6
Outdoor Coils . . . . . . . . . . . . . . . . .6
Through-the-Wall
Installation—Optional . . . . . . . . .13
Window Installation . . . . . . . . .7–12
Troubleshooting Tips . . . . . . . . .14
Normal Operating Sounds . . . . .14

Consumer Support

Consumer Support . . . . . . . . . . . .18
Product Registration . . . . . . .15–16
Warranty . . . . . . . . . . . . . . . . . . . . .17
49-7584 01-08 JR
ASQ28
Air Conditioners
Owner’s Manual and
Installation Instructions
ge.com
Write the model and serial numbers here:
Model # __________________________
Serial # __________________________
Find these numbers on a label on the side of the air conditioner.
Room
Page 2
Consumer Support Troubleshooting Tips

Operating Instructions Safety InstructionsInstallation Instructions

2
IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING.
WARNING!
For your safety, the information in this manual must be followed to minimize the risk of fire, electric shock or personal injury.
Use this appliance only for its intended
purpose as described in this Owner’s Manual.
This air conditioner must be properly
installed in accordance with the Installation Instructions before it is used.
Never unplug your air conditioner by pulling
on the power cord. Always grip plug firmly and pull straight out from the receptacle.
Replace immediately all electric service
cords that have become frayed or otherwise damaged. A damaged power supply cord must be replaced with a new power supply cord obtained from the manufacturer and not repaired. Do not use a cord that shows cracks or abrasion damage along its length or at either the plug or connector end.
If the receptacle does not match the plug,
the receptacle must be changed out by a qualified electrician.
Turn the unit
OFF
and unplug your air conditioner before making any repairs or cleaning.
NOTE: We strongly recommend that any servicing be performed by a qualified individual.
For your safety…do not store or use
combustible materials, gasoline or other flammable vapors or liquids in the vicinity of this or any other appliance.
All air conditioners contain refrigerants,
which under federal law must be removed prior to product disposal. If you are getting rid of an old product with refrigerants, check with the company handling disposal about what to do.
SAFETY PRECAUTIONS
Do not, under any circumstances, cut or remove the third (ground) prong from the power cord. For personal safety, this appliance must be properly grounded.
DO NOT use an adapter plug with this appliance.
The power cord of this appliance is equipped with a 3-prong (grounding) plug which mates with a standard 3-prong (grounding) wall outlet to minimize the possibility of electric shock hazard from this appliance.
Power cord includes a current interrupter device. A test and reset button is provided on the plug case. The device should be tested on a periodic basis by first pressing the
TEST
button
and then the
RESET
button while plugged into
the outlet. If the
TEST
button does not trip
or if the
RESET
button will not stay engaged, discontinue use of the air conditioner and contact a qualified service technician.
Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded.
Where a 2-prong wall outlet is encountered, it is your personal responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet.
The air conditioner should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating plate.
This provides the best performance and also prevents overloading house wiring circuits which could cause a fire hazard from overheated wires.
See the Installation Instructions,
Electrical
Requirements
section for specific electrical
connection requirements.
HOW TO CONNECT ELECTRICITY
Page 3
3
Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions Installation Instructions
WARNING!
Because of potential safety hazards under certain conditions, we strongly recommend against the use of an extension cord.
However, if you must use an extension cord, it is absolutely necessary that it be a UL-listed, 14 gauge, 3-wire grounding type appliance extension cord having a grounding type plug and outlet and that the electrical rating of the cord be 15 amperes (minimum) and 125 volts.
CAUTION:
DO NOT use an extension cord with any of the 230/208 volt models.
USE OF EXTENSION CORDS—
115-Volt models only
READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.
SAVE THESE INSTRUCTIONS
ge.com
Page 4
4
Consumer Support Troubleshooting Tips
Operating Instructions Safety InstructionsInstallation Instructions
To ensure proper operation, aim the remote
control at the signal receiver on the air conditioner.
The remote control signal has a range of up
to 21 feet.
Make sure nothing is between the air conditioner
and the remote control that could block the signal.
Make sure batteries are fresh and installed
correctly—see the
Care and Cleaning
section.

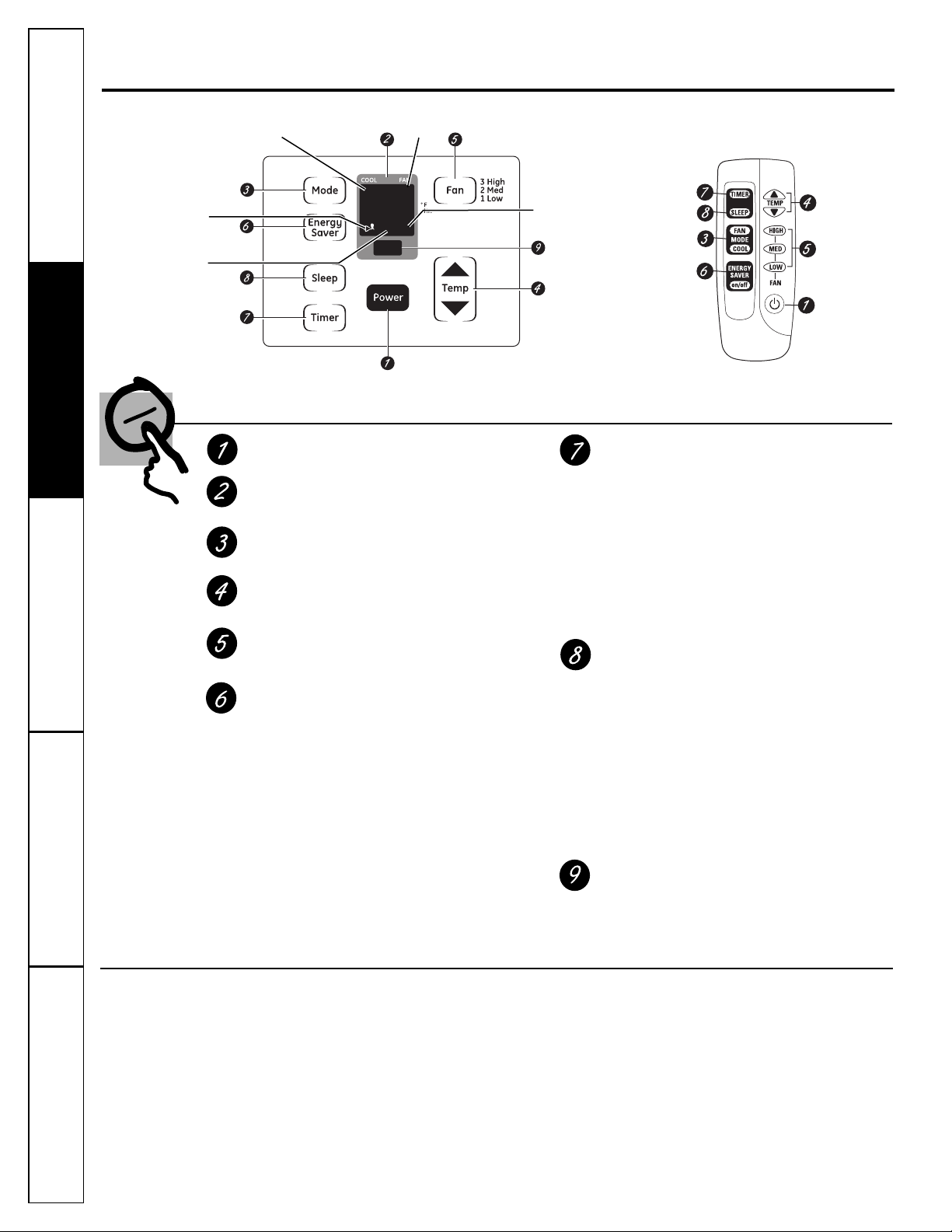

About the controls on the air conditioner.
Features and appearance will vary.
Air Conditioner Controls
On/Off
Turns air conditioner on and off.
Display
Displays the set temperature or time remaining on timer.
Mode
Use to set the air conditioner to
Cool
or
Fan
mode.
Increase ▲ /Decrease ▼Pads
Use to set temperature when in
Cool
mode.
Fan
Use to set the fan speed at
Low, Med orHigh
.
Energy Saver–
Controls the fan.
On—
The fan and compressor cycle on and off. This results in wider variations of room temperature and humidity. Normally used when the room is unoccupied.
Note: The fan
will continue to run for a short time after the compressor cycles off.
Off—
The fan runs all the time, while the compressor cycles on and off.
This switch must be set at
Off
in order to use
the fan settings (on the mode control).
Timer
On—
When the air conditioner is off, it can be set to automatically turn on in 1 to 24 hours at its previous setting. Each touch will set the time in hours.
Off—
When the air conditioner is on, it can be set to automatically turn off in 1 to 24 hours. Each touch will set the time in hours.
To cancel the timer, press the
Timer
pad
until the display time disappears.
Sleep
(on some models)
Press to set the air conditioner to run for 8 hours before it automatically shuts off.
One hour after the sleep timer is set, the set temperature will automatically increase 2°F.
To cancel the sleep mode, press the
Sleep
pad
a second time.
Note: The sleep timer will be cancelled if the Timer,Energy Saver or Mode pad is pressed.
Remote Control Signal Receiver
Remote Control
ENERGY SAVER On
TIMER On
Remote Control
COOL On
FAN On
SLEEP On
Page 5
In the case of a power outage or interruption, the unit will automatically re-start in the settings last used after the power is restored. The
Tim er
and
Sleep
features will reset to the original setting.
You may need to set a new time if desired.
Power Outage Recovery Feature
The vent control is located on the inside of the air louvers in the lower right corner.
When set at
CLOSE
, only the air inside the room
will be circulated and conditioned. When set at
OPEN
, some inside air is exhausted outside.
Consumer SupportTroubleshooting TipsOperating Instructions
Safety Instructions
Installation Instructions
ge.com
When the air conditioner is turned on, it will automatically start in the setting last used.
Vent Control
To open the vent, push the lever to the right. To close it, push it to the left.
Cool Mode
Use the
Cool
mode with
High (3), Med (2)
or
Low (1)
fan for cooling. Use the
Increase ▲ /
Decrease
pads to set the desired temperature
between 64°F and 86°F in 1°F increments.
A thermostat is used to maintain the room temperature. The compressor will cycle on and off to keep the room at the set level of comfort. Set the thermostat at a lower number and the indoor air will become cooler. Set the thermostat at a higher number and the indoor air will become warmer.
NOTE: If the air conditioner is off and is then turned on while set to Cool, it will take approximately 3 minutes for the compressor to start and cooling to begin.
Cooling Descriptions For Normal Cooling—
Select the
Cool
mode
and
High (3)
or
Med (2)
fan with a middle set
temperature.
For Maximum Cooling—
Select the
Cool
mode
and
High (3)
fan with a lower set temperature.
For Quieter & Nighttime Cooling—
Select the
Cool
mode and
Low (1)
fan with a middle set
temperature.
NOTE: If you switch from a Cool setting to Off or to a fan setting, wait at least 3 minutes before switching back to a Cool setting.

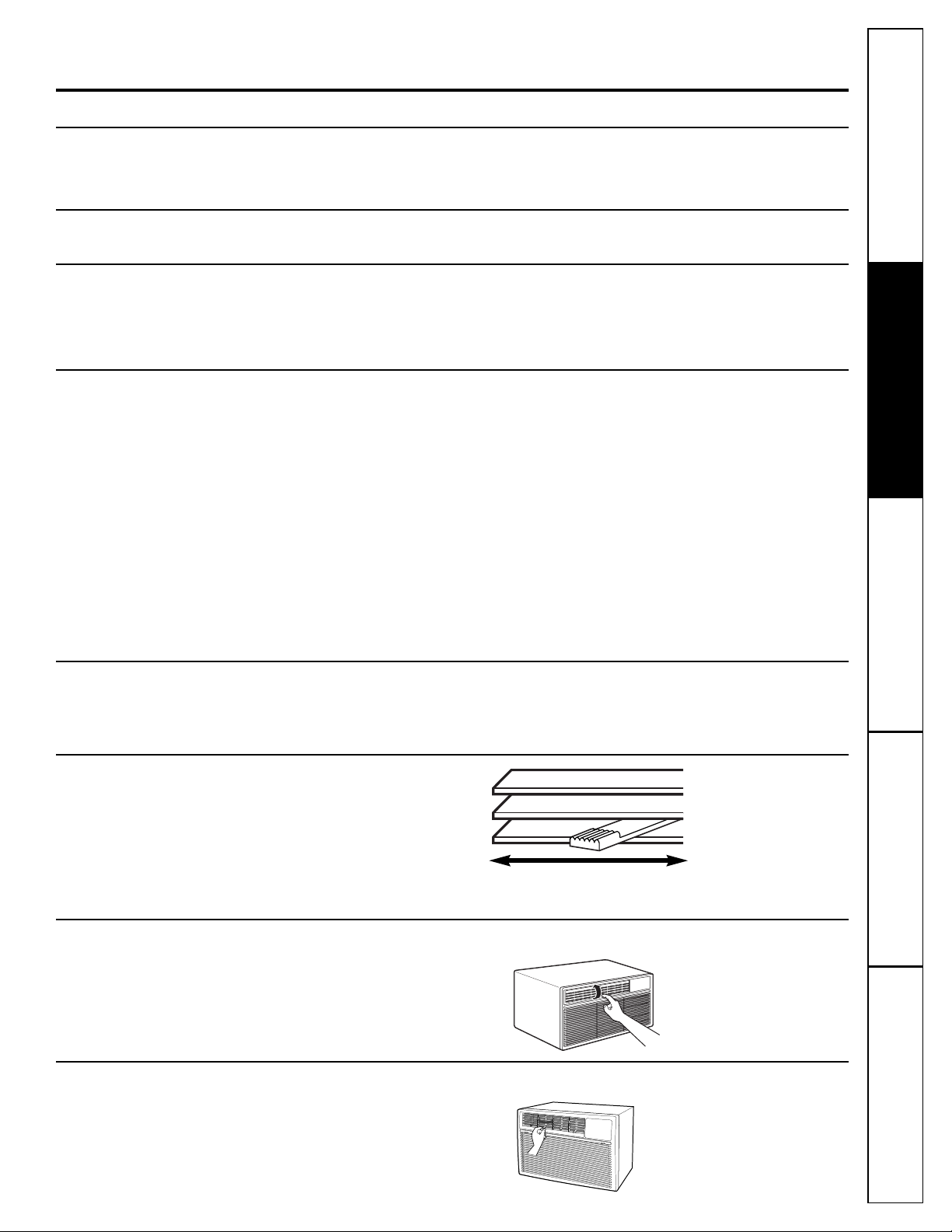

Air Direction—Up and Down
Fingertip pressure on the horizontal louvers adjusts the air direction up or down.
Fan Mode
Use the
Fan
at
High (3), Med (2) orLow (1)
to provide
air circulation and filtering without cooling.
Since fan only settings do not provide cooling, a temperature setting will not be displayed.
Air Direction—Side-to-Side
The side-to-side air direction is adjusted by the louver levers or by grasping and moving the inner vertical louvers.
5
Additional controls and important information.
Do Not Operate in Freezing Outdoor Conditions
This cool-only air conditioner was not designed for freezing outdoor conditions. It must not be used in freezing outdoor conditions.
Page 6
Consumer Support Troubleshooting Tips
Operating Instructions Safety InstructionsInstallation Instructions
6

Outdoor Coils

The coils on the outdoor side of the air conditioner should be checked regularly. If they are clogged with dirt or soot, they may be professionally cleaned.

Grille and Case

Turn the air conditioner off and remove the plug from the wall outlet before cleaning.
To clean, use water and a mild detergent. Do not use bleach or abrasives.
Care and cleaning of the air conditioner.
How to Insert the Batteries
Remove the battery cover by sliding it according to the arrow direction.
Insert new batteries, making sure that the (+) and (–) of battery are installed correctly.
Reattach the cover by sliding it back into position.
NOTES:
Use 2 AAA (1.5 volt) batteries. Do not use
rechargeable batteries.
Remove the batteries from the remote control if
the system is not going to be used for a long time.
3
2
1

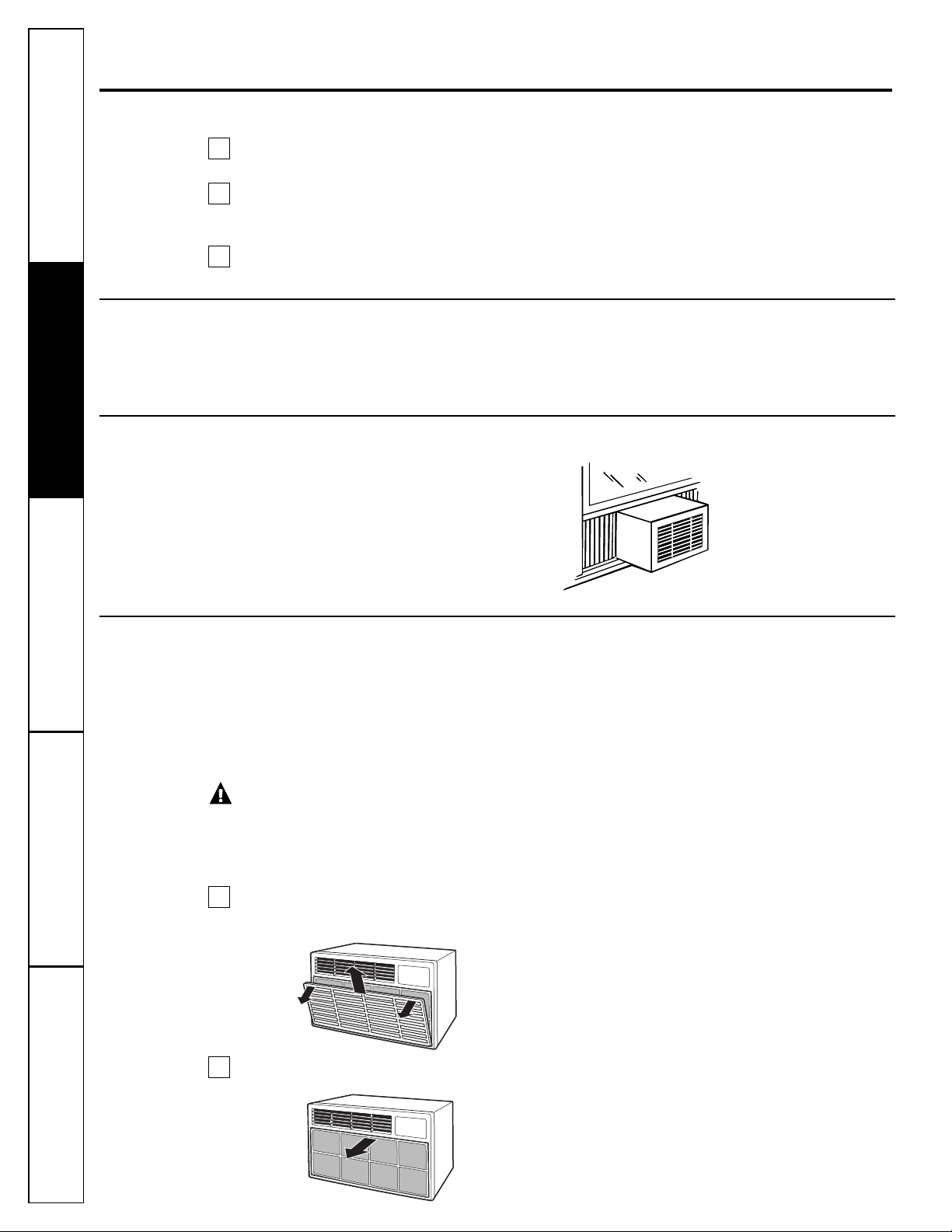

Air Filter

The air filter behind the front grille should be checked and cleaned at least every 30 days or more often if necessary.
Clean the filter with warm, soapy water. Rinse and let the filter dry before replacing it.
CAUTION:
DO NOT operate the air conditioner without a filter because dirt and lint will clog it and reduce performance.
To remove:
Open the inlet grille downward by pulling out the upper corners of the inlet grille. Lift it up and off.
Grasp the filter at the top center and pull it out.
2
1
Page 7
Questions? Call 800.GE.CARES (800.432.2737) or Visit our Website at: ge.com
Installation
Air Conditioner
Instructions
CAUTION:
Do not, under any circumstances, cut or remove the third (ground) prong from the power cord.
Do not change the plug on the power cord of this air conditioner.
Aluminum house wiring may present special problems—consult a qualified electrician.
Power cord includes a current interrupter device. A test and reset button is provided on the plug case. The device should be tested on a periodic basis by first pressing the TEST button and then the RESET button while plugged into the outlet. If the TEST button does not trip or if the RESET button will not stay engaged, discontinue use of the air conditioner and contact a qualified service technician.
BEFORE YOU BEGIN
Read these instructions completely and carefully.
IMPORTANT — Save these
instructions for local inspector’s use.
IMPORTANT — Observe all
governing codes and ordinances.
Note to Installer – Be sure to leave these instructions with the Consumer.
Note to Consumer – Keep these instructions for future reference.
Skill level – Installation of this appliance requires basic mechanical skills.
Completion time – Approximately 1 hour
We recommend that two people install
this product.
Proper installation is the responsibility of the installer.
Product failure due to improper installation is not covered under the Warranty.
You MUST use all supplied parts and use proper installation procedures as described in these instructions when installing this air conditioner.
Some models require a 115/120-volt a.c., 60 Hz grounded outlet protected with a 15-amp time delay fuse or circuit breaker.
The 3-prong grounding plug minimizes the possibility of electric shock hazard. If the wall outlet you plan to use is only a 2-prong outlet, it is your responsibility to have it replaced with a properly grounded 3-prong wall outlet.
Some models require 230/208-volt a.c., protected with a time delay fuse or circuit breaker. These models should be installed on their own single branch circuit for best performance and to prevent overloading house or apartment wiring circuits, which could cause a possible fire hazard from overheating wires.
ELECTRICAL REQUIREMENTS
TOOLS YOU WILL NEED
Phillips head screwdriver
Ruler or tape measurePencil
Level
Scissors or knife
Adjustable wrench
7
Page 8
PARTS INCLUDED
(appearance may vary)

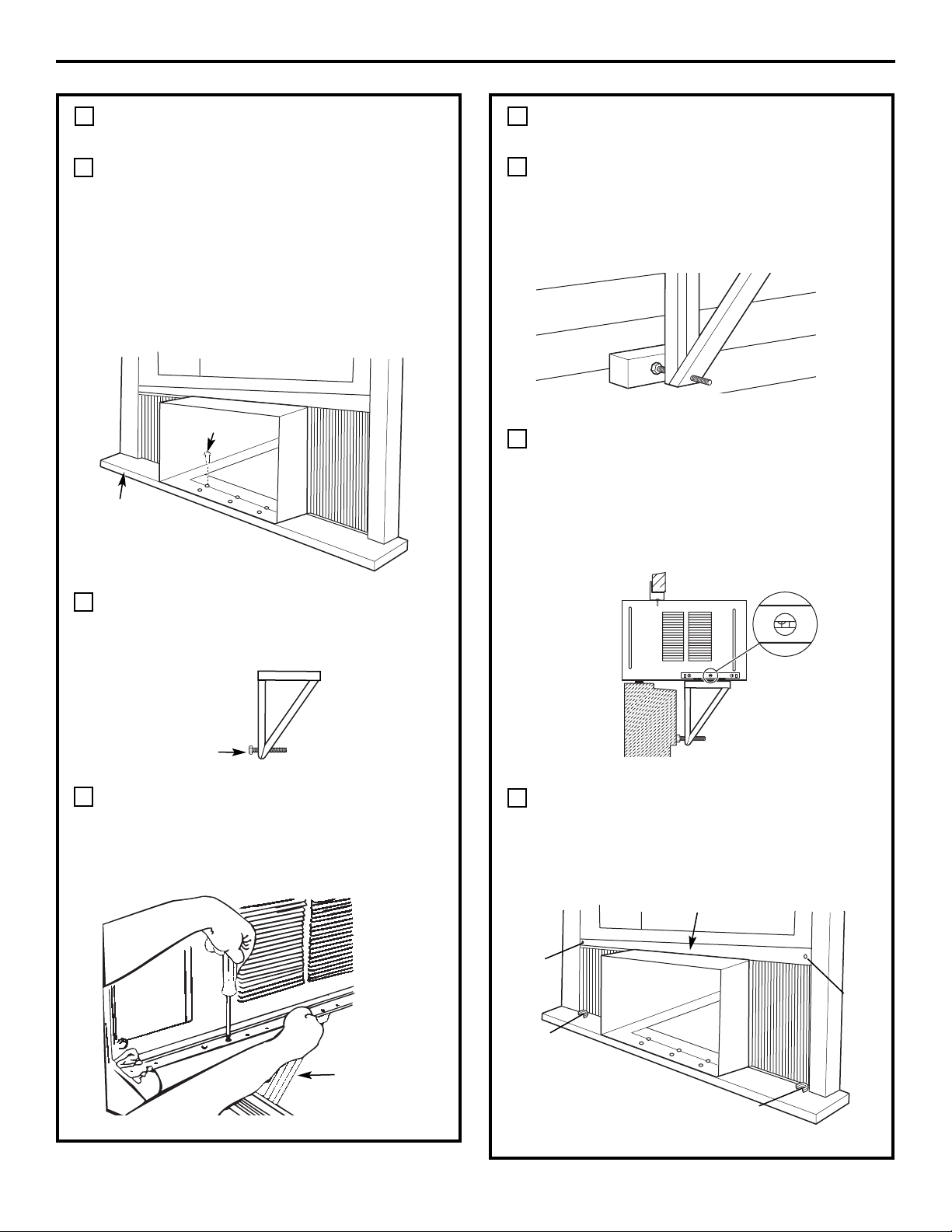

Window Installation Instructions
8
V-support (2)
Top mounting rail
Right
accordion
panel
Foam top
window gasket
Window
sash seal
Left accordion
panel
Type B (11) 3/4screws
Type C bolt (2)
Security bracket (1)
Top mounting rail
seal strip
Bottom inner
case gasket
Type A (22) 1/2screws
Page 9
STORM WINDOW REQUIREMENTS
A storm window frame will not allow the air conditioner to tilt toward the outside, and will keep it from draining properly. To adjust for this, attach a piece of wood to the sill.
WOOD PIECES – WIDTH: 2 LENGTH: Long enough to fit inside the
window frame. THICKNESS: To determine the thickness,
place a piece of wood on the sill to make it 1/2higher than the top of the storm window frame or the vinyl frame.
Attach securely with nails or screws provided by the installer.

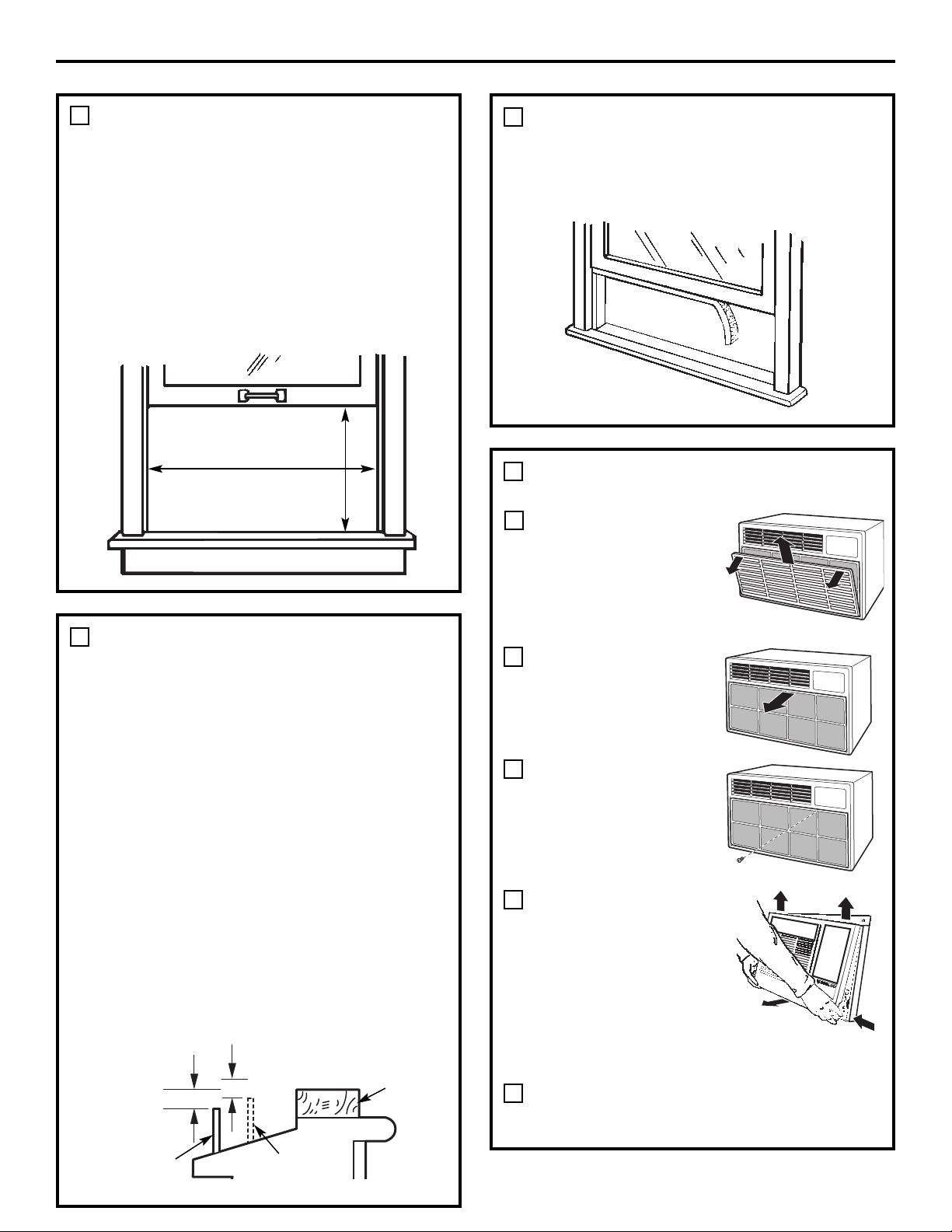

Window Installation Instructions
WINDOW REQUIREMENTS
These instructions are for a standard double-hung window. You will need to modify them for other types of windows.
All supporting parts must be secured to firm wood, masonry or metal.
The electrical outlet must be within reach of the power cord.
1
2
REMOVE THE FRONT GRILLE (IF ATTACHED)
Open the inlet grille downward by pulling out the upper corners of the inlet grille. Lift it up and off.
Grasp the filter at the top center and pull it out.
Remove the screw from the grille.
Gently but firmly grasp the lower grille corners, press in on the case sides and pull forward to release.
NOTE: Do not pull the bottom edge toward you more than 3or you may damage the tabs of the grille.
Lift the grille up and off the top tabs.
4
181⁄2min.
30to 40
(With accordion panels)
A
D
E
1/2higher than storm window frame
Storm window frame
Wood
Sill
1/2higher than vinyl frame (on some windows)
Vinyl frame
9
B
C
PREPARE THE WINDOW
Cut the window sash seal to the proper length. Peel off the backing and attach the seal to the underside of the window sash.
3
Page 10

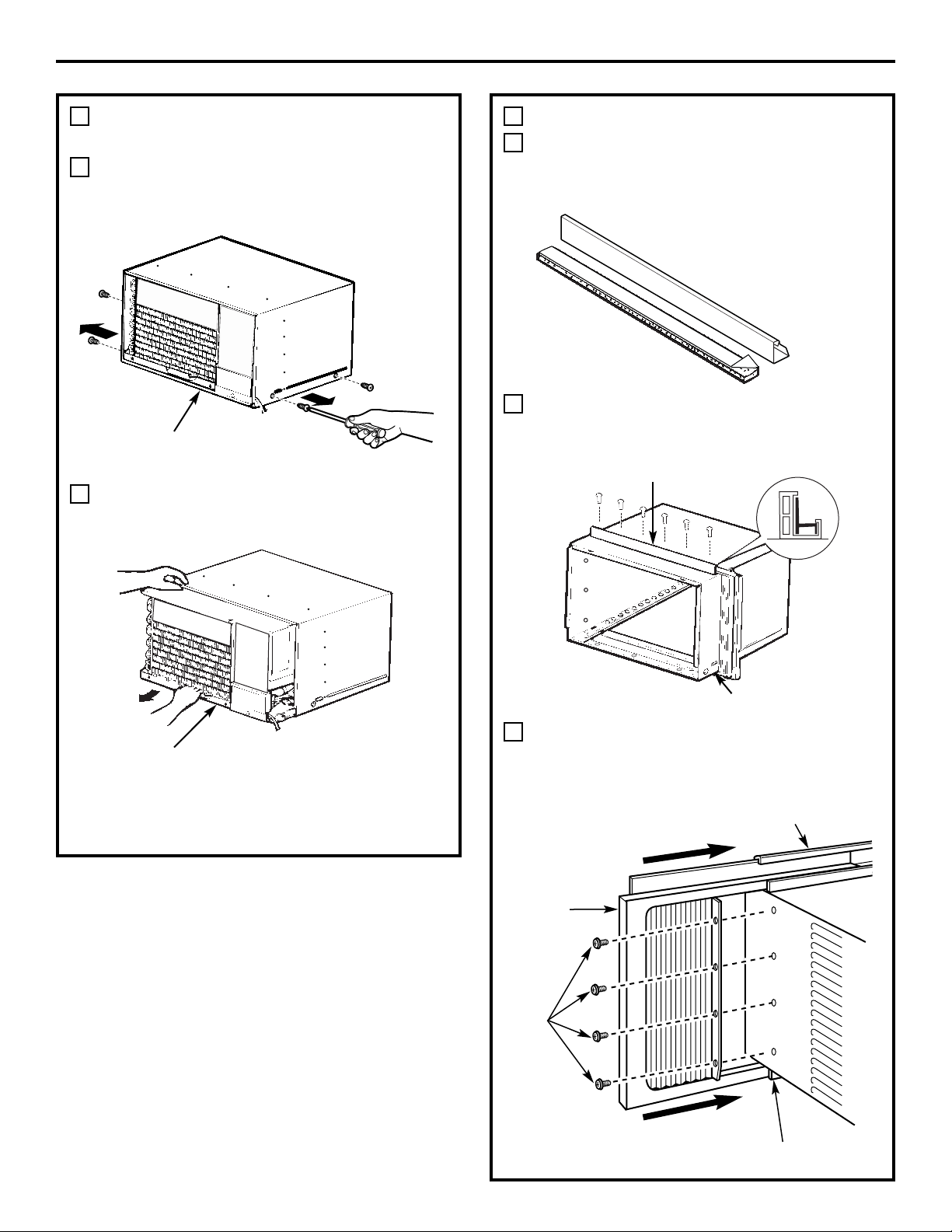

PREPARE THE CASE
Remove the backing from the top mounting rail seal strip and attach it to the bottom of the top mounting rail. Cut to size.
Install the top mounting rail with 6 type A screws from the outside of the case.
Insert the frames for the accordion panels into the top and bottom mounting rails. Attach the accordion panels to the side of the case using 8 type A screws.
Window Installation Instructions
10
REMOVE THE AIR CONDITIONER FROM THE CASE
Remove the 4 screws on each side of the case. Keep the 2 front side ground screws for later use. Keep them in a safe location.
Slide the air conditioner from the case by gripping the base pan handle and pulling forward while bracing the case.
Remove packing cardboard and tape, if present.
5
A
B
Front of air conditioner
Front of air conditioner
6
A
B
C
Top mounting rail
Bottom mounting rail
Type A screws
Top mounting rail
Bottom mounting rail
Accordion panel
BACK
Page 11
Window Installation Instructions
11
INSTALL THE CASE IN THE WINDOW
Carefully slide the case into the window and center the case. Lower the window behind the top mounting rail. Pull the bottom of the case forward so that the bottom mounting rail is tight against the back of the window sill. Mount the case to the window sill using 6 type B screws. Drill pilot holes, if necessary.
Thread a type C bolt about 1/2 of the way into the outer face of the shortest angle of each V-support.
Position the V-supports on the case bottom so that they will be near the outside wall. Attach a V-support to each side of the bottom of the case using type A screws, 4 on each side.
7
Type C bolt
V-support
6 type B screws
Sill
A
B
C
INSTALL THE CASE IN THE WINDOW
(cont.)
Use a wood block (obtained locally) between the leveling bolts and the wall if the wall is weak or if the weight of the air conditioner falls between the studs in the wall.
Adjust the leveling bolts against the outside wall so that the case has a slight tilt to the outside. Tighten nuts with an adjustable wrench. Use a level; no more than a 1/2 bubble will be the correct case slant to the outside.
Extend the left and right accordion panels to the vertical window sashes. Drill pilot holes and attach the top and bottom corners with 4 type B screws.
7
Type B screw
Type B screw
Type B screw
Top mounting rail
Type B screw
D
E
F
Page 12
Window Installation Instructions
INSTALL THE AIR CONDITIONER IN THE CASE
Slide the air conditioner into the case. Reinstall the 2 front side ground screws removed earlier on each side of the case.
IMPORTANT: The ground screws must be reinstalled to ensure a proper ground.
Place the bottom inner case gasket between the bottom of the air conditioner and the inside bottom of the case. Fold up the ends on both sides and push them in.
Attach the front grille to the case by inserting the tabs on the grille into the slots on the front of the case. Push the grille in until it snaps into place.
Secure the front grille to the case by replacing the screw removed in Step 4.
Replace the filter and the inlet grille. Caulk or weather-strip any gaps or
openings to the outside to seal the installation.
The installation is now complete.
9
A
B
C
D
12
Bottom inner
case gasket
Front of air conditioner
Guide the lever carefully through the grille as you push it in.

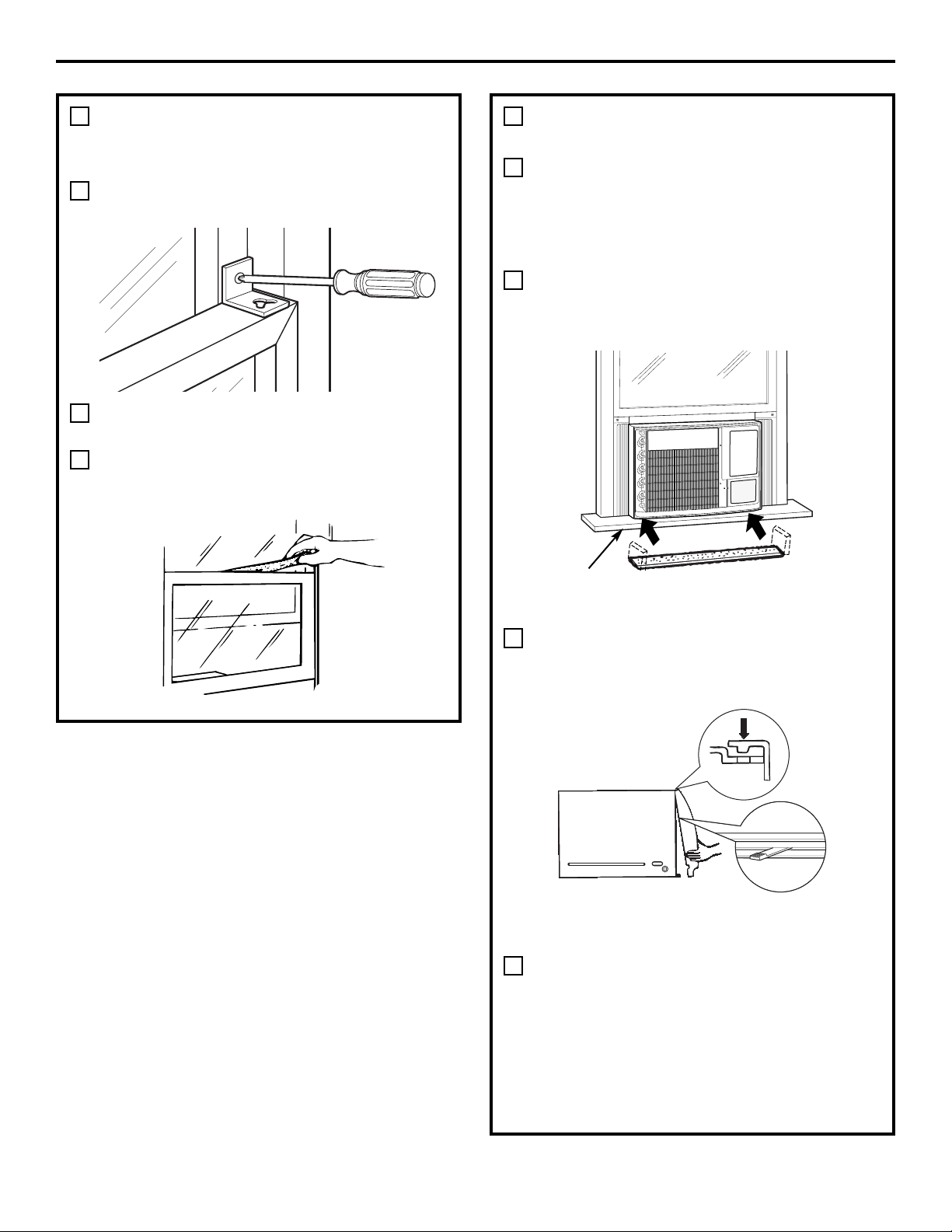

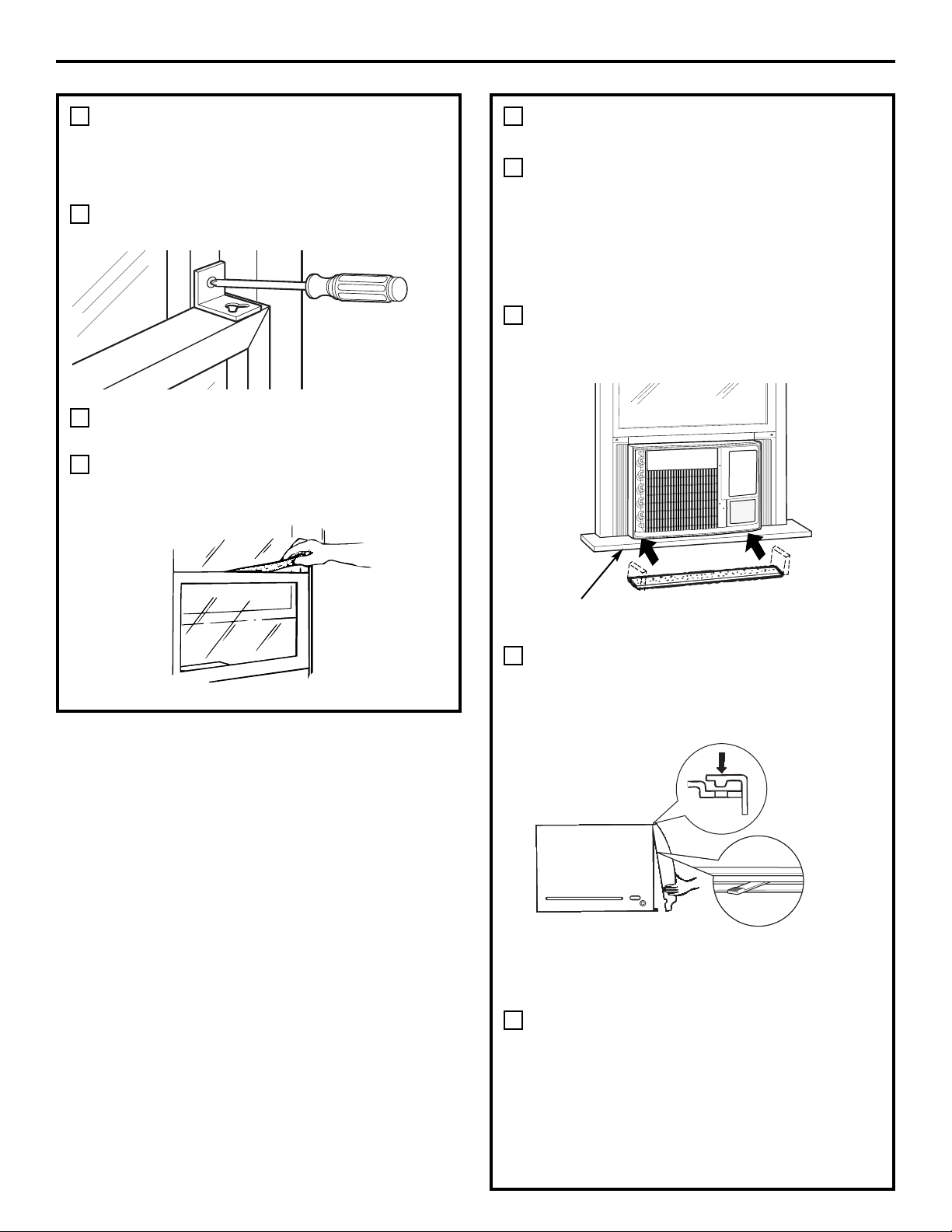

INSTALL THE SECURITY BRACKET AND THE FOAM TOP WINDOW GASKET
Attach the security bracket with a type B screw.
Cut the foam top window gasket to the window width.
Stuff the foam between the glass and the window to prevent air and insects from getting into the room.
8
A
B
C
Page 13
Through-the-Wall Installation Instructions—Optional
The case may be installed through-the-wall in both existing and new construction.
Read completely, then follow step-by-step.
NOTE: Except for the V-support assemblies (included), obtain all materials locally for mounting the air conditioner through-the-wall.
IMPORTANT
Through-the-wall installation is not appropriate if any of the side or top louvers in the case will be obstructed by the wall.
All side and top louvers in the case must project on the outdoor side of the wall.
The room side of the case must project into the room far enough to maximize the balance of the unit.
The case must be installed level from side­to-side and with a slight tilt from front to rear. Use a level; no more than a 1/2 bubble will be the correct case slant to the outside.
Lintel angle is required to support bricks or blocks above opening.
Flashing is required and should extend the length of the opening to ensure no inside cavity leakage occurs.
Remove the air conditioner from the case. For specific instruction, refer to the Window Installation Instructions.
Make certain that a wall receptacle is available close to the hole location or make arrangements to install a receptacle.
Place the case in the wall opening and place wood support strips between the case bottom and the flashing on both sides of the bottom rail. They should be the same height as the bottom rail and the same length as the wall opening.
1
FINISH THE WALL OPENING
Caulk all four sides on the outdoor side of the case to prevent moisture from getting through to the interior wall. Use of flashing (drip rail) will further prevent water from dripping inside the wall and down the outside of the building.
Place the air conditioner into the case. For specific instruction, refer to the Window Installation Instructions.
2
IMPORTANT (cont.)
Secure with 14 wood screws anchored at least an inch into the wall support structure.
NOTE: Drill pilot holes, if necessary, for proper installation. If the frame is oversized, use shims to prevent case distortion.
Install the V-supports. See the INSTALL THE CASE IN THE WINDOW section in the Window Installation Instructions.
1
Lintel angle
Plaster line
Trim molding (if desired)
INSIDE
Bottom rail
V-supports
Wood filler and caulking (above and below the flashing)
Air louvers (top and sides must project on the outdoor side of the wall)
OUTSIDE
Flashing (Drip rail)
Case bottom
Bottom rail
Flashing (Drip rail)
Wood support strips
Caulking
A
B
C
D
E
A
B
13
Page 14

Normal Operating Sounds

You may hear a pinging noise caused by
water being picked up and thrown against the condenser on rainy days or when the humidity is high. This design feature helps remove moisture and improve efficiency.
You may hear the thermostat click when the
compressor cycles on and off.
Water will collect in the base pan during
high humidity or on rainy days. The water may overflow and drip from the outdoor side of the unit.
The fan may run even when the compressor
does not.
14
Troubleshooting Tips…
Problem Possible Causes What To Do
Air conditioner
The air conditioner Make sure the air conditioner plug is pushed
does not start
is unplugged. completely into the outlet. The fuse is blown/circuit Check the house fuse/circuit breaker box and replace
breaker is tripped. the fuse or reset the breaker. Power failure. If power failure occurs, turn the air conditioner
Off
. When power is restored, wait 3 minutes to restart the air conditioner to prevent tripping of the compressor overload.
The current interrupter Press the
Reset
button located on the power cord plug.
device is tripped.
If the
Reset
button will not stay engaged, discontinue use of the air conditioner and contact a qualified service technician.
Air conditioner does
Airflow is restricted. Make sure there are no curtains, blinds or furniture
not cool as it should
blocking the front of the air conditioner.
The temp control may In
Cool
mode, press the
Decrease
pad.
not be set correctly. The air filter is dirty. Clean the filter at least every 30 days.
See the
Operating Instructions
section.
The room may have been hot. When the air conditioner is first turned on, you need
to allow time for the room to cool down.
Cold air is escaping. Check for open furnace registers and cold air returns.
Set the air conditioner’s vent to the closed position.
Cooling coils have iced up. See “
Air conditioner freezing up
” below.
Air conditioner
Ice blocks the air flow Set the controls at
High Fan
or
High Cool
and set the thermostat
freezing up
and stops the air conditioner to a higher temperature. from cooling the room.
The remote control is
The batteries are inserted Check the position of the batteries. They should be
not working
incorrectly. inserted in the opposite (+) and (–) direction. The batteries may be dead. Replace the batteries.
Water drips outside
Hot, humid weather. This is normal.
Water drips indoors
The air conditioner is not For proper water disposal, make sure the air conditioner tilted to the outside. slants slightly from the case front to the rear.
Water collects in
Moisture removed from air This is normal for a short period in areas with little
base pan
and drains into base pan. humidity; normal for a longer period in very humid areas.
“E1” appears
Function error code. Unplug the air conditioner. Wait 3 minutes and plug it
in the display
back in.
Timer or Sleep feature
A power outage or interruption In the case of a power outage or interruption, the unit
not working properly
occurred.
Tim er
and
Sleep
features will reset to the original setting.
You may need to set a new time if desired.

Consumer Support Troubleshooting Tips

Operating Instructions Safety InstructionsInstallation Instructions
Page 15
General Electric Company
Warranty Registration Department P.O. Box 32150 Louisville, KY 40232-2150
GE Service Protection Plus
GE, a name recognized worldwide for quality and dependability together with Assurant Solutions, offers you Service Protection Plus
—comprehensive protection on your
appliances.*
Benefits Include:
• Prompt, reliable service from GE Authorized Servicers
• Convenient hours designed to suit your busy schedule
• Quality replacement parts
• The dependability of GE, a name recognized and trusted worldwide
• Ask about our interest-free payment plans
With Service Protection Plus you can expect:
• An extended service plan that limits unexpected repair bills
• Service coverage for most major brands
• Unlimited service calls for the length of your contract, or credit toward a replacement product
• Service coverage for covered operating parts and labor on appliances and home electronics that fail during normal single family household use
• Your satisfaction is our goal. We strive to provide you with excellent service in a professional and timely manner.
Place your confidence in GE and call us in the U.S. toll-free at 1.800.626.2224 for more information.
*Most brands covered up to 15 years old in the continental U.S.
SPP is a trademark of General Electric Company.
Please place in envelope and mail to:
Cut here
15
Page 16
16
Consumer Product Ownership Registration
Important
Mail Today!
First
Name
Mr. Ms. Mrs. Miss
Street
Address
City
State
Date Placed
In Use
Month
Day
Year
Zip
Code
Apt. #
Last
Name
Phone
Number
_
_
Consumer Product Ownership Registration
Dear Customer: Thank you for purchasing our product and thank you for placing your confidence in us. We are proud to have you as a customer!
Follow these three steps to protect your new appliance investment:
Important: If you did not get a registration card with your
product, detach and return the form below to ensure that your product is registered, or register online at ge.com.
1
23
Model Number Serial Number
Cut here
Complete and mail your Consumer Product Ownership Registration today.
Have the peace of mind of knowing we can contact you in the unlikely event of
a
safety modification.
After mailing the registration below, store this document in a safe place. It contains information you will need should you require service. Our service number is
800.GE.CARES (800.432.2737).
Read your Owner’s Manual carefully. It will help you operate your new appliance properly.
Model Number Serial Number
E-mail Address*
* Please provide your e-mail address to receive, via e-mail, discounts, special offers and other
important communications from GE Appliances (GEA).
Check here if you do not want to receive communications from GEA’s carefully selected
partners.
FAILURE TO COMPLETE AND RETURN THIS CARD DOES NOT DIMINISH YOUR WARRANTY RIGHTS.
For information about GEA’s privacy and data usage policy, go to ge.com and click on “Privacy Policy” or call 800.626.2224.
GE Consumer & Industrial
Appliances General Electric Company Louisville, KY 40225 ge.com
Page 17
17
Consumer SupportTroubleshooting TipsOperating Instructions
Safety Instructions
Installation Instructions
GE Air Conditioner Warranty.
For The Period Of: GE Will Replace:
One Year Any part
of the air conditioner which fails due to a defect in materials or workmanship.
From the date of the
During this
limited one-year warranty,
GE will also provide,
free of charge,
all labor and related
original purchase
service to replace the defective part.
Service trips to your home to teach you how to
use the product.
Improper installation, delivery or maintenance. If you
have an installation problem, or if the air conditioner is of improper cooling capacity for the intended use, contact your dealer or installer. You are responsible for providing adequate electrical connecting facilities.
Failure of the product resulting from modifications to
the product or due to unreasonable use including failure to provide reasonable and necessary maintenance.
In commercial locations labor necessary to move
the unit to a location where it is accessible for service by an individual technician.
Replacement of house fuses or resetting of circuit
breakers.
Failure due to corrosion on models not corrosion-
protected.
Damage to the product caused by improper power supply
voltage, accident, fire, floods or acts of God.
Incidental or consequential damage caused by possible
defects with this air conditioner.
Damage caused after delivery.
Product not accessible to provide required service.
What Is Not Covered:
This warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within the USA. If the product is located in an area where service by a GE Authorized Servicer is not available, you may be responsible for a trip charge or you may be required to bring the product to an Authorized GE Service location for service. In Alaska, the warranty excludes the cost of shipping or service calls to your home.
Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state’s Attorney General.
Warrantor: General Electric Company. Louisville, KY 40225
All warranty service provided by our Factory Service Centers, or an authorized Customer Care
®
technician. To schedule service, on-line, visit us at ge.com, or call 800.GE.CARES (800.432.2737). Please have serial number and model number available when calling for service.
Staple your receipt here.
Proof of the original purchase
date is needed to obtain service
under the warranty.
EXCLUSION OF IMPLIED WARRANTIES—Your sole and exclusive remedy is product repair as provided in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law.
Page 18
Printed in China
18
Consumer Support.
GE Appliances Website
ge.com
Have a question or need assistance with your appliance? Try the GE Appliances Website any day of the year! For greater convenience and faster service, you can now download Owner’s Manuals, or even order parts on-line.
Schedule Service ge.com
Expert GE repair service is only one step away from your door. Get on-line and schedule your service at your convenience any day of the year! Or call 800.GE.CARES (800.432.2737) during normal business hours.
Real Life Design Studio ge.com
GE supports the Universal Design concept—products, services and environments that can be used by people of all ages, sizes and capabilities. We recognize the need to design for a wide range of physical and mental abilities and impairments. For details of GE’s Universal Design applications, including kitchen design ideas for people with disabilities, check out our Website today. For the hearing impaired, please call
800.TDD.GEAC (800.833.4322).
Extended Warranties ge.com
Purchase a GE extended warranty and learn about special discounts that are available while your warranty is still in effect. You can purchase it on-line anytime, or call 800.626.2224 during normal business hours. GE Consumer Home Services will still be there after your warranty expires.
Parts and Accessories ge.com
Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes (VISA, MasterCard and Discover cards are accepted). Order on-line today, 24 hours every day or by phone at 800.626.2002 during normal business hours.
Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally should be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause unsafe operation.
Contact Us ge.com
If you are not satisfied with the service you receive from GE, contact us on our Website with all the details including your phone number, or write to: General Manager, Customer Relations
GE Appliances, Appliance Park Louisville, KY 40225
Register Your Appliance ge.com
Register your new appliance on-line—at your convenience! Timely product registration will allow for enhanced communication and prompt service under the terms of your warranty, should the need arise. You may also mail in the pre-printed registration card included in the packing material.
Page 19
Instrucciones de seguridad
. . . . . .2, 3

Instrucciones de operación

Controles . . . . . . . . . . . . . . . . . . . .4, 5

Cuidado y limpieza

Baterías . . . . . . . . . . . . . . . . . . . . . . . .6
Bobinas para exteriores . . . . . . . . . . .6
Filtro de aire . . . . . . . . . . . . . . . . . . . .6
Parrilla y caja . . . . . . . . . . . . . . . . . . .6

Instrucciones de instalación

Instalación a través
de la pared—opcional . . . . . . . .13–14
Instalación en una ventana . . . . .7–12
Ideas para la identificación y reparación de problemas . . .15–16
Sonidos normales de operación . . .16

Apoyo al consumidor

Apoyo al consumidor . . . . . . . . . . . .18
Garantía . . . . . . . . . . . . . . . . . . . . . .17
49-7584 01-08 JR
ASQ28
Acondicionadores
de Aire
Manual del Propietario e
Instrucciones de Instalación
ge.com
Escriba el modelo y número de serie aquí:
Número de modelo ______________
Número de serie ________________
Usted puede encontrar estos números al costado del acondicionador de aire.
Page 20
2
Apoyo al consumidor Solución de problemas
Instrucciones de
operación
Instrucciones de
seguridad
Instrucciones de
instalación
INFORMACIÓN IMPORTANTE DE SEGURIDAD. LEA TODAS LAS INSTRUCCIONES ANTES DE USAR.
¡ADVERTENCIA!
Por su seguridad, se debe seguir la información en este manual para minimizar el riesgo de incendios, descargas eléctricas o lesiones personales.
Use este electrodoméstico solamente para
el propósito determinado según se describe en el Manual del propietario.
Este acondicionador de aire debe instalarse
correctamente de acuerdo con las Instrucciones de instalación antes de su uso.
Nunca desenchufe su acondicionador de
aire tirando del cable eléctrico. Siempre agarre firmemente el enchufe y tire de él directamente hacia afuera.
Reemplace inmediatamente todos los
cables eléctricos que se hayan pelado o que se hayan dañado de alguna otra manera. Un cable de corriente dañado no debe repararse, sino que debe ser sustituido por uno nuevo que se adquiera del fabricante. No use un cable eléctrico que muestre evidencias de deterioro, o daños de abrasión en su superficie en alguno de sus extremos.
Si el receptáculo no coincide con
el enchufe, un electricista calificado debe reemplazar el receptáculo.
Apague la unidad y desenchufe
su acondicionador de aire antes de hacer cualquier reparación o limpiar.
NOTA: Recomendamos enérgicamente que cualquier servicio llevado a cabo en este equipo lo realice un individuo calificado.
Por su seguridad… no almacene ni use
materiales combustibles, gasolina u otros vapores o líquidos inflamables en la proximidad de éste o algún otro electrodoméstico.
Todos los acondicionadores de aire
contiene refrigerantes, los que por Ley Federal deben ser removidos antes de desecharlos. Si usted planea deshacerse de algún producto que contenga refrigerantes, póngase en contacto con la compañía que se encarga de recoger su basura para que le indiquen qué hacer.
PRECAUCIONES DE SEGURIDAD
Bajo ninguna circunstancia, corte o remueva la tercera púa (tierra) del cable eléctrico. En pos de la seguridad personal, este electrodoméstico debe siempre conectarse a tierra.
NO use un enchufe adaptador con este electrodoméstico.
El cable eléctrico de este electrodoméstico está equipado con un enchufe de tres púas (tierra) que combina con un tomacorriente estándar de tres tomas de pared para minimizar la posibilidad de una descarga eléctrica.
El cable eléctrico incluye un dispositivo para interrupción de corriente. Se incluye un botón de prueba y de reinicio en el dispositivo. El dispositivo debe ponerse a prueba periódicamente: primero se presiona el botón de
TEST
(prueba) y luego
RESET
(reinicio) mientras se encuentra enchufado al tomacorriente. Si el botón
TEST
no se dispara
o si el botón
RESET
no queda enganchado, deje de utilizar el acondicionador de aire y comuníquese con un técnico calificado.
Pida a un técnico que inspeccione el tomacorriente y el circuito para cerciorarse de que el tomacorriente está conectado a tierra de la manera apropiada.
Donde exista un tomacorriente de dos tomas, es su responsabilidad y obligación personal hacer que dicho tomacorriente sea reemplazado por uno de tres tomas con conexión a tierra.
El acondicionador de aire debería siempre estar conectado a un tomacorriente individual con su circuito de voltaje correspondiente.
Esto proporciona el mayor rendimiento y además evita que los circuitos del resto de la casa se sobrecarguen, lo cual podría causar incendios por el sobrecalentamiento del cableado.
Ver las Instrucciones de instalación, en la sección
Requisitos Eléctricos
para
los requisitos específicos de conexión.
CÓMO CONECTAR LA ELECTRICIDAD
Page 21
3
Apoyo al consumidorSolución de problemas
Instrucciones de
operación
Instrucciones de
seguridad
Instrucciones de
instalación
ge.com
¡ADVERTENCIA!
Debido al potencial de riesgos de seguridad bajo ciertas condiciones, enérgicamente recomendamos contra el uso de cables de extensión.
Sin embargo, si usted se ve en la necesidad de usar un cable eléctrico de extensión, es absolutamente necesario que el mismo esté listado bajo UL, calibre 14, de tipo 3 tomas con conexión a tierra para electrodomésticos y el índice debe ser de 15 amperios (mínimo) y 125 voltios.
PRECAUCIÓN:
NO USE un cable de extensión con ninguno de los modelos de 230/208 voltios.
USO DE CABLES DE EXTENSIÓN—
Modelos de 115 voltios solamente
LEA Y SIGA ESTAS INSTRUCCIONES DE SEGURIDAD CUIDADOSAMENTE.
GUARDE ESTAS INSTRUCCIONES
Page 22
4
Apoyo al consumidor Solucionar problemas
Operación SeguridadInstalación
Para garantizar una operación apropiada, oriente
el control remoto hacia el receptor de señal del acondicionador de aire.
El receptor de señal tiene un rango máximo
de 21 pies.
Cerciórese de que no haya nada entre
el acondicionador de aire y el control remoto que pueda bloquear la señal.
Cerciórese de que las baterías sean frescas y se instalen
correctamente—ver la Sección de
Cuidado y Limpieza
.
On/Off (Encendido/apagado)
Apaga y prende el acondicionador de aire.
Pantalla
Muestra la temperatura de ajuste o el tiempo
restante en el sincronizador.
Modo
Usado para ajustar el acondicionador de aire al modo
Cool (Frío) o Fan (Ventilador)
.
Teclas de Aumentar ▲/Reducir
Usado para ajustar la temperatura cuando se encuentre en el modo
Cool (Frío)
.
Fan (Ventilador)
Usado para ajustar la velocidad del ventilador a
Low (Bajo), Med (Medio) oHigh (Alto)
.
Energy Saver (Ahorrador de energía)
Controla el ventilador.
On (Encendido)—
El ventilador y el compresor hacen ciclo en encendido y apagado. Este resulta en variaciones mayores en la temperatura de la habitación y en la humedad. Normalmente usado cuando la habitación no está ocupada.
Nota: El ventilador continuará funcionando por un corto tiempo después de que el compresor haya entrado en el ciclo de apagado.
Off (Apagado)—
El ventilador funciona todo el tiempo, mientras que el compresor pasa por los ciclos de encendido y apagado.
Este interruptor debe estar en
Off (Apagado)
para usar los ajustes del ventilador (en el control de modo).
Timer (Sincronizador) On (Encendido)—
Cuando el acondicionador de aire está apagado, puede ajustarse para que se encienda automáticamente dentro de 1 a 24 horas en el nivel previo. Cada toque ajustará el tiempo en horas.
Off (Apagado)—
Cuando el acondicionador de aire está encendido, puede ajustarse para que se apague automáticamente dentro de 1 a 24 horas. Cada toque ajustará el tiempo en horas.
Para cancelar el sincronizador, presione la tecla
Timer (Sincronizador)
hasta que
el tiempo en la pantalla desaparezca.
Sleep (Dormir)
(en algunos modelos)
Presione para que el acondicionador de aire funcione por 8 horas antes de apagarse automáticamente.
Una hora después de que el sincronizador para dormir haya sido ajustado, la temperatura seleccionada aumentará automáticamente 2 ºF.
Para cancelar el modo de dormir, presione la tecla
Sleep (Dormir)
una segunda vez.
Nota: El sincronizador de dormir será cancelado si cualquiera de las teclas de Timer (Sincronizador), Energy Saver (Ahorrador de energía) o Mode (Modo) son presionadas.
Receptor de la señal del control remoto
Control remoto
Acerca de los controles en el acondicionador de aire.
Control remoto
Las funciones y el aspecto pueden variar.
Controles del acondicionador de aire
AHORRADOR DE
ENERGÍA Encendido
SINCRONIZADOR Encendido
FRÍO Encendido
VENTILADOR Encendido
DORMIR Encendido
Page 23
En caso de la pérdida de la energía o interrupción, la unidad reiniciará automáticamente en las funciones de la última vez que fue usado una vez la energía sea restablecida. Las funciones del
Sincronizadory Dormir
reajustará al ajuste original. Es posible que usted necesite ajustar un tiempo nuevo si así lo desea.
Función de recuperación de pérdida de energía
El control de ventilación está localizado al interior de las persianas en la esquina derecha inferior.
Cuando está ajustado en
CLOSE (CERRADO)
, solamente el aire en el interior de la habitación circulará y se acondicionará. Cuando está ajustado en
OPEN (ABIERTO)
,
un poco del aire interno es expelido hacia afuera.
ge.com
Cuando el acondicionador de aire se encienda, se encenderá automáticamente en el nivel que se encontraba la última vez.
Control de la ventilación
Para abrir la parrilla, empuje la palanca hacia la derecha y para cerrarla hacia la izquierda.
Modo COOL (FRIO)
Use el modo
Cool
con ventilador
High (3) (Alto), Med (2)
(Medio)
o
Low (1) (Bajo)
para enfriar. Use las teclas de
Increase ▲(Aumentar)/ Decrease ▼(Reducir)
para ajustar a la temperatura deseada entre 64ºF y 86ºF en incrementos de 1ºF.
Se usa un termostato para mantener la temperatura de la habitación. El compresor hará ciclo entre apagado y encendido para mantener la habitación a la temperatura deseada. Ajuste el termostato a un número menor y el aire interno se enfriará más. Si lo ajusta a un número mayor, la temperatura del aire interno se calentará más.
NOTA: Si el acondicionador de aire está apagado y luego se enciende mientras está ajustado en Cool (Frío), tomará aproximadamente 3 minutos para que el compresor comience a enfriar otra vez.
Descripciones de enfriamiento Para enfriamiento normal—
Seleccione el modo de
Cool
(Frío)
y ventilador
High (3) (Alto) oMed (2) (Medio)
con una
temperatura de ajuste media.
Para enfriamiento máximo—
Seleccione el modo de
Cool
y ventilador
High (3) (Alto)
con una temperatura de ajuste
menor.
Para enfriamiento silencioso y enfriamiento nocturno—
Seleccione el modo de
Cool
y ventilador
Low (1) (Bajo)
con una temperatura de ajuste media.
NOTA: Si cambia de un ajuste Cool (Frío) a Off (Apagado) o a un ajuste de ventilador, espere aproximadamente 3 minutos antes de cambiar otra vez al ajuste de Cool (Frío).
Dirección del aire—Hacia arriba y hacia abajo
Una presión sencilla con los dedos en las persianas horizontales ajustará la dirección del aire hacia arriba o hacia abajo.
Modo de FAN (Ventilador)
Use el
Fan (Ventilador)
en
High (3) (Alto), Med (2) (Medio)
o
Low (1) (Bajo)
para proporcionar circulación de aire y
filtración sin enfriamiento. Debido a que los niveles de
ventilador únicamente no proporcionan enfriamiento, el nivel de temperatura no se muestra en la pantalla.
Dirección del aire—de lado a lado
La dirección de lado a lado del aire es ajustada por las palancas de las persianas o agarrando y moviendo las persianas verticales interiores.
Apoyo al consumidorSolución de problemas
Instrucciones de
operación
Instrucciones de
seguridad
Instrucciones de
instalación
5
Controles adicionales e información importante.
No use en las condiciones externas debajo el punto de congelación
Este acondicionador de aire no es diseñado para usar en temperaturas externas debajo el punto de congelación.
No use en las condiciones externas debajo el punto de
congelación.
Page 24
6

Bobinas para exteriores

Las bobinas en el lado exterior del acondicionador de aire debe ser inspeccionada regularmente. Si la misma está obstruida con suciedad u hollín, podría ser limpiada profesionalmente.

Parrilla y caja

Apague el acondicionador de aire y retire el enchufe del tomacorriente de la pared antes de limpiar.
Para limpiar, use agua y un detergente suave. No use cloro o materiales abrasivos.
Cuidado y limpieza del acondicionador de aire.
Apoyo al consumidor Solución de problemas
Instrucciones de
operación
Instrucciones de
seguridad
Instrucciones de
instalación
Cómo insertar las baterías
Retire la cubierta de la batería deslizándola de acuerdo con la dirección de la flecha.
Inserte baterías nuevas, cerciorándose de que los polos positivos (+) y negativos (–) están orientados correctamente.
Coloque la cubierta otra vez deslizándola en su lugar.
NOTAS:
Use 2 baterías “AAA” de 1,5 voltios. No use
baterías recargables.
Retire las baterías del control remoto si el sistema
no ha de ser usado por un período de tiempo extenso.
3
2
1

Filtro de aire

El filtro de aire detrás de la rejilla frontal debe inspeccionarse y limpiarse por lo menos cada 30 días o más a menudo si fuese necesario.
Limpie el filtro con agua tibia y jabón. Enjuáguelo y permita que se seque antes de colocarlo otra vez en su lugar.
PRECAUCIÓN:
NO OPERE el acondicionador de aire sin el filtro debido a que la suciedad y las pelusas lo obstruirán y reducirán su rendimiento.
Para retirarlo:
Abra la parrilla de entrada hacia abajo tirando de las esquinas superiores de la parrilla de entrada. Levante hacia arriba y afuera.
Agarre el filtro por la parte central superior y tire hacia afuera.
2
1
Page 25
ANTES DE INICIAR
Lea estas instrucciones completa y cuidadosamente
Instrucciones para
Acondicionador de aire
la instalación
Algunos modelos requieren tomacorrientes de 115/120 voltios de corriente alterna y 60 Hz conectados a tierra, protegidos con un fusible de dilatación de tiempo de 15 amperios o un cortacircuitos.
El enchufe de tres púas con conexión a tierra minimiza la posibilidad de descargas eléctricas. Si el tomacorriente de la pared que usted planea usar solamente tiene 2 tomas, es su responsabilidad hacer que un técnico lo reemplace por uno de tres tomas con conexión a tierra.
REQUISITOS ELECTRICOS
Algunos modelos requieren 230/208 voltios, de corriente alterna, protegidos por un fusible de dilatación de tiempo o un cortacircuitos. Estos modelos deberían instalarse en un ramal exclusivo del circuito para un rendimiento más notable y para prevenir sobrecargas en los circuitos de cableados de su casa o apartamento, lo cual podría representar un riesgo de incendio por el sobrecalentamiento de los alambres.
REQUISITOS ELECTRICOS (cont.)
PRECAUCIÓN:
Bajo ninguna circunstancia corte o remueva la tercera púa (conexión a tierra) del cable eléctrico.
No cambie el enchufe en el cable eléctrico de este acondicionador de aire.
Los cables caseros de aluminio podrían presentar problemas especiales. Consulte a un técnico electricista calificado.
¿Preguntas? Llame al 800.GE.CARES (800.432.2737) o bien Visite nuestra página Web: ge.com
El cable de alimentación incluye un dispositivo para interrupción de corriente. Se incluye un botón de prueba y de reinicio en el dispositivo. El dispositivo debe ponerse a prueba periódicamente: primero se presiona el botón de TEST (prueba) y luego RESET (reinicio) mientras se encuentra enchufado al tomacorriente. Si el botón TEST no se dispara o si el botón RESET no queda enganchado, deje de utilizar el acondicionador de aire y comuníquese con un técnico calificado.
IMPORTANTE — Guarde estas
instrucciones para uso del inspector local.
IMPORTANTE — Observe todos
los códigos y órdenes de ley.
Nota al instalador – Asegúrese de dejar estas instrucciones con el consumidor.
Nota al consumidor – Conserve estas instrucciones para referencia futura.
Nivel de destreza – La instalación de este aparato requiere de destrezas mecánicas básicas.
Tiempo de ejecución – Aprox. 1 hora
Recomendamos dos personas para
la instalación de este producto.
La instalación apropiada es la responsabilidad del instalador.
La falla del producto debido a una instalación inadecuada no está cubierta por la garantía.
Cuando instale este acondicionador de aire, DEBE usar todas las piezas suministradas y usar procedimientos adecuados de instalación como describe en estas instrucciones.
7 8
Page 26
PARTES INCLUIDAS
(apariencia puede variar)
Instrucciones para la instalación en una ventana
Apoyo en V (2)
Riel de montaje superior
Panel de
acordeón
derecho
Empaque superior de
espuma de la ventana
Sello del
marco de la
ventana
Panel de acordeón izquierdo
Tornillos 3/4
tipo B (11)
Perno
tipo C (2)
Soporte de
seguridad (1)
Cinta de sellado
del riel de montaje
superior
Empaque
inferior de
la caja
Tornillos 1/2
tipos A (22)
HERRAMIENTAS QUE USTED NECESITARÁ
Destornillador Phillips
Regla o cinta métrica
Lápiz
Nivel
Tijeras o cuchilla
Llave ajustable
Page 27
Instrucciones para la instalación en una ventana
REQUISITOS PARA LA VENTANA
Estas instrucciones son para una ventana estándar de dos pliegues. Usted necesitará modificar el proceso para otros tipos de ventanas.
Todas las partes de apoyo deben quedar totalmente aseguradas a algún metal, mampostería o a la madera.
El tomacorriente eléctrico debe estar al alcance del cable eléctrico del acondicionador de aire.
1
REQUISITOS DE UNA VENTANA DE TORMENTAS
Un marco de ventana de tormentas no permitirá que el acondicionador de aire se incline hacia el exterior y evitará que drene apropiadamente. Para solucionar este problema, adhiera un pedazo de madera a el umbral.
PEDAZOS DE MADERA – ANCHO: 2 LONGITUD: Lo suficientemente largo
como para ajustar en el interior del marco de la ventana.
GRUESO: Para determinar el grueso, coloque un pedazo de madera en el umbral para hacerla 1/2más alta que la parte superior del marco de la ventana de tormentas o del marco vinilo.
Péguelo firmemente con clavos o con tornillos proporcionados por el instalador.
1/2más alto que el marco de ventana de tormentas
Marco de ventana de tormentas
Umbral
2
181⁄2mín.
30a 40
(con paneles de acordeón)
1/2mas alto que el marco vinilo (en algunas ventanas)
Marco vinilo
Madera
9
RETIRE LA PARRILLA FRONTAL (SI ESTÁ PEGADA)
Abra la parrilla de entrada hacia abajo tirando de las esquinas superiores de la parrilla de entrada. Levante hacia arriba y afuera.
Agarre el filtro por la parte central superior y tire hacia afuera.
Retire el tornillo de la parrilla.
Agarre firmemente pero suavemente las esquinas inferiores de la parrilla, presione en los lados de la caja y tire para liberar.
NOTA: No tire los extremos de la parte inferior hacia usted más de 3o podría dañar las orejillas de la parrilla.
Levante la parrilla y libérala de las orejillas.
4
A
E
D
PREPARE LA VENTANA
Corte el sello de la banda de la ventana a la longitud apropiada. Pele la parte posterior y pegue el sello a la parte inferior de la banda de la ventana.
3
B
C
Page 28
10
Instrucciones para la instalación en una ventana
RETIRE EL ACONDICIONADOR DE AIRE DE LA CAJA
Retire los 4 tornillos en cada lado de la caja. Mantenga los 2 tornillos a tierra de la parte delantera para más tarde. Mantenga los tornillos en un lugar segura.
Deslice el acondicionador de aire de la caja agarrando la empuñadura del cárter base y tire hacia adelante mientras sostiene la caja.
Retire el cartón de empaquetado y cinta, si está presente.
5
A
B
Frente del acondicionador de aire
Frente del acondicionador de aire
PREPARE LA CAJA
Retire el apoyo de la cinta de sellado del riel de montaje superior y péguelo al fondo del riel de montaje superior. Corte al tamaño apropiado.
Instale el riel de montaje superior con 6 tornillos tipo A desde la parte externa de la caja.
Inserte los marcos para los paneles de acordeón en los rieles superiores e inferiores de montaje. Una los paneles de acordeón al lado de la caja usando 8 tornillos tipo A.
6
A
B
C
Riel de montaje superior
Riel de montaje inferior
Tornillos tipos A
Riel de montaje superior
Riel de montaje inferior
Panel de acordeón
POSTERIOR
Page 29
Instrucciones para la instalación en una ventana
11
INSTALE LA CAJA EN LA VENTANA
Con cuidado deslice la caja en la ventana y céntrela. Baje la ventana detrás del riel de montaje superior. Tire del fondo de la caja hacia adelante de forma tal que el riel de montaje del fondo quede apretado contra la parte posterior del umbral de la ventana. Monte la caja en el umbral de la ventana usando 6 tornillos tipo B. Taladre agujeros pilotos, si es necesario.
Atornille un tornillo tipo C hasta la mitad en la superficie exterior del ángulo más corto de cada apoyo en V.
Coloque los apoyos en V en el fondo de la caja de forma tal que estén cerca de la pared exterior. Pegue un apoyo en V a cada lado del fondo de la caja usando tornillos tipo A, 4 en cada lado.
7
Tornillo tipo C
Apoyo en V
6 Tornillos tipo B
Umbral
A
B
C
INSTALE LA CAJA EN LA VENTANA
(cont.)
Use un bloque de madera (obtenido localmente) entre los pernos de nivelación y la pared si la pared es débil o si el peso del acondicionador de aire cae entre columnas en la pared.
Ajuste los pernos de nivelación contra la pared exterior de forma tal que la caja tenga una ligera inclinación hacia la parte de afuera. Apriete las tuercas con una llave ajustable. Use un nivel; la inclinación correcta para la parte de afuera será una inclinación no superior a 1/2 burbuja.
Extienda los paneles de acordeón izquierdos y derechos al marco vertical de la ventana. Taladre agujeros pilotos y pegue las esquinas superiores y inferiores con cuatro tornillos tipo B.
7
Tornillo tipo B
Tornillo tipo B
Tornillo tipo B
Riel de montaje superior
Tornillo tipo B
D
E
F
Page 30
Instrucciones para la instalación en una ventana
INSTALE EL ACONDICIONADOR DE AIRE EN LA CAJA
Deslice el acondicionador de aire en la caja. Reinstale los 2 tornillos a tierra de la parte delantera removidos anteriormente en cada lado de la caja.
IMPORTANTE: Los tornillos a tierra deben ser instalados a nuevo para asegurar una conexión a tierra correcta.
Coloque el empaque inferior de la caja entre el fondo del acondicionador de aire y el fondo interno de la caja. Doble los extremos en ambos lados y empújelos hacia adentro.
Una la parrilla del frente a la caja insertando las orejillas en la parrilla en las ranuras en el frente de la caja. Empuje la parrilla hasta que encaje en su lugar.
Asegure la parrilla del frente en la caja reemplazando el tornillo removido en el Paso 4.
Reemplace el filtro y la parrilla de entrada. Calafatee todas las aberturas al exterior
para sellar la instalación. La instalación está ahora completa.
9
A
B
C
D
Empaque inferior
de la caja
Frente del acondicionador de aire
Guíe la palanca cuidadosamente a través de la parrilla mientras la empuja.
INSTALE EL SOPORTE DE SEGURIDAD Y EL EMPAQUE SUPERIOR DE ESPUMA DE LA VENTANA
Una el soporte de seguridad con un tornillo tipo B.
Corte el empaque superior de espuma de la ventana al ancho de la ventana.
Rellene la espuma entre el vidrio y la ventana para evitar que aire e insectos se introduzcan en la habitación.
8
A
B
C
12
Page 31
13
Instrucciones de instalación a través de la pared—opcional
La caja podría instalarse a través de la pared en construcciones existentes o nuevas.
Lea completamente, luego siga paso por paso.
NOTA: A excepción de los conjuntos de montaje de los apoyos en V (incluidos), obtenga todos los materiales en tiendas para montar el acondicionador de aire a través de la pared.
IMPORTANTE
La instalación a través de la pared no es apropiada si alguna de las persianas laterales o superiores está obstruida por la pared.
Todas las persianas laterales y superiores en la caja deben proyectarse hacia el lado exterior de la pared.
El lado de la habitación de la caja debe proyectarse hacia el interior de la habitación con la distancia suficiente como para maximizar el equilibrio de la unidad.
La caja debe instalarse a nivel, de lado a lado, y con una ligera inclinación desde el frente hacia la parte posterior. Use un nivel; la inclinación correcta será una inclinación no superior a 1/2 burbuja.
Es necesaria una escuadra de lintel para dar soporte a los ladrillos o bloques que se encuentran por encima de la abertura.
Se necesitan tapajuntas que deben extenderse a lo largo de la abertura para asegurarse de que no se produzcan fugas dentro de la cavidad.
Retire el acondicionador de aire de la caja. Para instrucciones específicas, refiérase a las Instrucciones para la instalación en una ventana.
Cerciórese de que existe un tomacorriente disponible cerca del orificio o haga arreglos para que se instale uno.
1
IMPORTANTE (cont.)
Coloque la caja en la abertura de la pared y coloque las bandas de soporte de madera entre la parte inferior de la caja y los tapajuntas de ambos lados del riel inferior. Deben ser de la misma altura que el riel inferior y de la misma longitud que la abertura de la pared.
Asegure con 14 tornillos para madera fijados al menos una pulgada hacia el interior de la estructura de soporte de la pared.
NOTA: Taladre los agujeros piloto, si es necesario, para una instalación apropiada. Si el marco es demasiado grande, use cuñas para evitar la distorsión de la caja.
Instale los apoyos en V. Ver la sección INSTALE LA CAJA EN LA VENTANA en las Instrucciones de instalación en una ventana.
1
A
B
C
D
E
Page 32
Instrucciones de instalación a través de la pared—opcional
14
TERMINE LA ABERTURA EN LA PARED
Calafatee los cuatro lados del lado exterior de la caja para evitar que la humedad penetre a través de la abertura en la pared. El uso de tapajuntas (riel de goteo) evitará aún más que el agua gotee hacia el interior de la pared y hacia el exterior de la construcción.
Coloque el acondicionador de aire hacia el interior de la caja. Para instrucciones específicas, refiérase a las Instrucciones para la instalación en una ventana.
2
Ángulo del lintel
Línea del yeso
Moldeado del marco (si se desea)
INTERIOR
Riel inferior
Apoyos en V
Relleno de madera y calafateo (por encima y por debajo del tapajuntas)
Persianas de aire (persianas superiores y laterales debe proyectar hacia el lado exterior de la pared)
EXTERIOR
Tapajuntas (riel de goteo)
Fondo de la caja
Riel inferior
Calafateo
Tapajuntas (riel de goteo)
Bandas de soporte de madera
A
B
Page 33
15
Solucionar problemas.
ge.com
Problema Causas posibles Qué hacer
El acondicionador de aire
El acondicionador de aire Cerciórese de que el acondicionador de aire está
no enciende
está desconectado. enchufado totalmente en el tomacorriente. El fusible se disparó / Inspeccione los fusibles / caja de interruptores de la casa
el cortacircuitos se disparó. y reemplace cualquier fusible o reajuste el interruptor. Interrupción en el Si ocurre una interrupción en el suministro eléctrico, apague
suministro eléctrico.
(off)
el acondicionador de aire. Cuando la energía se restaure, espere 3 minutos para reiniciar el acondicionador de aire para prevenir que se dispare el compresor por sobrecarga.
El dispositivo de interrupción Presione el botón
Reset
ubicado en el cable de alimentación.
de corriente se ha activado.
Si el botón
Reset
no se mantiene en su lugar, no utilice más el
acondicionador de aire y comuníquese con un técnico calificado.
El acondicionador de aire
El flujo de aire está restringido. Cerciórese de que no existe ninguna cortina, persiana o
no enfría como debería
mueble bloqueando el frente del acondicionador de aire.
El control de temperatura no En el modo
Cool (Frío)
, presione la tecla
Reducir
▼.
está ajustado apropiadamente. El filtro de aire está sucio. Limpie el filtro cada 30 días por lo menos. Ver la sección
de
Instrucciones de Operación
.
La habitación podría haber Cuando el acondicionador de aire se enciende, usted estado caliente. necesita darle tiempo para que enfrié la habitación.
El aire frío se está escapando. Cerciórese de que los registros de la calefacción no están
abiertos y se encuentran retornando el aire frío.
Coloque la ventanilla del acondicionador de aire en
la posición cerrada.
Las bobinas de enfriamiento Ver “
Acondicionador de aire se está congelando
” más adelante.
se congelaron.
El acondicionador de aire
El hielo bloquea el flujo Coloque los controles en
High Fan (Ventilador alto) ó High Cool
se está congelando
de aire hacia el acondicionador
(Frío alto)
y ajuste el termostato a una temperatura más alta.
de aire evitando que se enfríe la habitación.
El control remoto
Las baterías están insertadas Inspeccione la posición de las baterías. Deben estar
no funciona
incorrectamente. insertadas en la posición indicada, (+) y (–). Las baterías pueden Reemplace las baterías.
estar agotadas.
Hay agua goteando afuera
Tiempo húmedo y caliente. Esto es normal.
Hay agua goteando en el
El acondicionador de aire Para drenar el agua apropiadamente, cercíorese de que
interior de la habitación
no está inclinado hacia afuera. el acondicionador de aire está inclinado ligeramente
desde el frente hacia atrás.
Se acumula agua en
La humedad removida del aire Esto es normal por un corto período en áreas con poca
la bandeja
y se drena hasta la bandeja. humedad; normal por un período de tiempo más
postergado en áreas más húmedas.
“E1” aparece
Código de error de función. Desconecte el acondicionador de aire. Espere 3 minutos y
en la pantalla
enchúfelo otra vez.
La función de
Una pérdida en el suministro En el caso de una pérdida del suministro eléctrico o
Sincronizador (Timer) o
eléctrico o una interrupción ha una interrupción, las funciones de
Sincronizadory Dormir
en la
Dormir (Sleep) no está
ocurrido. unidad se reajustará al ajuste original. Es posible que usted necesite
funcionando apropiadamente
ajustar un tiempo nuevo si así lo desea.
Apoyo al consumidorSolución de problemas
Instrucciones de
operación
Instrucciones de
seguridad
Instrucciones de
instalación
Page 34
16
Solucionar problemas.
Apoyo al consumidor Solución de problemas
Instrucciones de
operación
Instrucciones de
seguridad
Instrucciones de
instalación
Sonidos de operación normales
Quizás escuche un sonido metálico causado por
el agua tomada y tirada contra el condensador en los días lluviosos o cuando la humedad es alta. Esta característica de diseño ayuda a remover la humedad y mejora la eficiencia.
Quizás escuche que el termostato hace clic cuando el
compresor hace ciclo entre encendido y apagado.
El agua se acumula en la bandeja durante días lluviosos
o con mucha humedad. El agua podría derramarse y gotear desde el lado externo de la unidad.
El ventilador podría funcionar aun si el compresor no
lo hace.
Page 35
Apoyo al consumidorSolución de problemas
Instrucciones de
operación
Instrucciones de
seguridad
Instrucciones de
instalación
Garantía de su acondicionador de aire de GE.
Por el período de: GE reemplazará:
Un año Cualquier parte
del acondicionador de aire que falle debido a defectos en los materiales o en
A partir de la fecha
la fabricación. Durante esta
garantía limitada de un año
, GE también proporcionará,
sin costo
de la compra original alguno
, toda la mano de obra y el servicio relacionado—para reemplazar partes defectuosas.
Viajes de ser vicio a su casa para mostrarle cómo
funciona el equipo.
Instalación o entrega inapropiada, o mantenimiento
impropio. Si usted tiene un problema durante la instalación, o si su acondicionador de aire no tiene la capacidad de enfriamiento que usted necesita, póngase en contacto con nuestro distribuidor o instalador. Usted es responsable de proporcionar las facilidades de conexión eléctrica necesarias.
Fallo del producto resultante de modificaciones al
producto o debido a uso irrazonable incluyendo no proporcionar mantenimiento razonable y necesario.
En locales comerciales, la mano de obra necesaria para
retirar la unidad hacia un lugar para revisión por parte de un técnico individual.
Reemplazo de fusibles de la casa o reajuste del sistema
de circuitos.
Fallos debido a la corrosión en modelos que no están
protegidos contra la corrosión.
Daño al producto causado por voltaje inapropiado hacia
el equipo, accidentes, incendios, inundaciones o actos de la naturaleza de fuerza mayor.
Daños incidentales o consecuenciales causados por
defectos posibles con este acondicionador de aire.
Daños después de la entrega.
Producto no accesible para facilitar el servicio requerido.
Lo que no está cubierto:
Esta garantía se extiende al comprador original y cualquier comprador posterior de productos comprados para uso residencial dentro de Estados Unidos. Si el producto está situado en un área que no dispone de servicio por parte de un proveedor de servicio autorizado de GE, podría tener que hacerse cargo de los costes de envío o bien podría solicitársele que lleve el producto a una centro de servicio de GE autorizado para realizar la reparación. En Alaska, la garantía excluye el costo de envío o las visitas de servicio a su casa.
Algunos estados no permiten la exclusión o las limitaciones de daños incidentales o consecuenciales. Esta garantía da derechos legales específicos, y usted podría tener otros derechos que variarán de estado a estado. Para saber cuáles son sus derechos legales, consulte a la oficina de asuntos del consumidor local o la oficina del Attorney General en su localidad.
Garante: General Electric Company. Louisville, KY 40225
Todos los servicios de garantía los proporcionan nuestros Centros de Reparación de Fábrica o nuestros técnicos Customer Care
®
autorizados. Para concertar una cita de reparación, en línea, visítenos al ge.com, o llame al 800.GE.CARES (800.432.2737). Cuando llame para solicitar servicio, por favor tenga a mano el número de serie y el número de modelo.
Grape aquí su recibo.
Se requiere facilitar prueba
de la fecha de compra original
para obtener un servicio
bajo la garantía.
EXCLUSIÓN DE GARANTÍAS IMPLÍCITAS—Su único y exclusivo derecho es la reparación del producto, tal y como se indica en esta Garantía limitada. Cualquier garantía implícita, incluyendo las garantías implícitas de comerciabilidad o adecuación para un fin determinado, están limitadas a un año o el período de tiempo más breve permitido por la ley.
17
Page 36
18
Impreso en China
Apoyo al Consumidor.
Página Web de GE Appliances
ge.com
¿Tiene alguna pregunta sobre su electrodoméstico? ¡Pruebe la página Web de GE Appliances, cualquier día del año! Para mayor conveniencia y servicio más rápido, ya puede descargar los Manuales de los Propietarios, o incluso pedir piezas hacer una cita en línea.
Solicite una reparación ge.com
El servicio de expertos GE está a tan sólo un paso de su puerta. ¡Entre en línea y solicite su reparación cuando le venga cualquier día del año! O llame al 800.GE.CARES (800.432.2737) durante horas normales de oficina.
Real Life Design Studio (Estudio de diseño para la vida real)
ge.com
GE apoya el concepto de Diseño Universal—productos, servicios y ambientes que pueden usar gente de todas las edades, tamaños y capacidades. Reconocemos la necesidad de diseñar para una gran gama de habilidades y dificultades físicas y mentales. Para más detalles cobre las aplicaciones de GE Diseño Universal, incluyendo ideas de diseño para la cocina para personas con discapacidades, mire nuestra página Web hoy mismo. Para personas con dificultades auditivas, favor de llamar al 800.TDD.GEAC (800.833.4322).
Garantías ampliadas ge.com
Compre una garantía ampliada y obtenga detalles sobre descuentos especiales disponibles mientras su garantía está aún activa. Puede comprarla en línea en cualquier momento, o llamar al (800.626.2224) durante horas normales de oficina. GE Consumer Home Services estará aún ahí cuando su garantía termine.
Piezas y accesorios ge.com
Aquellos individuos con la calificación necesaria para reparar sus propios electrodomésticos pueden pedir que se les manden las piezas o accesorios directamente a sus hogares (aceptamos las tarjetas VISA, MasterCard y Discover). Haga su pedido en línea hoy, 24 horas cada día o llamar por teléfono al 800.626.2002 durante horas normales de oficina.
Las instrucciones descritas en este manual cubren los procedimientos a seguir por cualquier usuario. Cualquier otra reparación debería, por regla general, referirse a personal calificado autorizado. Debe ejercerse precaución ya que las reparaciones incorrectas pueden causar condiciones de funcionamiento inseguras.
Póngase en contacto con nosotros ge.com
Si no está satisfecho con el servicio que recibe de GE, póngase en contacto con nosotros en nuestra página Web indicando todos los detalles así como su número de teléfono o escríbanos a:
General Manager, Customer Relations GE Appliances, Appliance Park Louisville, KY 40225
Registre su electrodoméstico ge.com
¡Registre su nuevo electrodoméstico en línea—cuando usted prefiera! El registrar su producto a tiempo le proporcionará, si surgiera la necesidad, una mejor comunicación y un servicio más rápido bajo los términos de su garantía. También puede enviar su tarjeta de registro pre-impresa que se incluye en el material de embalaje o recorte y use el formulario de este Manual del Propietario.
Loading...
