GE Appliances
Premium, Deluxe and Value Model
Wall Case Dimensions (in inches)
16-11/16
12-7/32
4-1/4*
12-7/16

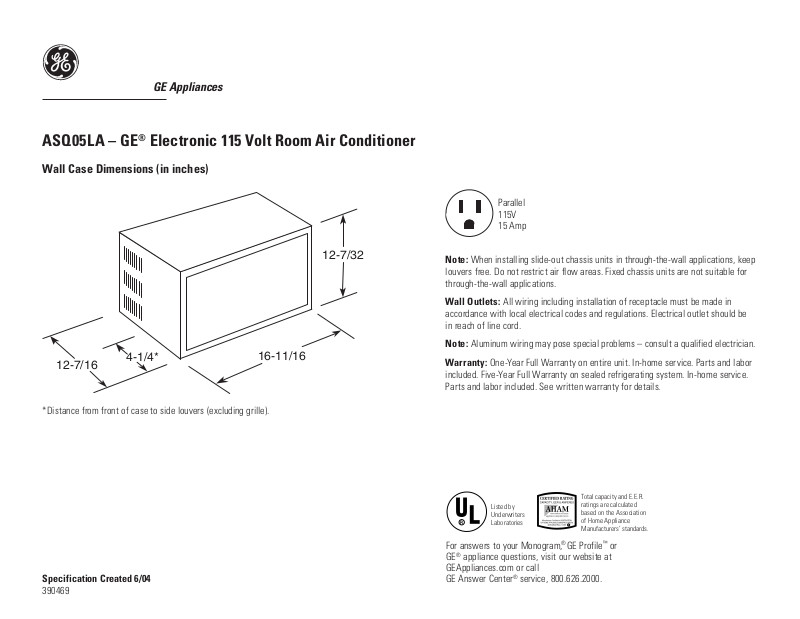

ASQ05LA – GE® Electronic 115 Volt Room Air Conditioner
Wall Case Dimensions (in inches)
Parallel
115V
15 Amp
Note: When installing slide-out chassis units in through-the-wall applications, keep
louvers free. Do not restrict air flow areas. Fixed chassis units are not suitable for
through-the-wall applications.
Wall Outlets: All wiring including installation of receptacle must be made in
accordance with local electrical codes and regulations. Electrical outlet should be
in reach of line cord.
Note: Aluminum wiring may pose special problems – consult a qualified electrician.
Warranty: One-Year Full Warranty on entire unit. In-home service. Parts and labor
included. Five-Year Full Warranty on sealed refrigerating system. In-home service.
Parts and labor included. See written warranty for details.
*Distance from front of case to side louvers (excluding grille).
Specification Created 6/04
390469
Total capacity and E.E.R.
Listed by
Underwriters
Laboratories
ratings are calculated
based on the Association
of Home Appliance
Manufacturers’ standards.
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center
®
service, 800.626.2000.
GE Appliances
ASQ05LA – GE® Electronic 115 Volt Room Air Conditioner
Features and Benefits
• 1.5 Dehumidification (pints/hr)
• Electronic Thermostat
• 5,200 BTUH (Cooling)
• 3 Cooling/3 Fan Only Speeds
• 9.8 E.E.R.
• 115 Volts
• Model ASQ05LA
Specification Created 6/04
390469
