GE ASM12DB Specification

ASM12DB—GE Profile™230 Volt Window Room Air Conditioner with Electronic Remot

Specification Created 5/01

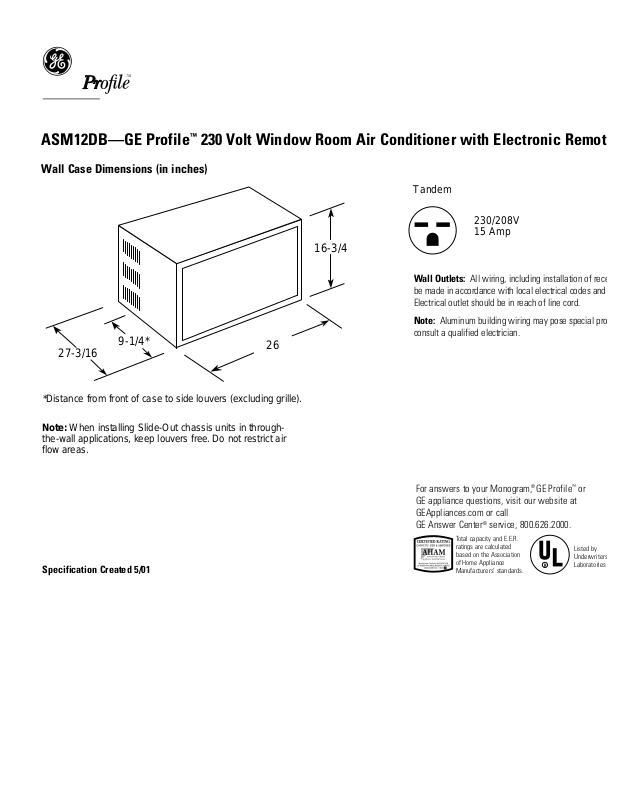

Wall Case Dimensions (in inches)

Wall Outlets: All wiring, including installation of rece

be made in accordance with local electrical codes and Electrical outlet should be in reach of line cord.

Note: Aluminum building wiring may pose special pro consult a qualified electrician.

16-3/4

27-3/16

9-1/4*

Tandem

230/208V 15 Amp

Note: When installing Slide-Out chassis units in throughthe-wall applications, keep louvers free.Do not restrict air flow areas.

*Distance from front of case to side louvers (excluding grille).

Total capacity and E.E.R. ratings are calculated based on the Association of Home Appliance Manufacturers’ standards.

Listed by Underwriters Laboratories

For answers to your Monogram,® GE Profile™or GE appliance questions, visit our website at GEAppliances.com or call GE Answer Center®service, 800.626.2000.

Specification Created 5/01

ASM12DB—GE Profile™230 Volt Window Room Air Conditioner with Electronic Remot

Features and Benefits

• 12,500/12,200 BTUH/ 230/208 Volts

• 10.0/10.0 EER

• Electronic Control with Electronic Thermosta

• 3 Cooling / 3 Fan Speeds

• Energy Saver Switch for Reduced Energy Co

• 24-Hour Timer with Sleep Mode

• Circulaire-Oscillating Louvers for Enhanced A

• 1,250/1,220 Watts / 5.8/6.4 Amps

• 3.4 Dehumidification (pints / hr)

• 350 CFM (High)

• Slide-Out Chassis

• One Touch Lift-Out Filter for Easy Cleaning

• Plug Type–Tandem

• EZ Mount Window Installation

• Model ASM12DB
