GE ASM10AB Specification

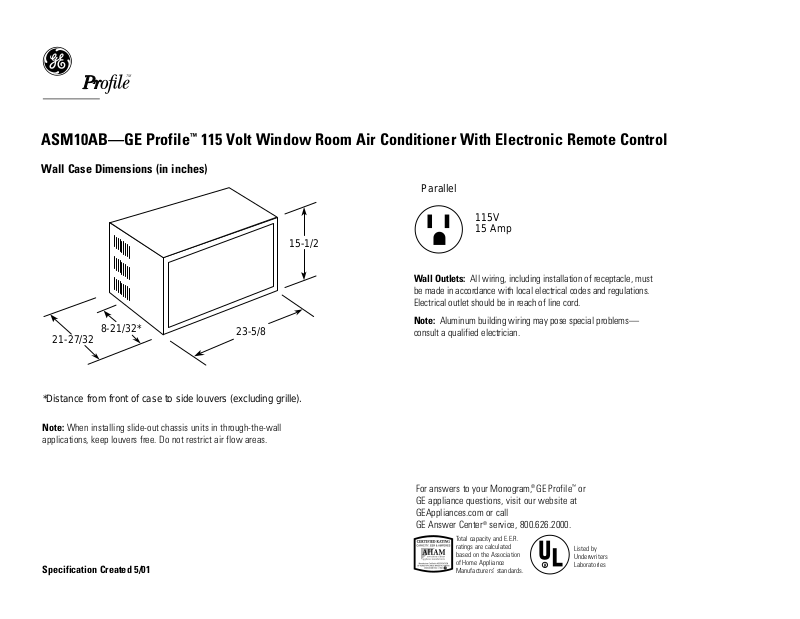

ASM10AB—GE Profile™115 Volt Window Room Air Conditioner With Electronic Remote Control

Specification Created 5/01

Wall Case Dimensions (in inches)

Wall Outlets: All wiring, including installation of receptacle, must

be made in accordance with local electrical codes and regulations. Electrical outlet should be in reach of line cord.

Note: Aluminum building wiring may pose special problems— consult a qualified electrician.

23-5/8

15-1/2

21-27/32

8-21/32*

Parallel

115V 15 Amp

Note: When installing slide-out chassis units in through-the-wall applications, keep louvers free. Do not restrict air flow areas.

*Distance from front of case to side louvers (excluding grille).

Total capacity and E.E.R. ratings are calculated based on the Association of Home Appliance Manufacturers’ standards.

Listed by Underwriters Laboratories

For answers to your Monogram,® GE Profile™or GE appliance questions, visit our website at GEAppliances.com or call GE Answer Center®service, 800.626.2000.

Specification Created 5/01

ASM10AB—GE Profile™115 Volt Window Room Air Conditioner With Electronic Remote Control

Features and Benefits

• 10,000 BTUH, 115 Volts

• 10.0 EER

• Electronic Control with Electronic Thermostat

• 3 Cooling / 3 Fan Speeds

• Energy Saver Switch for Reduced Energy Consumption

• 24-Hour Timer with Sleep Mode

• Circulaire-Oscillating Louvers for Enhanced Air Circulation

• 1,000 Watts / 9.2 Amps

• 3.0 Dehumidification (pints / hr)

• 240 CFM (High)

• Slide-Out Chassis

• One Touch Lift-Out Filter for Easy Cleaning

• Plug Type–Parallel

• EZ Mount Window Installation

• Model ASM10AB
