GE AJJ09DF Specification

GE Appliances

AJJ09DF—”J Series” Heat/Cool Unit

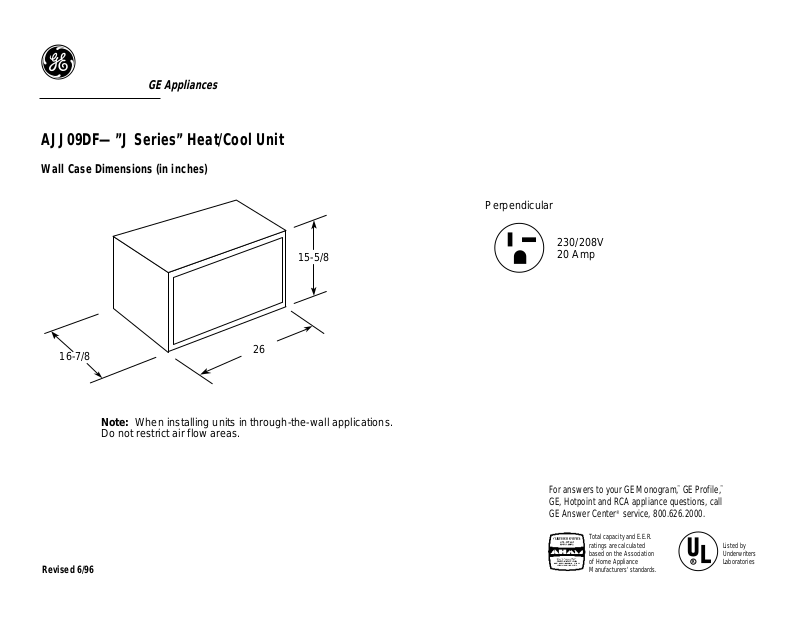

Wall Case Dimensions (in inches)

15-5/8

Perpendicular

230/208V
20 Amp

16-7/8

Revised 6/96

26

Note: When installing units in through-the-wall applications. 
Do not restrict air flow areas.

For answers to your GE Monogram,™GE Profile,
GE, Hotpoint and RCA appliance questions, call
GE Answer Center®service, 800.626.2000.

Total capacity and E.E.R.
ratings are calculated
based on the Association
of Home Appliance
Manufacturers' standards.

R

™

Listed by
Underwriters
Laboratories

GE Appliances

AJJ09DF—Built-In Room Air Conditioner RAB46/47/48

Dimensions (in inches)

Make frame if desired or caulk 
between case and siding

26-1/8

15-3/4

Frame Construction

Lintel

15-3/4

26-1/8

5" Min.
from floor

Brick Block and Brick
Frame Construction

Revised 6/96

5" Min.
from floor

Fill open cells
with mortar
or insulation

Plaster Line

Trim Moulding

Lintel

(if desired)

OUTSIDE INSIDE

16-7/8

Caulking

Drip Rail

Flexible Mounting Position

Installation Information: A finished opening of
26-1/8" x 15-3/4" clear of intrusions is required. Keep
clearance of 4" from side walls. Brick veneer or frame
walls should have wood studding surrounding case to
provide firm anchoring with screws. Case can be fastened
directly to brick or block walls with screws sunk in lead
expansion shields.

For answers to your GE Monogram,™GE Profile,
GE, Hotpoint and RCA appliance questions, call
GE Answer Center®service, 800.626.2000.

Total capacity and E.E.R.
ratings are calculated
based on the Association
of Home Appliance
Manufacturers' standards.

™

Listed by

R

Underwriters
Laboratories

GE Appliances

AJJ09DF—”J Series” Heat/Cool Unit

THERMOSTAT SELECTOR

C

O

O

5

6

L

E

R

4

7

3

8

2

9

1

10

OFF

LOW

LOW

FAN

COOL

HIGH

HIGH

FAN

COOL

GE Quality Product

Features and Benefits

•Decorative Warm Gray-Beige Front

•8,600/8,500 BTUH (Cooling), 11,250/9,200 BTUH (Electric Heat),

8.7/8.7 EER, 230/208 Volts

•Hidden Energy Saver Switch for Reduced Energy Consumption

•10-Position Thermostat

•2 Cooling/2 Heat/2 Fan Speeds

•Includes Two-Stage Heating Thermostat

•Slide-Out Filter for Easy Cleaning

•Hidden Exhaust Control for Air Exchange

•Slide-Out Chassis

•Chassis Only–Without Wall Case and Mounting Kit

•Wall Case–Optional Accessory

•Window Mounting Kit–Optional Accessory

•Plug Type–Perpendicular

Revised 6/96
