AJHS08DCB – GE® 230/208 Volt Built-In Heat Pump

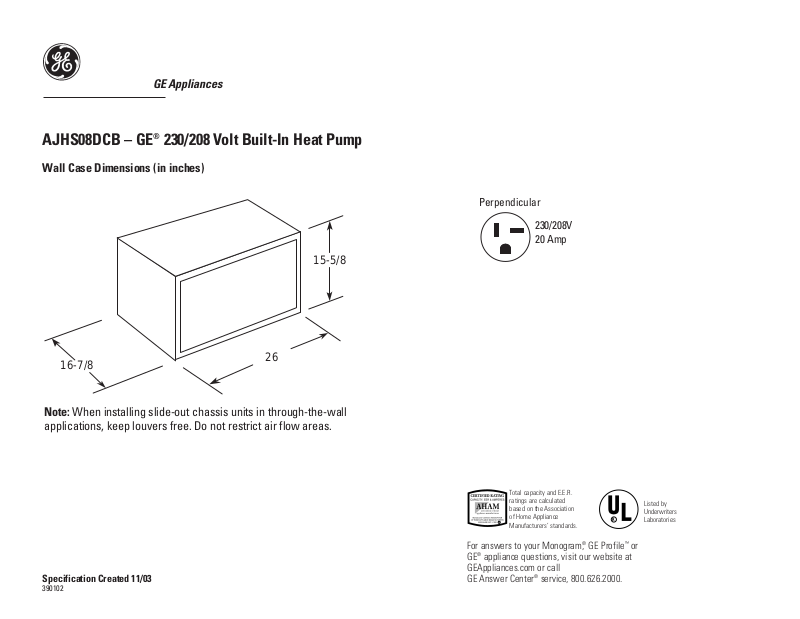

Wall Case Dimensions (in inches)
Perpendicular
230/208V 20 Amp
15-5/8
26
16-7/8
Note: When installing slide-out chassis units in through-the-wall applications, keep louvers free. Do not restrict air flow areas.
Specification Created 11/03
|
Total capacity and E.E.R. |
|
|
|
ratings are calculated |
|
Listed by |
|
based on the Association |
|
|
|
|
Underwriters |
|
|
of Home Appliance |
|
|
|
R |
Laboratories |
|
R |
Manufacturers’ standards. |
||
|
|
|
For answers to your Monogram,® GE Profile™ or GE® appliance questions, visit our website at GEAppliances.com or call
GE Answer Center® service, 800.626.2000.
390102
GE Appliances
AJHS08DCB – GE® 230/208 Volt Built-In Heat Pump
Dimensions (in inches)
Make frame if desired or caulk between case and siding
15-3/4
26-1/8
|
Plaster Line |
Lintel |
Trim Molding |
(if desired) |
|
OUTSIDE |
INSIDE |
|
16-7/8 |
Caulking |
|
Drip Rail |
|
Frame Construction |
Flexible Mounting Position |
|
|
Lintel |
|
15-3/4
26-1/8
Fill open cells
with mortar
Brick Block and Brick or insulation Frame Construction
Specification Created 11/03
Installation Information: A finished opening of 26-1/8" x 15-3/4" clear of intrusions is required. Keep clearance of 4" from side walls. Brick veneer or frame walls should have wood studding surrounding case to provide firm anchoring with screws. Case can be fastened directly to brick or block walls with screws sunk in lead expansion shields.
Note: Units should be caulked on all four sides of case to the building exterior to assure building integrity.
Two Wall Cases for Tenant Option Installation
When the air conditioner is offered as a tenant option, these wall cases provide protection against outside elements.
RAB47 – includes wall case, exterior grille and steel closure panels.
RAB48 – includes wall case, exterior grille, steel closure panel and two layers of insulation.
Standard Wall Case RAB46
Solid-sided wall case fabricated of galvanized steel with baked enamel finish. Welded areas are coated with a sealing compound to help resist rust and corrosion. Polymer gasket surrounds opening to assure tight weather seal. Aluminum grille (RAG13) is included. Panels on interior and between case and grille provide weather protection prior to installation of chassis.provide firm anchoring with screws. Case can be fastened directly to brick or block walls with screws sunk in lead expansion shields.
|
