GE Appliances
AJHS08DCA—GE 230 Volt ”J Series” Built-In Heat Pump with Mechanical Controls

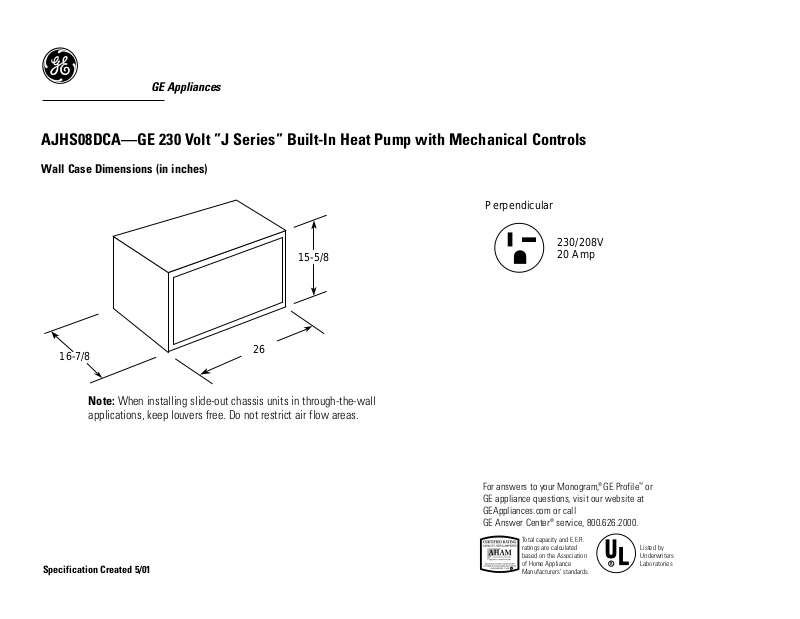

Wall Case Dimensions (in inches)
|
Perpendicular |
||||
|
|
|
|
|
230/208V |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
15-5/8 |
|
|
|
|
20 Amp |
|
|
|
|
|
26
16-7/8
Note: When installing slide-out chassis units in through-the-wall applications, keep louvers free. Do not restrict air flow areas.
Specification Created 5/01
For answers to your Monogram,® GE Profile™ or GE appliance questions, visit our website at GEAppliances.com or call
GE Answer Center® service, 800.626.2000.
|
Total capacity and E.E.R. |
|
|
|
ratings are calculated |
|
Listed by |
|
based on the Association |
|
Underwriters |
|
of Home Appliance |
R |
Laboratories |
R |
Manufacturers’ standards. |
|
|
|
|
|
GE Appliances
AJHS08DCA—GE 230 Volt ”J Series” Built-In Heat Pump with Mechanical Controls
Dimensions (in inches)
Make frame if desired or caulk between case and siding
15-3/4
26-1/8
Frame Construction
Lintel
15-3/4
26-1/8
Fill open cells
with mortar
Brick Block and Brick or insulation Frame Construction
Specification Created 5/01
|
Plaster Line |
Lintel |
Trim Molding |
(if desired) |
|
OUTSIDE |
INSIDE |
|
16-7/8 |
Caulking
Drip Rail
Flexible Mounting Position
Installation Information: A finished opening of
26-1/8" x 15-3/4" clear of intrusions is required. Keep clearance of 4" from side walls. Brick veneer or frame walls should have wood studding surrounding case to provide firm anchoring with screws. Case can be fastened directly to brick or block walls with screws sunk in lead expansion shields.
Note: Units should be caulked on all four sides of case to the building exterior to assure building integrity.
Two Wall Cases for Tenant Option Installation
When the air conditioner is offered as a tenant option, these wall cases provide protection against outside elements. RAB47–includes wall case, exterior grille and steel
closure panels.
RAB48–includes wall case, exterior grille, steel closure panel and two layers of insulation.
Standard Wall Case RAB46
Solid-sided wall case fabricated of galvanized steel with baked enamel finish. Welded areas are coated with a
sealing compound to help resist rust and corrosion. Polymer gasket surrounds opening to assure tight weather seal. Aluminum grille (RAG13) is included. Panels on interior and between case and grille provide weather protection prior to installation of chassis.provide firm anchoring with screws. Case can be fastened directly to brick or block walls with screws sunk in lead expansion shields.
