GE Appliances
AJES12DC—”J Series” Heat/Cool Unit

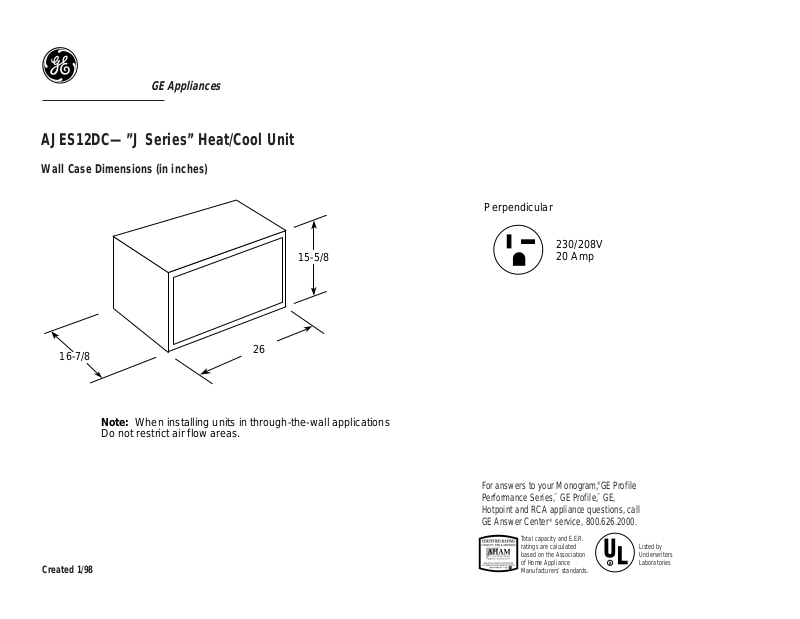

Wall Case Dimensions (in inches)
15-5/8
26
16-7/8
Note: When installing units in through-the-wall applications Do not restrict air flow areas.
Created 1/98
Perpendicular
230/208V 20 Amp
For answers to your Monogram,®GE Profile Performance Series,™ GE Profile,™ GE, Hotpoint and RCA appliance questions, call GE Answer Center® service, 800.626.2000.
|
Total capacity and E.E.R. |
|
|
|
ratings are calculated |
|
Listed by |
|
based on the Association |
|
Underwriters |
|
of Home Appliance |
R |
Laboratories |
R |
Manufacturers’ standards. |
|
|
|
|
|
GE Appliances
AJES12DC—”J Series” Heat/Cool Unit
Dimensions (in inches)
Make frame if desired or caulk between case and siding
26-1/815-3/4
5" Min.
from floor
|
Plaster Line |
Lintel |
Trim Molding |
(if desired) |
|
OUTSIDE |
INSIDE |
|
16-7/8 |
Caulking |
|
Drip Rail |
|
Frame Construction |
Flexible Mounting Position |
|
Lintel
15-3/4
26-1/8
5" Min.
from floor
Fill open cells
with mortar
Brick Block and Brick or insulation Frame Construction
Created 1/98
Installation Information: A finished opening of 26-1/8" x 15-3/4" clear of intrusions is required. Keep clearance of 4" from side walls. Brick veneer or frame walls should have wood studding surrounding case to provide firm anchoring with screws. Case can be fastened directly to brick or block walls with screws sunk in lead expansion shields.
