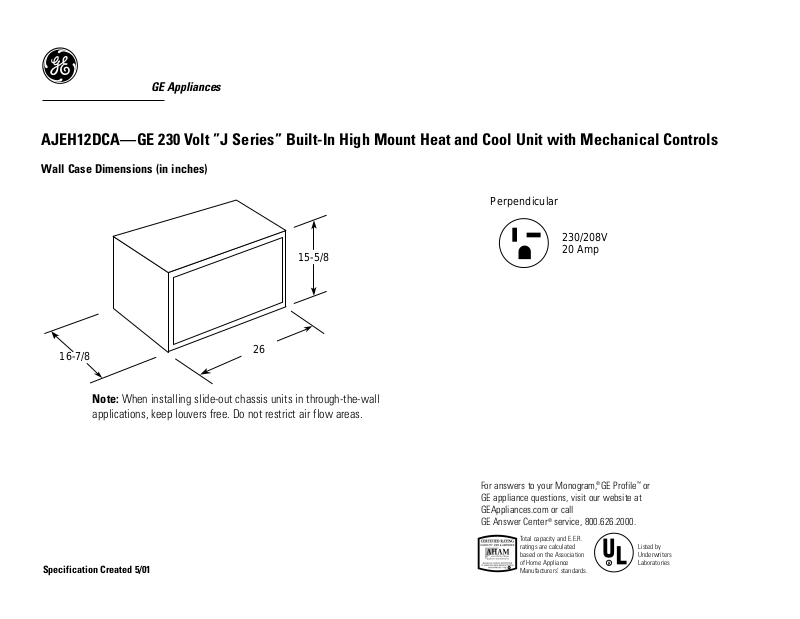

Page 1
AJEH12DCA—GE 230 Volt ”J Series” Built-In High Mount Heat and Cool Unit with Mechanical Controls
GE Appliances
Specification Created 5/01
26
15-5/8
16-7/8
Wall Case Dimensions (in inches)
R
R
Total capacity and E.E.R.
ratings are calculated
based on the Association
of Home Appliance
Manufacturers’ standards.
Listed by
Underwriters
Laboratories
For answers to your Monogram,® GE Profile™or
GE appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center®service, 800.626.2000.
Perpendicular
230/208V
20 Amp
Note: When installing slide-out chassis units in through-the-wall
applications, keep louvers free. Do not restrict air flow areas.
Page 2
Specification Created 5/01
GE Appliances
AJEH12DCA—GE 230 Volt ”J Series” Built-In High Mount Heat and Cool Unit with Mechanical Controls
Dimensions (in inches)
Installation Information: A finished opening of
26-1/8" x 15-3/4" clear of intrusions is required. Keep clearance
of 4" from side walls. Brick veneer or frame walls should have
wood studding surrounding case to provide firm anchoring with
screws. Case can be fastened directly to brick or block walls
with screws sunk in lead expansion shields.
Note: Units should be caulked on all four sides of case to the
building exterior to assure building integrity.
Two Wall Cases for Tenant Option Installation
When the air conditioner is offered as a tenant option, these
wall cases provide protection against outside elements.
RAB47–includes wall case, exterior grille and steel
closure panels.
RAB48–includes wall case, exterior grille, steel
closure panel and two layers of insulation.
Standard Wall Case RAB46
Solid-sided wall case fabricated of galvanized steel with baked
enamel finish. Welded areas are coated with a
sealing compound to help resist rust and corrosion. Polymer
gasket surrounds opening to assure tight weather seal.
Aluminum grille (RAG13) is included. Panels on interior and
between case and grille provide weather protection prior to
installation of chassis.
Brick Block and Brick
Frame Construction
Fill open cells
with mortar
or insulation
15-3/4
26-1/8
Lintel
Make frame if desired or caulk
between case and siding
15-3/4
26-1/8
Frame Construction
Lintel
OUTSIDE INSIDE
16-7/8
Caulking
Drip Rail
Trim Molding
(if desired)
Plaster Line
Flexible Mounting Position
R
R
Total capacity and E.E.R.
ratings are calculated
based on the Association
of Home Appliance
Manufacturers’ standards.
Listed by
Underwriters
Laboratories
For answers to your Monogram,® GE Profile™or
GE appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center®service, 800.626.2000.
Page 3
Specification Created 5/01
GE Appliances
AJEH12DCA—GE 230 Volt ”J Series” Built-In High Mount Heat and Cool Unit with Mechanical Controls
Features and Benefits
• Decorative Warm Gray-Beige Front
• 11,600/11,400 BTUH (Cooling), 11,600/9,500 BTUH (Electric Heat),
9.0/9.0 E.E.R., 230/208 Volts
• Easy-To-Reach Controls for High Mount Installations
• Fan Cycle Switch for Reduced Energy Consumption
• Variable Setting Thermostat
• 2 Cooling/2 Heat/2 Fan Only Speeds
• Includes Two-Stage Heating Thermostat
• Slide-Out Filter for Easy Cleaning
• Exhaust for Air Exchange
• Slide-Out Chassis
• Chassis Only–Without Wall Case and Mounting Kit
• Wall Case–Optional Accessory (RAB46/47/48)
• Window Mounting Kit–Optional Accessory
• Plug Type–Perpendicular
• Rotary Compressor
• Model AJEH12DCA
