Page 1
AJEH12DC—”J Series” High Mount Heat/Cool Unit
GE Appliances
Created 1/98
Note: When installing units in through-the-wall applications,
keep louvers free. Do not restrict air flow areas.
26
15-5/8
16-7/8

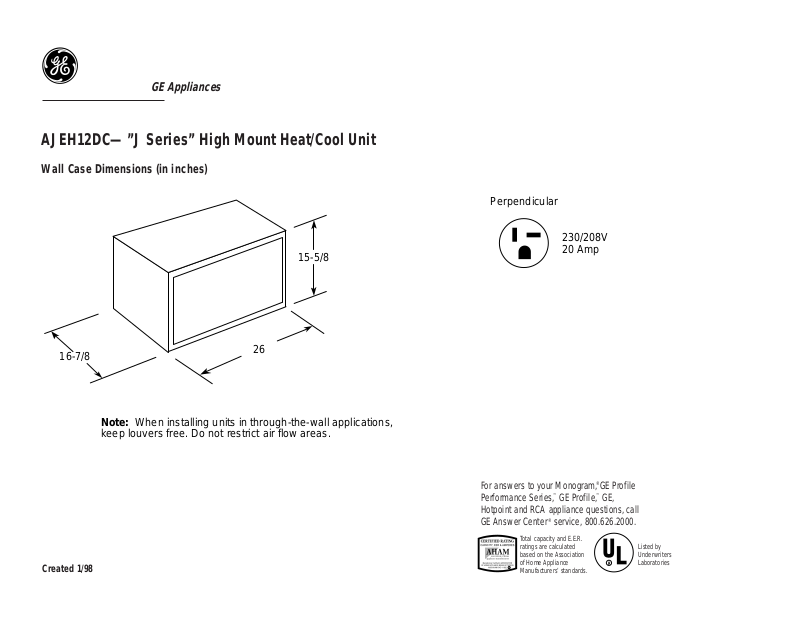

Wall Case Dimensions (in inches)
R
R
Total capacity and E.E.R.
ratings are calculated
based on the Association
of Home Appliance
Manufacturers’ standards.
Listed by
Underwriters
Laboratories
For answers to your Monogram,®GE Profile
Performance Series,™GE Profile,™GE,
Hotpoint and RCA appliance questions, call
GE Answer Center®service, 800.626.2000.
Perpendicular
230/208V
20 Amp
Page 2
GE Appliances
Created 1/98
AJEH12DC—”J Series” High Mount Heat/Cool Unit
Dimensions (in inches)
Installation Information: A finished opening of
26-1/8" x 15-3/4" clear of intrusions is required. Keep
clearance of 4" from side walls. Brick veneer or frame
walls should have wood studding surrounding case to
provide firm anchoring with screws. Case can be fastened
directly to brick or block walls with screws sunk in lead
expansion shields.
Brick Block and Brick
Frame Construction
Fill open cells
with mortar
or insulation
5" Min.
from floor
15-3/4
26-1/8
Lintel
Make frame if desired or caulk
between case and siding
15-3/4
26-1/8
5" Min.
from floor
Frame Construction
Lintel
OUTSIDE INSIDE
16-7/8
Caulking
Drip Rail
Trim Molding
(if desired)
Plaster Line
Flexible Mounting Position
R
R
Total capacity and E.E.R.
ratings are calculated
based on the Association
of Home Appliance
Manufacturers’ standards.
Listed by
Underwriters
Laboratories
For answers to your Monogram,®GE Profile
Performance Series,™GE Profile,™GE,
Hotpoint and RCA appliance questions, call
GE Answer Center®service, 800.626.2000.
Page 3
GE Appliances
Created 1/98
AJEH12DC—”J Series” High Mount Heat/Cool Unit
Features and Benefits
•Decorative Warm Gray-Beige Front
•11,600/11,400 BTUH (Cooling), 11,600/9,500 BTUH (Electric Heat),
9.0/9.0 E.E.R., 230/208 Volts
•Easy-To-Reach Controls for High Mount Installations
•Fan Cycle Switch for Reduced Energy Consumption
•Variable Setting Thermostat
•2 Cooling/2 Heat/2 Fan Only Speeds
•Includes Two-Stage Heating Thermostat
•Slide-Out Filter for Easy Cleaning
•Exhaust for Air Exchange
•Slide-Out Chassis
•Chassis Only–Without Wall Case and Mounting Kit
•Wall Case–Optional Accessory (RAB46/47/48)
•Window Mounting Kit–Optional Accessory
•Plug Type–Perpendicular
