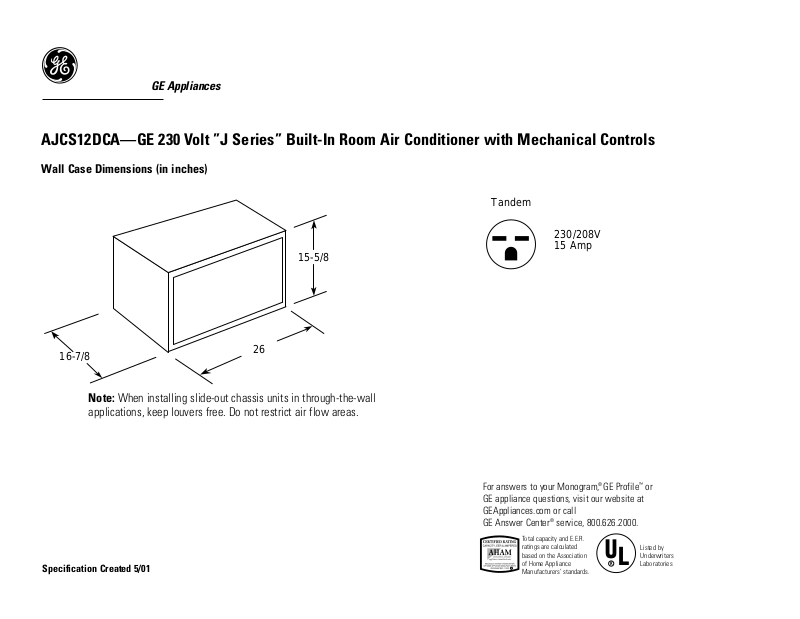

AJCS12DCA—GE 230 Volt ”J Series” Built-In Room Air Conditioner with Mechanical Controls

Wall Case Dimensions (in inches)

Tandem

230/208V 15 Amp

15-5/8

26

16-7/8

Note: When installing slide-out chassis units in through-the-wall applications, keep louvers free. Do not restrict air flow areas.

Specification Created 5/01

For answers to your Monogram,® GE Profile™ or GE appliance questions, visit our website at GEAppliances.com or call

GE Answer Center® service, 800.626.2000.

	Total capacity and E.E.R.
	ratings are calculated		Listed by
	based on the Association		Underwriters
	of Home Appliance	R	Laboratories
R	Manufacturers’ standards.

GE Appliances

AJCS12DCA—GE 230 Volt ”J Series” Built-In Room Air Conditioner with Mechanical Controls

Dimensions (in inches)

Make frame if desired or caulk between case and siding

15-3/4

26-1/8

Frame Construction

Lintel

15-3/4

26-1/8

Fill open cells

with mortar

Brick Block and Brick or insulation Frame Construction

Specification Created 5/01

	Plaster Line
Lintel	Trim Molding
	(if desired)
OUTSIDE	INSIDE
	16-7/8

Caulking

Drip Rail

Flexible Mounting Position

Installation Information: A finished opening of

26-1/8" x 15-3/4" clear of intrusions is required. Keep clearance of 4" from side walls. Brick veneer or frame walls should have wood studding surrounding case to provide firm anchoring with screws. Case can be fastened directly to brick or block walls with screws sunk in lead expansion shields.

Note: Units should be caulked on all four sides of case to the building exterior to assure building integrity.

Two Wall Cases for Tenant Option Installation

When the air conditioner is offered as a tenant option, these wall cases provide protection against outside elements. RAB47–includes wall case, exterior grille and steel

closure panels.

RAB48–includes wall case, exterior grille, steel closure panel and two layers of insulation.

Standard Wall Case RAB46

Solid-sided wall case fabricated of galvanized steel with baked enamel finish. Welded areas are coated with a

sealing compound to help resist rust and corrosion. Polymer gasket surrounds opening to assure tight weather seal. Aluminum grille (RAG13) is included. Panels on interior and between case and grille provide weather protection prior to installation of chassis.provide firm anchoring with screws. Case can be fastened directly to brick or block walls with screws sunk in lead expansion shields.
