AJCS08AC—”J Series” Cool Unit
GE Appliances
Created 1/98
Note: When installing units in through-the-wall applications.
Do not restrict air flow areas.
26
15-5/8
16-7/8

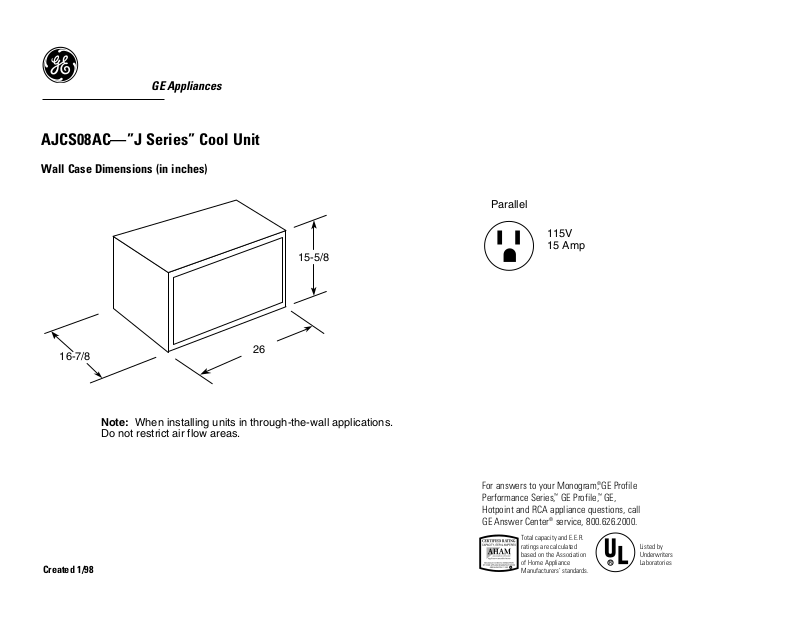

Wall Case Dimensions (in inches)
Parallel
115V
15 Amp
R
R
Total capacity and E.E.R.
ratings are calculated
based on the Association
of Home Appliance
Manufacturers’ standards.
Listed by
Underwriters
Laboratories
For answers to your Monogram,®GE Profile
Performance Series,™GE Profile,™GE,
Hotpoint and RCA appliance questions, call
GE Answer Center®service, 800.626.2000.
GE Appliances
Created 1/98
AJCS08AC—”J Series” Cool Unit
Dimensions (in inches)
Installation Information: A finished opening of
26-1/8" x 15-3/4" clear of intrusions is required. Keep
clearance of 4" from side walls. Brick veneer or frame
walls should have wood studding surrounding case to
provide firm anchoring with screws. Case can be fastened
directly to brick or block walls with screws sunk in lead
expansion shields.
Fill open cells
with mortar
or insulation
15-3/4
26-1/8
Lintel
Make frame if desired or caulk
between case and siding
15-3/4
26-1/8
Frame Construction
Lintel
OUTSIDE INSIDE
16-7/8
Drip Rail
Trim Molding
(if desired)
Plaster Line
Flexible Mounting Position
R
R
Total capacity and E.E.R.
ratings are calculated
based on the Association
of Home Appliance
Manufacturers’ standards.
Listed by
Underwriters
Laboratories
For answers to your Monogram,®GE Profile
Performance Series,™GE Profile,™GE,
Hotpoint and RCA appliance questions, call
GE Answer Center®service, 800.626.2000.
GE Appliances
Created 1/98

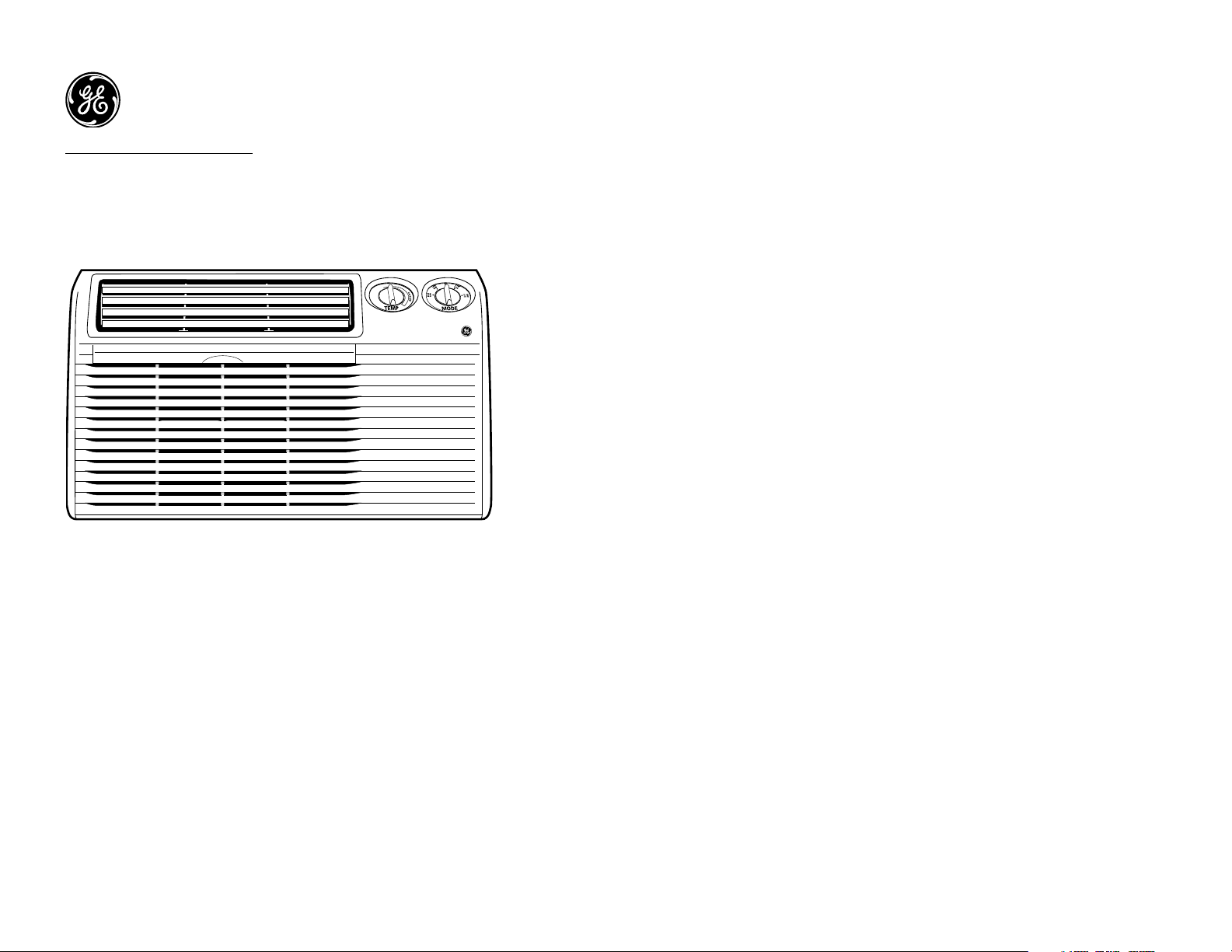

AJCS08AC—”J Series” Cool Unit
Features and Benefits
• Decorative Warm Gray-Beige Front
• 8,000 BTUH, 9.2 E.E.R., 115 Volts
• Fan Cycle Switch for Reduced Energy Consumption
• Variable Setting Thermostat
• 2 Cooling/2 Fan Only Speeds
• Slide-Out Filter for Easy Cleaning
• Exhaust for Air Exchange
• Slide-Out Chassis
• Chassis Only–Without Wall Case and Mounting Kit
• Wall Case–Optional Accessory (RAB46/47/48)
• Window Mounting Kit–Optional Accessory
• Plug Type–Parallel
