GE AJCS06LCC User Manual
AJCS06LCC
Premium, Deluxe and Value Model
Wall Case Dimensions (in inches)
26
15-5/8
16-7/8
R

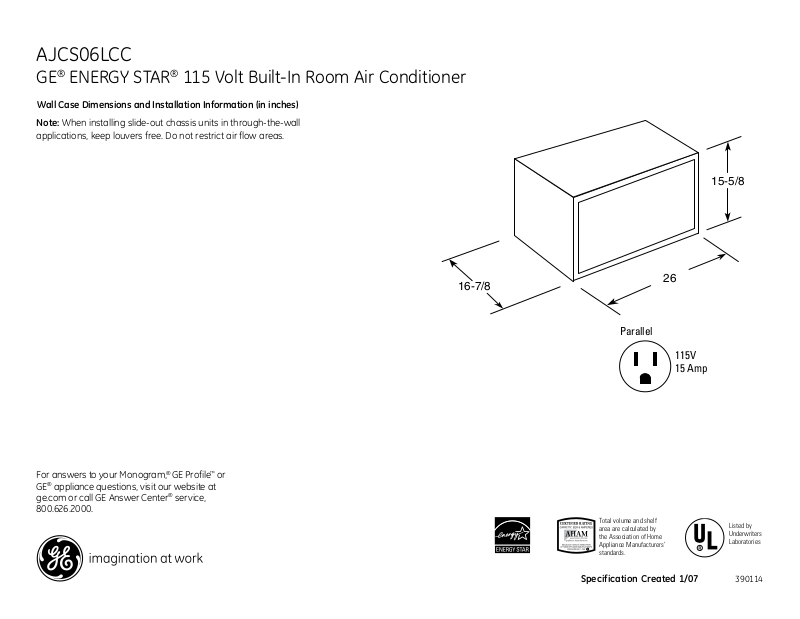

GE® ENERGY STAR® 115 Volt Built-In Room Air Conditioner
Wall Case Dimensions and Installation Information (in inches)
Note: When installing slide-out chassis units in through-the-wall
applications, keep louvers free. Do not restrict air flow areas.
Parallel
115V
15 Amp
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
Total volume and shelf
area are calculated by
the Association of Home
Appliance Manufacturers’
standards.
Specification Created 1/07
Listed by
Underwriters
Laboratories
390114
R
15-3/4
26-1/8
Frame Construction
Brick Block and Brick
Frame Construction
Fill open cells
with mortar
or insulation
15-3/4
26-1/8
Lintel
Make frame if desired or caulk
between case and siding
15-3/4
26-1/8
Frame Construction
Make frame if desired or caulk
between case and siding
15-3/4
26-1/8
Frame Construction
Brick Block and Brick
Frame Construction
Fill open cells
with mortar
or insulation
15-3/4
26-1/8
Lintel
Lintel
OUTSIDE INSIDE
16-7/8
Caulking
Drip Rail
Trim Molding
(if desired)
Plaster Line
Flexible Mounting Position
AJCS06LCC
GE® ENERGY STAR® 115 Volt Built-In Room Air Conditioner
Wall Case Dimensions and Installation Information (in inches)
Installation Information: A finished opening of 26-1/8" x 15-3/4"
clear of intrusions is required. Keep clearance of 4" from side
walls. Brick veneer or frame walls should have wood studding
surrounding case to provide firm anchoring with screws. Case
can be fastened directly to brick or block walls with screws sunk
in lead expansion shields.
Note: Units should be caulked on all four sides of case to the
building exterior to assure building integrity.
Two Wall Cases for Tenant Option Installation
When the air conditioner is offered as a tenant option, these
wall cases provide protection against outside elements.
RAB47 – includes wall case, exterior grille and steel
closure panels.
RAB48 – includes wall case, exterior grille, steel closure panel
and two layers of insulation.
Standard Wall Case RAB46
Solid-sided wall case fabricated of galvanized steel with
baked enamel finish. Welded areas are coated with a sealing
compound to help resist rust and corrosion. Polymer gasket
surrounds opening to assure tight weather seal. Aluminum grille
(RAG13) is included. Panels on interior and between case and
grille provide weather protection prior to installation of chassis.
Provide firm anchoring with screws. Case can be fastened
directly to brick or block walls with screws sunk in lead
expansion shields.
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
Total volume and shelf
area are calculated by
the Association of Home
Appliance Manufacturers’
standards.
Specification Created 1/07
Listed by
Underwriters
Laboratories
390114
