GE AJCQ12DCH Quick Specification

Page 1

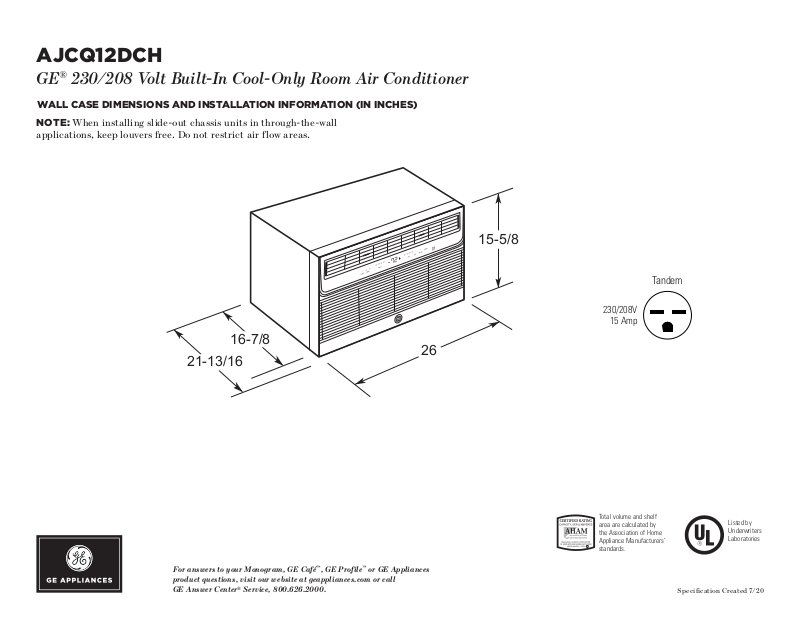

Premium, Deluxe and Value Model Wall Case Dimensions (in inches)
GE® 230/208 Volt Built-In Cool-Only Room Air Conditioner
WALL CASE DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
NOTE: When installing slide-out chassis units in through-the-wall
applications, keep louvers free. Do not restrict air flow areas.
15-5/8
16-7/8
21-13/16
For answers to your Monogram, GE Café™, GE Profile™ or GE Appliances product questions, visit our website at geappliances.com or call GE Answer Center® Service, 800.626.2000.
26
Tandem
230/208V
15 Amp
Total volume and shelf area are calculated by the Association of Home Appliance Manufacturers’ standards.
Listed by Underwriters Laboratories
Specification Created 7/20
Page 2
Make frame if desired or caulk between case and siding
15-3/4
26-1/8
Frame Construction
Make frame if desired or caulk between case and siding
15-3/4
26-1/8
Frame Construction
Brick Block and Brick Frame Construction
Fill open cells with mortar or insulation
15-3/4
26-1/8
Lintel
GE® 230/208 Volt Built-In Cool-Only Room Air Conditioner
DIMENSIONS (IN INCHES)
INSTA LLATI O N INF ORMATI ON: A finished opening
of 26-1/8" x 15-3/4" clear of intrusions is required. Keep clearance of 4" from side walls. Brick veneer or frame walls should have wood studding surrounding case to provide firm anchoring with screws. Case can be fastened
Make frame if desired or caulk between case and siding
Lintel
directly to brick or block walls with screws sunk in lead expansion shields.
NOTE: Units should be caulked on all four sides of case to the building exterior to assure building integrity.
WALL CASE FOR TENANT OPTION INSTALLATION When the air conditioner is offered as a tenant option, this
26-1/8
15-3/4
OUTSIDE INSIDE
Caulking
Drip Rail
16-7/8
wall case provides protection against outside elements.
RAB48 – includes wall case, exterior grille,
Frame Construction
Flexible Mounting Position
steel closure panel and two layers of insulation.
STANDARD WALL CASE RAB46 Solid-sided wall case fabricated of galvanized steel with baked enamel finish. Welded areas are coated with
Lintel
a sealing compound to help resist rust and corrosion. Polymer gasket surrounds opening to assure tight weather seal. Aluminum grille (RAG13) is included. Panels on interior and between case and grille provide weather protection prior to installation of chassis. Provide firm anchoring with screws. Case can be fastened directly to brick or block walls with screws sunk in lead expansion shields.
Brick Block and Brick Frame Construction
15-3/4
26-1/8
Fill open cells with mortar or insulation
Plaster Line
Trim Molding (if desired)
For answers to your Monogram, GE Café™, GE Profile™ or GE Appliances product questions, visit our website at geappliances.com or call GE Answer Center® Service, 800.626.2000.
Total volume and shelf area are calculated by the Association of Home Appliance Manufacturers’ standards.
Listed by Underwriters Laboratories
Specification Created 7/20
Page 3
GE® 230/208 Volt Built-In Cool-Only Room Air Conditioner
FEATURES AND BENEFITS
True Built In Design – The ultimate fit & finish for more usable space and the best in built-in installation. Sleeve and chassis are perfectly integrated, creating a seamless fit without leaks or gaps
Premium Finish – Bright, clean color & a decorative metallic silver accent encasing the air discharge louver, provide an overall sleek appearance
Electronic Cap Touch Controls – Controls offer a high-end and smooth to-the-touch panel
Large LCD Auto-Dimming Display – Intuitive & large white LCD display can be easily seen from anywhere in the room. Convenient Auto-Dimming feature provides ambient lighting during the night
Slim Room Front – A slim room front provides more usable space in the room. It’s the sleekest design in the industry
ECO Mode – Innovative mode where the fan cycles off during cooling intervals, creating energy savings while keeping the room comfortable
Dry Mode – Designed for humid environments, it helps provide a dryer & more comfortable atmosphere with room-air dehumidification
Auto Mode – Automatically select heating or cooling mode and fan speed to maintain the current temperature setpoint. It monitors the room temperature for optimal comfort
6-Way Directional Airf low – Direct where the air flows with up to 6 directional vents—cooling and/or heating the areas of the room that need it the most
Washable Filter – Easy to remove and rinse clean, the filter helps remove dust and other particles from transmitting in the air—providing a cleaner environment
Remote Control Included – Slim, intuitive and easy to use, the remote control enables adjusting temperatures and settings conveniently from anywhere in the room
Quiet Performance – Designed & engineered by GE Appliances for ultra-quiet comfort
COOL D RY FAN
AUTO
● ● ●
OFF
ON
SLEEP
TIMER MODE FAN
72
AUTO
LOW MED HIGH
POWER
FILTER
ECO
Commercial Grade – Designed for durability with high-grade components and tested for long performance
ENERGY STAR® Certified Options – Qualified air conditioners can help save energy consumption and utility costs while cooling your room
Model AJCQ12DCH – Soft Gray
Specification Created 7/20
