AJCM08ACF
Premium, Deluxe and Value Model

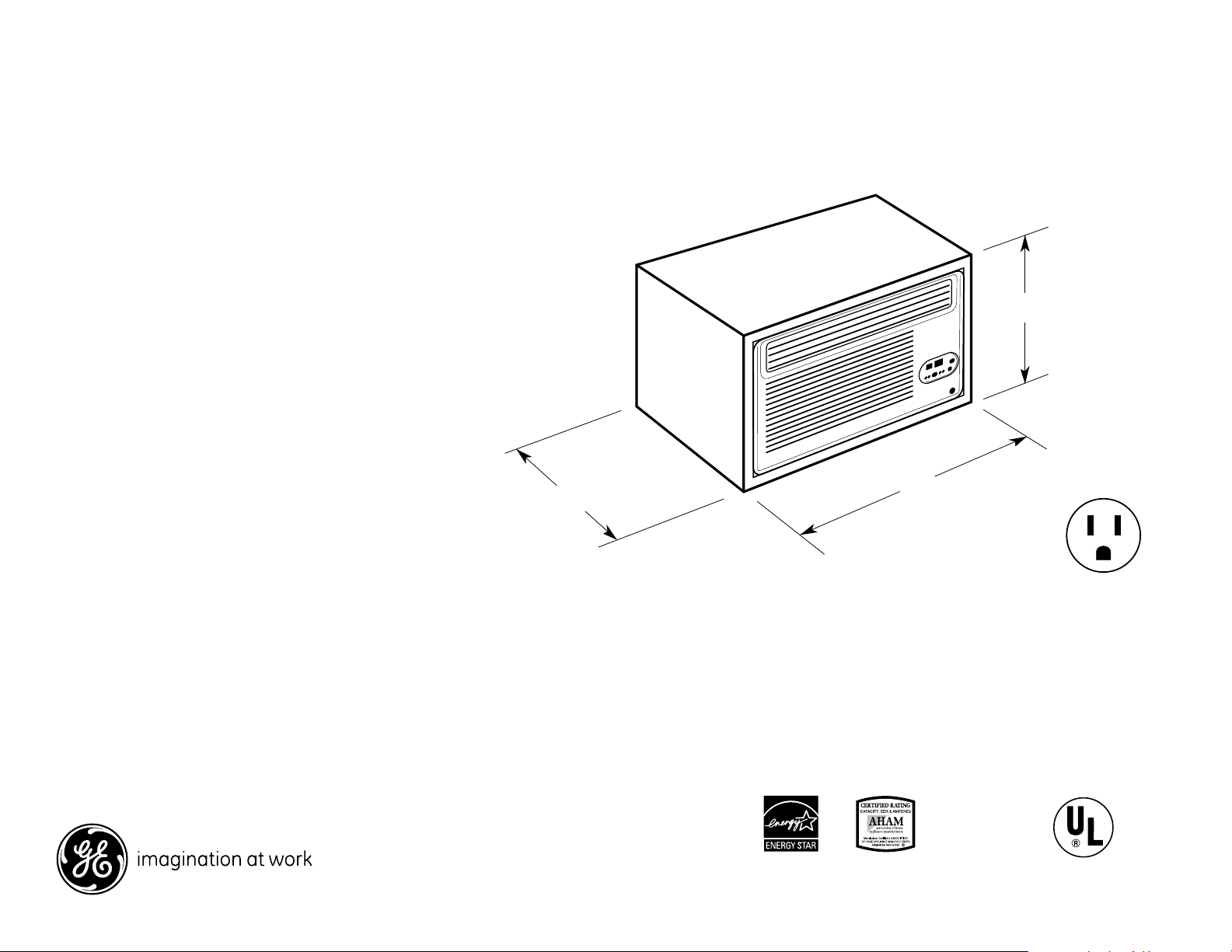

Wall Case Dimensions (in inches)
GE® ENERGY STAR® 115 Volt Built-in Cool-Only Room Air Conditioner
Wall Case Dimensions and Installation Information (in inches)
Note: When installing slide-out chassis units in through-the-wall
applications, keep louvers free. Do not restrict air flow areas.
15-5/8
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
geappliances.com or call GE Answer Center®
service, 800.626.2000.
21-13/16
26
115V
15 Amp
Parallel
Note: When installing units in through-the-wall applications.
Do not restrict air flow areas.
Total volume and shelf
area are calculated by
the Association of Home
Appliance Manufacturers’
standards.
Specification Revised 7/14
Listed by
Underwriters
Laboratories
Page 2
15-3/4
26-1/8
Frame Construction
Brick Block and Brick
Frame Construction
Make frame if desired or caulk
Frame Construction
Make frame if desired or caulk
between case and siding
15-3/4
26-1/8
Frame Construction
Brick Block and Brick
Frame Construction
Fill open cells
with mortar
or insulation
15-3/4
26-1/8
Lintel
Trim Molding
Plaster Line
AJCM08ACF
GE® ENERGY STAR® 115 Volt Built-in Cool-Only Room Air Conditioner
Dimensions (in inches)
Installation Information: A finished opening of 26-1/8" x
15-3/4" clear of intrusions is required. Keep clearance of
4" from side walls. Brick veneer or frame walls should have
wood studding surrounding case to provide firm anchoring
with screws. Case can be fastened directly to brick or block
walls with screws sunk in lead expansion shields.
Note: Units should be caulked on all four sides of case
to the building exterior to assure building integrity.
Wall Case for Tenant Option Installation
When the air conditioner is offered as a tenant option, this
wall case provides protection against outside elements.
RAB48 – includes wall case, exterior grille,
steel closure panel and two layers of insulation.
Standard Wall Case RAB46
Solid-sided wall case fabricated of galvanized steel with
baked enamel finish. Welded areas are coated with
a sealing compound to help resist rust and corrosion.
Polymer gasket surrounds opening to assure tight weather
seal. Aluminum grille (RAG13) is included. Panels on interior
and between case and grille provide weather protection prior
to installation of chassis. Provide firm anchoring with screws.
Case can be fastened directly to brick or block walls with
screws sunk in lead expansion shields.
between case and siding
26-1/8
Lintel
15-3/4
26-1/8
15-3/4
Lintel
(if desired)
OUTSIDE INSIDE
16-7/8
Caulking
Drip Rail
Flexible Mounting Position
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
geappliances.com or call GE Answer Center®
service, 800.626.2000.
Fill open cells
with mortar
or insulation
Total volume and shelf
area are calculated by
the Association of Home
Appliance Manufacturers’
standards.
Specification Revised 7/14
Listed by
Underwriters
Laboratories
Page 3
AJCM08ACF
GE® ENERGY STAR® 115 Volt Built-in Cool-Only Room Air Conditioner
Features and Benefits
• 8,200 Cooling BTU
• 9.8 EER, 9.6 CEER
• 115 Volts
• ENERGY STAR
• R-410A refrigerant
®
qualified
• Electronic controls with remote
• Electronic digital thermostat control
• Filter reset
• Four-way air direction
• Up-front, washable air filter
• 3 cooling/ 3 fan speeds
• Model AJCM08ACF – Soft Gray
Delay Hrs
On Off
Cool
Fan
72
Hi
On
Off
Mode
Med
Low
Temp
Power
Reset
+
-
On/Off
Filter
Specification Revised 7/14
