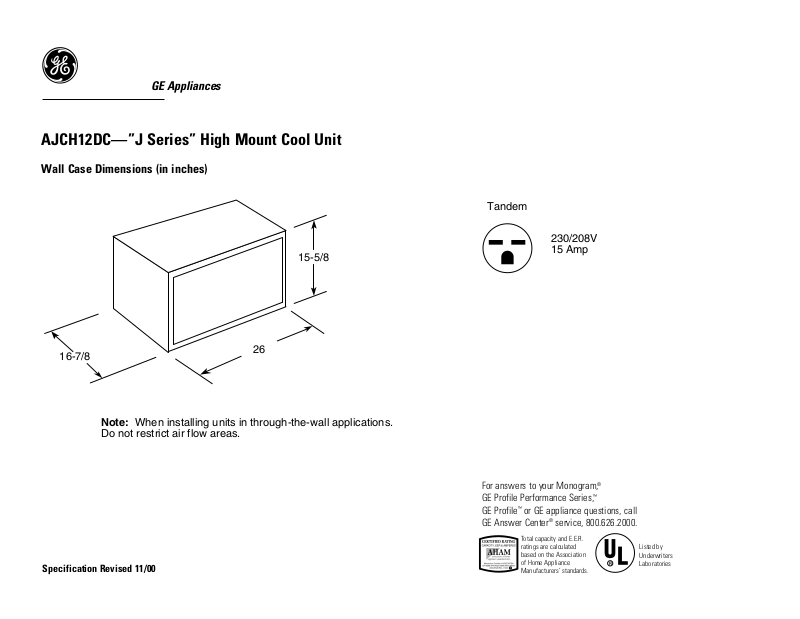

GE AJCH12DC Specification

AJCH12DC—”J Series” High Mount Cool Unit

Specification Revised 11/00

GE Appliances

Note: When installing units in through-the-wall applications.
Do not restrict air flow areas.

26

15-5/8

16-7/8

Wall Case Dimensions (in inches)

Tandem

230/208V
15 Amp

R

R

Total capacity and E.E.R.
ratings are calculated
based on the Association
of Home Appliance
Manufacturers’ standards.

Listed by
Underwriters
Laboratories

For answers to your Monogram,

®

GE Profile Performance Series,

™

GE Profile™or GE appliance questions, call
GE Answer Center®service, 800.626.2000.

Specification Revised 11/00

GE Appliances

AJCH12DC—”J Series” High Mount Cool Unit

Fill open cells
with mortar
or insulation

15-3/4

26-1/8

Lintel

Dimensions (in inches)

Installation Informaion: A finished opening of

26-1/8" x 15-3/4" clear of intrusions is required. Keep
clearance of 4" from side walls. Brick veneer or frame
walls should have wood studding surrounding case to
provide firm anchoring with screws. Case can be fastened
directly to brick or block walls with screws sunk in lead
expansion shields.

Make frame if desired or caulk
between case and siding

15-3/4

26-1/8

Frame Construction

Lintel

OUTSIDE INSIDE

16-7/8

Caulking

Drip Rail

Trim Molding
(if desired)

Plaster Line

Flexible Mounting Position

R

R

Total capacity and E.E.R.
ratings are calculated
based on the Association
of Home Appliance
Manufacturers’ standards.

Listed by
Underwriters
Laboratories

For answers to your Monogram,

®

GE Profile Performance Series,

™

GE Profile™or GE appliance questions, call
GE Answer Center®service, 800.626.2000.
