GE AJCH10DCB User Manual
GE Appliances
Premium, Deluxe and Value Model

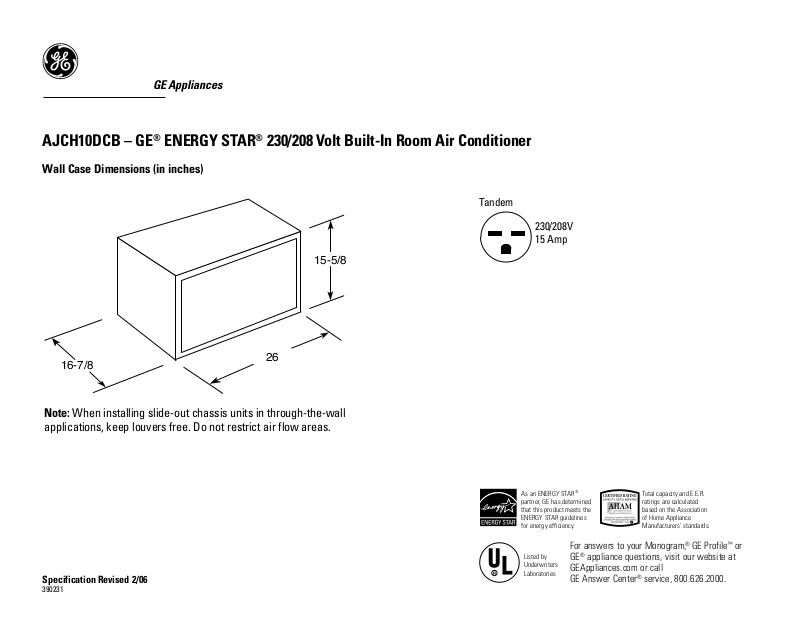

Wall Case Dimensions (in inches)
26
15-5/8
16-7/8
R
R
AJCH10DCB – GE® ENERGY STAR® 230/208 Volt Built-In Room Air Conditioner
Wall Case Dimensions (in inches)
Tandem
230/208V
15 Amp
Note: When installing slide-out chassis units in through-the-wall
applications, keep louvers free. Do not restrict air flow areas.
Specification Revised 2/06
390231
As an ENERGY STAR®
partner, GE has determined
that this product meets the
ENERGY STAR guidelines
for energy efficiency.
For answers to your Monogram,® GE Profile™ or
Listed by
Underwriters
Laboratories
GE® appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center® service, 800.626.2000.
Total capacity and E.E.R.
ratings are calculated
based on the Association
of Home Appliance
Manufacturers’ standards.
15-3/4
26-1/8
Frame Construction
Brick Block and Brick
Frame Construction
Fill open cells
with mortar
or insulation
15-3/4
26-1/8
Linte
l
Make frame if desired or caulk
between case and siding
15-3/4
26-1/8
Frame Construction
Make frame if desired or caulk
between case and siding
15-3/4
26-1/8
Frame Construction
Brick Block and Brick
Frame Construction
Fill open cells
with mortar
or insulation
15-3/4
26-1/8
Linte
l
Linte
l
OUTSIDE INSIDE
16-7/8
Caulking
Drip Rail
Trim Molding
(if desired)
Plaster Line
Flexible Mounting Position
R
R
GE Appliances
AJCH10DCB – GE® ENERGY STAR® 230/208 Volt Built-In Room Air Conditioner
Dimensions (in inches)
Installation Information: A finished opening of 26-1/8" x 15-3/4" clear
of intrusions is required. Keep clearance of 4" from side walls. Brick
veneer or frame walls should have wood studding surrounding case to
provide firm anchoring with screws. Case can be fastened directly to
brick or block walls with screws sunk in lead expansion shields.
Note: Units should be caulked on all four sides of case to the building
exterior to assure building integrity.
Two Wall Cases for Tenant Option Installation
When the air conditioner is offered as a tenant option, these wall
cases provide protection against outside elements.
RAB47 – includes wall case, exterior grille and steel closure panels.
RAB48 – includes wall case, exterior grille, steel closure panel and
two layers of insulation.
Standard Wall Case RAB46
Solid-sided wall case fabricated of galvanized steel with baked enamel
finish. Welded areas are coated with a sealing compound to help resist
rust and corrosion. Polymer gasket surrounds opening to assure tight
weather seal. Aluminum grille (RAG13) is included. Panels on interior and
between case and grille provide weather protection prior to installation
of chassis.provide firm anchoring with screws. Case can be fastened
directly to brick or block walls with screws sunk in lead expansion shields.
Specification Revised 2/06
390231
As an ENERGY STAR®
partner, GE has determined
that this product meets the
ENERGY STAR guidelines
for energy efficiency.
For answers to your Monogram,® GE Profile™ or
Listed by
Underwriters
Laboratories
GE® appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center® service, 800.626.2000.
Total capacity and E.E.R.
ratings are calculated
based on the Association
of Home Appliance
Manufacturers’ standards.
