AJCH10AC—”J Series” High Mount Cool Unit

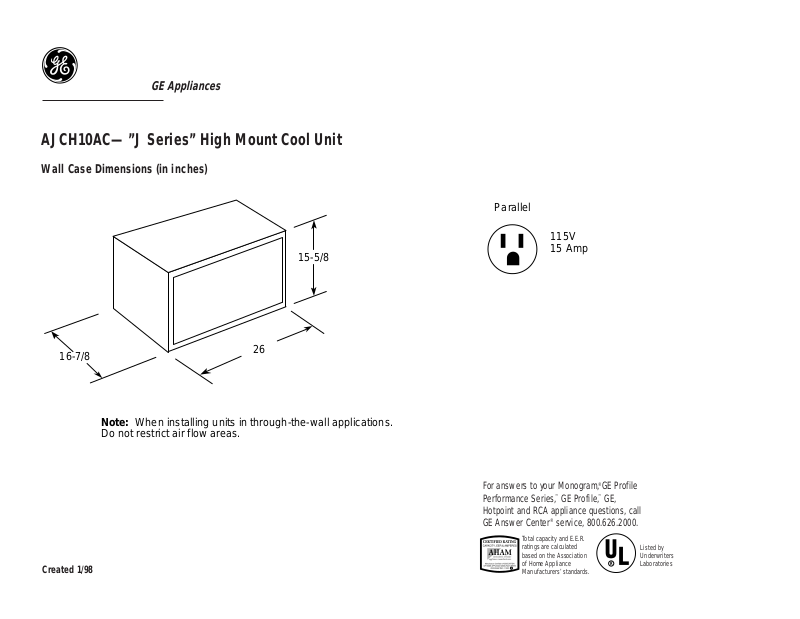

Wall Case Dimensions (in inches)
15-5/8
26
16-7/8
Note: When installing units in through-the-wall applications. Do not restrict air flow areas.
Created 1/98
Parallel
115V
15 Amp
For answers to your Monogram,®GE Profile Performance Series,™ GE Profile,™ GE, Hotpoint and RCA appliance questions, call GE Answer Center® service, 800.626.2000.
|
Total capacity and E.E.R. |
|
|
|
ratings are calculated |
|
Listed by |
|
based on the Association |
|
Underwriters |
|
of Home Appliance |
R |
Laboratories |
R |
Manufacturers’ standards. |
|
|
|
|
|
GE Appliances
AJCH10AC—”J Series” High Mount Cool Unit
Dimensions (in inches)
Make frame if desired or caulk between case and siding
26-1/815-3/4
5" Min.
from floor
Frame Construction
Lintel
15-3/4
26-1/8
5" Min.
from floor
Fill open cells
with mortar
Brick Block and Brick or insulation Frame Construction
|
Plaster Line |
Lintel |
Trim Molding |
(if desired) |
|
OUTSIDE |
INSIDE |
|
16-7/8 |
Caulking
Drip Rail
Flexible Mounting Position
Created 1/98
Installation Informaion: A finished opening of 26-1/8" x 15-3/4" clear of intrusions is required. Keep clearance of 4" from side walls. Brick veneer or frame walls should have wood studding surrounding case to
provide firm anchoring with screws. Case can be fastened directly to brick or block walls with screws sunk in lead expansion shields.
