AGV24DH
GE® 230 Volt Mechanical Room Air Conditioner

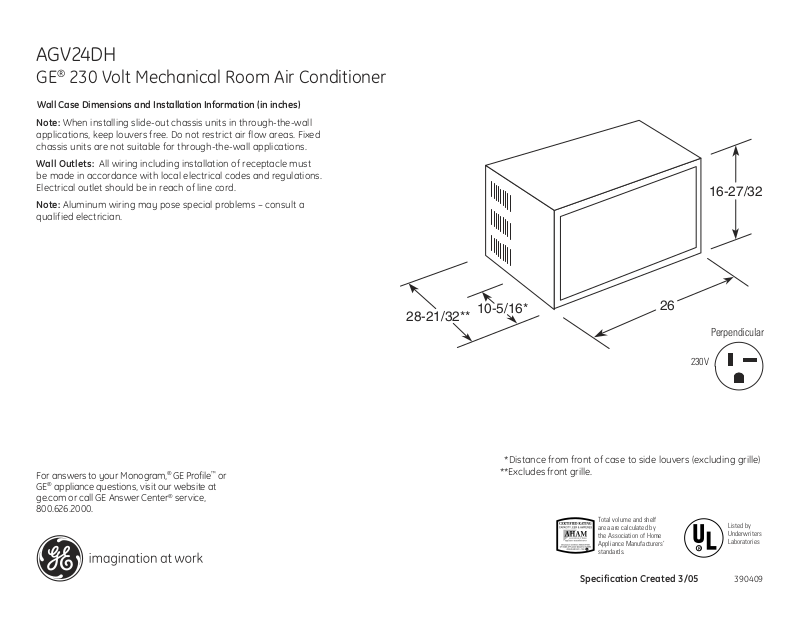

Wall Case Dimensions and Installation Information (in inches)
Note: When installing slide-out chassis units in through-the-wall applications, keep louvers free. Do not restrict air flow areas. Fixed chassis units are not suitable for through-the-wall applications.
Wall Outlets: All wiring including installation of receptacle must be made in accordance with local electrical codes and regulations. Electrical outlet should be in reach of line cord.
Note: Aluminum wiring may pose special problems – consult a qualified electrician.
16-27/32
28-21/32** 10-5/16* |
26 |
|
Perpendicular
230V
For answers to your Monogram,® GE Profile™ or GE® appliance questions, visit our website at ge.com or call GE Answer Center® service, 800.626.2000.
*Distance from front of case to side louvers (excluding grille) **Excludes front grille.
|
Total volume and shelf |
Listed by |
|
area are calculated by |
|
|
Underwriters |
|
|
the Association of Home |
|
|
Laboratories |
|
|
Appliance Manufacturers’ |
|
|
R |
|
R |
standards. |
Specification Created 3/05 |
390409 |
AGV24DH
GE® 230 Volt Mechanical Room Air Conditioner
Features and Benefits
•23,800/23,300 Cooling BTU
•8.5/8.5 EER
•3 Cooling / 2 Fan Only Speeds
•8-Position Thermostat
•Slide-Out Chassis
•Auto CirculaireTM
•Energy Saver Feature
•EZ Mount Window Installation
•Model AGV24DH
