GE AGV10AH Specification
R
R
AGV10AH
Premium, Deluxe and Value Model

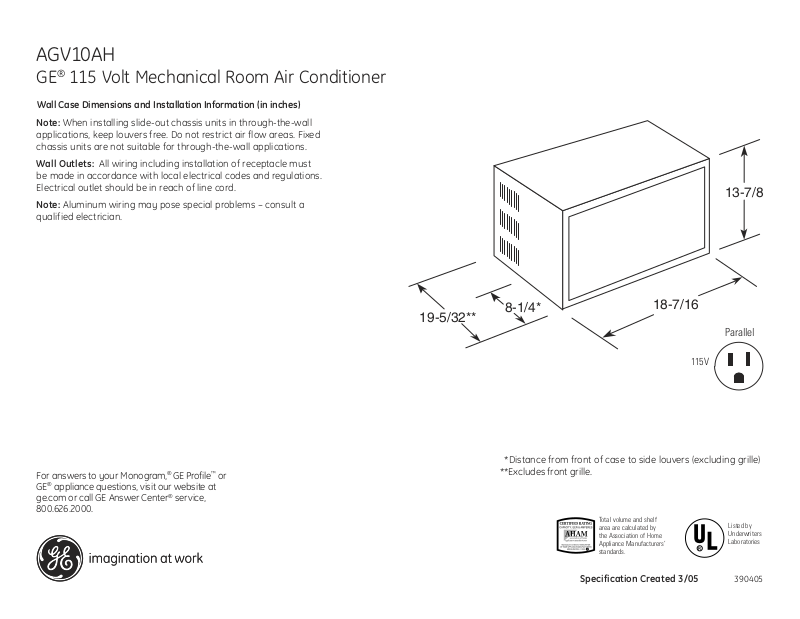

Wall Case Dimensions (in inches)
18-7/16
13-7/8
8-1/4*
19-5/32**
GE® 115 Volt Mechanical Room Air Conditioner
Wall Case Dimensions and Installation Information (in inches)
Note: When installing slide-out chassis units in through-the-wall
applications, keep louvers free. Do not restrict air flow areas. Fixed
chassis units are not suitable for through-the-wall applications.
Wall Outlets: All wiring including installation of receptacle must
be made in accordance with local electrical codes and regulations.
Electrical outlet should be in reach of line cord.
Note: Aluminum wiring may pose special problems – consult a
qualified electrician.
Parallel
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
115V
*Distance from front of case to side louvers (excluding grille)
**Excludes front grille.
Total volume and shelf
area are calculated by
the Association of Home
Appliance Manufacturers’
standards.
Specification Created 3/05
Listed by
Underwriters
Laboratories
390405
AGV10AH
GE® 115 Volt Mechanical Room Air Conditioner
Features and Benefits
• 10,000 Cooling BTU
• 9.8 EER
• 3 Cooling / 2 Fan Only Speeds
• 8-Position Thermostat
• Slide-Out Chassis
• EZ Mount Window Installation
• Model AGV10AH
Specification Created 3/05
390405
