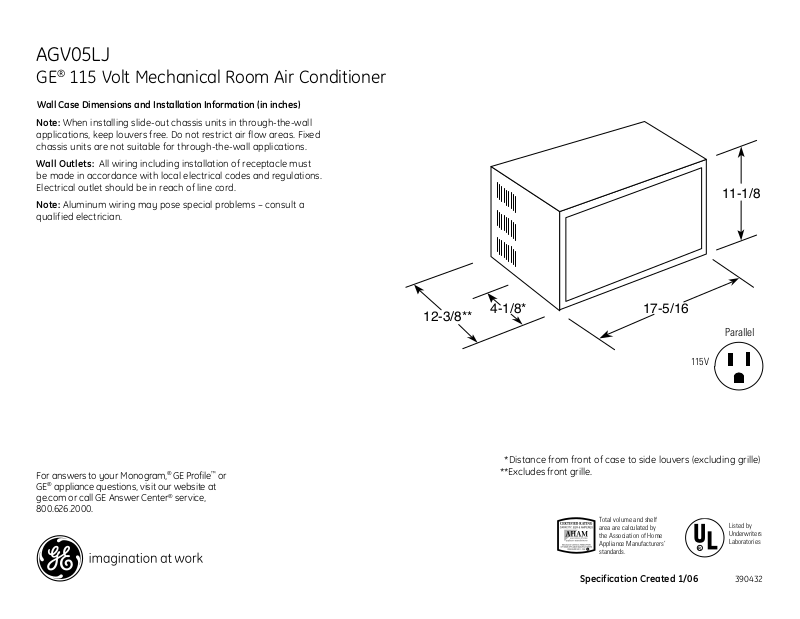

AGV05LJ
GE® 115 Volt Mechanical Room Air Conditioner
Wall Case Dimensions and Installation Information (in inches)
Note: When installing slide-out chassis units in through-the-wall applications, keep louvers free. Do not restrict air flow areas. Fixed chassis units are not suitable for through-the-wall applications.
Wall Outlets: All wiring including installation of receptacle must be made in accordance with local electrical codes and regulations. Electrical outlet should be in reach of line cord.
Note: Aluminum wiring may pose special problems – consult a qualified electrician.
11-1/8
12-3/8** |
4-1/8* |
17-5/16 |
|
|
Parallel
115V
For answers to your Monogram,® GE Profile™ or GE® appliance questions, visit our website at ge.com or call GE Answer Center® service, 800.626.2000.
*Distance from front of case to side louvers (excluding grille) **Excludes front grille.
|
Total volume and shelf |
Listed by |
|
area are calculated by |
|
|
Underwriters |
|
|
the Association of Home |
|
|
Laboratories |
|
|
Appliance Manufacturers’ |
|
|
R |
|
R |
standards. |
Specification Created 1/06 |
390432 |
AGV05LJ
GE® 115 Volt Mechanical Room Air Conditioner
Features and Benefits
•5150 Cooling BTUH
•9.7 EER
•140/110 CFM Indoor Fan (High/Low)
•1.5 Dehumidification (pints/hr)
•115 Volts
•2 Cooling / 2 Fan Only Speeds
•Variable position thermostat
•Model AGV05LJ
Specification Created 1/06 |
390432 |
