Page 1
GE Appliances
Room
Air
Conditioners
Pub. No. 49-7370 CG 1-98
AGP18
AGV18
Owner’s Manual &
Installation Instructions
Page 2
Customer Service Troubleshooting Tips
Operating Instructions
Safety Instructions
Installation Instructions
Congratulations!
You Are Now Part of the GE Family
Welcome to the GE family. We’re proud of our
quality products and we are committed to providing
dependable service. You’ll see it in this easy-to-use
Owner’s Manual and you’ll hear it in the friendly
voices of our customer service department.
Best of all, you’ll experience these values each time
you use your air conditioner. That’s important,
because your new air conditioner will be part of your
family for many years. And we hope you will be part
of ours for a long time to come.
We thank you for buying GE. We appreciate your
purchase, and hope you will continue to rely on us
whenever you need quality appliances for your home.
GE & You, AService Partnership.
Safety Information
Safety Precautions . . . . . . . . . . . . .3
Operating Instructions
Controls . . . . . . . . . . . . . . . . . . .4, 5
Care and Cleaning . . . . . . . . . . . . .6
Installation Instructions
Preparing to Install the
Air Conditioner . . . . . . . . . . . . . . . .7
Window Installation . . . . . . . .8–12
Troubleshooting Tips
Before You
Call For Service . . . . . . . . . . . . . .13
Normal Operating Sounds . . . . . .13
Customer Service
Warranty . . . . . . . . . . . . . . . . . . .15
Service Telephone
Numbers . . . . . . . . . . . .Back Cover
FOR YOUR RECORDS
Write the model and serial numbers here:
#
#
You can find them on a label on the side of the air conditioner.
Staple sales slip or cancelled check here.
Proof of the original purchase date is needed to obtain service
under the warranty.
Inside you will find many helpful hints on how to use and maintain
your air conditioner properly. Just a little preventive care on your
part can save you a great deal of time and money over the life of
your air conditioner.
You’ll find many answers to common problems in the
Before You
Call For Service
section. If you review our chart of
Troubleshooting
Tips
first, you may not need to call for service at all.
READ THIS MANUAL
IF YOU NEED SERVICE
If you do need service, you can relax knowing help is only a phone
call away. A list of toll-free customer service numbers is included in
the back section. Or, you can always call the GE Answer Center® at
800.626.2000, 24 hours a day, 7 days a week.
2
IMPORT ANT!
Fill out and return the Consumer Product Registration Card that is
packed with this product.
Page 3
IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
WARNING!
For your safety, the information in this manual must be followed to minimize the risk of fire, electric shock
or personal injury.
■ This air conditioner must be properly
installed in accordance with the Installation
Instructions before it is used.
■ Repair or replace immediately all electric
service cords that have become frayed or
otherwise damaged.
■ Turn the mode control to
OFF
and unplug
your air conditioner before making any
repairs.
NOTE:
We strongly recommend that any
servicing be performed by a qualified
individual.
SAFETY PRECAUTIONS
3
Read and follow this Safety Information carefully.
SA VE THESE INSTRUCTIONS
Customer ServiceTroubleshooting Tips
Operating Instructions
Safety Instructions
Installation Instructions
Page 4
4
Customer Service Troubleshooting Tips
Operating Instructions
Safety Instructions
Installation Instructions
Customer Service Troubleshooting Tips
Installation Instructions
Safety Instructions
Operating Instructions
Customer Service Troubleshooting Tips
Installation Instructions
Safety Instructions
Operating Instructions
About the controls on the air conditioner.
The controls will look like one of the following.
Controls
Mode Controls
HIGH COOL, LOW COOL
and
MED COOL
provide
cooling with different fan speeds.
LOWFAN
or
HIGH FAN
provides air circulation
and filtering without cooling or heating.
NOTE: If you move the switch from a cool setting to OFF or to
a fan setting, wait at least 3 minutes before switching back to
a cool setting.
Cooling Descriptions
For Normal Cooling
—Select
HIGH COOL
or
MED
COOL
with the temp control at midpoint.
For Maximum Cooling
—Select
HIGH COOL
with the
temp control at the highest number available on
your knob.
For Quieter & Nighttime Cooling
—Select
LOW COOL
with the temp control at midpoint.
Temp Controls
The temp control is used to maintain the
room temperature. The compressor will cycle
on and off to keep the room at the same level
of comfort. When you turn the knob to a
higher number the indoor air will become
cooler. Turn the knob to a lower number and
the indoor air will become warmer.
MODE CONTROL TEMP CONTROL
OFF
LOW
FAN
LOW
COOL
HIGH
FAN
HIGH
COOL
MED
COOL
3 4
2
1
5
6
Page 5
Customer ServiceTroubleshooting Tips
Operating Instructions
Safety Instructions
Installation Instructions
Additional controls and important information.
5
Vent Control
The vent control is located above the control knobs.
When set at
CLOSE
, only the air inside the room will
be circulated and conditioned. When set at
OPEN
,
some inside air is exhausted outside.
To open the vent, pull the lever toward you.
To close it, push it in.
Air Direction
CIRCULAIRE
For fixed side-to-side air direction, set the
Circulaire switch to ONuntil the desired air
direction is obtained, then move it to
OFF
.
For continuous side-to-side air circulation, set the
Circulaire switch to ONand leave it there.
Fingertip pressure on the bank of horizontal louvers
adjusts the air direction up or down.
OFF
ON
CIRCULAIRE
Page 6
6
Customer Service Troubleshooting Tips
Operating Instructions
Safety Instructions
Installation Instructions
Customer Service Troubleshooting Tips
Installation Instructions
Safety Instructions
Operating Instructions
Customer Service Troubleshooting Tips
Installation Instructions
Safety Instructions
Operating Instructions
Care and cleaning of the air conditioner.

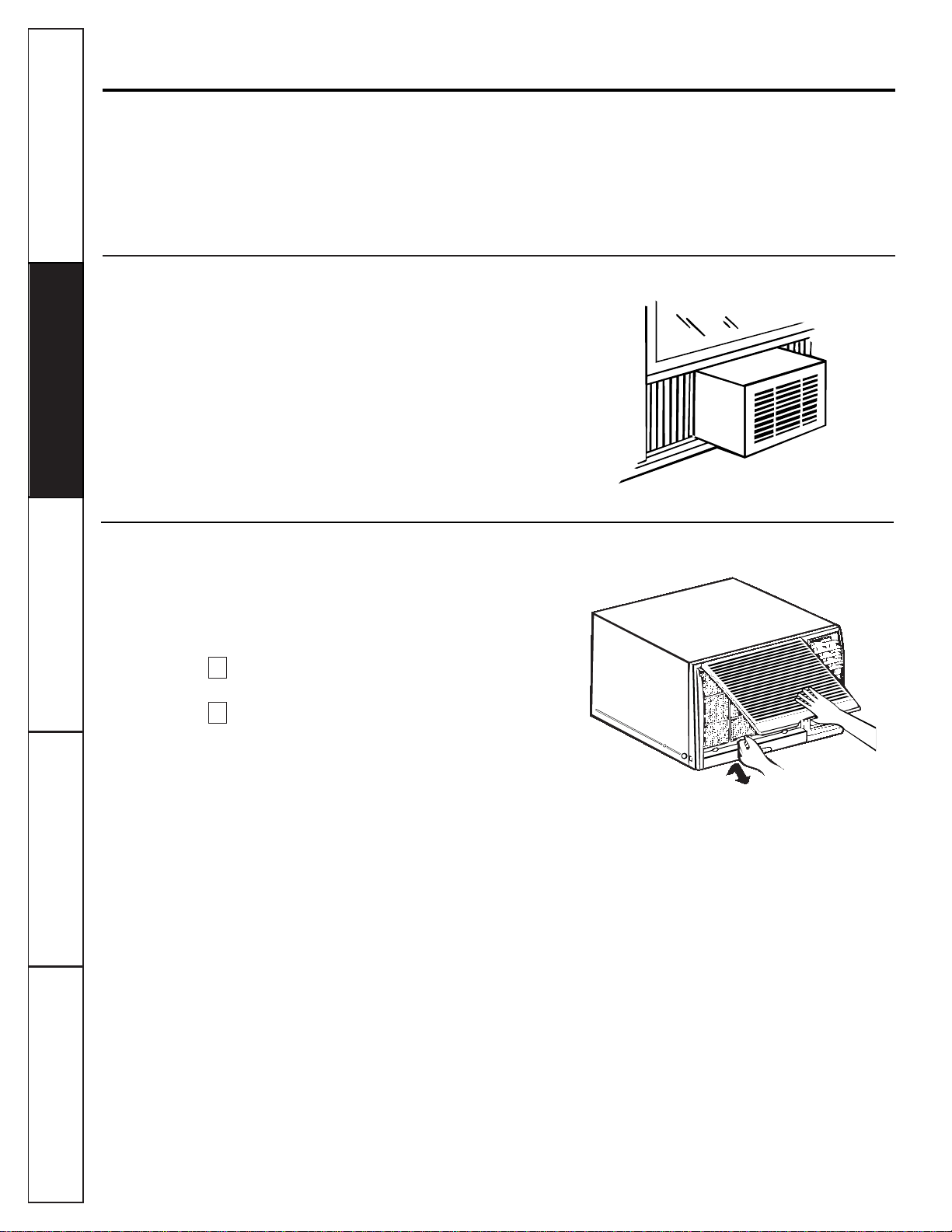

Air Filter
The air filter behind the front grille should be
checked and cleaned at least every 30 days or more
often if necessary.
T o remove:
Open the inlet grille upward by pulling out the
bottom of the inlet grille.
Using the tab, pull up slightly on the filter to
release it and pull it down.
Clean the filter with warm, soapy water. Rinse and
let the filter dry before replacing it.
CAUTION: DONOT operate the air conditioner without a
filter because dirt and lint will clog it and reduce performance.
2
1
Outdoor Coils
The coils on the outdoor side of the air conditioner
should be checked regularly. If they are clogged
with dirt or soot they may be professionally steam
cleaned, a service available through your GE
service outlet.
Grille and Case
Turn the air conditioner off and remove the plug
from the wall outlet before cleaning.
To clean, use water and a mild detergent. Do not
use bleach or abrasives.
Page 7
Customer ServiceTroubleshooting Tips
Operating Instructions
Safety Instructions
Installation Instructions
7
Preparing to install the air conditioner.
Read these instructions completely and carefully.
NOTE TO INSTALLER: Leave these instructions with
the air conditioner after installation is completed.
NOTE TO CONSUMER: Keep this Owner’s Manual
and Installation Instructions for future use.
IMPORTANT NOTES:
For personal safety, this air conditioner must be
properly grounded.
It is important to have the wall outlet and circuit
checked by a qualified electrician if there is any
doubt as to whether a proper ground exists.
Follow National Electric Codes (NEC) and/or local
codes and ordinances.
CAUTION:
Do not, under any circumstances, cut or
remove the third (ground) prong from the
power cord.
Do not change the plug on the power cord
of this air conditioner.
Aluminum house wiring may present
special problems—consult a qualified
electrician.
Before You Begin
We recommend that this model be installed
on its own single branch circuit supplying
230/208-volt a.c., protected with a time
delay fuse or circuit breaker.
This is recommended for best performance and
to prevent overloading house or apartment wiring
circuits, which could cause a possible fire hazard
from overheating wires.
Electrical Requirements
■ Phillips-head screwdriver
■ Flat-blade screwdriver
■ Ruler or tape measure
■ Scissors or knife
■ Pencil
■ Level
■ Hammer
Tools You Will Need
Page 8
8
Customer Service Troubleshooting Tips
Operating Instructions
Safety Instructions
Installation Instructions
Customer Service Troubleshooting Tips
Installation Instructions
Safety Instructions
Operating Instructions
Customer Service Troubleshooting Tips
Installation Instructions
Safety Instructions
Operating Instructions
Window Installation Instructions

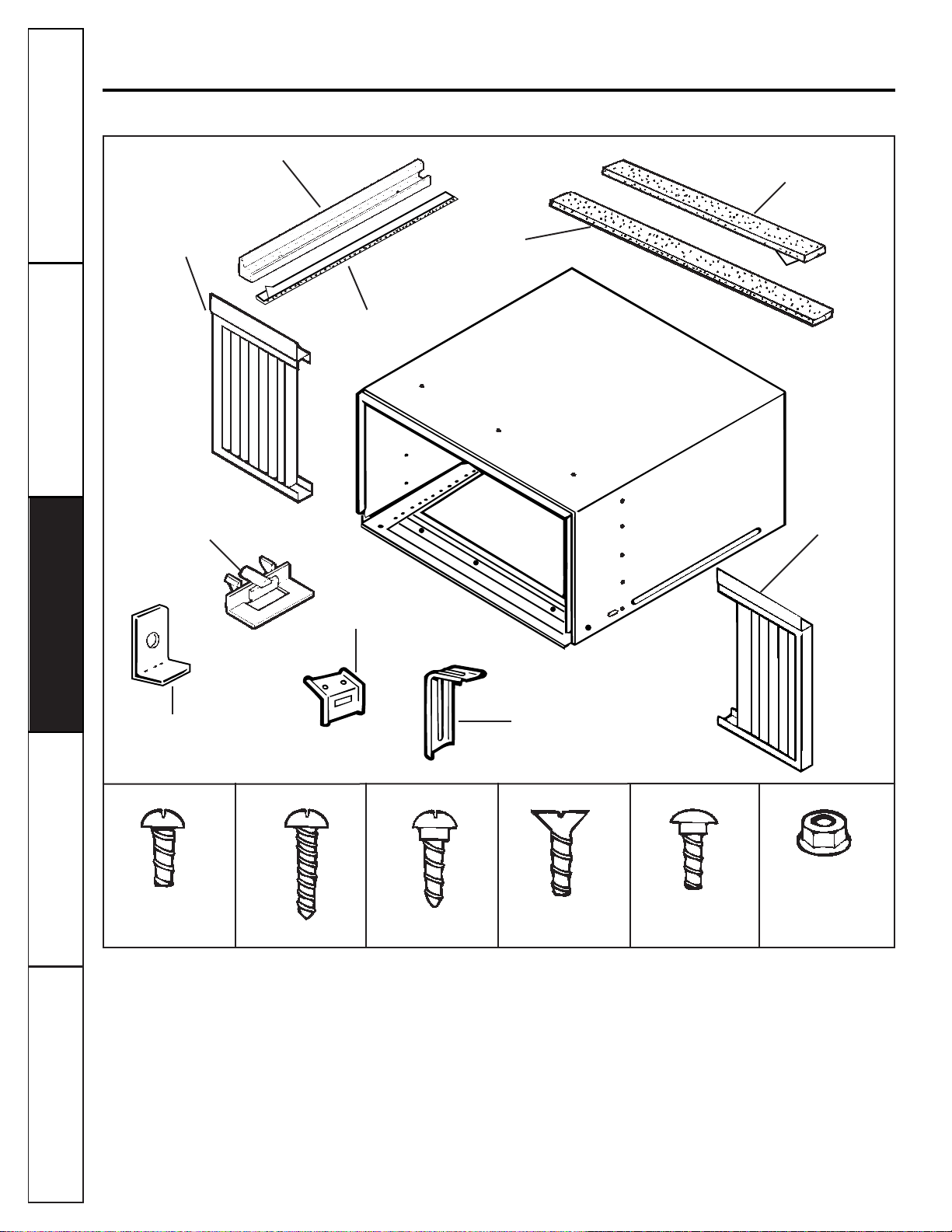

Parts Included
Type A (14)
Support
bracket (2)
Sill bracket (2)
Type B (7) Type C (5) Type D (2) Carriage Bolt (2) Lock Nut (4)
Window locking
bracket
Frame guide (2)
Top mounting rail
Top mounting rail
seal strip
Right
accordion
panel
Foam top
window gasket
Window
sash seal
Left
accordion
panel
Page 9
Customer ServiceTroubleshooting Tips
Operating Instructions
Safety Instructions
Installation Instructions
Read completely, then follow step-by-step.

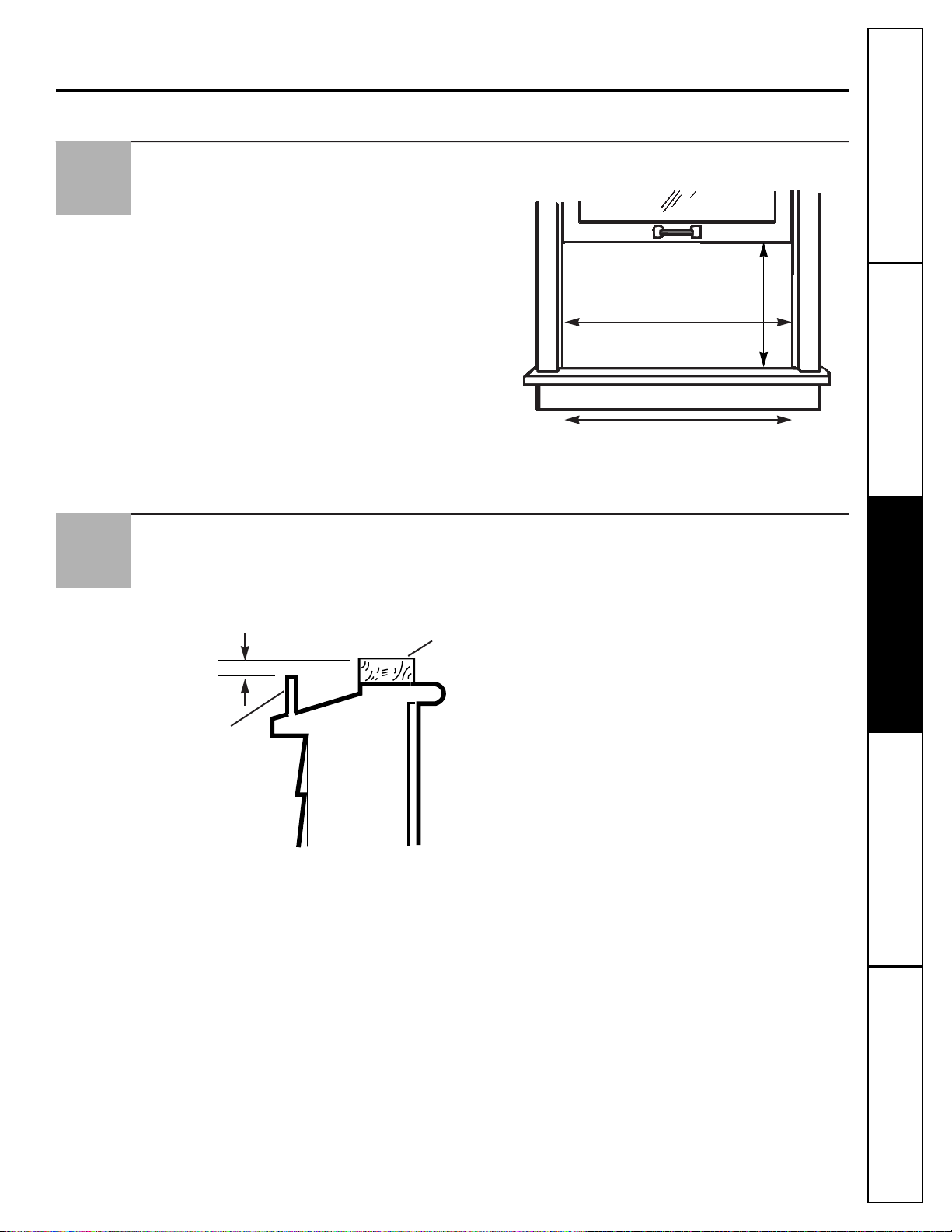

Window Requirements
■These instructions are for a standard double-
hung window. You will need to modify them for
other types of windows.
■The air conditioner can be installed without the
accordion panels if needed to fit in a narrow
window. See the window opening dimensions to
the right.
■All supporting parts must be secured to firm
wood, masonry or metal.
■The electrical outlet must be within reach of the
power cord.
Window opening dimensions are for a standard double-hung
window.
18² min.
29² to 41²
(With accordion panels)
26² min.
(Without accordion panels)
Storm Window Requirements
A storm window frame will not allow the air
conditioner to tilt towards the outside and will keep
it from draining properly. To adjust for this, attach a
piece of wood to the stool.
WOOD PIECES—
WIDTH:
2²
LENGTH:
Long enough to fit inside the window
frame.
THICKNESS:
To determine the thickness, place a
piece of wood on the stool to make it 1/2² higher
than the top of the storm window frame.
Attach securely with nails or screws provided by
the installer.
1/2² higher
than frame
Storm window
frame
Wood
Stool
1
2
9
Page 10
10
Customer Service Troubleshooting Tips
Operating Instructions
Safety Instructions
Installation Instructions
Customer Service Troubleshooting Tips
Installation Instructions
Safety Instructions
Operating Instructions
Customer Service Troubleshooting Tips
Installation Instructions
Safety Instructions
Operating Instructions
Window Installation Instructions
Prepare the Window and the Case
Cut the window sash seal to the proper length.
Peel off the backing and attach the seal to the
underside of the window sash.
Carefully insert the plastic frame guides into
the bottom of the case on each side.
Remove the backing from the top mounting
rail seal strip and attach the seal to the bottom
of the top mounting rail.
Install the top mounting rail with 3 type A
screws on the inside of the case. Insert the
frames for the accordion panels into the top
mounting rail and the frame guides. Attach
the accordion panels to the side of the case
using 5 type A screws.
D
C
B
A

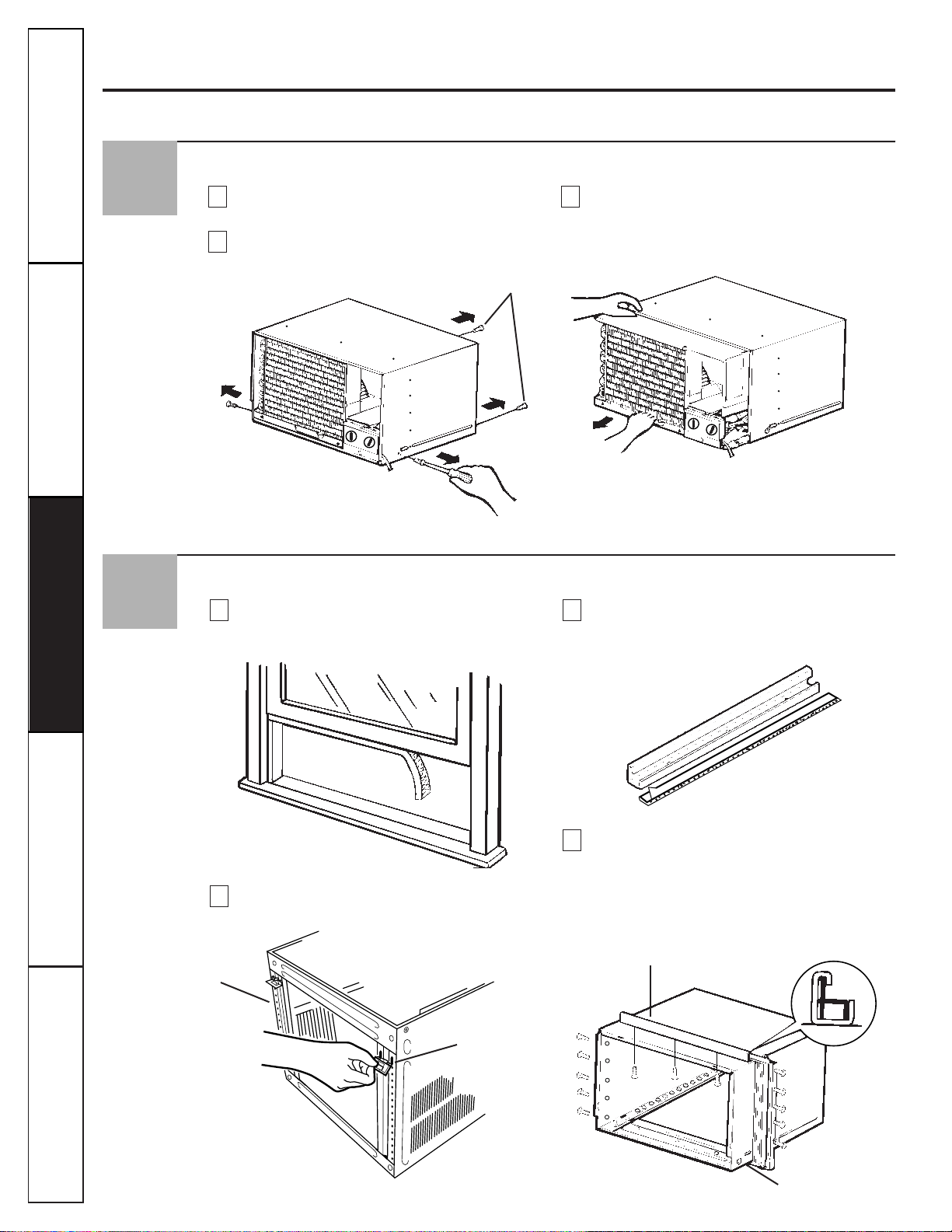

Remove the Air Conditioner From the Case
Remove the 2 shipping screws from the back of
the case.
Remove the 2 screws on each side of the case.
Keep these for later use.
Slide the air conditioner from the case by
gripping the base pan handle and pulling
forward while bracing the case.
C
B
A
3
4
Top mounting rail
Frame guides
Bottom of case
Frame guide
Shipping screws
Page 11
Customer ServiceTroubleshooting Tips
Operating Instructions
Safety Instructions
Installation Instructions

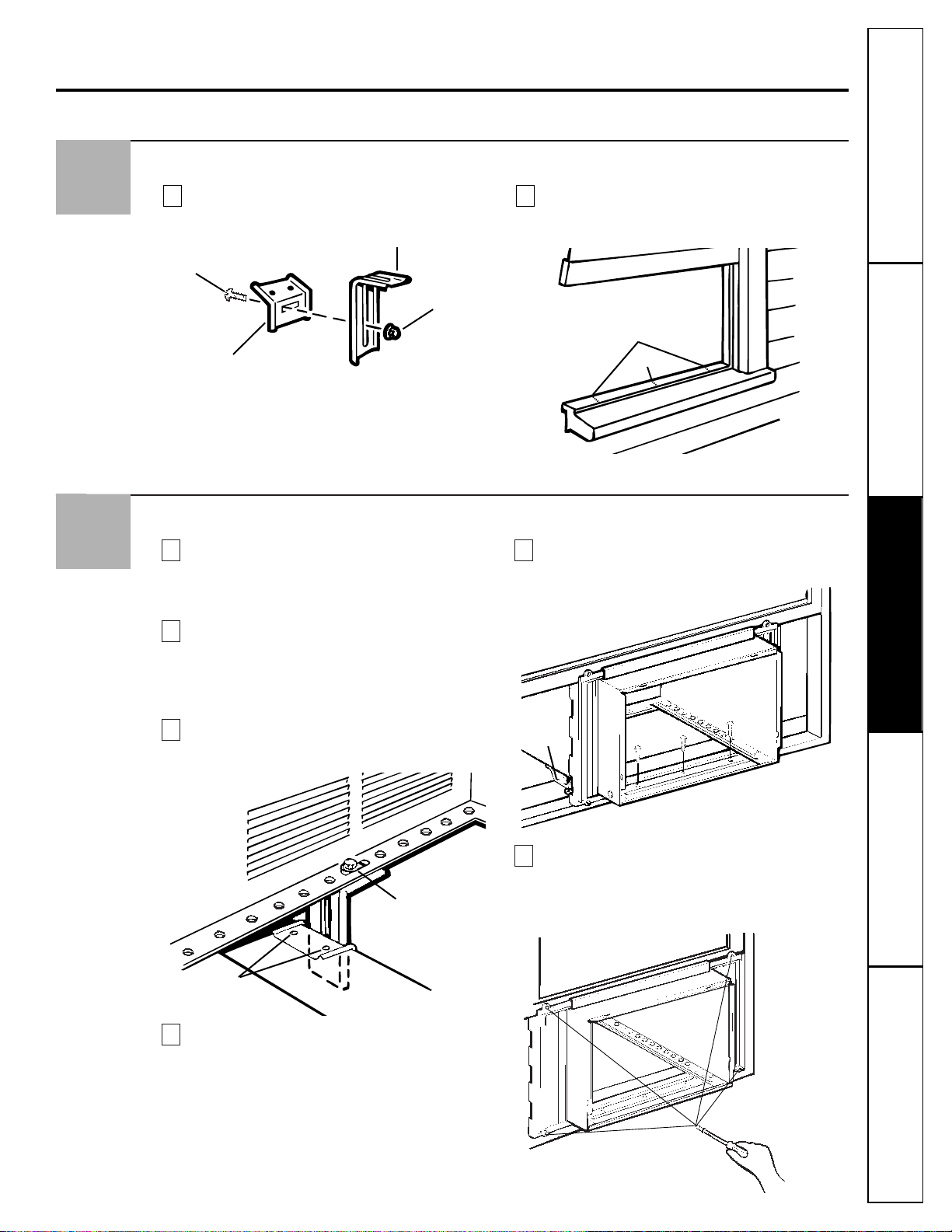

Install the Case in the Window
Align the inside edge of the sill brackets with
the 11² mark from the centerline and attach
them to the window sill using 2 type B screws
on each side.
Carefully place the case on the window stool
aligning the center front on the bottom with
the centerline marked on the window stool.
Close the window making sure the window sash
is behind the top mounting rail.
Using the larger diameter hole in the case, attach
the brackets to the case using two type D screws
and 2 lock nuts.
Adjust the carriage bolts and the lock nuts in
each support so that the case is installed with a
slight downward tilt (about 1/8²). Tighten the
bolts.
CAUTION: DONOT drill a hole in the base pan. The unit is
designed to operate with approximately 1/2² of water in the
base pan.
Secure the case to the window stool by using 3
type B screws.
Pull the accordion panels to each window
sash track. Attach them on each side to the
window sash and the window stool using
4 type C screws.
F
E
D
C
B
A
6
Type B screws
Type D screws
with nuts
Prepare the Window
Loosely attach the sill brackets to the support
brackets using the 2 carriage bolts and 2
lock nuts.
Open the window and mark the centerline of
the window stool. Measure and mark 11² to the
left and right of the centerline.
BA
5
Sill bracket
Lock nut
Support bracket
Centerline
11²
Carriage
bolt
11
Sill
support
Page 12
12
Customer Service Troubleshooting Tips
Operating Instructions
Safety Instructions
Installation Instructions
Customer Service Troubleshooting Tips
Installation Instructions
Safety Instructions
Operating Instructions
Customer Service Troubleshooting Tips
Installation Instructions
Safety Instructions
Operating Instructions
Window Installation Instructions
Install the Air Conditioner in the Case
Slide the air conditioner into the case.
Reinstall the 2 screws removed earlier on each
side of the case.
Before installing the front grille, pull out the
vent control lever located above the unit
control knobs, as shown.
Attach the front grille to the case by inserting the
tabs on the grille into the slots on the front of the
case. Push the grille in until it snaps into place.
Lift the inlet grille and secure the front grille
with a type A screw. Lower the inlet grille into
place.
D
C
B
A
7
Install the Window Locking Bracket and the Foam Top Window Gasket
Attach the window locking bracket with a
type C screw.
Cut the foam top window gasket to the window
width.
Stuff the foam between the glass and the
window to prevent air and insects from getting
into the room.
C
BA
6
Page 13
13
Customer ServiceTroubleshooting Tips
Operating Instructions
Safety Instructions
Installation Instructions
Before you call for service…
Troubleshooting Tips
Save time and money! Review the chart below first and
you may not need to call for service.
Problem Possible Causes What To Do
Air conditioner
The air conditioner • Make sure the air conditioner plug is pushed
does not start
is unplugged. completely into the outlet.
The fuse is blown/circuit • Check the house fuse/circuit breaker box and replace
breaker is tripped. the fuse or reset the breaker.
Power failure. •If power failure occurs, turn the mode control to
OFF
.
When power is restored, wait 3 minutes to restart the
air conditioner to prevent tripping of the compressor
overload.
Air conditioner does
Airflow is restricted. • Make sure there are no curtains, blinds or furniture
not cool as it should
blocking the front of the air conditioner.
The temp control may • Turn the knob to a higher number. The highest setting
not be set high enough. provides maximum cooling.
The air filter is dirty. •Clean the filter at least every 30 days.
See the
Operating Instructions
section.
The room may have been hot. • When the air conditioner is first turned on you need to
allow time for the room to cool down.
Cold air is escaping. • Check for open furnace floor registers and cold
air returns.
• Set the air conditioner’s vent to the closed position.
Cooling coils have iced up. •See “Air conditioner freezing up” below.
Air conditioner
Ice blocks the air flow •Set the mode control at
HIGHFAN
or
HIGH COOL
freezing up
and stops the air conditioner with the temp at 1or 2.
from cooling the room.
Normal Operating Sounds
■ You may hear a pinging noise caused by water
being picked up and thrown against the
condenser on rainy days or when the humidity is
high. This design feature helps remove moisture
and improve efficiency.
■ You may hear the thermostat click when the
compressor cycles on and off.
■ Water will collect in the base pan during
high humidity or on rainy days. The water
may overflow and drip from the outdoor side
of the unit.
■ The fan may run even when the compressor
is not.
Page 14
14
Customer Service Troubleshooting Tips
Operating Instructions
Safety Instructions
Installation Instructions
Customer Service Troubleshooting Tips
Installation Instructions
Safety Instructions
Operating Instructions
Customer Service Troubleshooting Tips
Installation Instructions
Safety Instructions
Operating Instructions
Notes
Page 15
15
Customer ServiceTroubleshooting Tips
Operating Instructions
Safety Instructions
Installation Instructions
Air Conditioner Warranty
All warranty service provided by our Factory Service Centers,
or an authorized Customer Care® technician. For service,
call 800-GE-CARES.
For The Period Of: GE Will Replace, At No Charge To You:
One Year Any part
of the air conditioner which fails due to a defect in materials or workmanship.
From the date of the
During this
full one-year warranty,
GE will also provide,
free of charge,
all labor
original purchase
and in-home service to replace the defective part.
Five Years Any part of the sealed refrigerating system
(the compressor, condenser, evaporator
From the date of the
and all connecting tubing) which fails due to a defect in materials or workmanship.
original purchase
During this
five-year warranty,
GE will also provide,
free of charge,
all labor and
in-home service to replace the defective part.
■Service trips to your home to teach you how to use the
product.
■Improper installation. If you have an installation problem,
or if the air conditioner is of improper cooling capacity
for the intended use, contact your dealer or installer. You
are responsible for providing adequate electrical
connecting facilities.
■Failure of the product resulting from modifications to the
product or due to unreasonable use including failure to
provide reasonable and necessary maintenance.
■In commercial locations labor necessary to move the unit
to a location where it is accessible for service by an
individual technician.
■Replacement of house fuses or resetting of circuit
breakers.
■Failure due to corrosion on models not corrosion-
protected.
■Damage to the product caused by improper power supply
voltage, accident, fire, floods or acts of God.
■Incidental or consequential damage to personal property
caused by possible defects with this air conditioner.
What GE Will Not Cover:
This warranty is extended to the original purchaser and any succeeding owner for products purchased for home
use within the USA. In Alaska, the warranty excludes the cost of shipping or service calls to your home.
Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives
you specific legal rights, and you may also have other rights which vary from state to state. To know what your
legal rights are, consult your local or state consumer affairs office or your state’s Attorney General.
Warrantor: General Electric Company. Louisville, KY 40225
Page 16
Operating Instructions
Safety Instructions
Installation Instructions
Troubleshooting TipsCustomer Service
Service Telephone Numbers.
GE Answer Center
®
800.626.2000
The GE Answer Center® is open 24 hours a day, 7 days a week.
In-Home Repair Service
800-GE-CARES (800-432-2737)
Expert GE repair service is only a phone call away.
Special Needs Service
800.626.2000
800-TDD-GEAC (800-833-4322)
GE offers, free of charge, a brochure to assist in planning a barrier-free kitchen for persons
with limited mobility.
Service Contracts
800-626-2224
Purchase a GE service contract while your warranty is still in effect and you’ll receive a
substantial discount. GE Consumer Service will still be there after your warranty expires.
Parts and Accessories
800-626-2002
Individuals qualified to service their own appliances can have parts or accessories sent directly
to their homes (VISA, MasterCard and Discover cards are accepted).
Instructions contained in this manual cover procedures to be performed by any user. Other servicing
generally should be referred to qualified service personnel. Caution must be exercised, since
improper servicing may cause unsafe operation.
Service Satisfaction
If you are not satisfied with the service you receive from GE:
First,
contact the people who serviced your appliance.
Next,
if you are still not pleased, write all the details—including your phone number—to:
Manager, Consumer Relations
GE Appliances
Appliance Park
Louisville, KY 40225
Finally,
if your problem is still not resolved, write:
Major Appliance Consumer Action Program
20 North Wacker Drive
Chicago, IL 60606
Printed in Korea
16
Loading...
