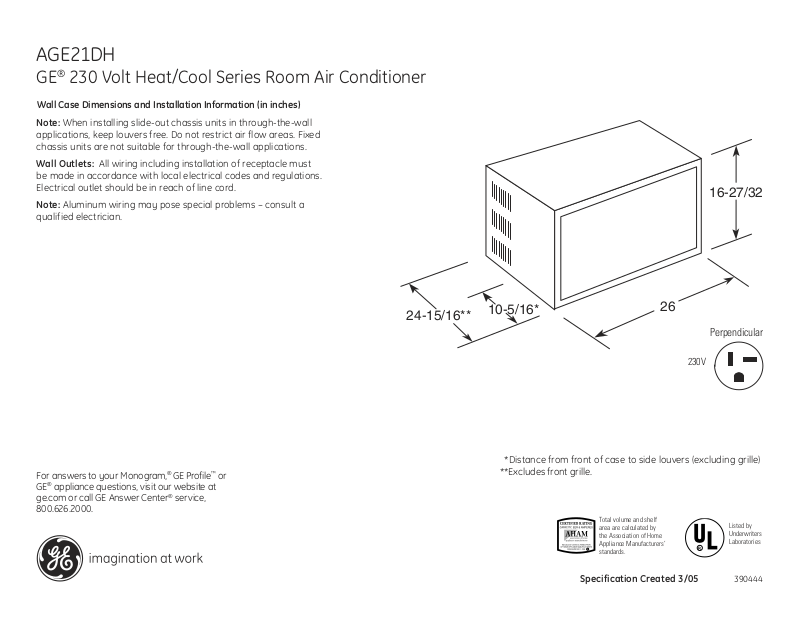

AGE21DH |
|
|
GE® 230 Volt Heat/Cool Series Room Air Conditioner |
|
|
Wall Case Dimensions and Installation Information (in inches) |
|
|
Note: When installing slide-out chassis units in through-the-wall |
|
|
applications, keep louvers free. Do not restrict air flow areas. Fixed |
|
|
chassis units are not suitable for through-the-wall applications. |
|
|
Wall Outlets: All wiring including installation of receptacle must |
|
|
be made in accordance with local electrical codes and regulations. |
|
|
Electrical outlet should be in reach of line cord. |
16-27/32 |
|
Note: Aluminum wiring may pose special problems – consult a |
||
|
||
qualified electrician. |
|
24-15/16** 10-5/16* |
26 |
|
Perpendicular
230V
For answers to your Monogram,® GE Profile™ or GE® appliance questions, visit our website at ge.com or call GE Answer Center® service, 800.626.2000.
*Distance from front of case to side louvers (excluding grille) **Excludes front grille.
|
Total volume and shelf |
Listed by |
|
area are calculated by |
|
|
Underwriters |
|
|
the Association of Home |
|
|
Laboratories |
|
|
Appliance Manufacturers’ |
|
|
R |
|
R |
standards. |
Specification Created 3/05 |
390444 |
AGE21DH
GE® 230 Volt Heat/Cool Series Room Air Conditioner
Features and Benefits
• 21,000/20,500 Cooling BTU
• 8.5/8.5 EER
• 11,600/9,400 Heating BTU
• Multiple Cooling / Heating Speeds
• Vent / Exhaust
• Adjustable Thermostat
• Auto CirculaireTM
• Four-Way Air Direction
• Easy Access Rigid Frame, Slide-Out Filter
• Model AGE21DH
Specification Created 3/05 |
390444 |
