GE AGE18DH Specification
R
R
AGE18DH
Premium, Deluxe and Value Model

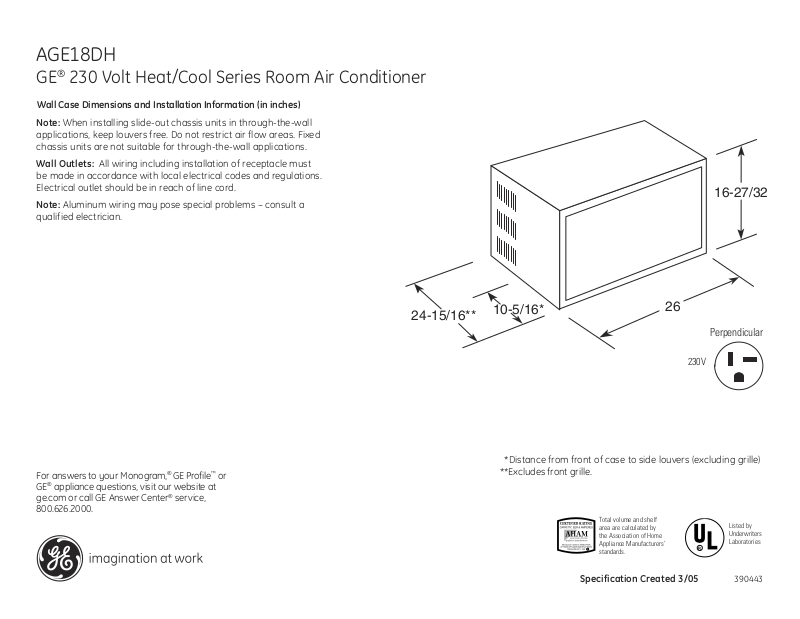

Wall Case Dimensions (in inches)
26
16-27/32
10-5/16*
24-15/16**
GE® 230 Volt Heat/Cool Series Room Air Conditioner
Wall Case Dimensions and Installation Information (in inches)
Note: When installing slide-out chassis units in through-the-wall
applications, keep louvers free. Do not restrict air flow areas. Fixed
chassis units are not suitable for through-the-wall applications.
Wall Outlets: All wiring including installation of receptacle must
be made in accordance with local electrical codes and regulations.
Electrical outlet should be in reach of line cord.
Note: Aluminum wiring may pose special problems – consult a
qualified electrician.
Perpendicular
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
230V
*Distance from front of case to side louvers (excluding grille)
**Excludes front grille.
Total volume and shelf
area are calculated by
the Association of Home
Appliance Manufacturers’
standards.
Specification Created 3/05
Listed by
Underwriters
Laboratories
390443
AGE18DH
GE® 230 Volt Heat/Cool Series Room Air Conditioner
Features and Benefits
• 18,000/17,500 Cooling BTU
• 9.7/9.7 E.E.R
• 11,600/9,400 Heating BTU
• Multiple Cooling / Heating Speeds
• Vent / Exhaust
• Adjustable Thermostat
• Auto CirculaireTM
• Four-Way Air Direction
• Easy Access Rigid Frame, Slide-Out Filter
• Model AGE18DH
Specification Created 3/05
390443
