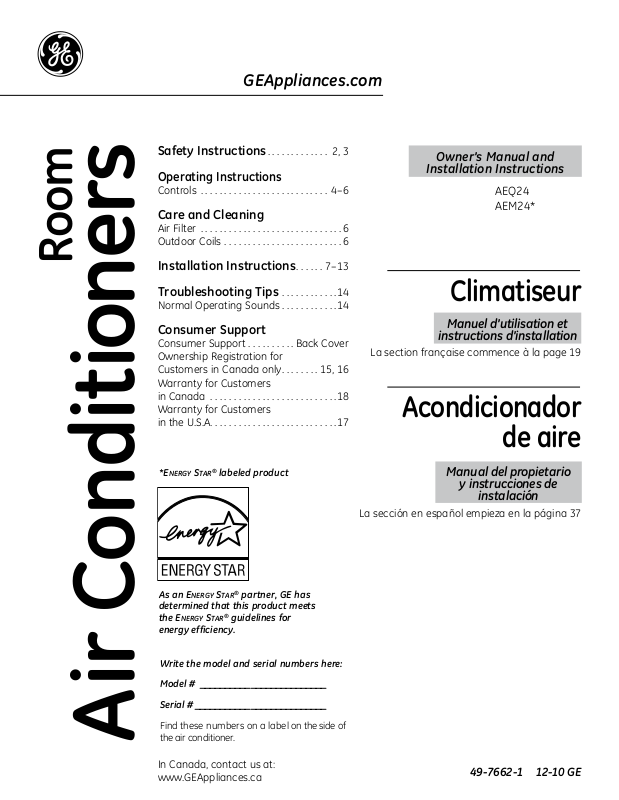

GE AEM2, AEQ2 User Manual

GEAppliances.com

Room

Safety Instructions . . . . . . . . . . . . . 2, 3

Operating Instructions

Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–6

Care and Cleaning

Air Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Outdoor Coils . . . . . . . . . . . . . . . . . . . . . . . . .6

Installation Instructions . . . . . . 7–13

Troubleshooting Tips . . . . . . . . . . . .14

Normal Operating Sounds . . . . . . . . . . . .14

Consumer Support

Consumer Support . . . . . . . . . . Back Cover

Ownership Registration for

Customers in Canada only . . . . . . . . 15, 16

Warranty for Customers

in Canada . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Warranty for Customers

in the U.S.A. . . . . . . . . . . . . . . . . . . . . . . . . . .17

Owner’s Manual and

Installation Instructions

AEQ2 AEM2 *

Climatiseur

Manuel d’utilisation et

instructions d’installation

La section française commence à la page 19

Acondicionador

de aire

*EnErgy Star® labeled product

As an EnErgy Star® partner, GE has determined that this product meets the EnErgy Star® guidelines for energy efficiency.

Write the model and serial numbers here:

Model # _________________________

Serial # __________________________

Find these numbers on a label on the side of the air conditioner.

Air Conditioners

In Canada, contact us at: www.GEAppliances.ca

Manual del propietario

y instrucciones de

instalación

La sección en español empieza en la página 37

49-7662 12-10 GE

-1

IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING.

WARNING!

For your safety, the information in this manual must be followed to minimize the risk of fire, electric shock or personal injury.

SAFETY PRECAUTIONS

n Use this appliance only for its intended

purpose as described in this Owner’s Manual.

n This air conditioner must be properly

installed in accordance with the Installation Instructions before it is used.

n Never unplug your air conditioner by pulling

on the power cord. Always grip plug firmly and pull straight out from the receptacle.

n Replace immediately all electric service

cords that have become frayed or otherwise damaged. A damaged power supply cord must be replaced with a new power supply cord obtained from the manufacturer and not repaired. Do not use a cord that shows cracks or abrasion damage along its length or at either the plug or connector end.

n Turn the unit OFF and unplug your air

conditioner before cleaning.

n GE does not support any servicing of the

air conditioner. We strongly recommend that you do not attempt to service the air conditioner yourself.

n For your safety…do not store or use

combustible materials, gasoline or other flammable vapors or liquids in the vicinity of this or any other appliance.

n All air conditioners contain refrigerants,

which under federal law must be removed prior to product disposal. If you are getting rid of an old product with refrigerants, check with the company handling disposal about what to do.

n If the receptacle does not match the plug,

the receptacle must be changed out by a qualified electrician.

n These R410A air conditioning systems

require contractors and technicians to use tools, equipment and safety standards approved for use with this refrigerant. DO NOT use equipment certified for R22 refrigerant only.

HOW TO CONNECT ELECTRICITY

Do not, under any circumstances, cut or remove the third (ground) prong from the power cord. For personal safety, this appliance must be properly grounded.

DO NOT use an adapter plug with this appliance.

The power cord of this appliance is equipped with a 3-prong (grounding) plug which mates with a standard 3-prong (grounding) wall outlet to minimize the possibility of electric shock hazard from this appliance.

Power cord includes a current interrupter device. A test and reset button is provided on the plug case. The device should be tested on a periodic basis by first pressing the TEST button and then the RESET button while plugged into the outlet. If the TEST button does not trip or if the RESET button will not stay engaged, discontinue use of the air conditioner and contact a qualified

service technician.

Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded.

Where a 2-prong wall outlet is encountered, it is your personal responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet.

The air conditioner should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating plate.

This provides the best performance and also prevents overloading house wiring circuits which could cause a fire hazard from overheated wires.

See the Installation Instructions, Electrical Requirements section for specific electrical connection requirements.

GEAppliances.com

WARNING!

USE OF EXTENSION CORDS

RISK OF FIRE. Could cause serious injury or death.

• DO NOT use an extension cord with this Window Air Conditioner.

• DO NOT use surge protectors or multi-outlet adaptors with this Window Air Conditioner.

READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY SAVE THESE INSTRUCTIONS

About the controls on the air conditioner

Features and appearance will vary. Lights next to the touch pads on the air conditioner control panel indicate the selected settings.

NOTE: The display always shows the room temperature except when setting the Set temperature or the Delay timer.

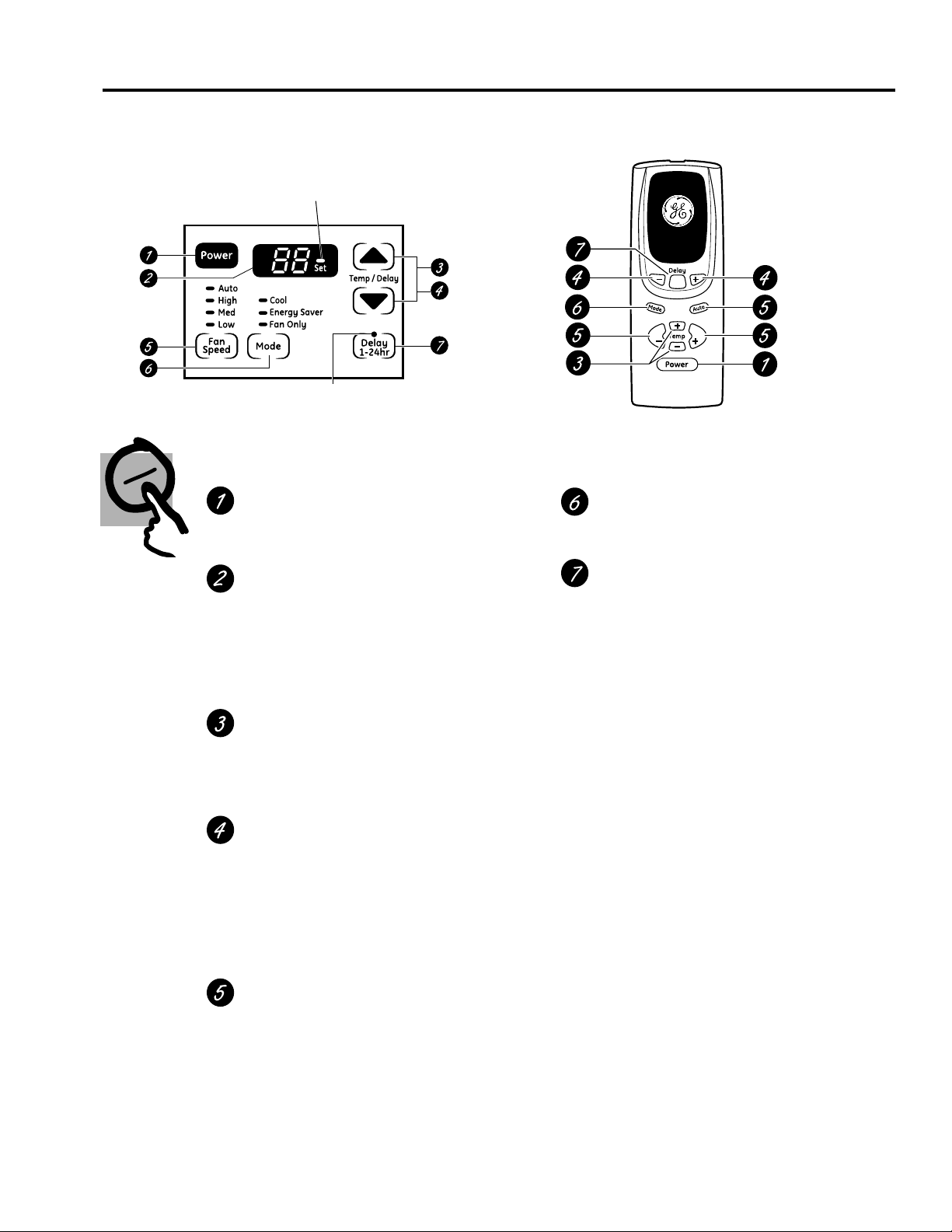

Air Conditioner Controls

Controls

Power Pad

Turns air conditioner on and off. When turned on, the display will show the room temperature.

Display

Shows the room temperature or time remaining on the Delay timer. Shows the Set temperature while setting the temperature in Cool or Energy Saver modes. The Set light will turn on while setting.

Temp Increase ▲ /Decrease ▼ Pads

Use to set temperature when in Cool or Energy Saver mode. The Set light will turn on while

setting.

Delay Timer Increase▲ (+) /Decrease ▼(–) Pads

Each touch of the Increase ▲ / Decrease ▼ pads on the unit or the Increase + / Decrease

– pads on the remote control will set the delay

time when using the Delay 1–24hr timer. The Set light will turn on while setting.

Fan Speed Pads

Use to set the fan speed to Low, Med, High or Auto on the unit. NOTE: On the remote control, use the fan speed Increase + /

Decrease – pads to set the fan speeds to Low, Med or High. Use the Auto pad to turn Auto

fan on.

Light indicates the unit is in the temperature or delay time Set mode.

Light indicates the delay timer is set.

Delay 1–24hr

Delay timer Decrease

Mode select

Fan speed Decrease

Temperature set Increase and Decrease

Fan Fan

Remote Control

Mode Pad

Use to set the air conditioner to Cool, Energy Saver or Fan Only mode.

Delay Pads/Delay 1-24hr Pad

Delay ON—When the air conditioner is off, it can be set to automatically come on in 1 to 24 hours at its previous mode and fan settings.

Delay OFF—When the air conditioner is on, it can be set to automatically turn off in 1 to 24 hours.

How to set: Press the Delay 1–24hr pad on the unit or the

Delay pad on the remote control. Each touch

of the Increase ▲ / Decrease▼pads on the unit or the Increase + / Decrease – pads on the remote control will set the timer in 1-hour intervals. The Set light will turn on while setting.

To review the remaining time on the Delay 1–24hr timer, press the Delay 1–24hr pad on the unit or the Delay pad on the remote control. Use the Increase ▲ / Decrease ▼ pads on the unit or the Increase + / Decrease – pads on the remote control to set a new time if desired.

To cancel the timer, press the Delay 1–24hr pad until the light on the Delay 1–24hr pad goes off.

Delay timer Increase

Auto Fan on

Fan speed Increase

Unit power on/off

Note: The default temperature reading on the display is degree Fahrenheit ( °F). To change the display to degree Celcius (°C), press the Temp Increase ▲ and Temp Decrease ▼ buttons together and hold for 3 seconds. Repeat the process to change back to degree Fahrenheit (°F)

GEAppliances.com

Do Not Operate in Freezing Outdoor Conditions

This cool-only air conditioner was not designed for freezing outdoor conditions. It must not be used in freezing outdoor conditions.

Remote Control

n To ensure proper operation, aim the remote

control at the signal receiver on the air conditioner.

n Make sure nothing is between the air conditioner

and the remote control that could block the signal.

n The remote control signal has a range of

up to 20 feet.

n Make sure batteries are fresh and installed

correctly as indicated on the remote control.

n Remote contains a magnet allowing it to attach

to metal surfaces.

Cool Mode

Use the Cool mode at Low, Med, High or Auto Fan Speed for cooling. Use the Temperature Increase ▲

/ Decrease ▼ pads to set the desired temperature between 64°F and 86°F in 1°F increments.

An electronic thermostat is used to maintain the room temperature. The compressor will cycle on and off to keep the room at the set level of comfort. Set the thermostat at a lower number and the indoor air will become cooler. Set the thermostat at a higher number and the indoor air will become warmer.

NOTE: If the air conditioner is off and is then turned on while set to a Cool setting or if turned from a fan setting to a Cool setting, it may take approximately 3 minutes for the compressor to start and cooling to begin.

Cooling Descriptions

For Normal Cooling—Select the Cool mode and High or Med fan with a middle set temperature.

For Maximum Cooling—Select the Cool mode and High fan with a lower set temperature.

For Quieter and Nighttime Cooling—Select the Cool mode and Low fan with a middle set

temperature.

Energy Saver Mode

Controls the fan.

ON—The fan will cycle on and off with the

compressor. This results in wider variations of room temperature and humidity. Normally used when the room is unoccupied. NOTE: The fan may continue to

run for a short time after the compressor cycles off.

Fan Only Mode

Use the Fan Only Mode at Low, Med or High fan speed to provide air circulation and filtering without cooling. Since fan-only settings do not provide cooling, a Set temperature cannot be entered. The room temperature will appear in the display.

Auto Fan Speed

Set to Auto fan speed for the fan speed to automatically set to the speed needed to provide optimum comfort settings with the set temperature.

If the room needs more cooling, the fan speed

Power Outage Recovery Feature

OFF—The fan runs all the time, while the compressor

cycles on and off.

NOTE: Auto Fan Speed cannot be used when in the Fan Only Mode.

will automatically increase. If the room needs less cooling, the fan speed will automatically decrease.

NOTE: Auto Fan Speed cannot be used when in the Fan Only Mode.

In the case of a power outage or interruption, the unit will automatically restart in the settings last used after the power is restored. If the Delay 1–24hr

feature was set, it will resume countdown. You may need to set a new time if desired.

About the controls on the air conditioner

Additional important information.

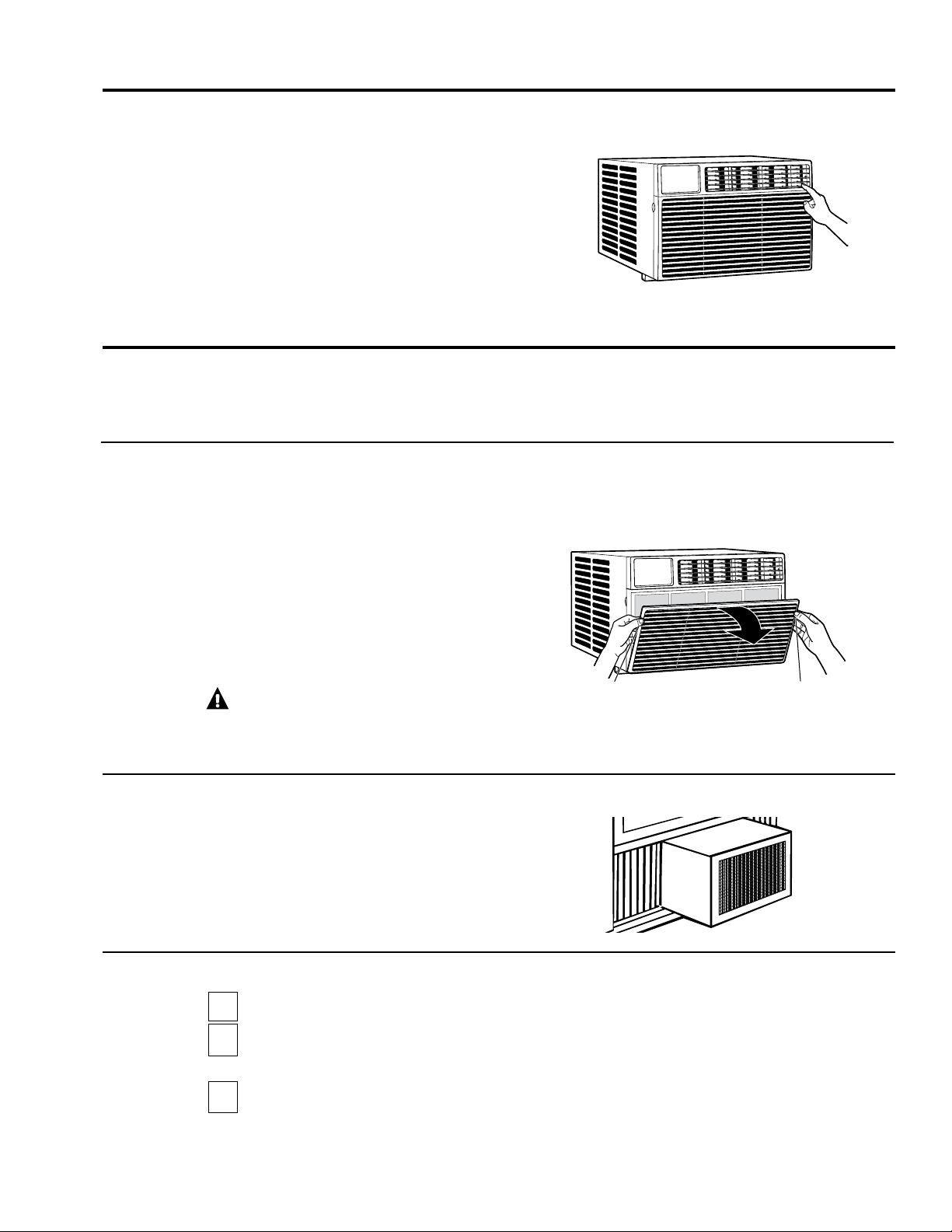

Air Direction

Use the lever to adjust the air direction left and right only.

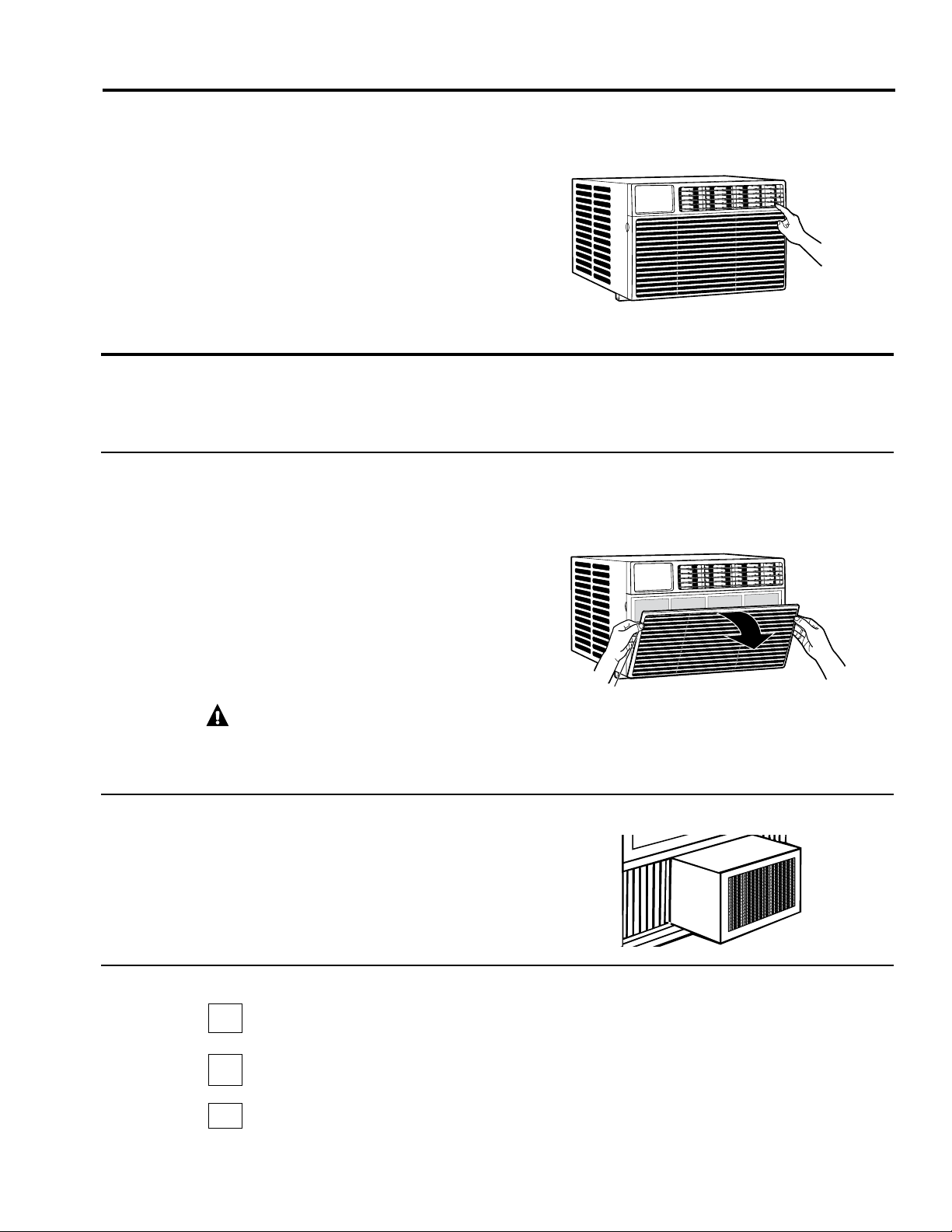

Care and cleaning of the air conditioner.

Grille and Case

Turn the air conditioner off and remove the plug from the wall outlet before cleaning.

Air Filter

The air filter behind the front grille should be checked and cleaned at least every 30 days or more often if necessary.

To clean, use water and a mild detergent. Do not use bleach or abrasives.

To remove:

Open the inlet grille by pulling downward on the tabs at the top upper corners of the inlet grille until the grille is in a 45º position. Remove the filter.

Clean the filter with warm, soapy water. Rinse and let the filter dry before replacing it. Do not clean the filter in a dishwasher.

CAUTION: DO NOT operate the air

conditioner without a filter because dirt and lint will clog it and reduce performance.

Outdoor Coils

The coils on the outdoor side of the air conditioner should be checked regularly. If they are clogged with dirt or soot, they may be professionally cleaned.

How to Insert the Batteries in the Remote Control

Remove the battery cover by sliding it according

to the arrow direction.

Insert new batteries, making sure that the (+)

and (–) of battery are installed correctly.

Reattach the cover by sliding it back

into position.

NOTES:

n Use 2 “AAA” (1.5 volt) alkaline batteries. Do not

use rechargeable batteries.

n Remove the batteries from the remote control if

the system is not going to be used for a long time.

n Do not mix old and new batteries. Do not mix

alkaline, standard (carbon-zinc) or rechargeable (ni-cad, ni-mh, etc) batteries.

Tab

Installation

Air Conditioner

Instructions

Questions? Call 800.GE.CARES (800.432.2737) or Visit our Website at: GEAppliances.com In Canada, call 1.800.561.3344 or visit www.GEAppliances.ca

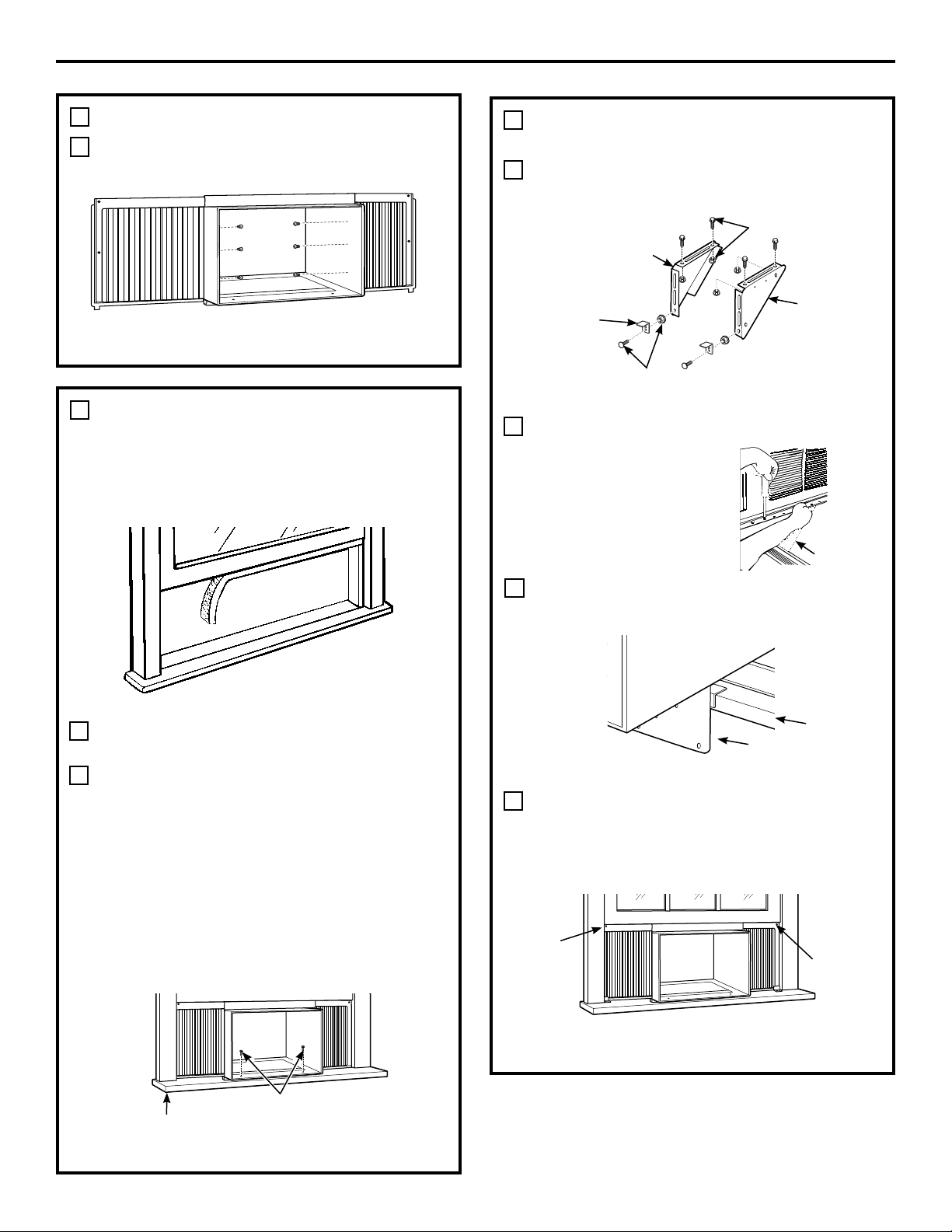

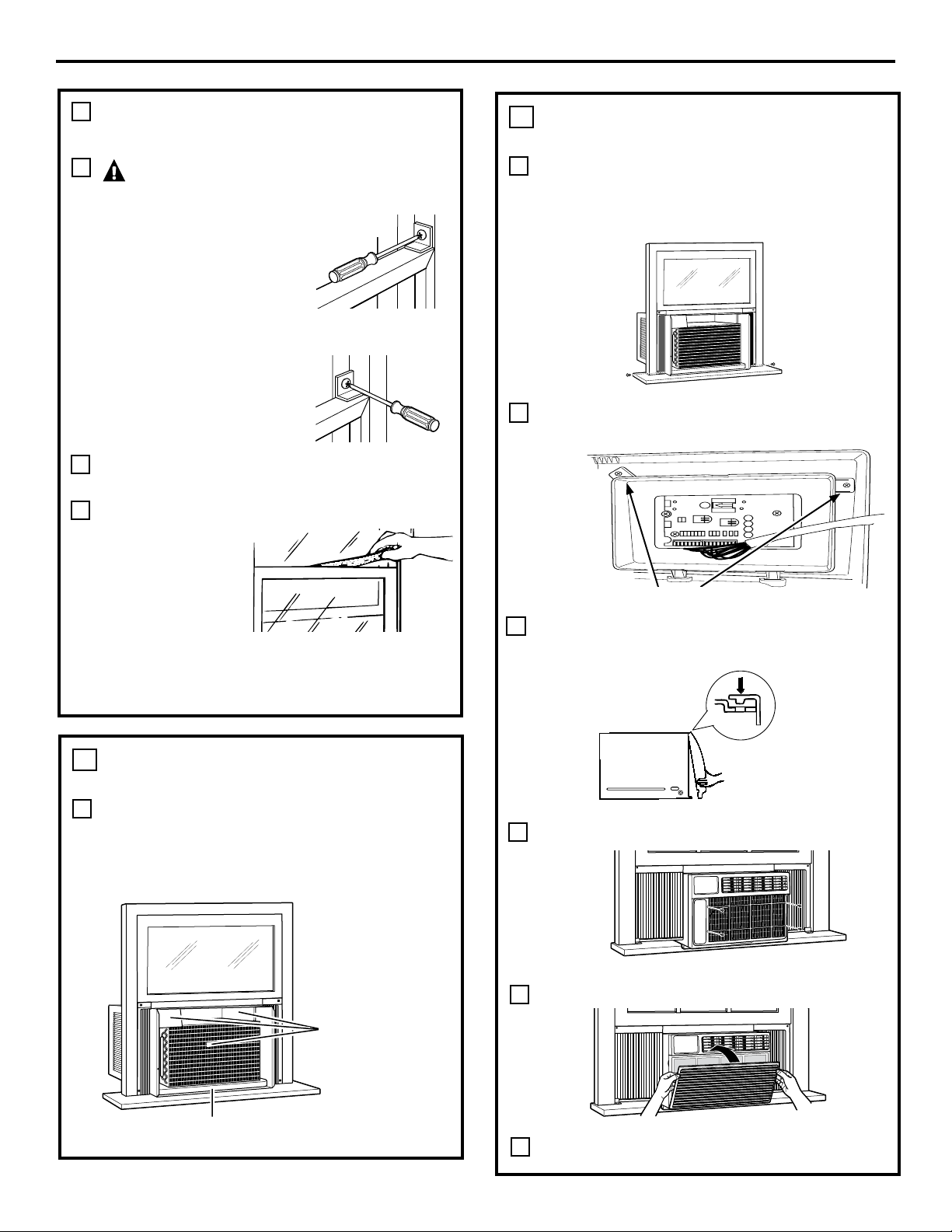

BEFORE YOU BEGIN

Read these instructions completely and carefully.

•

IMPORTANT — Save these instructions

for local inspector’s use.

•

IMPORTANT — Observe all governing

codes and ordinances.

•

Note to Installer – Be sure to leave these

instructions with the Consumer.

• Note to Consumer – Keep these instructions for future reference.

• Skill level – Installation of this appliance requires basic mechanical skills.

• Completion time –

• We recommend that two people install

this product.

• Proper installation is the responsibility of the installer.

• Product failure due to improper installation is not covered under the Warranty.

• You MUST use all supplied parts and use proper installation procedures as described in these instructions when installing this air conditioner.

Approximately 1 hour

CAUTION:

Do not, under any circumstances, cut or remove the third (ground) prong from the power cord.

Do not change the plug on the power cord of this air conditioner.

Aluminum house wiring may present special problems—consult a qualified electrician.

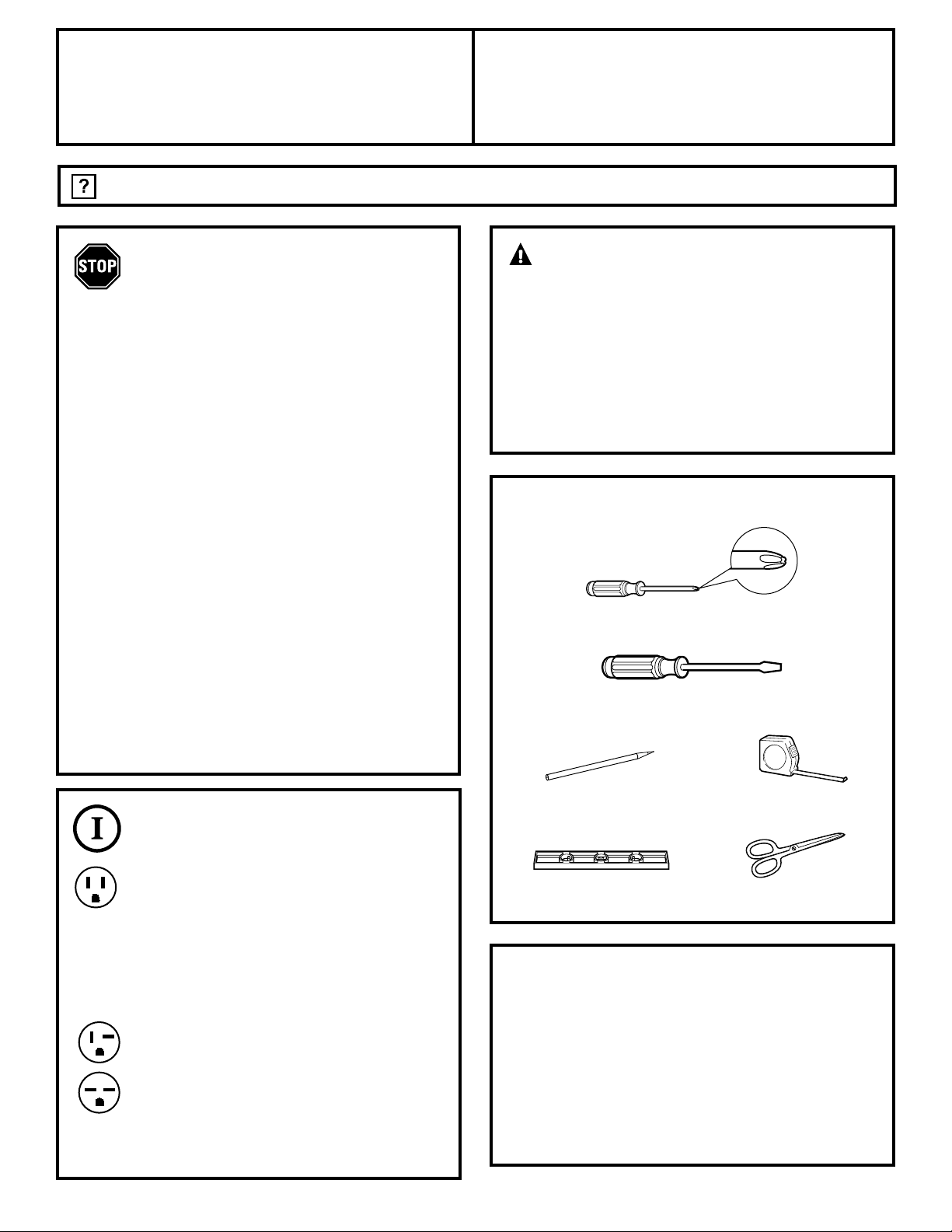

TOOLS YOU WILL NEED

Phillips head screwdriver

Flat-blade screwdriver

ELECTRICAL REQUIREMENTS

Some models require a 115/120-volt AC,

60-Hz grounded outlet protected with a 15-amp time-delay fuse or circuit breaker.

The 3-prong grounding plug minimizes the possibility of electric shock hazard. If the wall outlet you plan to use is only a 2-prong outlet, it is your responsibility to have it replaced with a properly grounded 3-prong wall outlet.

Some models require 230/208-volt AC,

protected with a time-delay fuse or circuit breaker. These models should be installed on their own single branch circuit for best performance and to prevent overloading house or apartment wiring circuits, which could cause a possible fire hazard from overheating wires.

Ruler or tape measurePencil

Level

Scissors or knife

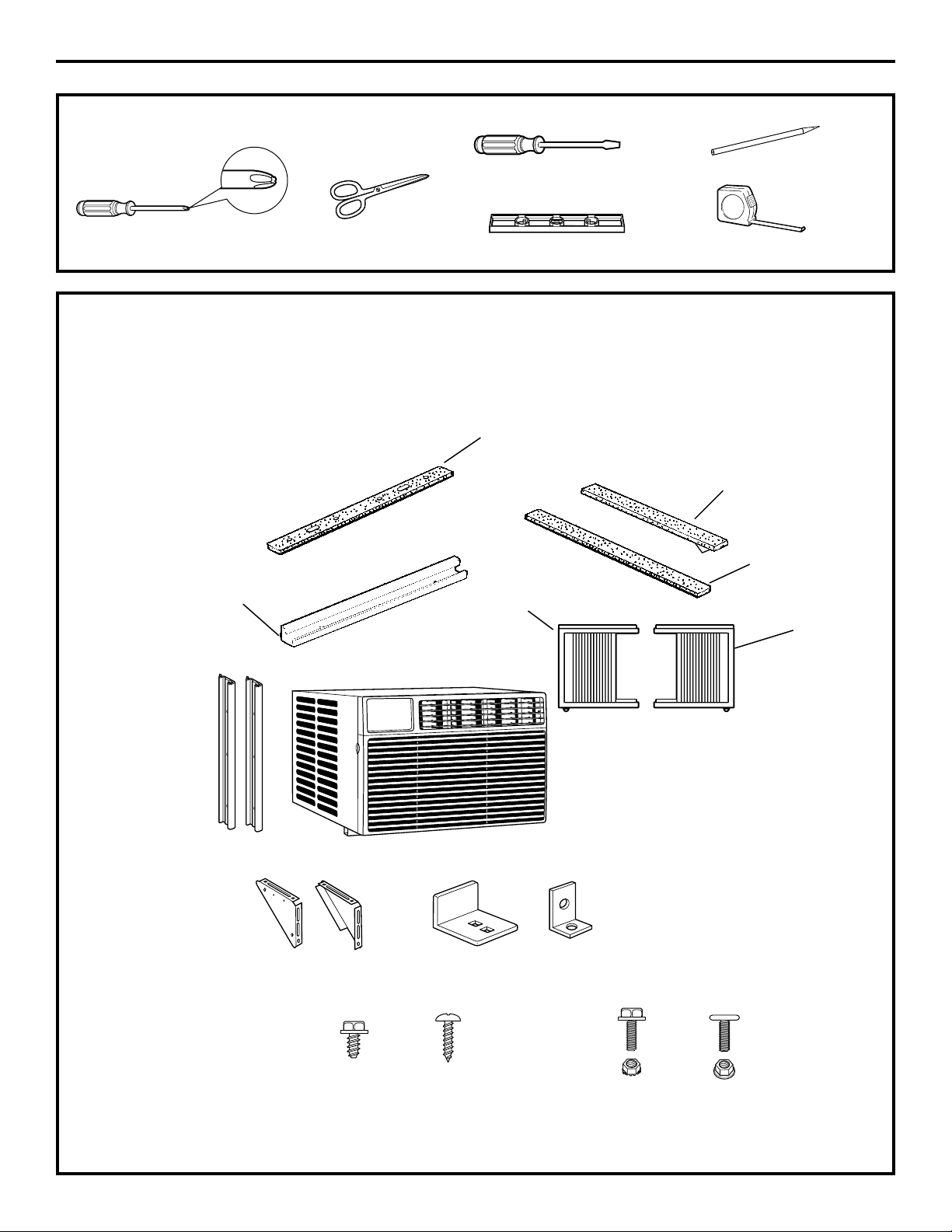

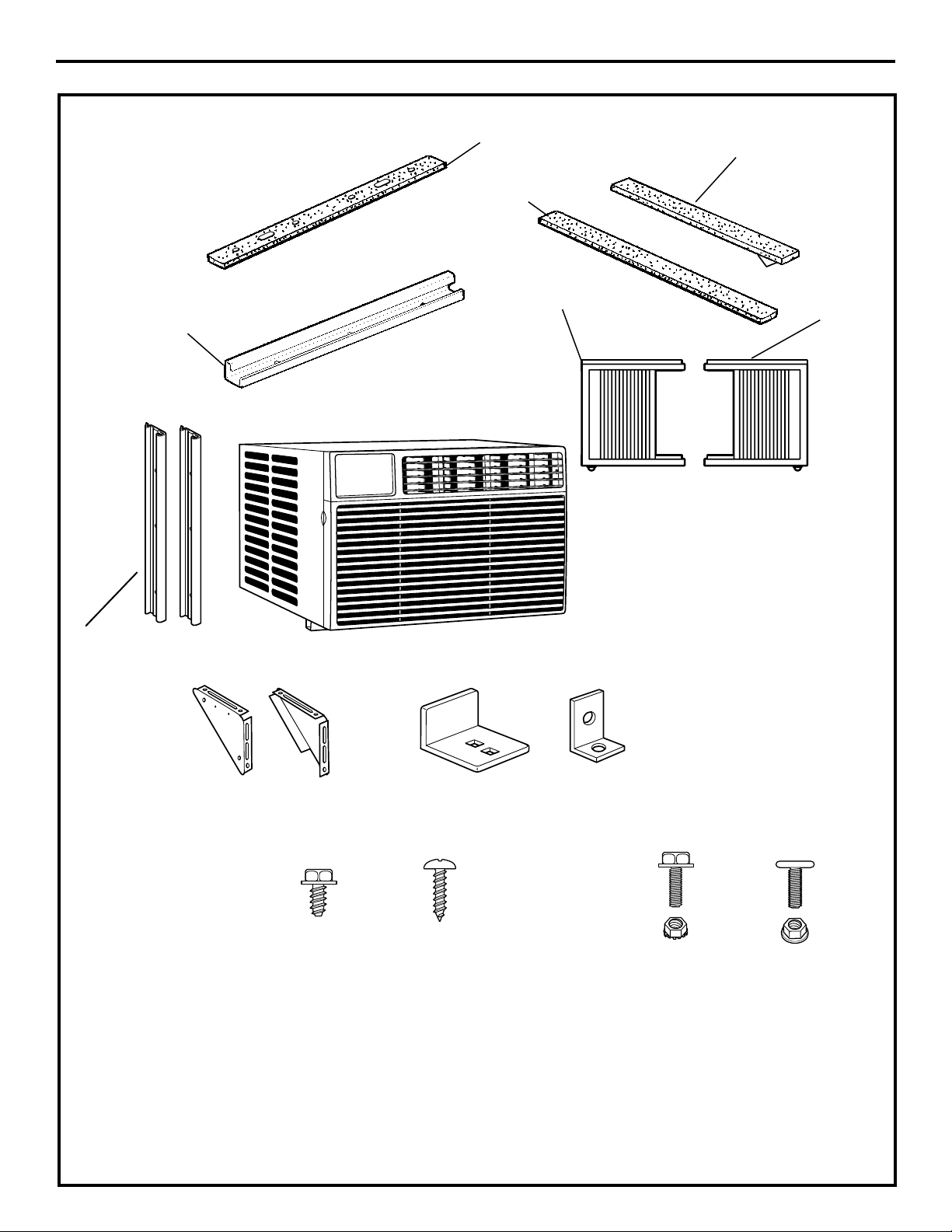

PARTS INCLUDED

(Appearance may vary)

Top

mounting

rail

Installation Instructions

Top rail gasket (1)

Foam top window

gasket (1)

Left

accordion

panel

Window

sash seal

Right

accordion

panel

Side rail (2)

V-supports (2)

Type A

screws (10)

Sill angle

bracket (2)

Type C

screws (5)

Window

locking bracket

(1)

Type E bolt with nut (4)

Type F bolt with nut (2)

Installation Instructions

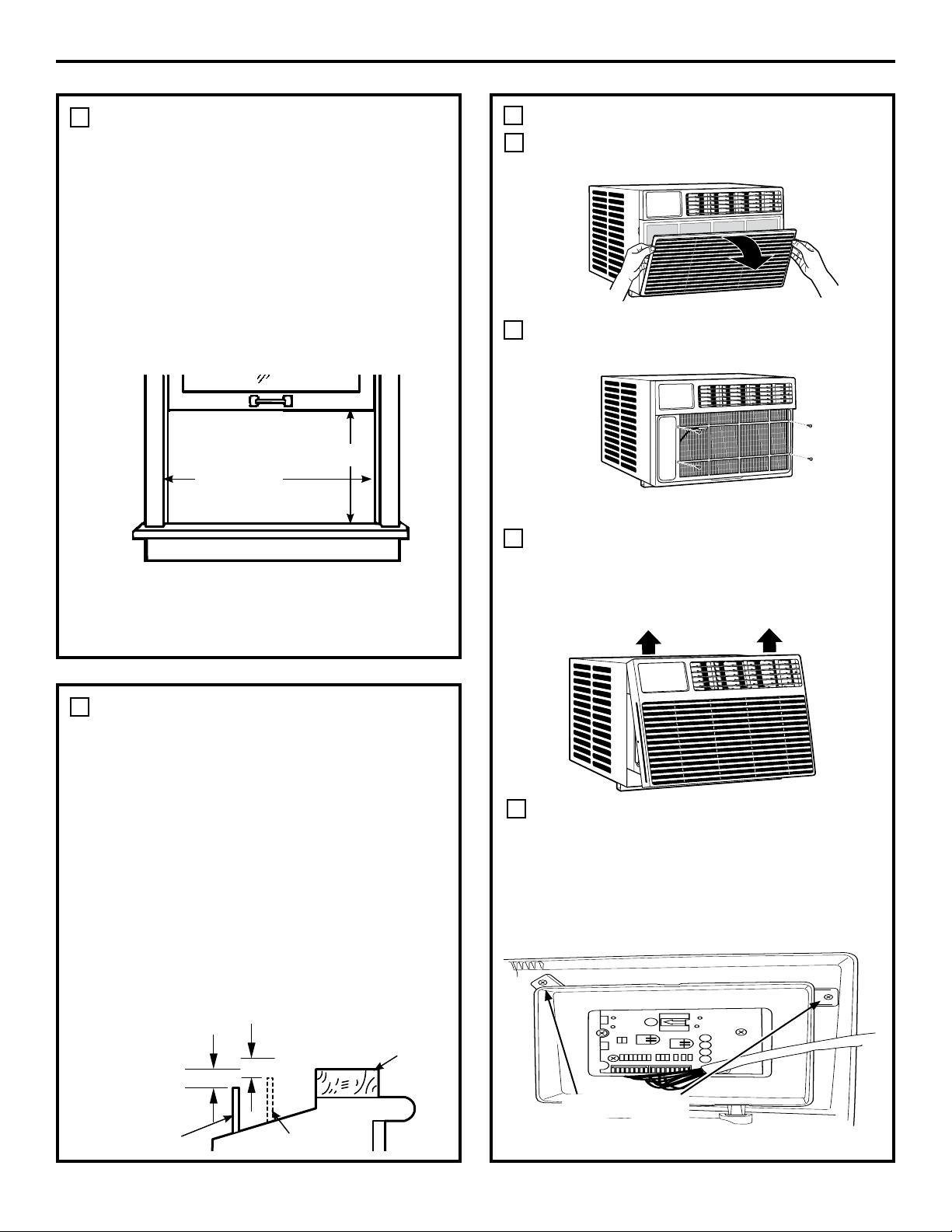

WINDOW REQUIREMENTS

•These instructions are for a standard double-hung window. You will need to modify them for other types of windows.

•All supporting parts must be secured to firm wood, masonry or metal.

•The electrical outlet must be within reach of the power cord.

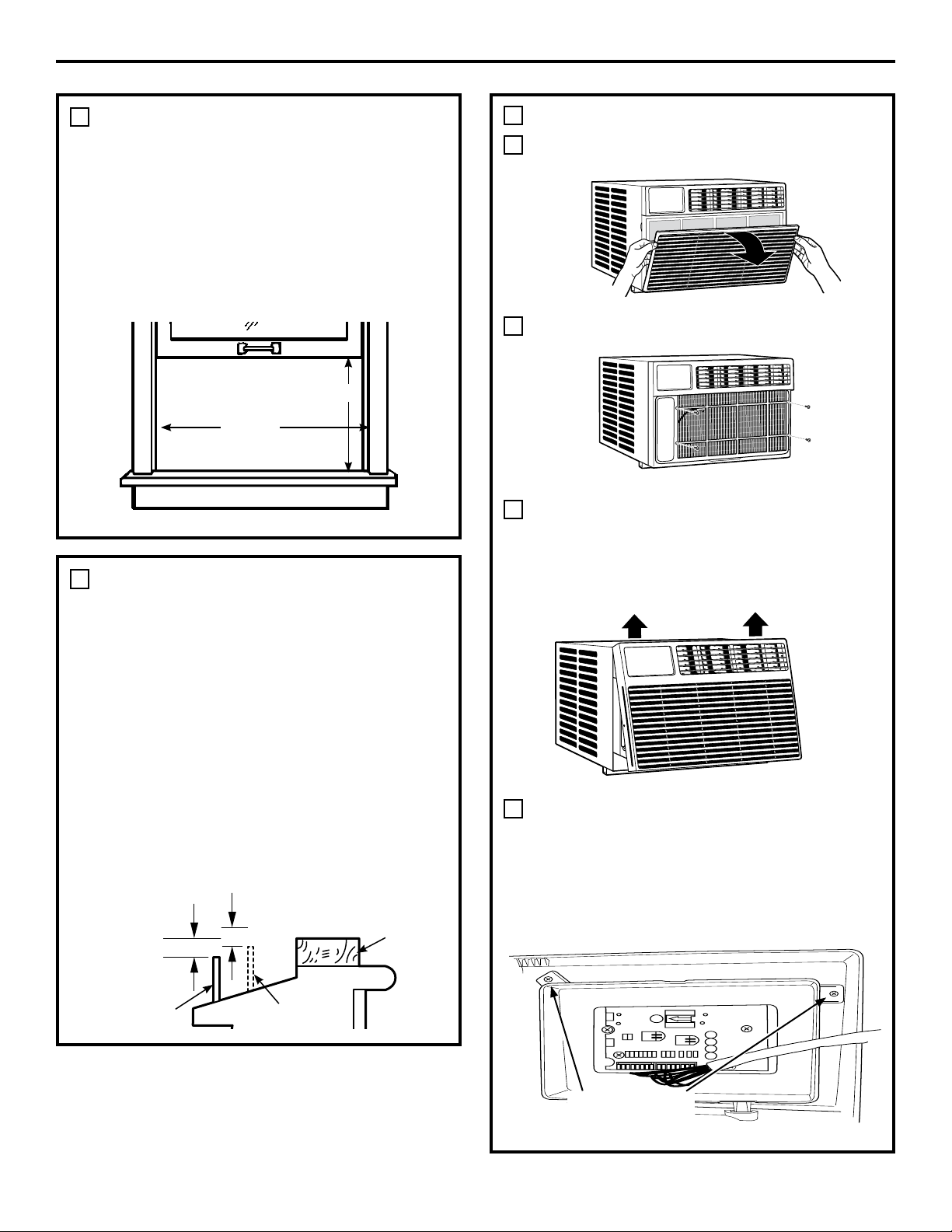

•Follow the dimensions in the table and illustration for your model.

19 1/4”

29” - 41”

(With accordion panels)

STORM WINDOW REQUIREMENTS

A storm window frame will not allow the air conditioner to tilt toward the outside, and will keep it from draining properly. To adjust for this, attach a piece of wood to the sill.

WOOD PIECES WIDTH: 2” LENGTH: Long enough to fit inside the window

frame. THICKNESS: To determine the thickness, place a

piece of wood on the sill to make it 1/2″ higher than the top of the storm window frame or the vinyl frame.

Attach securely with nails or screws provided by the installer.

1/2″ higher than vinyl frame (on some windows)

1/2″ higher than storm window frame

Storm window frame

Sill

Vinyl frame

Wood

PREPARE THE AIR CONDITIONER

Pull down the front panel and remove the filter.

Remove the front panel by lifting up at an angle.

Remove the four front screws. Save them

for reinstalling the front housing.

Grasp the lower corners of the grille while pressing in on the case sides with your finger tips. Pull out to release and lift it up.

NOTE: Do not pull the bottom edge toward you more than 3″ or you may damage the tabs of the grille.

When the front grille is removed the

control panel will still be attached by a harness. Turn the grille around so you can see the back side of the grille. Remove the 2 screws to separate the control panel housing from the grille.

NOTE: Be sure to save these screws. You will need them later in the installation.

Remove Screws

Installation Instructions

WINDOW FILLER PANEL

SIDE RETAINER

Installation Instructions

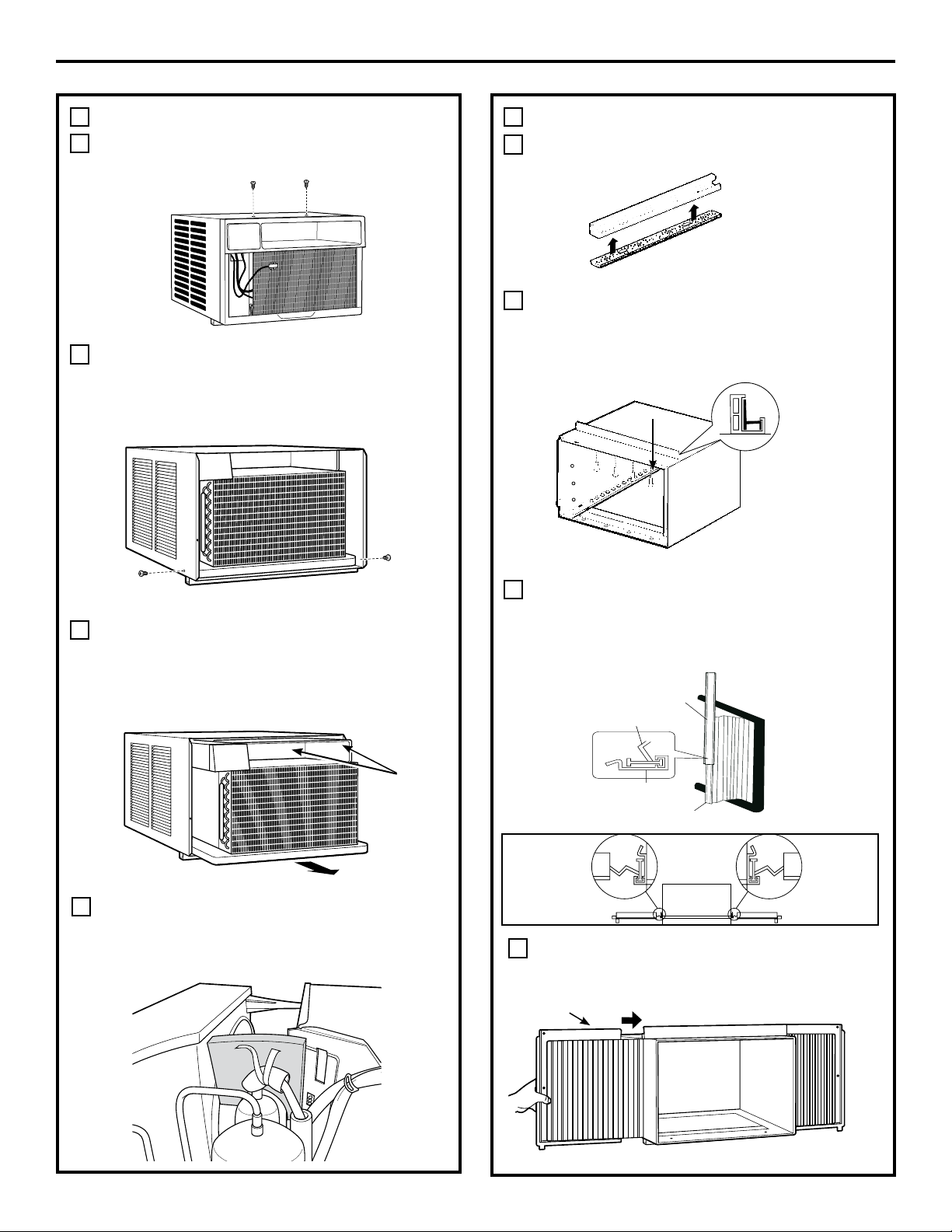

PREPARE THE AIR CONDITIONER

(continues)

Remove the shipping screws located on

the top of the case.

PREPARE THE CASE

Attach the top rail gasket to the bottom

of the top rail.

Install the top mounting rail with 4 type A

screws from the inside of the case. Press firmly to drive the screws into the gasket and through the top mounting rail.

Remove the ground screws from each

side of the case. Keep it in a safe location.

NOTE: Be sure to save this screw. You will need them later in the installation.

Slide the air conditioner from the case by

gripping the base pan handle and pulling forward while bracing the case. Do not pull or lift on the styrofoam discharge area.

FRONT

Do not

pull

or lift

in this

area—

damage

to the

unit may

result

Top mounting rail

Slide each side retainer onto the edge of

each according panel. The figure shows the orientation of each accordion panel and side retainer assembly relative to the case from a top view of the unit.

Your unit may come with internal packaging. This packaging must be removed prior to installing the air conditioner back into the cabinet.

Slide the left and right accordion panels

into the top and bottom mounting rails.

Top left

Bottom mounting rail

Top right

Installation Instructions

PREPARE THE CASE (continues)

Attach the side retainers to the case using 6

type A screws.

PREPARE THE WINDOW AND INSTALL

THE CASE (continues)

Assemble the V-support and V-support

bracket with Type F nut and bolt

Left

Type E bolt and nut

PREPARE THE WINDOW AND INSTALL

THE CASE

Cut the window sash seal to the proper length. Peel off the backing and attach the seal to the underside of the window sash.

Open the window and mark the center of

the window sill.

Carefully slide the case into the window

and center the case. Lower the window behind the top mounting rail. Pull the bottom of the case forward so that the bottom mounting rail is tight against the back of the window stool. Mount the case to the window sill using 2 type C screws. Drill pilot holes, if necessary.

Sill angle bracket

V-support Type F bolt and nut

Position the V-supports

Right

on the case bottom so that they will be near the outside wall. Attach a V-support to each side of the bottom of the case with Type E bolts, 2 for

V-support

each support.

Adjust sill angle brackets to rest on sill.

Bracket

Extend the left and right accordion panels

to the vertical window sashes. Drill pilot holes and attach the top corners with 2 type C screws.

Type C screw

Sill

Type C screw

Stool

2 type C screws

Installation Instructions

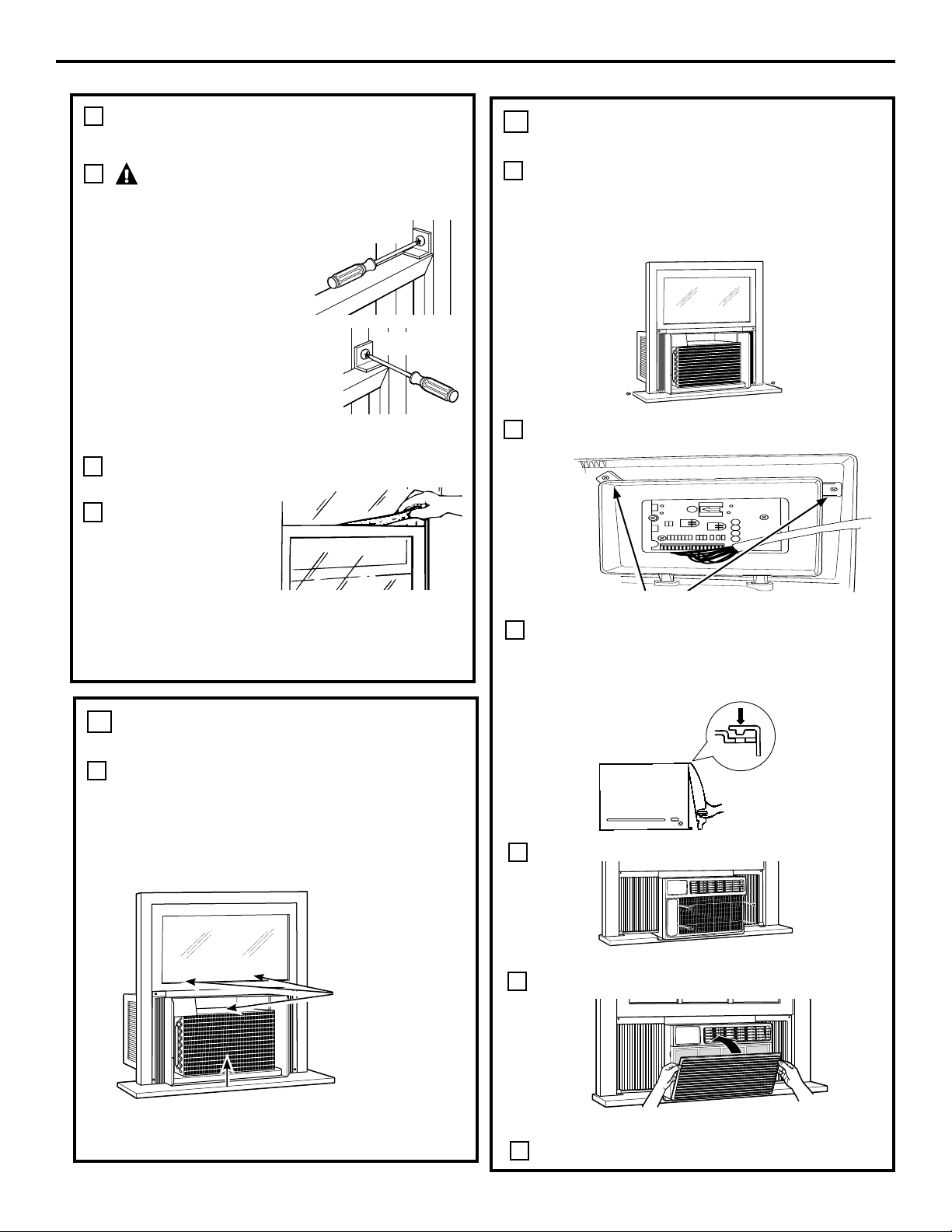

PREPARE THE WINDOW AND INSTALL

THE CASE (continues)

CAUTION:

To prevent broken glass or damage to windows, on vinyl or other similarly constructed windows, attach the window locking bracket to the window side jamb.

Attach the window locking bracket with one Type C screw.

Cut the foam top window gasket to the window width.

Vinyl

Wood

INSTALL THE AIR CONDITIONER

IN THE CASE (continues)

Replace the 2 screws removed earlier, one

on each side of the case.

IMPORTANT: THE GROUND SCREWS MUST BE REINSTALLED TO ENSURE PROPER GOUND.

Reinstall the control to the panel housing by

replacing the 2 screws you removed earlier.

Stuff the foam between the glass and the window to prevent air and insects from getting into the room. NOTE: If the gasket supplied does not fit your window, obtain appropriate material locally to provide a proper installation seal.

INSTALL THE AIR CONDITIONER

IN THE CASE

Slide the air conditioner into the case by

the base pan. Do not push on the controls, styrofoam air discharge housing or the finned coils. Make sure the air conditioner is firmly seated.

Install Screws

Attach the front grille to the case by inserting

the tabs on the grille into the slots on the front top of the case. Push the grille in.

Replace the screws.

Base Pan

Do not press on

these areas—

damage to the unit may result

Install the filter and the front grille.

Plug in the air conditioner.

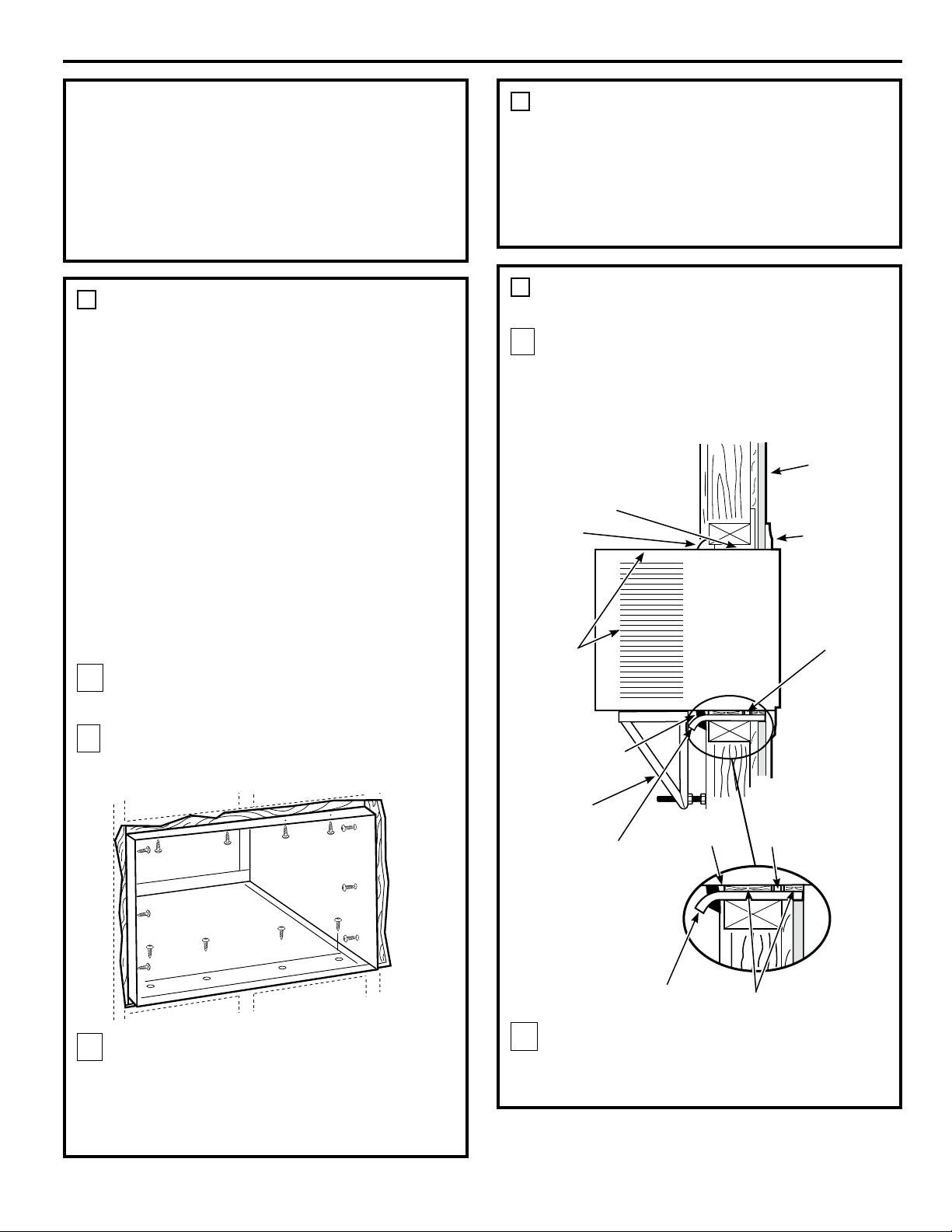

Through-the-Wall Installation Instructions—Optional

The case may be installed through-the-wall in both existing and new construction.

Read completely, then follow step-by-step.

NOTE: Obtain all materials locally for mounting the air conditioner throughthe-wall.

IMPORTANT

Through-the-wall installation is not appropriate if any of the side or top louvers in the case will be obstructed by the wall.

All side and top louvers in the case must project on the outdoor side of the wall.

The room side of the case must project into the room far enough to maximize the balance of the unit.

The case must be installed level from sideto-side and with a slight tilt from front to rear. Use a level; no more than a 1/2 bubble will be the correct case slant to the outside.

Lintel angle is required to support bricks or blocks above opening.

Flashing is required and should extend the length of the opening to ensure no inside cavity leakage occurs.

Remove the air conditioner from the case.

For specific instruction, refer to the Window Installation Instructions.

Make certain that a wall receptacle is available close to the hole location or make arrangements to install a receptacle.

IMPORTANT (cont.)

Secure with 14 wood screws anchored at

least an inch into the wall support structure.

NOTE: Drill pilot holes, if necessary, for proper installation. If the frame is oversized, use shims to prevent case distortion.

FINISH THE WALL OPENING

Caulk all four sides on the outdoor side of

the case to prevent moisture from getting through to the interior wall. Use of flashing (drip rail) will further prevent water from dripping inside the wall and down the outside of the building.

Lintel angle

Caulking

OUTSIDE

Air louvers (top and sides must project on the outdoor side of the wall)

Wood filler and caulking (above and below the flashing)

INSIDE

Plaster line

Trim molding (if desired)

Bottom rail

Place the case in the wall opening and

place wood support strips between the case bottom and the flashing on both sides of the bottom rail. They should be the same height as the bottom rail and the same length as the wall opening.

1313

Flashing (Drip rail)

Place the air conditioner into the case.

Case bottom

Wood support strips

Bottom rail

For specific instruction, refer to the Window Installation Instructions.

Troubleshooting Tips.

Problem Possible Causes What To Do

Air conditioner The air conditioner •Make sure the air conditioner plug is pushed does not start is unplugged. completely into the outlet.

The fuse is blown/circuit • Check the house fuse/circuit breaker box and replace breaker is tripped. the fuse or reset the breaker.

Power failure. •The unit will automatically restart in the settings last used after the power is restored.

•There is a protective time delay (approximately 3 minutes) to prevent tripping of the compressor overload. For this reason, the unit may not start normal cooling for 3 minutes after it is turned back on.

The current interrupter •Press the RESET button located on the power cord plug.

use of the air conditioner and contact a qualified service technician.

Air conditioner does Airflow is restricted. • Make sure there are no curtains, blinds or furniture not cool as it should blocking the front of the air conditioner.

The temp control may • In the Cool mode, press the Decrease pad.

The air filter is dirty. • Clean the filter at least every 30 days. See the Care and Cleaning section.

The room may have been hot. • When the air conditioner is first turned on, you need to allow time for the room to cool down.

Cold air is escaping. • Check for open furnace registers and cold air returns. Cooling coils have iced up. •See “Air conditioner freezing up” below.

device is tripped.

not be set correctly.

•If the RESET button will not stay engaged, discontinue

Air conditioner Ice blocks the air flow • Set the controls at High Fan or High Cool and set the freezing up and stops the air conditioner thermostat to a higher temperature.

The remote control The batteries are inserted • Check the position of the batteries. They should be is not working incorrectly. inserted in the opposite (+) and (–) direction.

The batteries may be dead. •Replace the batteries.

Water drips outside Hot, humid weather. • This is normal.

Water drips indoors The air conditioner is not • For proper water disposal, make sure the air conditioner

tilted to the outside. slants slightly from the case front to the rear.

Water collects in Moisture removed from air • This is normal for a short period in areas with little base pan and drains into base pan. humidity; normal for a longer period in very humid areas.

from cooling the room.

Normal Operating Sounds

n You may hear a pinging noise caused by

water being picked up and thrown against the condenser on rainy days or when the humidity is high. This design feature helps remove moisture and improve efficiency.

n You may hear the thermostat click when the

compressor cycles on and off.

n Water will collect in the base pan during

high humidity or on rainy days. The water may overflow and drip from the outdoor side of the unit.

n The fan may run even when the compressor

does not.

Notes.

GE Air Conditioner—One-Year Limited Warranty.

(For customers in the U.S.A.)

All warranty service provided by our Factory Service Centers,

or an authorized Customer Care

technician. To schedule service, visit us on-line at ge.com, or call 800.GE.CARES (800.432.2737). Have serial number and model number available when calling

Staple your receipt here.

Proof of the original purchase

date is needed to obtain service

under the warranty.

for service.

For The Period Of: GE Will Replace:

One Year Any part of the air conditioner which fails due to a defect in materials or workmanship. From the date of the During this limited one-year warranty, GE will also provide, free of charge, all labor and related original purchase service to replace the defective part.

What Is Not Covered:

n Service trips to your home to teach you how to

use the product.

n Improper installation, delivery or maintenance. If you

have an installation problem, or if the air conditioner is of improper cooling capacity for the intended use, contact your dealer or installer. You are responsible for providing adequate electrical connecting facilities.

n Failure of the product resulting from modifications to

the product or due to unreasonable use including failure to provide reasonable and necessary maintenance.

n In commercial locations, labor necessary to move the

unit to a location where it is accessible for service by an individual technician.

n Replacement of house fuses or resetting of circuit

breakers.

n Failure due to corrosion on models not corrosion-

protected.

n Damage to the product caused by improper power

supply voltage, accident, fire, floods or acts of God.

n Incidental or consequential damage caused by possible

defects with this air conditioner.

n Damage caused after delivery.

EXCLUSION OF IMPLIED WARRANTIES—Your sole and exclusive remedy is product repair as provided in

this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law.

This warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within the USA. If the product is located in an area where service by a GE Authorized Servicer is not available, you may be responsible for a trip charge or you may be required to bring the product to an Authorized GE Service location for service. In Alaska, the warranty excludes the cost of shipping or service calls to your home.

Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state’s Attorney General.

Warrantor: General Electric Company. Louisville, KY 40225

+ 39 hidden pages
