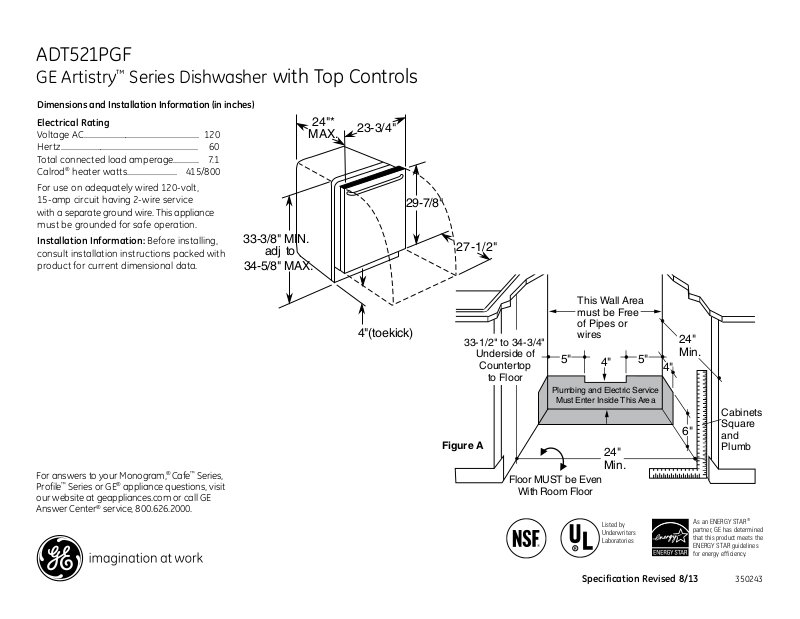

ADT521PGF
GE Artistry™ Series Dishwasher with Top Controls
Dimensions and Installation Information (in inches)
Electrical Rating |
|
|
|
24"* |
Voltage AC.......................................................... |
120 |
|
|
MAX. |
Hertz..................................................................... |
60 |
|
|
|
Total connected load amperage............. |
7.1 |
|
|
|
|
|
|
||
Calrod® heater watts......................... |
415/800 |
|
|
|
For use on adequately wired 120-volt, |
|
|
|
|
15-amp circuit having 2-wire service |
|
|
|
|
|
|
|
||
with a separate ground wire. This appliance |
|
|
|
|
must be grounded for safe operation. |
|
|
|
|
Installation Information: Before installing, |
33-3/8" MIN. |
|||
consult installation instructions packed with |
adj to |
|||
product for current dimensional data. |
34-5/8" MAX. |
For answers to your Monogram,® Cafe™ Series, Profile™ Series or GE® appliance questions, visit our website at geappliances.com or call GE Answer Center® service, 800.626.2000.
23-3/4"
29-7/8"
27-1/2"
|
|
|
|
|
|
|
|
|
|
|
|
|
|
This Wall Area |
|
|
|
||
|
|
|
|
must be Free |
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
of Pipes or |
|
|
|
|
|
4"(toekick) |
|
|
|
|
|
|
|
||
|
|
wires |
|
|
|
|
|
||
|
33-1/2" to 34-3/4" |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
Underside of |
5" |
4" |
5" |
|
|
|
||
|
Countertop |
|
|
|
|||||
|
|
4" |
|
||||||
|
|
|
|
|
|
|
|
to Floor
Plumbing and Electric Service
Must Enter Inside This Area
Figure A |
|
|
24" |
|
|
|
|
||
|
|
|
Min. |
|
|
|
|
||
|
Floor MUST be Even |
|||
|
With Room Floor |
24"
Min.
Cabinets
Square 6" and
Plumb
|
Listed by |
|
As an Energy Star® |
|
|
||
|
|
partner, GE has determined |
|
|
Underwriters |
|
|
|
|
that this product meets the |
|
|
Laboratories |
|
|
|
|
Energy Star guidelines |
|
|
|
|
|
|
|
|
for energy efficiency. |
|
|
|
|
Specification Revised 8/13 |
350243 |
ADT521PGF
GE Artistry™ Series Dishwasher with Top Controls
Features and Benefits
•GE’s most advanced wash system - Consistently clean and dry dishes are ensured with GE’s most advanced wash system, featuring 65% more wash power.*
*Wash power delivered to each rack. Compared to previous GE models.
•Piranha™ Hard Food Disposer with Removable Filter - To ensure consistently clean items, this stainless steel blade rotates at 3,600 RPM to pulverize food particles and helps to prevent large particles from clogging the wash arms
•Steam PreWash - Loosens tough soils before any cycle virtually eliminating the need for soaking or pre-rinsing dishes
•Sanitize option (NSF Residential) - High-temperature rinse sanitizes and reduces 99.99% of bacteria found on dishes
•SpaceMaker® Silverware Basket - Enjoy table-ready silverware and loading flexibility with this unique basket that can be placed on the rack or onto the door
•Pearlescent dark gray nylon racks with ball tip tines - Offer durability and secure dishes
•2/4/8-Hour Delay Start - Wash dishes at your convenience
•Model ADT521PGFWS - White
•Model ADT521PGFBS - Black
