GE 500A280P012 User Manual
Dryer
Use and Care Guide
With Installation Instructions
Safety Instructions ................ 3, 4
Installation Instructions
Exhaust ............................................6, 7
Electric Dryer.......................................8
Gas Dryer ........................................8, 9
Reversible Door Instructions .............5
Operating Instructions, Tips
Automatic Drying..............................13
About the Drying Center ..................14
Color Logic ........................................11
Drying Selection Guide ..............12, 13
Electronic Sensor Control ................13
Extra Care Program ....................10, 12
Knits Drying Tips ........................11, 12
Lint Filter............................................11
Loading........................................11, 16

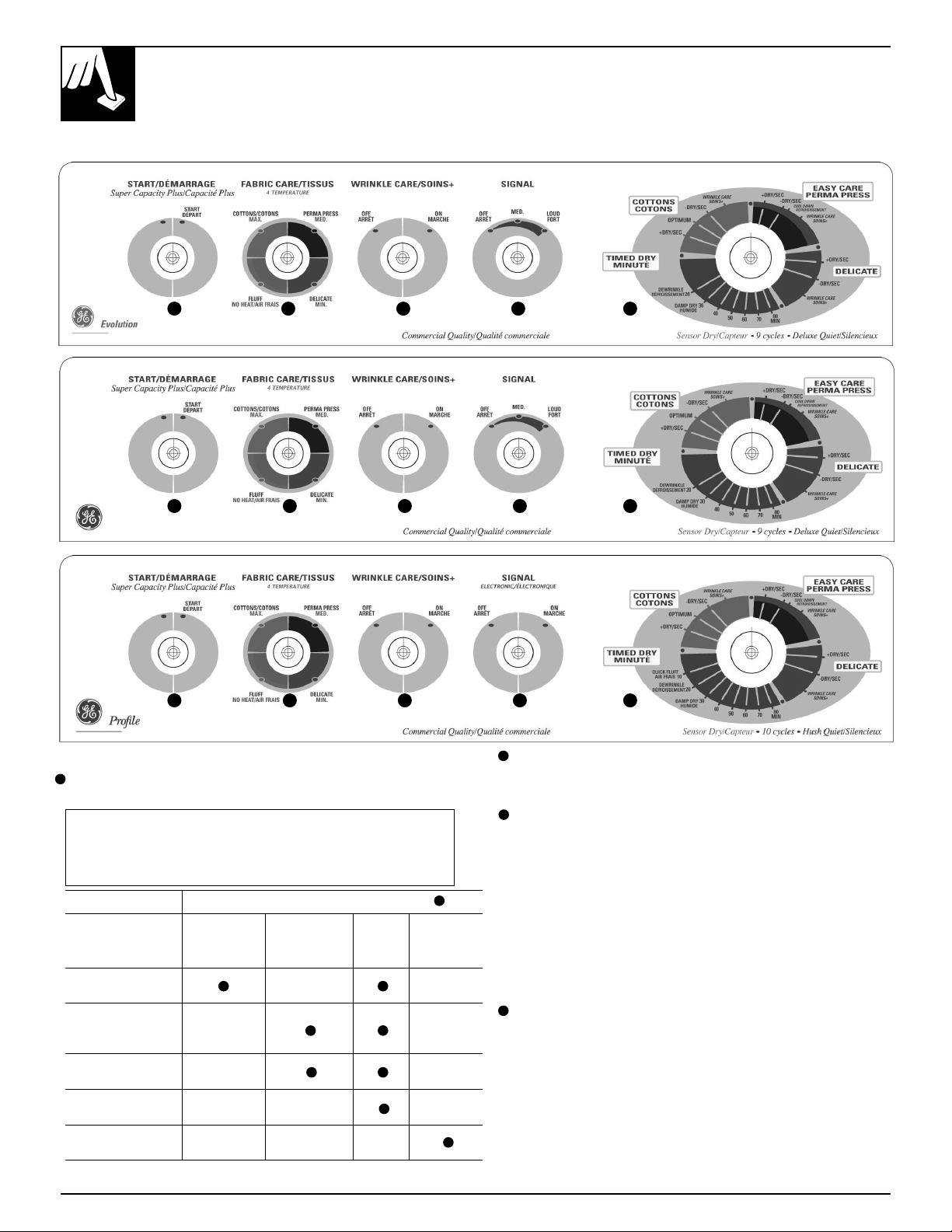

Operating the Dryer...10, 11, 12, 13, 14
Permanent Press
Drying Tips ...............................11, 16
Sorting Clothes ...........................11, 12
Special Instructions ..........................12
Timed Drying...............................12, 13
End Cycle Signal...............................10
Care and Cleaning
Dryer Exhaust....................................15
Exterior ..............................................11
Light Bulb Replacement...................13
Lint Filter............................................11
Problem Solver ........................ 16
Consumer Services
Camco Service Telephone Numbers ..17
Model and Serial Numbers................2
Repair Service .....................................2
Warranty............................................18
www.geappliancescanada.com
For service call:
1-800-361-3400
RECYCLED PAPER
RECYCLABLE
We care about our environment
500A280P012
HELP US HELP YOU
Read this book carefully.
It is intended to help you operate and
maintain your new dryer properly.
Keep it handy for answers to your
questions.
Save time and money.
Before you request service...
check the Problem Solver section, it
lists causes of minor operating
problems that you can correct
yourself.
For further information you can call us.
Camco’s service phone numbers are
listed on page 17.
If you received a
damaged dryer...
Immediately contact the dealer (or
builder) that sold you the dryer.
Write down the model
and serial numbers.
You’ll find them on a label on the
front of the dryer behind the door.
These numbers are also on the
Consumer Product Ownership
Registration Card that came with
your dryer. Before sending in this
card, please write these numbers
here:
Model Number
Serial Number
Use these numbers in any
correspondence or service calls
concerning your dryer.
WARNING: For your safety the information in this manual must be followed to minimize the
risk of fire or explosion or to prevent property damage, personal injury or death.
– Do not store or use gasoline or other
flammable vapors and liquids in the vicinity
of this or any other appliance.
– WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch;
do not use any phone in your building.
• Clear the room, building or area of all
occupants.
IF YOU NEED SERVICE...
Please Call: 1-800-361-3400
Camco Service Contracts
Your new dryer is a well designed and engineered product.
Before it left the factory, it went through rigorous tests,
just to make sure it was as problem-free as possible. And
you have a warranty to protect you against manufacturing
problems during the period of your dryer warranty.
Camco Service Contracts are available to provide the
• Immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions.
• If you cannot reach your gas supplier, call
the fire department.
– Installation and service must be performed
by a qualified installer, service agency, or the
gas supplier.
same trouble-free service for as long as you own your
appliance. Should your appliance require service after the
warranty has expired, a Camco Service Contract takes
care of any repairs your appliance needs – both parts and
labour.
For further information about Camco’s service phone
numbers, refer to page 17.
2
IMPORTANT SAFETY INSTRUCTIONS
Read all instructions before using this appliance
Warning - It is extremely important that you read and adhere to the
following instructions. Failure to do so could cause bodily injuries
and / or property damage due to fire.
• Use this appliance only for its intended purpose
as described in this Use and Care Book.
This dryer must be properly installed
and located in accordance with the
Installation Instructions before it is used.
– Properly ground to conform with Local Codes.
In the event of malfunction or breakdowm,
grounding will reduce the risk of electric shock by
providing a path of least resistance for electric
current. This appliance is equipped with a cord
having an euipment-grounding conductor and a
grounding plug. The plug must be plugged into an
appropriate outlet that is properly installed and
grounded in accordance with all local codes and
ordinances.
WARNING: Improper connection of the equipmentgrounding conductor can result in a risk of electric
shock. Check with a qualified electrician or service
representative or personnel il you are in doubt as to
whether the appliance isproperly grounded.
Do not modify the plug provided with the appliance:
if it will not fit the outlet, have a proper outlet
installed by a qualified electrician.
Installation Instructions.
– Locate where the temperature is above 50˚F. (10˚C.)
for satisfactory operation of the dryer control
system. Do not install or store the dryer where it
will be exposed to the water and/or the weather.
– Connect to a properly rated, protected and sized
power supply circuit to avoid electrical overload.
– Exhausting to the outside is STRONGLY
RECOMMENDED to prevent large amounts of
moisture and lint from being blown into the room.
Carefully follow the Exhausting Details in the
Installation Instructions.
– A GAS DRYER MUST BE EXHAUSTED TO
THE OUTDOORS.
Do not repair or replace any part of the
appliance or attempt any servicing
unless specifically recommended in this
Use and Care Book or in published user-repair
instructions that you understand and have the
skills to carry out.
When disconnecting this appliance pull
by the plug rather than the cord to
avoid damage to the cord or junction of
cord and plug. Make sure that the cord is located so
that it will not be stepped on, tripped over or
otherwise subjected to damage or stress.
Follow details in
To Minimize the Possibility of a
Fire Hazard
• Exhaust Duct – See Installation Instructions. Use
only rigid metal or flexible metal 4” diameter
ductwork for exhausting to the outside. USE OF
PLASTIC OR OTHER COMBUSTIBLE
DUCTWORK CAN CAUSE A FIRE. FOIL OR
OTHER EASILY PUNCTURED DUCTWORK
CAN CAUSE A FIRE IF IT COLLAPSES OR
BECOMES OTHERWISE RESTRICTED IN USE
OR DURING INSTALLATION.
• Do not use heat to dry articles containing rubber,
plastic, or similar materials (such as padded bras,
tennis shoes, galoshes, bath mats, rugs, bibs, pillows,
baby pants, plastic bags, etc.) as these materials may
melt or burn. Also, some rubber materials, when
heated, can under certain circumstances produce fire
by spontaneous combustion.
• Do not store items that may burn or melt (such as
clothing, paper material, plastics or plastic
containers, etc.) on top of the dryer during the
operation.
• Garments labeled “Dry Away from Heat” (such
as life jackets containing Kapok or foam) must
not be put in your dryer.
• Do not wash or dry articles that
have been cleaned in, washed in,
soaked in, or spotted with combustible
or explosive substances (such as wax,
paint, gasoline degreasers, dry-
cleaning solvents, kerosene, etc.) which may ignite
or explode. Do not add these substances to the
wash water. Do not use these substances around
your washer and/or dryer during operation.
• Any article on which you have used a cleaning
solvent, or which contains flammable materials (such
as cleaning cloths, mops, towels used in beauty
salons, restaurants or barber shops, etc.) must not be
placed in or near the dryer until all traces of these
flammable liquids or solids and their fumes have
been removed. There are many highly flammable
items used in homes such as: acetone, denatured
alcohol, gasoline, kerosene, some household
cleaners, some spot removers, turpentines, waxes,
wax removers and products containing petroleum
distillates.
(continued on next page)
Important Safety Instructions
3
IMPORTANT SAFETY INSTRUCTIONS
• Clean the lint filter before each load
to prevent lint accumulation inside
the dryer or in the room.
DO NOT OPERATE THE DRYER
WITHOUT THE LINT FILTER IN
PLACE.
• Keep the area around and underneath your
appliances free from the accumulation of
combustible materials, such as lint, paper, rags,
chemicals, gasoline and other flammable vapors and
liquids.
• Regularly inspect the exhaust duct to be sure it
has not been crushed or otherwise restricted.
• The interior of the dryer cabinet and the exhaust
duct connection inside the dryer should be cleaned
every 2 to 3 years, or more often if needed, by a
qualified service person. (see Care & Cleaning
section)
To Minimize the Possibility of Injury
• Never reach into the dryer while the drum is
moving. Before loading, unloading or adding clothes,
wait until the drum has completely stopped.
• Do not dry fiberglass articles in your dryer. Skin
irritation could result from the remaining glass
particles that may be picked up by clothing during
subsequent dryer uses.
• The laundry process can reduce the
flame retardance of fabrics. To avoid
such a result, the garment manufacturer’s
care instructions should be followed very
carefully.
• Close supervision is necessary if this
appliance is used by or near children.
Do not allow children to play inside,
on, or with this appliance or any
discarded appliance. Dispose of
discarded appliances and shipping or
packing materials properly. Before discarding a
dryer, or removing from service, remove the door
of the dryer compartment.
SAVE THESE
INSTRUCTIONS
• Keep all laundry aids (such as
detergents, bleaches, fabric softeners,
etc.) out of the reach of children,
preferably in a locked cabinet. Observe
all warnings on container labels to avoid
personal injury.
• Keep the floor around your appliances clean and
dry to reduce the possibility of slipping.
• To minimize the possibility of electric shock,
unplug this appliance from the power
supply before attempting any maintenance
or cleaning (except the removal and
cleaning of the lint filter).
• NOTE: Turning the Cycle Selector
knob to an OFF position does NOT
disconnect the appliance from the power
supply.
• Do not tamper with the controls.
• Do not operate this appliance if it is damaged,
malfunctioning, partially disassembled, or has
missing or broken parts, including a damaged
cord or plug.
• Never climb on or stand on the dryer top.
• DO NOT place items exposed to cooking oils in
your dryer. Items contaminated with cooking oils
may contribute to a chemical reaction that could
cause a clothes load to catch fire.
• If yours is a gas dryer, it is equipped with an
automatic electric ignition and does not have a
pilot light. DO NOT ATTEMPT TO LIGHT WITH A
MATCH. Burns may result from having your hand in
the vicinity of the burner when the automatic ignition
may turn on.
• Do not obstruct the flow of combustion and
ventilation air.
Dryer-applied Fabric Softeners or
Anti-static Conditioners
You may wish to soften your laundered fabrics or
reduce the static electricity in them. We recommend
you use either a fabric softener in the wash cycle,
according to the manufacturer’s instructions for those
products, or try a dryer-added product for which the
manufacturer gives written assurance on the package
that their product can be safely used in your dryer.
Service or performance problems caused by the use of
these products are the responsibility of the manufacturers
of those products and are not covered under the
warranty of this appliance.
4
REVERSIBLE DOOR INSTRUCTIONS
These instructions are for changing the hinges from the
right side to the left side.
Tools Needed
Standard #2 Phillips screwdriver
DRYER DOOR
1. Open the door and remove the filler plugs opposite the
hinges.
(A tape-tipped putty knife
or a needle-nosed plier
will help to remove the
plugs. Be careful not to
damage the paint.)
2. With the door completely
open, remove the bottom
screw attaching each hinge
to the dryer front. (Do not
remove the screws located
on the door itself).
If you need to change the hinges from the left side to
the right side, follow these same instructions (merely
reverse all references to the left and right).
6. Rotate the door 180˚.
Insert it on the opposite
door frame by moving the
door IN and DOWN until
the top hinge and the
bottom hinge are resting on
the top screws inserted in
step 3.
7. With the other screws, secure
each hinge at the bottom.
8. Tighten the top screws of each
hinge.
Reversible Door Instructions
3. Insert these screws about half way into the top holes,
for each hinge, on the opposite side (where you
removed the filler plugs).
4. Loosen the remaining top screw
from each hinge on the dryer front,
half way.
5. With one hand holding
the top of the door, and
the other hand holding
the bottom, remove the
door from the dryer
front by lifting it UP
and OUT.
9. Reinsert the plastic plugs on the side from which the
door was removed.
5
INSTALLATION INSTRUCTIONS
298mm
(11 3/4")
91mm
(3 1/2")
NOTE: ADD TO
91mm (31/2")
THE DISTANCE
BETWEEN
CABINET BOTTOM
TO FLOOR SURFACE
EXHAUST
Installation and service must be performed by a qualified installer, service agency or the gas supplier.
IMPORTANT: Have your dryer installed properly.
NOTE: The WARNING and IMPORTANT instructions appearing in this manual are not meant to cover all
possible conditions and situations that may occur. It must be understood that common sense, caution, and
carefulness are factors that CANNOT be built into the dryer. These factors MUST BE supplied by the person(s)
installing, maintaining, or operating the dryer.
Failure to install, maintain, and/or operate this machine according to the manufacturer’s instructions may result in
conditions which can produce bodily injury and/or property damage.
This dryer comes ready for rear exhausting (see Fig. 1).
WARNINGS
• DO NOT USE NON METALLIC FLEXIBLE DUCT.
• Never use flexible duct inside the dryer.
• Do not terminate exhaust in a chimney, range hood,
gas vent, floor or attic. The combination of lint and
grease could create a fire hazard or damages.
• Provide an access for inspection and cleaning the
exhaust system at least once a year. (See Care and
Cleaning Section.)
EXHAUST LENGTH
The MAXIMUM ALLOWABLE length of the exhaust
system depends upon the type of duct, number of turns,
the type of exhaust hood (wall cap), and all conditions
noted below. The maximum allowable length for both
rigid and flexible metal duct is shown in the table 1
(next page). More than four 90˚ turns is not
recommended.
EXHAUST SYSTEM CHECK LIST
HOOD or WALL CAP
• Terminate in a manner to prevent back drafts or entry
of birds or other wildlife.
• Termination should present minimal resistance to the
exhaust air flow and should require little or no
maintenance to prevent clogging.
• Wall caps must be installed at least 300 mm (12”)
above ground level or any other obstruction with the
opening pointed down.
• If roof vents or louvered plenums are used, they must
be equivalent to a 100 mm (4”) dampered wall cap in
regard to resistance to air flow, prevention of back
drafts and maintenance required to prevent clogging.
SEPARATION OF TURNS
Separate all turns by at least 1 m (3 ft.) of straight duct,
including distance between last turn and dampered wall
cap. If two turns must be closer than 1 m (3 ft.) deduct
3 m (10 ft.) from the maximum lengths shown in the
table for each occurrence.
TURNS OTHER THAN 90˚
• One turn of 45˚ or less may be ignored.
• Two 45˚ turns should be treated as one 90˚.
• Each turn over 45˚ should be treated as one 90˚.
SEALING OF JOINTS
• All joints should be tight to avoid leaks. The male
end of each section of duct must point away from the
dryer.
• Do not assemble the duct work with fasteners that
extend into the duct. They will serve as a collection
point for lint.
• Duct joints can be made air and moisture-tight by
wrapping the overlapped joints with duct tape.
INSULATION
• Duct work which runs through an unheated area or is
near an air conditioning duct, should be insulated to
reduce condensation and lint build up and be sloped
down toward outdoors.
NOTE: Never install screen inside exhaust duct.
CAUTION: THE DRYER MUST EXHAUST TO
THE OUTDOORS.
6
Loading...
