INTRODUCTION
Your Telephone is designed to give you flexibility in use, and high quality
performance. To get the most from your new telephone, we suggest that you
take a few minutes right now to read through this instruction manual.
If you have any questions or problems, consult the Table of Contents, the
Troubleshooting Guide, or the Index for the solution.
TABLE OF CONTENTS
PARTS CHECKLIST .........................................................................................................2
INSTALLATION AND SETUP .................................................................................................. 2
T
ABLETOP INSTALLATION ................................................................................................3
ALL MOUNT INSTALLATION ..........................................................................................4
W
USING FEATURES ............................................................................................................. 5
V
OLUME CONTROL ........................................................................................................5
LASH BUTTON ............................................................................................................5
F
EDIAL BUTTON ...........................................................................................................5
R
T
EMPORARY TONE FEATURE ...........................................................................................5
MEMORY DIALING ............................................................................................................6
TORING A NUMBER IN MEMORY WHILE CALLING ............................................................... 6
S
S
TORING A NUMBER IN MEMORY (WITHOUT CALLING) .........................................................6
IALING A NUMBER FROM MEMORY ................................................................................7
D
BATTERY INSTALLATION......................................................................................................8
ROUBLESHOOTING TIPS ....................................................................................................9
T
CARE AND MAINTENANCE ................................................................................................ 10
ACCESSORY ORDER FORM ...............................................................................................11
ARRANTY ...................................................................................................................12
W
PARTS CHECKLIST
Your package should contain the following items:
1
2
3
4
5
6
7
8
9
DEF2ABC
3
1
TONE
*
A
MNO5JKL4GHI
B
6
C
WXY8TUV7PRS
9
FLASH
MEM DIAL
OPER
#
0
REDIAL
STORE
Base unit
Handset
Phone line cord
Long handset cord
INSTALLATION AND SETUP
Your GE Memory Phone Telephone can be mounted on the wall or placed on a
counter top or table top. After you decide which type of installation you want,
refer to the appropriate installation diagram.
BEFORE YOU BEGIN
MODULAR JACK REQUIREMENTS
You need an RJ11 type modular jack, which is the
most common type of phone jack and might look like
the one pictured here. If you don’t have a modular
jack, call your local phone company to find out how to
get one installed.
2
TABLETOP INSTALLATION
1
4
3
1. Plug the telephone line cord into a modular jack (RJ11C) and into the
PHONE LINE jack on the back of the unit.
2. Plug the handset cord into the handset, and into the telephone jack on the
left side of the unit.
3. Set the PULSE/TONE switch to TONE if you use Touch-Tone service; set it to
PULSE if you have rotary service.
4. Adjust the RINGER volume switch to the desired setting.
2
3
WALL MOUNT INSTALLATION
PULSE • • TONE
OFF LO HI
RINGER
The Telephone can be mounted on a wall
phone plate (not included).
1
1. Plug the phone cord into the phone
jack on the back of the unit.
2. Wrap extra cord and retain in space
provided in the back of the phone.
3. Connect the phone cord to the
modular jack on the wall.
4. Slip the mounting holes over the
wall plate posts and slide the unit
down firmly into place.
5. Plug the handset cord into the
handset and into the unit, and then
hang up the phone.
6. Set the RINGER VOLUME switch to
the desired setting.
2
3
4
5
7. Set the PULSE/TONE switch to
TONE if you use Touch-Tone service;
set it to PULSE if you have rotary
service.
7
PULSE/TONE
Switch
6
Ringer Volume
Switch
4
USING FEATURES
MEM DIAL
REDIAL
STORE
FLASH
#
0
OPER
*
TONE
9
WXY
8
TUV
7
PRS
6
MNO
5
JKL
4
GHI
VOLUME CONTROL
Use the RINGER VOLUME switch on the side of the phone to adjust the volume
of the ringer.
FLASH
FLASH BUTTON
Press the FLASH button instead of using the
hook switch to activate customer calling services such as call waiting or call transfer, which
are provided by your local phone company.
REDIAL BUTTON
Redial the last number you called by pressing
the REDIAL button after you get a dial tone.
MEM DIAL
STORE
Flash button
REDIAL
TEMPORARY TONE FEATURE
If you have Pulse (rotary) service, and want to
access customer calling services that require
touch-tone dialing, such as getting information
from a local bank, you can use this feature.
1. Press the TONE button ( * ) after you have
connected to the service in order to enable
touch-tone dialing.
2. When you hang up, the phone automatically returns to Pulse dialing mode.
Redial button
TONE button
5
MEMORY DIALING
Store as many as 12 numbers in memory for easy dialing. Three can be stored
in the Emergency Quick Dial locations, and nine additional numbers can be
stored in the numbered keys (1-9).
STORING A NUMBER IN MEMORY WHILE CALLING
1. Pick up the handset.
2. Dial the phone number.
3. Press STORE twice.
4. Press an A, B ,C button, or Memory Location (1-9 on the keypad).
5. Record the phone number on the memory directory (located under the
plastic cover).
STORING A NUMBER IN MEMORY (WITHOUT CALLING)
1. Pick up the handset.
2. Press STORE.
3. Dial the number to be stored.
4. Press STORE.
5. Press an A, B ,C button, or Memory Location (1-9 on the keypad).
6. Record the phone number on the memory directory (located under the
plastic cover).
STORING THE LAST NUMBER DIALED
1. Pick up the handset.
2. Press STORE twice.
3. Press an A, B ,C button, or Memory Location (1-9 on the keypad).
4. Record the phone number on the memory directory (located under the
plastic cover).
6
ADDING A PAUSE TO THE DIALING SEQUENCE
Use the REDIAL button to insert a delay in the dialing sequence when storing a
number. For example, when you need to dial 9 to get an outside line, press
REDIAL at the point in the dialing sequence in which a pause is required:
1. Pick up the handset.
2. Press STORE.
3. Press 9.
4. Press REDIAL to add a pause, and then dial the number.
5. Press STORE.
6. Press an A, B ,C button, or Memory Location
(1-9 on the keypad).
CLEARING A STORED NUMBER
1. Pick up the handset.
2. Press STORE button.
3. Press REDIAL button.
4. Press STORE button.
5. Press an A, B ,C button, or Memory Location
(1-9 on the keypad).
DIALING A NUMBER FROM MEMORY
You can dial numbers from memory when using the handset. When you get a
dial tone, press the MEM DIAL button followed by the memory location (1-9) for
the number you want to dial.
DIALING THE EMERGENCY QUICK DIAL NUMBERS (A, B, OR C)
To dial one of these numbers, just press its button after you get a
dial tone.
CAUTION: If you make test calls to emergency numbers, remain on the line
and explain the reason for the call. Also, make these calls in off-peak hours,
such as early morning or late evening.
7
BATTERY INSTALLATION
A consumer replaceable long life Lithium Battery (3V) is installed in the phone
to provide backup power for retaining numbers in memory.
1. Unplug modular jack from phone wall
outlet.
2. Remove battery cover.

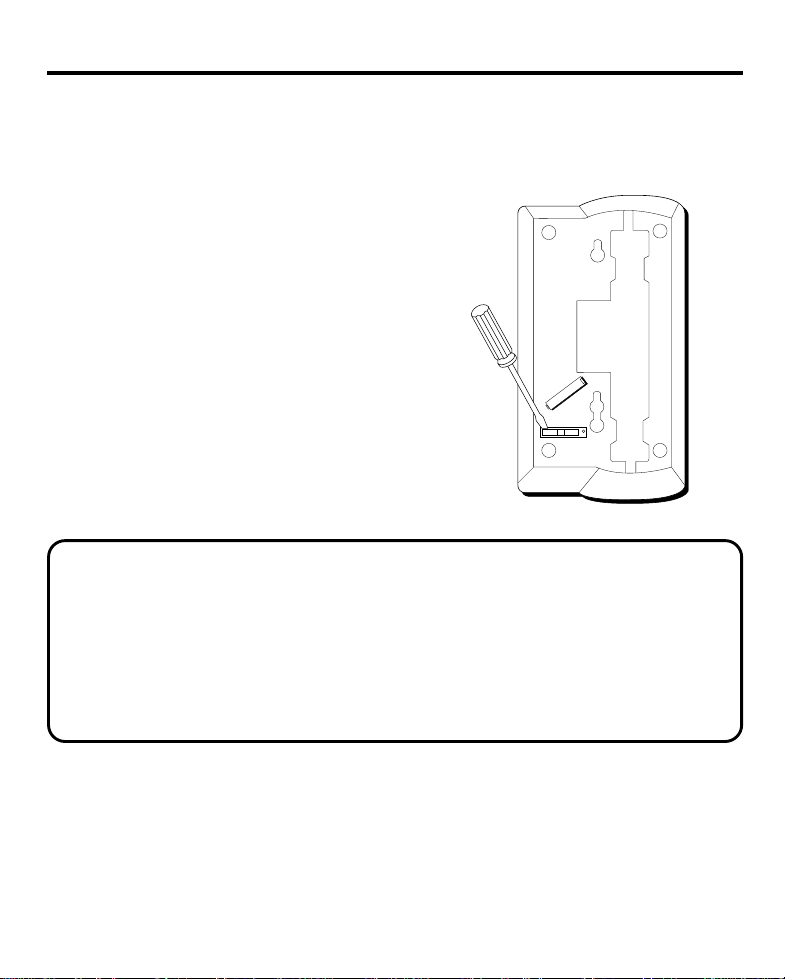

3. Remove battery by inserting a pointed
object in opening at either end of
battery cartridge.
4. Insert replacement battery with “_”
facing back of phone.
5. Replace battery cover.
6. Plug modular jack into phone wall
outlet.
7. Reprogram numbers into memory.
BATTERY SAFETY PRECAUTIONS
For your safety, please follow these precautions:
• Do not recharge, disassemble, mutilate, wet, or dispose of batteries in fire.
• Keep batteries out of reach of children.
• Replace only with GE Cat. #5-1923.
• When replacing batteries, be sure to unplug the phone line from the phone
before inserting the batteries.
8
TROUBLESHOOTING TIPS
PROBLEM
No dial tone
Can't dial out
Phone doesn’t ring
Can’t be heard by
other party
Memory dialing
problems
SOLUTION
• Check hook switch to make sure it pops up.
• Make sure TONE/PULSE is set to correct
position.
• Unplug the phone, wait 30 seconds, and
plug the phone back in.
• Check RINGER VOLUME.
• Could have too many phones on one line.
(See FCC information regarding REN)
• Make sure phone cord is securely plugged in.
• Make sure you entered numbers correctly.
(See "Memory Dialing.")
9
CARE AND MAINTENANCE
To keep your GE telephone working and looking good, follow these few simple
guidelines:
• Avoid putting the phone near heating appliances and devices that generate
electrical noise. (i.e., motors, fluorescent lamps.)
• Phone should not be exposed to direct sunlight or moisture.
•
Avoid dropping the handset and other rough treatment.
• Clean telephone with a soft cloth. (Remember to first unplug the phone
from the wall outlet.)
• Never use a strong cleaning agent or abrasive powder, as this will
damage the finish.
• Retain the original packaging for future use.
SERVICE
The FCC requires this product be serviced only by the manufacturer or its
authorized service agents. In accordance with FCC requirements, changes or
modifications not expressly approved by Thomson Consumer Electronics could
void the user’s authority to operate this product. For instructions on how to
obtain service, refer to the warranty included in this guide or call customer
service's telephone number: 800-448-0329.
Attach your sales receipt to the booklet for future reference or jot down the date
this product was purchased or received as a gift. This information will be
valuable if service should be required during the warranty period.
Purchase date
Store Name
✂
TOTAL
QUANTITY
PRICE*
CATALOG NUMBER
FORM
5-1923 $9.95
$5.00
*Prices are subject to change without notice.
Total Merchandise...........................................$_______________
We are required by law to collect the appropriate sales tax for each individual state, county,
and locality to which the merchandise is being sent.
Sales Tax........................................................ $_______________
Use VISA or MasterCard preferably .Money order or check must be in U.S. currency only. No
COD or Cash.
All accessories are subject to availability. Where applicable, we will ship a superseding
model.
Shipping, Handling, and Insurance............. ..$_______________
Total Amount Enclosed...................................$_______________
Mail order form and money order or check (in U.S. currency) made payable to
Thomson Consumer Electronics, Inc. to:
Consumer Electronics
Mail Order Department
P.O. Box 8419
Ronks, PA 17573-8419
This is your return label. Please print clearly To:
Name________________________________________________________
Address_____________________________________ Apt.____________
City ________________________State________ ZIP_________________
Please make sure that this form has been filled out completely.
CUSTOMER: CUT ALONG DOTTED LINE.
ORDER
DESCRIPTION
ACCESSORY
Replacement Battery
For credit card purchases
Your complete charge card number, its expiration date and your
signature are necessary to process all charge card orders.
Copy your complete account number from your VISA card.
My card expires:
Copy your complete account number from your MasterCard.
Copy the number above your
name on the MasterCard
My card expires:
____________________________________________________________________
Authorized Signature
11
LIMITED WARRANTY
What your warranty covers:
• Any defect in materials or workmanship.
For how long after your purchase:
• Two years.
(The warranty for rental units begins with the first rental.)
What we will do:
• Provide you with a new, or at our option, a refurbished unit.
• The exchange unit is under warranty for the remainder of the original product’s warranty period.
How to make a warranty claim:
• Properly pack your unit. Include any cables, etc., which were originally provided with the product.
We recommend using the original carton and packing materials.
• Include in the package evidence of purchase date such as the bill of sale. Also print your name
and address and a description of the defect. Send standard UPS or its equivalent to:
Thomson Consumer Electronics, Inc.
Product Exchange Center
32 Spur Drive
El Paso, Texas 79906
• Pay any charges billed to you by the Exchange Center for service not covered by the warranty.
• A new or refurbished unit will be shipped to you prepaid freight.
What your warranty
• Customer instruction. (Your Owner’s Manual provides information regarding operating instruc-
tions and user controls. For additional information, ask your dealer.)
• Installation and set-up service adjustments.
• Batteries.
• Damage from misuse or neglect.
• Products which have been modified or incorporated into other products.
• Products purchased or serviced outside the USA.
• Acts of God, such as but not limited to lightning damage.
Product Registration:
• Please complete and mail the Product Registration Card packed with your unit. It will make it
easier to contact you should it ever be necessary. The return of the card is not required for
warranty coverage.
How state law relates to this warranty:
• This warranty gives you specific legal rights, and you may have other rights which vary from
state to state.
If you purchased your product outside the USA:
• This warranty does not apply. Contact your dealer for warranty information.
does not
3
cover:
Model 2-9169
343A6768-0001 (Rev. 1 E/S)
96-10
Printed in Philippines
P.O. Box 1976, Indianapolis, IN 46206
© 1996 Thomson Consumer Electronics, Inc.
Trademark(s) ® Registered
Marca(s) ® Registerada(s)
Loading...
