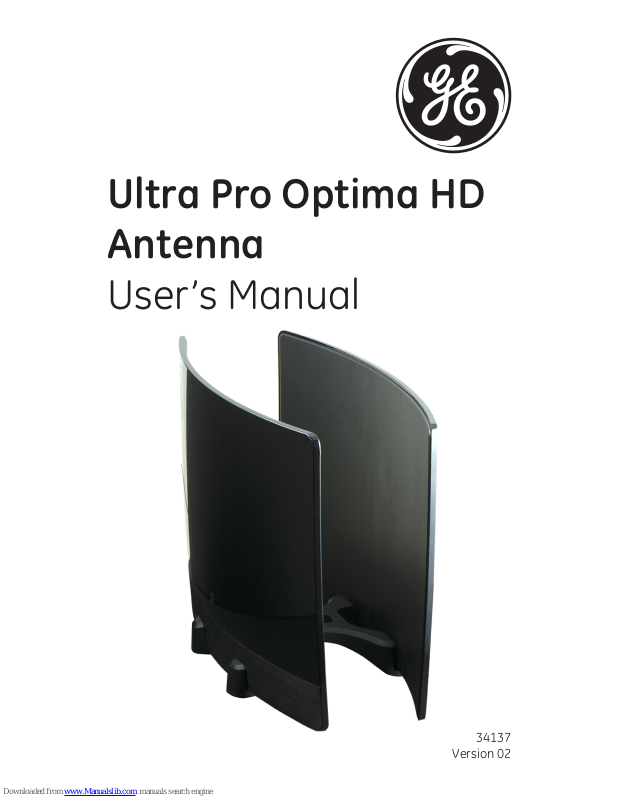

GE 34137 User Manual

Ultra Pro Optima HD
Antenna

User’s Manual

34137

Version 02

2

Introduction: The 34137 Ultra Pro Optima HD antenna is

specially designed to receive digital and analog terrestrial
broadcasted TV signals. The compact and stylish design will
blend in with any décor.

Features:

• Included reflector for increased signal strength

• VHF/UHF/HDTV

• Wall mountable or use included stand for table placement

• Impedance 75 Ohm

Package Contents:

• Antenna Panel

• Reflector Panel

• Stand

• Thumb Screws (x2)

• Hardware for wall mounting

• User’s manual

Stand

Antenna Panel Reflector Panel

Thumb Screws

Hardward for wall mounting

3

Antenna Assembly & Installation

1. Insert the Antenna Panel into one
of the grooved slots of the
Stand. Use a Thumb Screw to
attach the Antenna Panel
to the Stand.

2. Insert the Reflector Panel into the
other grooved slot of the Stand. Use
the other Thumb Screw to attach
the Reflector Panel to the Stand.

3. Place the assembled antenna in the desired location.
For best reception, you will want to face the Antenna Panel
towards the broadcast towers in your area. See
the Antenna Helpful Tips section for resources to help you
locate the broadcast towers in your area.

Note: The Antenna Panel may also be mounted to a wall
using the keyholes on the back of the antenna.

4

4. Connect the coax cable from the antenna to the TV.

5. SCAN FOR CHANNELS ON YOUR TV. This step is very
important. Your TV will NOT receive signals from
the antenna without doing a channel scan. See your TV’s
menu screen for this process or refer to the instruction
manual that came with your TV.

NOTE: It is important to repeat this process and re-scan

for channels anytime you move or re-position
the antenna. It is also a good practice to repeat
this process from time to time in case there are changes
to the available TV signals in your area. If you ever lose a
channel, a re-scan may be all that is needed to
pick up that station again.

6. Contact us at 1-800-654-8483 if you need assistance.

ANTENNA HELPFUL TIPS
Maximize the number of channels you receive by placing the

antenna in several different locations to see which location
provides the best reception and the maximum number of
channels. Be sure to run a new channel scan on your TV in
each position. Refer to the instruction manual that came with
your TV if you are not sure how to do this.

Position or mount the antenna as high as possible for the
best performance. Face the Antenna Panel towards the
broadcast towers in your area.

Visit www.antennaweb.org or www.dtv.gov and look for the
DTV Reception Maps to determine the available television
stations and location of the broadcast towers in your area.

For further assistance, call 1-800-654-8483 for technical
support.

MADE IN CHINA

GE is a trademark of General Electric Company and
is under license by Jasco Products Company LLC,
10 E. Memorial Rd., Oklahoma City, OK 73114.

This Jasco product comes with a limited-lifetime
warranty. Visit www.byjasco.com for warranty
details.

Questions? Contact us at 1-800-654-8483 between
7:00AM—8:00PM CST.
