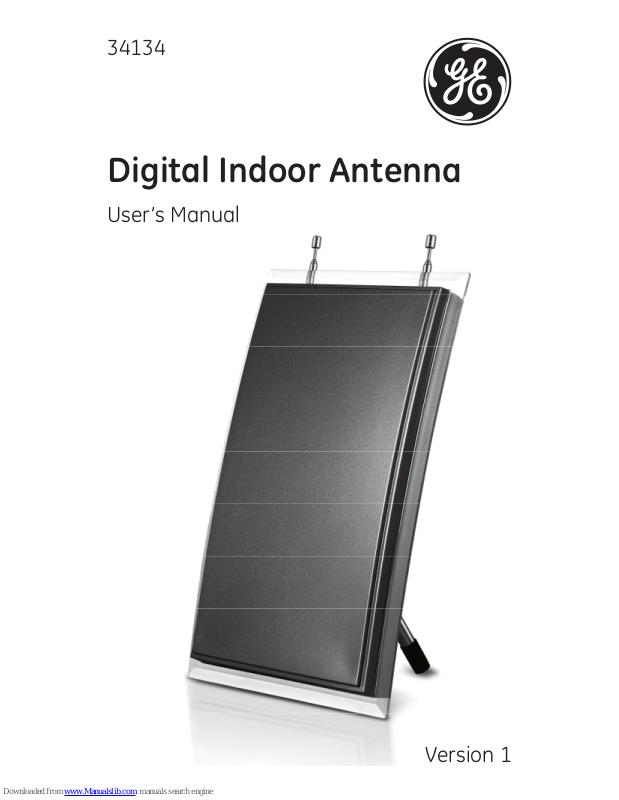

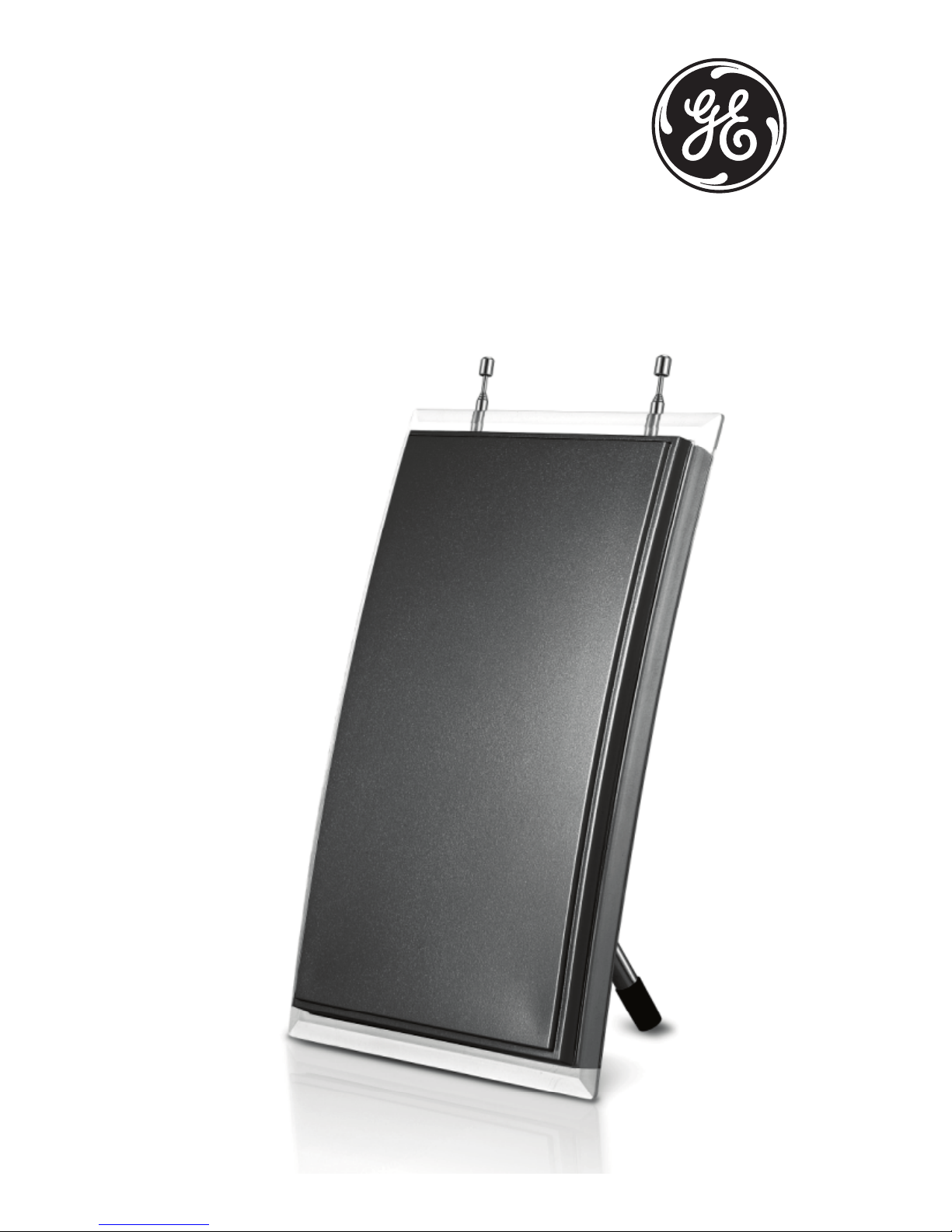

GE 34134 User Manual

34134

Digital Indoor Antenna

User’s Manual

Version 1

INTRODUCTION

The 34134 indoor digital antenna is specially
designed for digital and analog terrestrial
broadcasting reception. The compact
and stylish design will blend in with any
surroundings.

Features:

- UHF/VHF

- Return loss: < - 6dB

- RF output impedance: For 75 Ohm TV System

- Gain 16dB±3dB

- Low noise amplifier technology

Please check the contents before installation

1. Digital Indoor Antenna

2. Coaxial Cable

3. User’s Manual

4. AC Adaptor

Digital Indoor Antenna

Coaxial Cable

AC Adaptor

INSTALLATION

Back of Antenna

Place the antenna near your Digital Set-top Box or
Television equipped with an internal digital or analog
TV tuner. For best reception, make sure the antenna
is placed as far as possible from common sources of
interference or high power consumption devices such
as air conditioners, hair dryers, microwave ovens, etc.
Position the antenna as high as possible, or near a
window to reduce the chance of temporary signal loss.

Dipole

Standing unit

Coaxial Cable

STB or
Digital TV

DC9~12 V

OUTPUT

TO TV

STEPS TO INSTALL:

1. Take out the Antenna.

2. Pull out the stand under the back, adjust to

the proper position and angle.

3. Extend the telescoping dipoles (“rabbit

ears”).

4. Connect the barrel end of AC Adaptor to the

DC input of the antenna, and the AC end
to an AC Outlet. Please note: use only the
supplied AC adaptor.
