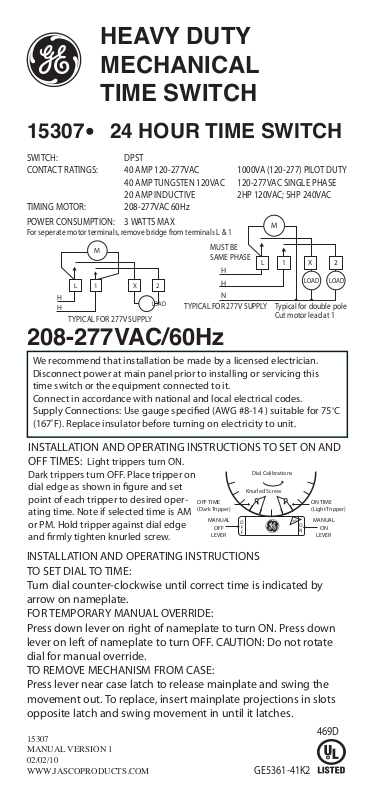

HEAVY DUTY

1 X 2

MECHANICAL TIME SWITCH

15307

24 HOUR TIME SWITCH

•

SWITCH: DPST CONTACT RATINGS: 40 AMP 120-277VAC 1000VA (120-277) PILOT DUTY 40 AMP TUNGSTEN 120VAC 120-277VAC SINGLE PHASE 20 AMP INDUCTIVE 2HP 120VAC; 5HP 240VAC TIMING MOTOR: 208-277VAC 60Hz

POWER CONSUMPTION: 3 WATTS MAX

For seperate motor terminals, remove bridge from terminals L & 1

1 X

H H

TYPICAL FOR 277V SUPPLY

LOAD

MUST BE SAME PHASE

TYPICAL FOR 277V SUPPLY

Typical for double pole Cut motor lead at 1

208-277VAC/60Hz

We recommend that installation be made by a licensed electrician. Disconnect power at main panel prior to installing or servicing this time switch or the equipment connected to it. Connect in accordance with national and local electrical codes. Supply Connections: Use gauge specied (AWG #8-14 ) suitable for 75ºC (167ºF). Replace insulator before turning on electricity to unit.

INSTALLATION AND OPERATING INSTRUCTIONS TO SET ON AND OFF TIMES: Light trippers turn ON.

Dark trippers turn OFF. Place tripper on dial edge as shown in gure and set point of each tripper to desired operating time. Note if selected time is AM

OFF TIME (Dark Tripper)

or PM. Hold tripper against dial edge and rmly tighten knurled screw.

INSTALLATION AND OPERATING INSTRUCTIONS TO SET DIAL TO TIME: Turn dial counter-clockwise until correct time is indicated by arrow on nameplate. FOR TEMPORARY MANUAL OVERRIDE: Press down lever on right of nameplate to turn ON. Press down lever on left of nameplate to turn OFF. CAUTION: Do not rotate dial for manual override. TO REMOVE MECHANISM FROM CASE: Press lever near case latch to release mainplate and swing the movement out. To replace, insert mainplate projections in slots opposite latch and swing movement in until it latches.

15307 MANUAL VERSION 1 02/02/10 WWW.JASCOPRODUCTS.COM

MANUAL

OFF

LEVER

Dial Calibrations

Knurled Screw

O F F

GE5361-41K2

LOAD LOAD

E M I

O N

ON TIME (Light Tripper)

MANUAL

LEVER

469D
