GE 20314, 20321 User Manual
Contact a qualified electrician or call the Customer Care Service Team at 1-866-885-4649
Customer Service hours of operation are 9:00AM-5:00PM EST -Monday-Friday
1.32 m (52 in.)

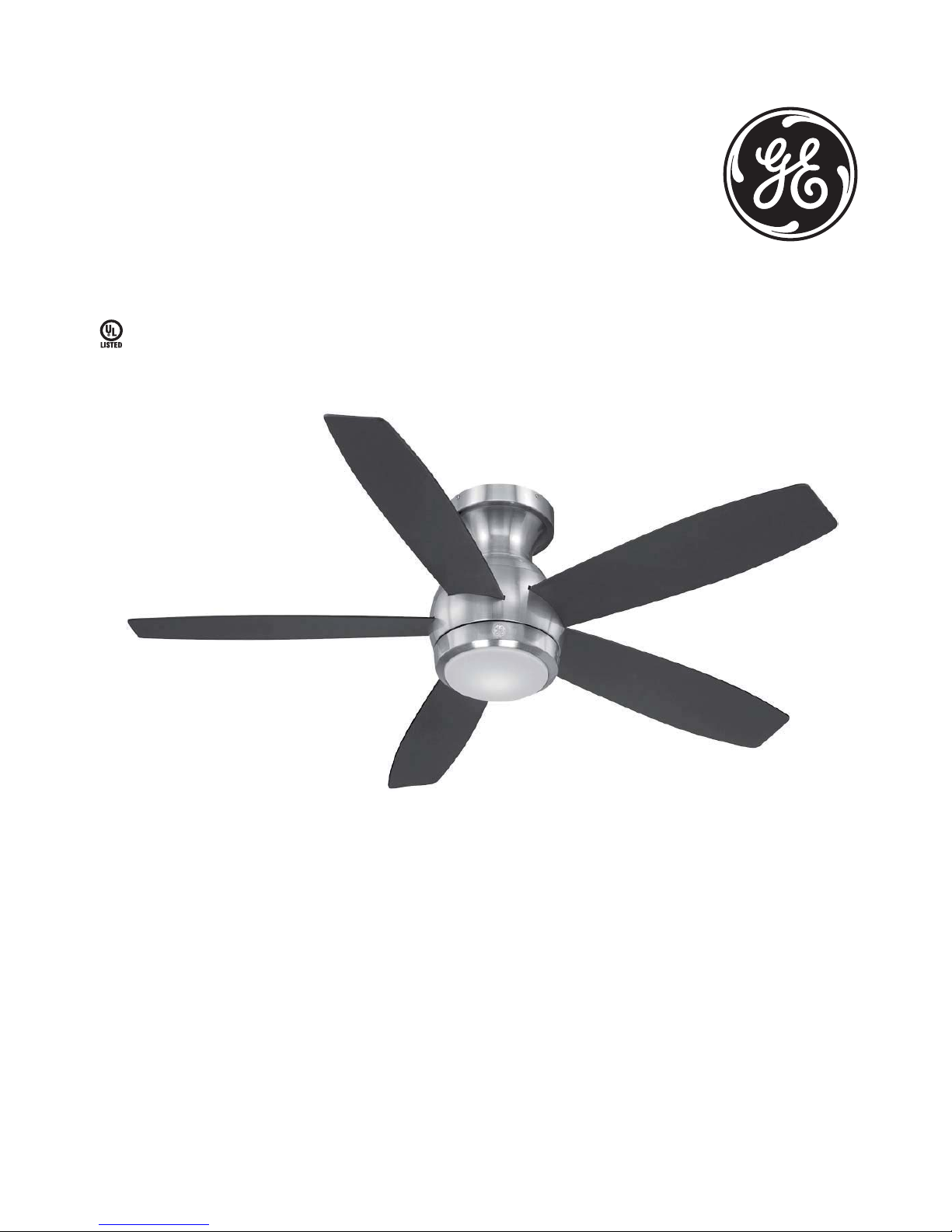

Treviso LED Lighted Ceiling Fan
MODEL: 20314 & 20321
120V 60Hz, MADE IN CHINA
User Manual
Customer Assistance
1-866-885-4649
2
Safety Rules
1. To reduce the risk of electric shock, ensure electricity has
been turned off at the circuit breaker or fuse box before
beginning.
All electrical connections must be made in accordance
with local codes, ordinances and/or the National Electric
Code. Electrical installation should be performed by a
qualified licensed electrician.
2.
4. CAUTION: To reduce the risk of personal injury, use only
the screws provided with the outlet box.
6. The fan must be mounted with a minimum of 2.1m (7 ft.)
clearance from the trailing edge of the blades to the floor.
7. Avoid placing objects in the path of the blades.
8. To avoid personal injury or damage to the fan and other
items, be cautious when working around or cleaning the fan.
9. Do not use water or detergents when cleaning the fan or
fan blades. A dry dust cloth or lightly damped cloth will be
suitable for cleaning.
10. After making electrical connections, spliced conductors
should be turned upward and pushed carefully up into
the outlet box. The wires should be spread apart with
the grounded conductor and the equipment-grounding
conductor on one side of the outlet box and ungrounded
conductor on the other side of the outlet box.
11. All screws must be checked and re-tightened where
necessary during installation.
WARNING: To reduce the risk of
fire, electric shock or personal
injury, mount fan to outlet box
marked acceptable for fan
support with the screws
provided with the outlet box.
WARNING: To reduce the risk
of personal injury, do not bend
the blade arms (also referred
to as fi anges), when installing
the brackets, balancing the
blades or cleaning the fan. Do
not insert foreign objects inbetween rotating fan blades.
WARNING: To reduce the risk of
fire, electric shock or personal
injury, mount to outlet box
marked “acceptable for fan
support of 15.9 kg (35 lb.) or
less” and use mounting screws
provided with the outlet box.
Most outlet boxes commonly
used for the support of light
fixtures are not acceptable for
fan support and may need to be
replaced. Due to the complexity
of the installation of this fan, a
qualified licensed electrician is
strongly recommended.
READ AND SAVE THESE INSTRUCTIONS
12.This fan is suitable for room sizes up to 225 square feet
(20.9 square meters).
3. WARNING: to reduce the risk of electrical shock or fire, do
not use this fan with any solid-state fan speed control device.
It will permanently damage the electronic circuitry.
5. The weight of the fan is 8.6 kg (18.96 lb.). The outlet box
and support structure must be securely mounted and capable
of reliably supporting a minimum of 15.9 kg (35 lb.). Use only
cUL Listed outlet boxes marked “FOR FAN SUPPORT.”
3

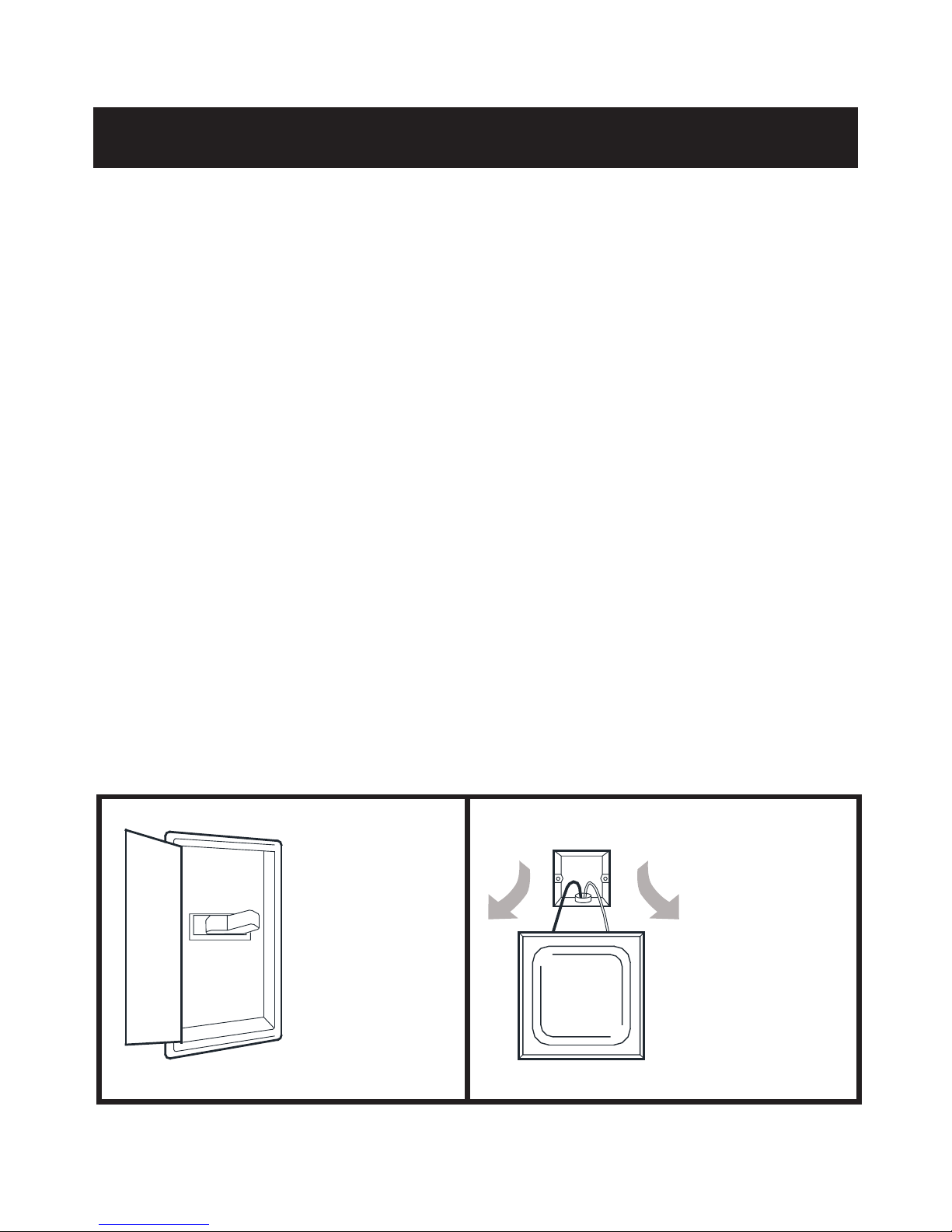

Basic Guidelines For Working With Electricity
1. Before working on a circuit, go to the main service panel
and remove the fuse or trip the breaker that controls that
circuit.
2. Tape a sign to the panel warning others to leave the circuit
alone while you work.
3. Before touching any wire, use a voltage tester to make
sure it’s not live.
4. Whenever you check for voltage in a receptacle, check
both outlets; each may be controlled by a separate wiring
circuit.
5. When replacing fuses, turn off the main power first. Make
sure your hands and feet are dry, and place one hand behind
your back to prevent electricity from making a complete
circuit through your chest. Touch a plug fuse only by its
insulated rim.
6. Remove cartridge fuses with fuse puller.
7. Use tools with insulated handles and ladders made of
wood or fiberglass.
8. To protect children, place safety cover ov
er any unused
outlets.
Shut off main
power at the
cir
cuit breaker
or fuse panel
before removing
old fixture.
Remove
old fixture.
Disconnect wire.
5,,
MAIN
POWER
4

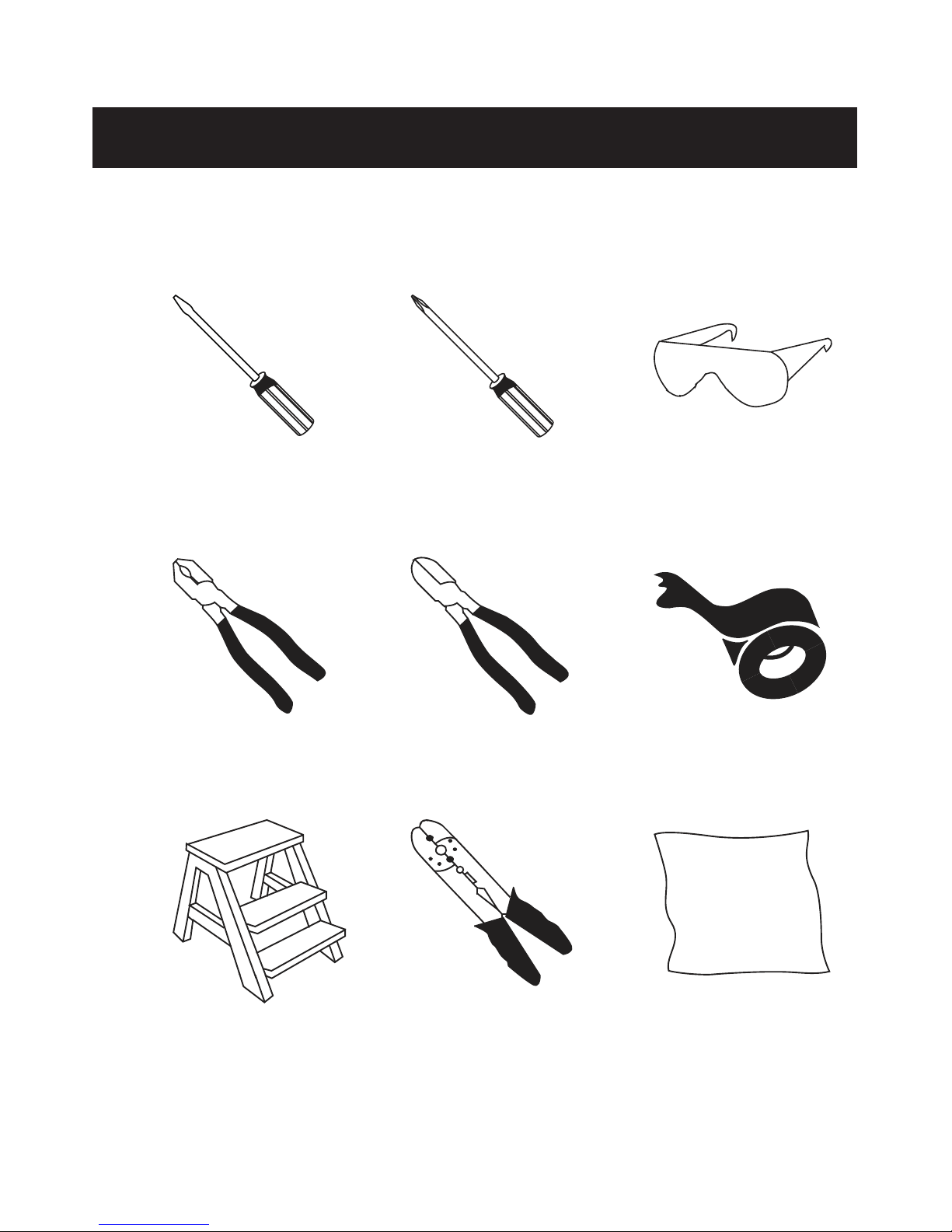

To Begin / Tools Needed (Not Supplied)
REQUIRED
Flathead
Screwdriver
Pliers
Step Ladder
Phillips Screwdriver
(4" recommended)
Wire Cutters
Wire Strippers
Safety Glasses
Electrical Tape
Soft Cloth
5

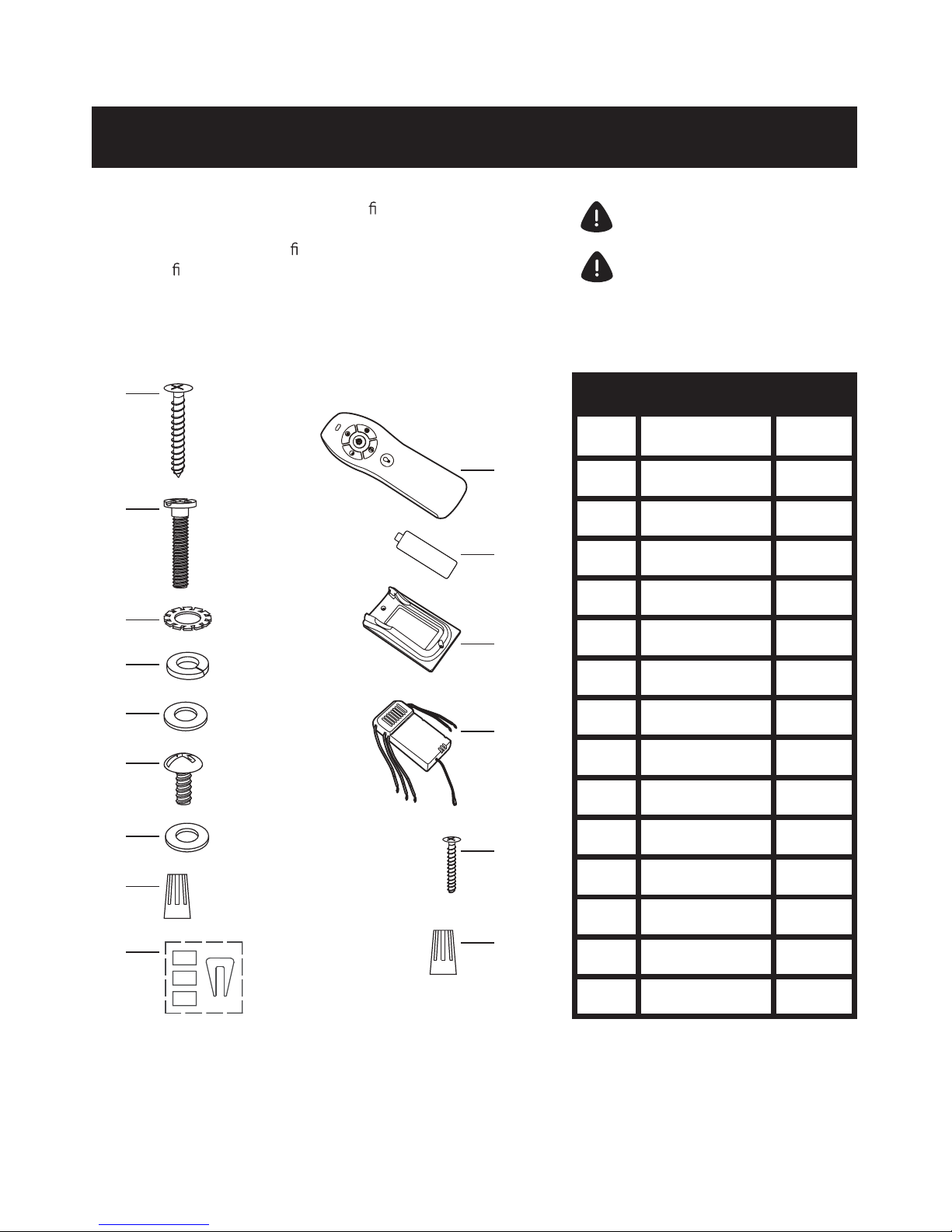

Hardware Included
Carefully unpack and identify each part to make sure you
have everything ready for installation. Lay out each part on
a clean
at area such as a table or oor. Check to make sure
you have the following:
A
A
2
E
E
2
I
I
1
C
C
2
G
G
15+1
15+1
K
K
2
N
N
2
B
B
2
F
F
J
J
1
M
M
1
D
D
2
H
H
4
L
L
1
O
O
6
ATTENTION: Parts are not to scale.
Hardware Bag Remote Control
PART DESCRIPTION
Wood Screw (Long)
Spring Washer
Fiber Washer
Transmitter
Receiver
Mounting Screw
Flat Washer
Plastic Wire Nut
AAA Battery
Wood Screw (Short)
Star Washer
Blade Screw
Balance Kit
Transmitter Holder
Plastic Wire Nut
QUANTITY
+
-
NOTE: +1=Extra quantity supplied
for future use if needed.
6

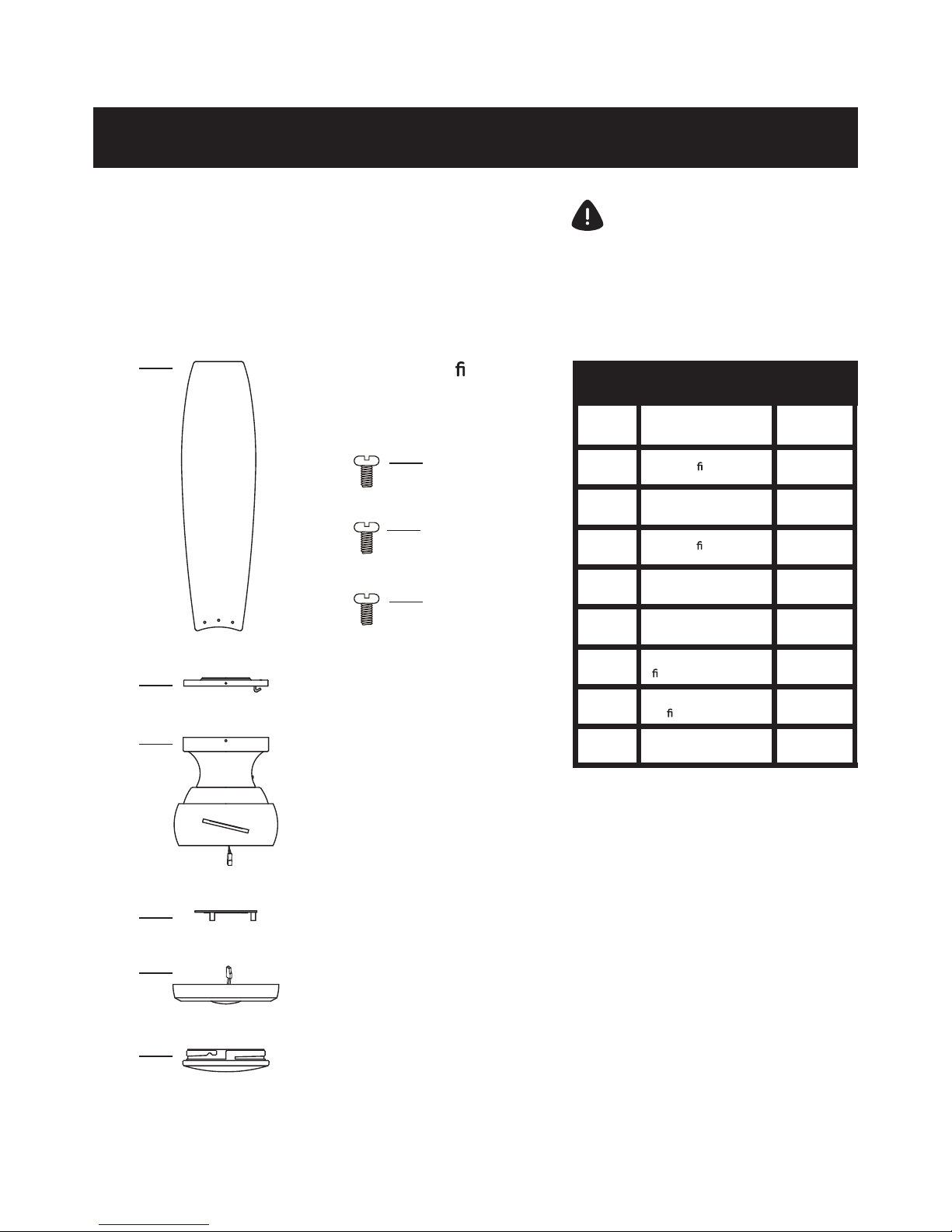

Package Contents
Carefully unpack and identify each part to make sure you
have everything ready for installation. Lay out each part on
a clean
at area such as a table or oor. Check to make sure
you have the following:
P
P
5
T
T
1
1
4
X
X
3
R
R
1
V
V
Q
Q
1
U
U
S
S
1
W
W
3
PART DESCRIPTION
Set Of Blades
Mounting Plate
Mounting Bracket
Screw
Mounting Plate Screw
Light Kit Mounting
Screw
Mounting Bracket
LED light kit
Fan Motor Assembly
Glass Shade
QUANTITY
ATTENTION: Parts are not to scale.
Functional Fasteners
7

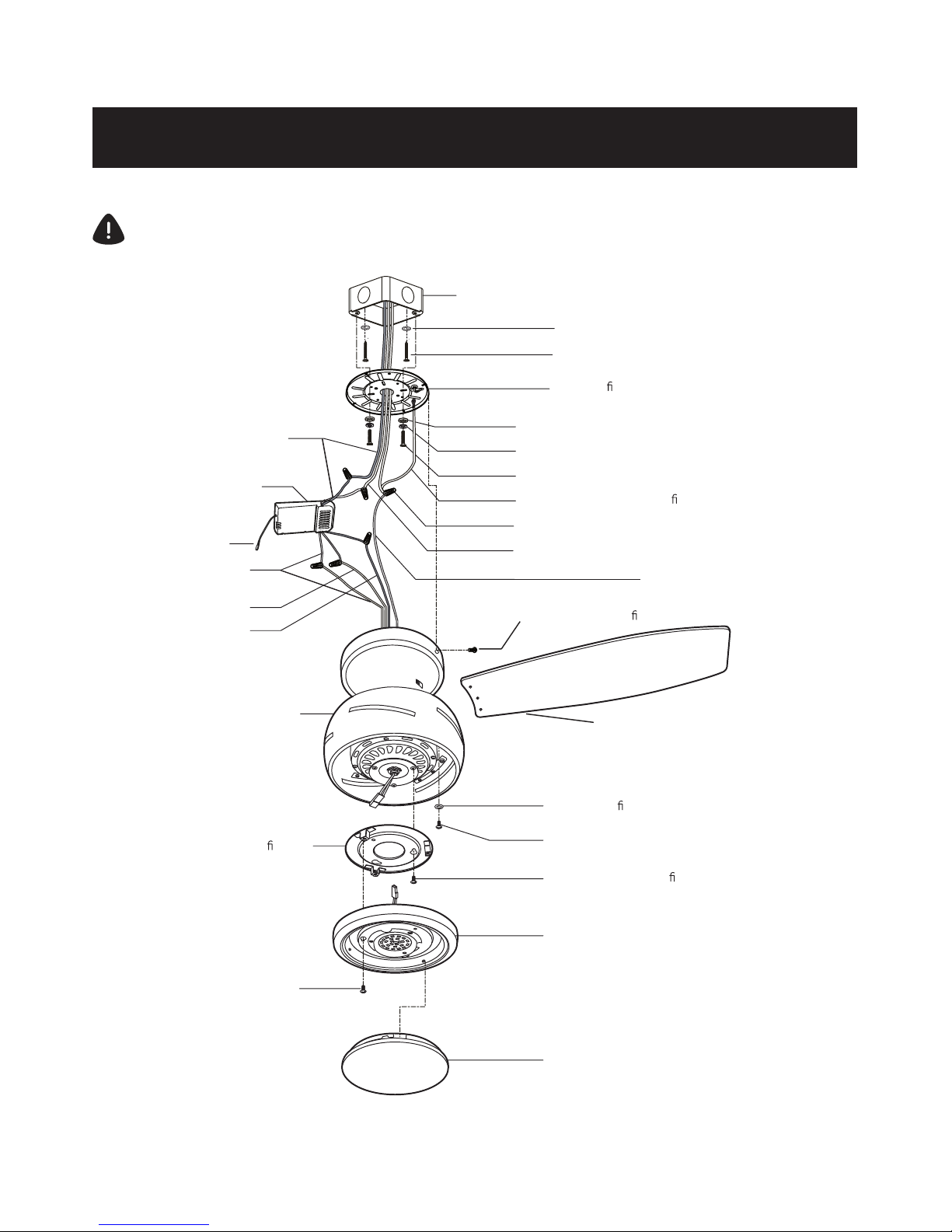

Fan Installation Drawing
WARNING: Review important safety instructions before installation.
Outlet Box (Not Provided)
Wood Screw (Long)
Mounting Bracket
Flat Washer
Spring Washer
Mounting Screw
Ground Wire from Mounting Bracket
Plastic Wire Nut
Neutral White Wire
Ground Wire from the Fan Motor Assembly
Mounting Bracket Screw
Blade
Fiber Washer
Blade Screw
Mounting Plate Screw
LED Light Kit
Glass Shade
Light Kit Mounting Screw
Mounting Plate
Fan Motor Assembly
Black Wire
Blue Wire
White Wire
Receiver
Black Wire
Antenna Wire
Star Washer
8
Fan Installation

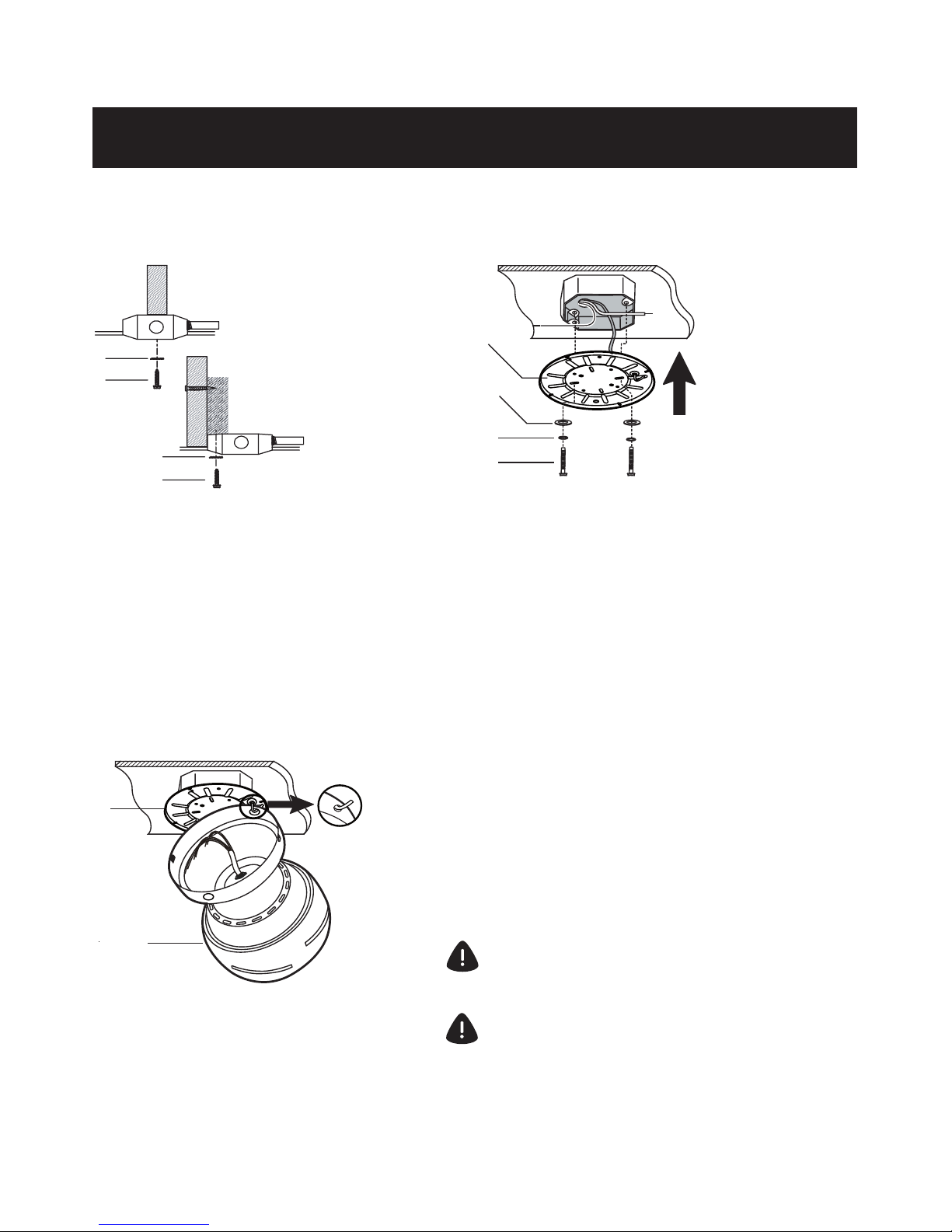

INSTALLING THE MOUNTING BRACKET
HANGING THE FAN
1.
Use metal outlet box (sold separately)
suitable for fan support. Secure outlet
box directly to the building structure
using wood screws (A) and star washers (C).
Outlet box must support 15.9 kg (35 lb.) min.
1.
Lift the fan into position by hanging
the fan motor assembly (R) onto the
hook from the ceiling mounting
bracket (Q) allowing it to hang freely.
2.
Install mounting bracket (Q) to the outlet
box in ceiling using the mounting screws
provided with the outlet box (two additional
mounting screws (B), spring washers (D) and
flat washers (E) are provided in the hardware
bag).
C
A
C
A
Q
E
D
B
Q
R
WARNING: The hook on the mounting plate is only provided
to balance the fan while making the electrical connections.
Do not leave the fan unattended while the fan is hanging
from the hook.
WARNING: Do not stand under the fan while fan is hanging
from the mounting hook and take necessary precautions to
protect floors during the fan installation.
9
Fan Installation
WARNING: To avoid possible electric
shock, be sure electricity is turned
off at the main fuse box before wiring.
NOTE: Fan must be installed at
a maximum distance of 6 m (20
ft.) from the transmitting unit for
proper signal transmission between
the transmitting unit and fan’s
receiving unit.
CAUTION: Do not use wall switch
with dimmer function.
WARNING: Check to see that all
connections are tight, including
ground wire, and that no bare wire
is visible at the wire nuts, except for
the ground wire.
WARNING: Electrical diagrams are
for reference only. Optional use of
any light kit shall be cUL listed and
marked suitable for use with this fan.

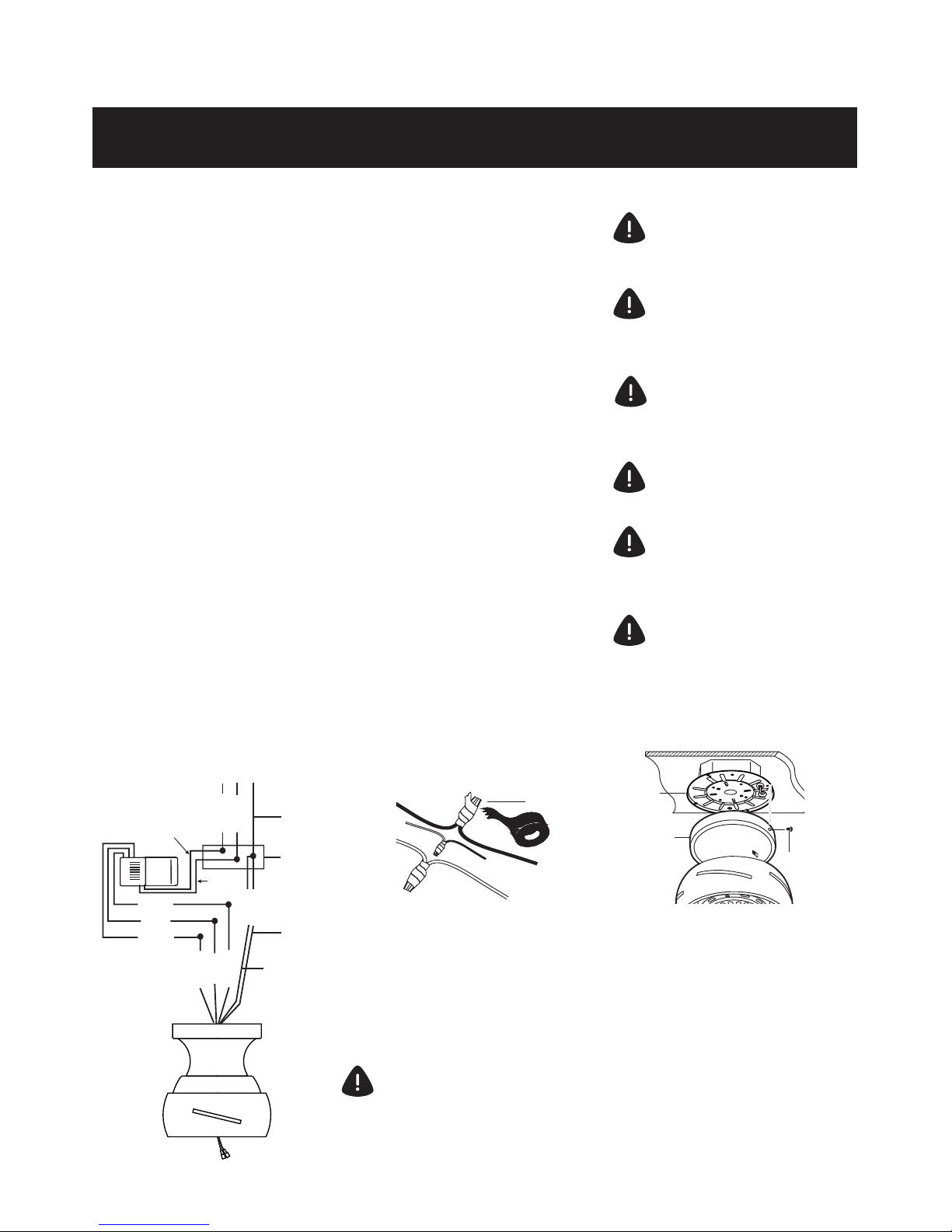

MAKING THE ELECTRICAL CONNECTIONS
Supply Circuit
Motor to receiver electrical connections:
Connect the black wire from the fan to black wire marked
“TO MOTOR L” from the receiver. Connect the white wire from
the fan to the white wire marked “TO MOTOR N” from the
receiver. Connect the blue wire from the fan to the blue wire
marked “For Light” from the receiver. Secure the wire
connections with the plastic wire nuts (H) and electrical tape..
Receiver to house supply wires electrical connections:
Connect the black (hot) wire from the ceiling to the black
wire marked “AC in L” from the receiver. Connect the white
(neutral) wire from the ceiling to the white wire marked “AC
in N” from the receiver. Secure the wire connections with the
plastic wire nuts (H) and electrical tape.
If your outlet box has a ground wire (green or bare copper),
connect it to the ground wire from mounting bracket and
ground wire from the fan motor assembly, secure the wire
connection with a plastic wire nut (H); otherwise connect
the ground wire from the fan motor assembly to the ground
wire from mounting bracket, secure the wire connection with
plastic wire nut (H) and electrical tape.
WHITE
WHITE
BLACK
BLACK
BLUE
GREEN
BLACK
BLACK
BLUE
WHITE
WHITE
H
R
V
Q
To install wire nuts, strip wires 1.9 cm (3/4
in). Line up wires in parallel, insert into
wire nut, hand tight wire nut by twisting
clockwise until snug. Tape around wires
and wire nut. After connecting the wires,
carefully tuck the wire connections and
wires into the canopy.
Loosen two (one of each across) of the
four screws (V) from the mounting bracket
(Q) and remove the other two. Remove
the motor assembly (R) from the hook of
mounting bracket (Q) and push up the
motor assembly (R) until the two screws (V)
on mounting bracket (Q) are engaged with
L type slot holes on canopy of the motor
assembly (R). Rotate the motor assembly
(R) slightly until the two screw heads are
in the L type slot holes. Install the two
screws previously removed and tighten all
four screws.
Ground conductor
from ceiling
Ground wire from
mounting bracket
Ground wire from
the fan motor
assembly
BLACK for motor
BLUE for light
WHITE for neutral
Outlet box
WARNING: After making the
electrical connections, carefully
unhook the fan and hold the fan
firmly while attaching the fan to the
mounting plate.
NOTE : For best remote control
reception, make sure the brown
antenna wire is placed away from
the electrial wires (blue, white and
black colors).
If you feel you do not hav e enough electrical wiring knowledge
or experience, have your fan installed by a licensed electrician.
Follow the steps below to prepare the electrical connections.
After that, conform with the descriptions and diagrams below
to connect the fan to your household wiring. Use the wire nuts
supplied with your fan. Secure the wire nuts with electrical tape.
Make sure there are no loose strands or connections.
Fan Installation

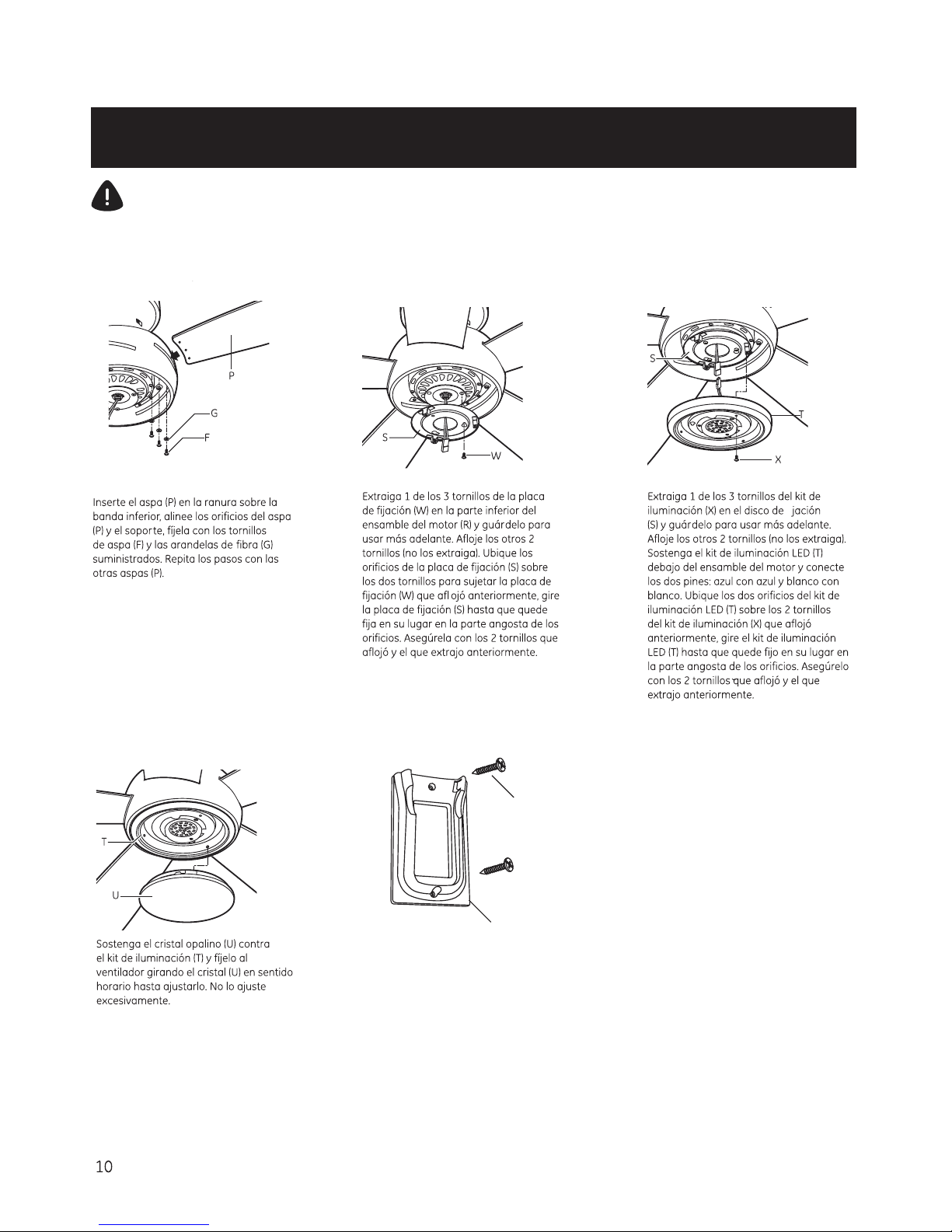

Insert the blade (P) through the slot in the
bottom band, align the holes in the blade
(P) and the bracket, secure with the blade
screws (F) and fiber washers (G) provided.
Repeat this procedure with the other
blades (P).
Remove the 1 of 3 mounting plate screws
(W) from the bottom of motor assembly
(R) and keep it for future use. Loosen the
other 2 screws (do not remove). Place
the key holes on the mounting plate (S)
over the 2 mounting plate screws (W)
previously loosened, turn the mounting
plate (S) until it locks in place at the
narrow section of the key holes. Secure
by tightening the 2 screws previously
loosened and the one previously removed.
Remove the 1 of 3 light kit mounting
screws (X) from the mounting plate (S)
and keep it for future use. Loosen the
other 2 screws (do not remove). While
holding the LED light kit (T) under the fan
motor assembly, make the 2-pin wire
connections: Blue to blue and white to
white. Place the key holes on the LED light
kit (T) over the 2 light kit mounting screws
(X) previously loosened, turn the LED light
kit (T) until it locks in place at the narrow
section of key holes. Secure by tightening
the 2 screws previously loosened and the
one previously removed.
NOTE: Before starting installation, disconnect the power by turning off the circuit breaker or removing the fuse at
fuse box. Turning power off using the fan switch may not be suf cient to prevent electric shock.
F
P
G
W
S
S
X
T
1.
INSTALLING THE LIGHT KIT
2.
ATTACHING THE FAN
BLADES
1.
10
Raise glass shade (U) up against the light
kit (T) and secure it to fan by twisting glass
(U) clockwise until snug. Do not overtighten.
T
U
WARNING: Make sure to fully secure
the glass shade in place by turning
the shade clockwise until it is locked
in place and can no longer be rotated.
INSTALLING THE GLASS SHADE
N
L
Select a location to install your transmitter
holder (L). Attach the transmitter holder (L) with
the two short wood screws (N) provided.
1.
1.
INSTALLING THE TRANSMITTER HOLDER

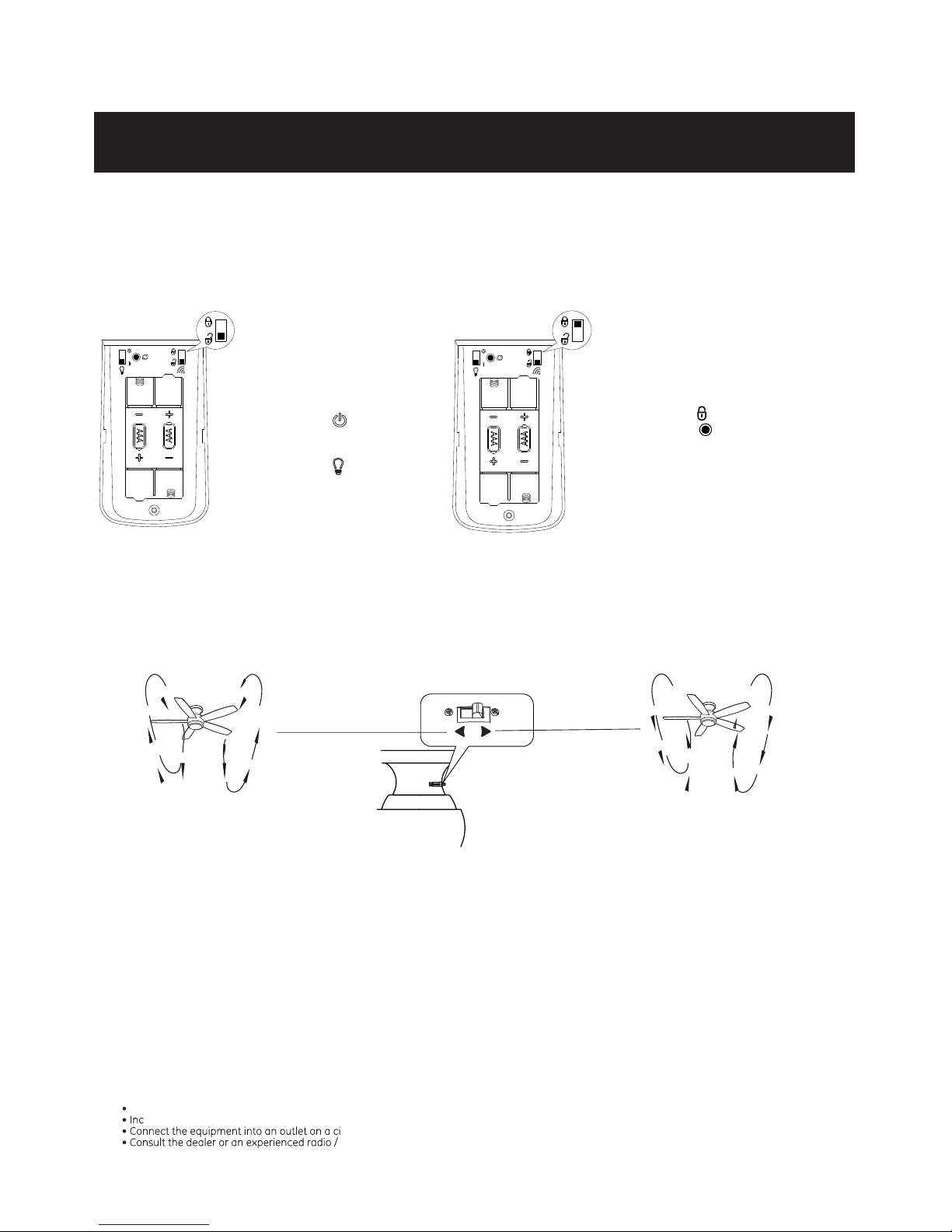

Loading...
