GE 1908 - 36 User Manual

Installation
and
User Guide
Range
CornuFé 1908 - 36"
1
08NOTINSTALFE8/USA-1
Read all instructions before using this appliance. Save these instructions for future reference.
IMPORTANT SAFETY INSTRUCTIONS
— Do not store or use gasoline or other flammable vapors or liquids in the
vicinity of this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch.
• Do not use any phone in your building.
• Immediately call your gas supplier from a neighbor's phone.
Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire department.
— Installation and service must be performed by a qualified installer,
service agency or the gas supplier.
WARNING: IF THE INFORMATION ON THIS
MANUAL IS NOT FOLLOWED EXACTLY
, A FIRE, ELECTRIC
SHOCK OR EXPLOSION MAY RESULT CAUSING PROPER
-
TY DAMAGE, PERSONAL INJURY OR DEATH.
CAUTION
DO NOT STORE ITEMS OF INTEREST TO CHILDREN IN CABINETS ABOVE A RANGE OR
ON THE BACKGUARD OF A RANGE
- CHILDREN CLIMBING ON THE RANGE TO REACH
ITEMS COULD BE SERIOUSLY INJURED
.
WARNING
THE ANTI-TIP DEVICE SUP-
PLIED WITH THE RANGE MUST
BE CORRECTLY FITTED WHEN
THE APPLIANCE IS INSTALLED.
THIS WILL REDUCE RISK OF
TIPPING OF THE APPLIANCE
FROM ABNORMAL USAGE OR
BY EXCESSIVE LOADING OF
THE OVEN DOOR.
Read all instructions before using this appliance. Save these instructions for future reference.
2
08NOTINSTALFE8/USA-1
IMPORTANT SAFETY INSTRUCTIONS
u Proper Installation - Be sure your appliance is properly installed and
grounded by a qualified technician.
The installation of your La Cornue appliance must conform with local codes or, in the absence of local codes, in the USA with the "National Fuel Gas Code", ANSI Z223.1NFPA 54, latest edition, and, in Canada, with CAN/CGA
- B149.1, and CAN CGA - B149.2, "Installation Code for Gas Burning Appliances".
The appliance must be electrically installed and grounded in accordance with local codes or in the absence of such codes with the latest edition of the "National Electrical Code", ANSI/NFPA 70 in the USA, and CSA C22.2 "Canadian Electrical Code" - in Canada.
Important - Save the installation instructions for the local electrical
inspector’s use.
u
In The Commonwealth Of Massachusetts
This product must be installed by a licensed plumber or gas fitter when installed within the Commonwealth of Massachusetts. A "T" handle type manual gas valve must be installed in the gas supply line to this appliance.
WARNING: NEVER cover any slots, holes or passages in the
oven bottom or cover an entire rack with materials such as aluminum foil. Doing so blocks airflow through the oven and may cause carbon
monoxide poisoning. Do not use aluminum foil to line surface unit drip bowls or oven bottoms, except as suggested in the manual. Improper installation of these liners may result in a risk of electric shock, or fire.
WARNING: NEVER use this appliance as a space heater to heat
or warm the room. Doing so may result in carbon monoxide poiso­ning and overheating of the oven
This book contains many important safety messages.
Always read and obey all safety messages.
Installer: Leave these instructions with the appliance
3
08NOTINSTALFE8/USA-1
Read all instructions before using this appliance. Save these instructions for future reference.
IMPORTANT SAFETY INSTRUCTIONS
This appliance is not intended for use by persons (including children) with redu­ced physical, sensory or mental capabilities, or lack of experience and knowled­ge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
All our cooking appliances are intended for domestic use only, i.e., not profes­sional and was designed to be used by individuals in their own homes. It is not intended to be used outside the building. In the event of non-domestic use, the manufacturer shall not incur any liability, and the warranty shall be considered void.
In Case of Fire
Do not use water on grease fires. Never pick up a flaming pan. Turn
the controls off. Smother a flaming pan on a cooktop burner by cove­ring the pan completely with a well fitting lid or baking tray. If available use a multipurpose dry chemical or foam-type fire extinguisher. If fire is in an oven pan, smother by closing oven door. Open doors and win­dows or if a hood is fitted turn it on to remove smoke and odor.
To Prevent Fire or Smoke Damage
Before using the range make sure all the packing materials have been remo­ved. Always keep the area around the range free from combustible materials, gasoline, and other flammable vapors and liquids. If the range is installed near a window, proper precautions should be taken to prevent curtains from blowing over the burners.
NEVER leave any items on the range cooktop. The hot air from an oven
vent may ignite flammable items and may increase pressure in closed contai­ners, which may cause them to burst. Many aerosol-type spray cans are EXPLOSIVE when exposed to heat and may be highly flammable. Avoid their use or storage near an appliance.
Many plastics will burn and most are damaged by heat. Keep plastic items away from parts of the range that may become warm or hot. Do not leave plastic items on the cooktop as they may burn, melt or soften if left too close to a vent or a lighted burner
4
08NOTINSTALFE8/USA-1
u Purchaser of this appliance must post in a prominent location instruction to be fol-
lowed in the event the user smells gas. This information shall be obtained by consul­ting your local gas supply company.
u Keep appliance area free and clear from combustibles.
u It is essential that the kitchen where your appliance will be installed has excellent
ventilation to the outside for steam and combustion gases removal.
u VENTILATING HOODS:
- Clean Ventilating Hoods Frequently - Grease should not be allowed to accumulate on hood or filter.
- When flaming foods under the hood, turn the fan on.
u Do not use air recycling systems.
u La Cornue can provide customers with hoods in materials matching the appliance.
The hoods are sold without blower systems since every installation is unique. The individual requirements are best handled by a professional ventilation specialist.
u Adequate clearance must be provided for air openings into the combustion
chamber.
u Minimum clearances to combustible construction see item 1.2. page 15.
u Adequate clearance must be provided for proper operation and servicing of the
appliance.
u A manual valve must be installed in an accessible location in the gas piping external
to the appliance for the purpose of turning on or shutting off gas to the appliance.
u The range and its individual shutoff valve must be disconnected from the gas supply
piping system during any pressure testing of that system at test pressures in excess of 1/2 psig (3.5 kPa).
u The appliance must be isolated from the gas supply piping system by closing its
individual manual shutoff valve during any pressure testing of the gas supply piping system at test pressures equal to or less than 1/2 psig (3.5 kPa).
Read all instructions before using this appliance. Save these instructions for future reference.
IMPORTANT SAFETY INSTRUCTIONS
5
08NOTINSTALFE8/USA-1
u Leak testing of the appliance shall be conducted according to the manufacturer’s
instructions.
u The inlet gas supply pressure to the appliance must be within the following limits:
u Keep this manual for future reference.
u Do Not Leave Children Alone - Children should not be left alone or unatten-
ded in area where appliance is in use. They should never be allowed to sit or stand on any part of the appliance.
Do not allow children to climb or play around the range. The weight of a child on
an open door may cause the range to tip, resulting in serious burns or other inju-
ry. Teach them not to play with controls or any other part of the range. Destroy the carton and plastic bags after unpacking the range. Never allow child-
ren to play with packaging material.
u Wear Proper Apparel - Loose-fitting or hanging garments should never be worn
while using the appliance.
u User Servicing - Do not repair or replace any part of the appliance unless spe-
cifically recommended in the manual. All other servicing should be referred to a
qualified technician.

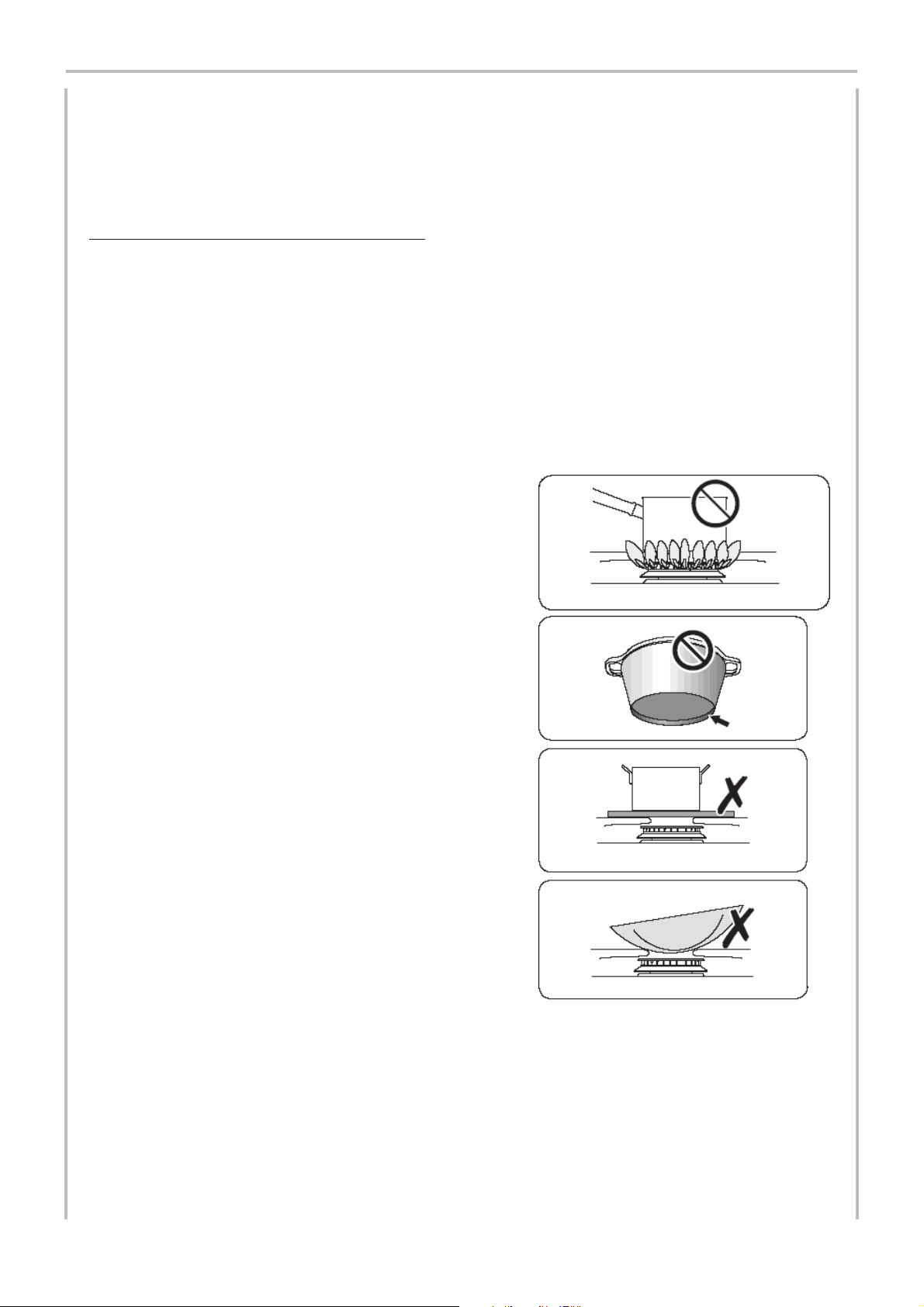

u Use Proper Pan Size - This appliance is equipped with more surface units of dif-
ferent size. Select utensils having flat bottoms large enough to cover the surface
unit heating element. The use of undersized utensils will expose a portion of the
heating element to direct contact and may result in ignition of clothing. Proper
relationship of utensil to burner will also improve efficiency.
u The top burner flame size should be adjusted so it does not extend beyond the edge
of the cooking utensil. This instruction is based on safety considerations.
u Cooking utensils shall not be used on an open top broiler section.
Read all instructions before using this appliance. Save these instructions for future reference.
IMPORTANT SAFETY INSTRUCTIONS
6
08NOTINSTALFE8/USA-1
u Use Only Dry Potholders or Oven Gloves - Moist or damp potholders on hot
surfaces may result in burns from steam. Never let a potholder touch hot heating
elements. Do not use a towel or other bulky cloth in place of a glove. They might catch fire
if they touch a hot surface. Use dry oven gloves when applicable - using damp gloves might result in steam burns
when you touch a hot surface. Never operate the range with wet hands.
u Never Leave Surface Units Unattended at High Heat Settings - Boil over cau-
ses smoking and greasy spillovers that may ignite.
u Make Sure Reflector Pans or Drip Bowls Are in Place - Absence of these pans
or bowls during cooking may subject wiring or components underneath to dama-
ge.
u Glazed Cooking Utensils - Only certain types of glass, glass/ceramic, ceramic,
earthenware, or other glazed utensils are suitable for range-top service without
breaking due to the sudden change in temperature.
u Utensil Handles Should Be Turned Inward and Not Extend Over Adjacent
Surface Units - To reduce the risk of burns, ignition of flammable materials, and
spillage due to unintentional contact with the utensil, the handle of a utensil
should be positioned so that it is turned inward, and does not extend over adja-
cent surface units.
u DEEP FAT FRYERS: Use extreme caution when moving the grease kettle or
disposing of hot grease.
u Do Not Soak Removable Heating Elements - Heating elements should never
be immersed in water.
u Use Care When Opening Oven Door - Let hot air or steam escape before remo-
ving or replacing food.
u Do Not Heat Unopened food Containers - Build-up of pressure may cause
container to burst and result in injury.
u Do not use the oven for storage - This instruction is based on safety considera-
tions. Flammable materials should not be stored in an oven, the range storage drawer or near the cooktop burners. This includes paper, plastic and cloth items, such as cookbooks, plastic ware and towels, as well as flammable liquids. Do not
Read all instructions before using this appliance. Save these instructions for future reference.
IMPORTANT SAFETY INSTRUCTIONS
7
08NOTINSTALFE8/USA-1
store explosives, such as aerosol cans, on or near the appliance. Flammable materials may explode and result in fire or property damage.
u Keep oven vent ducts unobstructed.
u Placement of Oven Racks - Always place oven racks in desired location while
oven is cool. If rack must be moved while oven is hot, do not let potholder contact hot heating element in oven.
u To avoid personal injury, do not sit, stand or lean on oven doors or drawer.
Leaning, sitting or stepping on the doors or drawer of this range can result in serious injuries and also cause damage to the range. Do not allow anyone to climb, stand or hang on any part of the range.
u The bottom drawer is for storing oven trays and other cooking utensils. It can
get very warm, don’t store anything in it, which may melt or catch fire. Never store flammable materials in the drawer. This includes paper, plastic and cloth items, such as cookbooks, plastic ware and towels, as well as flammable liquids. Do not store explosives, such as aerosol cans, on or near the appliance. Flammable materials may explode and result in fire or property damage.
u Wear Suitable Clothing - Never wear loose-fitting or hanging clothes while
using the range. Be careful when reaching for items stored in cabinets over the cooktop. Flammable material could be ignited if brought in contact with a burner flame or hot surface and may cause severe burns.
u Important Safety Notice and Warning - The California Safe Drinking Water
and Toxic Enforcement Act of 1986 (Proposition 65) requires the Governor of California to publish a list of substances known to the State of California to cause cancer or reproductive harm, and requires businesses to warn customers of poten­tial exposures to such substances.
This appliance contains or produces a chemical or chemicals which can cause death or serious illness and which are known to the state of California to cause cancer, birth defects or other reproductive harm.
Users of this appliance are hereby warned that the burning of gas can result in low-level exposure to some of the listed substances, including benzene, formalde­hyde and soot, due primarily to the incomplete combustion of natural gas or liquid petroleum (LP) fuels. Properly adjusted burners will minimize incomplete combustion.
Read all instructions before using this appliance. Save these instructions for future reference.
IMPORTANT SAFETY INSTRUCTIONS
8
08NOTINSTALFE8/USA-1
Exposure to these substances can also be minimized by properly venting with an open window or using a ventilation fan or hood.
To reduce the risk from substances in the fuel or from fuel combustion make sure this appliance is installed, operated, and maintained according to the instructions in this booklet.
u Quality of Flames - On Natural Gas the burners’ flames should be a blueish
color with, at most, a slight yellowish fringe. On Propane gas the flames may be "softer". The cooktop burner flames may have a slight yellowish tip. If the flame burns with a long white tip you should call for service.
MAKE SURE THE FLOW OF COMBUSTION AND VENTILATION AIR TO THE RANGE IS UNOBSTRUCTED.
DO NOT TOUCH SURFACE UNITS, AREAS NEAR UNITS, HEATING ELEMENTS OR INTERIOR SURFACES OF OVEN - Surface units and hea­ting elements may be hot even though they are dark in color. Areas near sur­face units and interior surfaces of an oven may become hot enough to cause burns. During and after use, do not touch, or let clothing or other flammable mate­rials contact surface units, areas near units, heating elements or interior sur­faces of oven until they have had sufficient time to cool. Other surface of the appliance may become hot enough to cause burns - among these surfaces are oven vent openings and surface near these openings, oven doors, etc.
IMPORTANT: Never keep pet birds in the kitchen or in rooms where the fumes from the kitchen could reach. Birds have a very sensitive respiratory system. Fumes released due to overheated cooking oil, fat, margarine and overheated non-stick cookware may be harmful.
You can find this manual on following web sites:
www.lacornueusa.com
www.purcellmurray.com
www.lacornue.com/ca www.agamarvel.com
Read all instructions before using this appliance. Save these instructions for future reference.
IMPORTANT SAFETY INSTRUCTIONS
9
08NOTINSTALFE8/USA-1
ContentsCONTENTS
CONTENTS
IMPORTANT SAFETY INSTRUCTIONS .................................................................................................... 1
DESCRIPTION ........................................................................................................................................................ 13
1. General description .............................................................................................................................. 13
2. Dimensions ............................................................................................................................................ 13
3. Energy power and gas flow rates ....................................................................................................... 14
4. Power ratings for the electrical elements ........................................................................................ 14
5. Rating plate ............................................................................................................................................ 14
BEFORE DELIVERY ............................................................................................................................................. 15
1. Safety requirements .............................................................................................................................. 15
2. Electrical supply .................................................................................................................................... 16
3. Gas supply .............................................................................................................................................. 17
HANDLING AND INSTALLATION INSTRUCTIONS ............................................................................ 18
1. Unpacking the Cooker ......................................................................................................................... 18
2. Handling instructions ......................................................................................................................... 18
3. Removing and Refitting the Oven Door ......................................................................................... 18
4. Fitting the Handrail ............................................................................................................................. 19
5. Riser / Backsplash installation .......................................................................................................... 19
6. Gas chimney protection installation ................................................................................................ 19
7. Height adjustment and positioning the cooker .......................................................................... 20
8. Installation of an Anti-Tip Device .................................................................................................... 21

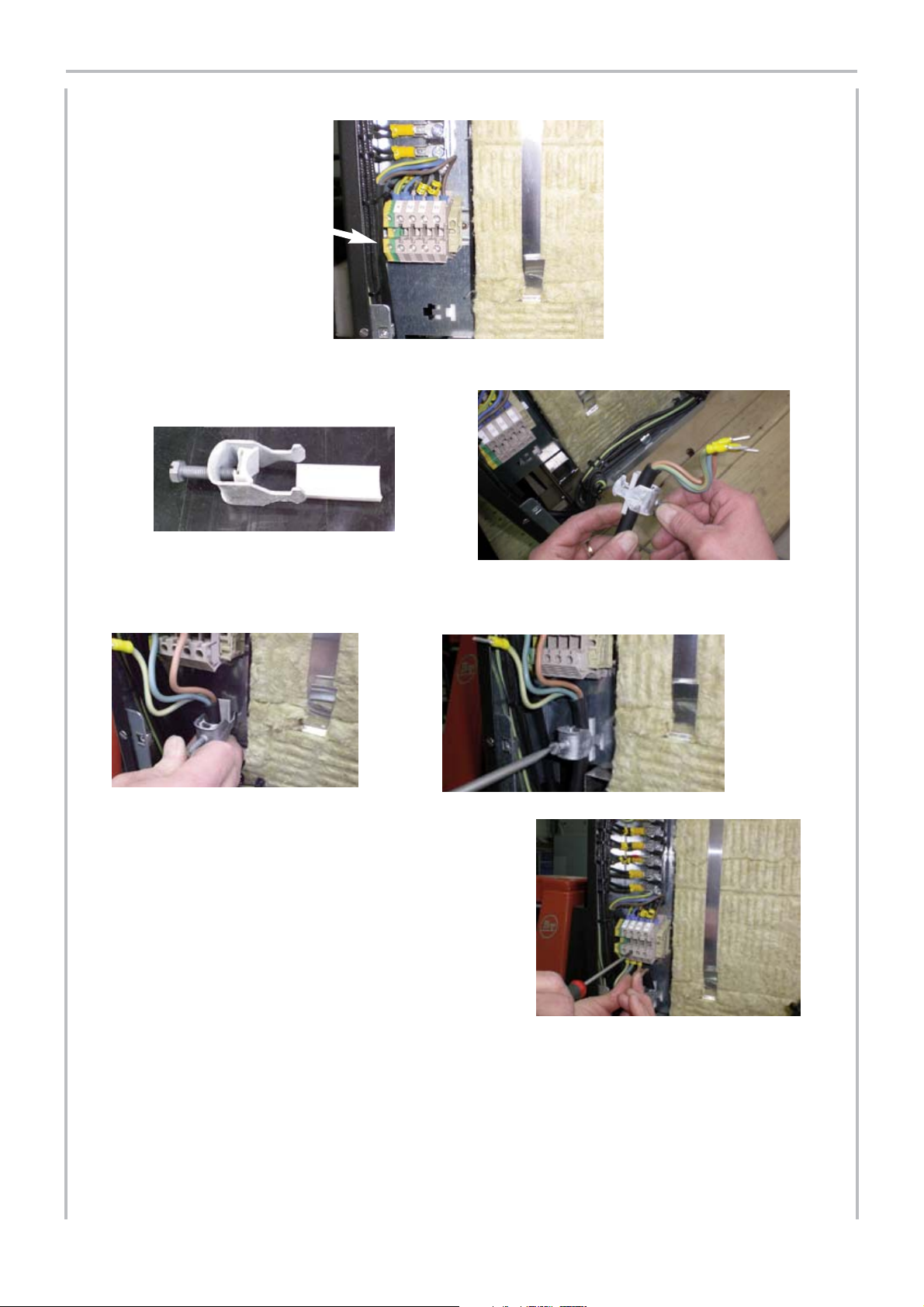

CONNECTIONS ..................................................................................................................................................... 23
1. Electrical connections ......................................................................................................................... 24

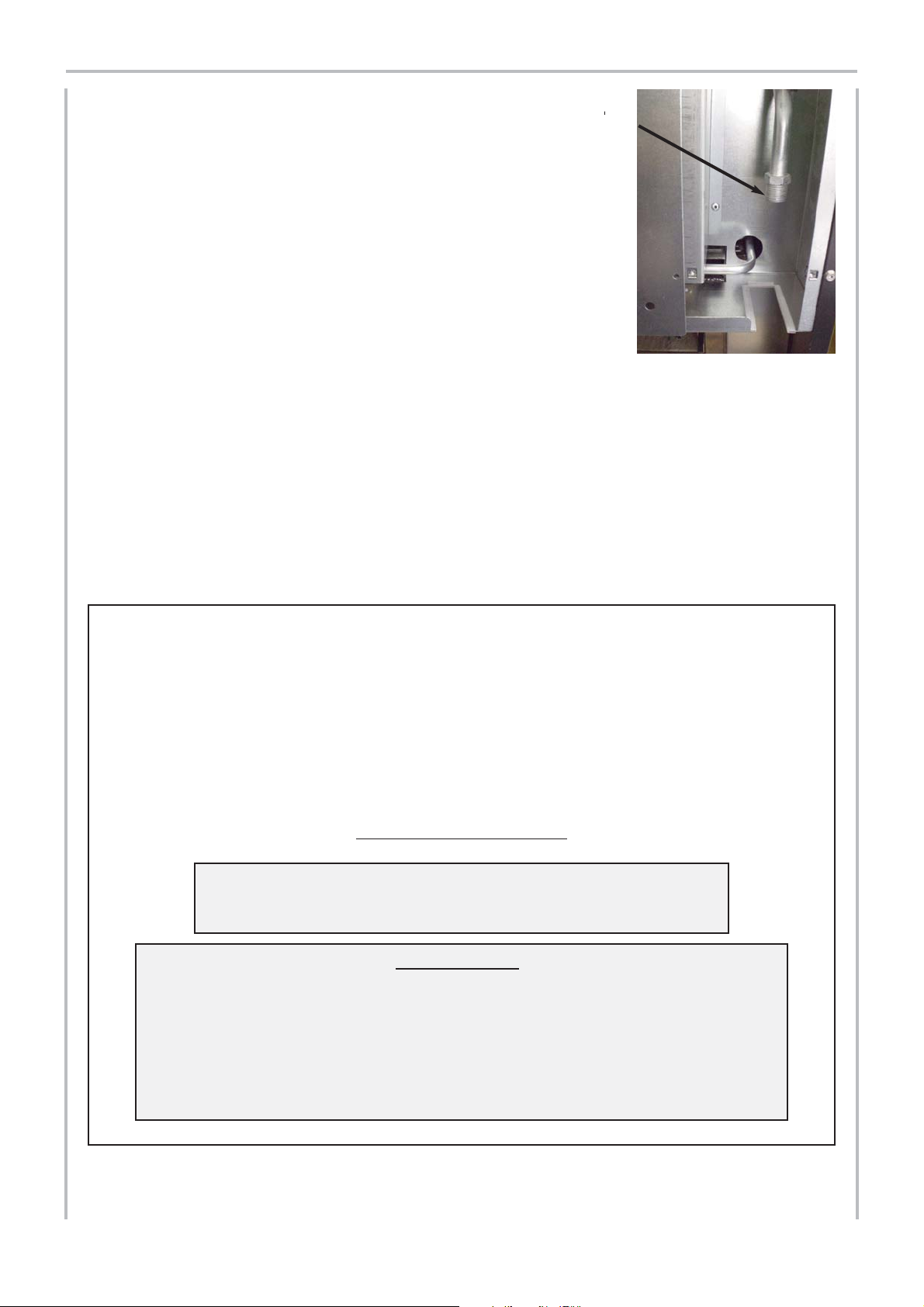

2. Gas connection ..................................................................................................................................... 26
INSTRUCTIONS FOR USE ................................................................................................................................. 28

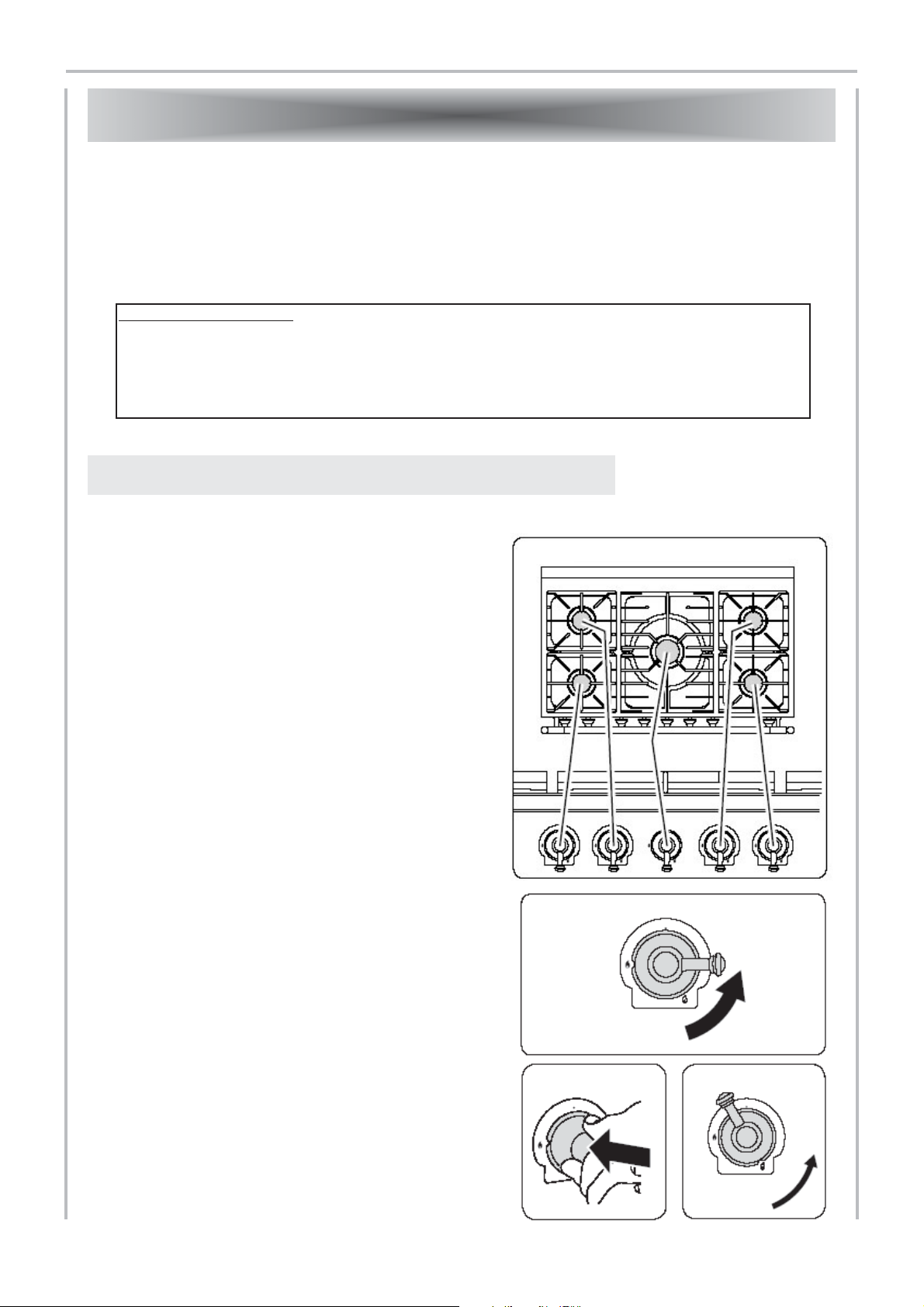

1. Starting with the cooktop burners .................................................................................................... 28
2. Starting with the oven ......................................................................................................................... 30
3. The cooking principle ......................................................................................................................... 32
4. Vaulted oven: advice on use ............................................................................................................... 32
UPKEEP OF A CornuFé 1908 - 36" COOKER ............................................................................................... 34
1. Front Panels ........................................................................................................................................... 34
2. Finishes ................................................................................................................................................... 35
3. The cooktop ........................................................................................................................................... 36
4. The oven ................................................................................................................................................. 37
MAINTENANCE .................................................................................................................................................... 39
IMPORTANT INFORMATION ........................................................................................................ 39
CONVERSION TO PROPANE GAS ................................................................................................ 40

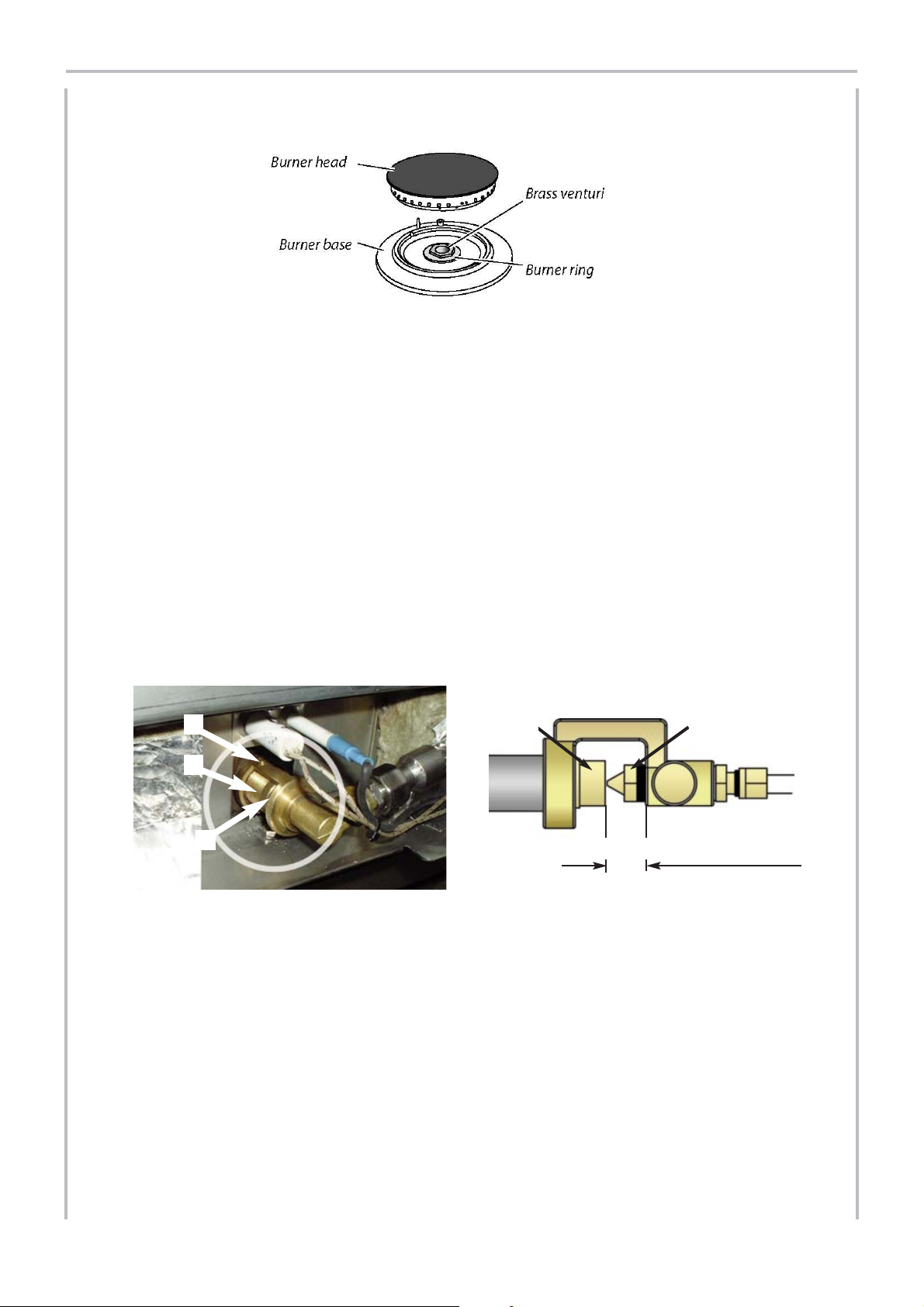

1. Orifices .................................................................................................................................................... 40
2. Adjustments of the top burner low flame settings ....................................................................... 42
3. Gas pressure regulator ........................................................................................................................ 43
4. Converting for High Altitude ............................................................................................................ 44

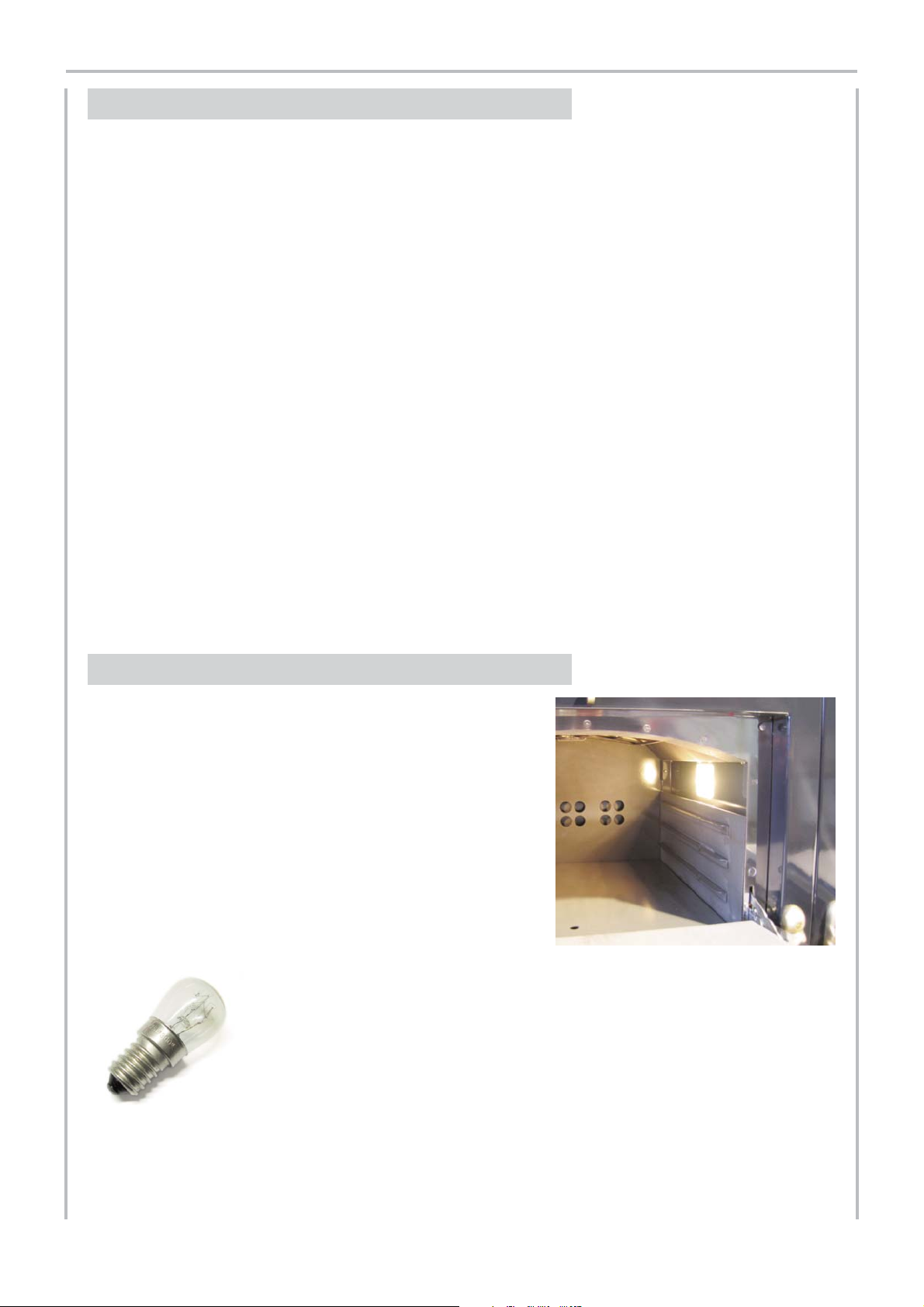

5. Replacing the oven light ..................................................................................................................... 44
ELECTRICAL DIAGRAMS ................................................................................................................................ 45
1. Gas cooktop electronic ignition ........................................................................................................ 45
2. Gas oven wiring - Electronic Ignition .............................................................................................. 46
WARRANTY ............................................................................................................................................................. 47
ADDRESS .................................................................................................................................................................. 48
10
Dear Customer,
Please complete the appliance details below and keep them safe for future reference – this information will enable us to accurately identify your particular appliance and help us to help you. Filling this in now will save you time and inconvenience if you later have a problem with your appliance. It may also be of benefit to keep your purchase receipt with this leaflet. You may be required to produce the receipt to validate a warranty service visit.
* This information is on the appliance data badge and on the warranty certificate.
If you have a problem
In the unlikely event that you have a problem with your appliance, please refer to the rest of this booklet, to check that the appliance has been installed and is being used correctly. If you are still having difficulty, contact your retailer.
HEADQUARTERS AND WORKSHOP
14, rue du Bois du Pont - Z.I. Les Béthunes
95310 SAINT OUEN L’AUMONE
POSTAL ADDRESS:
BP 99006 - 95070 Cergy Pontoise Cedex
F
RANCE
Tel: +33 (0)1 34 48 36 36 Fax: +33 (0)1 34 64 32 65
www.lacornue.com
e-mail: a.table@la-cornue.com
LA CORNUE - Installation and User Guide CornuFé 1908 - 36" - USA / Can
June 2012 - Anna Kowalczyk
08NOTINSTALFE8/USA-1
Appliance Serial Number*:
Model*:
Colour:
Fuel type*:
Tension*:
Retailers Name & Address:
Date of Purchase:
Installer's Name & Address:
Date of Installation:
11
Dear Customer,
Thank you for purchasing a La Cornue cooker. We hope that you will really enjoy preparing delicious meals with it.
The aim of this guide is to familiarize you with the potential of a professional quality appliance designed for domestic use and to facilitate its upkeep.
Above all, a La Cornue cooker is manufactured from noble and pure materials. The specific choices for certain components, such as brass for the frames and cast-iron for the hotplate, correspond to technicality and professional performance requirements which are not attainable with other materials or protective treatments. We are very much attached to the authenticity of our cookers and we are convinced that you will appreciate them even more as you use them.
You should follow the advice about use and upkeep of your cooker provided in this brochure; this will ensure that your cooker gives you satisfaction for many years.
Thank you for placing your trust in us.
Xavier Dupuy President and Managing Director
12
08NOTINSTALFE8/USA-1
DESCRIPTION DESCRIPTION
13
08NOTINSTALFE8/USA-1
DESCRIPTION
CornuFé 1908 - 36" model: FE8XXG0UR1 XX may be replaced by letters or figures. Model consisting of one large vaulted gas oven fitted with an electric grill and a cooktop with 5 gas burners.
Width: 36" / 914 mm Overall depth: 30.3" / 770 mm Depth of the cooktop: 27.5" / 700 mm
(including backsplash) Height with backsplash: 38" / 964 mm Height of range: 36" / 914 mm
(without backsplash) Adjustable feet: -0.6", +0.6" / -15, +15 mm Weight: 242 lbs / 110 kg
2. DIMENSIONS
1. GENERAL DESCRIPTION
General description
DESCRIPTION
DESCRIPTIONEnergy Power
14
08NOTINSTALFE8/USA-1

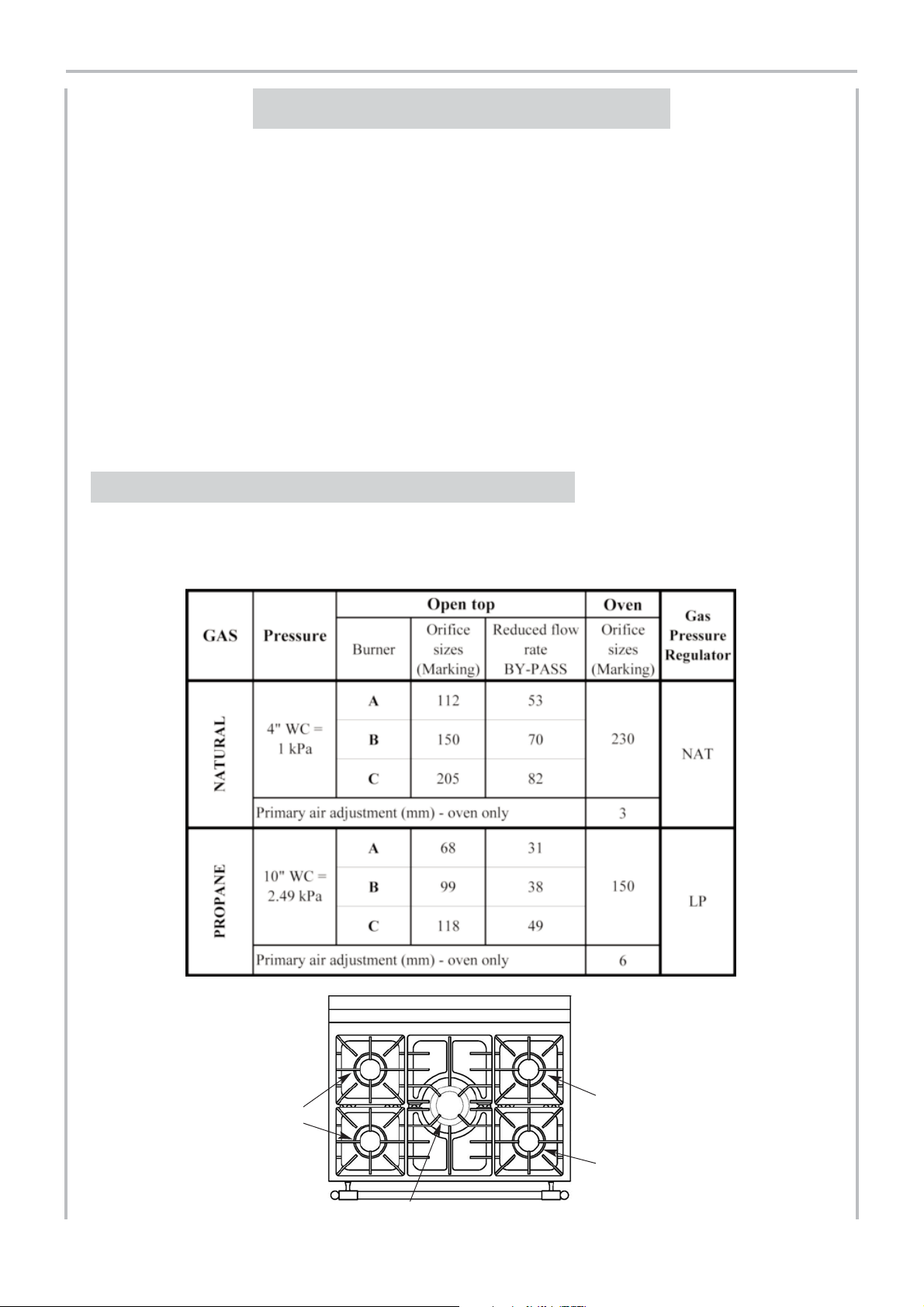

The gas used can be either natural gas or propane, depending on availability. Refer to pages 40 – 43 for information about adapting your range to the various types of gas.
The table below summarize for each gas type and for each burner the gas input ratings (energy power in BTU/hr).
Tension 240 V a.c., single-phase, 3 wire system; 60 Hz Total electrical Power: 2575 W; Intensity 11 A.
Grill in large vaulted gas oven ............................................................................…................. 2 500 W
Oven light .......................................................................................................................................... 25 W
Ignition for large vaulted gas oven .............................................................................................. 25 W
Automatic ignition for gas burners ............................................................................................. 25 W
The rating plate of your appliance is inside the storage drawer. To see this rating plate, pull out the storage drawer.
You will find on this plate the name and address of the manufacturer as well as the following information:
1) Kind of appliance (Model)
2) Serial number (order number)
3) Manufacturing date
4) Total gas rating BTU/hr
5) Type of gas and Manifold pressure
6) Burner input rating BTU/hr for each burner
7) Voltage rating in Volt, Total Electric Power in Watts and Intensity (Amps)
4. POWER RATINGS FOR THE ELECTRICAL ELEMENTS
5. RATING PLATE
3. ENERGY POWER AND GAS FLOW RATES
B
B
A
C
Loading...
+ 36 hidden pages
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
