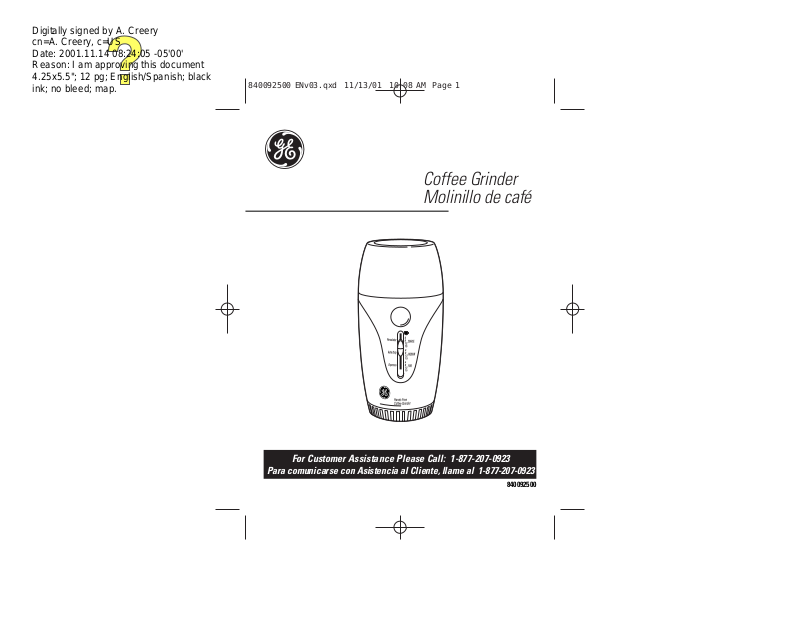

GE 168940 User Manual
Coffee Grinder
Molinillo de café
g
For Customer Assistance Please Call: 1-877-207-0923
Para comunicarse con Asistencia al Cliente, llame al 1-877-207-0923
840092500
Digitally signed by A. Creery
cn=A. Creery, c=US
Date: 2001.11.14 08:24:05 -05'00'
Reason: I am approving this document
4.25x5.5"; 12 pg; English/Spanish; black
ink; no bleed; map.
840092500 ENv03.qxd 11/13/01 10:08 AM Page 1
3
SAVE THESE INSTRUCTIONS!
Consumer Safety Information
2
IMPORTANT SAFEGUARDS
Know Your Coffee Grinder
1
2
3
4
1
2
4
3
When using electrical appliances, basic safety precautions should
always be followed including the following:
1. Read all instructions.
2. To protect against risk of electrical shock, do not put unit, cord or
plug in water or other liquid.
3. Close supervision is necessary when any appliance is used by or
near children.
4. Unplug from outlet when not in use, before putting on or taking
off parts, and before cleaning.
5. Avoid contacting moving parts.
6. Do not operate any appliance with a damaged cord or plug or
after the appliance malfunctions, or is dropped or damaged in
any manner. Call our toll free customer service number for
information on examination, repair or electrical or mechanical
adjustment.
7. The use of attachments not recommended or sold by the
manufacturer may cause fire, electric shock or injury.
8. Do not use outdoors.
9. Do not let cord hand over edge of table or counter or touch hot
surfaces including stove.
10. Check grinding chamber for presence of foreign objects before
using.
11. Do not use appliance for other than intended purpose.
12. Do not remove cover until blade has completely stopped rotating.
This appliance intended for household use only.
This appliance is equipped with a polarized plug. This type of plug
has one blade wider than the other. The plug will fit into an electrical
outlet only one way. This is a safety feature intended to help reduce
the risk of electrical shock. If you are unable to insert the plug into
the outlet, try reversing the plug. If the plug should still fail to fit,
contact a qualified electrician to replace the obsolete outlet. Do not
attempt to defeat the safety purpose of the polarized plug by
modifying the plug in any way.
5
Cover
Grinding Chamber
ON/OFF Button
Grind Setting Switch
Body
Base with Cord Wind
Storage Container*
Cleaning Brush*
5
6
7
7
8
8
6
*Optional with select models.
840092500 ENv03.qxd 11/13/01 10:08 AM Page 2
5
Tips
4
How To Use
1. Before first use, clean coffee grinder.
2. Remove cover by turning counter-
clockwise to the unlock position,
then lift straight up. (Illus. A)
3. Using measurements on cover, fill
with desired amount of coffee beans
and pour into grinding chamber or
scoop beans directly into grinding
chamber.
4. Lock cover onto grinder. Align tab on
lid with unlock symbol on the back of
grinder. Then turn lid clockwise to
the lock position. (Illus. B)
5. Hold the plug and pull slowly to release
the stored cord. Plug into outlet.
6. Move the grind setting switch to the
amount to be ground and desired
fineness of grind. (Illus. C)
7. Press and hold ON/OFF button.
Release button once grinder begins.
The grinder will stop automatically
when grinding is complete. To stop
grind cycle at anytime, push ON/OFF
button. When ON/OFF button is
pressed again, grinder will start from
the beginning of the timed cycle.
8. When finished unplug grinder, clean
grinding chamber, and rewind cord.
Store cleaning brush in lid of storage container.
NOTE: The grinder will only operate with cover in the
locked position.
• For best flavor, store coffee beans in an airtight container.
• Grind beans immediately before brewing.
• When grinding more than 12 scoops of coffee beans, pour
beans into cover, then turn grinder upside down and lock onto
the cover. Be sure to align tab on lid with the unlock symbol.
• Grinding times will vary by amount and fineness setting:
COARSE 9 to 13 seconds (Perc, French Press)
MED 14 to 17 seconds (Auto Drip)
FINE 25 to 28 seconds (Espresso)
• To ensure optimal grinding performance allow your coffee
grinder to cool for at least one minute between uses.
• Coffee flavor and strength is a personal preference. Vary the
type of coffee beans, amount of coffee and fineness of grind
to find the flavor you prefer.
• To grind amounts not on controls, select the next closest
amount listed.
How To Clean
1. Unplug from outlet before cleaning.
2. Use the soft cleaning brush to clean
around blades. Carefully wipe grinding chamber with a soft, damp cloth.
Use care around sharp blades.
3. Rinse and dry cover. Wipe grinder
with damp cloth.
4. Hold grinder and turn base in the
direction of the arrow to rewind cord.
5. The storage container and brush should be washed in hot,
soapy water. Rinse and let dry.
Do not immerse coffee grinder in water or other liquid.
(Illus. A)
(Illus. B)
(Illus. C)
840092500 ENv03.qxd 11/13/01 10:08 AM Page 4
