Owner’s Manual

Ranges

Self-Cleaning Radiant

164D4290P024 49-80065 12-00 JR

Safety Instructions

Anti-Tip Device . . . . . . . . . . . . . . 2

Oven . . . . . . . . . . . . . . . . . . . . . . . 6

Radiant Surface Units . . . . . . . . 5

Safety Precautions . . . . . . . . . 3, 4

Operating Instructions

Clock and Timer . . . . . . . . . . . .14

Oven . . . . . . . . . . . . . . . . . . . .9–19

Sabbath Feature . . . . . . . . . . .16

Self-Cleaning . . . . . . . . . . .18, 19

Special Features . . . . . . . .10–11

Thermostat . . . . . . . . . . . . . . . .17

Timed Baking & Roasting . . .15

Surface Units . . . . . . . . . . . . . . 7–8

Care and Cleaning

Broiler Pan & Grid . . . . . . . . . . 22

Control Knobs . . . . . . . . . . . . . 20

Glass Cooktop . . . . . . . . . . . 23, 24

Lift-Off Oven Door . . . . . . . . . . 21

Light . . . . . . . . . . . . . . . . . . . . . . 22

Shelves . . . . . . . . . . . . . . . . . . . . 22

Troubleshooting Tips . . . 25–28

Consumer Support

Consumer Support . . Back Cover

Product Registration . . . . . 29, 30

Warranty . . . . . . . . . . . . . . . . . . 31

www.GEAppliances.com

Write the model and serial numbers here:

Model # _____________

Serial # _____________

You can find them on a label behind the storage drawer on the front of the range frame.

WARNING!

For your safety, the information in this manual must be followed to minimize the risk of fire, electric shock, or to prevent property damage, personal injury, or loss of life.

All ranges can tip and injury could result.

To prevent accidental tipping of the range, attach it to the wall and floor by installing the Anti-Tip device supplied.

To check if the device is installed and engaged properly, remove the kick panel or storage drawer and inspect the rear leveling leg. Make sure it fits securely into the slot.

If you pull the range out from the wall for any reason, make sure the device is properly engaged when you push the range back against the wall. If it is not, there is a possible risk of the range tipping over and causing injury if you or a child stand, sit or lean on an open door.

Please refer to the Anti-Tip device information in this manual. Failure to take this precaution could result in tipping of the range and injury.

WARNING

ANTI-TIP DEVICE

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING.

Safety Instructions

Operating Instructions

Safety Instructions

Operating Instructions

Care and Cleaning Troubleshooting Tips Consumer Support

www.GEAppliances.com

IMPORTANT SAFETY NOTICE

The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to publish a list of substances known to the state to cause cancer, birth defects or other reproductive harm, and requires businesses to warn customers of potential exposure to such substances.

The fiberglass insulation in self-clean ovens gives off a very small amount of carbon monoxide during the cleaning cycle. Exposure can be minimized by venting with an open window or using a ventilation fan or hood.

Fluorescent light bulbs contain mercury. If your model has a surface light, you must recycle the fluorescent light bulb according to local, state and federal codes.

When using electrical appliances, basic safety precautions should be followed, including the following:

■Use this appliance only for its intended

purpose as described in this Owner’s Manual.

■Be sure your appliance is properly installed

and grounded by a qualified installer in accordance with the provided installation instructions.

■ Have the installer show you the location

of the circuit breaker or fuse. Mark it for easy reference.

■ Do not attempt to repair or replace any

part of your range unless it is specifically recommended in this manual. All other servicing should be referred to a qualified technician.

■ Before performing any service, disconnect

the range power supply at the household distribution panel by removing the fuse or switching off the circuit breaker.

■ Do not leave children alone—children

should not be left alone or unattended in an area where an appliance is in use. They should never be allowed to sit or stand on any part of the appliance.

■ Do not allow anyone to climb, stand or

hang on the door, storage drawer or cooktop. They could damage the range and even tip it over, causing severe personal injury.

SAFETY PRECAUTIONS

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING.

■ Do not store flammable materials in an

oven or near the cooktop.

■

CAUTION:

Items of interest to children should not be stored in cabinets above a range or on the backsplash of a range—children climbing on the range to reach items could be seriously injured.

■ Never wear loose-fitting or hanging

garments while using the appliance. Be careful when reaching for items stored over the range. Flammable material could be ignited if brought in contact with hot surface units or heating elements and may cause severe burns.

■ Use only dry pot holders—moist or damp

pot holders on hot surfaces may result in burns from steam. Do not let pot holders touch hot surface units or heating elements. Do not use a towel or other bulky cloth in place of pot holders.

■ Do not use water on grease fires. Never

pick up a flaming pan. Turn the controls off. Smother a flaming pan on a surface unit by covering the pan completely with a well-fitting lid, cookie sheet or flat tray. Use a multi-purpose dry chemical or foam-type fire extinguisher.

■Flaming grease outside a pan can be put

out by covering it with baking soda or, if available, by using a multi-purpose dry chemical or foam-type fire extinguisher.

■Flame in the oven can be smothered

completely by closing the oven door and turning the oven off or by using a multipurpose dry chemical or foam-type fire extinguisher.

■ For your safety, never use your appliance

for warming or heating the room.

■ Do not let cooking grease or other

flammable materials accumulate in or near the range.

■ Do not touch the surface units, the heating

elements or the interior surface of the oven. These surfaces may be hot enough to burn even though they are dark in color. During and after use, do not touch, or let clothing or other flammable materials contact the surface units, areas nearby the surface units or any interior area of the oven; allow sufficient time for cooling first.

■Potentially hot surfaces include the

cooktop, areas facing the cooktop, oven vent opening, surfaces near the opening, crevices around the oven door.

■

REMEMBER:

The inside surface of the oven

may be hot when the door is opened.

■ Do not store or use combustible materials,

gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

■ Keep the hood and grease filters clean

to maintain good venting and to avoid grease fires.

■ Teach children not to play with the

controls or any other part of the range.

■ Always keep dish towels, dish cloths, pot

holders and other linens a safe distance from your range.

■ Always keep wooden and plastic utensils

and canned food a safe distance from your range.

■ Always keep combustible wall coverings,

curtains or drapes a safe distance from your range.

WARNING!

SAFETY PRECAUTIONS

Cook meat and poultry thoroughly—meat to at least an INTERNAL temperature of 160°F. and poultry to at least an INTERNAL temperature of 180°F. Cooking to these temperatures usually protects against foodborne illness.

COOK MEAT AND POULTRY THOROUGHLY…

Do not operate the oven or cooktop controls if the glass is broken. Food splatter or cleaning solution may penetrate a broken control panel and create a risk of electrical shock. Contact a qualified technician immediately should your glass control panel become broken.

Safety Instructions

Operating Instructions

Safety Instructions

Operating Instructions

Care and Cleaning Troubleshooting Tips Consumer Support

www.GEAppliances.com

Use proper pan size—select cookware having flat bottoms large enough to cover the surface unit heating element. The use of undersized cookware will expose a portion of the surface unit to direct contact and may result in ignition of clothing. Proper relationship of cookware to surface unit will also improve efficiency.

■Never leave the surface units unattended at

high heat settings. Boilovers cause smoking and greasy spillovers that may catch on fire.

■Only certain types of glass, glass ⁄ceramic,

earthenware or other glazed containers are suitable for cooktop service; others may break because of the sudden change in temperature.

■To minimize the possibility of burns,

ignition of flammable materials and spillage, the handle of a container should be turned toward the center of the range without extending over nearby surface units.

■Always turn the surface units off before

removing cookware.

■When preparing flaming foods under the

hood, turn the fan on.

■Use care when touching the cooktop. The

glass surface of the cooktop will retain heat after the controls have been turned off.

■Keep an eye on foods being fried at high or

medium high heat settings.

■Foods for frying should be as dry as

possible. Frost on frozen foods or moisture on fresh foods can cause hot fat to bubble up and over the sides of the pan.

■Use little fat for effective shallow or deep

fat frying. Filling the pan too full of fat can cause spillovers when food is added.

■If a combination of oils or fats will be used

in frying, stir together before heating, or as fats melt slowly.

■Always heat fat slowly, and watch as it heats.

■Use a deep fat thermometer whenever

possible to prevent overheating fat beyond the smoking point.

■Avoid scratching the glass cooktop. The

cooktop can be scratched with items such as sharp instruments, rings or other jewelry, and rivets on clothing.

■Do not operate the radiant surface units if

the glass is broken. Spillovers or cleaning solution may penetrate a broken cooktop and create a risk of electrical shock. Contact a qualified technician immediately should your glass cooktop become broken.

■Never use the glass cooktop surface as a

cutting board.

■Do not place or store items that can melt or

catch fire on the glass cooktop, even when it is not being used.

■Be careful when placing spoons or other

stirring utensils on glass cooktop surface when it is in use. They may become hot and could cause burns.

■Clean the cooktop with caution. If a wet

sponge or cloth is used to wipe spills on a hot surface unit, be careful to avoid steam burns. Some cleaners can produce noxious fumes if applied to a hot surface.

NOTE:

We recommend that you avoid wiping any surface unit areas until they have cooled and the indicator light has gone off. Sugar spills are the exception to this. Please see the

Cleaning the glass

cooktop

section.

■When the cooktop is cool, use only the

recommended cleaning cream to clean the cooktop.

■To avoid possible damage to the cooking

surface, do not apply cleaning cream to the glass surface when it is hot.

■After cleaning, use a dry cloth or paper

towel to remove all cleaning cream residue.

■Read and follow all instructions and

warnings on the cleaning cream labels.

RADIANT SURFACE UNITS

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING.

■ Do not heat unopened food containers.

Pressure could build up and the container could burst, causing an injury.

■ Keep the oven vent unobstructed.

■ Keep the oven free from grease buildup.

■ Place the oven shelf in the desired position

while the oven is cool. If shelves must be handled when hot, do not let pot holder contact the heating elements.

■ When using cooking or roasting bags in the

oven, follow the manufacturer’s directions.

■ Pulling out the shelf to the stop-lock is a

convenience in lifting heavy foods. It is also a precaution against burns from touching hot surfaces of the door or oven walls.

■ Do not use the oven to dry newspapers.

If overheated, they can catch on fire.

■ Do not use the oven for a storage area.

Items stored in an oven can ignite.

■ Do not leave paper products, cooking

utensils or food in the oven when not in use.

■ Do not use aluminum foil to line oven

bottoms, except as suggested in this manual. Improper installation of aluminum foil may result in a risk of electric shock or fire.

Stand away from the range when opening the oven door. Hot air or steam which escapes can cause burns to hands, face and/or eyes.

WARNING!

OVEN

READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.

SAVE THESE INSTRUCTIONS

Do not use oven cleaners. No commercial oven cleaner or oven liner protective coating of any kind should be used in or around any part of the oven. Residue from oven cleaners will damage the inside of the oven when the self-clean cycle is used.

■Do not clean the door gasket. The door

gasket is essential for a good seal. Care should be taken not to rub, damage or move the gasket.

■Before self-cleaning the oven, remove the

broiler pan, grid and other cookware.

■Be sure to wipe up excess spillage before

starting the self-cleaning operation.

■If the self-cleaning mode malfunctions,

turn the oven off and disconnect the power supply. Have it serviced by a qualified technician.

■Clean only parts listed in this Owner’s

Manual.

SELF-CLEANING OVEN

Safety Instructions

Operating Instructions

Safety Instructions

Operating Instructions

Care and Cleaning Troubleshooting Tips Consumer Support

Using the surface units.

www.GEAppliances.com

Throughout this manual, features and appearance may vary from your model.

How to Set

Push the knob in and turn in either direction to the setting you want.

At both

OFF

and HIthe control

clicks

into position. You may hear slight

clicking

sounds during cooking, indicating the control is keeping the power level you set.

HOT COOKTOP

indicator light will glow when any radiant element is turned on, and will remain on until the surface is cooled to approximately 150°F.

Indicator light will;

■

come on when the unit is hot to the touch.

■

stay on even after the unit is turned off.

■

glow until the unit is cooled to approximately 150°F.

Be sure you turn the control knob to OFF when you finish cooking.

Dual Surface Unit Control Knob

The right front surface unit has 2 cooking sizes to select from so you can match the size of the unit to the size of the cookware you are using.

To use the small (6 inch) surface unit, turn the control knob to the

SMALL

BURNER

settings.

To use the large (9 inch) surface unit, turn the control knob to the

LARGE

BURNER

settings.

Temperature Limiter

Every radiant surface unit has a temperature limiter.

The temperature limiter protects the glass cooktop from getting too hot.

The temperature limiter may cycle the units off for a time if:

■

The pan boils dry.

■

The pan bottom is not flat.

■

The pan is off center.

■

There is no pan on the unit.

Home Canning Tips

Be sure the canner is centered over the surface unit.

Make sure the canner is flat on the bottom.

To prevent burns from steam or heat, use caution when canning.

Use recipes and procedures from reputable sources. These are available from manufacturers such as Ball® and Kerr® and the Department of Agriculture Extension Service.

Use only flat-bottomed woks.

Wok Cooking

We recommend that you use only a flat-bottomed wok. They are available at your local retail store.

Do not use woks that have support rings.

Placing the ring over the surface unit will cause a build-up of heat that will damage the cooktop.

Do not use round bottom woks. You could be seriously burned if the wok tipped over.

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

Using the surface units.

Throughout this manual, features and appearance may vary from your model.

Selecting types of cookware.

The following information will help you choose cookware which will give good performance on glass cooktops.

Stainless Steel:

recommended

Aluminum:

heavy weight recommended

Good conductivity. Aluminum residues sometimes appear as scratches on the cooktop, but can be removed if cleaned immediately. Because of its low melting point, thin weight aluminum should not be used.

Copper Bottom:

recommended

Copper may leave residues which can appear as scratches. The residues can be removed, as long as the cooktop is cleaned immediately. However, do not let these pots boil dry. Overheated metal can bond to glass cooktops. An overheated copper bottom pot will leave a residue that will permanently stain the cooktop if not removed immediately.

Porcelain Enamel Covered Cast Iron:

recommended

As long as the cookware is covered completely with porcelain enamel, this cookware is recommended. Caution is recommended for cast iron cookware that is not completely covered with smooth porcelain enamel, as it may scratch the glass ceramic cooktop.

Glass-ceramic:

usable, but not recommended

Poor performance. May scratch the surface.

Stoneware:

usable, but not recommended

Poor performance. May scratch the surface.

Check pans for flat bottoms by using a straight edge.

Pans with rounded, curved, ridged or warped bottoms are not recommended.

Never cook directly on the glass. Always use cookware.

About the radiant surface units…

The radiant cooktop features heating units beneath a smooth glass surface.

NOTE: A slight odor is normal when a new cooktop is used for the first time. It is caused by the heating of new parts and insulating materials and will disappear in a short time.

The surface unit will cycle on and off to maintain your selected control setting.

It is safe to place hot cookware on the glass surface even when the cooktop is cool.

Even after the surface units are turned off, the glass cooktop retains enough heat to continue cooking. To avoid overcooking, remove pans from the surface units when the food is cooked. Avoid placing anything on the surface unit until it has cooled completely.

Do not slide cookware across the cooktop because it can scratch the glass—the glass is scratch resistant, not scratch proof.

■

Water stains (mineral deposits) are removable using the cleaning cream or full strength white vinegar.

■

Use of window cleaner may leave an iridescent film on the cooktop. The cleaning cream will remove this discoloration.

■

Don’t store heavy items above the cooktop. If they drop onto the cooktop, they can cause damage.

■

Do not use the surface as a cutting board.

Always place the pan in the center of the surface unit you are cooking on.

SURFACE COOKING

OFF CENTER

DRAGGING

Safety Instructions

Operating Instructions

Safety Instructions

Operating Instructions

Care and Cleaning Troubleshooting Tips Consumer Support

Using the oven controls.

www.GEAppliances.com

Throughout this manual, features and appearance may vary from your model.

Oven Control, Clock and Timer Features and Settings

BAKE Pad

Press this pad to select the bake function.

Display

Shows the time of day, oven temperature, whether the oven is in the bake, broil or self-cleaning mode and the times set for the timer or automatic oven operations.

If “F– and a number or letter” flash in the display and the oven control signals, this indicates a function error code.

If your oven was set for a timed oven operation and a power outage occurred, the clock and all programmed functions must be reset.

The time of day will flash in the display when there has been a power outage.

COOKING TIME Pad

Press this pad and then press the number pads to set the amount of time you want your food to cook. The oven will shut off when the cooking time has run out.

DELAY START Pad

Use along with

COOKING TIME

SELF

CLEAN

pads to set the oven to start and

stop automatically at a time you set.

CLOCK Pad

Press this pad before setting the clock.

TOP LIGHT Pad

Press this pad to turn the surface light on or off.

KITCHEN TIMER ON/OFF Pad

Press this pad to select the timer feature.

CLEAR/OFF Pad

Press this pad to cancel

ALL

oven

operations except the clock and timer.

Number Pads

Use to set any function requiring numbers such as the time of day on the clock, the timer, the oven temperature, the internal food temperature, the start time and length of operation for timed baking and self-cleaning.

START Pad

Must be pressed to start any cooking or cleaning function.

SELF CLEAN Pad

Press this pad to select the self-cleaning function. See the

Using the self-cleaning

oven

section.

Do not lock the oven door with the latch during cooking. The latch is used for self-cleaning only.

OVEN LIGHT Pad

Press this pad to turn the oven light on or off.

BROIL HI/LO Pad

Press this pad to select the broil function.

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

Special features of your oven control.

Your new touch pad control has additional features that you may choose to use. The following are the features and how you may activate them.

The special feature modes can only be activated while the display is showing the time of day. They remain in the control’s memory until the steps are repeated.

When the display shows your choice, press the START pad. The special features will remain in memory after a power failure.

12 Hour Shut-Off

With this feature, should you forget and leave the oven on, the control will automatically turn off the oven after 12 hours during baking functions or after 3 hours during a broil function.

If you wish to turn

OFF

this feature, follow

the steps below.

Press the

BAKE

and

BROIL HI/LO

pads at the same time for 3 seconds until the display shows

SF.

Press the

DELAY START

pad. The

display will show

12 shdn

(12 hour

shut-off). Press the

DELAY START

pad again and the display will show

no shdn

(no shut-off).

Press the

START

pad to activate the no shut-off and leave the control set in this special features mode.

Fahrenheit or Celsius Temperature Selection

Your oven control is set to use the Fahrenheit temperature selections but you may change this to use the Celsius selections.

Press the

BAKE

and

BROIL HI/LO

pads at the same time for 3 seconds until the display shows

SF.

Press the

BROIL HI/LO

pad. The

display will show F(Fahrenheit).

Press the

BROIL HI/LO

pad again. The

display will show C(Celsius).

Press the

START

pad.

Control Lockout

Your control will allow you to lock out the touch pads so they cannot be activated when pressed.

Press the

BAKE

and

BROIL HI/LO

pads at the same time for 3 seconds until the display shows

SF.

Press the

SELF CLEAN

pad. The

display will show

LOC OFF.

Press the

SELF CLEAN

pad again.

The display will show

LOC ON.

Press the

START

pad to activate the control lockout feature and leave the control set in this special features mode.

When this feature is on and the touch pads are pressed the control will beep and the display will show

LOC.

NOTE: The control lockout mode will not

affect the CLOCK and KITCHEN TIMER ON/OFF touch pads.

Safety Instructions

Operating Instructions

Safety Instructions

Operating Instructions

Care and Cleaning Troubleshooting Tips Consumer Support

www.GEAppliances.com

Tones at the End of a Timed Cycle

At the end of a timed cycle, 3 short beeps will sound followed by one beep every 6 seconds until the CLEAR/OFF pad is pressed. This continual 6 second beep may be canceled.

To cancel the 6 second beep:

Press the

BAKE

and

BROIL HI/LO

pads at the same time for 3 seconds until the display shows

SF.

Press the

KITCHEN TIMER ON/OFF

pad. The display shows

CON BEEP

(continual beep). Press the

KITCHEN

TIMER ON/OFF

pad again. The display

shows

BEEP.

(This cancels the one

beep every 6 seconds.)

Press the

START

pad.

12 Hour, 24 Hour or Clock Black-Out

Your control is set to use a 12 hour clock.

If you would prefer to have a 24 hour military time clock or black-out the clock display, follow the steps below.

Press the

BAKE

and

BROIL HI/LO

pads at the same time for 3 seconds until the display shows

SF.

Press the

CLOCK

pad once. The

display will show

12 hr.

If this is

the choice you want, press the

START

pad.

Press the

CLOCK

pad again to change to the 24 hour military time clock. The display will show

24 hr.

If this is the choice

you want, press the

START

pad.

Press the

CLOCK

pad again to black-out the clock display. The display will show

OFF.

If this is the choice you want, press

the

START

pad.

NOTE: If the clock is in the black-out mode you will not be able to use the Delay Start function.

Cook and Hold

Your new control has a cook and hold feature that keeps cooked foods warm for up to 3 hours after the cooking function is finished.

To activate this feature, follow the steps below.

Press the

BAKE

and

BROIL HI/LO

pads at the same time for 3 seconds until the display shows

SF.

Press the

COOKING TIME

pad.

The display will show

Hld OFF.

Press the

COOKING TIME

pad again to activate the feature. The display will show

Hld ON.

Press the

START

pad to activate the cook and hold feature and leave the control set in this special features mode.

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

Using the oven.

To avoid possible burns, place the shelves in the desired position before you turn the oven on.

Before you begin…

The shelves have stops, so that when placed correctly on the supports, they will stop before coming completely out, and will not tilt.

When placing and removing cookware, pull the shelf out until it stops.

To remove a shelf,

pull it toward you, tilt

the front end up and pull it out.

To replace,

place the end of the shelf (stop-locks) on the support, tilt up the front and push the shelf in.

CAUTION: When you are using the shelf in the lowest position (A), you will need to use caution when pulling the shelf out. We recommend that you pull the shelf out several inches and then, using two pot holders, pull the shelf out by holding the sides of it. The shelf is low and you could be burned if you place your hand in the middle of the shelf and pull all the way out. Be very careful not to burn your hand on the door when using the shelf in the lowest position (A).

The oven has 6 shelf positions.

How to Set the Oven for Baking or Roasting

Press the

BAKE

pad.

Press the number pads to set the desired temperature.

Press the

START

pad.

Check food for doneness at minimum time on recipe. Cook longer if necessary.

Press the

CLEAR/OFF

pad when

cooking is complete.

Type of Food Shelf Position

Frozen pies (on cookie sheet) D

Angel food cake, C or D bundt or pound cakes

Biscuits, muffins, brownies, C or D cookies, cupcakes, layer cakes, pies

Casseroles C or D

Turkey A

Preheating and Pan Placement

Preheat the oven if the recipe calls for it. Preheating is necessary for good results when baking cakes, cookies, pastry and breads.

To preheat, set the oven at the correct temperature. The control will beep when the oven is preheated and the display will show your set temperature. This will take approximately 15–20 minutes.

Baking results will be better if baking pans are centered in the oven as much as possible. If baking with more than one pan, place the pans so each has at least 1 to 1

⁄2″of air space around it. If baking

four cake layers at the same time, place two layers on rack B and two layers on rack D. Stagger pans on the rack so one is not directly above the other.

Aluminum Foil

You can use aluminum foil to line the broiler pan and broiler grid. However, you must mold the foil tightly to the grid and cut slits in it just like the grid.

Without the slits, the foil will prevent fat and meat juices from draining into the broiler pan. The juices could become hot enough to catch on fire. If you do not cut the slits, you are essentially frying, not broiling.

Do not use aluminum foil on the bottom of the oven.

Never entirely cover a shelf with aluminum foil. This will disturb the heat circulation and result in poor baking.

A smaller sheet of foil may be used to catch a spillover by placing it on a lower shelf several inches below the food.

Cut slits in the foil just like the grid.

Center baking pans in the oven.

Safety Instructions

Operating Instructions

Safety Instructions

Operating Instructions

Care and Cleaning Troubleshooting Tips Consumer Support

www.GEAppliances.com

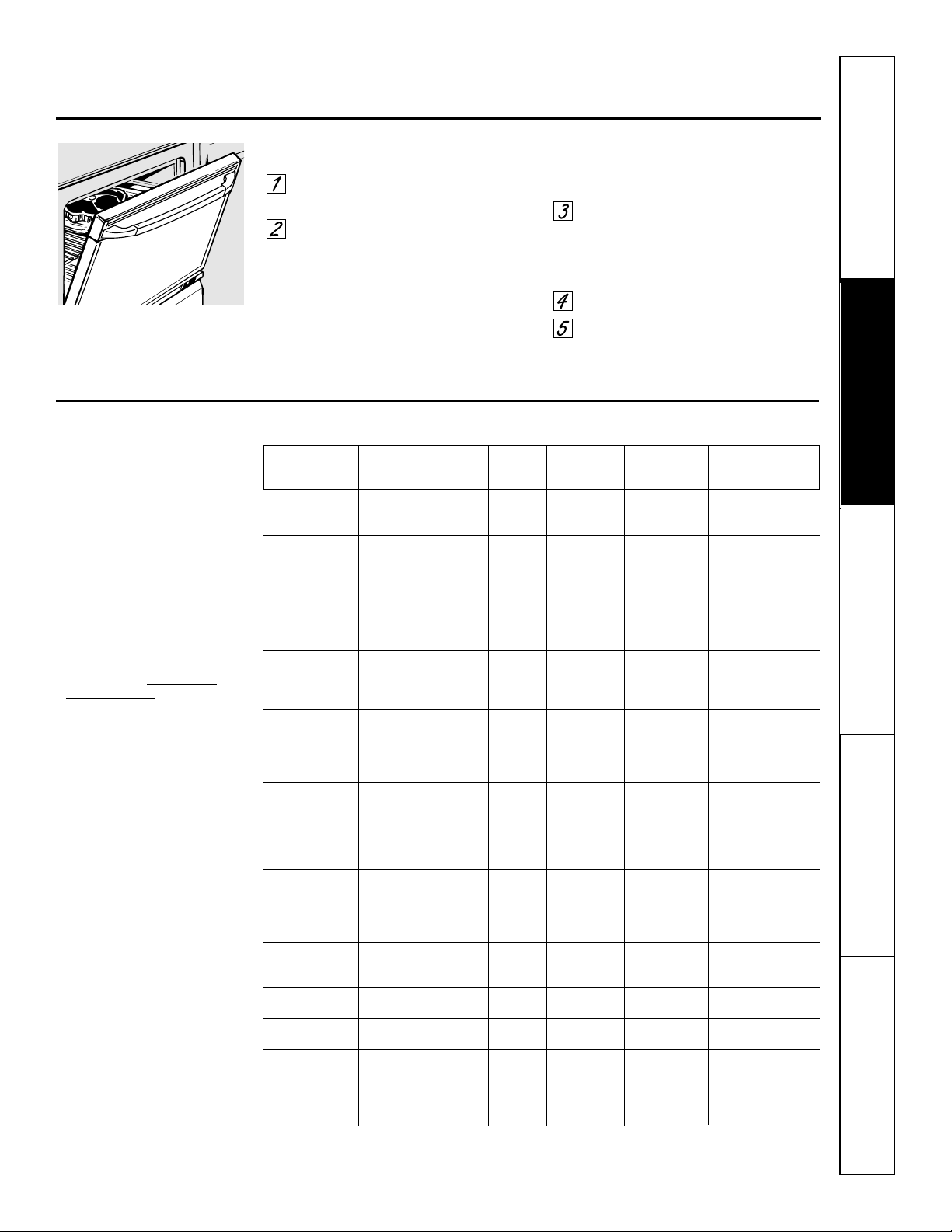

How to Set the Oven for Broiling

Place the meat or fish on the broiler grid in the broiler pan.

Follow suggested shelf positions in the

Broiling Guide.

If your range is connected to 208 volts, rare steaks may be broiled by preheating the broiler and positioning the oven shelf one position higher.

Use

LO Broil

to cook foods such as poultry

or thick cuts of meat thoroughly without

over-browning them.

Press the

BROIL HI/LO

pad once

for

HI Broil.

To change to

LO Broil,

press the

BROIL HI/LO

pad again.

Press the

START

pad.

When broiling is finished, press the

CLEAR/OFF

pad.

Leave the door open to the broil stop position. The door stays open by itself, yet the proper temperature is maintained in the oven.

Quantity and/ Shelf First Side Second Side

Food or Thickness Position Time (min.) Time (min.) Comments

Ground Beef 1 lb. (4 patties) D 13 8 Space evenly.

/2 to

/4″ thick

4 lbs. (12 patties) D 15 11

Beef Steaks

Rare†

/4 to 1″ thick F 6 4 Steaks less than 3/4″

Medium 1 to 1 1/2 lbs. E 8 6 thick are difficult Well Done E 10 8 to cook rare.

Slash fat.

Rare† 1

/2″ thick D 10 8

Medium 2 to 2 1/2 lbs. D 15 10–12 Well Done E 20 20

Chicken 1 whole cut up C 25 25 Brush each side with

2 to 2 1⁄2 lbs., melted butter. split lengthwise Broil skin-side-down Breast C 25 15 first.

Bakery Product

Bread (toast) 2 to 4 slices E 3 1 Space evenly. Place English Muffin 2 (split) F 3-4 English muffins cut-

side-up and brush with butter if desired.

Lobster Tails 2–4 C 18–20 Do not Cut through back of

turn shell. Spread open. over. Brush with melted

butter before broiling and after half of broiling time.

Fish Fillets 1 lb. (1/4 to

/2″ thick) E 5 5 Handle and turn very

carefully. Brush with lemon butter before and during cooking, if desired.

Salmon

Steaks 2 (1″ thick) E 10 5 Turn carefully. Do not Fillets 2 (

/2″ to 3/4″ thick) E 10 turn skin side down.

Ham Slices

/2″ thick D 6 6

(precooked) 1″ thick D 8 8 Pork Chops 2 (

/2″ thick) D 10 10 Slash fat.

Well Done 2 (1″ thick) about 1 lb. D 15 15

Lamb Chops

Medium 2 (1″ thick) about 10 E 7 4 Slash fat. Well Done to 12 oz. E 10 9

Medium 2 (1

/2″ thick) about 1 lb. E 9 6

Well Done E 14 10

Broiling Guide

The size, weight, thickness, starting temperature, and your preference of doneness will affect broiling times. This guide is based on meats at refrigerator temperature.

† The U.S. Department of

Agriculture says “Rare beef is popular, but you should know that cooking it to only 140°F. means some food poisoning organisms may survive.” (Source: Safe Food Book. Your Kitchen Guide. USDA Rev. June 1985.)

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

Using the clock and timer.

To Set the Clock

The clock must be set to the correct time of day for the automatic oven timing functions to work properly. The time of day cannot be changed during a timed baking or self-cleaning cycle.

Press the

CLOCK

pad.

Press the number pads.

Press the

START

pad.

Make sure the clock is set to the correct time of day.

To Set the Timer

Press the

KITCHEN TIMER ON/OFF

pad.

Press the number pads until the amount of time you want shows in the display. For example, to set 2 hours and 45 minutes, press

2, 4

and 5in that order.

If you make a mistake press the

KITCHEN TIMER ON/OFF

pad and

begin again.

Press the

START

pad.

When the timer reaches

:00

, the control will beep 3 times followed by one beep every 6 seconds until the

KITCHEN TIMER ON/OFF

pad is pressed.

The 6 second tone can be canceled by following the steps in the Special features of your oven control section under Tones at the End of a Timed Cycle.

The timer is a minute timer only. The timer does not control oven

operations. The maximum setting on the timer is 9 hours and 59 minutes.

To Reset the Timer

If the display is still showing the time remaining, you may change it by pressing the

KITCHEN TIMER ON/OFF

pad, then press the number pads until the time you want appears in the display.

If the remaining time is not in the display (clock, delay start or cooking time are in the display), recall the remaining time by pressing the

KITCHEN TIMER ON/OFF

pad and then pressing the number pads to enter the new time you want.

To Cancel the Timer

Press the

KITCHEN TIMER ON/OFF

pad

twice.

Safety Instructions

Operating Instructions

Safety Instructions

Operating Instructions

Care and Cleaning Troubleshooting Tips Consumer Support

Using the timed baking and roasting features.

www.GEAppliances.com

NOTE: Foods that spoil easily–such as milk, eggs, fish, stuffings, poultry and pork–should not be allowed to sit for

more than 1 hour before or after cooking. Room temperature promotes the growth of harmful bacteria. Be sure that the oven light is off because heat from the bulb will speed harmful bacteria growth.

How to Set an Immediate Start and Automatic Stop

The oven will turn on immediately and cook for a selected length of time. At the end of the cooking time the oven will turn off automatically.

Press the

BAKE

pad.

Using the number pads, enter the desired temperature.

Press the

COOKING TIME

pad.

NOTE: If your recipe requires preheating, you may need to add additional time to the length of the cooking time.

Using the number pads, enter the desired baking time. The oven temperature and the cooking time that you entered will be displayed.

Press the

START

pad.

The word ONand

100°

will be displayed. The cook time will begin to count down. As the oven heats up, the display will show the changing temperature. When the oven reaches the temperature you set, 3 beeps will sound.

At the end of timed baking, the oven will turn off. The end of cycle tone will sound.

Press the

CLEAR/OFF

pad to clear the

display.

How to Set a Delayed Start and Automatic Stop

You can set the oven control to delay-start the oven, cook for a specific length of time and then turn off automatically.

Make sure the clock shows the correct time of day.

Press the

BAKE

pad.

Using the number pads, enter the desired temperature.

Press the

COOKING TIME

pad.

NOTE: If your recipe requires preheating, you may need to add additional time to the length of the cooking time.

Using the number pads, enter the desired baking time.

Press the

DELAY START

pad.

Using the number pads, enter the time of day you want the oven to turn on and start cooking.

Press the

START

pad.

NOTE: An attention tone will sound if you are using timed baking and do not press the START pad after entering the baking temperature.

If you would like to check the times you have set, press the

DELAY START

pad to check the start time you have set or press the

COOKING TIME

pad to check the

length of cooking time you have set.

The oven will turn on automatically. The word ONand

100°

will be displayed. The

cook time will begin to count down.

As the oven heats up, the display will show the changing temperature. The oven will cook for the programmed cooking time and shut off automatically.

At the end of timed baking, the oven will turn off. The end of cycle tone will sound.

Press the

CLEAR/OFF

pad to clear the

display.

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

Using the Sabbath Feature.

(Designed for use on the Jewish Sabbath and Holidays)

(On some models)

The Sabbath feature can be used for baking/roasting only. It cannot be used for broiling, self-cleaning, or Delay Start cooking.

NOTE: The oven light comes on automatically (on some models) when the door is opened and goes off when the door is closed. The bulb may be removed. See the Oven Light Replacement section. On models with a light switch on the control panel, the oven light may be turned on and left on.

How to Set for Regular Baking/Roasting

Make sure the clock shows the correct time of day.

Press and hold

both

the

BAKE

and

BROIL

HI/LO

pads,

at the same time

, until the

display shows

SF.

Tap the

DELAY START

pad until

SAb bAtH

appears in the display.

Touch the

START

pad and ⊃ will appear

in the display.

Touch the

BAKE

pad. No signal will

be given.

Using the number pads, enter the desired temperature between 170° and 550°. No signal or temperature will be given.

Touch the

START

pad.

After a random delay period of approximately 30 seconds to 1 minute,

⊃ will appear in the display indicating

that the oven is

baking/roasting.

If ⊃

doesn’t appear in the display, start again at Step 4.

To adjust the oven temperature, touch the

BAKE

pad, enter the new temperature using

the number pads, and touch the

START

pad.

NOTE:

The

CLEAR/OFF

and

COOKING TIME

pads

are active during the Sabbath feature.

⊃

How to Set for Timed Baking/Roasting–Immediate Start and Automatic Stop

Make sure the clock shows the correct time of day.

Press and hold

both

the

BAKE

and

BROIL

HI/LO

pads,

at the same time

, until the

display shows

SF.

Tap the

DELAY START

pad until

SAb bAtH

appears in the display.

Touch the

START

pad and ⊃ will appear

in the display.

Touch the

COOKING TIME

pad.

Touch the number pads to set the desired length of cooking time between 1 minute and 9 hours and 99 minutes. The cooking time that you entered will be displayed.

Touch the

START

pad.

Touch the

BAKE

pad. No signal will be

given.

Using the number pads, enter the desired temperature. No signal or temperature will be given.

Touch the

START

pad.

After a random delay period of approximately 30 seconds to 1 minute,

⊃ will appear in the display indicating

that the oven is

baking/roasting.

If ⊃

doesn’t appear in the display, start again at Step 7.

To adjust the oven temperature, touch the

BAKE

pad, enter the new temperature using

the number pads, and touch the

START

pad.

When cooking is finished, the display will

change from ⊃ to ⊃and

0:00

will appear,

indicating that the oven has turned

OFF

but is

still set in Sabbath. Remove the cooked food.

⊃

How to Exit the Sabbath Feature

Touch the

CLEAR/OFF

pad.

If the oven is cooking, wait for a random delay period of approximately 30

seconds to 1 minute, until only ⊃

is in the display.

Press and hold

both

the

BAKE

and

BROIL

HI/LO

pads,

at the same time

, until the

display shows

SF.

Tap the

DELAY START

pad until

12 shdn

no shdn

appears in the display.

12 shdn

indicates that the oven will automatically turn off after 12 hours.

no shdn

indicates that the oven will not automatically turn off.

Touch the

START

pad.

NOTE:

If a power outage occurred while the oven was in Sabbath, the oven will automatically turn off and stay off even when the power returns. The oven control must be reset.

When the display shows ⊃ the oven is set in Sabbath. When the display shows ⊃the oven is baking/roasting.

⊃

When the display shows ⊃ the oven is set in Sabbath. When the display shows ⊃the oven is baking/roasting.

⊃

Safety Instructions

Operating Instructions

Safety Instructions

Operating Instructions

Care and Cleaning Troubleshooting Tips Consumer Support

Adjust the oven thermostat—Do it yourself!

www.GEAppliances.com

You may find that your new oven cooks differently than the one it replaced. Use your new oven for a few weeks to become more familiar with it. If you still think your new oven is too hot or too cold, you can adjust the thermostat yourself.

Do not use thermometers, such as those found in grocery stores, to check the temperature setting of your oven. These thermometers may vary 20–40 degrees.

NOTE: This adjustment will not affect the broiling or the self-cleaning temperatures. The adjustment will be retained in memory after a power failure.

To Adjust the Thermostat

Press the

BAKE

and

BROIL HI/LO

pads at the same time for 3 seconds until the display shows

SF.

Press the

BAKE

pad. A two digit

number shows in the display.

Press

BAKE

once to decrease (-) the oven temperature, or twice to increase (+).

The oven temperature can be adjusted up as much as 35°F. or down as much as 35°F. Press the number pads the same way you read them. For example, to change the oven temperature 15°F., press

and

When you have made the adjustment, press the

START

pad to go back to the time of day display. Use your oven as you would normally.

The type of margarine will affect baking performance!

Most recipes for baking have been developed using high fat products such as butter or margarine (80% fat). If you decrease the fat, the recipe may not give the same results as with a higher fat product.

Recipe failure can result if cakes, pies, pastries, cookies or candies are made with low fat spreads. The lower the fat content of a spread product, the more noticeable these differences become.

Federal standards require products labeled “margarine” to contain at least 80% fat by weight. Low fat spreads, on the other hand, contain less fat and more water. The high moisture content of these spreads affects the texture and flavor of baked goods. For best results with your old favorite recipes, use margarine, butter or stick spreads containing at least 70% vegetable oil.

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

Using the self-cleaning oven.

Before a Clean Cycle

We recommend venting your kitchen with an open window or using a ventilation fan or hood during the first self-clean cycle.

Remove the shelves, broiler pan, broiler grid, all cookware and any aluminum foil from the oven.

The oven shelves can be self-cleaned, but they will darken, lose their luster and become hard to slide.

Soil on the front frame of the range and outside the gasket on the door will need to be cleaned by hand. Clean these areas with hot water, soap-filled steel-wool pads or cleansers such as Soft Scrub®. Rinse well with clean water and dry.

Do not clean the gasket. The fiberglass material of the oven door gasket cannot withstand abrasion. It is essential for the gasket to remain intact. If you notice it becoming worn or frayed, replace it.

Wipe up any heavy spillovers on the oven bottom.

Make sure the oven light bulb cover is in place and the oven light is off.

IMPORTANT:

The health of some birds is extremely sensitive to the fumes given off during the self-cleaning cycle of any range. Move birds to another well ventilated room.

Wipe up heavy soil on the oven bottom.

How to Set the Oven for Cleaning

Touch the

SELF CLEAN

pad.

Using the number pads, enter the desired clean time, if a time other than 4 hours is needed.

Clean cycle time is normally 4 hours. You can change the clean time to any time between 3 hours and 5 hours, depending on how dirty your oven is.

Touch the

START

pad.

The door locks automatically. The display will show the clean time remaining. It will not be possible to open the oven door until the temperature drops below the lock temperature and the

LOCKED DOOR

light goes off.

When the

LOCKED DOOR

light is off, open

the door.

The oven shuts off automatically when the clean cycle is complete.

■The words

LOCK DOOR

will flash and the oven control will signal if you set the clean cycle and forget to close the oven door.

■To stop a clean cycle, touch the

CLEAR/OFF

pad. When the

LOCKED

DOOR

light goes off indicating the oven has cooled below the locking temperature, open the door.

How to Delay the Start of Cleaning

Make sure the clock shows the correct time of day.

Touch the

SELF CLEAN

pad.

Using the number pads, enter the desired clean time.

Touch the

DELAY START

pad. The earliest start time you can set will appear in the display.

Using the number pads, enter the time of day you want the clean cycle to start.

Touch the

START

pad.

The door locks automatically. The display will show the start time. It will not be possible to open the oven door until the temperature drops below the lock temperature and the

LOCKED DOOR

light goes off.

When the

LOCKED DOOR

light is off, open

the door.

After a Clean Cycle

You may notice some white ash in the oven. Wipe it up with a damp cloth after the oven cools.

If white spots remain, remove them with a soapfilled steel wool pad and rinse thoroughly with a vinegar and water mixture.

These deposits are usually a salt residue that cannot be removed by the clean cycle.

If the oven is not clean after one clean cycle, repeat the cycle.

■You cannot set the oven for cooking

until the oven is cool enough for the door to be unlatched.

■ While the oven is self-cleaning, you

can press the

CLOCK

pad to display the time of day. To return to the clean countdown, press the

COOKING

TIME

pad.

■If the shelves become hard to slide,

apply a small amount of vegetable oil or cooking oil to a paper towel and wipe the edges of the oven shelves with the paper towel.

www.GEAppliances.com

Safety Instructions

Operating Instructions

Care and Cleaning Troubleshooting Tips Consumer Support

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

Care and cleaning of the range.

Be sure all controls are off and all surfaces are cool before cleaning any part of the range.

How to Remove Packaging Tape

To assure no damage is done to the finish of the product, the safest way to remove the adhesive left from packaging tape on new appliances is an application of a household liquid dishwashing detergent, mineral oil or cooking oil.

Apply with a soft cloth and allow to soak. Wipe dry and then apply an appliance polish to thoroughly clean and protect the surface.

NOTE: The plastic tape (on some models) must be removed from all chrome trim. It cannot be removed if it is baked on.

If your range is removed for cleaning, servicing or any reason, be sure the anti-tip device is re-engaged properly when the range is replaced. Failure to take this precaution could result in tipping of the range and cause injury.

Control Knobs

The control knobs may be removed for easier cleaning.

Before removing the knobs for cleaning, please note that the knobs are in the

OFF

position. When replacing the knobs,

check the

OFF

position to insure proper

placement.

Wash the knobs in soap and water or a vinegar and hot water solution but do not soak.

Molded flat area

Flat

Flat Stem

Spring clip

Clear groove in stem

Molded rib

Groove Stem

The knob stem has a groove in each side. The groove on one side has a spring clip. The other groove is clear (see illustration). Check the inside of the knob and find the molded rib.

Replace the knob by fitting the molded rib inside the knob into the clear groove on the stem.

The knob stem is flat on one side (see illustration). Check the inside of the knob and find the molded flat area.

Replace the knob by fitting the molded flat area inside the knob onto the flat area of the stem.

Oven Vent

The oven vent is located behind the right rear surface unit.

This area could become hot during oven use.

It is normal for steam to come out of the vent and moisture may collect underneath it when the oven is in use.

The vent is important for proper air circulation. Never block this vent.

Lift-Off Oven Door

The oven door is removable for easier access to the light bulb.

Do not lift the door by the handle.

To remove the door:

Fully open the door.

Each hinge has a hinge lock. Using a tool, pull the hinge locks down against the door frame.

Firmly grasp the door

at the top sides.

Close the door to the stop position.

Lift the door up and pull straight out.

To replace the door:

Firmly grasp the door

at the top sides.

This is critical.

Approach the range with the door angled in a vertical position.

Guide the hinges into the slots.

Push door in firmly while opening.

Once in position, open the door completely. Push the hinge locks back in towards the front frame.

To clean the inside of the door:

■ Because the area inside the gasket is

cleaned during the self-clean cycle, you do not need to clean this by hand.

■ The area outside the gasket and the

door liner can be cleaned with a soapfilled steel wool or plastic pad, hot water and detergent. Rinse well with a vinegar and water solution.

To clean the outside of the door:

■ Use soap and water to thoroughly

clean the top, sides and front of the oven door. Rinse well. You may also use a glass cleaner to clean the glass on the outside of the door. Do not let water drip into the vent openings.

■ If any stain on the door vent trim is

persistent, use a soft abrasive cleaner and a sponge-scrubber for best results.

■ Spillage of marinades, fruit juices,

tomato sauces and basting materials containing acids may cause discoloration and should be wiped up immediately. When surface is cool, clean and rinse.

■ Do not use oven cleaners, cleaning

powders or harsh abrasives on the outside of the door.

The gasket is designed with a gap at the bottom to allow for proper air circulation.

Do not rub or clean the door gasket—it has an extremely low resistance to abrasion.

If you notice the gasket becoming worn, frayed or damaged in any way or if it has become displaced on the door, you should have it replaced.

Pull the hinge locks down to the unlocked position.

Unlocked position

Locked position

Control Panel

■Clean up splatters with a damp cloth.

■You may also use a glass cleaner.

■Remove heavier soil with warm

soapy water.

■Do not use abrasives of any kind.

Painted Surfaces

Painted surfaces include the sides of the range and the door, top of control panel and the drawer front. Clean these with soap and water or a vinegar and water solution.

Do not use commercial oven cleaners, cleaning powders, steel wool or harsh abrasives on any painted surface.

Safety Instructions

Operating Instructions

Safety Instructions

Operating Instructions

Care and Cleaning Troubleshooting Tips Consumer Support

www.GEAppliances.com

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

Care and cleaning of the range.

Oven Heating Elements

Do not clean the bake element or the broil element. Any soil will burn off when the elements are heated.

To clean the oven floor, gently lift the bake element. Clean with warm soapy water.

Oven Shelves

Clean the oven shelves with an abrasive cleanser or steel wool. After cleaning, rinse the shelves with clean water and dry with a clean cloth.

To make the shelves slide more easily, apply a small amount of vegetable oil or cooking oil to a paper towel and wipe the edges of the oven shelves with the paper towel.

Broiler Pan & Grid

Do not clean the broiler pan or grid in a selfcleaning oven.

After broiling, remove the broiler pan from the oven. Remove the grid from the pan. Carefully pour out the grease from the pan into a proper container.

Wash and rinse the broiler pan and grid in hot water with a soap-filled or plastic scouring pad.

If food has burned on, sprinkle the grid with detergent while hot and cover with wet paper towels or a dishcloth. Soaking the pan will remove burned-on foods.

Both the broiler pan and grid may be cleaned with a commercial oven cleaner.

Both the broiler pan and grid can also be cleaned in a dishwasher.

After broiling, remove the broiler pan from the oven. Do not store a soiled broiler pan and grid anywhere in the range.

Storage Drawer Removal

To remove the drawer:

Pull the drawer out until it stops.

Lift the front of the drawer until the stops clear the guides.

Remove the drawer.

To replace the drawer:

Place the drawer rails on the guides.

Push the drawer back until it stops.

Lift the front of the drawer and push back until the stops clear the guides.

Lower the front of the drawer and push back until it closes.

Stop guide

Rail

Oven Light Replacement

CAUTION: Before replacing your oven

light bulb, disconnect the electrical power to the range at the main fuse or circuit breaker panel.

Be sure to let the light cover and bulb cool completely.

To remove the cover:

Hold a hand under the cover so it doesn’t fall when released. With fingers of the same hand, firmly push back the wire cover holder. Lift off the cover.

Do not remove any screws to remove the cover.

Replace bulb with a 40-watt appliance bulb.

To replace the cover:

Place it into groove of the light receptacle. Pull wire forward to the center of the cover until it snaps into place.

Connect electrical power to the range.

Wire cover holder.

NOTE: The oven shelves may be cleaned in the self-cleaning oven. However, the shelves will darken in color, lose their luster and become hard to slide if cleaned during the self-cleaning cycle.

Allow the cooktop to cool.

Spread a few drops of Cerama Bryte® to the entire burned residue area.

Hold the razor scraper at approximately a 45° angle against the glass surface and scrape the soil. It will be necessary to apply pressure to the razor scraper in order to remove the residue.

Keep a small amount of cream on the residue as you scrape.

After scraping with the razor scraper, use the scrub sponge to remove any remaining residue.

For additional protection, after all residue has been removed, polish the entire surface with Cerama Bryte® and a paper towel.

NOTE: Razor blade is packed inverted for safety reasons. Prior to use, the blade must be rotated and reinserted into slot. Do not use a dull or nicked blade.

Safety Instructions

Operating Instructions

Safety Instructions

Operating Instructions

Care and Cleaning Troubleshooting Tips Consumer Support

Cleaning the glass cooktop.

www.GEAppliances.com

Control Lockout

(on some models)

Begin by locking the cooktop; see the

Control Lockout

section.

Burned-On Residue

WARNING: DAMAGE to your glass surface

may occur if you use scrub pads other than BLUE Scotch-Brite®Multi-Purpose No Scratch scrub sponges by 3M.

Allow the cooktop to cool.

Spread a few drops of Cerama Bryte® to the entire burned residue area.

Using the scrub sponge, rub the residue area, applying pressure as needed.

If any residue remains, repeat the steps listed above as needed.

For additional protection, after all residue has been removed, polish the entire surface with Cerama Bryte® and a paper towel.

The RAZOR SCRAPER is available through our Parts Center. See instructions under “To Order Parts” section on next page.

Heavy, Burned-On Residue

Scotch-Brite®Multi-Purpose No Scratch scrub sponge

Normal Daily Use Cleaning

ONLY use the recommended cleaning cream, Cerama Bryte®, on the glass cooktop. Other creams may not be as effective.

To maintain and protect the surface of your glass cooktop, follow these steps:

Before using the cooktop for the first time, clean it with the cooktop cleaning cream. This helps protect the top and makes clean-up easier.

Daily use of the cooktop cleaning cream will help keep the cooktop looking new.

Shake the cleaning cream well. Apply a few drops of the cream directly to the cooktop.

Use a paper towel or sponge to clean the entire cooktop surface.

NOTE: It is very important that you DO NOT heat the cooktop until it has been cleaned thoroughly.

Clean your cooktop after each spill.

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

Cleaning the glass cooktop.

Turn off all surface units. Remove hot pans.

Wearing an oven mitt: a. Use the razor scraper to move

the spill to a cool area on the cooktop.

b. Remove the spill with

paper towels.

Any remaining spillover should be left until the surface of the cooktop has cooled.

Don’t use the surface units again until all of the residue has been completely removed.

NOTE: If pitting or indentation in the glass surface has already occurred, the cooktop glass will have to be replaced. In this case, service will be necessary.

Damage from Sugary Spills and Melted Plastic

Our testing shows that if you are cooking high sugar mixtures such as jelly or fudge and have a spillover, it can cause permanent damage to the glass surface unless the spillover is immediately removed.

Be careful not to slide pots and pans across your cooktop. It will leave metal markings on the cooktop surface.

These marks are removable using the cleaning cream with a scrub sponge and/or razor scraper.

If pots with a thin overlay of aluminum or copper are allowed to boil dry, the overlay may leave

black discoloration on the cooktop.

This should be removed immediately before heating again or the discoloration may be permanent.

WARNING: Carefully check the bottom of pans for roughness that would scratch the cooktop.

Metal Marks and Scratches

To order Cerama Bryte® cream and the razor scraper, please call our toll-free number:

National Parts Center 800-626-2002.

Cerama Bryte®Cream . . . . . . .# WX10X300

Razor Scraper . . . . . . . . . . . . .# WX5X1614

Kit . . . . . . . . . . . . . . . . . . . . . .# WB64X5027

(Kit includes cream and razor scraper)

To Order Parts

Glass surface – potential for permanent damage

To clean the cooktop seal around the edges of the glass, lay a wet cloth on it for a few minutes, then wipe clean with nonabrasive cleaners.

Cooktop Seal

Safety Instructions

Operating Instructions

Safety Instructions

Operating Instructions

Care and Cleaning Troubleshooting Tips Consumer Support

Before You Call For Service…

www.GEAppliances.com

Troubleshooting Tips Save time and money! Review the charts on the following pages first and you may not need to call for service.

Problem Possible Causes What To Do

Surface units will not

Improper cookware • Use pans which are flat and match the diameter

maintain a rolling boil

being used. of the surface unit selected.

or cooking is not fast enough

Surface units do

A fuse in your home may be • Replace the fuse or reset the circuit breaker.

not work properly

blown or the circuit breaker tripped.

Cooktop controls • Check to see the correct control is set for the surface improperly set. unit you are using.

Scratches (may appear

Incorrect cleaning • Scratches are not removable. Tiny scratches will become

as cracks) on cooktop

methods being used. less visible in time as a result of cleaning.

glass surface

Cookware with rough bottoms • To avoid scratches, use the recommended cleaning being used or coarse particles procedures. Make sure bottoms of cookware are clean (salt or sand) were between before use, and use cookware with smooth bottoms. the cookware and the surface of the cooktop.

Cookware has been slid across the cooktop surface.

Areas of discoloration

Food spillovers not cleaned • See the

Cleaning the glass cooktop

section.

on the cooktop

before next use.

Hot surface on a model • This is normal. The surface may appear discolored with a white glass cooktop. when it is hot. This is temporary and will disappear

as the glass cools.

Plastic melted to

Hot cooktop came into • See the

Glass surface—potential for permanent damage

the surface

contact with plastic placed section in the

Cleaning the glass cooktop

section.

on the hot cooktop.

Pitting (or indentation)

Hot sugar mixture spilled • Call a qualified technician for replacement.

of the cooktop

on the cooktop.

Frequent cycling

Improper cookware • Use only flat cookware to minimize cycling.

off and on of

being used.

surface units

Control signals after

You forgot to enter a • Press the

BAKE

pad and desired temperature or the

entering cooking time

bake temperature or

SELF CLEAN

pad and desired clean time.

or delay start

cleaning time.

Food does not bake

Oven controls improperly set. • See the

Using the oven

section.

or roast properly

Shelf position is incorrect • See the

Using the oven

section.

or the shelf is not level.

Incorrect cookware or • See the

Using the oven

section.

cookware of improper size being used.

Oven thermostat needs • See the

Adjust the oven thermostat—Do it yourself!

adjustment. section.

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

Troubleshooting Tips

Before You Call For Service …

Problem Possible Causes What To Do

Clock and timer do

Plug on range is not completely • Make sure electrical plug is plugged into a live, properly

not work

inserted in the electrical outlet. grounded outlet.

A fuse in your home may • Replace the fuse or reset the circuit breaker. be blown or the circuit breaker tripped.

Oven controls improperly set. • See the

Using the clock and timer

section.

Oven light does

Light bulb is loose or defective. • Tighten or replace the bulb.

not work

Switch operating light • Call for service. is broken.

Food does not

Door not open to the broil stop • See the

Using the oven

section.

broil properly

position as recommended.

Oven controls improperly set. • Make sure you press the

BROIL HI/LO

pad.

Improper shelf position • See the

Broiling Guide.

being used.

Cookware not suited • Use the broiling pan and grid that came with your range. for broiling.

Aluminum foil used on the • See the

Using the oven

section.

the broiling pan and grid has not been fitted properly and slit as recommended.

In some areas the power • Preheat the broil element for 10 minutes. (voltage) may be low.

• Broil for the longest period of time recommended in the

Broiling Guide.

Oven temperature too

Oven thermostat • See the

Adjust the oven thermostat—Do it yourself!

hot or too cold

needs adjustment. section.

Oven will not work

A fuse in your home may be • Replace the fuse or reset the circuit breaker. blown or the circuit breaker tripped.

Oven controls improperly set. • See the Using the oven section.

Storage drawer

Rear drawer support is • Reposition the drawer. See the

Storage Drawer

is crooked

on top of the guide rail.

Removal

instructions in the

Care and cleaning of your

range

section.

Storage drawer

Power cord may be • Reposition the drawer and power cord. See the

won’t close

obstructing drawer

Storage Drawer Removal

instructions in the

Care and

in the lower back

cleaning of your range

section.

of the range.

Rear drawer support is • Reposition the drawer. See the

Storage Drawer

on top of the guide rail.

Removal

instructions in the

Care and cleaning of your

range

section.

Safety Instructions Operating InstructionsSafety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support

Problem Possible Causes What To Do

Oven will not self-clean

The oven temperature is • Allow the oven to cool to room temperature and too high to set a self-clean reset the controls. operation.

Oven controls improperly set. • See the

Using the self-cleaning oven

section.

“Crackling” or

This is the sound of the • This is normal.

“popping” sound

metal heating and cooling during both the cooking and cleaning functions.

Excessive smoking

Excessive soil. • Press the

CLEAR/OFF

pad. Open the windows to

during a clean cycle

rid the room of smoke. Wait until the

LOCKED DOOR

light goes off. Wipe up the excess soil and reset the clean cycle.

Oven door will not

Oven too hot. • Allow the oven to cool below locking temperature.

open after a clean cycle

Oven not clean after

Oven controls not properly set. • See the

Using the self-cleaning oven

section.

a clean cycle

Oven was heavily soiled. • Clean up heavy spillovers before starting the clean

cycle. Heavily soiled ovens may need to self-clean again or for a longer period of time.

“LOCK DOOR” flashes

The self-clean cycle has been • Close the oven door.

in the display

selected but the door is not closed.

LOCKED DOOR light

The oven door is locked • Press the

CLEAR/OFF

pad. Allow the oven to cool.

is on when you want

because the temperature

to cook

inside the oven has not dropped below the locking temperature.

“F— and a number

You have a function • Press the

CLEAR/OFF

pad. Put the oven back into

or letter” flash

error code. operation.

in the display

If the function code repeats. • Disconnect all power to the range for at least 30

seconds and then reconnect power. If the function error code repeats, call for service.

www.GEAppliances.com

Problem Possible Causes What To Do

Display goes blank

A fuse in your home may be • Replace the fuse or reset the circuit breaker. blown or the circuit breaker tripped.

The clock is in the • See the

Special features of your oven control

section.

black-out mode.

Display flashes

Power failure. • Reset the clock.

Unable to get the

Oven control pads were • The

BAKE

and

BROIL HI/LO

pads must be pressed

display to show “SF”

not pressed properly. at the same time and held for 3 seconds.

Power outage,

Power outage or surge. • Reset the clock. If the oven was in use, you must reset

clock flashes

it by pressing the

CLEAR/OFF

pad, setting the clock

and resetting any cooking function.

“Burning” or “oily”

This is normal in a new • To speed the process, set a self-clean cycle for a

odor emitting from

oven and will disappear minimum of 3 hours. See the

Using the self-

the vent

in time.

cleaning oven

section.

Strong odor

An odor from the insulation • This is temporary. around the inside of the oven is normal for the first few times the oven is used.

Troubleshooting Tips

Before You Call For Service …

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

General Electric Company

Warranty Registration Department P.O. Box 32150 Louisville, KY 40232-2150

GE Service Protection Plus

™

GE, a name recognized worldwide for quality and dependability, offers you Service Protection Plus

™

—comprehensive protection on all your appliances—

No Matter What Brand!

Benefits Include:

• Backed by GE

• All brands covered

• Unlimited service calls

• All parts and labor costs included

• No out-of-pocket expenses

• No hidden deductibles

• One 800 number to call

You will be completely satisfied with our service protection or you may request your money back on the remaining value of your contract. No questions asked. It’s that simple.

Protect your refrigerator, dishwasher, washer and dryer, range, TV, VCR and much more—any brand! Plus there’s no extra charge for emergency service and low monthly financing is available. Even icemaker coverage and food spoilage protection is offered. You can rest easy, knowing that all your valuable household products are protected against expensive repairs.

Place your confidence in GE and call us in the U.S. toll-free at 800-626-2224 for more information.

*All brands covered, up to 20 years old, in the continental U.S.

We’ll Cover Any Appliance. Anywhere. Anytime.*

Please place in envelope and mail to:

✁

Cut here

Consumer Product Ownership Registration

Important

Mail Today!

General Electric Company Louisville, Kentucky www.GEAppliances.com

First

Name

Mr. ■■ Ms. ■■ Mrs. ■■ Miss ■■

Street

Address

City

State

Date Placed

In Use

Month

Day

Year

Zip

Code

Apt. #

Last

Name

Phone

Number

Consumer Product Ownership Registration

Dear Customer: Thank you for purchasing our product and thank you for placing your confidence in us. We are proud to have you as a customer!

Follow these three steps to protect your new appliance investment:

Important: If you did not get a registration card with your

product, detach and return the form below to ensure that your product is registered, or register online at www.GEAppliances.com.

Model Number Serial Number

✁

Cut here

Complete and mail your Consumer Product Ownership Registration today.

Have the peace of mind of knowing we can contact you in

the

unlikely event of

safety modification.

After mailing the registration below, store this document in a safe place. It contains information you will need should you require service. Our service number is 800 GE CARES (800-432-2737).

Read your Owner’s Manual carefully. It will help you operate your new appliance properly.

Model Number Serial Number

E-mail Address

Occasionally, we may allow selected companies to send you information.

■■ Check here if you do not want this information.

Safety Instructions

Operating Instructions

Safety Instructions

Operating Instructions

Care and Cleaning Troubleshooting Tips Consumer Support

GE Electric Range Warranty.

For The Period Of: GE Will Provide:

One Year Any part

of the range which fails due to a defect in materials or workmanship.

From the date of the

During this

full one-year warranty,

GE will also provide,

free of charge,

all labor

original purchase

and in-home service to replace the defective part.

Five Years A replacement glass cooktop

if it should crack due to thermal shock, discolor, crack at the

From the date of the

rubber seal between the glass cooktop and the porcelain edge, or if the pattern wears off.

original purchase

A replacement radiant surface unit

if it should burn out.

During this

limited additional four-year warranty,

you will be responsible for any

labor or in-home service.

■Service trips to your home to teach you how to use

the product.

■Improper installation.

■Failure of the product if it is abused, misused,

or used for other than the intended purpose or used commercially.

■Damage to the glass cooktop caused by use of cleaners

other than the recommended cleaning creams.

■Damage to the glass cooktop caused by hardened

spills of sugary materials or melted plastic that are not cleaned according to the directions in the Owner’s Manual.

■Replacement of house fuses or resetting of circuit

breakers.

■Damage to the product caused by accident, fire, floods

or acts of God.

■Incidental or consequential damage caused by possible

defects with this appliance.

What GE Will Not Cover:

This warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within the USA. In Alaska, the warranty excludes the cost of shipping or service calls to your home.

Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state’s Attorney General.

Warrantor: General Electric Company. Louisville, KY 40225

All warranty service provided by our Factory Service Centers, or an authorized Customer Care

technician. To schedule service, on-line, 24 hours a day, contact us at www.GEAppliances.com, or call 800-GE-CARES.

Staple your receipt here.

Proof of the original purchase

date is needed to obtain service

under the warranty.

Consumer Support.

GE Appliances Website

www.GEAppliances.com

Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day, any day of the year! For greater convenience and faster service, you can now download Owner’s Manuals, order parts, catalogs, or even schedule service on-line. You can also “Ask Our Team of Experts™” your questions, and so much more...

Schedule Service

www.GEAppliances.com

Expert GE repair service is only one step away from your door. Get on-line and schedule your service at your convenience 24 hours any day of the year! Or call 800-GE-CARES (800-432-2737) during normal business hours.

Real Life Design Studio

www.GEAppliances.com

GE supports the Universal Design concept—products, services and environments that can be used by people of all ages, sizes and capabilities. We recognize the need to design for a wide range of physical and mental abilities and impairments. For details of GE’s Universal Design applications, including kitchen design ideas for people with disabilities, check out our Website today. For the hearing impaired, please call 800-TDD-GEAC (800-833-4322).

Extended Warranties

www.GEAppliances.com

Purchase a GE extended warranty and learn about special discounts that are available while your warranty is still in effect. You can purchase it on-line anytime, or call 800-626-2224 during normal business hours. GE Consumer Home Services will still be there after your warranty expires.

Parts and Accessories

www.GEAppliances.com

Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes (VISA, MasterCard and Discover cards are accepted). Order on-line today, 24 hours every day or by phone at 800-626-2002 during normal business hours.

Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally should be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause unsafe operation.

www.GEAppliances.com

If you are not satisfied with the service you receive from GE, contact us on our Website with all the details including your phone number, or write to: General Manager, Customer Relations

GE Appliances, Appliance Park Louisville, KY 40225

www.GEAppliances.com

Register your new appliance on-line—at your convenience! Timely product registration will allow for enhanced communication and prompt service under the terms of your warranty, should the need arise. You may also mail in the pre-printed registration card included in the packing material, or detach and use the form in this Owner’s Manual.

Printed in the United States

GE 49-80065, 164D4290P024 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Safety Instructions

Operating Instructions

Care and Cleaning

Consumer Support

ANTI-TIP DEVICE

SAFETY PRECAUTIONS

RADIANT SURFACE UNITS

OVEN

oven

Control Knobs

Lift-Off Oven Door

Broiler Pan & Grid

Care and Cleaning Troubleshooting Tips Consumer Support
