GE 162D7740P005 User Manual

Use and Care & Installation Guide

Refrigerator

GE Appliances

Top-Mount No-Frost Models:
18, 19, 21, 22, 24 & 25 Export T-Line

General Electric Company, Appliance Park, Louisville, KY 40225 USA

Part No. 162D7740P005

Pub No. 49-60003

6-98 CG

Safety Instructions .................. 2, 3

Operating Instructions, Tips

Accessories .................................................... 5

Anti-Moisture Switch ................................... 3

CFC-Free Refrigerant ....................................2

Icemaker ......................................................... 7

Icemaker Accessory Kit ............................... 7

Shelves ....................................................... 4, 5

Storage Drawers ........................................... 6

Temperature Control ................................... 3

Care and Cleaning

Cleaning—Inside and Outside .................... 8

Drawer and Cover Removal .................. 8, 9

Light Bulb Replacement .............................. 9

Under Refrigerator ....................................... 8

Water Filter Accessory ................................ 7

Problem Solver ..................... 18, 19

Normal Operating Sounds ....................... 18

Preparation

Clearances ................................................... 10

Dimensions .................................................. 10

Rollers ........................................................... 10

Vacation and Moving ................................ 10

Water Line Installation ...................... 12, 13

Water Supply to Icemaker ....................... 10

Installation ................................ 11–17

Adapter Plug ............................................... 11

Electrical Requirements ........................... 11

Grounding .................................................... 11

Mains Lead Replacement ........................... 3

Reversing the Door Swing ............... 14–17

Model and Serial Numbers ........................ 2

HELP US HELP YOU…

Read this guide carefully. Write down the model and serial numbers.

It is intended to help you operate and maintain your new refrigerator
properly. Keep it handy for answers to your questions.

If you received a damaged refrigerator…

Immediately contact the dealer (or builder) that sold you
the refrigerator.

Save time and money . Befor e you r equest service…

Check the Problem Solver. It lists minor operating problems that you
can correct yourself.

You’ll see them on a label on the left side, near the top of the fresh
food compartment.

Model Number

Serial Number

Use these model and serial numbers in any correspondence or service
calls concerning your refrigerator.

WARNING—When using this appliance,
always exercise basic safety precautions,
including the following:

• Use this appliance only for its intended purpose as

described in this Use and Care Guide.

• This refrigerator must be properly installed
in accordance with the Installation Instructions
before it is used. See grounding instructions below

and in Installation section.

WARNING—Connect to potable water
supply only.

• Never unplug your refrigerator by pulling on the
power cord. Always grip plug firmly and pull

straight out from the outlet.

• Repair or replace immediately all electric service
cords that have become frayed or otherwise
damaged. Do not use a cord that shows cracks or

abrasion damage along its length or at either the plug
or appliance end.

• When moving your refrigerator away from the
wall, be careful not to roll over or damage the
power cord.

• Do not allow children to climb, stand or hang on
the shelves in the refrigerator. They could damage

the refrigerator and seriously injure themselves.

• If your old refrigerator is still around the
house but not in use, be sure to remove
the doors. This will reduce the possibility

of danger to children.

• After your refrigerator is in operation, do
not touch the cold surfaces in the frozen food
storage compartment, particularly when hands
are damp or wet. Skin may adhere to these

extremely cold surfaces.

• If your refrigerator has an automatic icemaker,
avoid contact with the moving parts of the ejector
mechanism, or with the heating element that
releases the cubes. Do not place fingers or hands on

the automatic icemaking mechanism while the
refrigerator is plugged in.

• Don’t refreeze frozen foods which have thawed
completely. Food safety experts say:

‘‘…You may safely refreeze frozen foods that have
thawed if they still contain ice crystals or if they are
still cold—below 4°C (40°F).

‘‘…Thawed ground meats, poultry or fish that have any
off-odor or off-color should not be refrozen and should
not be eaten. Thawed ice cream should be discarded. If
the odor or color of any food is poor or questionable,

get rid of it. The food may be dangerous to eat.
‘‘…Even partial thawing and refreezing reduces

the eating quality of foods, particularly fruits,
vegetables and prepared foods. The eating quality of
red meats is affected less than that of many other
foods. Use refrozen foods as soon as possible to save
as much of their eating quality as you can.’’

IMPORTANT SAFETY INSTRUCTIONS

Read all instructions before using this appliance.

2

CFC-FREE REFRIGERANT

This refrigerator uses a new refrigerant that does not contain CFCs (chlorofluorocarbons).
CFCs are believed to harm the stratospheric ozone.

• Unplug your refrigerator before cleaning
and making repairs. NOTE: We strongly

recommend that any servicing be performed
by a qualified individual.

• Before replacing a burned-out light bulb, the
refrigerator should be unplugged in order to avoid

contact with a live wire filament. (A burned-out
light bulb may break when being replaced.)
NOTE: Turning control to “0” position does
not remove power to the light circuit.

• Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.

Mains lead replacement

If the mains lead on your refrigerator needs replacing
at any time, it must be replaced by a special lead which
is obtainable from your local dealer. A charge will be
made for the replacement of the mains lead if you have
damaged the lead.

SAVE THESE
INSTRUCTIONS

TEMPERATURE CONTROL

The temperature controls in your refrigerator have letters and
numbers. Initially set the frozen food storage compartment control at

“C” and the fresh food control at “4.”

The fresh food control
maintains the temperatures
throughout the refrigerator.

Moving the fresh food control
to “0” stops cooling in both
areas—fresh food and frozen food
storage compartments—but does
not shut off power to
the refrigerator.

The frozen food storage
compartment control moves
a damper to change the
amount of cold air that
moves from the frozen food
storage compartment to the
fresh food compartment.

Effervescent drinks should
not be stored in the frozen food storage compartment.

A

C

E

E

D

C

B

A

A

E

0

7

5

3

1

1

7

6

4

2

Important Safety Instructions Temperature Control

Cold air
from frozen
food storage
compartment

Side View

Damper

Damper

(coldest setting)

(warmest setting)

Anti-Moisture Switch No Defrosting

The anti-moisture switch is located on the
temperature control panel. To reduce the amount of
electricity required to operate your refrigerator,
push switch to the left.

This turns off the unit in your refrigerator that
prevents moisture from forming on the inside or
outside surfaces.

With this unit turned off, moisture may form on the
inside or outside of your refrigerator, especially when the weather is
humid. The humidity is most likely to be high in the summer, in the
early morning hours, and in homes which are not air conditioned.

Over an extended period of time, moisture that forms on the
refrigerator surface may cause deterioration of the paint finish. It will
be important to protect the finish by using appliance polish wax as
described in the Care & Cleaning section.

The cost to operate the low-wattage unit is about the same as it costs
to use two night lights.

When you move the anti-moisture switch to the right, low wattage
electricity flows through the unit and warms the outside of the
refrigerator and the top of the fresh food section. Under most
conditions, this prevents the forming of moisture or water droplets.

It is not necessary to defrost the frozen food storage compartment
or fresh food compartments. Although your refrigerator is designed
and equipped to defrost itself automatically, some frost on packages
is normal.

How to Test Temperatures

Use the milk test for the fresh food compartment. Place a

container of milk on the top shelf in the fresh food compartment.
Check it a day later. If the milk is too warm or too cold, adjust the
temperature controls.

Use the ice cream test for the frozen food storage compartment.

Place a container of ice cream in the center of the frozen food storage
compartment. Check it after a day. If it’s too hard or too soft, adjust
the temperature controls.

After changing the controls, always allow 24 hours for the
refrigerator to reach the temperature you have set.

3

Removable Bottle Rack (on some models)

The bottle rack is designed to hold
a bottle on its side and will fit on
any shelf.

Extra Frozen Food Storage Compartment Shelf

(on some models)
Some models have an extra

frozen food storage
compartment shelf that allows
you to use the frozen food
storage compartment space
more efficiently.

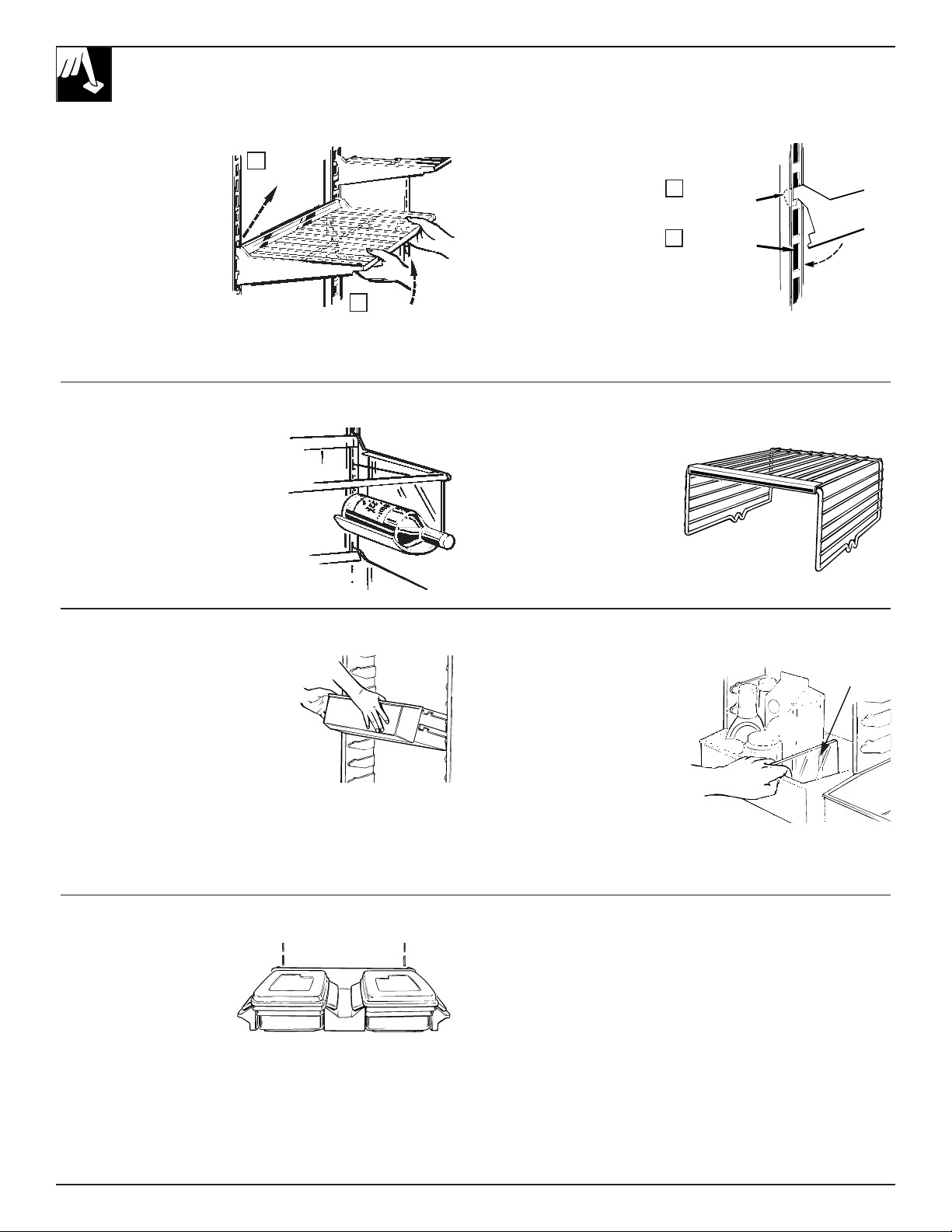

SHELVES

Adjustable Shelves (on some models)

Shelves in the fresh food and
frozen food storage
compartments are adjustable,
enabling you to make
efficient shelf arrangements
to fit your family’s food
storage needs. Steel shelves
in the frozen food storage
compartment in some
models are adjustable in the
same way.

To remove shelves: Tilt the
shelf up at front, then lift it up and out
of tracks on the rear wall of the refrigerator.

To replace shelves: Select the
desired shelf height. With shelf
front raised slightly, engage top
hooks in tracks at rear of cabinet.
Then lower front of shelf until it
locks into position.

Tempered glass shelves (on
some models) are adjustable in
the same manner.

2

Lift up and out

1

Tilt up

Engage
top hook

Lower to lock
into place

1

2

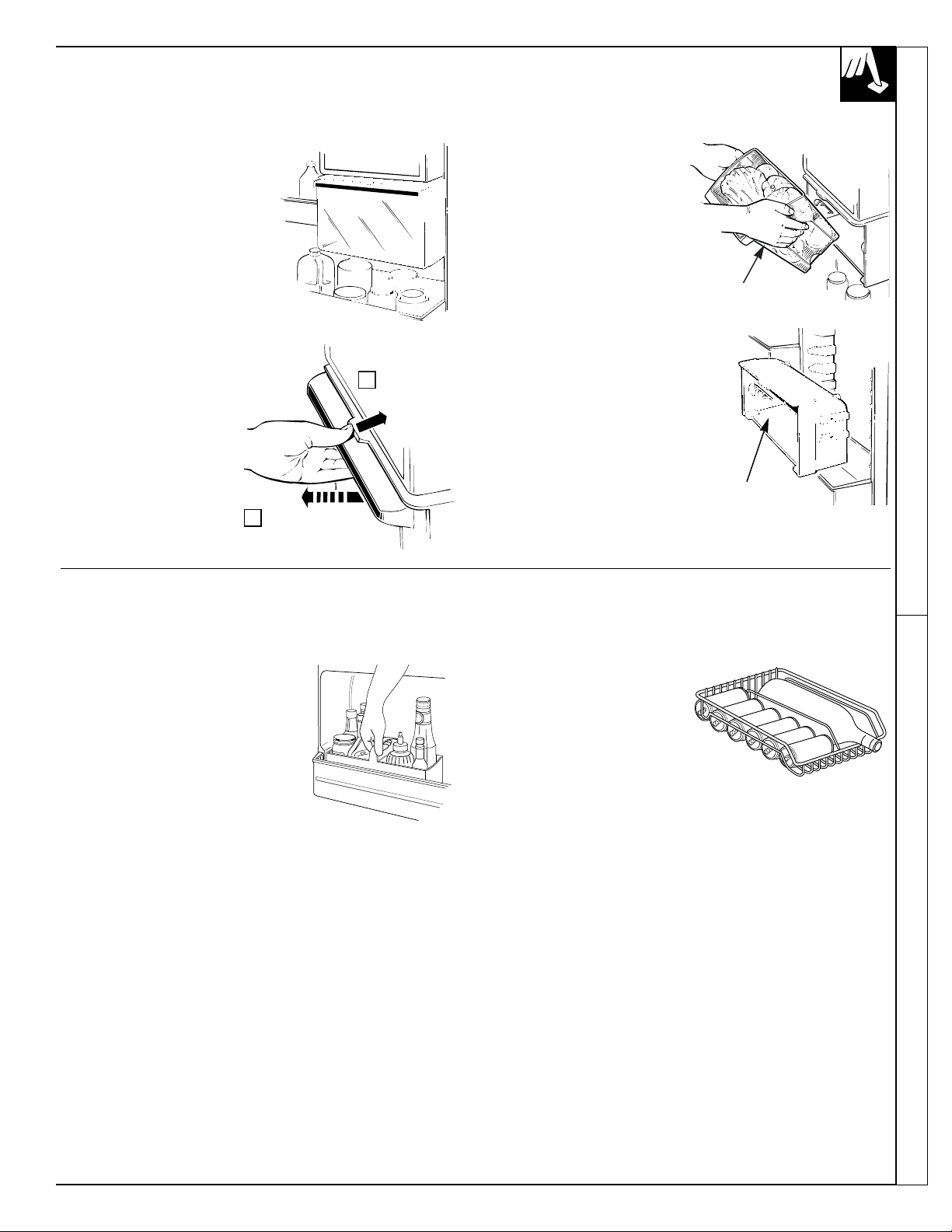

Porta-Bins on the Doors (on some models)

Adjustable Porta-Bins on fresh
food and frozen food storage compartment
doors can easily be carried from the
refrigerator to the work area.

To remove: Slide Porta-Bin forward on
molded supports until it comes completely
out of the door.

To relocate: Select desired shelf height,
engage Porta-Bins in the molded supports
of the door, and slide in. Porta-Bin will hook in place.

Snuggers are designed
to give you storage flexibility
in Porta-Bins and on your fresh
food door shelves. Items such
as salad dressings, steak sauces
and other condiments can now
be kept securely against the door
liner to help prevent tipping,
spilling or sliding.

Place index finger and middle
finger on either side of the snugger
near the front and simply move it
back and forth to fit your needs.

Snugger

Quick ServeTMSystem (on some models)

Cooking-serving-storage
dishes with durable see­through lids fit into a rack
that hangs on the fresh food
or freezer compartment door.
Dishes can be removed from
and returned to the rack as
needed, and the rack can be
removed and located on either
door in the same manner as the door bins.

Dishes and lids are safe for use in microwave ovens, refrigerators,
freezers, and are dishwasher-safe. The dishes should not be used for
cooking high-fat foods such as bacon and high-sugar foods such as
candy and syrup. The high temperatures of the fat and sugar can cause
bubbles to form on the inside of the dish.

CAUTION: Dishes and lids are not designed for use in the regular
oven, on the range-top or in the broiler. Such use can be hazardous.

4

Quick Store Bin (on some models)

5

This removable tilt-out bin made of
Lexan polycarbonate resin can be
located on the fresh food or frozen
food storage compartment door. It has
been designed for convenient storage
of those frequently used items that do
not fit easily into a Porta-Bin or soon­to-be-used items that require covered
storage to keep from drying out.

To open, push the latch up and
pull the bin handle forward.

To avoid damaging the
refrigerator, make sure the bin
is closed and latched before
closing the refrigerator door.

To remove the bin, lift it up and
out of the bin housing.

To relocate the Quick Store unit,
lift the bin housing up and out of the
molded supports on the door, move it
to the desired new location, and lower
it onto the molded supports on the
door. You do not have to remove the
bin from the housing when relocating
the Quick Store unit.

1

2

QUICK S

Pull forward

Push up

Quick Store Bin

Bin Housing

ACCESSORIES

Condiment Caddy Beverage Rack

The condiment caddy keeps frequently
used condiments together. It fits in your
refrigerator door shelf. A convenient
handle allows condiments to be easily
carried to the table.

Slide-out beverage rack holds
twelve cans of soda or two
wine/water bottles (lengthwise).
Can be removed for cleaning.

Shelves Accessories

STORAGE DRAWERS

Adjustable Humidity Drawers (on some models) Snacks Drawer (on some models)

6

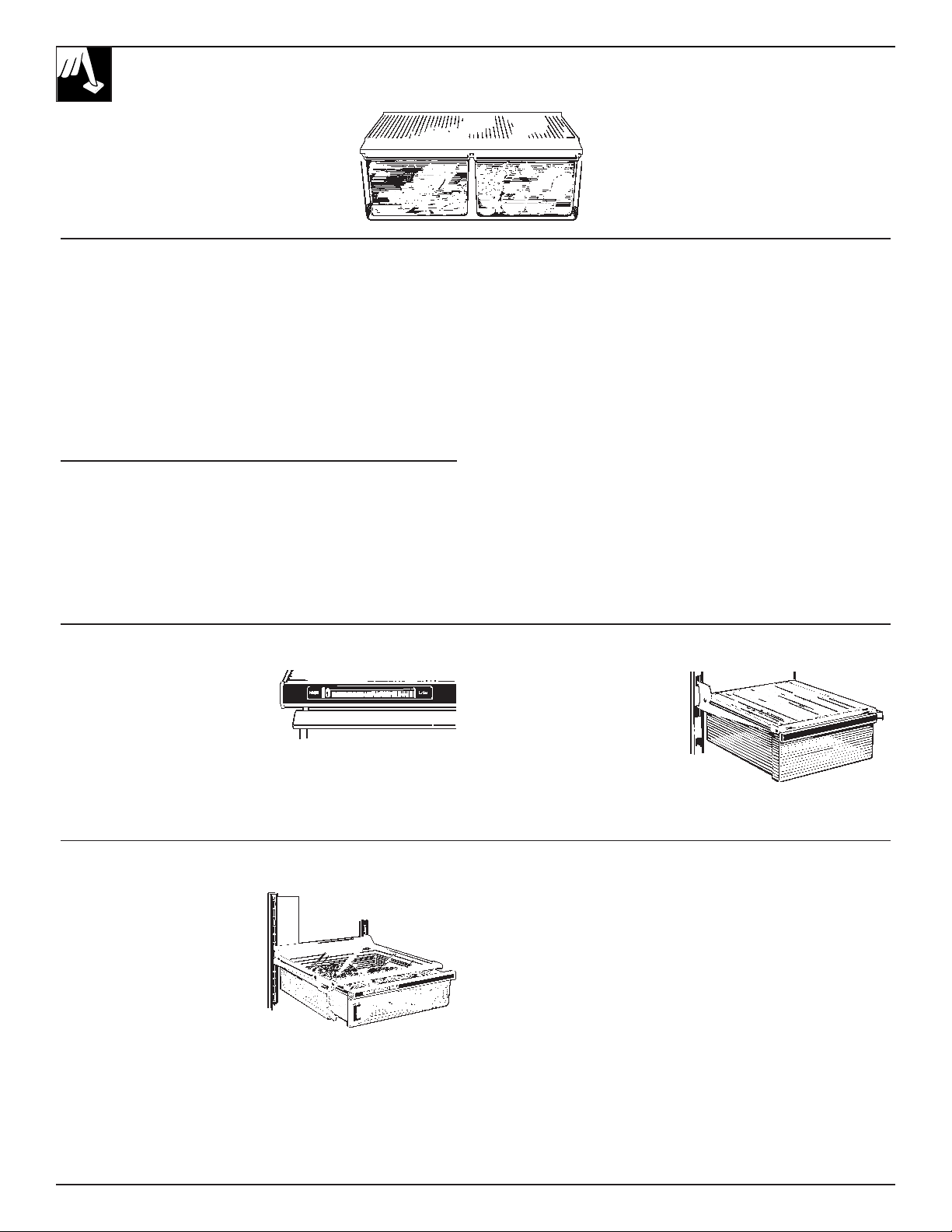

These drawers have individual,
adjustable humidity controls that let
you regulate the amount of cold air
entering the drawers.

Slide the control all the way to the
HIGH setting and the drawer provides high humidity recommended

for most vegetables.
Slide the control all the way to the LOW setting to provide lower

humidity levels recommended for most fruits.

The slide-out Snacks drawer can
be removed and taken to the sink
or food preparation area. You
may also relocate it and the shelf
to which it attaches within the
fresh food compartment to suit
your storage needs.

Adjustable Temperature Meat Drawer (on some models)

Fresh meats are stored
best in the coldest part of
the refrigerator.

When the drawer is placed in the
top 6 slots on the left side and the

lever is set at COLDEST, air from
the frozen food storage compartment
is forced around the drawer to keep
it very cold.

You can move the drawer to any location for storage of items other
than fresh meats.

The variable temperature control lever lets you regulate the amount
of cold air surrounding the drawer.

When the lever is set at COLDEST, the damper over the opening in
the drawer is fully open to provide the coldest storage area.

When the lever is set at COLD, the damper is fully closed. Normal
refrigerator temperatures will be maintained.

Variable settings between these extremes may be selected.

Fruit & Vegetable Drawers Moist’n Fresh Drawer (on some models)

The storage drawers at the bottom of the fresh food compartment are
designed to provide high humidity levels required by most vegetables
and lower humidity levels required for most fruits.

When replacing the drawers, always push them all the way in.
Storage time will depend upon the type of food and its condition when

placed in the drawers.
Excess water that may accumulate in the bottom of the drawers should

be emptied and the drawers wiped dry.

Cool ’n Fresh Drawer (on some models)

This refrigerated drawer is designed to provide lower humidity storage
for items such as:

• Apples • Nectarines • Raspberries

• Apricots • Oranges • Squash, summer

• Grapes • Peaches • Strawberries

• Mushrooms • Pears • Tangerines

This refrigerated drawer is designed to keep unwrapped foods fresh
by retaining the natural moisture content of foods such as:

• Artichokes • Cherries • Peas, green

• Asparagus • Corn • Plums

• Beets, topped • Currants • Radishes

• Blueberries • Greens, leafy • Rhubarb

• Carrots • Lettuce • Spinach

• Celery • Parsley • Tomatoes, ripe

As in any refrigerated storage area, it is recommended that foods
with strong odors be stored wrapped—foods such as:

• Broccoli • Cauliflower • Parsnips

• Brussels sprouts • Green Onions • Turnips

• Cabbage

Water Supply Kit Icemaker Accessory Kit

7

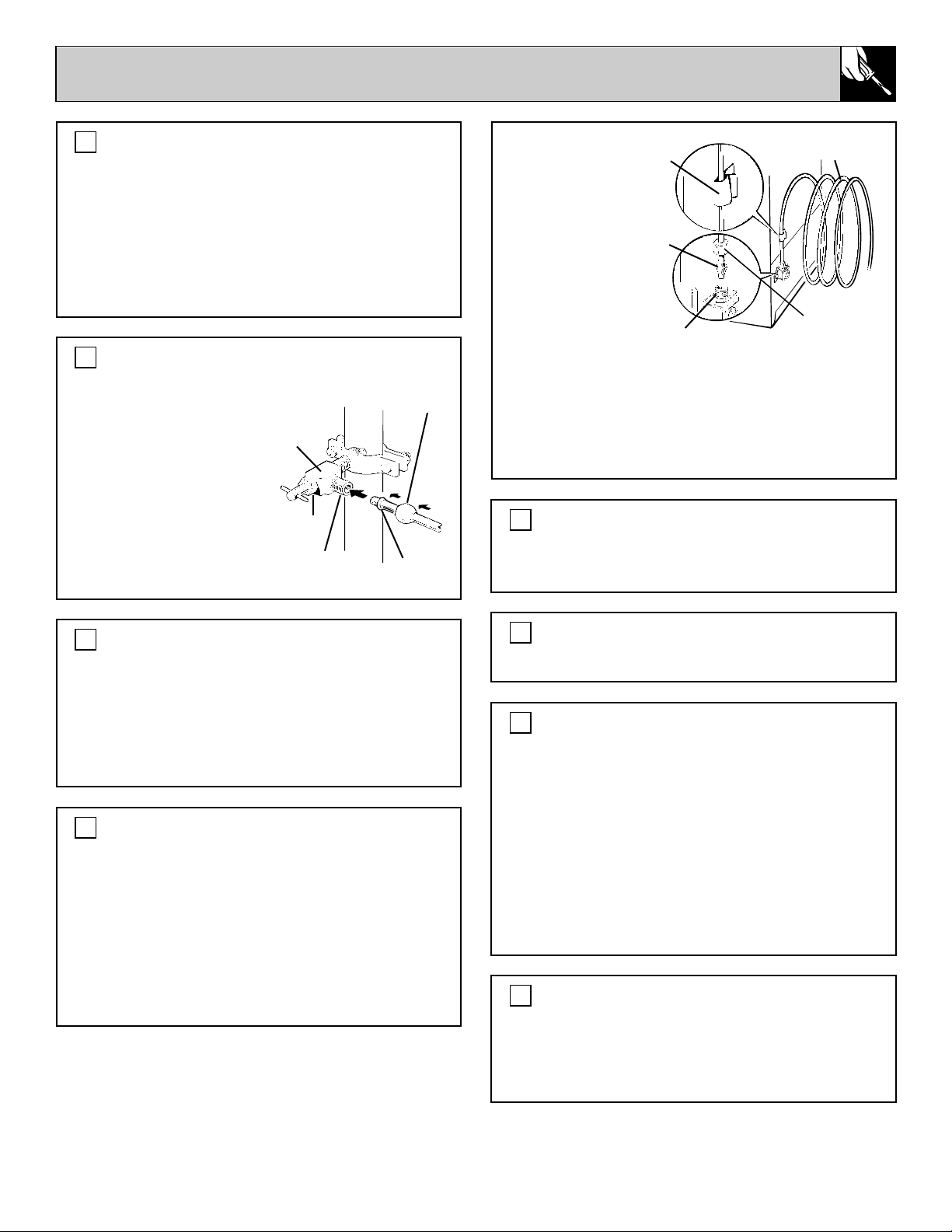

A kit containing copper tubing, shutoff valve, fittings and
instructions needed to connect the icemaker to your cold water
line is available at extra cost. Contact your local distributor and
order the appropriate kit depending on how much copper tubing
you need. See Preparation section.

If your refrigerator did not come already equipped with an automatic
icemaker, an Icemaker Accessory Kit is available at extra cost from
your local distributor. Check the back of the refrigerator for the
specific icemaker kit needed for your model.

AUTOMATIC ICEMAKER

(on some models)

Your icemaker will produce eight cubes per cycle—approximately
100 cubes in a 24-hour period, depending on frozen food storage
compartment temperature, room temperature, number of door
openings and other use conditions.

If your refrigerator is
operated before the water
connection is made to the
icemaker, keep the feeler arm

in the STOP (up) position.
When the refrigerator is first

installed, allow about 24 hours
for the frozen food storage
compartment to cool down to
icemaking temperatures.

Throw away the first few batches of ice. This flushes
away impurities in the water line.

When the refrigerator has
been connected to the water
supply, move the feeler arm

to the ON (down) position.

Icemaking will continue until the feeler arm senses a sufficient
accumulation of ice cubes in the storage bin and halts the operation
temporarily. For maximum ice storage, level the stored cubes with
your hand occasionally. Be sure nothing interferes with the swing of
the feeler arm.

The icemaker ejects cubes in groups of eight and it is normal for
several cubes to be joined together.

Move the icemaker feeler arm to the STOP (up) position when:

• home water supply is to be off for several hours.

• ice storage bin is to be removed for a period of time.

• going away on vacation, at which time you should also turn off the
valve in the water supply line to your refrigerator.

• turning the fresh food control to the “0” position.

If ice is not used frequently, old ice cubes will become cloudy and
taste stale. Empty the ice storage bin periodically and wash it in

lukewarm water. Be sure to allow the storage bin to dry before
replacing it—otherwise ice cubes may stick to other parts of
the icemaker.

If this is your first icemaker, you’ll hear occasional sounds that may
be unfamiliar. They are normal icemaking sounds and are not a cause
for concern.

Icemaker

Ice

Storage Bin

Feeler arm in
STOP (up) position

Feeler arm in
ON (down)
position

Storage Drawers Automatic Icemaker

CARE AND CLEANING

Cleaning—Outside

8

The door handles can be cleaned with a cloth dampened with a
solution of mild liquid dishwashing detergent and water. Dry with a
soft cloth. Don’t use wax on the door handles with metal trim.

Keep the finish clean. Wipe with a clean cloth lightly dampened with
kitchen appliance wax or mild liquid dishwashing detergent. Dry and
polish with a clean, soft cloth. Do not wipe the refrigerator with a
soiled dishwashing cloth or wet towel. These may leave a residue that
can erode the paint. Do not use scouring pads, powdered cleaners,
bleach or cleaners containing bleach because these products can
scratch and weaken the paint finish.

Protect the paint finish. The outside of the refrigerator has a high
quality, baked-on paint finish. With proper care, it will stay new­looking and rust-free for years. Apply kitchen/appliance wax when
the refrigerator is new and then at least twice a year.

Cleaning—Inside

Clean the inside of the fresh food and frozen food storage
compartments at least once a year. Unplug refrigerator before

cleaning. If this is not practical, wring excess moisture out of sponge
or cloth when cleaning around switches, lights or controls. Apply an
appliance wax/polish to the inside surface between the doors.

Use warm water and baking soda solution—about 15 ml (1 tablespoon)
of baking soda to one liter (1 quart) of water. This both cleans and
neutralizes odors. Rinse thoroughly with water and wipe dry.

Avoid cleaning cold glass shelves (on some models) with hot water
because the extreme temperature difference may cause them to break.

Other parts of the refrigerator—including door gaskets, vegetable
drawers, ice trays and all plastic parts—can be cleaned the same way.
After cleaning the door gaskets, apply a thin layer of petroleum jelly
to the door gaskets at the hinge side. This helps keep the gaskets from
sticking and bending out of shape. Do not use cleansing powders or
other abrasive cleaners.

To help prevent odors, leave an open box of baking soda in the
rear of the refrigerator, on the top shelf. Change the box every three
months. An open box of baking soda in the frozen food storage
compartment will absorb stale frozen food storage compartment odors.

Quick Serve dishes and lids can be cleaned in an automatic
dishwasher or by hand with liquid dishwashing detergent and water.
You can remove stains by soaking them in a bleach and water
solution—1 part chlorine bleach to 3 parts water. (Stubborn stains
may require soaking.) Use a plastic scouring pad to remove burned-on
soil. Do not use cleansing powders or other abrasive cleaners.

Do not wash any of your refrigerator’s plastic parts in your
automatic dishwasher.

Under Refrigerator Behind Refrigerator

For most efficient operation, you
need to keep the area under the
refrigerator clean. Turn the
temperature control to “0.”

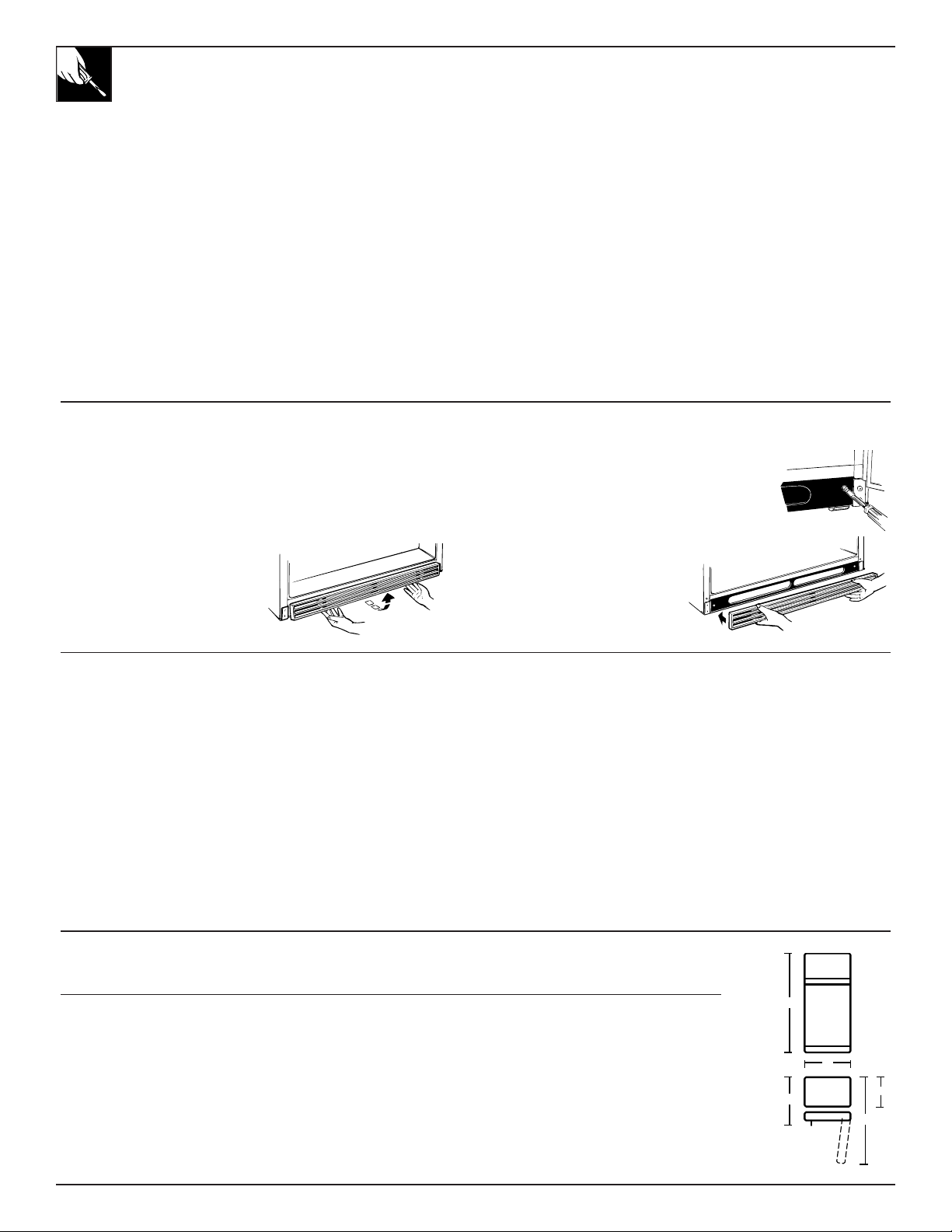

Remove the base grille. Sweep
away or vacuum dust that is readily
accessible on the condenser coils,
then turn the control back on.

For best results, use a brush
specially designed for this purpose,
available from your local distributor.
This easy cleaning operation should
be done at least once a year.

Care should be taken in moving your refrigerator away from the wall.
All types of floor coverings can be damaged, particularly cushioned
coverings and those with embossed surfaces.

Pull the refrigerator straight out and return it to position by pushing
it straight in. Moving your refrigerator in a side direction may
result in damage to your floor covering or refrigerator. Refer to
the Rollers section.

Clean the condenser coils

at least once a year.

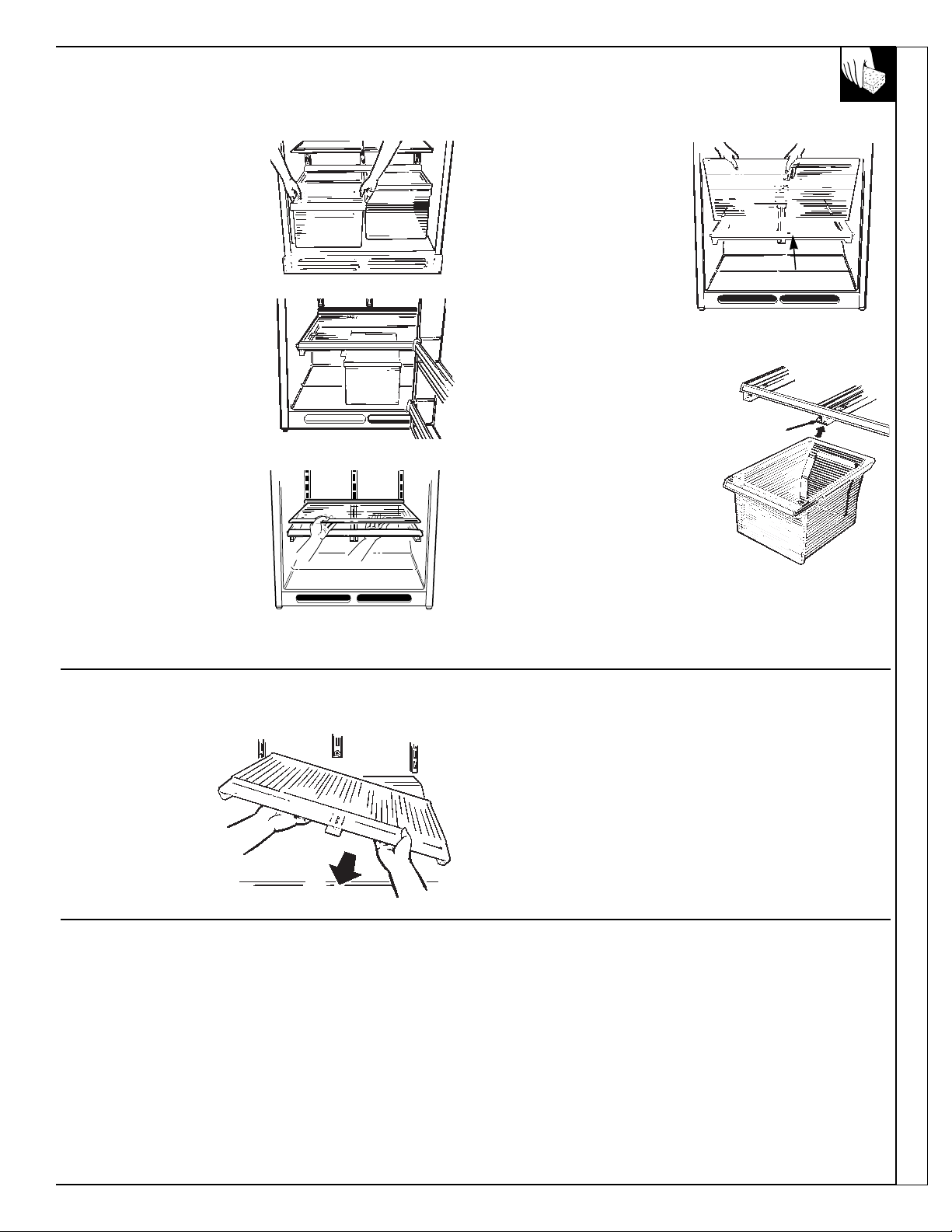

Storage Drawer and Drawer Cover Removal

Drawers at the bottom of the fresh food compartment will stop
before coming all the way out of the refrigerator, to help prevent
contents from spilling onto the floor. These drawers can be removed
easily by lifting the sides up slightly while pulling the drawers past
the ‘‘stop’’ location.

To remove the drawers and their covers when the fresh food
compartment door cannot be opened fully, follow the procedure that
applies to your model.

Two Drawers (on some models)

9

1. Remove the drawer farthest
from the door.

2. Remove the other drawer.

On models with a bottom
door shelf that blocks the

other drawer, slide the other
drawer toward the middle and
remove it.

3. Remove the glass cover. Reach
in, push the front of the glass
cover up and, at the same time,
pull it forward as far as it will
come. Tilt it and take it out.

4. Remove the drawer frame.

(Always remove the glass
cover before you take out the
drawer frame.)

Lift the frame off the supports at
each side and back, pull it
forward, tilt it and take it out.

To replace:

1. Lower the frame until it rests
on the supports at each side
and back.

2. Replace the drawers.

If you removed the drawer slide,
replace it with the sloped end at
the front.

a. Slide one side of the drawer

onto the drawer slide.

b. Move the slide and drawer all

the way to the hinge side until
the other side of the drawer rests
on the frame.

c. Slide the other drawer into place.

3. Replace the glass cover, pushing its rear edge firmly into the rear

frame channel and gently lowering the front into place.

Care and Cleaning

Frame

Drawer Slide
(sloped end)

Full-Width Drawer with Plastic Cover (on some models) Half-Width Drawer with Plastic Cover (on some models)

T o remove the drawer,

lift the front up slightly and
pull the drawer straight out.

To remove the cover, lift
it off its supports, pull it
forward and up, tilt it and
take it out.

To remove the drawers, lift the front up slightly and pull the drawer
straight out.

Light Bulb Replacement

A light bulb and socket are located at the top of the fresh food
compartment opposite the temperature control panel.

Some models also have a bulb and socket in the upper left corner of
the frozen food storage compartment behind a removable light shield.

To replace either bulb, unplug the refrigerator from its electrical
outlet. When the bulb cools, unscrew it and replace it with a similar
size bulb.

PREPARATION

Clearances Water Supply to Icemaker (on some models)

10

Allow the following clearances for ease of installation, proper air
circulation and plumbing and electrical connections:

Sides..........................................................................19 mm (3/4

²)

Top.............................................................................25 mm (1²)

Back...........................................................................25 mm (1²)

If Model 19, 22, or 25 is to be installed against a wall on the hinge side,
allow 44 mm (1

3

⁄4 ²) for door clearance.

If your refrigerator has an icemaker, or if you plan to add an
icemaker later, the icemaker will have to be connected to a cold
drinking water line.

A water supply kit containing copper tubing, shutoff valve, fittings
and instructions is available at extra cost from your local distributor.
There should be sufficient tubing from the cold water supply to the
icemaker inlet to allow moving the refrigerator out from the wall
several feet [approximately 244 cm (8¢) of 1/4² copper tubing in three
25 cm (10²) diameter coils].

Do not use kits with plastic tubing since there is water pressure in the
supply line at all times.

Maximum permissible inlet water pressure—8.3 bars (120 p.s.i.).
Minimum permissible inlet water pressure—1.4 bars (20 p.s.i.).
Installation of icemaker must be made by a qualified service technician.

Rollers

Some models have adjustable rollers that allow you to move the
refrigerator away from the wall for cleaning. Rollers should be set so
the refrigerator is firmly positioned on the floor and the front is raised
just enough [about 19 mm (3/4²) from the floor] that the doors close
easily when opened about halfway.

Remove the base grille by
grasping the bottom of the grille
and pulling it out.

Turn the two front roller adjusting screws

clockwise to raise the refrigerator,
counterclockwise to lower it.

To replace the base grille, line

up the clips on the back of the
grille with the openings in the
base plate and push the grille
forward until it snaps into place.

When You Go on Vacation When You Move

For shorter vacations, remove perishable foods and leave

controls at regular settings. However, if room temperature is
expected to drop below 16°C (60°F), follow the same instructions
as for extended vacations.

For extended vacations or absences, shut off the power to the
refrigerator, move the fresh food control to the “0” position, and
clean the interior with a baking soda solution of 15 ml (1 tablespoon)
of baking soda to one liter (1 quart) of water. Wipe dry. To prevent
odors, leave an open box of baking soda in the refrigerator. Leave
doors open.

Move icemaker feeler arm to STOP (up) position and be sure to shut
off water supply to the refrigerator.

Disconnect power cord from wall outlet, remove all food, and clean
and dry the interior.

Secure all loose items such as grille, shelves and storage pans by
taping them securely in place to prevent damage.

Be sure refrigerator stays in

upright position during actual moving and
in van. Refrigerator must be secured in van to prevent movement.
Protect outside of refrigerator with blanket.

Dimensions

Model 18 19 21 22 24 25
A* 163 cm (64²) 163 cm (64²) 168 cm (66

1

⁄4²) 168 cm (661⁄4²) 170 cm (67²) 170 cm (67²)

B 75 cm (29

3

⁄8²) 75 cm (293⁄8²) 79 cm (311⁄4²) 79 cm (311⁄4²) 88 cm (341⁄2²) 88 cm (341⁄2²)

C** 80 cm (31

1

⁄2²) 83 cm (323⁄4²) 80 cm (311⁄2²) 83 cm (323⁄4²) 80 cm (311⁄2²) 83 cm (323⁄4²)

D 147 cm (58²) 147 cm (58²) 152 cm (59

7

⁄8²) 152 cm (597⁄8²) 160 cm (627⁄8²) 160 cm (627⁄8²)

E 70 cm (27

3

⁄4²) 70 cm (273⁄4²) 70 cm (273⁄4²) 70 cm (273⁄4²) 70 cm (273⁄4²) 70 cm (273⁄4²)

* Height does not include hinge—Add 22 mm (7/8

²)for hinge.

** Depth includes handle.

A

B

C

D

E

INSTALLATION REQUIREMENTS

IMPORTANT…Please Read Carefully

Electrical Requirements

11

The refrigerator should always be plugged into its own individual
electrical outlet—Please refer to the rating plate on the refrigerator

for the correct voltage and frequency. This is recommended for best
performance and to prevent overloading house wiring circuits, which
could cause a fire hazard from overheated wires.

WARNING: HOW TO AVOID ACCIDENTS TO CHILDREN.
WHEN DISCARDING AN OLD REFRIGERATOR OR
FREEZER BE CERTAIN TO MAKE THE LOCK UNUSABLE.
IF POSSIBLE, REMOVE THE DOORS AND DISCARD
SEPARATELY. DO NOT ATTEMPT TO STAND ON TOP OF
YOUR APPLIANCE. IT IS NOT DESIGNED FOR SUCH USE
AND YOU COULD INJURE YOURSELF OR DAMAGE THE
APPLIANCE BY SUCH ABUSE. CHILDREN SHOULD NOT
BE ALLOWED TO PLAY WITH THE APPLIANCE OR
TAMPER WITH THE CONTROLS.

How to Connect Electricity
For personal safety, this appliance must be

properly grounded.

The power cord of this appliance is equipped with a three-prong
(grounding) plug which mates with a standard three-prong
(grounding) wall outlet to minimize the possibility of electric shock
hazard from this appliance.

Have the wall outlet and circuit checked by a qualified electrician to
make sure the outlet is properly grounded.

Where an ungrounded wall
outlet is encountered, it is your
personal responsibility and
obligation to have it replaced
with a properly grounded
three-prong wall outlet.

If the product plug does not fit your outlet, the product should be fitted
with a new plug.

IMPORTANT: The refitting of electric plugs and cables should be
done by a qualified technician or service agent.

If the power supply cord becomes damaged, it must be replaced by a
qualified service agent in order to avoid a safety hazard.

DO NOT, UNDER ANY CIRCUMSTANCES, CUT OR
REMOVE THE THIRD GROUNDING PRONG FROM
THE POWER CORD.

Insure proper
ground exists
before using.

Preparation Installation

Use of Adapter Plug (on some models)

Because of potential safety
hazards under certain conditions,
we strongly recommend against
use of an adapter plug. However,
if you still elect to use an adapter,
where local codes permit, a
TEMPORARY CONNECTION
may be made to a properly
grounded two-prong wall outlet by
use of an adapter.

The larger slot in the adapter must
be aligned with the larger slot in the
wall outlet to provide proper polarity
in the connection of the power cord.

CAUTION: Attaching adapter ground terminal to wall outlet cover
screw does not ground the appliance unless cover screw is metal, and
not insulated, and wall outlet is grounded through house wiring. You
should have the circuit checked by a qualified electrician to make sure
the outlet is properly grounded.

When disconnecting the power cord from the adapter, always hold the
adapter with one hand while pulling the plug with the other hand. If
this is not done, the adapter ground terminal is very likely to break
with repeated use.

Should the adapter ground terminal break, DO NOT USE the
appliance until a proper ground has again been established.

Temporary method
Align large prongs

with slots

Insure proper

grounding and firm

connection exist before

using.

WATER LINE INSTALLA TION

12

CAUTION:

• If you use your refrigerator before connecting
the water line, make sure the icemaker feeler arm
is kept in the STOP (up) position.

• Do not install the icemaker tubing in areas
where temperatures fall below 0°C (32°F).

•When using any electrical device (such as a
power drill) during installation, be sure the device
is insulated or wired in a manner to prevent the
hazard of electric shock.

• All installations must be in accordance with
local plumbing code requirements.

WARRANTY INFORMATION

This water line installation is not warranted by
the refrigerator or icemaker manufacturer.
Follow these instructions carefully to minimize
the risk of expensive water damage.

SHUT OFF THE MAIN WATER SUPPLY.

Turn on the nearest faucet long enough to clear
the line of water.

1

INSTALL THE SHUTOFF VALVE ON THE
NEAREST FREQUENTLY USED DRINKING
WATER LINE.

a. Choose a location for the valve that is easily
accessible. It is best to connect into the side of
a vertical water pipe. When it is necessary to
connect into a horizontal water pipe, make the
connection to the top or side, rather than at the
bottom, to avoid drawing off any sediment from
the water pipe.

b. Drill a 1/4

² hole in the water pipe, using a
sharp bit. Remove any burrs resulting from
drilling the hole in the pipe. (Do not drill a
hole if the valve is a self-piercing type.)

c. Fasten the shutoff valve to the cold water pipe
with the pipe clamp.

d. Tighten the
clamp screws until the
sealing washer
begins to swell. Do
not overtighten or
you may crush the
copper tubing.

2

WHAT YOU WILL NEED

• A cold water supply is required for automatic
icemaker operation. The water pressure must be
between 1.4 and 8.3 bars (20 and 120 p.s.i.).

•

Power drill, unless you have a self-piercing valve.

• Copper tubing, 1/4² outer diameter to connect
the refrigerator to the water supply. Be sure both
ends of the tubing are cut square.

To determine how much copper tubing you need:
measure the distance from the water valve on the
back of the refrigerator to the water supply pipe.
Then add 244 cm (8¢). Be sure there is sufficient
extra tubing [about 244 (8¢) cm coiled into 3 turns
of about 25 cm (10²) diameter] to allow the
refrigerator to move out from the wall after
installation. Do not use plastic tubing or plastic
fittings because the water supply line is under
pressure at all times. Also, certain types of plastic
tubing may become brittle with age and crack,
resulting in water leakage.

• Shutoff valve to connect to the cold water line.
The shutoff valve should have a water inlet with a
minimum inside diameter of 5/32² at the point of
connection to the COLD WATER LINE. Saddle­type shutoff valves are included in many water
supply kits. Before purchasing, make sure a
saddle-type valve complies with your local
plumbing codes.

• Two 1/4² outer diameter compression nuts
and 2 ferrules (sleeves)—to connect the copper
tubing to the shutoff valve and the refrigerator
water valve.

• If your existing water line has a flared fitting at
the end, you will need an adapter (available at
plumbing supply stores) to connect the water
line to the refrigerator OR—you can cut off the
flared fitting with a tube cutter and then use a
compression fitting.

Typical ways to connect to water supply

Under sink
to cold
water pipe

Through wall to
utility room cold
water pipe

In crawl
space under
house

Through floor
to basement
cold water pipe

Pipe
Clamp

Saddle-Type
Shutoff
Valve

Washer

Inlet
End

Vertical
Cold Water
Pipe
