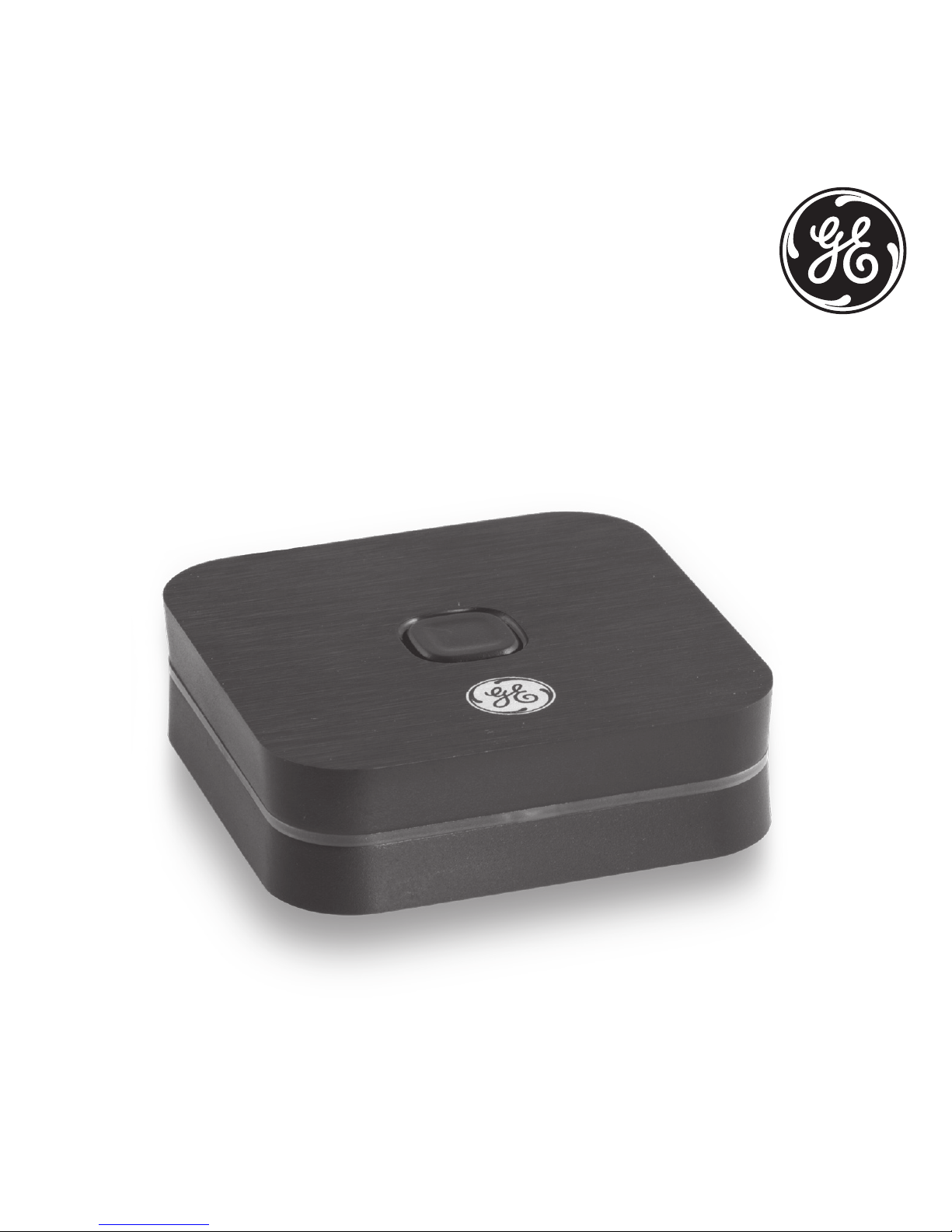

GE 11081 User Manual
Wireless
Audio Receiver
Instruction Manual
Model 11081
Table of Contents
◎
Features ...................................................................................................................................................................................... 1
What’s in the box .................................................................................................................................................................... 1
Setup your GE Branded Audio Receiver ....................................................................................................................... 2
Pairing your GE Audio Receiver ........................................................................................................................................ 3
For use in vehicle .................................................................................................................................................................... 8
Specifications ........................................................................................................................................................................... 8
Troubleshooting ...................................................................................................................................................................... 8
Two-year limited warranty ................................................................................................................................................. 9
FCC Statement .......................................................................................................................................................................10
Manual de instrucciones ...................................................................................................................................................12
Características .......................................................................................................................................................................12
Contenido de la caja ...........................................................................................................................................................12
Cómo Instalación de su receptor de audio Bluetooth GE .................................................................................13
Cómo emparejar su receptor de audio Bluetooth GE .........................................................................................14
Para uso en vehículos ........................................................................................................................................................19
Especificaciones....................................................................................................................................................................19
Solución de problemas ......................................................................................................................................................19
Garantía limitada de dos años .......................................................................................................................................20
Declaración de la Comisión Federal de Comunicaciones (FCC) .....................................................................21
1
Features
◎
• Stay mobile and stream audio instantly from any Bluetooth®-enabled device!
• Remembers up to 8 paired devices with up to 1 hour connection time.
• Receives signal from up to 33ft. away.
• Call break-in feature allows you to discreetly answer calls on your phone.
• Great in your car, at home or anywhere with USB power and
a 3.5mm input.
What’s in the box
GE audio
receiver
micro USB AC
power adapter
3.5mm to 3.5mm
audio cable
3.5mm female to
RL audio cable
2
Setting up your GE branded Audio Receiver
Installation
1. Connect one 3.5mm end of the included 3.5mm cable to the audio out connection on the GE audio
receiver.
2. Connect the other end to the audio input on your home stereo system, soundbar, or computer
speaker using the 3.5mm or the RL audio adapter.
Note: Consult your stereo user’s manual for more information on audio inputs available
and their locations.
3. Connect the provided micro USB plug of the AC adapter into the micro port (DC 5V) on the back of
the GE audio receiver. Then plug the AC charger into an available wall outlet.
4. The LED light will flash once to show the unit is powered and ready to be paired with your devices.
3.5mm female
to Right/Left
audio cable
3.5mm to 3.5mm
audio cable
micro USB AC
power adapter
audio receiver
soundbar
3
LED Indicator
Indication Meaning Description
Flash once for 1 second every
5 seconds
Power on /Pairing Waiting for connection
Light stays on Permanently Connected Device and main unit are
connected
Pairing your GE Audio Receiver
To iPad, iPhone, iPod touch (iOS Devices)
Go to bluetooth settings on your iPad, iPhone, iPod touch and follow these steps:
1. From your iPad/iPhone/iPod
touch home page, choose
“Settings.”
2. Inside “Settings,”
choose “Bluetooth”
3. Turn on Bluetooth if it is
not already turned on.
4

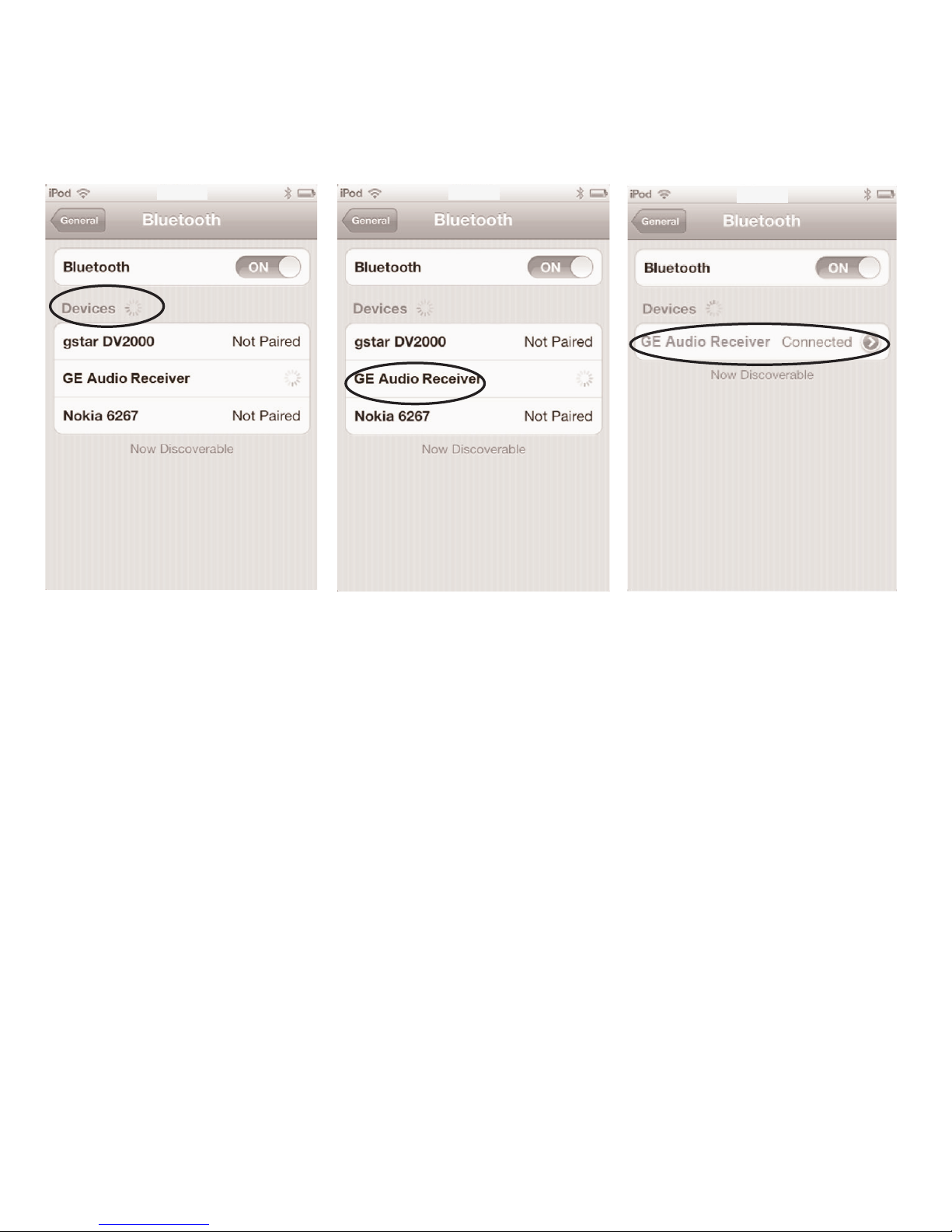

4. Your device will automat-
ically begin searching for
any available Bluetooth
devices.
5. Once found, choose “GE
Audio Receiver” and Enter
“0000” if asked for a PIN
(some devices do not
require a PIN).
6. You are now connected to
the “GE Audio Receiver”
and can begin to enjoy your
music wirelessly.
5

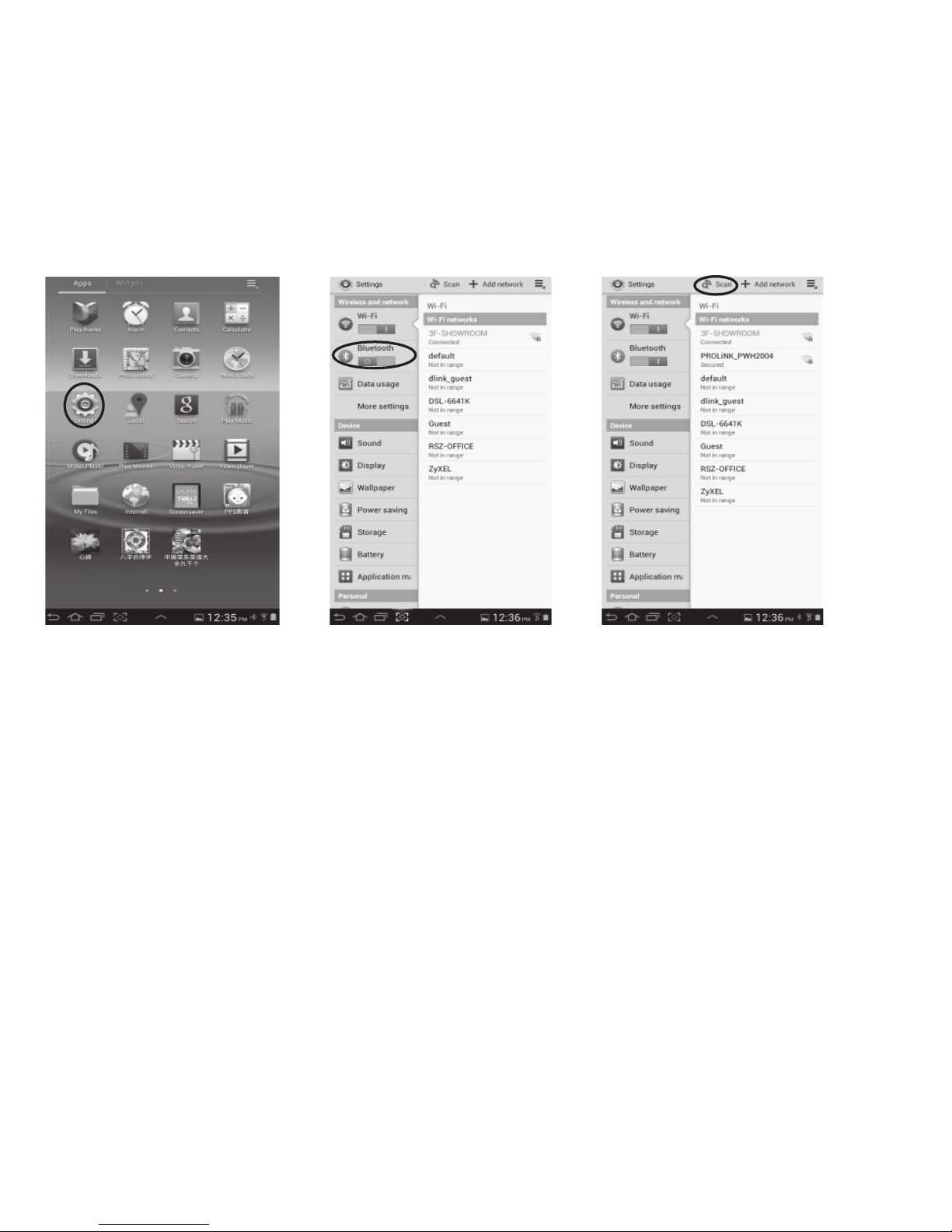

To Android smartphone/tablet (ver 4.0 as Example)
Go to bluetooth manager on your smartphone and follow these steps:
1. From your APP page,
choose “Settings.”
2. Inside “Settings,” turn on
and select Bluetooth
3. Your device may begin
scanning automatically.
If not, press the Scan
button at the top.
6

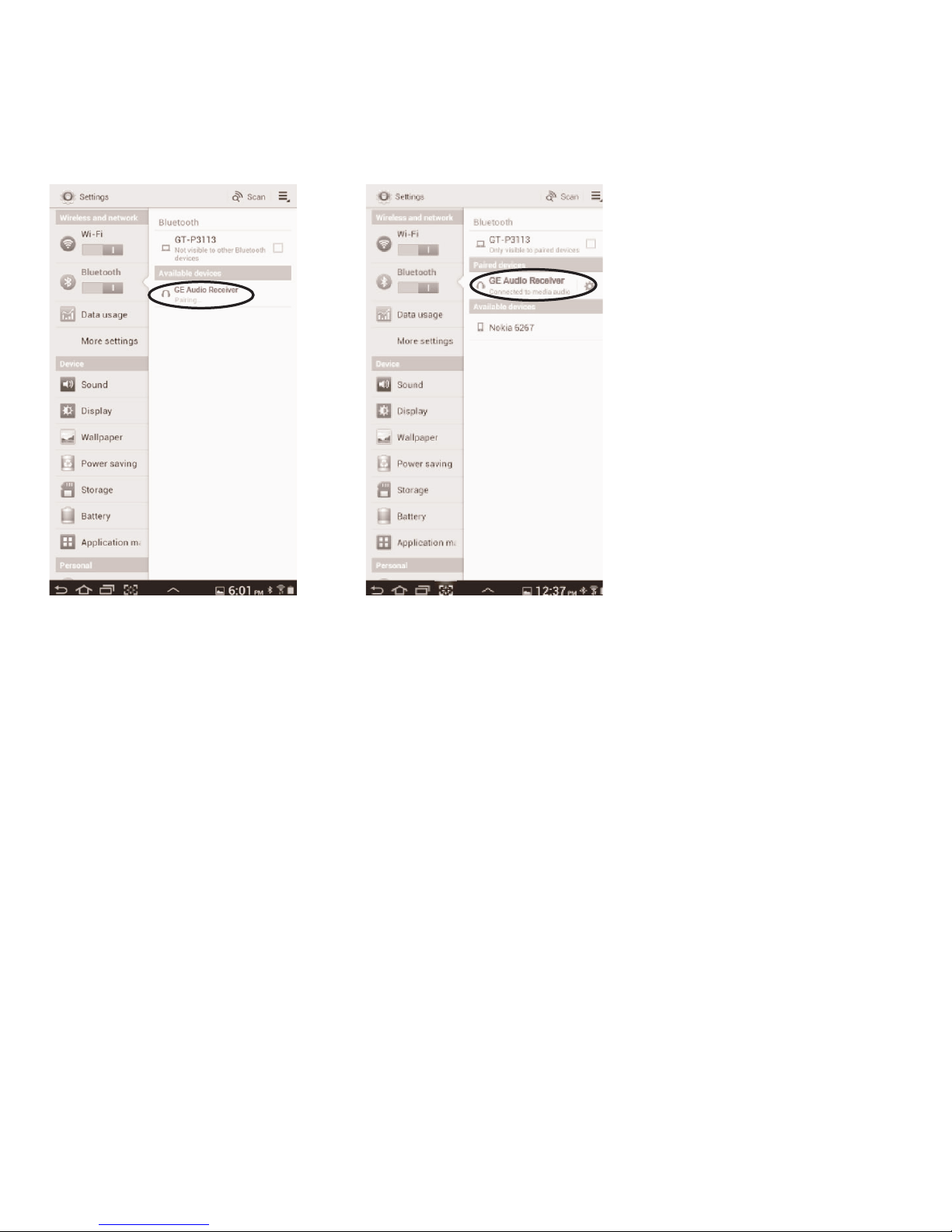

4. Once found, Choose “GE
Audio Receiver” and Enter
“0000” if asked for a PIN
(some devices do not require
a PIN).
5. Once paired, the GE Au-
dio Receiver should move
to the Paired devices
section of the Bluetooth
settings. You are now
connected to the “GE
Audio Receiver” and can
begin to enjoy your music
wirelessly.
Notes:
1. Once paired, the blue LED light on the GE Audio Receiver will flash once. The blue LED will stay
ON when a connection is established, and the connected device is in range.
2. Some devices, such as smartphones, will auto-connect after pairing, so the LED will be ON
immediately. Other devices, such as an Ultrabook, may ask to connect first (the LED will be OFF
until a connection is established).
