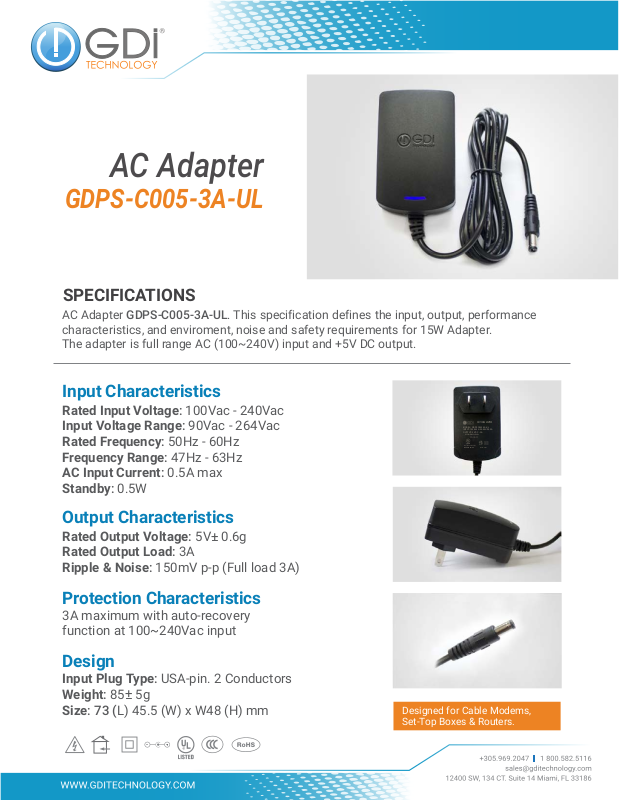

GDI GDPS-C005-3A-UL User Manual

AC Adapter

GDPS-C005-3A-UL

SPECIFICATIONS

AC Adapter GDPS-C005-3A-UL. This specification defines the input, output, performance
characteristics, and enviroment, noise and safety requirements for 15W Adapter.
The adapter is full range AC (100~240V) input and +5V DC output.

Input Characteristics

Rated Input Voltage: 100Vac - 240Vac
Input Voltage Range: 90Vac - 264Vac
Rated Frequency: 50Hz - 60Hz
Frequency Range: 47Hz - 63Hz
AC Input Current: 0.5A max
Standby: 0.5W

Output Characteristics

Rated Output Voltage: 5V+
Rated Output Load: 3A
Ripple & Noise: 150mV p-p (Full load 3A)

_

0.6g

Protection Characteristics

3A maximum with
function at 100~240Vac input

auto-recovery

Design

Input Plug Type: USA-pin. 2 Conductors

_

+

Weight: 85
Size: 73 (L) 45.5 (W) x W48 (H) mm

5g

SWITCHING ADAPTER

MODEL: GDPS C005-3A-UL
INPUT: 100-240V~50-60HZ 0.5A
OUTPUT: 5V DC - 3A

EFFICIENCY LEVEL

R

FOR INDOOR USE ONLY

Date: 0917

MADE IN CHINA

Designed for Cable Modems,
Set-Top Boxes & Routers.
