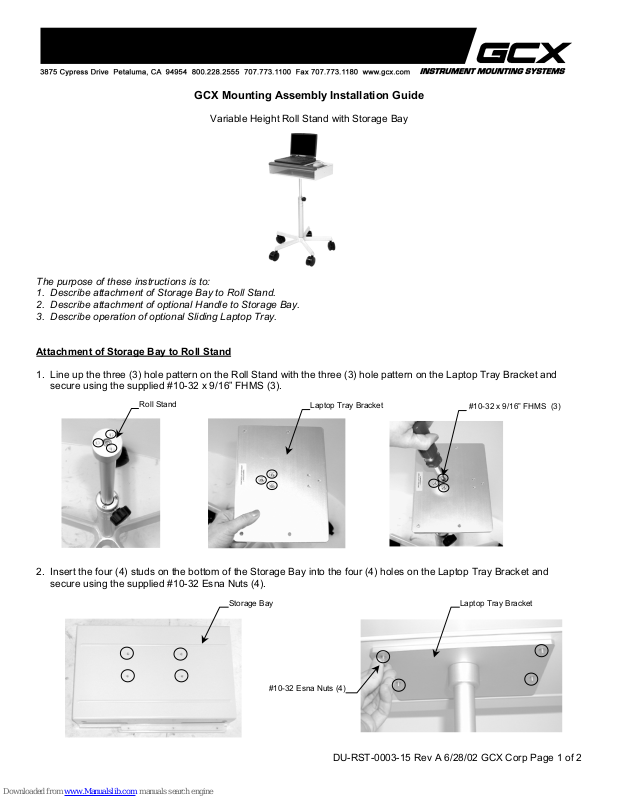

Page 1
GCX Mounting Assembly Installation Guide
Variable Height Roll Stand with Storage Bay
The purpose of these instructions is to:
1. Describe attachment of Storage Bay to Roll Stand.
2. Describe attachment of optional Handle to Storage Bay.
3. Describe operation of optional Sliding Laptop Tray.

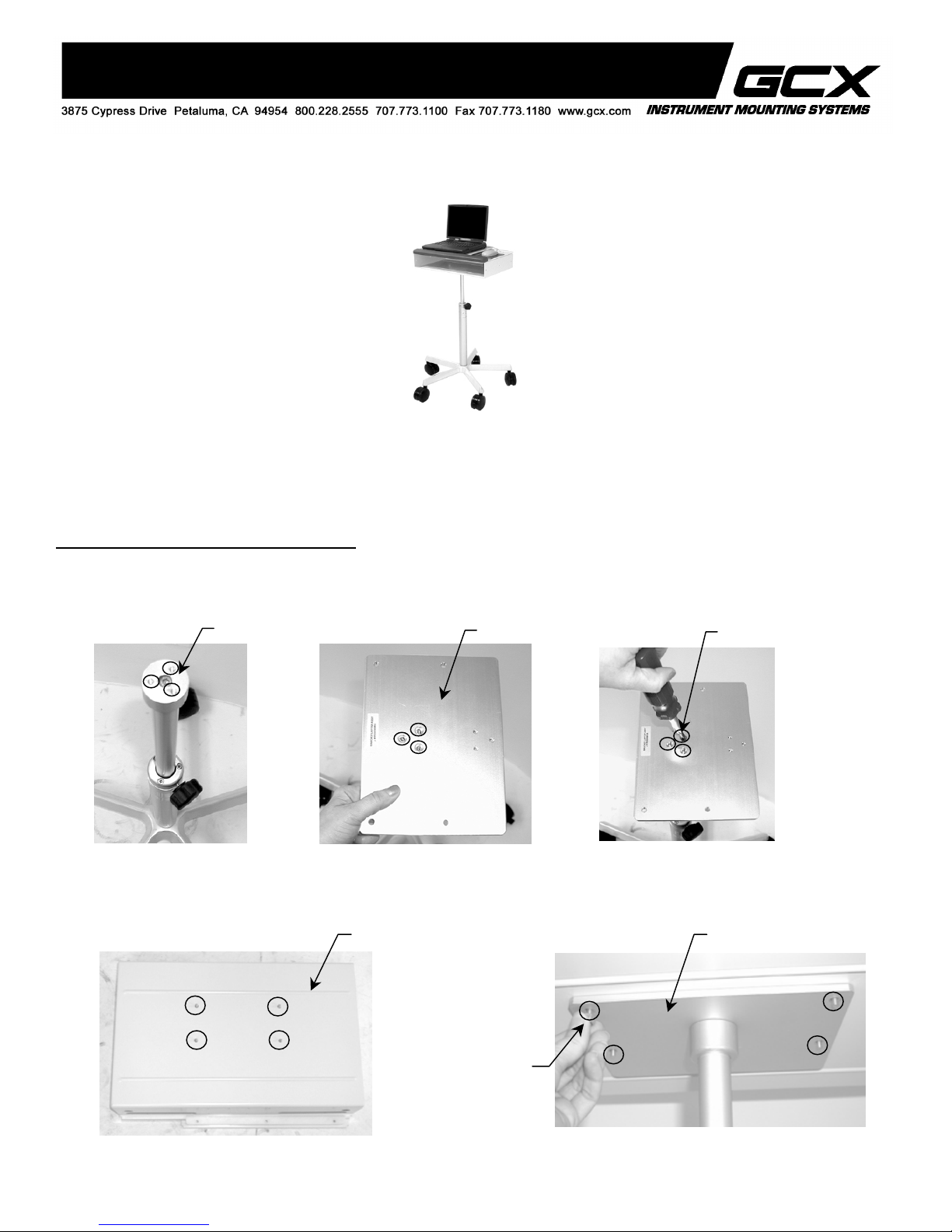

Attachment of Storage Bay to Roll Stand
1. Line up the three (3) hole pattern on the Roll Stand with the three (3) hole pattern on the Laptop Tray Bracket and
secure using the supplied #10-32 x 9/16” FHMS (3).
Roll Stand
2. Insert the four (4) studs on the bottom of the Storage Bay into the four (4) holes on the Laptop Tray Bracket and
secure using the supplied #10-32 Esna Nuts (4).
Laptop Tray Bracket
Storage Bay Laptop Tray Bracket
#10-32 Esna Nuts (4)
#10-32 x 9/16” FHMS (3)
DU-RST-0003-15 Rev A 6/28/02 GCX Corp Page 1 of 2
Page 2

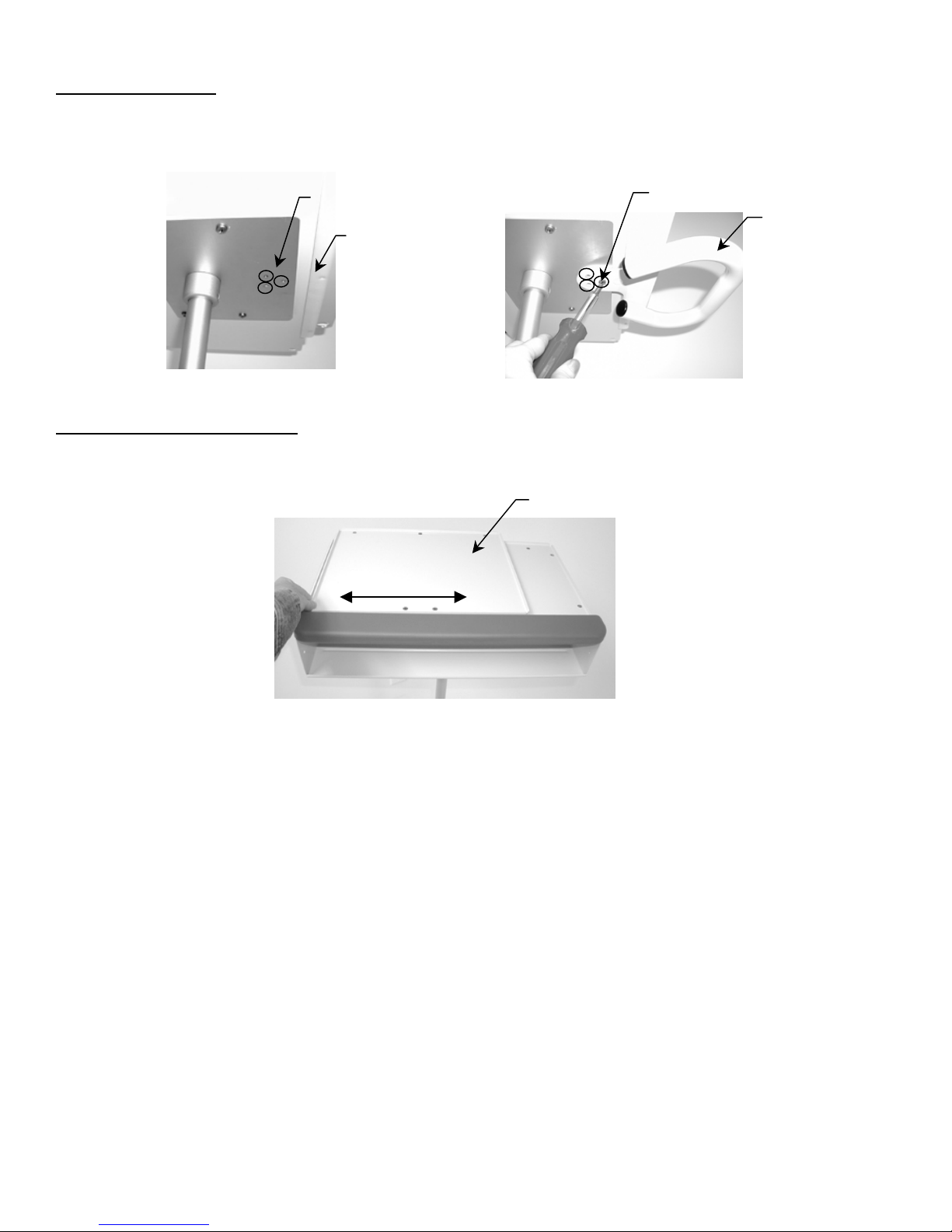

Attachment of Handle
1. Line up the three (3) hole pattern on the Laptop Tray Bracket with the three (3) hole pattern on the Handle, and secure
using the supplied #10-32 x 3/8” PHMS (3).
Operation of Sliding Laptop Tray
1. To adjust the position of the Laptop Tray, grasp one side of the tray and slide to the desired location.
2. Please refer to DU-RS-0006 for Roll Stand Operation and Maintenance.
Laptop Tray Bracket
Laptop Tray
#10-32 x 3/8” (3)
Handle
Laptop Tray
DU-RST-0003-15 Rev A 6/28/02 GCX Corp Page 2 of 2
