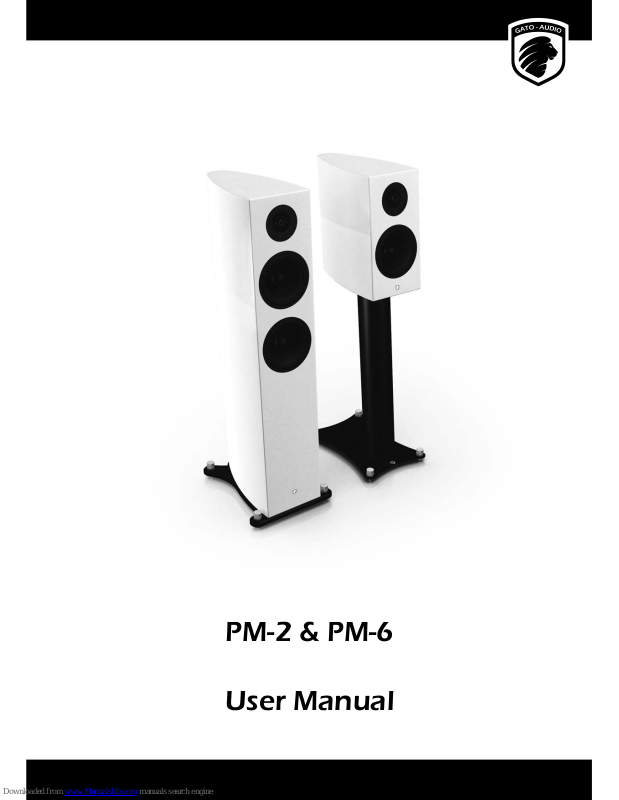

PM-2 & PM-6
User Manual
Gato Audio PM-2 & PM-6
Page 2
Contents
Contents 2
Don’t be a stranger 3
Package contents 3
A few words on your new speakers 3
Installation 4
Using spikes 4
Mounting the driver grilles 4
Connecting your speakers 5
Bi-wiring and bi-amping 5
Placing the speakers 5
Make it last! 6
If all else fails… 6
Technical stu 7
PM-2 technical speci cations 7
PM-6 technical speci cations 7
User Manual
Page 3
Don’t be a stranger
Thank you for purchasing this Gato Audio product. We are absolutely con dent that it will bring you many pleasurable hours of listening.
We hereby cordially invite you to join the Gato Audio family by registering your product online. You may also consider signing up for our
newsletter to receive information about exciting new products, events and technical updates.
All this and more on www.gato-audio.com
Our very best
Gato Audio
Package contents
Please check that the following is included in the two packages:
• 2 Gato Audio PM speakers
• 2 front grille sets
• 8 spike sets (for PM-6 only)
• This manual - which you should be reading now
A few words on your new speakers
A good cabinet is the essential foundation of any loudspeaker. The PM2 and PM-6 cabinets incorporate several noteworthy details. First of
all, the cabinet is made from solid high-density berboard, and the rounded sides are laminated with up to ve layers to ensure strength,
sti ness and resonance control. Secondly, the rounded shape itself ensures that stationary waves inside the cabinet never will become a
problem. Thirdly, the solid back pro le does not only round o the rear of the speaker in design terms; it also has a function: to add mass
and by that dampening resonances and vibration. The cabinet shape will transfer vibration from the front panel to the rear panel. The solid
pro le is integrated into the cabinet to provide instant high mass and damping. For the PM-6, the coupling of the complete speaker to the
oor through machined spikes ensures that the speaker can be adjusted precisely in angle and planeness.
Excellent drivers are the foundation of true-to-life sound: the drivers’ capability to react instantly to the provided signal together with total
control of mechanical resonance is crucial. The drivers in PM-2 and PM-6 are selected from the best drivers available and then modi ed
further to comply with our demands for technical quality. The midrange reproduction of any speaker is without discussion the most
important thing of all, whether it is the reproduction of vocals, high-hat or drums, since all have important tonal information based in this
frequency area.
PM-2 features a bass/midrange driver optimized for reproducing the midband with high accuracy, detail and dynamics. A compromise of
the deepest bass response is the price to pay for a faithful reproduction of the critical midrange in a compact speaker design.
PM-6 is developed around the same principles as the PM-2. However, it features a dedicated optimized bass driver which o ers a superb
and tight bass performance, in e ect assisting the upper driver with moving substantially more air. A separate and optimized cabinet
ensures perfect working conditions for each driver individually as well as an exact lateral musical timing for all the drivers in unison.
The unique ring radiator tweeter not only yields a useful output far beyond the capability of the human ear, but also provides instruments
with their natural harmonic structure, but also adds the crucial bene ts of extremely low distortion and coloration of the reproduced
material.
Gato Audio PM-2 & PM-6
Page 4
Installation
Using spikes (for PM-6 only)
Mounting the driver grilles
The grilles are easily fastened to the speakers magnetically when the
small magnets on the grille are aligned on top of the driver screws.
1. Place the 4 spikes in
the holes of the plinth
by screwing them in
clockwise
2. Turn the spikes up or down
to adjust the speaker height
from the oor, so all spikes
are touching the oor at the
same time
3. Turn the fastener clockwise
until it is positioned tightly
against the plinth. Make
sure the spike does not
turn during the process by
grasping the top with your
other hand if necessary
4. The spike feet can be
applied to protect the
surface underneath the
spikes
WARNING: Please note that using spikes under your speakers will invariably leave marks on your oor or any other surface that you place
the speakers on. Gato Audio cannot accept any responsibility for any type of damage to oor, furniture surfaces, marriage or anything
else resulting from the use of spikes. It is up to you and your family to consider carefully beforehand whether the improvements in sound
quality and performance will outweigh the possibility of any inconvenience caused.
User Manual
Page 5
Connecting your speakers
Connecting your speakers to your ampli er must only be performed with the ampli er turned o . Otherwise damage may occur. Connect
the red speaker terminal (+) to the positive speaker output on your ampli er. Now connect the white speaker terminal (-) to the negative
speaker output terminal on your ampli er.
Bi-wiring and bi-amping
The PM speakers features a double set of high-quality gold plated copper
binding posts that can accommodate separate cables and/or ampli ers for
high and low frequency reproduction respectively.
PLEASE NOTE THE FOLLOWING IMPORTANT INFORMATION:
Permanent damage may occur to your audio system if the copper
shorting plates are not removed before connecting more than one
ampli er to your speakers!
There are many theories about bi-wiring and bi-amping. Our best
advice is to experiment with di erent cables, ampli ers and methods
of connection. Whatever performs best in your system might not work
equally well in another setup or in a di erent room. In general, our advice
would be to use the same kind of cable both for bi-wiring and bi-amping,
and also to use identical ampli ers when bi-amping. This is simply due
to the fact that both methods will add more headroom and clarity to
the sound reproduction. The introduction of di erent ampli ers and/or
di erent cables may cause issues with sound integration and cohesive
performance.
Placing the speakers
Just like with real estate, location is the most important factor when setting up a high-end audio system. It is impossible to give you an
exact instruction via this manual to set up your speci c system perfectly in your listening room. However, we can o er you some thumb
rules:
• Place your speakers at least 0.5 m from the rear and side walls. Placing
a speaker close to the rear wall will provide an extension in level of
bass and coloration of the midrange.
• Basic setup should be an even-sided triangle with equal distance
between each speaker as well as the listening position.
• All PM speakers are developed to play facing directly into the listening
room, so no toe-in should be needed. However, if the room is very
small and the speakers must be placed closely to the side walls, then
some degree of toe-in may be useful.
• Hard surfaces like glass, stone and wooden oors create many
re ections which can make midrange reproduction sound harsh and
with a blurry soundstage. These re ections can be dampened with
curtains and carpets.
• Many soft surfaces, thick carpets and furniture may on the other
hand provide too much dampening. This may cause the midrange
reproduction to become “thin” and lacking in musical timing and
energy. In such cases, it is advised to remove some of the dampening
items.
In any case, time spent setting up your speakers is by far the most important adjustment parameter for your system. Room acoustics is a
complex eld with an almost in nite number of variables. Please note that while a setup might work well in your listening room, it may not
be the perfect solution in other locations.
High-frequency terminals
Low-frequency terminals
Gato Audio PM-2 & PM-6
Page 6
For the best result, place the PM-2 on a solid stand at a height of approx. 60 cm.
Take extra care to ensure that both the speaker and stand are not able to
vibrate, which otherwise will cause resonances. Make sure that the stand itself
is of high quality, stable and preferably lled with sand or other resonance
dampening material.
Make it last!
Please apply simple common sense to maintain the sound quality and lifespan of your Gato Audio speakers. Here are a few guidelines:
• Regular care: wipe the surfaces carefully by using a clean soft dry cloth
• Cleaning: if necessary, wipe the hard surfaces clean using a soft cloth dampened only with clean water.
• Grease stains or nger marks on the cabinets can be removed carefully with a clean soft cloth lightly dampened in a mix of clean
lukewarm water and a single drop of household washing-up liquid. Then wipe the surfaces dry using a soft dry cloth
• Be careful never to use hot water or any type of concentrated detergent, solvent, thinner, or any other volatile substance on the
surfaces, or you may cause permanent damage to the surface coating
• Keep the cabinets away from prolonged contact with rubber or PVC materials
• Do not expose the speakers to direct sunlight or other heat sources
If all else fails…
…don’t panic! Every Gato Audio product comes with a minimum 2-year warranty. See our website for details.
This warranty does not cover damage or wear directly or indirectly caused by improper use, violence, tampering with or unauthorized
access to or servicing of any part of the product.
If you are in need of service or repair, please do not hesitate to contact us at info@gato-audio.com or visit our website www.gato-audio.com
for more information.
60 cm
User Manual
Page 7
Technical stuff
PM-2 technical speci cations
Frequency response
Sensitivity (2.83 V)
Recommended ampli er output
Nominal impedance
Connectors
Drivers
High-Frequency
Mid & Low-Frequency
PM-6 technical speci cations
Frequency response
Sensitivity (2.83 V)
Recommended ampli er output
Nominal impedance
Connectors
Weight & Dimensions
Weight
Dimensions
Drivers
High-Frequency
Mid & Low-Frequency
Low-Frequency
50 Hz – 25 kHz (-6 dB)
89 dB
50 to 300 W
4 Ω
Gold-plated 4 mm plugs, bi-wire
38 mm ring radiator, powerful ferrite motor and optimised chamber
170 mm paper cone, low loss suspension, motor with shorting rings and optimised voice coil
Weight & Dimensions
Weight
Dimensions
11 Kg. / 24.25 lbs.
370 mm
390 mm
200 mm
40 Hz – 25 kHz (-6 dB)
90 dB
50 to 300 W
4 Ω
Gold-plated 4 mm plugs, bi-wire
28 kg. / 61.73 lbs.
See illustration
38 mm ring radiator, powerful ferrite motor and optimised chamber
170 mm paper cone, low-loss suspension, motor with shorting rings and optimised voice coil
170 mm paper cone, low-loss suspension, motor with shorting rings
370 mm
1020 mm
200 mm
260 mm
Hoerkaer 14
DK-2730 Herlev
Denmark
Phone: +45 4095 2205
www.gato-audio.com
info@gato-audio.com
510007 GA PM-2-PM-6 MAN 1,0 1009
