Gateway MX3210, MX3220, MX3230 Quick Reference Guide

USER GUIDE

Gateway Notebook

Contents

Chapter 1: About this reference. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

About this guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Accessing the online User Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Gateway contact information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Gateway model and serial number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Microsoft Certificate of Authenticity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

For more information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Chapter 2: Checking Out Your Gateway Notebook . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Identifying features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Left . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Right . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Back . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Bottom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Keyboard area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Connecting the AC adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Protecting from power source problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Connecting the dial-up modem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Connecting to a cable or DSL modem or to an Ethernet network . . . . . . . . 13

Starting your notebook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Waking up your notebook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Turning off your notebook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Restarting (rebooting) your notebook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Using the status indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Using the keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Key types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

System key combinations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Using the EZ Pad touchpad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Adjusting the volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Turning your wireless radio on or off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Using the DVD drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Identifying drive types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Inserting a CD or DVD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Using the memory card reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Memory card types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Inserting a memory card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Using a memory card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Removing a memory card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Adding and removing a PC Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Changing batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Recalibrating the battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Ordering accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

i

Contents www.gateway.com

Chapter 3: Maintaining and Upgrading Your Notebook . . . . . . . . . . . . . . . . . . . . . . .31

Preventing static electricity discharge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

Adding or replacing memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

Replacing the DVD drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

Replacing the hard drive kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

Replacing the keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

Removing the keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

Installing the keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44

Appendix A: Safety, Regulatory, and Legal Information . . . . . . . . . . . . . . . . . . . . . . 45

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

ii

CHAPTER 1

About this reference

•About this guide

• Accessing the online User Guide

• Gateway contact information

• Microsoft Certificate of Authenticity

•For more information

1

CHAPTER 1: About this reference www.gateway.com

About this guide

This guide includes information and maintenance instructions that are specific

to your model of Gateway notebook. For all other notebook information, see

your online User Guide.

Accessing the online User Guide

In addition to this guide, the online User Guide has been included on your hard

drive. The User Guide is an in-depth, easy-to-read manual that includes

information on the following topics:

■ Help and technical support

■ Using and customizing Windows and other software

■ Controlling audio and video settings

■ Using the Internet

■ Protecting your files

■ Playing and recording media

■ Networking

■ Maintenance and troubleshooting

To access the online User Guide:

■ Click Start, All Programs, then click Gateway Documentation.

Gateway contact information

Gateway model and serial number

The label shown in this section is for

informational purposes only. Label

information varies by model, features

Important

ordered, and location.

The label on the bottom of your notebook contains information that identifies

your notebook model and its features. Gateway Customer Care will need this

information if you call for assistance.

Online Support:

Tech Support Phone:
Hours:
Model:

S/No:

2

www.gateway.com

Microsoft Certificate of Authenticity

The Microsoft Certificate of Authenticity label found on the bottom of your
notebook includes the product key code for your operating system.

For more information

For more information about your notebook, visit Gateway’s Support page at

support.gateway.com

Support page also has links to additional Gateway documentation and detailed
specifications.

or the Web address shown on your notebook’s label. The

Microsoft Certificate of Authenticity

3

CHAPTER 1: About this reference www.gateway.com

4

CHAPTER 2

Checking Out Your Gateway Notebook

•Identifying features

• Connecting the AC adapter

• Connecting the dial-up modem

• Connecting to a cable or DSL modem or to an Ethernet
network

• Starting your notebook

• Turning off your notebook

• Restarting (rebooting) your notebook

• Using the status indicators

•Using the keyboard

• Using the EZ Pad touchpad

•Adjusting the volume

• Turning your wireless radio on or off

• Using the DVD drive

• Using the memory card reader

• Adding and removing a PC Card

• Changing batteries

• Recalibrating the battery

• Ordering accessories

5

CHAPTER 2: Checking Out Your Gateway Notebook www.gateway.com

Identifying features

Front

Volume control

Microphone jack

Headphone jack

Memory
card reader

LCD panel release latch

Component Icon Description

■

Volume control

Microphone jack Plug a microphone into this jack.

Headphone jack Plug amplified speakers or headphones into this jack. The built-in

Memory card reader Insert a memory card from a digital camera, MP3 player, PDA, or

LCD panel release latch Slide to open the LCD panel.

Press the button to the right to increase the volume.

■

Press the button to the left to decrease the volume.

■

Press the button in to mute the volume.

speakers are turned off when speakers or headphones are plugged
into this jack.

cellular telephone into the memory card reader. For more information,
see “Using the memory card reader” on page 25. The memory card
reader supports Memory Stick
MultiMediaCard™, and Secure Digital™ cards.

®

, Memory Stick Pro®,

6

www.gateway.com

Left

Identifying features

Modem jack

Ventilation fan

Monitor port

USB ports

PC Card slot

Component Icon Description

Modem jack Plug a modem cable into this jack. For more information, see “Connecting the

USB ports Plug USB devices (such as a diskette drive, flash drive, printer, scanner, camera,

Ventilation fan Helps cool internal components.

Monitor port Plug an analog VGA monitor or projector into this port. For more information,

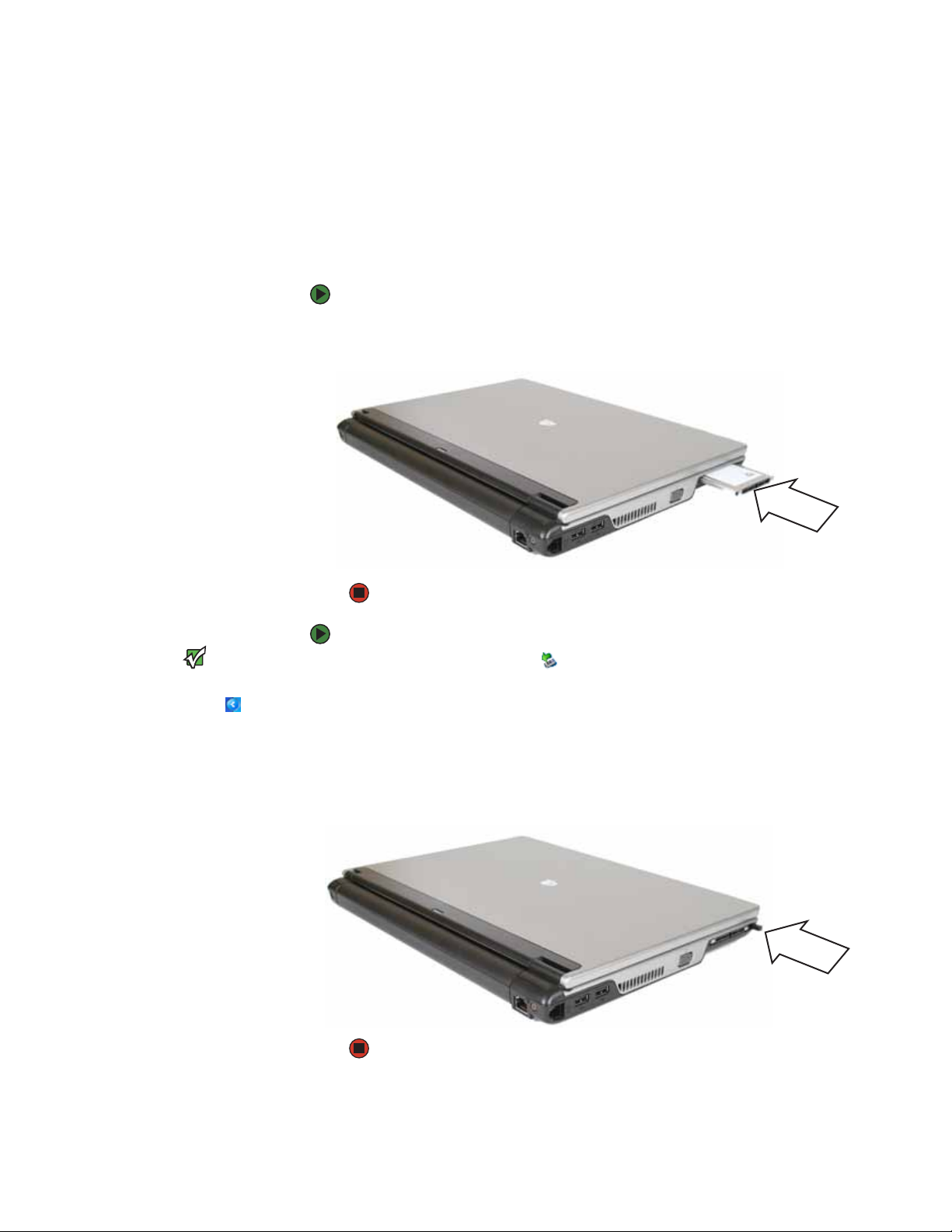

PC Card slot Insert one Type II PC Card into this slot. For more information, see “Adding and

dial-up modem” on page 12.

keyboard, or mouse) into these ports.

Warni ng: Do not work for long periods with the notebook resting on your lap.
If the air vents are blocked, the notebook may become hot enough to harm your
skin.
Caution: Do not block or insert objects into these slots. If these slots are blocked,
your notebook may overheat resulting in unexpected shutdown or permanent
damage to the notebook.
Caution: Provide adequate space around your notebook so air vents are not
obstructed. Do not use the notebook on a bed, sofa, rug, or other similar surface.

see “Viewing the display on a projector or monitor” in the online User Guide.

removing a PC Card” on page 26.

7

CHAPTER 2: Checking Out Your Gateway Notebook www.gateway.com

Right

Back

IEEE 1394 port

Power connector

DVD drive

Component Icon Description

IEEE 1394 port Plug an IEEE 1394 (also known as Firewire® or i.Link®) device (such as a digital

DVD drive Insert CDs or DVDs into this drive. For more information, see “Using the DVD

Power connector Plug the AC adapter cable into this connector.

camcorder) into this 4-pin IEEE 1394 port.

drive” on page 23. To determine the type of drive in the notebook, examine

the drive tray’s plastic cover and compare the logo to those listed in

“Identifying drive types” on page 23.

Ethernet jackKensington lock slot Power/battery charge indicator

Component Icon Description

Kensington™ lock slot Secure your notebook to an object by connecting a Kensington cable lock

to this slot.

■

Power/ battery charge
indicator

LED solid blue - notebook is on, and if the notebook is connected to AC power,
the battery is fully charged.

■

LED blinking blue - notebook is in Standby mode.

■

LED solid purple - battery is charging.

■

LED blinking purple - battery is charging and notebook is in Standby mode.

■

LED blinking red - battery charge is very low and has insufficient power to turn
on the notebook.

■

LED off - notebook is off.

Ethernet jack Plug an Ethernet net work cable into this jack. Plug the other end of the cable

into a cable modem, DSL modem, or an Ethernet network jack. For more
information, see “Connecting to a cable or DSL modem or to an Ethernet

network” on page 13.

8

www.gateway.com

Bottom

Identifying features

Battery

Battery

latch

System

label

Online Support:
Tech Support Phone:
Hours:
Model:
S/No:

Hard

drive

bay

Memory bay

Component Icon Description

Battery Provides power when the notebook is not plugged into AC power.

Battery lock Slide to unlock the battery. For more information, see “Changing batteries”

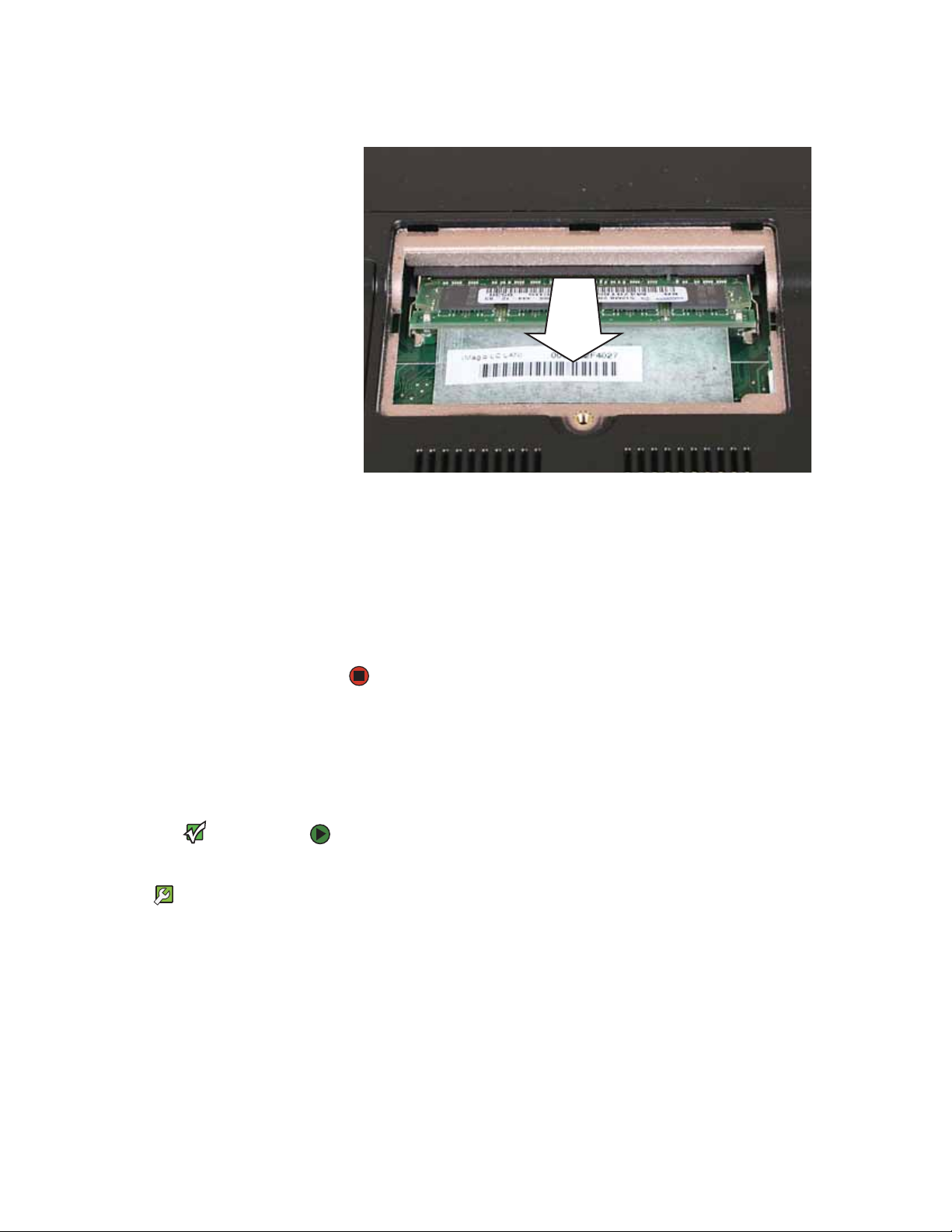

Memory bay Install a memory module into this bay. For more information, see “Adding

on page 27.

or replacing memory” on page 32.

Battery
lock

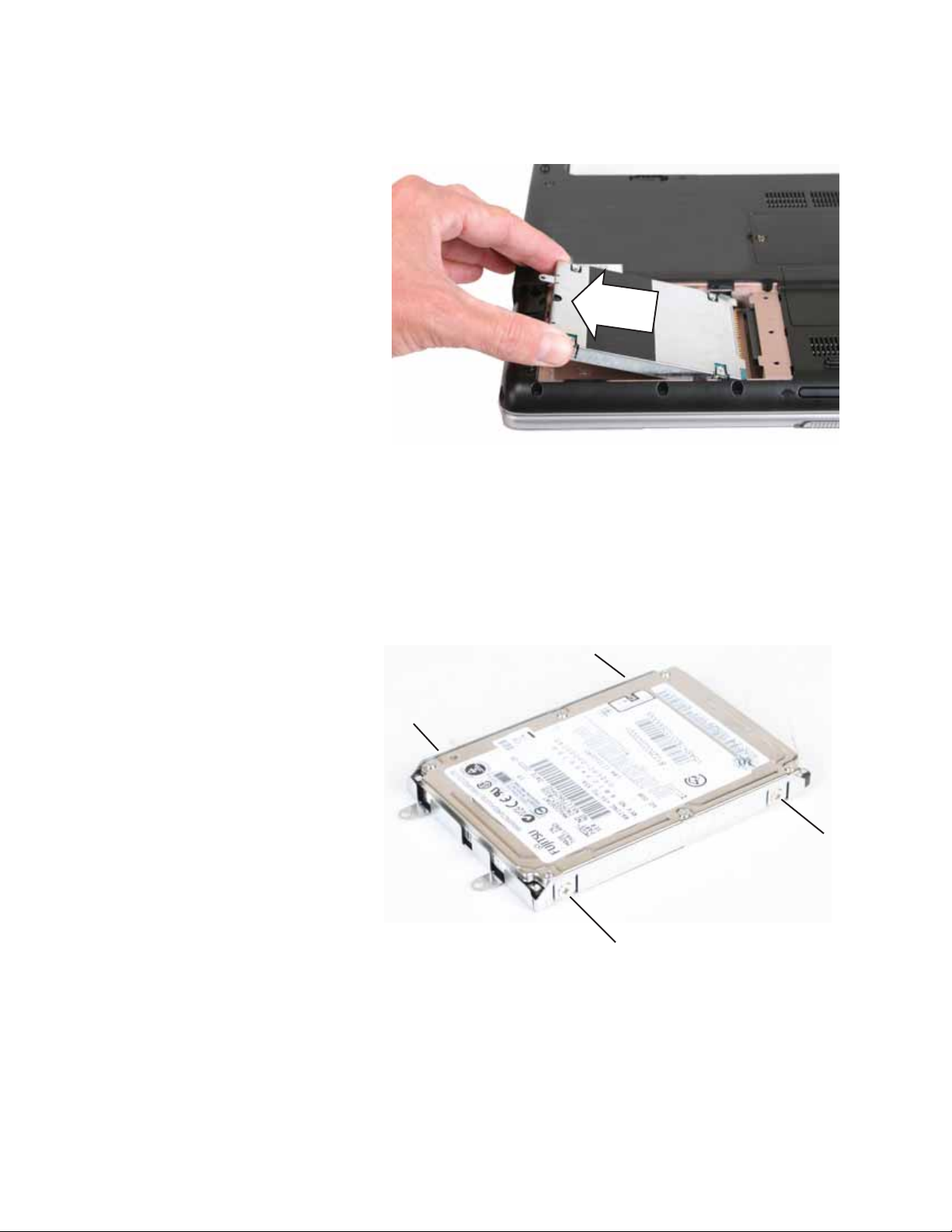

Hard drive bay The hard drive is located in this bay. For more information, see “Replacing

the hard drive kit” on page 37.

System label Includes the product model number. For more information, see “Gateway

model and serial number” on page 2.

Battery latch Slide to release the battery. For more information, see “Changing batteries”

on page 27.

9

CHAPTER 2: Checking Out Your Gateway Notebook www.gateway.com

Keyboard area

Power button

Keyboard

Status indicators

To uc h pa d

Component Icon Description

Power button Press to turn the power on or off. You can also configure the power button for

Keyboard Provides all the features of a full-sized, computer keyboard. For more

To uc h pa d Provides all the functionality of a mouse. For more information, see “Using the

Status indicators Inform you when a drive is in use or when a button has been pressed that affects

Standby/Resume mode. For more information on configuring the power button
mode, see “Changing Power-Saving Settings” in the online User Guide.

information, see “Using the keyboard” on page 17.

EZ Pad touchpad” on page 20.

how the keyboard is used. For more information, see “Using the status indicators”

on page 16.

10

www.gateway.com

Connecting the AC adapter

Connecting the AC adapter

Do not attempt to disassemble the AC

adapter. The AC adapter has no

user-replaceable or user-serviceable

parts inside. The AC adapter has

dangerous voltages that can cause

serious injury or death. Contact Gateway

about returning defective AC adapters.

Caution

Warnin g

Make sure that you use the AC adapter

that came with your notebook or one of

the same type purchased from Gateway.

Replace the power cord if it becomes

damaged. The replacement cord must be

of the same type and voltage rating as

the original cord or your notebook may

If the battery charge indicator does not

turn blue after three hours, contact

Gateway Customer Care at

be damaged.

Important

support.gateway.com

Important

If the battery is not fully charged before

you use your notebook on battery power

for the first time, the battery life may be

much shorter than you expect. If the

battery life seems short even after being

charged for three hours, the battery may

need to be recalibrated. For information

on recalibrating the battery, see

“Recalibrating the battery” on page 28.

You can run your notebook using an AC adapter or your notebook’s battery. The
battery was shipped to you partially charged. You should use the AC adapter
right away to fully charge the battery. Allow three hours for the battery to fully
charge.

To connect the AC adapter:

1 Connect the power cord to the AC adapter.

.

2 Connect the AC adapter to your notebook’s power connector.

3 Plug the power cord into a wall outlet. The power/battery charge indicator

turns on (see “Back” on page 8 for the location of the power/battery
charge indicator). If the power/battery charge battery charge indicator
does not turn on, complete the following steps until it turns on:

a Unplug the adapter from your notebook, then plug it back in.

b Press FN+F1 to toggle the status lights on and off.

4 When you finish using your notebook for the first time, turn off your

notebook and leave your notebook connected to AC power until the
battery charge indicator turns blue.

11

CHAPTER 2: Checking Out Your Gateway Notebook www.gateway.com

Protecting from power source problems

High voltages can enter your notebook

through both the power cord and the

modem connection. To protect your
notebook and avoid electrical shock, use
a surge protector. If you have a telephone
modem, use a surge protector that has a
modem jack. If you have a cable modem,

use a surge protector that has an

antenna/cable TV jack. During an

electrical storm, unplug both the surge

protector and the modem.

Warnin g

During a power surge, the voltage level of electricity coming into your notebook
can increase to levels far above normal levels and cause data loss or system
damage. Protect your notebook and peripheral devices by connecting them to
a surge protector, which absorbs voltage surges and prevents them from
reaching your notebook.

Connecting the dial-up modem

To reduce the risk of fire, use only No. 26

AWG or larger telecommunications line

Warnin g

cord.

Your notebook has a built-in 56K modem that you can use to connect to a
standard telephone line.

To connect the modem:

1 Insert one end of the modem cable into the modem jack on the left

side of your notebook.

12

2 Insert the other end of the modem cable into a telephone wall jack. The

modem will not work with digital or PBX telephone lines.

3 Start your notebook, then start your communications program.

www.gateway.com

Connecting to a cable or DSL modem or to an Ethernet network

Connecting to a cable or DSL modem or to an Ethernet
network

Your notebook has a network jack that you can use to connect to a cable or DSL
modem or to an Ethernet network.

To connect to a cable or DSL modem or to an Ethernet network:

1 Insert one end of the network cable into the network jack on the back

of your notebook.

2 Insert the other end of the network cable into a cable modem, DSL

modem, or Ethernet network jack.

13

CHAPTER 2: Checking Out Your Gateway Notebook www.gateway.com

Starting your notebook

Do not work for long periods with the

notebook resting on your lap. If the air

vents are blocked, the notebook may

become hot enough to harm your skin.

Provide adequate space around your

notebook so air vents are not obstructed.

Do not use the notebook on a bed, sofa,

For more information about changing

the power button mode, see “Changing

Power-Saving Settings” in the online User

rug, or other similar surface.

Warnin g

Caution

Tips & Tricks

Guide.

To start your notebook:

1 Slide the latch on the front of your notebook, then lift the LCD panel.

2 Press the power button located above the keyboard.

3 If you are starting your notebook for the first time, follow the on-screen

instructions to set up your notebook.

Waking up your notebook

For more information about Standby

mode, see “Changing power modes” in

Tips & Tricks

the online User Guide.

When you have not used your notebook for several minutes or if you close the
LCD panel without turning off your notebook, it may enter a power-saving
mode called Standby. While in Standby, the power indicator flashes. If your
notebook is in Standby mode, press the power button to “wake” it up.

T urning off your notebook

If for some reason you cannot use the

Turn Off Computer option in Windows to

turn off your notebook, press and hold

the power button for about five seconds,

Important

then release it.

To turn off your notebook:

1 Click Start, then click Turn Of f Computer. The Turn Off Computer dialog

box opens.

2 Click Turn O ff. Windows shuts down and turns off your notebook.

14

www.gateway.com

Restarting (rebooting) your notebook

Restarting (rebooting) your notebook

If your notebook does not turn off

immediately, complete the following

steps until the notebook turns off:

1. Press and hold the power button for
about five seconds, then release it.

2. Unplug the power cord and re move the
battery for more than 10 seconds.

Important

If your notebook does not respond to keyboard, touchpad, or mouse input, you
may have to close programs that are not responding. If closing unresponsive
programs does not restore your notebook to normal operation, you may have
to restart (reboot) your notebook.

To close unresponsive programs and restart your notebook:

1 Press CTRL+ALT+DEL. The Windows Security dialog box opens.

2 Click Task Man ager. The Windows Task Manager dialog box opens.

3 Click the program that is not responding.

4 Click End Task.
5 Click X in the top-right corner of the Windows Task Manager dialog box.

6 If your notebook does not respond, turn it off, wait ten seconds, then turn

it on again.

As a part of the regular startup process, a program to check the disk status
runs automatically. When the checks are finished, Windows starts.

15

CHAPTER 2: Checking Out Your Gateway Notebook www.gateway.com

A

1

Using the status indicators

If none of the indicators are on, you may
need to press F

N+F1 to toggle the status

indicators on and off.

Important

Status indicators inform you when a drive is being used or when a button has
been pressed that affects how the keyboard is used. The status indicators are
located below the touchpad.

AC power

Wireless network

Num lock

Caps lock

Drive

Indicator Icon Description

AC power

Wireless network
(optional)

Caps lock

Num lock

Drive

■

LED on - AC power is connected.

■

LED off - AC power is not connected.

■

LED on - Wireless network is turned on.

■

LED off - Wireless network is turned off.

■

LED on - Caps lock is turned on.

■

LED off - Caps lock is turned off.

■

LED on - Numeric keypad is turned on.

■

LED off - Numeric keypad is turned off.

■

LED blinking - The hard drive or DVD drive is in use.

■

LED off - The hard drive or DVD drive is not in use.

16

www.gateway.com

Using the keyboard

Using the keyboard

You can attach an external keyboard to

the notebook using a USB port. You do

not need to shut down the notebook to

Tips & Tricks

connect a USB keyboard.

Your notebook features a full-size keyboard that functions the same as a desktop
computer keyboard. Many of the keys have been assigned alternate functions,
including shortcut keys for Windows, function keys for specific system
operations, and the Num Lock keys for the numeric keypad.

Function keys/System keys

Numeric

keypad

F

N key

Navigation
keys

Arrow
keys

Key types

Windows key

Application key

The keyboard has several different types of keys. Some keys perform specific
actions when pressed alone and other actions when pressed in combination
with another key.

Key type Icon Description

Function keys Press these keys labeled F1 to F12 to perform ac tions in programs. For example,

System keys Press these colored keys in combination with the F

Navigation keys Press these keys to move the cursor to the beginning of a line, to the end of a

Arrow keys Press these keys to move the cursor up, down, right, or left.

Application key Press this key for quick access to shortcut menus and help assistants in Windows.

pressing F1 may open help.
Each program uses different function keys for different purposes. See the
program documentation to find out more about the function key actions.

N key to perform specific

actions. For more information, see “System key combinations” on page 18.

line, up the page, down the page, to the beginning of a document, or to the
end of a document.

17

CHAPTER 2: Checking Out Your Gateway Notebook www.gateway.com

1

Key type Icon Description

System ke y combinat ions

Windows key Press this key to open the Windows Start menu. This key can also be used in

combination with other keys to open utilities like F (Search utility), R (Run
utility), and E (Explorer utility).

FN key Press the FN key in combination with a colored system key to perform a specific

action.

Numeric keypad Use these keys to type numbers when the numeric keypad is turned on. Press

N+ to turn on the numeric keypad.

F

When you press the FN key and a system key at the same time, your notebook
performs the action identified by the text or icon on the key.

Press and hold FN, then

To...

press this system key...

Toggle the status indicators on or off. For more information, see “Using

the status indicators” on page 16.

Turn the optional wireless network on or off. For more information, see
“Wireless Networking” in the online User Guide.
Warni ng: Radio frequency wireless communication can interfere with
equipment on commercial aircraft. Current aviation regulations require
wireless devices to be turned off while traveling in an airplane. 802.11G
(also known as wireless Ethernet or Wifi) communication devices are
examples of devices that provide wireless communication.

Enter Standby mode. Press the power button to leave Standby mode. For
more information, see “Changing Power-Saving Settings” in the online
User Guide.

Toggle the notebook display in the following order:

■

The LCD

■

An external monitor or projector (a monitor or projector must be plugged into
the monitor port on your notebook)

■

Both displays at the same time

For more information, see “Viewing the display on a projector or monitor”
in the User Guide.

Decrease the LCD panel brightness.

Increase the LCD panel brightness.

Play or Pause the CD or DVD.

18

www.gateway.com

Using the keyboard

Press and hold FN, then
press this system key...

To...

Stop playing the CD or DVD.

Skip back one CD song or DVD track.

Skip ahead one CD song or DVD track.

Turn on NumLock so you can use the numeric keypad. Press this key
combination again to turn off Num Lock. The Num Lock status indicator
appears when this function is turned on.

19

CHAPTER 2: Checking Out Your Gateway Notebook www.gateway.com

Using the EZ Pad touchpad

For instructions on how to adjust the

double-click speed, pointer speed,

right-hand or left-hand configuration,

and other touchpad settings, see

“Changing the mouse or touchpad

settings” in the online User Guide.

You received your notebook with the EZ

Pad touchpad set to only accept clicking

by using the touchpad buttons. You can

change this feature to allow tapping on

the touchpad to simulate clicking the left

button. For more information, see

“Changing the mouse or touchpad

settings” in the online User Guide.

Tips & Tricks

Tips & Tricks

The EZ Pad™ consists of a touchpad, two buttons, and a scroll zone.

To uc h pa d

Scroll
zone

Left button

Right button

When you move your finger on the touchpad, the pointer (arrow) on the screen
moves in the same direction. You can use the scroll zone to scroll through
documents. Use of the scroll zone may vary from program to program.

20

You can use the EZ-Pad left and right buttons below the touchpad to select
objects.

To.. . Do this...

Move the pointer on the
screen.

Mo ve you r f in ge r a rou nd on
the touchpad. If you run out
of space and need to move
the pointer farther, lift your
finger, move it to the
middle of the touchpad,
then continue moving your
finger.

www.gateway.com

Adjusting the volume

To.. . Do this...

Select an object on the
screen.

Start a program or open a
file or folder.

Access a shortcut menu or
find more information
about an object on the
screen.

Move an object on the
screen.

Position the pointer over
the object. Quickly press
and release the left button
once. This action is called
clicking.

Position the pointer over
the object. Press the left
button twice in rapid
succession. This action is
called double-clicking.

Position the pointer over
the object. Quickly press
and release the right
button once. This action is
called right-clicking.

Position the pointer over
the object. Press the left
button and hold it down,
then use the touchpad to
move (drag) the object to
the appropriate part of the
screen. Release the button
to drop the object where
you want it.

Adjusting the v olume

For instructions on how to adjust the

volume in Windows, see “Adjusting the

Volume” in the online User Guide.

Tips & Tricks

You can use the volume control to adjust the overall volume of your notebook.

To adjust the overall volume level using hardware controls:

■ If you are using external speakers, turn the knob on the front of the

speakers.

-OR-

Press the volume control on the notebook. For more information, see

“Front” on page 6.

21

CHAPTER 2: Checking Out Your Gateway Notebook www.gateway.com

T urning your wireless radio on or off

Radio frequency wireless com munication

can interfere with equipment on

commercial aircraft. Current aviation
regulations require wireless devices to be
turned off while traveling in an airplane.

IEEE 802.11a, IEEE 802.11b, and
IEEE 802.11g communication devices are
examples of devices that provide wireless

communication.

Warnin g

In environments where the risk of

interference to other devices or services is

harmful or perceived as harmful, the

option to use a wireless device may be

restricted or eliminated. Airports,

hospitals, and oxygen or flammable gas

laden atmospheres are limited examples

where use of wireless devices may be

restricted or eliminated. When in

environments where you are uncerta in of

Warnin g

the sanction to use wireless devices, ask

authorization prior to using or turning on

For more information about using your

“Wireless Networking” in the online User

the applicable authority for

the wireless device.

Tips & Tricks

notebook on a wireless network, see

Guide.

Your Gateway notebook may have a factory-installed wireless networking
mini-PCI card.

To turn the wireless radio on or off:

■ Press FN + F2. The wireless status indicator turns on or off. For the location

of the wireless status indicator, see “Using the status indicators” on

page 16.

22

www.gateway.com

Using the DVD drive

Identifying drive types

Using the DVD drive

You can use your notebook to enjoy a wide variety of multimedia features.

Your Gateway notebook may contain one of the following drive types. Look on
the front of the drive for one or more of the following logos:

If your drive has this logo... This is your drive type... Use your drive for...

ROM/R/RW

DVD drive

Combination
DVD/CD-RW drive

Multi-format double
layer DVD±RW/CD-RW
drive

Installing programs, playing
audio CDs, playing DVDs, and
accessing data. You cannot use
this drive to create CDs or DVDs.

Installing programs, playing
audio CDs, playing DVDs,
accessing data, and recording
music and data to recordable CDs.
You cannot use this drive to create
DVDs.

Installing programs, playing
audio CDs, playing DVDs,
accessing data, recording music
and data to CD-R or CD-RW discs,
and recording video and data to
DVD-R, DVD+R, DVD-RW,
DVD+RW, or double layer DVD+R
discs.
Note: To use the double layer
capability of the double layer
recordable DVD drive, the blank
DVDs you purchase must state
Double Layer, Dual Layer, or DL.
Using other types of blank media
will result in less capacity.

23

CHAPTER 2: Checking Out Your Gateway Notebook www.gateway.com

Inserting a CD or DVD

Manual eject hole

Eject button

To insert a CD or DVD:

1 Press the eject button on the DVD drive. After the tray opens slightly, pull

the disc tray completely open.

When you place a single-sided disc in the

tray, make sure that the label side is

facing up. If the disc has two playable

sides, place the disc so the name of the

side you want to play is facing up.

Important

2 Place the disc in the tray with the label facing up, then press down carefully

on the disc until it snaps into place.

3 Push the tray in until it is closed.

24

www.gateway.com

Using the memory card reader

You can use memory cards to transfer pictures from a digital camera to your
notebook. You can also use the memory card reader to transfer data between
your notebook and a device that uses memory cards, such as a PDA, MP3 player,
or cellular telephone.

Memory card types

The memory card reader supports Memory Stick®, Memory Stick Pro®,
MultiMediaCard™, and Secure Digital™.

Inserting a memory card

To insert a memory card:

■ Insert the memory card into the memory card slot with the label facing

up and the arrow on the label pointing towards the notebook.

Using the memory card reader

Using a memory card

Removing a memory card

Important

hardware icon in the taskbar to

remove the memory card. If you use the

remove hardware icon, your notebook

may not recognize your memory card

reader until you restart your notebook.

Do not use the remove

To access a file on a memory card:

1 Click Start, then click My Computer.

2 Double-click the drive letter (for example, the E: drive), then double-click

the file name.

To remove a memory card:

1 Push the memory card into the notebook. The memory card pops out

slightly.

2 Pull the memory card out of the notebook.

25

CHAPTER 2: Checking Out Your Gateway Notebook www.gateway.com

Adding and removing a PC Card

Your notebook has a PC Card slot (also known as a PCMCIA card slot). This slot
accepts one Type II card. You do not need to restart your notebook when
changing most cards because your notebook supports hot-swapping.
Hot-swapping means that you can insert a PC Card while your notebook is
running. If your PC Card does not work after hot-swapping, see the PC Card
manufacturer’s documentation for further information.

To insert a PC Card:

■ Push the card firmly into the PC Card slot, label-side up, until the outer

edge of the card is flush with the side of your notebook.

If the remove hardware icon does not
appear on the taskbar, click the show

hidden icons button.

Important

To remove a PC Card:

1 Click the remove hardware icon in the taskbar, the PC Card name, then

click Stop.

-OR-

Turn off your notebook.

2 Release the eject button by pressing the PC Card eject button once.

3 Eject the PC Card by pressing the eject button again.

26

www.gateway.com

Changing batteries

Changing batteries

Danger of explosion if battery is

Replace only with a battery specifically

manufactured for your Gateway

notebook. Discard used batteries

according to local hazardous material

The battery used in this device may

present a fire or chemical burn hazard if

mishandled. Do not disassemble, heat

above 212°F (100°C), or incinerate.

Dispose of used battery promptly. Keep

Warnin g

incorrectly replaced.

regulations.

away from children.

If your notebook is connected to AC power, you can change the battery while
the notebook is turned on. If your notebook is not plugged into an AC outlet,
you must turn the notebook off while changing the battery.

To change the battery:

1 If your notebook is on and is connected to AC power, go to Step 2.

-OR-

If your notebook is on and is no t plug ged into an AC out let, save you r work
and turn off your notebook.

2 Close the LCD panel.

3 Turn your notebook over so the bottom is facing up.

4 Slide the battery lock to the unlocked position, then slide the battery

release latch.

5 Slide the battery out of the notebook.

6 Slide a recharged battery into the notebook until it snaps into place.

7 Slide the battery lock to the locked position.

27

CHAPTER 2: Checking Out Your Gateway Notebook www.gateway.com

8 Turn your notebook over.

9 Open the LCD panel.

Recalibrating the battery

Do not interrupt the battery recalibration

process. If recalibration is interrupted,

you must start the process over again.

Important

If your notebook unexpectedly goes into Standby mode while you are using it
but the battery charge is not low, you may need to recalibrate your battery. You
should also recalibrate the battery periodically to maintain the accuracy of the
battery gauge.

To recalibrate the battery:

1 Close all open files and programs.

2 Connect your notebook to AC power and let the battery charge

completely.

3 Disconnect the AC power and restart your notebook.

4 Completely discharge the battery by doing the following:

a From the desktop, right-click on the power icon, then select Adjust

Power Properties.

b Click the Power Schemes tab.

c Click the arrow button to open the Power Schemes list, then click

Always On.

d Click the Alarms tab.

e Click to clear the Low battery alarm and Critical battery alarm

check boxes. Let the battery drain until your notebook
automatically turns off.

28

5 After the battery is completely drained, reconnect your notebook to AC

power.

6 Charge the battery completely until the battery status indicator turns blue.

7 When you are ready to use your notebook again, do the following:

a From the desktop, right-click the power icon, then select Adjust

Power Properties.

b Click the Power Schemes tab.

c Click the arrow button to open the Power Schemes list, then click

Portable/Laptop.

d Click the Alarms tab.

e Click to select the Low battery alarm and Critical battery alarm

check boxes.

www.gateway.com

Ordering accessories

To order accessories, visit the Accessory Store at accessories.gateway.com.

Batteries

If you run your notebook on battery power for extended periods, you may want
to buy an additional battery so you can swap batteries when necessary. See

“Changing batteries” on page 27 for more information about using an

additional battery.

Carrying cases

Gateway has large-capacity carrying cases if you need additional space for
accessories or supplies.

Memory

Large programs, such as multimedia games or graphics programs, use a lot of
memory. If your programs are running more slowly than you think they should,
try adding more memory. See “Adding or replacing memory” on page 32 for
more information.

Printers

You can attach almost any type of printer to your notebook. The most common
types are inkjet and laser printers, which print in color or black and white.

Ordering accessories

Inkjet printers and cartridges are relatively inexpensive, but they are slower than
laser printers. Using an inkjet color printer, you can print pictures, banners, and
greeting cards, as well as documents.

Laser printers and cartridges are more expensive, but they print much faster
than inkjet printers. Laser printers are better than inkjet printers when you are
printing large documents.

USB flash drive

Use a USB flash drive for storing files or transferring files to another computer.

29

CHAPTER 2: Checking Out Your Gateway Notebook www.gateway.com

30

CHAPTER 3

Maintaining and Upgrading Your Notebook

• Preventing static electricity discharge

• Adding or replacing memory

• Replacing the DVD drive

• Replacing the hard drive kit

• Replacing the keyboard

31

CHAPTER 3: Maintaining and Upgrading Your Notebook www.gateway.com

Preventing static electricity discharge

To avoid exposure to dangerous electrical
voltages and moving parts, turn off your

notebook and unplug the power cord,

modem cable, and network cable before

To prevent risk of electric shock, do not

insert any object in to the vent holes of the

Warnin g

opening the case.

Warnin g

notebook.

The components inside your notebook are extremely sensitive to static
electricity, also known as electrostatic discharge (ESD).

Before installing or replacing components, follow these guidelines:

■ Avoid static-causing surfaces such as carpeted floors, plastic, and packing

foam.

■ Remove components from their antistatic bags only when you are ready

to use them. Do not lay components on the outside of antistatic bags
because only the inside of the bags provide electrostatic protection.

Before installing or replacing

components, you should read and

understand the information in this

Important

section.

■ Always hold components by their edges. Avoid touching the edge

connectors. Never slide components over any surface.

■ Wear a grounding wrist strap (available at most electronics stores) and

attach it to a bare metal part of your workbench or other grounded
connection.

■ Touch a bare metal surface on your workbench or other grounded object.

Adding or replacing memory

Use only memory modules designed for

your Gateway notebook.

You need a small Phillips screwdriver to

Important

Tools Required

replace memory.

Your notebook uses memory modules called SO-DIMMs (Small Outline Dual
Inline Memory Modules). The modules are available in various capacities and
any module can be placed in any slot.

32

Memory bay

To add or replace memory modules:

1 Follow the guidelines under “Preventing static electricity discharge” on

page 32.

2 Turn off your notebook.

3 Disconnect the AC adapter, modem cable, and network cable.

www.gateway.com

Adding or replacing memory

4 Disconnect all peripheral devices and remove any PC cards.

5 Turn your notebook over so the bottom is facing up, then remove the

battery. For more information, see “Changing batteries” on page 27.

6 Remove the memory bay cover screw.

Screw

7 Slide the memory bay cover, then remove it.

8 If you are removing a module, gently press outward on the clip at each

end of the memory module until the module tilts upward.

Clip

Clip

33

CHAPTER 3: Maintaining and Upgrading Your Notebook www.gateway.com

9 Pull the memory module out of the slot.

10 Hold the new or replacement module at a 30-degree angle and press it

into the empty memory slot. This module is keyed so it can only be
inserted in one direction. If the module does not fit, make sure that the
notch in the module lines up with the tab in the memory bay.

11 Replace the memory bay cover, then replace the cover screw.

12 Insert the battery, then turn your notebook over.

13 Connect the power adapter, modem cable, and network cable, then turn

on your notebook.

Replacing the DVD drive

If your DVD drive becomes damaged, you can replace it with a similar drive
obtained from Gateway.

Replace the DVD drive only with a similar

You need a small Phillips screwdriver to

drive provided by Gateway.

Important

Tools Required

replace the DVD drive.

To replace the DVD drive:

1 Make sure that the DVD drive is empty.

2 Follow the guidelines under “Preventing static electricity discharge” on

page 32.

3 Turn off your notebook.

4 Disconnect the AC adapter, modem cable, and network cable.

5 Disconnect all peripheral devices and remove any PC Cards.

34

6 Turn your notebook over so the bottom is facing up, then remove the

battery. For more information, see “Changing batteries” on page 27.

www.gateway.com

Replacing the DVD drive

7 Remove the two DVD drive screws.

Screw

Screw

8 Turn the notebook over so the top is facing up.

9 Insert a straightened paper clip into the DVD drive’s manual eject hole,

push in the paper clip to eject the drive tray, then pull the drive tray open.

35

CHAPTER 3: Maintaining and Upgrading Your Notebook www.gateway.com

10 Slide the drive out of the notebook.

11 Insert the new drive into the notebook.

12 Turn the notebook over so the bottom is facing up.

13 Replace the two screws.

14 Insert the battery, then turn your notebook over.

15 Connect the power adapter, modem cable, and network cable, then turn

on your notebook.

36

www.gateway.com

Replacing the hard drive kit

Replacing the hard drive kit

You need a small Phillips screwdriver to

Tools Required

replace the hard drive kit.

If you would like more hard drive capacity, you can replace your original drive
with a higher-capacity drive.

Hard drive bay

To replace the hard drive kit:

1 Create a Drivers and Applications Recovery disc. For more information, see

“Creating Drivers and Applications Recovery discs” in the online User
Guide.

2 Print the “Recovering Your System” chapter from the online User Guide for

use in Step 22.

3 Back up any data you want to transfer to the new hard drive. For more

information, see “Backing up files” in the online User Guide.

4 Follow the guidelines under “Preventing static electricity discharge” on

page 32.

5 Turn off your notebook.

6 Disconnect the AC adapter, modem cable, and network cable.

7 Disconnect all peripheral devices and remove any PC cards.

8 Turn your notebook over so the bottom is facing up, then remove the

battery. For more information, see “Changing batteries” on page 27.

37

CHAPTER 3: Maintaining and Upgrading Your Notebook www.gateway.com

9 Remove the hard drive bay cover screw.

Screw

10 Slide the hard drive bay cover, then remove it.

11 Remove the two screws securing the hard drive kit to the notebook.

Screw

Screw

38

www.gateway.com

Replacing the hard drive kit

12 Slide the old hard drive kit away from the hard drive connector, then lift

the hard drive kit out of your notebook.

13 If your new hard drive already includes the hard drive bracket, go to

Step 18.

-OR-

If you need to move the hard drive bracket from your old hard drive to
your new hard drive, go to Step 14.

14 Remove the four screws that secure the hard drive to the hard drive kit

bracket.

Screw

Screw

Screw

Screw

39

CHAPTER 3: Maintaining and Upgrading Your Notebook www.gateway.com

15 Remove the old drive from the bracket.

16 Insert the new drive into the bracket so the screw holes line up.

17 Replace the screws that secure the bracket to the drive.

18 Slide the new hard drive kit into your notebook, then replace the screws

that secure the hard drive kit to the notebook.

19 Replace the hard drive bay cover, then replace the cover screw.

20 Insert the battery, then turn your notebook over.

21 Connect the power adapter, modem cable, and network cable, then turn

on your notebook.

22 For instructions on installing Windows, your drivers, and your applications,

see the Recovering Your System chapter you printed in Step 2.

40

www.gateway.com

Replacing the keyboard

Replacing the keyboard

Replace the keyboard only with a similar

keyboard provided by Gateway.

You need a small Phillips and a small

flat-blade screwdriver to replace the

Important

Tools Required

keyboard.

Removing the keyboard

If your keyboard becomes damaged, you can replace it with a similar keyboard
obtained from Gateway.

To remove the keyboard:

1 Follow the guidelines under “Preventing static electricity discharge” on

page 32.

2 Turn off your notebook.

3 Disconnect the AC adapter, modem cable, and network cable.

4 Disconnect all peripheral devices and remove any PC Cards.

5 Turn your notebook over so the bottom is facing up, then remove the

battery. For more information, see “Changing batteries” on page 27.

6 Remove the three keyboard cover screws.

Screw

7 Turn the notebook over so the top is facing up.

8 Open the LCD panel to the normal viewing position.

Screw

Screw

41

CHAPTER 3: Maintaining and Upgrading Your Notebook www.gateway.com

9 Insert the small flat-blade screwdriver or non-marring tool under the

keyboard cover near the power button and gently pry it up.

Inserting a piece of cloth between the

screwdriver and keyboard will help
prevent damage to your notebook.

Important

10 Pull the cover off the notebook. You will hear small snapping sounds as

the cover comes away from the notebook. Be careful not to break off the
cable located under the power button.

42

11 Lift the back edge of the keyboard slightly, then carefully push it toward

the LCD panel to release the keyboard retaining tabs.

www.gateway.com

Replacing the keyboard

12 Carefully rotate the keyboard toward you so it lies keys-down on top of

your notebook. Be careful not to damage the LCD panel.

13 Slide the brown keyboard connector clip to the front of the notebook, then

remove the keyboard cable. Be careful not to touch or damage any other
components.

Connector

43

CHAPTER 3: Maintaining and Upgrading Your Notebook www.gateway.com

Installing the keyboard

To install the keyboard:

1 Place the new keyboard keys-down on your notebook with the space bar

away from you.

The keyboard cable is correctly orien ted if

Important

it is not twisted.

2 Make sure the brown keyboard connector clip is fully moved toward the

front of the notebook, insert the keyboard cable into the keyboard
connector, then slide the brown keyboard connector clip back to lock the
keyboard connector in place.

3 Rotate the keyboard toward the LCD panel until the keyboard is

almost face-up.

4 Insert the tabs on the front edge of the keyboard into the slot under the

palm rest. You may need to press down on the keyboard keys along the
front edge of the keyboard to seat the retaining tabs into their
corresponding slots.

If the keyboard cover is not correctly

replaced, your notebook could be

damaged when you try to close the LCD

44

Caution

panel.

5 Gently press the keyboard down until it is flat all the way across. The

keyboard should easily fall into place. Be careful not to damage the
LCD panel.

6 Place the keyboard cover on the notebook, then press down on the cover

in several places until it clicks in place. The cover is correctly mounted
when you can run you finger along the cover and find no loose spots. The
cover should be flat all the way across.

7 Close the LCD panel, then turn the notebook over so the bottom is facing

up.

8 Replace the three keyboard cover screws.

9 Insert the battery, then turn your notebook over.

10 Connect the power adapter, the modem cable, and the network cable,

then turn on your notebook.

APPENDIX A

Safety, Regulatory, and Legal Information

• Important safety information

• Regulatory compliance statements

• Environmental information

•Notices

45

APPENDIX A: Safety, Regulatory, and Legal Information www.gateway.com

Important safety information

Always follow these instructions to help

guard against personal injury and

damage to your Gateway system.

Warnin g

Warnin g

Do not use Gateway products in areas

classified as hazardous locations. Such

areas include patient care areas of

medical and dental facilities,

oxygen-laden environments, or

industrial facilities.

Warnin g

To reduce the risk of fire, use only No. 26

AWG or larger telecommunications line

cord.

Your Gateway notebook is designed and tested to meet the latest standards for
safety of information technology equipment. However, to ensure safe use of this
notebook, it is important that the safety instructions marked on the notebook
and in the documentation are followed.

Setting up your system

■ Read and follow all instructions marked on the notebook and in the

documentation before you operate your notebook. Retain all safety and
operating instructions for future use.

■ Do not use this notebook near water or a heat source such as a radiator.

■ Set up the notebook on a stable work surface.

■ The notebook should be operated only from the type of power source

indicated on the rating label.

■ If your notebook has a voltage selector switch, make sure that the switch

is in the proper position for your area. The voltage selector switch is set
at the factory to the correct voltage.

■ Openings in the notebook case are provided for ventilation. Do not block

or cover these openings. Make sure you provide adequate space, at least
6 inches (15 cm), around the notebook for ventilation when you set up
your work area. Never insert objects of any kind into the notebook
ventilation openings.

■ Some notebook are equipped with a three-wire power cord to make sure

that the notebook is properly grounded when in use. The plug on this cord
will fit only into a grounding-type outlet. This is a safety feature. If you are
unable to insert the plug into an outlet, contact an electrician to install
the appropriate outlet.

■ If you use an extension cord with this notebook, make sure that the total

ampere rating on the products plugged into the extension cord does not
exceed the extension cord ampere rating.

■ If your notebook is fitted with a TV Tuner, cable, or satellite receiver card,

make sure that the antenna or cable system is electrically grounded to
provide some protection against voltage surges and buildup of static
charges.

46

Care during use

■ Do not walk on the power cord or allow anything to rest on it.

■ Do not spill anything on the notebook. The best way to avoid spills is to

avoid eating and drinking near your notebook.

■ Some notebooks have a replaceable CMOS battery on the system board.

There is a danger of explosion if the CMOS battery is replaced incorrectly.
Replace the battery with the same or equivalent type recommended by
the manufacturer. Dispose of batteries according to the manufacturer’s
instructions.

■ When the notebook is turned off, a small amount of electrical current still

flows through the notebook. To avoid electrical shock, always unplug all
power cables and modem cables from the wall outlets before cleaning the
notebook.

www.gateway.com

■ Unplug the notebook from the wall outlet and refer servicing to qualified

personnel if:

■ The power cord or plug is damaged.

■ Liquid has been spilled into the notebook.

■ The notebook does not operate properly when the operating

instructions are followed.

■ The notebook was dropped or the cabinet is damaged.

■ The notebook performance changes.

Replacement parts and accessories

Use only replacement parts and accessories recommended by Gateway.

47

APPENDIX A: Safety, Regulatory, and Legal Information www.gateway.com

Regulatory compliance statements

Wireless guidance

Radio frequency wireless com munication

can interfere with equipment on

commercial aircraft. Current aviation
regulations require wireless devices to be
turned off while traveling in an airplane.

802.11b (also known as wireless Ethernet

or Wifi) and Bluetooth communication

devices are examples of devices that

provide wireless communication.

In environments where the risk of

interference to other devices or services is

harmful or perceived as harmful, the

option to use a wireless device may be

restricted or eliminated. Airports,
Hospitals, and Oxygen or flammable gas
laden atmospheres are limited examples

where use of wireless devices may be

restricted or eliminated. When in
environments where you are uncerta in of

the sanction to use wireless devices, ask

authorization prior to use or turning on

the applicable authority for

Warnin g

Warnin g

the wireless device.

Warnin g

If your notebook came equipped with an

internal embedded wireless device, do

not operate the wireless device unless all

covers and shields are in place and the

notebook is fully assembled.

Caution

Wireless devices are not user serviceable.

Do not modify them in any way.
Modification to a wireless d evice will void
the authorization to use it . Please contact

Only use drivers approved for the country

in which the device will be used. See the

Gateway System Restoration Kit, or

contact Gateway Customer Care for

Gateway for service.

Caution

additional information.

Low power, Radio transmitting type devices (radio frequency (RF) wireless
communication devices), may be present (e mbed ded) in yo ur no tebo ok s yste m.
These devices may operate in the 2.4 GHz (i.e. 802.11b/g LAN & Bluetooth),

5.2 GHz (i.e. 802.11a LAN), and traditional cellular or PCS cellular bands (i.e.
Cellular data modem). The following section is a general overview of
considerations while operating a wireless device.

Additional limitations, cautions, and concerns for specific countries are listed in
the specific country sections (or country group sections). The wireless devices
in your system are only qualified for use in the countries identified by the Radio
Approval Marks on the system rating label. If the country you will be using the
wireless device in, is not listed, please contact your local Radio Approval agency
for requirements. Wireless devices are closely regulated and use may not be
allowed.

The power output of the wireless device or devices that may be embedded in
your notebook is well below the RF exposure limits as known at this time.
Because the wireless devices (which may be embedded into your notebook)
emit less energy than is allowed in radio frequency safety standards and
recommendations, Gateway believes these devices are safe for use. Regardless
of the power levels, care should be taken to minimize human contact during
normal operation.

Measurements have been performed to show that the RF exposure is below
what is considered safe limits; however care should be taken to make sure the
user or bystanders keep the transmitter away from their body when the wireless
device is transmitting. The transmitting antenna installed in the top third of the
lid should be used in a manner to maintain 20 cm (8 inches) from user’s or
bystander’s bodies.

The wireless devices installed in this system are intended to be used indoors.
In some areas, use of these devices outdoors is prohibited.

Some circumstances require restrictions on wireless devices. Examples of
common restrictions are listed to the left.

Every country has different restrictions on

the use of wireless devices. Since your

notebook is equipped with a wireless
device, when traveling between countries
with your notebook, check with the local

Radio Approval authorities prior to any

move or trip for any restrictions on the

use of a wireless device in the destination

48

Important

count ry.

www.gateway.com

United States of America

Wireless devices are not user-serviceable.

Do not modify them in any way.

Modification to a wireless d evice will void

the authorization to use it. Contact

The transmitting device embedded in this

notebook may not be used with any

antenna other than the one provided

In order to comply with FCC requirements
this transmitter must not be operated (or
co-located) in conjunction with any other

transmitter or antenna installed in the

Caution

Gateway for service.

Caution

with the notebook.

Caution

notebook.

Federal Communications Commission (FCC) Intentional emitter per FCC Part 15

Low power, Radio transmitter type devices (radio frequency (RF) wireless
communication devices), operating in the 2.4 GHz band and/or 5.15 – 5.35 GHz
band, may be present (embedded) in your notebook system. This section is only
applicable if these devices are present. Refer to the system label to verify the
presence of wireless devices.

Wireless devices that may be in your system are only qualified for use in the
United States of America if an FCC ID number is on the system label.

The FCC has set a general guideline of 20 cm (8 inches) separation between the
device and the body, for use of a wireless device near the body (this does not
include extremities). This device should be used more than 20 cm (8 inches)
from the body when wireless devices are on. The power output of the wireless
device (or devices), which may be embedded in your notebook, is well below
the RF exposure limits as set by the FCC.

The wireless devices installed in this system are intended to be used indoors.
In some areas, use of these devices outdoors is prohibited.

Operation of this device is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired
operation of the device.

Unintentional emitter per FCC Part 15

This device has been tested and found to comply with the limits for a ClassB
digital device, pursuant to Part 15 of the FCC rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio or television reception. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause interference to radio and television reception, which can
be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:

■ Reorient or relocate the receiving antenna

■ Increase the separation between the equipment and receiver

■ Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected

■ Consult the dealer or an experienced radio/TV technician for help.

Compliance Accessories: The accessories associated with this equipment are:
shielded video cable when an external monitor is connected. These accessories
are required to be used in order to ensure compliance with FCC rules.

49

APPENDIX A: Safety, Regulatory, and Legal Information www.gateway.com

FCC declaration of conformity

Changes or modifications not expressly
approved by Gateway could void the FCC
compliance and negate your authority to

Recycle or dispose of the used notebook

properly according to federal, state and

operate the notebook.

Caution

Caution

local laws.

Warnin g California Proposition 65 Warning

Responsible party:

Gateway Companies, Inc.
610 Gateway Drive, North Sioux City, SD 57049
[phone] Fax: [phone]

Product:

■ Gateway NX200

■ Gateway MX3000 series

This device complies with Part 15 of the FCC Rules. Operation of this product is
subject to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.

This product contains chemicals, including lead, known to the State of California
to cause cancer, birth defects or reproductive harm.

Hg

Warnin g

Mercury Warning

The lamp in this display contains mercury. Do not put in trash. Recycle or dispose
as hazardous waste.

Telecommunications per Part 68 of the Code of Federal Regulations (CFR47)
(applicable to products fitted with USA modems)

Your modem complies with Part 68 of the Code of Federal Regulations (CFR 47)
rules. On the computer or modem card is a label that contains the FCC
registration number and Ringer Equivalence Number (REN) for this device. If
requested, this information must be provided to the telephone company.

A telephone line cord with a modular plug is required for use with this device.
The modem is designed to be connected to the telephone network or premises
wiring using a compatible modular jack which is Part 68-compliant. See
installation instructions for details.

The Ringer Equivalence Number (REN) is used to determine the number of
devices which may be connected to the telephone line. Excessive RENs on a
telephone line may result in the devices not ringing in response to an incoming
call. In most areas, the sum of RENs should not exceed five (5.0). To be certain
of the number of devices that may be connected to a line, as determined by
the total RENs, contact the local telephone company.

If this device causes harm to the telephone network, the telephone company
will notify you in advance that temporary discontinuance of service may be
required. The telephone company may request that you disconnect the
equipment until the problem is resolved.

50

The telephone company may make changes in its facilities, equipment,
operations, or procedures that could affect the operation of this equipment. If
this happens, the telephone company will provide advance notice in order for
you to make necessary modifications to maintain uninterrupted service.

This equipment cannot be used on telephone company-provided coin service.
Connection to party line service is subject to state tariffs. Contact the state
public utility commission or public service commission for information.

www.gateway.com

Canada

To prevent radio interference to licensed

service or co-channel Mobile Satellite

systems, this device is intended to be

operated indoors and away from
windows to provide maximum shielding.
Equipment (or its transmit antenna) that

is installed outdoors is subject to

Wireless devices are not user-serviceable.

Do not modify them in any way.

Modification to a wireless d evice will void

the authorization to use it. Contact

The transmitting device embedded in this

notebook may not be used with any

antenna other than provide with the

The 802.11A radio LAN your notebook

may have been equipped with operates

in the same frequency range as high

power radar, which has priority use, and

may damage the radio LAN if both are

present and being used in the same area.

Gateway for service.

Caution

licensing.

Caution

Caution

notebook.

Caution

When programming or making test calls to emergency numbers:

■ Remain on the line and briefly explain to the dispatcher the reason for the

call.

■ Perform such activities in the off-peak hours such as early morning or late

evenings.

The United States Telephone Consumer Protection Act of 1991 makes it
unlawful for any person to use a computer or other electronic device to send
any message via a telephone fax machine unless such message clearly contains,
in a margin at the top or bottom of each transmitted page or on the first page
of the transmission, the date and time it is sent, an identification of the business,
other entity, or other individual sending the message, and the telephone
number of the sending machine or such business, other entity, or individual.
Refer to your fax communication software documentation for details on how
to comply with the fax-branding requirement.

Industry Canada (IC) Intentional emitter per RSS 210

Low power, Radio transmitter type devices (radio frequency (RF) wireless
communication devices), operating in the 2.4 GHz band and/or 5.15 – 5.35 GHz
band, may be present (embedded) in your notebook system. This section is only
applicable if these devices are present. Refer to the system label to verify the
presence of wireless devices.

Wireless devices that may be in your system are only qualified for use in Canada
if an Industry Canada ID number is on the system label.

As a general guideline, a separation of 20 cm (8 inches) between the wireless
device and the body, for use of a wireless device near the body (this does not
include extremities) is typical. This device should be used more than 20 cm
(8 inches) from the body when wireless devices are on. The power output of the
wireless device (or devices), which may be embedded in your notebook, is well
below the RF exposure limits as set by Industry Canada.

Operation of this device is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired
operation of the device.

Unintentional emitter per ICES-003

This digital apparatus does not exceed the Class B limits for radio noise
emissions from digital apparatus as set out in the radio interference regulations
of Industry Canada.

Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant
les limites applicables aux appareils numériques de Classe B prescrites dans le
règlement sur le brouillage radioélectrique édicté par Industrie Canada.

51

APPENDIX A: Safety, Regulatory, and Legal Information www.gateway.com

Telecommunications per Industry Canada CS-03 (for products fitted with an
IC-compliant mo dem)

The Industry Canada label identifies certified equipment. This certification
means that the equipment meets certain telecommunications network
protective, operation, and safety requirements. The Department does not
guarantee the equipment will operate to the users’ satisfaction.

Before installing this equipment, users should make sure that it is permissible
to be connected to the facilities of the local telecommunications company. The
equipment must also be installed using an acceptable method of connection.
In some cases, the inside wiring associated with a single-line individual service
may be extended by means of a certified connector assembly. The customer
should be aware that compliance with the above conditions may not prevent
degradation of service in some situations.

Repairs to certified equipment should be made by an authorized Canadian
maintenance facility designated by the supplier. Any repairs or alterations made
by the user to this equipment, or equipment malfunctions, may give the
telecommunications company cause to request the user to disconnect the
equipment.

To avoid electrical shock or equipment

malfunction do not attempt to make

electrical ground connections by yourself.

Contact the appropriate inspection

authority or an electrician, as

Warnin g

appropriate.

Japan

Users should make sure, for their own protection, that the electrical ground
connections of the power utility, telephone lines, and internal metallic water
pipe system, if present, are connected together. This precaution may be
particularly important in rural areas.

The Ringer Equivalence Number (REN) assigned to each terminal device
provides an indication of the maximum number of terminals allowed to be
connected to a telephone interface. The termination on an inter face may consist
of any combination of devices subject only to the requirement that the sum of
the Ringer Equivalence Numbers of all the devices does not exceed 5.

52

Japanese Modem Notice

www.gateway.com

Laser safety statement

Use of controls or adjustments or

performance of procedures other than

those specified in this manual may result

in hazardous radiation exposure. To

prevent exposure to laser beams, do not

try to open the enclosure of a CD or DVD

Warnin g

drive.

All Gateway systems equipped with CD and DVD drives comply with the
appropriate safety standards, including IEC 825. The laser devices in these
components are classified as “Class 1 Laser Products” under a US Department
of Health and Human Services (DHHS) Radiation Performance Standard. Should
the unit ever need servicing, contact an authorized service location.

EPA ENERGY STAR

As an ENERGY STAR® Partner, Gateway has determined that this
product meets the ENERGY STAR guidelines for energy efficiency
when used with a computer equipped with a Display Power

ENERGY STAR

Management System.

Environmental information

The product you have purchased contains extracted natural resources that have
been used in the manufacturing process. This product may contain substances
known to be hazardous to the environment or to human health.

To prevent releases of harmful substances into the environment and to
maximize the use of our natural resources, Gateway provides the following
information on how you can responsibly recycle or reuse most of the materials
in your “end of life” product.

Waste Electrical and Electronic Equipment (commonly known as
WEEE) should never be disposed of in the municipal waste stream
(residential garbage collection). The “Crossed-Out Waste Bin” label
affixed to this product is your reminder to dispose of your “end of life”
product properly.

Substances such as glass, plastics, and certain chemical compounds are highly
recoverable, recyclable, and reusable. You can do your part for the environment
by following these simple steps:

■ When your electrical or electronic equipment is no longer useful to you,

“take it back” to your local or regional waste collection administration for
recycling.

■ In some cases, your “end of life” product may be “traded in” for credit

towards the purchase of new Gateway equipment. Call Gateway to see if
this program is available in your area.

■ If you need further assistance in recycling, reusing, or trading in your “end

of life” product, you may contact us at the Customer Care number listed
in your product’s user guide and we will be glad to help you with your
effort.

Finally, we suggest that you practice other environmentally friendly actions by
understanding and using the energy-saving features of this product (where
applicable), recycling the inner and outer packaging (including shipping
containers) this product was delivered in, and by disposing of or recycling used
batteries properly.

53

APPENDIX A: Safety, Regulatory, and Legal Information www.gateway.com

With your help, we can reduce the amount of natural resources needed to
produce electrical and electronic equipment, minimize the use of landfills for
the disposal of “end of life” products, and generally improve our quality of life
by ensuring that potentially hazardous substances are not released into the
environment and are disposed of properly.

Notices

Copyright © 2006 Gateway, Inc.
All Rights Reserved
7565 Irvine Center Drive
Irvine, CA 92618 USA

All Rights Reserved

This publication is protected by copyright and all rights are reserved. No part
of it may be reproduced or transmitted by any means or in any form, without
prior consent in writing from Gateway.

The information in this manual has been carefully checked and is believed to
be accurate. However, changes are made periodically. These changes are
incorporated in newer publication editions. Gateway may improve and/or
change products described in this publication at any time. Due to continuing
system improvements, Gateway is not responsible for inaccurate information
which may appear in this manual. For the latest product updates, consult the
Gateway Web site at www.gateway.com
direct, indirect, special, exemplary, incidental, or consequential damages
resulting from any defect or omission in this manual, even if advised of the
possibility of such damages.

. In no event will Gateway be liable for

In the interest of continued product development, Gateway reserves the right
to make improvements in this manual and the products it describes at any time,
without notices or obligation.

Trademark Acknowledgments

Gateway and the Black-and-White Spot Design are trademarks or registered
trademarks of Gateway, Inc. in the U.S. and other countries. SpotShop,
Spotshop.com, and Your:)Ware are trademarks of Gateway, Inc. Intel, Intel Inside
logo, and Pentium are registered trademarks and MMX is a trademark of Intel
Corporation. Microsoft, MS, MS-DOS, and Windows are trademarks or registered
trademarks of Microsoft Corporation. All other product names mentioned
herein are used for identification purposes only, and may be the trademarks or
registered trademarks of their respective companies.

54

www.gateway.com

Macrovision statement

If your not ebook has a DVD d riv e and an analog TV Out port, the follo wing
paragrap h applies:

This product incorporates copyright protection technology that is protected by
method claims of certain U.S. patents and other intellectual property rights
owned by Macrovision Corporation and other rights owners. Use of this
copyright protection technology must be authorized by Macrovision
Corporation, and is intended for home and other limited viewing uses only
unless otherwise authorized by Macrovision Corporation. Reverse engineering
or disassembly is prohibited.

55

APPENDIX A: Safety, Regulatory, and Legal Information www.gateway.com

56

Index

A

AC adapter

connecting
connector 8

accessories

purchasing

safety precautions 47
application key 17
arrow keys 17
audio

adjusting volume

back button 19

headphone jack 6

microphone jack 6

muting 21

next button 19

pause button 18

play button 18

stop button 19

volume control 6

11

29

21

B

battery

27

bay

changing 27

charge indicator 8

charging 11

installing 27

latch 9

locating 9

purchasing 29

recalibrating 28

recharging 11

release latch 9

replacing 27
bays

battery 27

hard drive 9

memory 9, 32
brightness

adjusting

system keys 18

18

C

cable lock 8
cable modem 8, 13
Caps Lock indicator 16
cards

inserting memory card

inserting PC Card 26

memory card slot 6

memory cards supported 25

PC Card slot 7

25

removing memory card 25
removing PC Card 26

slots 25, 26
carrying case 29
CD

inserting
CD drive

See DVD drive
cellular phone

memory cards 25
Certificate of Authenticity 3
clicking 21
closing unresponsive program 15
connecting

AC adapter

dial-up modem 12

external keyboard 17

keyboard 17

to cable modem 13

to DSL modem 13

to Ethernet 13

to network 13
connections

audio 6

broadband Internet 8, 13

cable modem 8, 13

dial-up modem 7, 12

digital camera 7

digital video camera 8

DSL modem 8, 13

Ethernet 8, 13

external audio 6

external diskette drive 7

external speakers 6

Firewire 8

flash drive 7

headphone 6

i.Link 8

IEEE 1394 8

keyboard 7

microphone 6

modem 7, 12

monitor (VGA) 7

mouse 7

network 8, 13

power 8, 11

printer 7

scanner 7

speaker 6

USB 7

VGA 7

video camera 8
copyright notice 54

24

11

D

dial-up modem 7, 12
digital camera

memory card reader 6
USB port 7

digital video camera

IEEE 1394 port
directional keys 17
display

switching 18
double-clicking 21
dragging 21
drives

DVD

DVD/CD-RW 8, 23

DVD±RW 8, 23

hard drive 9, 37

identifying drive types 23

multi-format DVD±RW 8, 23

replacing hard drive 37

types 23
DSL modem 8, 13
DVD

inserting
DVD drive

identifying

installing 34

locating 8

replacing 34

using 23
DVD/CD-RW drive

See DVD drive
DVD±RW drive

See DVD drive

8, 23

8

24

23

E

electrostatic discharge (ESD) 32
Ethernet

connecting

jack 8, 13
external monitor 7, 18
EZ Pad touchpad

See touchpad

13

F

fan 7
files

opening
Firewire port 8
Fn key 18
folders

21

57

Index www.gateway.com

opening 21

function keys 17

G

Gateway

model number 2, 9
serial number 2
Support 3

H

hard drive

9

bay
indicator 16
installing 37

replacing 37
headphone jack 6
hot-swapping 26

I

i.Link port 8
IEEE 1394 port 8
indicators

See status indicators
inkjet printer

29

installing

battery 27

DVD drive 34

hard drive 37

memory 32

PC Card 26

J

jacks

See connections

K

Kensington cable lock

lock slot
key combinations 18
keyboard

buttons 17

connecting 17

features 17

locating 10

USB port 7
keys

application 17

arrow 17

brightness 18

directional 17

Fn 18

function 17

LCD brightness 18

LCD/CRT 18

navigation 17

numeric keypad 18

8

Pad Lock 19
Standby 18
system 17
system key combinations 18
toggle display 18
Windows 18

L

labels

Microsoft Certificate of

Authenticity
model number 2, 9
serial number 2

laser printer 29
latch

battery

9

LCD panel release 6

LCD panel

release latch 6
switching display 18

LCD/CRT system key 18
lock

Kensington cable 8

M

memory

bay 9
installing 32
purchasing 29
removing 32
replacing 32

memory card reader

locating
memory cards supported 25
using 25

microphone jack 6
Microsoft Certificate of

model number 2
modem

cable
connecting 12, 13
dial-up 7, 12
DSL 8, 13
jack 7, 12

monitor

port
using 18

mouse

USB port
See also touchpad

moving

pointer
screen objects 21

MP3 player

memory cards

6

Authenticity

8, 13

7

7

20

25

3

multimedia

adjusting volume

6, 21

using DVD drive 23

muting sound 6, 21

N

navigation keys 17
network jack 8, 13
networking

3

turning off wireless network 22
turning on wireless network 22

Num Lock

status indicator

16, 19

system key 19

numeric keypad

status indicator

16

using 18

O

opening

files 21
folders 21
LCD panel 6
notebook 6
programs 21
shortcut menu 21

P

PC Card

adding
eject button 26
inserting 26
installing 26
removing 26
slot 26

PCMCIA card

See PC Card

PDA

memory cards

pointer

identifying
moving 20

power

AC adapter
battery 27, 28
button 10, 18
connector 8, 11
indicator 8, 14
source problems 12
Standby mode 14, 18
status indicator 8
turning off notebook 14
turning on notebook 14

printer

inkjet
laser 29

26

25

20

11

29

58

www.gateway.com

Index

USB port 7

programs

closing unresponsive

15

opening 21

projector

using

18

R

RAM

See memory

rebooting notebook

15

recalibrating battery 28
replacing

See installing

resetting notebook

15

restarting notebook 15
right-clicking 21
rocker switch 20

S

safety

general precautions
static electricity 32

scanner

USB port 7

screen objects

getting information 21
moving 21
selecting 21

security features

Kensington cable lock
serial number 2
setting up

safety precautions
shortcut menus

accessing

21

shortcuts

opening menu
shutting down notebook 14, 15
SO-DIMM

See memory
sound

adjusting

21

controls 21

muting 21
speakers

6

jack
Standby

mode

14, 18

system key 18
starting

notebook

14

programs 21
static electricity 32

46

8

46

21

status indicators

battery charge

8

Caps Lock 16
drive activity 16
hard drive 16
location 10
Num Lock 19
numeric keypad 16, 19
Pad Lock 16
power 8

toggle on or off 18
surge protector 12
Suspend 18
system identification label 2, 9
system keys

combinations

18

locating 17

T

technical support

Support 3
touchpad

buttons 20

clicking 21

double-clicking 21

dragging screen objects 21

locating 10

moving pointer 20

moving screen objects 21

opening files, folders, and

programs

21

opening shortcut menu 21

right-clicking 21

rocker switch 20

selecting screen objects 21
turning off

notebook 14, 15

wireless network 18, 22
turning on

notebook

14

wireless network 18, 22

U

upgrading 31
USB port 7

V

VGA port 7
video

monitor port

VGA port 7
volume

adjusting

controls 6, 21

muting 6, 21

7

6, 21

W

waking up notebook 14
Windows

key 18
Product Key Code 3

wireless network

button
turning off 22
turning on 22

18

59

Index www.gateway.com

60

MAN MAGIC LC HW REF R0 11/05
