Instructions for use
Bure
Walker
Bure Standard MANUAL 56-310
Bure S MANUAL 56-300
™
Page 2
Dear User,
Congratulations on obtaining a Bure Walker! These
instructions provide impor tant information on how
to use the walker and how to maintain it.
All of us here at GATE Rehab Development hope
you enjoy using your new product. If you have any
comments, questions or points of view, please
contact us on +46 (0)371 318 00.
Raising and lowering the frame
Adjust the height by undoing the screws on each
side (two pcs). Raise or lower to the desired height
and then lock the screws (2 pcs).
Page 3
Adjusting the handles
To adjust handles to the desired position;
loosen screw, adjust handle, tighten screw.
Left and right adjustment of armrests
The armrests can be adjusted sideways for optimal
support; loosen screw, adjust armrest, tighten screw.
Page 4

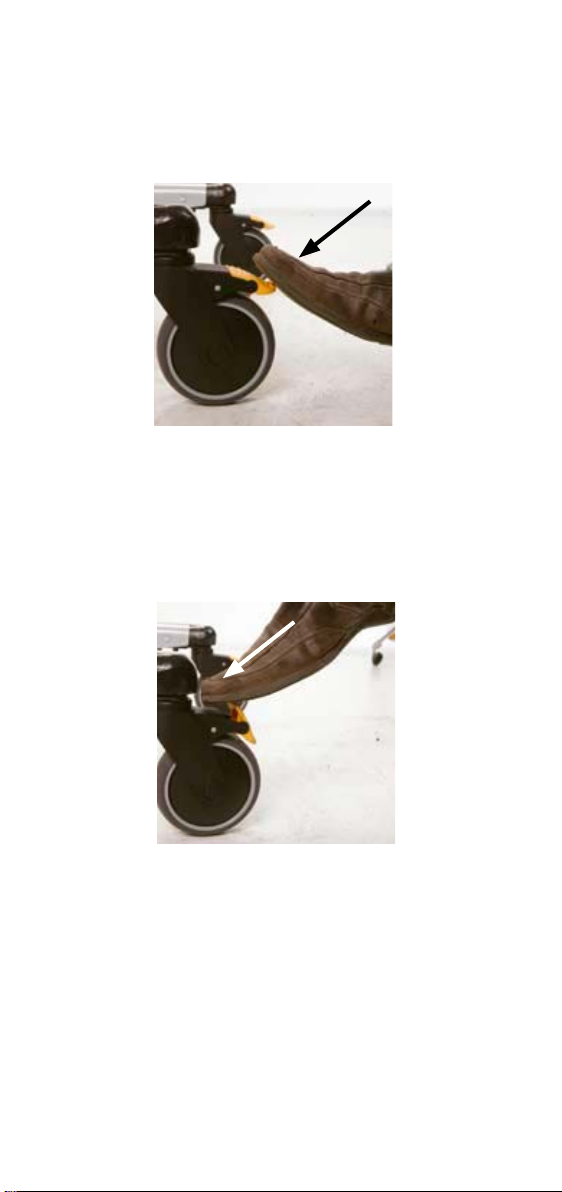

Locking castors
Depress the foot brake to set it and lock the castor.
Unlocking castors
Press down on the protruding part of the brake to
release it.
Page 5
Maintenance
Recommended at least once per year.
Check that Action
General
The walker feels firm/free from play.
The walker does not rattle during
manoeuvres.
The walker is level and all of its
castors are in contact with the floor.
The walker is not dir ty.
Armrests
Armrests are intact and clean.
Armrest widening is functional.
Handle
Grips are not damaged/dirty.
Handle adjustment is functional.
Height adjustment
Raising and lowering are functional.
The walker feels stable at maximum
settings.
There is no play bet ween the vertical
frame and bottom frame.
Height adjustment clamps lock.
Clean with lukewarm soap solution or
alcohol-based cleaning agent
(no petroleum products).
Clean; replace if damaged.
Fit lock screws /plates as required.
Clean with lukewarm soap solution
(no petroleum products).
Replace handle grips.
Fit lock screws /plates as required.
Fit new guide sleeves (in frame ) or end
plugs (in chrome tubes ) as required.
Tighten all lock bolts.
Replace clamps.
Frame parts
There is no mechanical damage.
There are no scratches.
End plugs/lower frame fitted.
Castors/brakes
Castors roll easily/tread not
damaged.
The castors are firmly fastened to the
lower frame.
Castor brakes functional on all
castors.
Handbrake functional.
If damage is present, contact GATE’s
customer services.
Touch up as necessary.
Fit new end plugs.
Clean or replace castors.
NOTE! Castors are always fixed to the
lower frame with thread locker or lock
nuts. Do not dismantle the castors;
replace the whole castor assembly
instead.
Tighten the castor bolt and fit locking
nut or use thread locker (depends on
model).
Replace castor assembly.
Adjust the brake or fit new castors.
Page 6
General maintenance advice
•Cleanthewalkeranditsarmrestscleanasnecessary.
Wipe using a soap solution/surface disinfectant.
•Theproductcanbewashedinapressurewasher/machine
at 60˚C for ten minutes. To increase lifetime, avoid aiming
highpressure water jets at bearings.
•Replacedamagedpartsimmediately;mustbedoneby
experienced personnel.
•Theproductisonlyintendedforindooruse.
Technical specifications
Dimensions apply to walkers with 125 mm castors.
Standard Manual
Part No.
56-310
Width
78 cm
Max user weight
150 kg
Length
80 cm
Height
91–133 c m
Armrest/internal dimension
25–50 cm
CE marked according to MDD 93/42/EEC.
Tested and approved according to EN-11199-3/2005
YOUR HEALTHCARE PARTNER
S Manual
Part No.
56-300
Width
66 cm
Max user weight
150 kg
Length
79 cm
Height
91–133 c m
Armrest/internal dimension
30–45 cm
Would you like to know more?
Contact us at:
Tel: +46 371 31800
Gate Rehab Development AB
Industrigatan 2 | SE-330 21 Reftele
[email protected] | www.gaterd.se
