1
Technical Manual
Amfibi
Hygiene chair
™
Amfibi Double 56-203DB

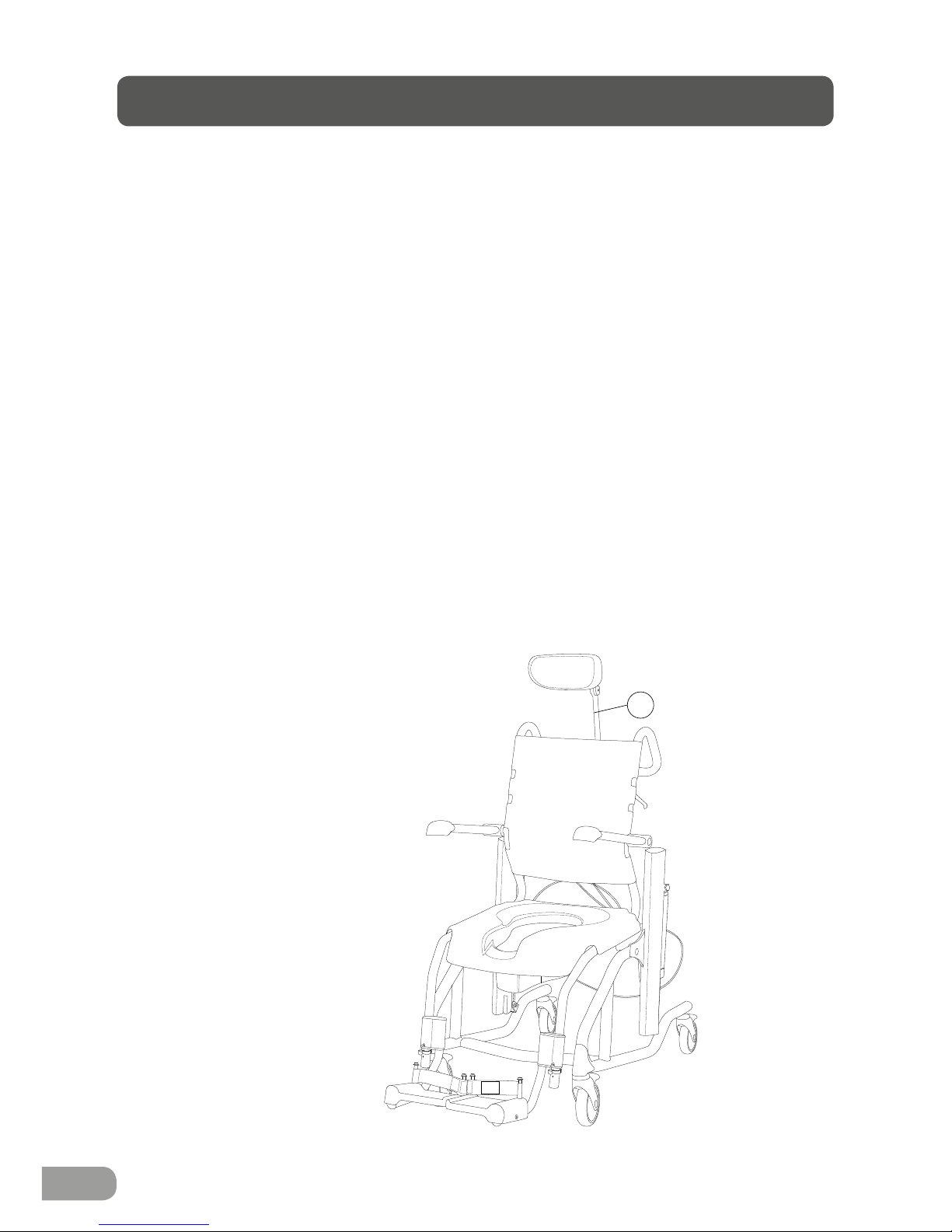

2

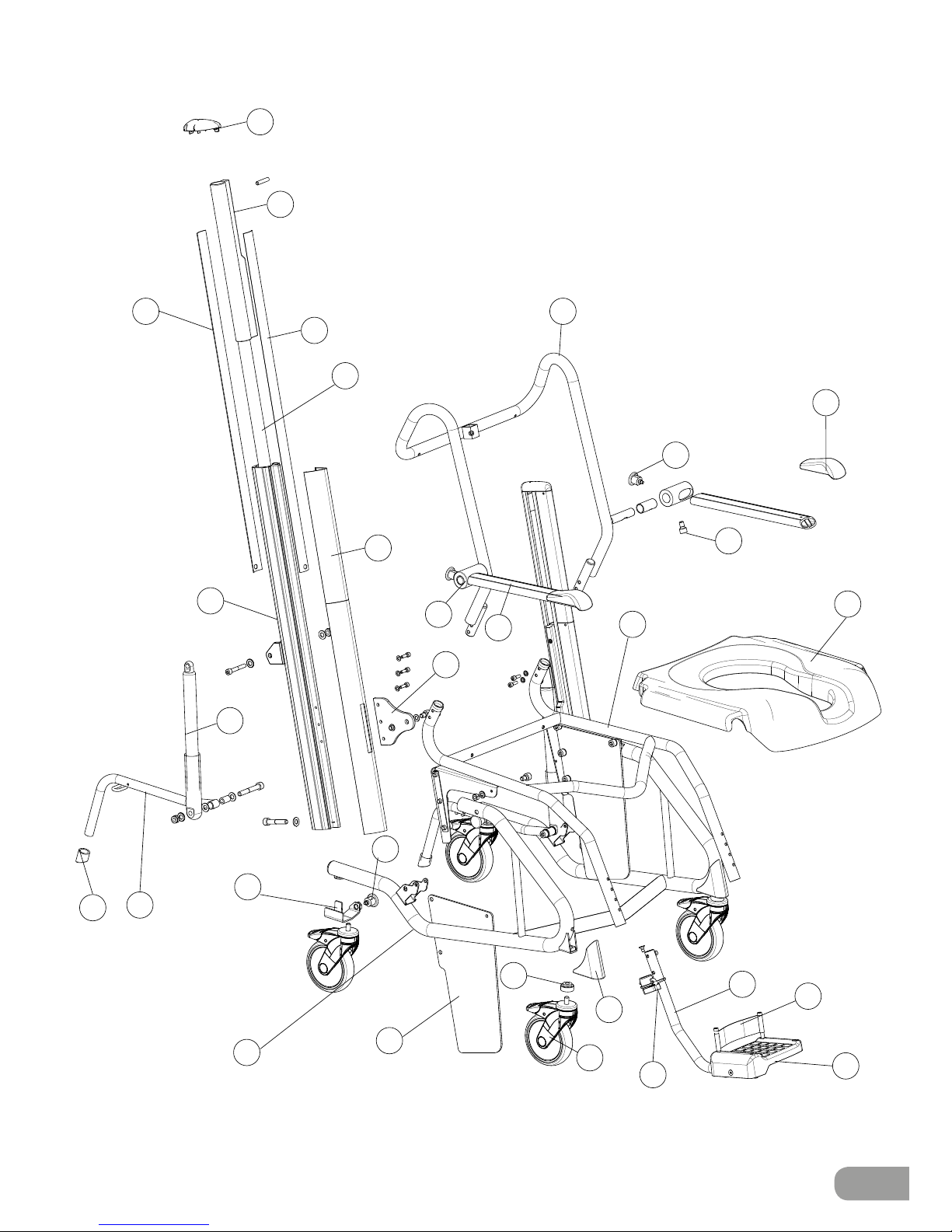

Parts list
1
56-211-ALU Neck support
2
58-220 Rear frame
3
56-256 Armrest (L/R)
4
57-288-1 Armrest lock
5
57-235 Cover plug
6
57-221 Wrist support
7
57-961 Bolt/Armrest
8
58 -201-L/R Aluminium post (L/R)
9
58-202-L/R Cover plate (L/R)
10
57-210 Slider bearing
11
58-203 Lift slider
12
57-212-L/R Upper cover plate (L/R)
13
57-267 Attachment plate
14
57-294-DB Actuator, raise/lower
15
57-250 Plastic seat
16
58-221 Seat frame
17
58-211 Pinch protection (L/R)
18
58-222 Lower frame
19
57-049 Castor
20
57-233 Cover
21
57-238 Spacer
22
58-223-L/R Anti-tip arm (L/R)
23
57-718 Support plug
24
58-227-L/R Holder (L/R)
25
57-288-1 Lock
26
57-297 Actuator, recline
27
57-227-L/ R Footplate (L/R)
28
58-236-L/R Foot support arm (L/R)
29
57-289-L/R Heel restraint (L/R)
30
57-225 Clamp/lock
1
1*
a
2
3
4*
a
b
c
5*
a
6*
a
7*
a
8*
a
9*
a
b
a
b
c
d
11
Nackstöd
Ratt för fastsättning av nackstöd
Ryggstöd
Reglage för lutning
Armstöd med glidskydd
Armstödspropp
Handlovsstöd
Bult för låsning/armstöd
Uppsamlingskärl
Lock
Gaskolv för lutning
Fästförband för gaskolv
Aluminiumram
Invändig slid
Sits
Gejder för uppsmalingskärl
Hjul
Hjulbult
Hållare
Fotstöd
Skruv+mutter+rör (Hälband)
Skruv+mutter (Fotstöd/lutning)
Hälband
Clips för höjdreglering
Reglage för höjdreglering
2
10a
10
10c
10d
8
8a
3
10
8
17
18
13
25
14
3
16
5
7
4
11
12
10
9
2
15
29
27
28
30
19
20
21
23
22
24
26
6
4
Description
Shower seat
Footrest for adjustable-angle leg support
Adjustable backrest (foam)
Shrink tubing 1m
Description
Shower seat
Soft seat
Sanitary pan with lid
Neck support
Restraint (52 cm)
Restraint (47 cm)
Restraint (42 cm)
Splash guard
Armrest lock (pair)
Side supports
Waist strap
Guide
Widening kit/Armrest (+50 mm)
Castor with brake 100 mm
Calf support
Leg support, long/calf support (L/R)
Leg support, short/amputation support (L/R)
Chest strap
Plug for soft seat
Directionally locking wheel 125 mm
Directionally locking wheel 100 mm
Directionally locking wheel 75 mm
Spare parts
Accessories
Part no.
56-205
56-257-L/R
56-258-DOUBLE
57-752-1
Part no.
56-205
56-206
56-209
56-211-ALU
56-212-DOUBLE
56-212
56-212-1
56-213
56-214
56-216
56-217
56-218
56-221
56-222
56-225
56-227-L/R
56-228-L/R
56-229
56-232
56-359
56-355
57-043
5
Cleaning and maintenance
Swivel bearings damaged or stiff .............................Replace complete wheel.
Wheel stiff ................................................................Clean wheel. If necessary remove wheel, grease the
slide bearing with waterproof and tighten the bolt.
Tread damaged ....................................................... Replace wheel.
Wheel forks damaged .............................................. Replace castor.
Frame attachment bolts not securely tightened ........Re-attach to frame; use thread locker
(high strength)
Footplate damaged ................................................. Replace footplate.
Footplate attachment damaged ............................... Replace attachment parts.
Heal restraint missing/damaged ...............................Replace heel restraint.
Seat damaged (cracks, sharp edges ....................... Replace seat.
Seat not properly secure on frame ........................... Replace seat.
Soft seat damaged .................................................. Replace soft seat.
Snap-lock under seat damaged ............................... Replace seat.
Slip protection/wrist support damaged .................... Replace slip protection/wrist support.
(cracks and sharp edges).
Armrest lock damaged ............................................Replace armrest lock.
Electric actuator; raise/lower and recline .................. Check function of remote control and that the
electric actuator attachments are not loose.
Bolts not securely tightened .....................................Tighten all the bolts and make sure lock nuts
are used.
Anti-tip arm ............................................................. Check that the arm can be locked in the down
position. Replace lock or arm as necessary.
Mechanical damage to frame .................................. Replace frame parts as necessary.
Damage to frame paint finish ................................... Touch up the damage with Bure touch-up paint.
Check/Defect Action
Castors
Maintenance should be carried out at least once a year.
Footrests
Seat
Armrests
Rear frame/backrest
Electric actuator
Anti-tilt function
Frame
Rear frame/backrest damaged ................................Replace rear frame/backrest.
Neck support damaged (cracks and sharp edges.... Replace neck support.
6
Technical specications
Materials

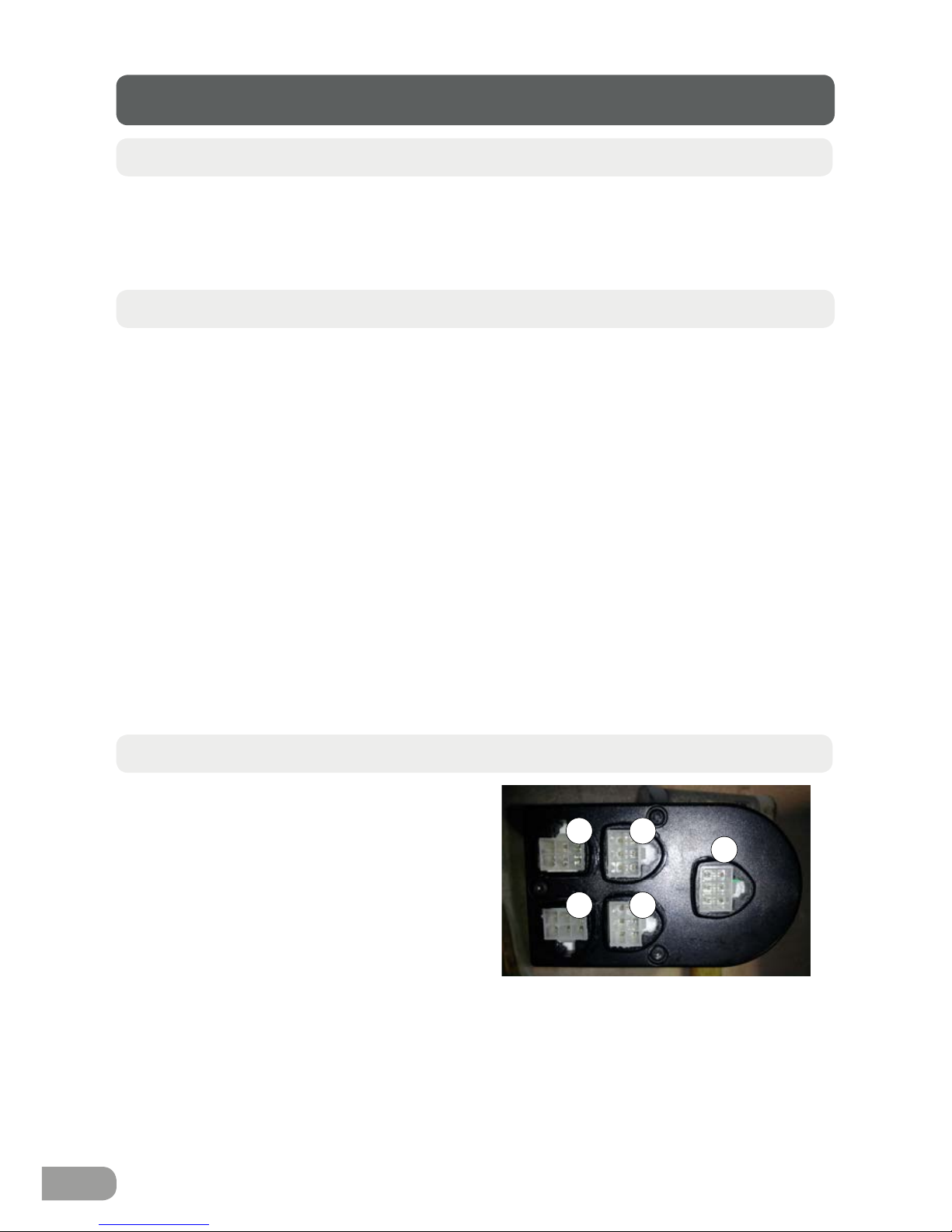

Control box wiring
Electrical system
Aluminium,
Plastic ( PP, PP/GS, PA, PA/GS, TPE )
Steel (carbon steel, stainless steel)
Frame, ED+Powder Coating (polyester)
1. Outlet for motor/height control (master)
2. Outlet for motor/height control (slave)
3. Outlet for motor/incline (master)
4. Outlet for motor/incline (slave)
5. Remote control socket
5
31
42
Actuator Up/Down Tilt-function
Voltage
24V 24V
Gearing
51 27
Pitch
3mm 2 mm
Lifting power
1070N 900N
Traction
1070N 900N
Interlock on lift
17 500N 17 500N
Speed w/o load
9 mm/s 12 mm/s
Speed w load
6mm/s 7,5 mm/s
Amperage
2,2 A 2,2 A
Colour
Black Grey RAL9006
Stroke
400 mm 105 mm
Protection class
IP66 IP66
Control box, battery
Voltage
24V
Capacity
1,4 Ah
Protection class
IP65
Colour
Black
7

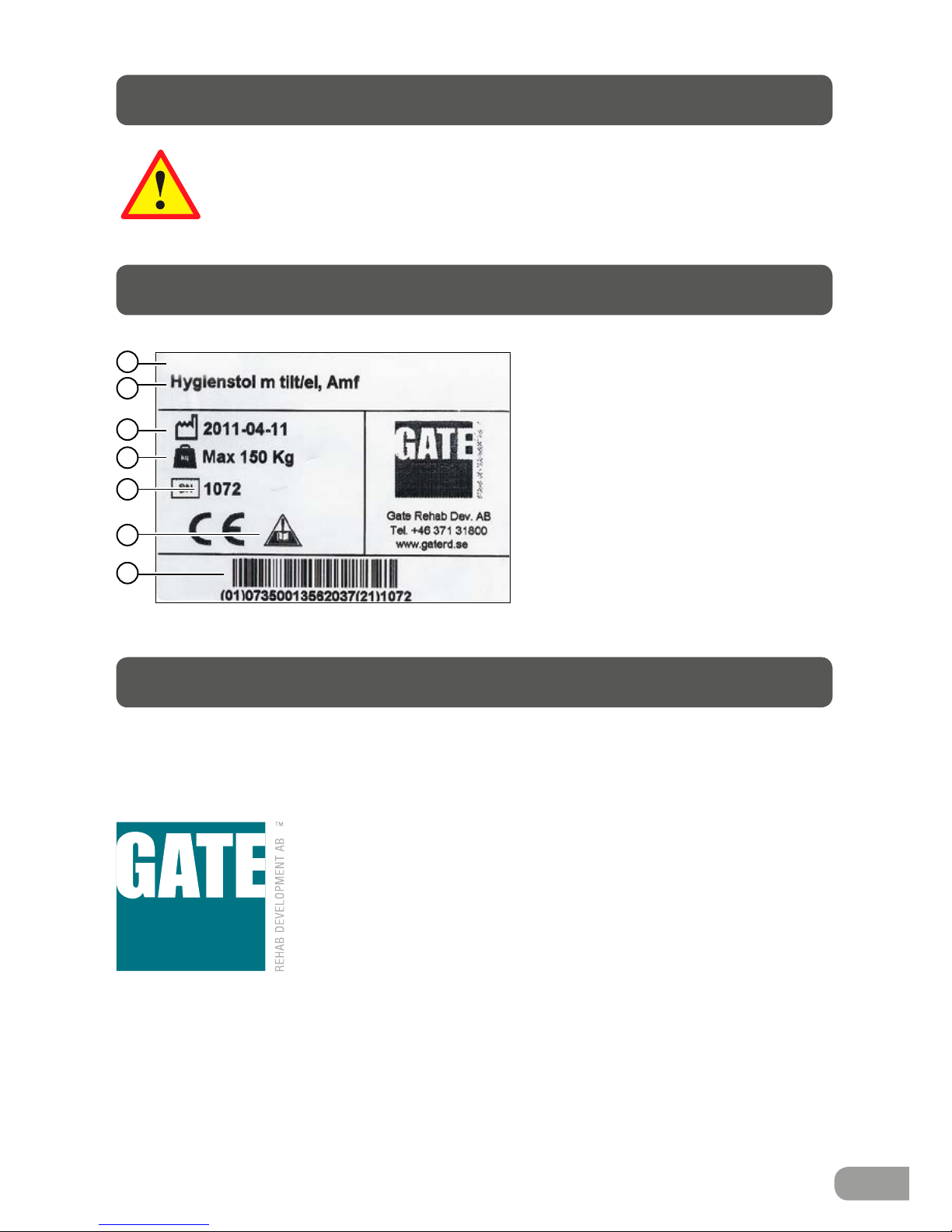

Safety instructions
Warranty
ID label
The hygiene chair may only be used:
• as a shower/hygiene aid
• indoors on hard, level surfaces.
We provide two years warranty against manufacturing faults and five years corrosion
warranty on frame parts (does not apply to wear parts). For further information or
enquiries please contact:
Laddning av batteri
Laddning av batteri ska ske då gåbordet inte
används. (Batteriet kan aldrig överladdas.)
Laddning görs genom att stickpropp ansluts
till eluttag.
Innan första användningen så
bör batteriet laddas 24 timmar..
1. Part number
2. Product name
3. Date of manufacture
4. Max user weight
5. Serial number
6. Warning! Refer to the user
instructions
7. EAN code
Gate Rehab Development AB
Isberga Säteri, 333 91 Smålandsstenar, Sweden
Tel +46 (0)371-31800
info@gaterd.se
www.gaterd.se
3
4
5
6
1
7
2
56-203DB
8
CE marked according to MDD 93/42/EEC.
2014-05-20, 3

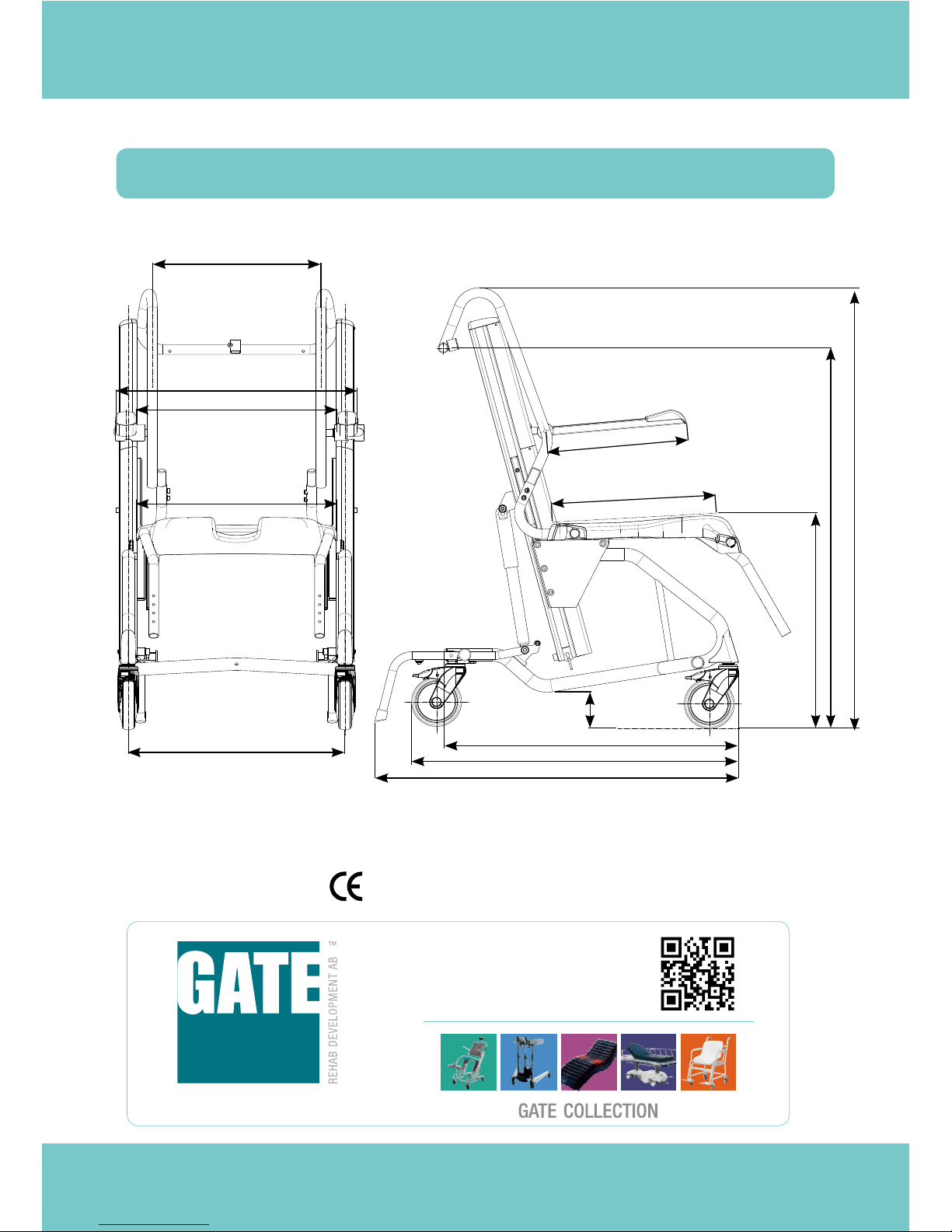

Dimensions
420
601
501
501
540
907
815
733
535-815
960-1240
410
352
1120-1400
93
